Notice KLIPSCH PIC-525-T-SC - page 1
1 / 7
Pick your language and provide your email: we'll send you a specifically translated version.
Product Type Commercial Ceiling Speaker
Brand Klipsch
Model PIC-525-T-SC
Woofer Size 5.25 inches
Tweeter Size 1 inch
Frequency Response 60 Hz - 20 kHz
Sensitivity 88 dB
Impedance 8 ohms (bypass) / 70V or 100V transformer
Power Handling (RMS) 30 W
Power Taps (70V) 1.5, 3, 6, 12, 24, 30 W
Coverage Angle 90° conical
Dimensions (Diameter x Depth) 8.5 x 5.5 inches
Weight 4.2 lbs
Mounting Type Ceiling mount with included tile bridge
Grille Material Steel, paintable
Input Connector Euroblock connector (4-pin)
Safety Rating UL 1480, UL 2043
Recommended Use Background music, paging, commercial spaces
Maintenance Clean grille with damp cloth; do not use solvents
Warranty 5 years limited

Frequently Asked Questions - PIC-525-T-SC KLIPSCH

What is the impedance of the Klipsch PIC-525-T-SC?
The speaker has an 8-ohm nominal impedance in bypass mode. It also features a built-in transformer for 70V or 100V systems with multiple power taps.
How do I install the PIC-525-T-SC ceiling speaker?
Cut a hole in the ceiling tile, feed the wires through the mounting bracket, connect to the Euroblock connector, and secure the speaker using the included dog ears.
What is the power handling of this speaker?
The speaker handles up to 30 watts RMS in 70V/100V mode, and can handle higher power in 8-ohm mode (up to 60W program).
Can I use the PIC-525-T-SC outdoors?
No, this speaker is designed for indoor use only. It is not weatherproof and should be installed in dry, climate-controlled environments.
How do I select the power tap?
The transformer has a rotary switch on the front of the speaker. Turn it to the desired tap (1.5, 3, 6, 12, 24, or 30W) for 70V systems. For 100V, use the corresponding tap labels.
What is the frequency response?
The frequency response is 60 Hz to 20 kHz, ensuring clear reproduction of both bass and treble.
How do I clean the speaker?
Use a soft, dry cloth to dust the grille. For stubborn dirt, lightly dampen the cloth with water. Do not use harsh chemicals or spray liquids directly on the speaker.
Is the grille paintable?
Yes, the steel grille can be painted to match the ceiling. Remove the grille before painting and use a thin coat to avoid clogging the perforations.
What is the warranty period?
Klipsch offers a 5-year limited warranty for the PIC-525-T-SC covering defects in materials and workmanship.
Can I use this speaker with a standard home amplifier?
Yes, in bypass mode (8-ohm), it works with any standard amplifier. Ensure the amplifier can handle a 8-ohm load and the total power does not exceed the speaker's program rating.

User questions about PIC-525-T-SC KLIPSCH

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Pregnant in PDF format for free! Find your manual PIC-525-T-SC - KLIPSCH and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PIC-525-T-SC by KLIPSCH.

USER MANUAL PIC-525-T-SC KLIPSCH

KLIPSCH PIC-525-T-SC

Klipsch®

5.25" SHORT-CAN

PROFESSIONAL IN-CEILING SPEAKER

KLIPSCH PIC-525-T-SC - Klipsch® - 1

radar | Angle | Value | |-------|-------| | 0 | 0 | | 10 | -5 | | 20 | -10 | | 30 | -15 | | 40 | -20 | | 50 | -25 | | 60 | -30 | | 70 | -35 | | 80 | -36 | | 90 | -35 | | 100 | -30 | | 110 | -25 | | 120 | -20 | | 130 | -15 | | 140 | -10 | | 150 | -5 | | 160 | 0 | | 170 | -5 | | 180 | -10 | | 190 | -15 | | 200 | -20 | | 210 | -25 | | 220 | -30 | | 230 | -35 | | 240 | -36 | | 250 | -35 | | 260 | -30 | | 270 | -25 | | 280 | -20 | | 290 | -15 | | 300 | -10 | | 310 | -5 | | 320 | 0 | | 330 | -5 | | 340 | -10 | | 350 | -15 | | 360 | -20 |

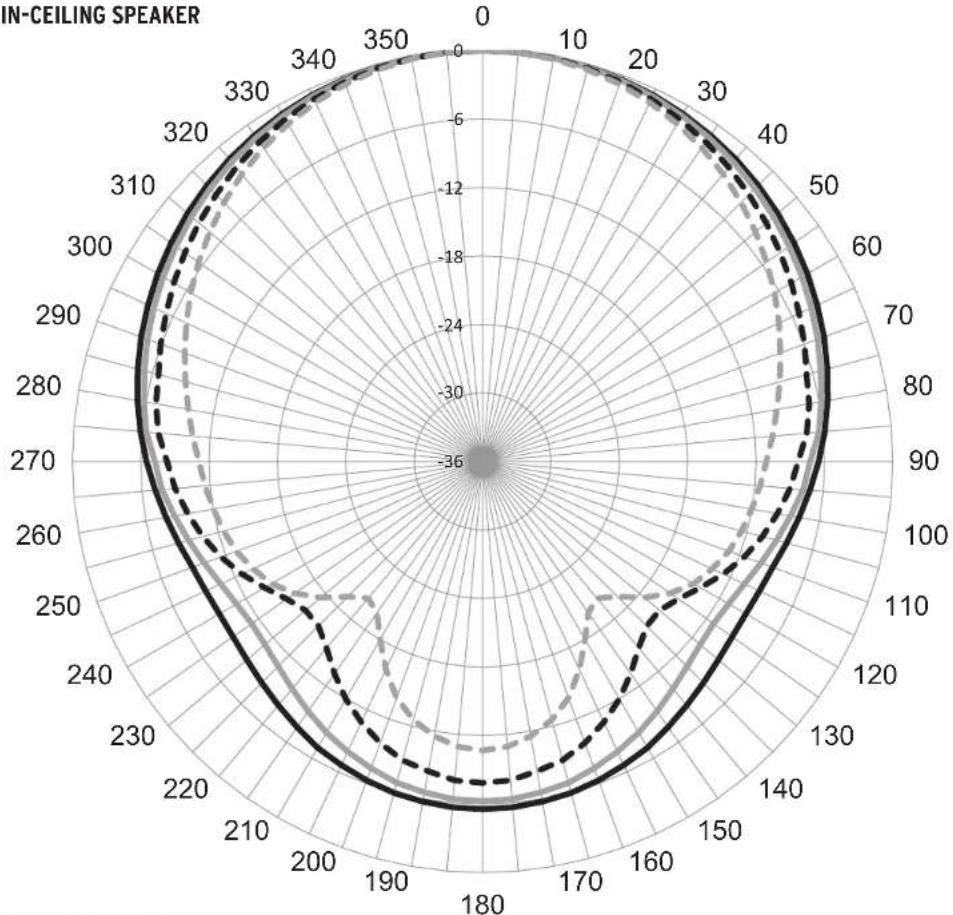

Polar Pattern
8127 10240 12902 16255

3502 WOODVIEW TRACE INDIANAPOLIS, IN 46268 | KLIPSCH.COM

1 OF 7

All specified sources are subject to change without notice GSO2 Premium Auto & Company LLC, a whole owner subsidiary of Asia International Corporation, Sipient Group, Inc. is a owner subsidiary of Asia International Corporation, Sipient as a instrument dealer in the USA or other countries, and is owned by Miozhi Group, Inc.

PIC-525-T-SC | V02 | 240103

KLIPSCH PIC-525-T-SC

Klipsch®

5.25" SHORT-CAN

PROFESSIONAL IN-CEILING SPEAKER

KLIPSCH PIC-525-T-SC - Klipsch® - 1
3502 WOODVIEW TRACE INDIANAPOLIS, IN 46268 | KLIPSCH.COM

2 OF 7

All specified sources are subject to change without notice GSO2 Premium Auto & Company LLC, a whole owner subsidiary of Asia International Corporation, Sipco Group, Inc. is a owner subsidiary of Asia International Corporation, Sipco as a instrument dealer in the USA or other countries, and is owned by Sipco Group, Inc.

PIC-525-T-SC | V02 | 240103

KLIPSCH PIC-525-T-SC

Klipsch®

5.25" SHORT-CAN

PROFESSIONAL IN-CEILING SPEAKER

KLIPSCH PIC-525-T-SC - Klipsch® - 1
3502 WOODVIEW TRACE INDIANAPOLIS, IN 46268 | KLIPSCH.COM

3 OF 7

All specifications are subject to change without, outside GB203 Premium Auto Company LLC, a whole-owned subsidiary of the International Corporation, Spectrum Group, Inc. is an owner subsidiary of the International Corporation, which is a treatment dealer in the US and other countries, and is owned by Spectrum Group, Inc.

P/C-525-T-SC | V02 | 240103

KLIPSCH PIC-525-T-SC

Klipsch®

5.25" SHORT-CAN

PROFESSIONAL IN-CEILING SPEAKER

KLIPSCH PIC-525-T-SC - Klipsch® - 1

radar | Angle | Value | |-------|-------| | 0 | 0 | | 350 | -6 | | 340 | -12 | | 330 | -18 | | 320 | -24 | | 310 | -30 | | 300 | -36 | | 290 | -36 | | 280 | -36 | | 270 | -36 | | 260 | -36 | | 250 | -36 | | 240 | -36 | | 230 | -36 | | 220 | -36 | | 210 | -36 | | 200 | -36 | | 190 | -36 | | 180 | -36 | | 170 | -36 | | 160 | -36 | | 150 | -36 | | 140 | -36 | | 130 | -36 | | 120 | -36 | | 110 | -36 | | 100 | -36 | | 90 | -36 | | 80 | -36 | | 70 | -36 | | 60 | -36 | | 50 | -36 | | 40 | -36 | | 30 | -36 | | 20 | -36 | | 10 | -36 | | 0 | -36 |

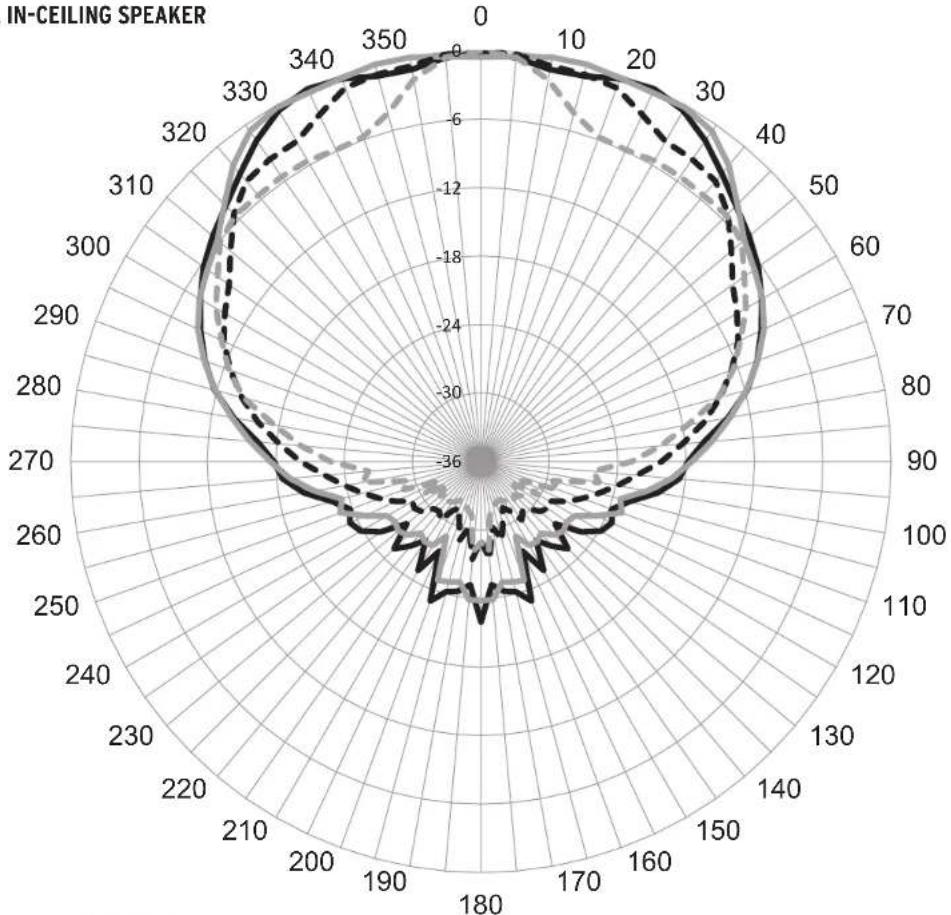

Polar Pattern
508 640 806 1016

3502 WOODVIEW TRACE INDIANAPOLIS, IN 46268 | KLIPSCH.COM

4 OF 7

All specifications are subject to change without, outside GB203 Premium Auto Company LLC, a whole-owned subsidiary of the International Corporation, Spectrum Group, Inc. is an owner subsidiary of the International Corporation, which is a treatment dealer in the US and other countries, and is owned by Spectrum Group, Inc.

P/C-525-T-SC | V02 | 240103

KLIPSCH PIC-525-T-SC

Klipsch®

5.25" SHORT-CAN

PROFESSIONAL IN-CEILING SPEAKER

KLIPSCH PIC-525-T-SC - Klipsch® - 1

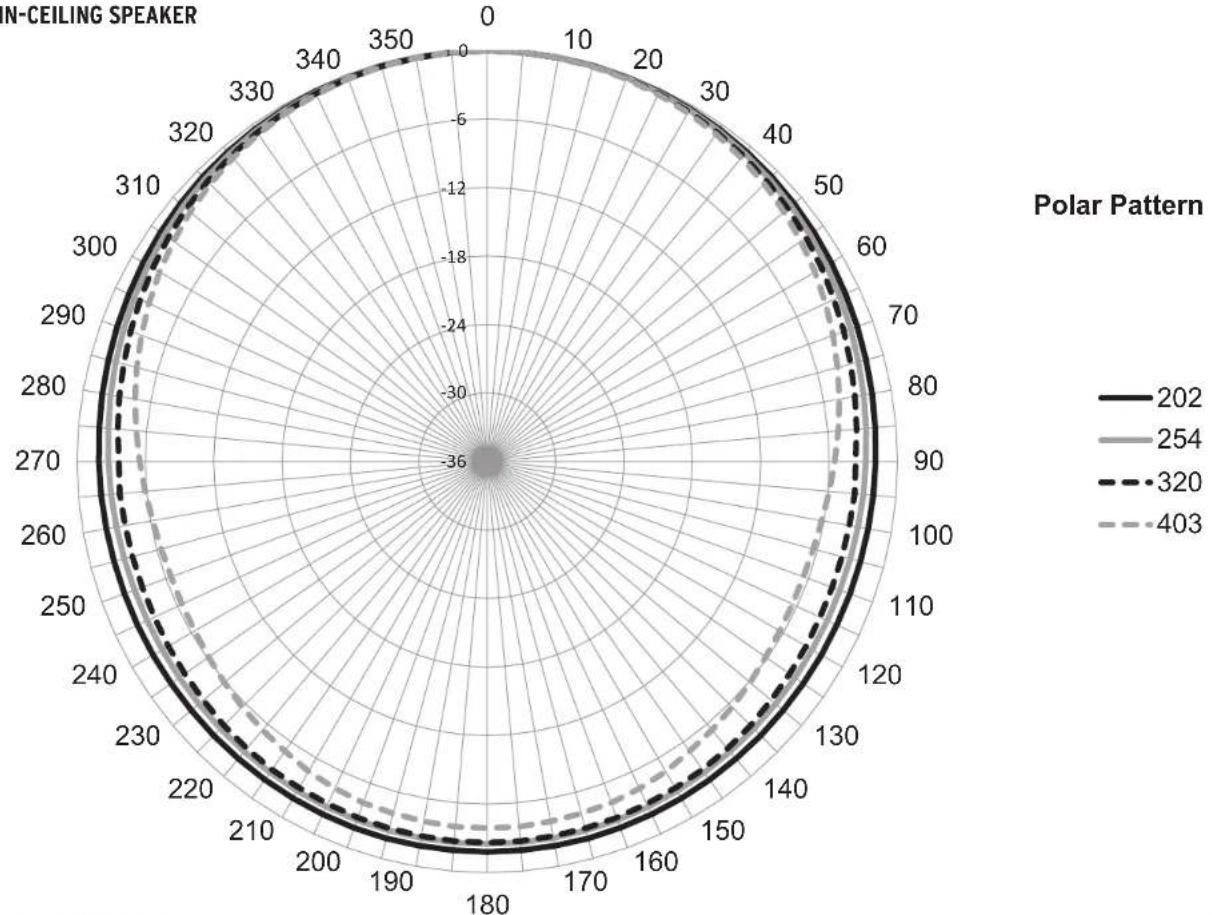

radar | Angle | Polar Pattern 202 | Polar Pattern 254 | Polar Pattern 320 | Polar Pattern 403 | |-------|-------------------|-------------------|-------------------|-------------------| | 0 | 0 | 0 | 0 | 0 | | 10 | -1 | -1 | -1 | -1 | | 20 | -2 | -2 | -2 | -2 | | 30 | -3 | -3 | -3 | -3 | | 40 | -4 | -4 | -4 | -4 | | 50 | -5 | -5 | -5 | -5 | | 60 | -6 | -6 | -6 | -6 | | 70 | -7 | -7 | -7 | -7 | | 80 | -8 | -8 | -8 | -8 | | 90 | -9 | -9 | -9 | -9 | | 100 | -10 | -10 | -10 | -10 | | 110 | -11 | -11 | -11 | -11 | | 120 | -12 | -12 | -12 | -12 | | 130 | -13 | -13 | -13 | -13 | | 140 | -14 | -14 | -14 | -14 | | 150 | -15 | -15 | -15 | -15 | | 160 | -16 | -16 | -16 | -16 | | 170 | -17 | -17 | -17 | -17 | | 180 | -18 | -18 | -18 | -18 | | 190 | -19 | -19 | -19 | -19 | | 200 | -20 | -20 | -20 | -20 | | 210 | -21 | -21 | -21 | -21 | | 220 | -22 | -22 | -22 | -22 | | 230 | -23 | -23 | -23 | -23 | | 240 | -24 | -24 | -24 | -24 | | 250 | -25 | -25 | -25 | -25 | | 260 | -26 | -26 | -26 | -26 | | 270 | -27 | -27 | -27 | -27 | | 280 | -28 | -28 | -28 | -28 | | 290 | -29 | -29 | -29 | -29 | | 300 | -30 | -30 | -30 | -30 | | 310 | -31 | -31 | -31 | -31 | | 320 | -32 | -32 | -32 | -32 | | 330 | -33 | -33 | -33 | -33 | | 340 | -34 | -34 | -34 | -34 | | 350 | -35 | -35 | -35 | -35 | | 360 | -36 | -36 | -36 | -36 |

3502 WOODVIEW TRACE INDIANAPOLIS, IN 46268 | KLIPSCH.COM

5 OF 7

All specified sources are subject to change without notice ©2023 Premium Auto & Company LLC, a whole owner subsidiary of Asia International Corporation, Spanish Sotco, Inc. is a owner subsidiary of Euro Information Corporation, Spanish a Instrument receivable in the US are other countries, and is owned by Spanish Sotco, Inc.

PIC-525-T-SC | V02 | 240103

KLIPSCH PIC-525-T-SC

Klipsch®

5.25" SHORT-CAN

PROFESSIONAL IN-CEILING SPEAKER

KLIPSCH PIC-525-T-SC - Klipsch® - 1

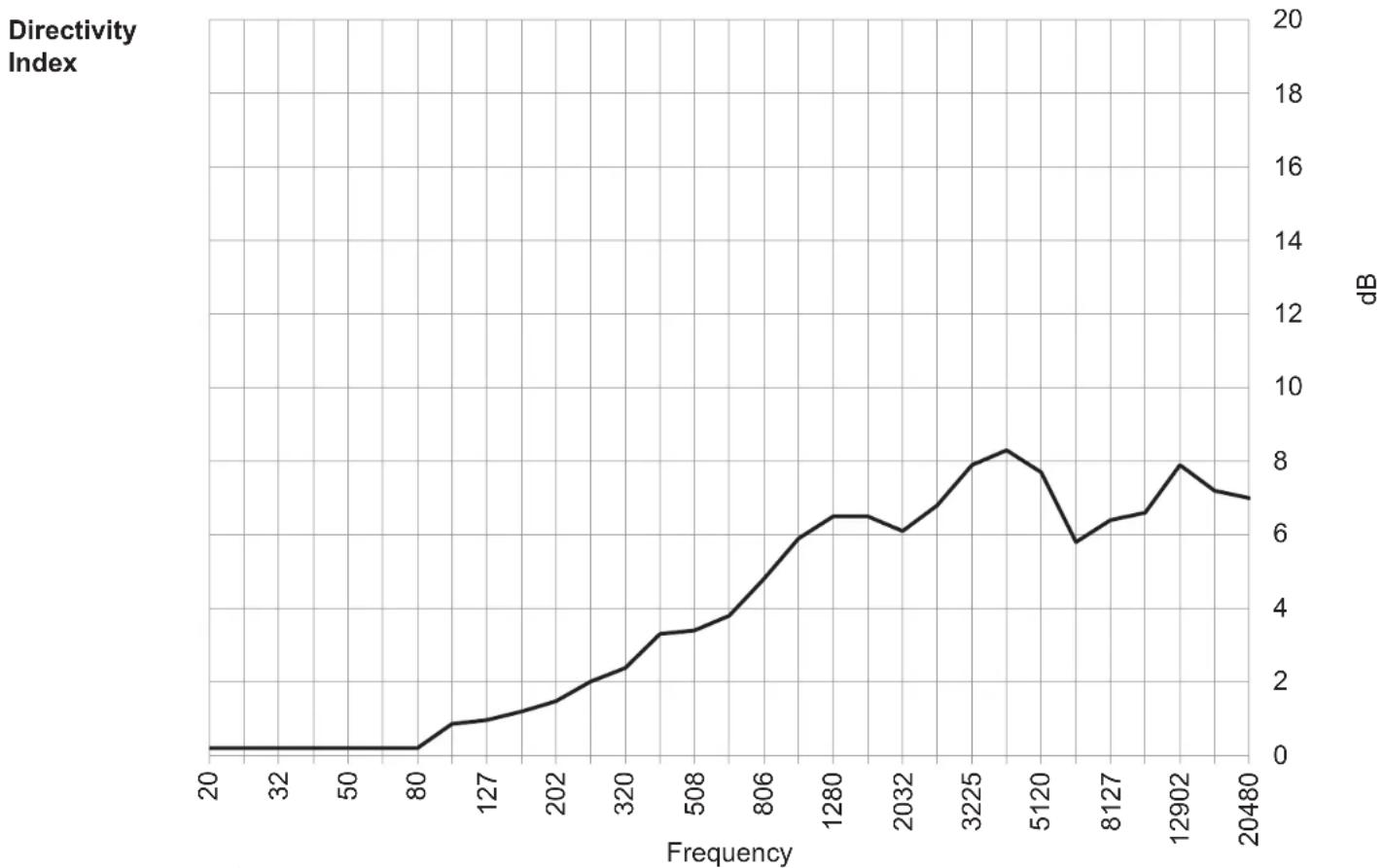

line | Frequency | Directivity Index (dB) | | --------- | ---------------------- | | 20 | 0.0 | | 32 | 0.0 | | 50 | 0.0 | | 80 | 0.0 | | 127 | 0.5 | | 202 | 1.0 | | 320 | 2.0 | | 508 | 3.0 | | 806 | 4.0 | | 1280 | 6.0 | | 2032 | 6.5 | | 3225 | 8.0 | | 5120 | 7.5 | | 8127 | 6.0 | | 12902 | 8.0 | | 20480 | 7.0 |

3502 WOODVIEW TRACE INDIANAPOLIS, IN 46268 | KLIPSCH.COM

6 OF 7

All specifications are subject to change without notice ©201 Premium Audio Company LLC, a wholly-owned subsidiary of Via International Corporation, Kipachi Group, Inc. is wholly-owned subsidiary of Via International Corporation. Kipachi is a trademark registered in the USA and other countries, and is covered by Kipachi Group Inc.

PIC-525-T-SC | V02 | 240103

KLIPSCH PIC-525-T-SC

Klipsch®

5.25" SHORT-CAN

PROFESSIONAL IN-CEILING SPEAKER

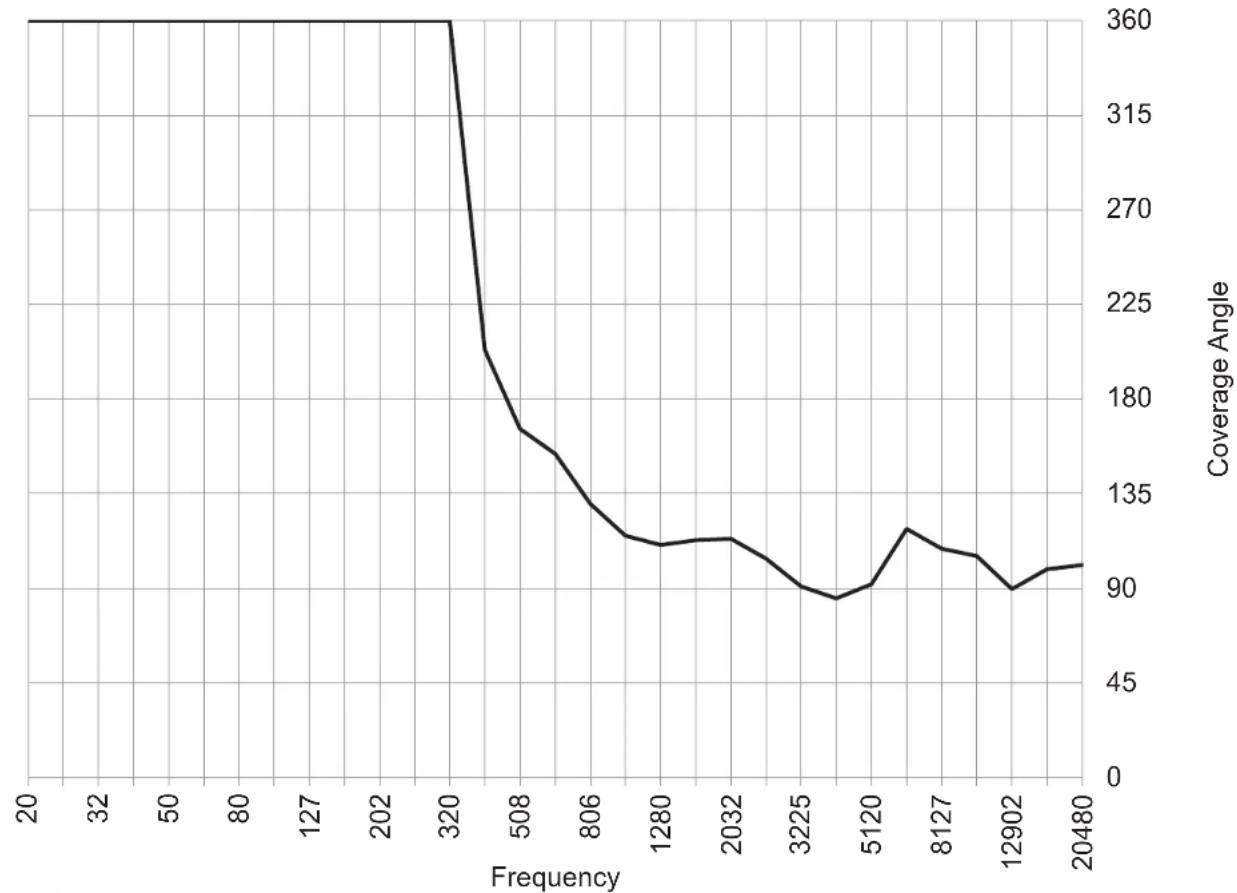

Coverage (-6 dB)
KLIPSCH PIC-525-T-SC - Klipsch® - 1

line | Frequency | Coverage Angle | | --------- | -------------- | | 20 | 360 | | 32 | 360 | | 50 | 360 | | 80 | 360 | | 127 | 360 | | 202 | 360 | | 320 | 360 | | 508 | 180 | | 806 | 135 | | 1280 | 100 | | 2032 | 100 | | 3225 | 90 | | 5120 | 100 | | 8127 | 125 | | 12902 | 90 | | 20480 | 100 |

3502 WOODVIEW TRACE INDIANAPOLIS, IN 46268 | KLIPSCH.COM

7 OF 7

All specifications are subject to change without notice ©2003 Premium Auto Company, LLC, a wholly-owned subsidiary of Fox International Corporation, Kipchi Group, Inc. is a wholly-owned subsidiary of Vcc International Corporation, Kipchi is a trademark restruvored in the U.S. and other countries, and is owned by Kipchi Group, Inc.

PIC-525-T-SC | V02 | 240103
