USER MANUAL KAPB20PD20A Kogan

White rectangular electronic device with black top and gray body, no visible text or symbols on body

20000mAh 20W PD Power Bank with Battery Display

KAPB20PD20A

Safety & Warnings

• Use only the original cables provided with this power bank.
• To preserve the battery lifespan, use and recharge the power bank at least once every 4 months.
• Avoid exposing the power bank to rain, moisture, or liquids to prevent the risk of fire and electric shock.
• Do not expose the power bank to extreme temperatures, as it may damage the battery or pose a fire risk.
• Do not disassemble, crush, puncture, or put a high degree of pressure on the power bank as this can result in an explosion or fire.
• Dropping the power bank can potentially damage internal components or cause the battery to fail.
• Avoid leaving the power bank charging unattended for prolonged periods.
• The battery should not be replaced by the user due to risk of injury and damage.
• Only connect devices that are compatible with the power bank's output specifications to avoid damage.
• If the power bank will not be in use for an extended period, store it in a cool, dry place and recharge it every 3 to 6 months to maintain battery health.
• Regularly inspect the power bank for signs of damage or wear. If damage is detected, cease use immediately and contact help.Kogan.com for support.
• Do not use the power bank if it has been damaged, such as having a swollen or leaking battery.

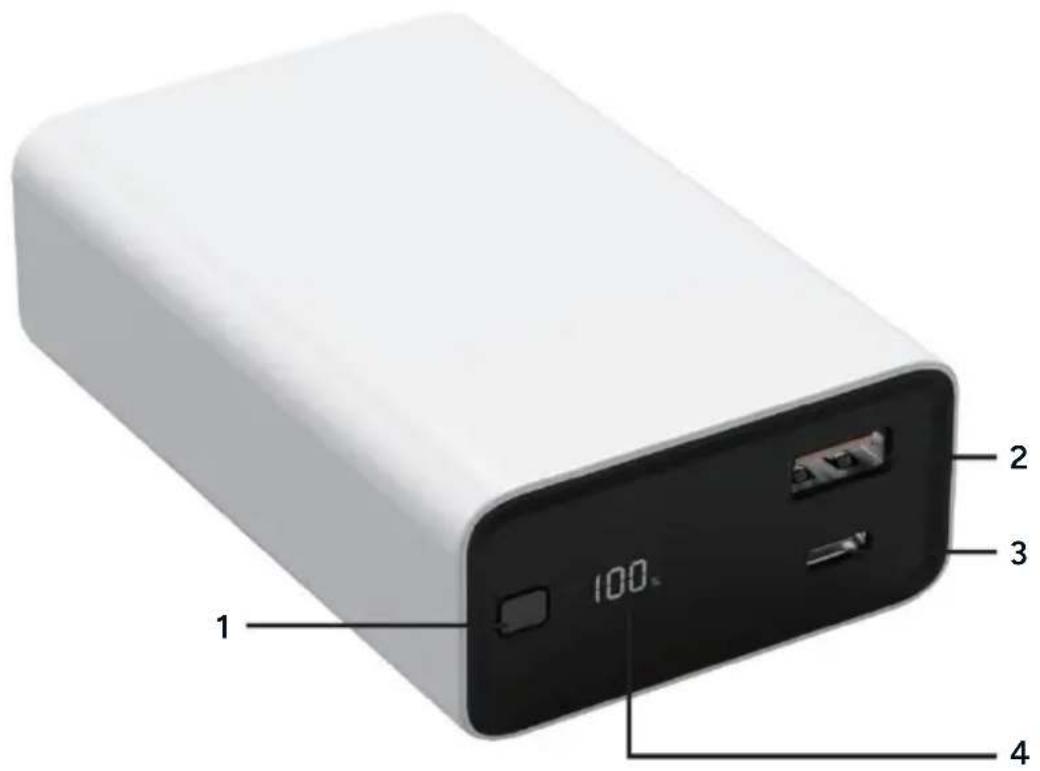

Overview

1 2 3 100° 4

1 Power button: Press to the turn the power bank on/off. If there is no response when touching the power on/off button, charge the power bank immediately.

2 USB-A output port: Charge your devices using a USB-A cable.

3 USB-C input/output port:

• Charge your devices using a USB-C cable.
• Connect the power bank to a USB power supply to charge the power bank.

4 Display: The display will show the current battery percentage, increasing as the power bank charges.

• The display will flash to indicate active charging.
• The display will be solid when charging devices.

Operation

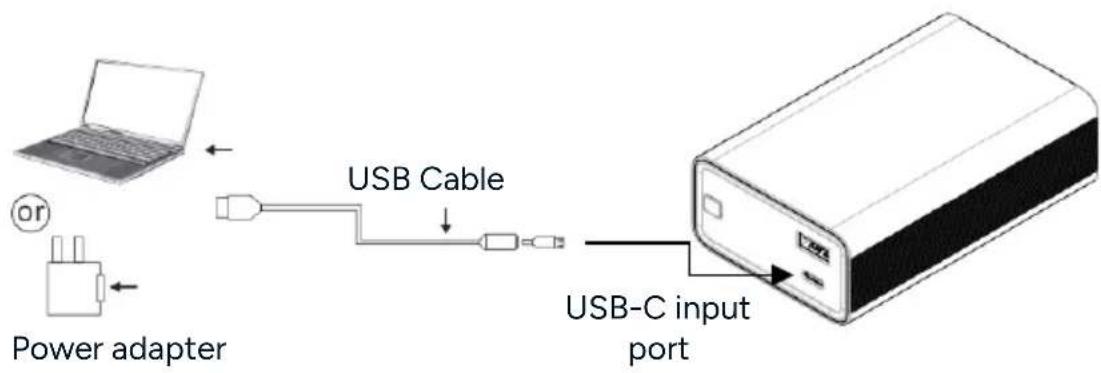

Charging the Power Bank

• Connect a USB cable to the USB-C input port on the power bank.
• Connect the other end of the cable to a vacant USB port on a laptop or a USB power adapter.
  • The display will flash and the number will increase until fully charged.
  • The display will turn solid when the battery is fully charged.

Charging a Device

• Connect your device using a USB-A USB-C cable.
• The display will show the remaining battery percentage of the power bank while a device is being charged.

Phone/other digital devices or USB cable Tablets

Isometric line drawing of a rectangular electronic device with a black and white body, showing internal components (no text or symbols)

Specifications

Battery Capacity 20000mAh/77Wh

USB-C Input 5V/3A, 9V/2A

USB-C Output

USB-A Output

Weight 302g

Dimensions

5V/3A, 9V/2.22A, 12V/1.67A

5V/4.5A, 9V/2A, 12V/1.5A

100x63.5x31.7mm

Notes

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up.

For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.Kogan.com.
