Grass - Guitar effect pedal Hotone - Free user manual and instructions

Type of product	Compact analog overdrive pedal
Brand	Hotone
Model	Grass
Dimensions (W x D x H)	74 mm x 42 mm x 52 mm
Weight	150 g
Power supply	9V DC, center negative, 2.1 mm barrel (battery optional)
Current consumption	~10 mA
Controls	Volume, Tone, Gain knobs
True bypass	Yes
Input impedance	1 MΩ
Output impedance	10 kΩ
Signal-to-noise ratio	>85 dB
Audio quality	Warm, tube-like overdrive
Enclosure material	Aluminum alloy
Product color	Green with white graphics
Compatibility	Electric guitar, bass (with careful EQ)
Included accessories	Quick start guide, sticker
Warranty	1 year limited warranty
Repairability	Modular design, replaceable potentiometers
Care instructions	Wipe with dry cloth, avoid moisture
Safety certs	CE, RoHS

Frequently Asked Questions - Grass Hotone

How do I power the Hotone Grass pedal?

The Hotone Grass requires a 9V DC power supply with center negative polarity and a 2.1mm barrel connector. It can also run on a 9V battery (not included).

Is the Hotone Grass true bypass?

Yes, the Grass features true bypass switching, ensuring your guitar signal remains pure when the effect is off.

What kind of sounds can I get from the Grass?

The Grass delivers warm, tube-like overdrive from subtle breakup to moderate crunch, similar to classic overdrive pedals.

Can I use the Grass with bass guitar?

Yes, but due to the tone control range, it is optimized for electric guitar. For bass, start with the tone knob low to avoid excessive treble.

What are the dimensions and weight of the Grass?

The pedal measures approximately 74mm x 42mm x 52mm and weighs about 150 grams, making it compact and pedalboard-friendly.

Does the Grass come with a power supply?

No, a power supply is not included. You need to purchase a standard 9V DC pedal power adapter separately.

How do I clean and maintain the Grass?

Use a dry soft cloth to wipe the enclosure. Avoid water, solvents, or abrasive cleaners. Keep away from humidity and extreme temperatures.

What warranty does Hotone offer for the Grass?

Hotone provides a 1-year limited warranty against manufacturing defects. Check the included warranty card for details.

Can I replace the battery without removing the pedal from the board?

The battery compartment is located on the bottom plate. You need to unscrew the bottom cover to access the battery, which may require removing the pedal from the board.

Is the Grass compatible with other Hotone pedals?

Yes, the Grass works well with other Hotone pedals. They share the same 9V power standard and can be daisy-chained if current draw is within limits.

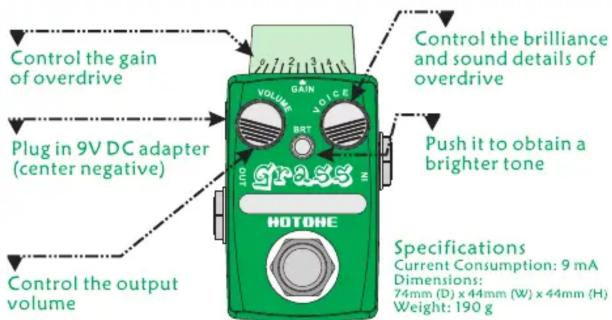

USER MANUAL Grass Hotone

THANK YOU FOR PURCHASING A HOTONE PRODUCT!

GRASS is a classic overdrive stompbox for guitarists. It offers the natural overdrive tone of a costly tube amplifier, great dynamic response and open tonal character.

Sounds range from tasty light overdrive to juicy medium-low distortion. Not just an elite vintage spec'd overdrive, GRASS captures the brilliant retro tone and perfect play feeling: it has a detailed sound that will blow audiences away!

Structure Design Patent Pending Appearance Design Patent Pending
