WMT1AS - Loudspeaker Bogen - Free user manual and instructions

Product Type	Surface-Mount Speaker
Brand	Bogen
Model	WMT1AS
Speaker Type	Full-range, Weather-resistant
Dimensions (H x W x D)	7.5 x 5.5 x 6.0 inches (19 x 14 x 15 cm)
Weight	3.5 lbs (1.6 kg)
Power Handling	30 W RMS, 60 W peak
Impedance	8 ohms
Frequency Response	80 Hz – 20 kHz
SPL	90 dB (1W/1m)
Mounting Type	Wall-mount bracket included
Weather Resistance	IP54 rated
Input Type	Screw terminal (2-conductor)
Material	High-impact ABS plastic, aluminum grille
Color	White or black (model dependent)
Operating Temperature	-20°C to 50°C
Power Source	Passive (no internal amplifier required)
Included Accessories	Mounting bracket, screws, owner's manual
Compliance	UL 1480, CSA, CE

Frequently Asked Questions - WMT1AS Bogen

What is the impedance of the Bogen WMT1AS speaker?

The Bogen WMT1AS speaker has an impedance of 8 ohms, making it compatible with most commercial amplifiers.

Can the WMT1AS be used outdoors?

Yes, the WMT1AS is weather-resistant with an IP54 rating, suitable for covered outdoor areas.

How do I mount the WMT1AS speaker?

The speaker includes a wall-mount bracket. Secure the bracket to the wall with the provided screws, then attach the speaker.

What type of wiring does the WMT1AS require?

Connect using two-conductor speaker wire (18-14 AWG) to the screw terminals on the back.

What is the maximum power handling of the WMT1AS?

It handles 30 watts RMS and 60 watts peak. Exceeding these may damage the speaker.

Does the WMT1AS have a built-in amplifier?

No, it is a passive speaker that requires an external amplifier or PA system.

What is the frequency response of the WMT1AS?

The frequency response is 80 Hz to 20 kHz, suitable for voice and music reproduction.

Can I paint the WMT1AS speaker?

Yes, the plastic enclosure can be painted with water-based acrylic paint for aesthetic matching.

How do I clean the WMT1AS speaker?

Wipe with a soft damp cloth. Do not use solvents or abrasive cleaners.

Is the WMT1AS compatible with 70V systems?

No, the WMT1AS is an 8-ohm speaker and is not designed for 70V systems unless used with a line transformer.

USER MANUAL WMT1AS Bogen

Line Input / Line Output Matching Transformer Model WMT1AS

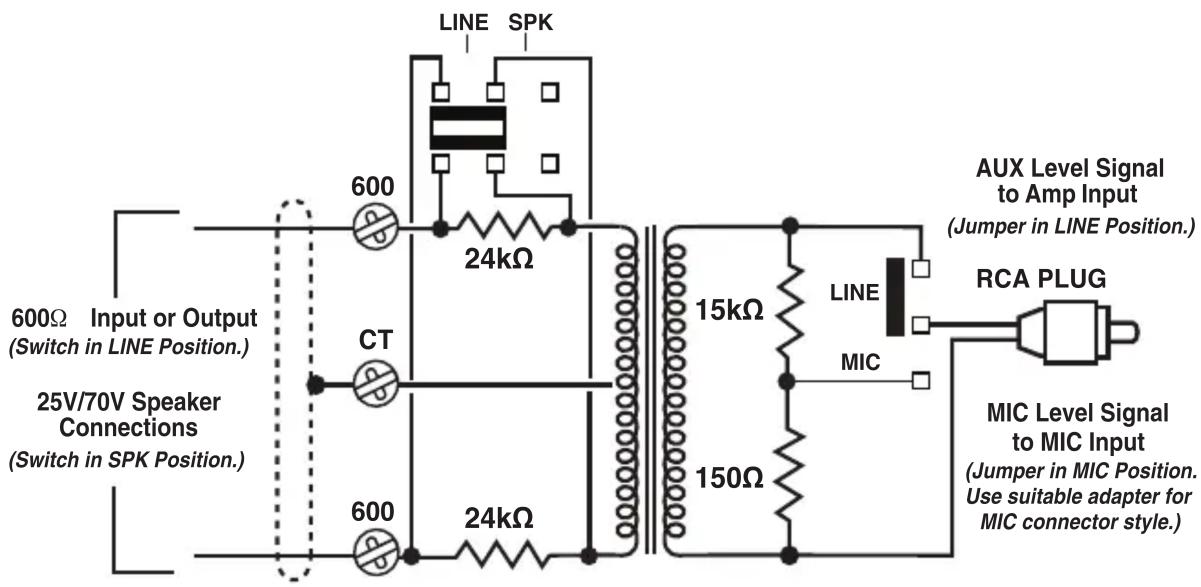

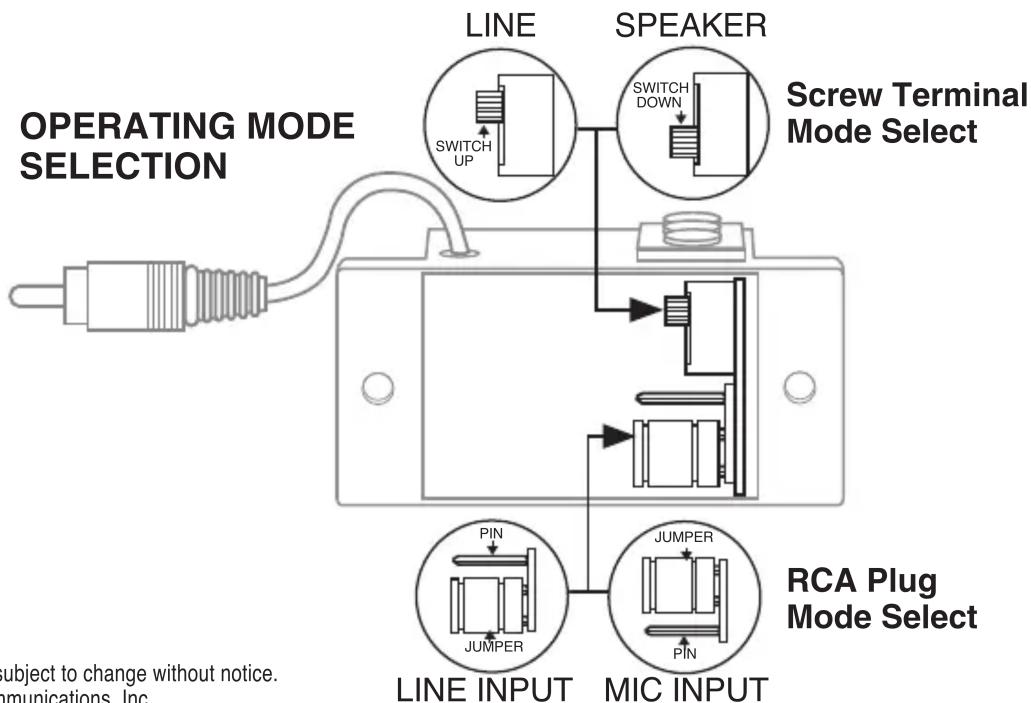

The WMT1AS is a balanced and isolated impedance matching transformer with additional features that allow adapting of signal levels between various audio source and input types. Typical uses are to provide a 600-ohm balanced input adapter for unbalanced AUX inputs. WMT1AS can also be used to drive long, balanced, twisted pair cable. This improves noise rejection and the maximum run length. The WMT1AS can adapt speaker level signals (25V/70V systems) to a level suitable for the AUX input of an amplifier, adapt line-level signals down to levels suitable for MIC inputs and can adapt speaker level signals to MIC level as well. See the drawing below for setting the Operating Modes.

APPLICATION	SETTINGS		SCREW TERMINALS	RCA PLUG
	SWITCH JUMPER
ADAPT HI-Z AUX INPUT TO 600Ω BALANCED INPUT LINE	LINE 600Ω BAL INPUT* TO AUX LEVEL INPUT
ADAPT SPEAKER LEVEL TO HI-Z AUX INPUT	SPK	LINE	TO SPEAKER LINE**	TO AUX LEVEL INPUT
ADAPT LINE LEVEL TO MIC LEVEL INPUT	LINE	MIC	TO LINE LEVEL SOURCE	TO MIC LEVEL INPUT
ADAPT SPEAKER LEVEL TO MIC LEVEL INPUT	SPK	MIC	TO SPEAKER LINE**	TO MIC LEVEL INPUT
DRIVE 600Ω BALANCED LINE	LINE	LINE	TO 600Ω BALANCED LINE	FROM DRIVE SOURCE

* SHIELD CAN BE CONNECTED TO CENTER TAP, MIDDLE SCREW
**70V OR 25V SPEAKER SYSTEMS

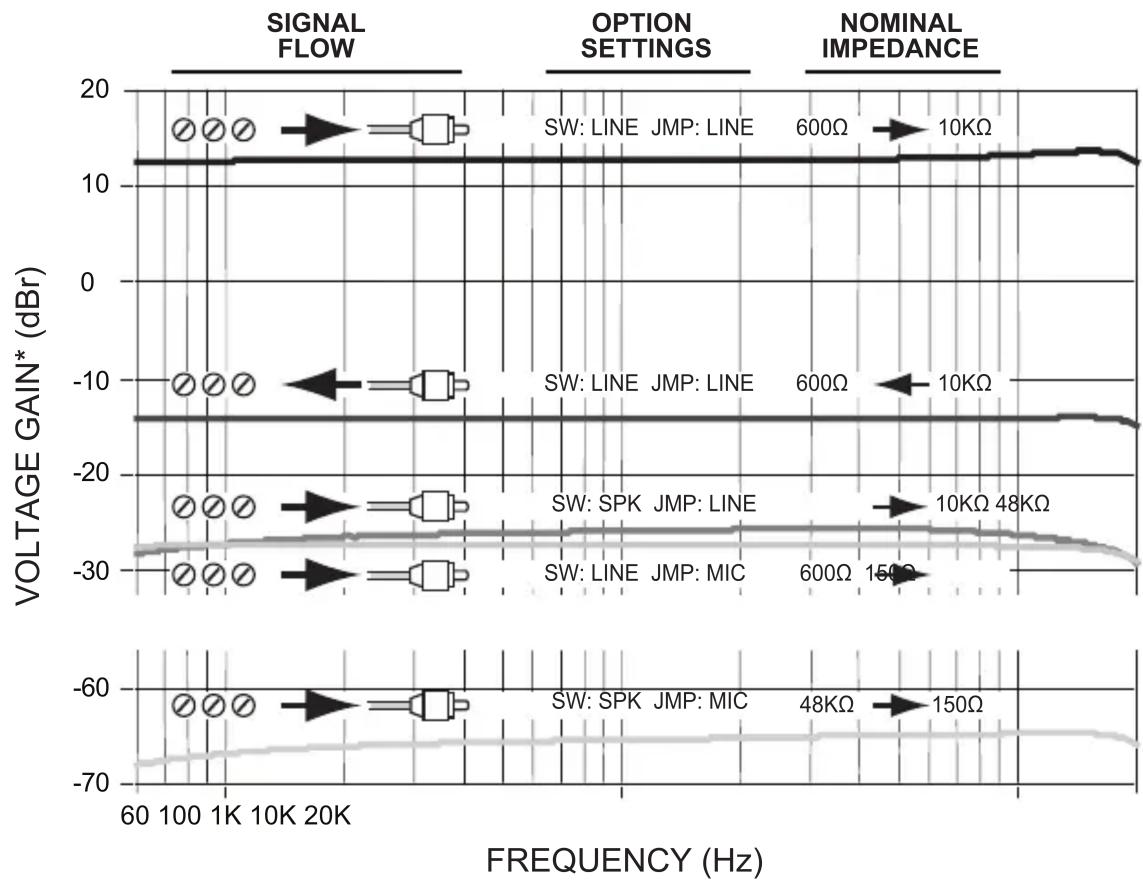

TYPICAL PERFORMANCE

* SOURCE IMP= 40Ω, LOAD IMP = 100KΩ

LIMITED WARRANTY

The WMT1AS is warranted to be free from defects in material or workmanship for two (2) years from the date of sale to the original purchaser. This warranty does not extend to any of our products that have been subjected to abuse, misuse, improper storage, neglect, accident, improper installation or have been modified or repaired or altered in any manner whatsoever, or where the serial number or date code has been removed or defaced.
