Product Type Powered Subwoofer
Brand Infinity
Model TSS-SUB750
Dimensions (H x W x D) 16-3/4" x 10-3/4" x 15-3/4" (425mm x 273mm x 400mm)
Weight 33 lb (15 kg)
Power Requirements 120V AC
Amplifier Output 150W RMS, 500W peak
Low-Frequency Driver 10" (250mm)
Frequency Response 34Hz - 150Hz (±3dB)
Crossover Frequency 50Hz - 150Hz, 24dB/octave, continuously variable
Inputs Line-level LFE inputs (RCA)
Controls Subwoofer Level, LFE/Normal Switch, Phase Switch, Crossover Adjustment, Power Switch
Phase Switch 0° or 180°
Auto On/Standby Yes, enters standby after approx. 10 minutes without signal
Power Indicator Red (standby), Green (on)
Enclosure Rigid, well-braced design
Placement Flexible; experiment for best performance
Cleaning Wipe with soft cloth
Safety Precautions Read owner's manual; avoid water, heat sources, and power cord damage
Application Home theater and stereo systems
Series Infinity Total Solutions

Frequently Asked Questions - TSS-SUB750 INFINITY

How do I connect the TSS-SUB750 to my receiver?
Use the Line-Level (LFE) Inputs on the subwoofer. Connect a single RCA cable from your receiver's subwoofer output to either the L or R input. Set the LFE/Normal Switch to 'LFE' if your receiver has a Dolby Digital or DTS processor, or to 'Normal' if not.
What is the correct phase setting for my subwoofer?
The Phase Switch can be set to 0° or 180°. Adjust it to maximize bass output at your listening position. Experiment with both settings to determine which provides the best integration with your main speakers.
How do I adjust the crossover frequency?
Use the Crossover-Frequency Adjustment control on the rear panel. For smaller satellites, set it higher (120Hz-150Hz); for larger speakers, set it lower (50Hz-100Hz). This control is bypassed when the LFE/Normal switch is set to LFE (crossover handled by receiver).
Why is my subwoofer not turning on?
Check that the Power Switch is set to ON and the AC cord is plugged into a live outlet. The subwoofer enters Auto Standby (red LED) after 10 minutes without signal; it will power on (green LED) when a signal is detected. If still off, verify input connections.
How do I set the subwoofer level for best performance?
Start with the Subwoofer Level Control at minimum, then gradually increase while playing bass-rich content. Adjust until the bass blends seamlessly with your main speakers without overpowering them. Aim for a natural, balanced sound.
What does the LFE/Normal switch do?
The LFE/Normal Switch selects the input mode. Set to 'LFE' when using a Dolby Digital or DTS receiver/processor (the receiver handles the crossover). Set to 'Normal' when using a receiver without such processing; the subwoofer's internal crossover then becomes active.
Can I place the subwoofer in a corner?
Yes, corner placement can enhance bass output due to boundary reinforcement. However, it may cause boomy or uneven bass. Experiment with different locations, including corners and along walls, to find the smoothest response in your room.
How do I clean the subwoofer?
Use a soft, dry cloth to wipe away dust or fingerprints. Do not use any liquids or cleaning agents, as they may damage the finish or internal components.
What does the auto standby feature do?
The Auto On/Standby feature automatically switches the subwoofer to standby (red LED) after approximately 10 minutes of no audio signal to save power. It instantly powers back on (green LED) when a signal is detected. You can leave the power switch on during normal use.
What crossover setting is recommended with Infinity satellite speakers?
For Infinity Total Solutions satellites, a crossover setting of 100Hz - 120Hz is recommended. Ensure the LFE/Normal switch is set to LFE if using a Dolby Digital/DTS receiver, which will then control the crossover.

User questions about TSS-SUB750 INFINITY

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Subwoofer in PDF format for free! Find your manual TSS-SUB750 - INFINITY and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. TSS-SUB750 by INFINITY.

USER MANUAL TSS-SUB750 INFINITY

TOTAL SPEAKER SOLUTIONS

TSS-SUB750

Owner's Guide

(120V)

INFINITY TSS-SUB750 - TOTAL SPEAKER SOLUTIONS - 1

natural_image 3D rendering of a gray rectangular electronic device with a circular vent and a curved cutout (no text or symbols visible)

IMPORTANT SAFETY PRECAUTIONS

READ FIRST!

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: To prevent electric shock, do not use this (polarized)

plug with an extension cord,

receptacle or other outlet

unless the blades can

be fully inserted to

prevent blade exposure.

INFINITY TSS-SUB750 - RISK OF ELECTRIC SHOCK DO NOT OPEN - 1

The lightning flash with arrowhead symbol,

within an equilateral triangle, is intended to

alert the user to the presence of uninsulated "dangerous voltage" within the product's

enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

INFINITY TSS-SUB750 - RISK OF ELECTRIC SHOCK DO NOT OPEN - 2

The exclamation point within an equilateral

triangle is intended to alert the user to the

presence of important operating and

literature accompanying the appliance.

  1. Read these instructions.
  2. Keep these instructions.
  3. Heed all warnings.
  4. Follow all instructions.
  5. Do not use this apparatus near water.
  6. Clean only with a dry cloth.
  7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
  8. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.
  9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
  10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles and the point where they exit from the apparatus.
  11. Only use attachments/accessories specified by the manufacturer.

  12. Use only with the cart, stand, tripod, bracket or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

  13. Unplug this apparatus during lightning storms or when unused for long periods of time.
  14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
  15. Do not use attachments not recommended by the product manufacturer, as they may cause hazards.
  16. This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.
  17. If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure A.

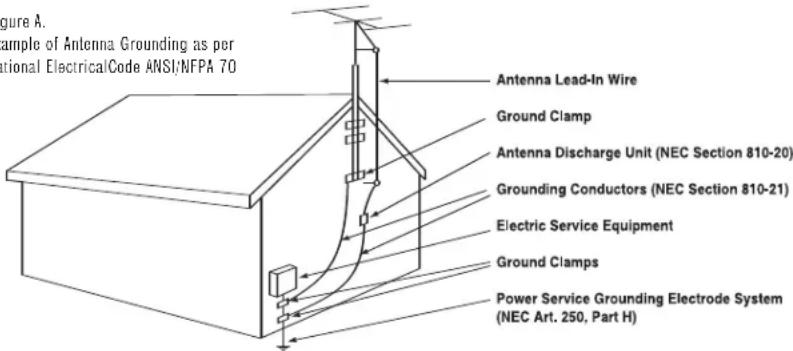

Figure A

Example of Antenna Grounding as per

National Electrical Code ANSI/NFPA 70

INFINITY TSS-SUB750 - RISK OF ELECTRIC SHOCK DO NOT OPEN - 3

  1. An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits, as contact with them might be fatal.
  2. Do not overload wall outlets, extension cords, or integral convenience receptacles, as this can result in a risk of fire or electric shock.
  3. Never push objects of any kind into this product through openings, as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
  4. The apparatus shall not be exposed to dripping or splashing, and no objects filled with liquids, such as vases, shall be placed on the apparatus.
  5. Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
  6. When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
  7. Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.
  8. The product should be mounted to a wall or ceiling only as recommended by the manufacturer.

Figure A. Example of Antenna Grounding as per ational Electrical/Code ANSI/NFPA 70 Antenna Lead-In Wire Ground Clamp Antenna Discharge Unit (NEC Section 810-20) Grounding Conductors (NEC Section 810-21) Electric Service Equipment Ground Clamps Power Service Grounding Electrode System (NEC Art. 250, Part H)

Infinity Total Solutions™ TSS-SUB750

The Infinity Total Solutions TSS-SUB750 continues Infinity's long-standing commitment to accurate sound reproduction. Our proprietary technology and high-powered amplifier, along with a rigid, well-braced enclosure, combine to deliver uncompromised bass performance in any stereo or multichannel home theater. In addition, the TSS-SUB750's compact enclosure allows for easy integration into any home environment.

Unpacking the Subwoofer

If you suspect damage from transit, report it immediately to your dealer. Keep the shipping carton and packing materials for future use.

PLACEMENT

Since the installation of a subwoofer can be somewhat more complicated than installing full-range speakers, it is essential that you read this section very carefully prior to connecting the subwoofer to your system. Should you have questions relating to your installation, it is advisable to call either your dealer or Infinity's Customer Service Department for advice.

The performance of the subwoofer is directly related to its placement in the listening room and how you align the subwoofer with its satellite speakers. Setting the volume of the subwoofer in relation to the left and right speakers is also of critical importance because it is essential that the subwoofer integrate smoothly with the entire system. Setting the subwoofer's volume level too high will result in an overpowering, boomy bass. Setting the volume level too low will negate the benefits of the subwoofer.

Here are several additional facts on installation that may prove useful. It is generally believed by most audio authorities that low frequencies (below 125Hz) are nondirectional and, therefore, placement of a subwoofer within any listening room is not critical. While in theory it is true that the larger wavelengths of extremely low frequencies are basically nondirectional, the fact is that, when installing a subwoofer within the limited confines of a room, reflections, standing waves and absorptions generated within the room will strongly influence the performance of any subwoofer system. As a result, the specific location of the subwoofer becomes important, and we strongly recommend that you experiment with placement before choosing a final location.

Placement will depend upon your room and the amount and quality of bass required (for example, whether or not your room permits placement of the subwoofer near either satellite).

Before deciding where to best place your speakers, survey your room and study Figures 1 and 2.

Left F front Channel Center Channel (above or below TV) Right Front Channel TSS-SUB750 Left Surround Channel Couch Right Surround Channel

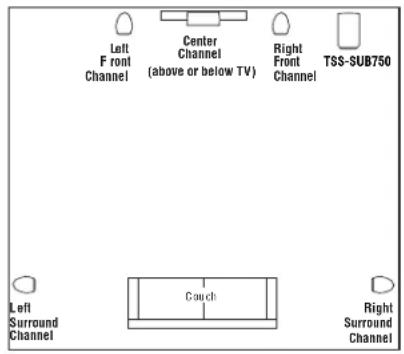

Figure 1. In this overhead view of a typical installation, the powered subwoofer provides bass for effects and music.

TSS-SUB750 Right Front Channel Center Channel Left Front Channel Q24h Right Surround Channel Left Surround Channel

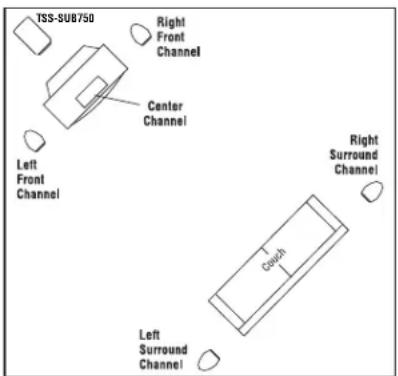

Figure 2. This figure shows an alternative layout, which may be more suitable for some rooms.

SUBWOOFER CONTROLS

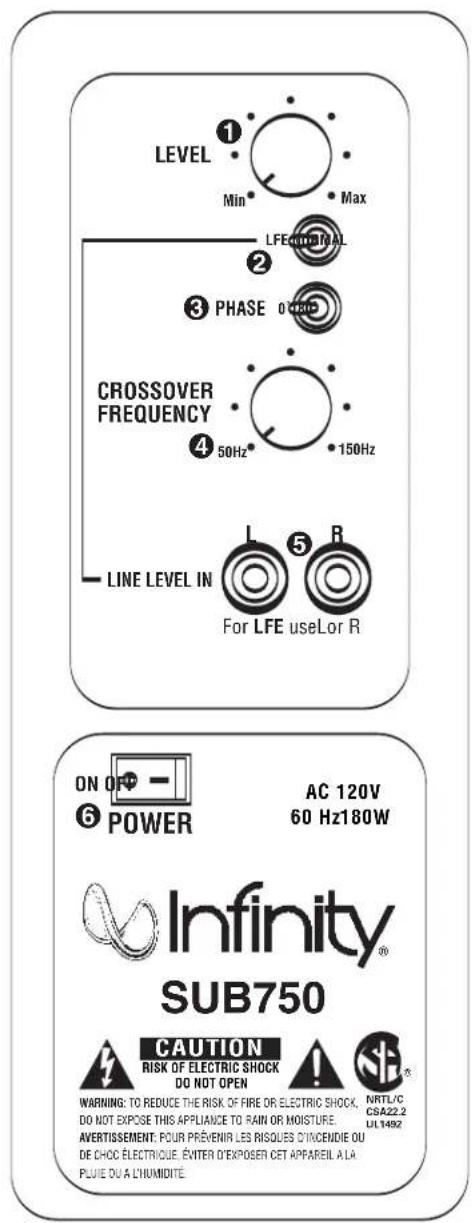

Rear Panel
LEVEL 1 Min Max LFEORIMAL 2 3 PHASE 0 Hz CROSSOVER FREQUENCY 4 50Hz 150Hz LINE LEVEL IN For LFE useLor R ON OF - 6 POWER AC 120V 60 Hz180W Infinity® SUB750 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. AVERTISSEMENT: FOUR PRÉVENIR LES RISQUES CYXENDIE OU DE CHOC ÉLECTRIQUE. ÉVITER D'EXPOSER CET APPAREIL A LA PLUVE DU A L'HUMIDITE NRTL/C CSA22.2 UL1492

① Subwoofer Level Control
② LFE/Normal Switch
③ Phase Switch
4 Crossover-Frequency Adjustment
5 Line-Level (LFE) Inputs
6 Power Switch

A Few Suggestions

We recommend that you do not operate your speakers or subwoofer with the bass, treble and loudness controls set to full boost. This will place undue strain on your electronics and speakers and could damage them.

The volume control setting on your processor/preamp or receiver is not a specific indication of the overall loudness level of the speakers. The only important consideration is the loudness level at which the system can be played, regardless of where the volume control is set.

Always turn down the volume control setting on your processor/preamp or receiver when changing a cassette or CD, or switching inputs to AM or FM operation. Excessively loud transients (clicks or popping sounds) can damage the satellite speakers and possibly the subwoofer.

Important!

Whenever changing cables, pulling plugs, etc., ALWAYS TURN OFF ALL EQUIPMENT, including the subwoofer.

SUBWOOFER CONNECTIONS

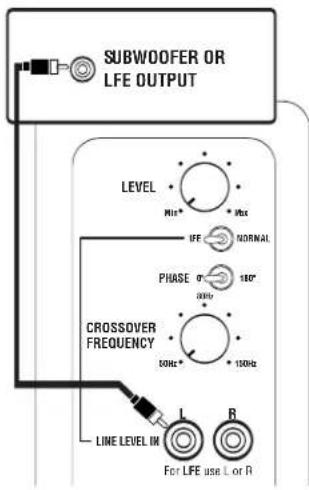

If you have a Dolby® Digital or DTS® receiver/processor with a low-frequency-effects (LFE) or subwoofer output:

SUBWOOFER OR LIFE OUTPUT LEVEL Mist + Vbs LFE NORMAL PHASE 180° 20Hz CROSSOVER FREQUENCY 50Hz+ + 100Hz LINE LEVEL IN L R For LIFE use L or R

Set line-level/LFE switch to "LFE."

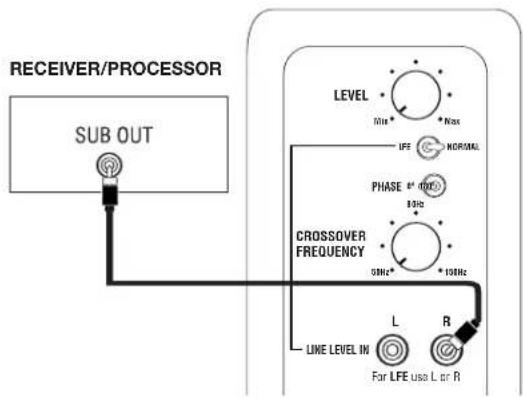

If your receiver/processor does not contain a Dolby Digital or DTS processor but has a subwoofer output:

RECEIVER/PROCESSOR SUB OUT LEVEL 10Hz NMax LFE NORMAL PHASE 8* 100Hz 10Hz CROSSOVER FREQUENCY 5MHz *100Hz LINE LEVEL IN L R For LFE Use L or R

Set line-level/LFE switch to "Normal."

NOTE: If your receiver/processor has only one sub out, you may use either the L or R input.

OPERATION

Surround Modes

When using the TSS-SUB750 in a Dolby Digital or DTS home theater system, make sure all speakers are set to "Small". When using the TSS-SUB750 as part of a Dolby Pro Logic* home theater system, make sure the receiver's center channel mode is set to "Normal."

Some Dolby Digital-equipped receivers/processors offer different setup options for each source or surround mode, e.g., CD-stereo, videotape, Dolby or Pro Logic. In each case, follow your equipment's instructions to ensure that the subwoofer output is turned on and that the speakers are set to "Small" in each mode.

Power On

Plug your subwoofer's AC cord into a wall outlet. Do not use the outlets on the back of the receiver.

Initially set the Subwoofer Level Control 1 to the "MIN" position.

Turn on the subwoofer by pressing the Power Switch ⑥ on the rear panel.

Turn on your entire audio system and start a CD or movie soundtrack at a moderate level.

Auto On/Standby

With the Power Switch 6 in the ON position, the LED on the front panel will remain lit in red or green to indicate the On/Standby mode of the subwoofer.

RED = STANDBY (No signal detected, amp off)

GREEN = ON (Signal detected, amp on)

The subwoofer will automatically enter the Standby mode after approximately 10 minutes when no signal is detected from your system. The subwoofer will then power on instantly when a signal is detected. During periods of normal use, the Power Switch ^6 can be left on. You may turn off the Power Switch ^6 for extended periods of nonoperation, e.g., when you are away on vacation.

Adjust Level

Turn the Subwoofer Level Control ^① up about half way. If no sound emanates from the subwoofer, check the AC-line cord and input cables. Are the connectors on the cables making proper contact? Is the AC plug connected to a "live" receptacle? Has the Power Switch ^⑥ been pressed to the "On" position? Once you have confirmed that the subwoofer is active, proceed by playing a CD or DVD. Use a selection that has ample bass information.

Set the overall volume control of the receiver/processor to a comfortable level. Adjust the Subwoofer Level Control ① until you obtain a pleasing blend of bass. Bass response should not overpower the room but rather be adjusted so there is a harmonious blend across the entire musical range. Many users have a tendency to set the subwoofer volume too loud, adhering to the belief that a subwoofer is there to produce lots of bass. This is not entirely true. A subwoofer is there to enhance bass, extending the response of the entire system so the bass can be felt as well as heard. However, overall balance must be maintained or the music will not sound natural. An experienced listener will set the volume of the subwoofer so its impact on bass response is always there but never obtrusive.

Crossover Adjustment

The Crossover Adjustment Control 4 determines the highest frequency at which the subwoofer reproduces sounds. If your main/satellite speakers can comfortably reproduce some low-frequency sounds, set this control to a lower frequency setting, between 50Hz and 100Hz. This will concentrate the subwoofer's efforts on the ultradeep bass sounds required by today's films and music. If you are using smaller speakers that do not extend to the lower bass frequencies, set the Crossover Adjustment control to a higher setting, between 120Hz and 150Hz.

NOTE: This control will have no effect if the LFE/Normal Switch ② is set to LFE. If you have a Dolby Digital or DTS receiver/processor, the Low-Pass Frequency is set by the receiver/processor. Set the LFE/Normal Switch ② on the subwoofer to LFE. Consult your owner's manual to learn how to view or change this setting. A setting of 100Hz – 120Hz is recommended when using the TSS-SUB750 with Infinity Total Solution satellites.

Phase Control

The Phase Switch ③ determines whether the subwoofer speaker's piston-like action moves in and out with the main speakers, 0°, or opposite the main speakers, 180°. Proper phase adjustment depends on several variables such as room size, subwoofer placement and listener position. Adjust the phase switch to maximize bass output at the listening position.

Final Positioning

After correctly connecting the TSS-SUB750 system and verifying that both the subwoofer and all satellite speakers are playing, it is time to optimize the system for your particular listening room. Earlier, you placed the subwoofer in its general location. Finding the exact location for optimal performance sometimes only involves moving the speakers up to a few inches in any direction. We urge you, therefore, to experiment with placement, if possible, until your speakers deliver their full potential.

MAINTENANCE AND SERVICE

The satellite and subwoofer enclosures may be cleaned using a soft cloth to remove fingerprints or to wipe off dust.

All wiring connections should be inspected and cleaned or remade periodically. The frequency of maintenance depends on the metals involved in the connections, atmospheric conditions, and other factors, but once per year is the minimum.

If a problem occurs, make sure that all connections are properly made and clean. If a problem exists in one loudspeaker, reverse the connection wires to the left and right system. If the problem remains in the same speaker, then the fault is with the loudspeaker. If the problem appears in the opposite speaker, the cause is in another component or cable. In the event that your TSS-SUB750 ever needs service, contact your local Infinity dealer or Infinity directly at 1.516.674.4INF (USA only) or www.infinitysystems.com for a service center near you.

SPECIFICATIONS

TSS-SUB750

Frequency Range: 34Hz - 150Hz (±3dB)

Amplifier Output: 150 watts RMS, 500 watts peak

Low-Frequency Driver: 10" (250mm)

Crossover Frequency: 50Hz – 150Hz, 24dB/octave, continuously variable

Dimensions (H x W x D): 16-3/4" x 10-3/4" x 15-3/4"

(425mm x 273mm x 400mm)

Weight: 33 lb (15kg)

Infinity continually strives to update and improve existing products, as well as create new ones.

The specifications and construction details in this and related Infinity publications are therefore subject to change without notice.

INFINITY TSS-SUB750 - SPECIFICATIONS - 1

Infinity

TECHNOLOGY - PERFORMANCE - DESIGN

© 2005 Harman International Industries, Incorporated

Infinity Systems, 250 Crossways Park Drive, Woodbury, NY 11797 USA 516.674.4IMF (4463) (USA only)

www.infinitysystems.com

*Trademarks of Dolby Laboratories. DTS is a registered trademark of Digital Theater Systems, Inc.

Infinity is a registered trademark, and Total Solutions is a trademark of Harman International Industries, Incorporated.

Part No.750-SUBOM 2/05

H A Harman International Company
