Reference RS 5 (5) - Pregnant INFINITY - Free user manual and instructions

Product Type	Bookshelf Speaker
Brand	Infinity
Model	Reference RS 5 (5)
Dimensions (H x W x D)	14.2 x 8.3 x 10.6 inches (approx.)
Weight	12.5 lbs (approx.)
Speaker Configuration	2-way bass reflex
Woofer	5.25 inch polypropylene cone
Tweeter	0.75 inch dome
Frequency Response	50 Hz - 20 kHz
Impedance	8 ohms
Sensitivity	89 dB
Power Handling (RMS)	75 watts
Recommended Amplifier Power	15-150 watts per channel
Connectivity	Wired speaker terminals (binding posts)
Enclosure Material	MDF with vinyl finish
Grille	Removable cloth grille
Placement	Bookshelf or stand mount
Usage	Stereo home audio
Maintenance	Wipe with dry cloth; avoid liquids
Safety	Place on stable surface; keep away from moisture
Spare Parts Availability	Contact Infinity support

Frequently Asked Questions - Reference RS 5 (5) INFINITY

How do I connect the Infinity Reference RS 5 speakers to my amplifier?

Use speaker wire with banana plugs or bare wire. Connect the positive terminal (red) to the amplifier's positive output, and negative (black) to negative. Ensure the amplifier is turned off during connection.

What is the recommended placement for these speakers?

Place on sturdy bookshelves or stands at ear level. Keep at least 6 inches from walls for optimal bass response. Avoid direct sunlight and high humidity.

Can I use the Reference RS 5 with a subwoofer?

Yes, the speakers work well with a subwoofer. Set the crossover on your AVR around 80Hz for a seamless blend.

How do I clean the speaker grille?

Remove the grille gently and dust with a soft brush or vacuum on low suction. For stains, use a slightly damp cloth and dry immediately. Do not wet the speaker cone.

What if one speaker sounds quieter than the other?

Check speaker wire connections: ensure polarity is consistent (both + to +). Also verify balance control on your amplifier is centered. If problem persists, test with another source.

Do the speakers require a break-in period?

While not mandatory, a break-in of 20-30 hours at moderate volume can help the suspension loosen. You may notice slight improvement in bass and smoothness.

Is the Infinity RS 5 magnetically shielded?

No, these speakers are not designed for CRT TV placement. Keep them at least 2 feet away from older televisions and monitors.

What amplifier power is recommended?

An amplifier rated between 15 and 150 watts per channel is ideal. Avoid distortion by not pushing the amplifier into clipping.

Can I bi-wire or bi-amp the speakers?

The Reference RS 5 has a single pair of terminals, so bi-wiring is not possible. Use only one set of wires.

Where can I find the user manual?

The manual is available for free download at notice-facile.com in PDF format. Visit the product page for the Infinity Reference RS 5.

USER MANUAL Reference RS 5 (5) INFINITY

Floorstanding Speaker System

Models RS-4, RS-5

Owner's Manual

Part #333374-001

THE REFERENCE STANDARD (RS) SERIES

All RS Series products use efficient drivers for maximum stereo output with minimal amplifier power. They are magnetically shielded, making them suitable for home theater applications as well.

UNPACKING THE SPEAKERS

If you suspect damage from transit, report it immediately to your dealer and/or delivery service. Keep the shipping carton and packing materials for future use.

These speakers are covered by a Limited Warranty, so save the sales receipt to protect your purchase and aid in any service-related questions. Also, save these instructions for future reference.

INSTALLING FEET

Refer to Figure 1 as you perform the following steps:

1. Open each accessory pack and locate the following items: four feet (with spike/round ends), four locking nuts, four nylon domes, and one wrench.

2. Lay each speaker on its side and locate the four threaded holes on the bottom.

3. For carpets, screw the round end of a foot into each hole and hand tighten a nut onto each one. Leave a minimum of 58 " exposed spike. (On thicker carpets, you can increase the length of exposed spike up to 118 ".) For hard-surface floors, screw the spike end into each hole instead and leave 58 " of round end exposed.

4. Carefully flip each speaker upright to sit on its feet.

5. If needed, adjust the feet so each speaker is level and then tighten each nut with the enclosed wrench. To protect hard surfaces (e.g., wood floors), slip a nylon dome onto each round end.

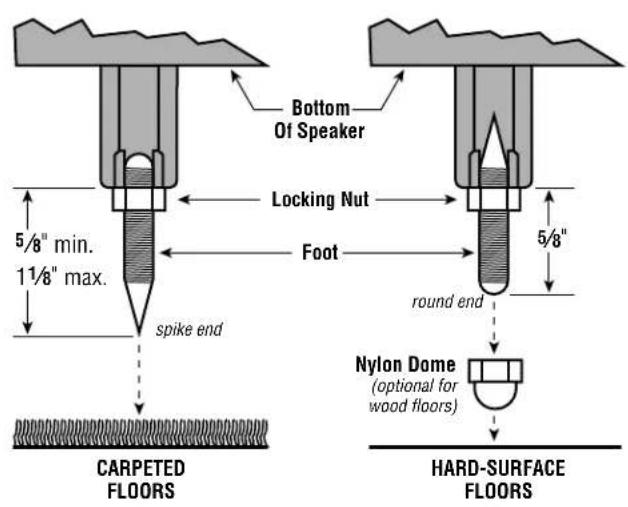

Figure 1. This cross section shows how to install a foot onto the bottom of an RS-4 or RS-5 floorstanding speaker.

STEREO SPEAKER PLACEMENT...

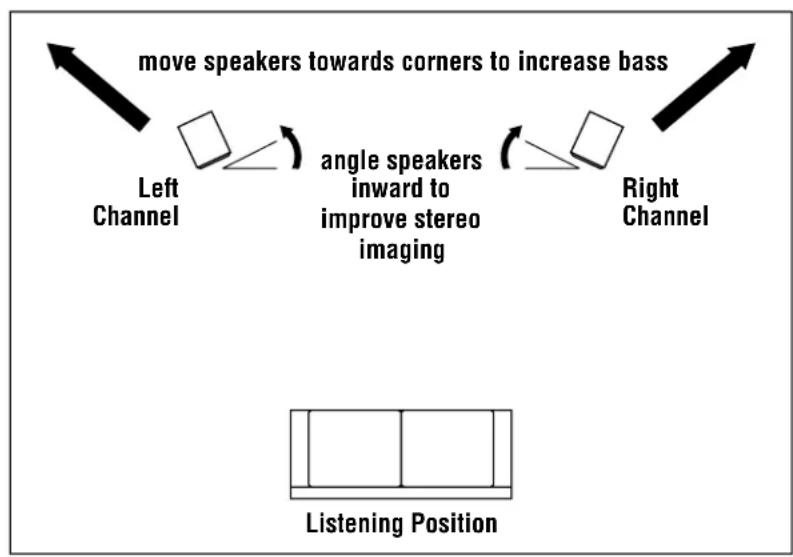

Figure 2. Experiment with speaker placement to obtain the best bass level and stereo imaging in your room.

HOME THEATER PLACEMENT...

Before deciding where to put your RS Series floorstanding speakers, survey your room and think about placement, keeping the following points in mind:

• For best results, try placing the speakers closer together than the distance to the listening area.
  ♦ Refer to Figure 2 when placing speakers for best bass level and stereo image (see Final Adjustments on page 6).
• Refer to Home Theater Placement (below) if you also plan to use the speakers for home theater reproduction.

RS-4 and RS-5 floorstanding speakers are also suitable for use in reproducing home theater sound from front left and right channels.

Place one RS Series floorstanding speaker on the left and another on the right, along either side of the television monitor. Since the speakers are magnetically shielded, you can set them in very close without worrying about the field distorting the TV picture.

NOTE: For maximum home theater enjoyment, your audio system should also include a center-channel speaker and a pair of rear-surround speakers. Moreover, you can add a subwoofer for deep bass impact on sound effects and music. Contact your local Infinity dealer for recommendations on adding these home theater speakers to your system.

TURN OFF ALL POWER...

IMPORTANT!

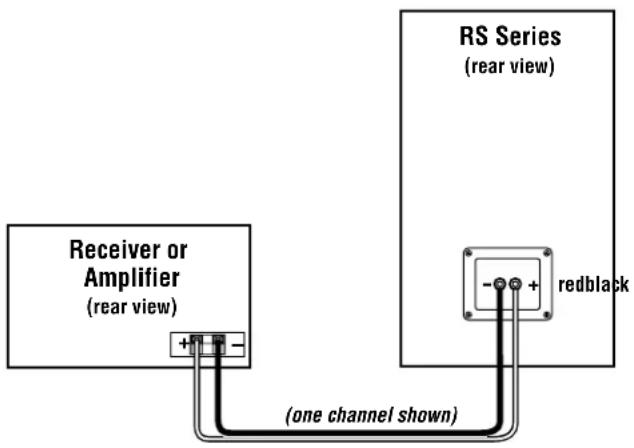

Figure 3. Wiring diagram shows polarity connections for one channel of a stereo or home theater system.

WIRING THE SYSTEM

IMPORTANT: Make sure all equipment is turned off before making any connections.

For speaker connections, use #18 gauge speaker wire (or #16 for runs over 25 feet) with polarity coding. The side of the wire with a ridge or other coding is usually considered negative polarity (i.e., -).

RS Series speakers have color-coded terminals that accept a variety of wire connectors. To ensure proper polarity, connect each + terminal on the back of the amplifier, receiver, or television to the respective + (red) terminal on each speaker, as shown in Figure 3. Similarly, connect the - (black) terminals in the same way. Also, see the owner's manuals that were included with your amplifier, receiver, or television to confirm connection procedures.

Do not reverse polarities (i.e., + to - or - to +) when making connections. Doing so will cause poor imaging and diminished bass response.

FINAL ADJUSTMENTS

Check the speakers for playback first by setting the system volume control for a minimum level, and then by applying power to your audio system. Play a favorite music or video segment and increase the system volume control to a comfortable level.

NOTE: You should hear balanced audio reproduction across the entire frequency spectrum. If not, check all wiring connections or consult the Authorized Infinity Dealer where you purchased the system for more help.

The amount of bass you hear and the stereo image quality will be affected by a number of different factors, including the room's size and shape, the construction materials used to build the room, the listener's position relative to the speakers, and the position of the speakers in the room.

Listen to a variety of music selections and note the bass level. If there is too much bass, move the speakers away from nearby walls (see Figure 2 on page 4). Conversely, if you want more bass, place the speakers closer to the walls.

Nearby reflecting surfaces can adversely affect stereo imaging quality. If this happens, try angling the speakers slightly inward toward the listening position, until the desired effect is achieved (see Figure 2 on page 3).

Each RS Series cabinet has a wood-vinyl finish that does not require any routine maintenance. When needed, use a soft cloth, dampened with water only, to remove any fingerprints or to wipe off dust.

Clean the grille by gently vacuuming or wiping with a damp cloth.

NOTE: Do not use any cleaning products or polishes on the cabinet or grille.

SPECIFICATIONS

PERFORMANCE DATA

DRIVE UNITS

DIMENSIONS

PERFORMANCE DATA

DRIVE UNITS

DIMENSIONS

Declaration of Conformity

We, Infinity Systems A/S

Kongavejen 194B

DK-3450 Bingerfd

DENMARK

declare in own responsibility, that the products described

in this owner's manual are in compliance with technical

standards:

EN 50 081-1/2.1991

EN 50 082-1/1.1992

Sleen Michaelsen

Infiny Systems A/S Birkered, DENMARK, 5:18

RS-4

Recommended Amplifier Power: 15 \~ 175 W

Frequency Range: 38 \~ 20,000Hz

Sensitivity: (2.83 V @ 1 m) 90dB spl

Nominal Impedance: 8 Ω

Bass: 6 12 " (160 mm)

High Frequency: 1" (25 mm)

Height*, Width, Depth: 35 1/2 x 7 1/2 x 12 1/2" (902 x 190 x 318 mm)

Weight (each, net): 33.9 lb (15.2 kg)

RS-5

Recommended Amplifier Power: 15 \~ 200 W

Frequency Range: 35 \~ 20,000Hz

Sensitivity: (2.83 V @ 1 m) 92dB spl

Nominal Impedance: 8 Ω

Bass: dual 6 12 " (160 mm)

High Frequency: 1" (25 mm)

Height*, Width, Depth: 40 x 7 1/2 x 12 1/2" (1,016 x 190 x 318 mm)

Weight (each, net): 40.4 lb (18.1 kg)

* Add 2¼" (57 mm) for foot bar.

Infinity constantly strives to update and improve existing products, as well as create new ones. Therefore, the specifications and construction details in this and related Infinity publications are subject to change without notice.

© 1998 Infinity Systems Inc., 250 Crossways Park Drive, Woodbury, NY 11797 USA [phone] • FAX [phone]

Infinity is a registered trademark of Infinity Systems, Inc.
