| Brand | Warmup |
| Model | VLo Econna-12 |
| Category | Heating (Hydronic Underfloor) |
| Product Type | Joisted Floor Heating System |
| Panel Dimensions | 2400 mm x 600 mm |
| Panel Thickness | 22 mm |
| Panel Composition | Routed P5 grade chipboard with aluminium foil layer |
| Pipe Centres | 150 mm |
| Weight (with water & 6 mm ply) | Approx. 14 kg/m² |
| Thermal Conductivity (panel) | 0.12 W/mK |
| Pipe Material | PE-RT (12 mm diameter) |
| Max Operating Temperature (pipe) | 60°C |
| Max Operating Pressure (pipe) | 8 Bar |
| Soft Body Impact Test | Pass (BS EN 12871) |
| Ultimate Load (Fmax) | 7.01 kN |
| Floor Stiffness (R) | 407.40 N/mm |
| Plywood Layer Required | Minimum 6 mm flooring grade plywood |
| Thermostat Compatibility | Warmup thermostats (e.g., 6iE OB WiFi) |
| Sensor Type | NTC10K (10 kΩ at 25°C) |
| Warranty (pipe) | Lifetime warranty (subject to registration) |
| SafetyNet Installation Guarantee | Free replacement if pipe damaged before covering |
| Adhesive Required | D4 wood adhesive for panel joints |
| Screw Types | 55 mm (panels to joists), 25 mm (plywood to panels) |
| Joist Centre Max | 600 mm |
Frequently Asked Questions - VLo Econna-12 Warmup
User questions about VLo Econna-12 Warmup
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Heating in PDF format for free! Find your manual VLo Econna-12 - Warmup and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. VLo Econna-12 by Warmup.
USER MANUAL VLo Econna-12 Warmup
VLo Econna-12
Joisted Floor System
Installation manual
SAFETY Net Installation-Guarantee
Warmup®
The world's best-selling floor heating brand™
Over 2.7 million installations in more than 72 countries
Experience MyHeating™
SmartGeo™
Unique SmartGeo™ automatically turns down the heating when you're out.
Easy to use
Simple and secure setup using WiFi, with 24/7 technical support.
AutoSwitch™
Always on the best tariff, automatically. Reduce energy bills by over £400
Download now for iOS and Android
Available on the App Store
GET IT ON Google Play
6iE OB WiFi Thermostat
Installation summary .... 4
Components available from Warmup....6
Important installation information....7
Typical floor build-up....8
Step 1 - Subfloor considerations....9
Joist notching/drilling....9
Step 2 - Install VLo Econna-12 .... 10
Step 3 - Lay the pipe .... 13
Step 4 - Lay plywood covering....16
Testing information....18
Troubleshooting....19
Warranty 20
Technical specifications.... 22
System Performance 23
Your Warmup ^® underfloor heating system has been designed so that installation is quick and straight forward, but it is important that the instructions in this manual are followed to ensure that your underfloor heating system performs correctly. Please ensure that you have the components and working drawings necessary for this system before you begin installation.
Warmup plc accepts no liability, expressed or implied, for any loss or consequential damage suffered as a result of installations which in any way contravene the instructions that follow.
It is important that before, during and after installation that all requirements are met and understood. If the instructions are followed, you should have no problems. If you require help at any stage, please contact our helpline.
You may also find a copy of this manual, wiring instructions and other helpful information on our website
www.warmup.co.uk
Please also read the full instructions that follow this section.
- Lay the first panel in the corner of the room, leaving a minimum 10 mm gap between the end and edge of the panel and the walls. The two groove edges of the panel should be placed in the corner. The opposite end of the panel must sit on the centre line of a joist.
- Lay the panels in a run, ensuring the end of each panel is on the centre line of a joist.
- Panels should be laid in a brickbond pattern with a min. overlap of 800 mm.
- Ensure that each row of panels has a group of return loops at each end.
• Install the pipe in line with the projects working drawings. - Econna-12 panels are structural, therefore additional pipe channels must not be routed.
- Feed the pipe through the hole through to the manifold location, notching/drilling the joists as required in line with building regulations.
• Refer to the manifold manual for detailed information on mounting, pressure testing and commissioning.
- Use Warmup pipe bend supports where the pipe exits the floor at the manifold location.
- The plywood should be positioned so that each plywood panel overlaps the tongue and groove edges of the Econna-12 panel by 300 mm.
• Install your Warmup thermostat referring to their installation instructions. The system must be connected to and controlled with a thermostat and sensor.
Product Code Description
| UK-WUK-HY-EC-PANEL Econna-12 panels |
| UK-WUK-HY-PERT-12x50 |
| UK-WUK-HY-PERT-12x60 |
| UK-WUK-HY-PERT-12x70 |
| Warmup PE-RT pipe 12 mm |
| UK-WUK-HY-ACC-PIPECLIPS12 Pipe clips |
| WHS-P-BEND12 Pipe bend supports |
Additional components that may be required as part of your Warmup heating installation:
| Manifold, mixing unit, actuators, valves and euroconus connectors |
| Wiring centre |
| Warmup thermostats |
| D4 adhesive |
| Wood screws (55 & 25 mm long) |
| Minimum 6 mm plywood |
On delivery of the Econna-12 panels ensure that they are stored in a dry weather tight area, away from chemicals and that they are stacked horizontally and raised off the ground. The panels must not be exposed to moisture or high humidity.
The moisture content of the Econna-12 panels and plywood layer should be no higher than 10 % and they should ideally acclimatised together before installation.
Perform a site inspection. You will need to confirm that all measurements and other requirements on site match your working drawings. Ensure that all areas are correctly prepared, dry and protected from weather.
i Inspect the site for possible hazards that could damage the Warmup pipe, such as nails, staples, materials or tools.

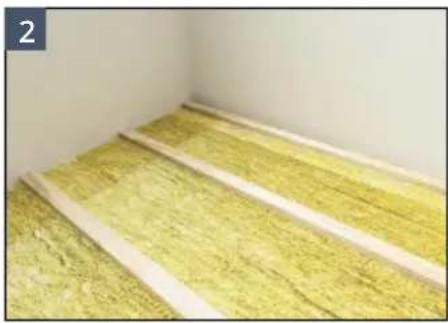

i Ensure that insulation is installed between the joist in line with building regulations. Joists must be level and even, clear of debris and without any surface deviations such as knots or nails.
Dust particles may become airborne when cutting wood or insulation products. Therefore please follow relevant health and safety rules when cutting the panels or insulation by using a mask, goggles, gloves and ensuring adequate ventilation.
Econna-12 panels are a structural floor deck therefore extra pipe channels must not be routed into the panels as this would weaken the system.
i Ensure the end of each Econna-12 panel falls on a centre line of a joist. The shortest length of panel should be supported across a minimum of three joists. If a shorter panel is required it must be supported by noggins. Ensure that each row of panels has a group of return loops at each end.
Use a pipe cutter designed for plastic pipe ensuring that there are no burrs on the pipe ends. It is important to achieve a clean cut.
Do not pull pipe from the coil while it is sitting flat. It must be unwound from the coil, rotating the coil as the pipe is pulled from the inside.
Do not force the pipe into bends. It is easier to lay the pipe with a large radius and then gently pull the pipe to the required bend. The minimum bending radius is 5 times the diameter of the pipe.
Do not kink the pipe. Excessive bending of the pipe can cause it to kink, where this occurs flow may be obstructed or reduced. Kinked pipe must be repaired or replaced. To repair a kink, straighten the pipe and simply heat the area with a hot air gun until the kink disappears.
Before installing the floor finish, its suitability for use with underfloor heating and its maximum operating temperature should be checked against required operating conditions.
i Underfloor heating performs the most efficiently with conductive, low resistance floor finishes such as stone and tiles. Consideration should be given to the thermal resistance and temperature limits of the chosen floor covering and its impact on the system heat output.
| All floor finishes | |
| 1 | Floor finish |
| 2 | 6 mm minimum plywood deck This layer must be screwed to the Econna-12 panels to complete the structural deck |
| 3 | Warmup 12 mm PE-RT pipe |
| 4 | Floor sensor Must be recessed into the Econna-12 panel and taped in position. |
| 5 | Econna-12 panels Panels secured together using a D4 adhesive on BOTH sides of the tongue and groove and fit together. Panels then glued and screwed to the joists. |
| 6 | Joists ≤ 600 mm centres Refer to tiling standards for maximum joist centres for floors to receive tiles |
| 7 | Insulation layer Thickness in line with building regulations |
| 8 | Flow and return pipes* Installed beneath the Econna-12 panels, notched or through holes drilled in the joists in line with building regulations. |
| * Service pipes must be insulated within the joist space and supported at 300 mm intervals on horizontal runs and 500 mm on vertical runs using pipe clips | |
To prevent excessive heat loss through the floor, ensure that insulation is installed between the joist in line with building regulations.
If using temperature sensitive materials above Econna-12, such as damp proofing or tanking systems, contact the manufacturer for advice.
Where ceramic tiles are to be used, ensure that the subfloor meets the local tiling standard requirements.
Do not commence installation of the Econna-12 panels without ensuring that the resulting floor construction will meet the requirements of the floors intended use and its finish.
Joist notching/drilling

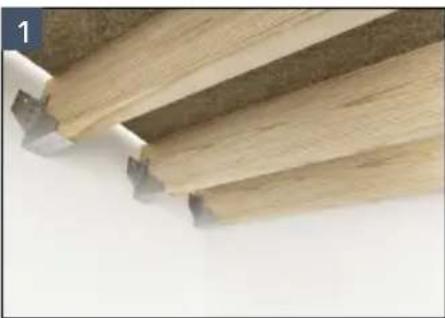

Joists must be level and even, clear of debris and without any surface deviations such as knots of nails before laying the Econna-12 panels
Joists will have to be drilled or notched in line with building regulations to allow for the flow and return pipes to enter the room. Ensure the notches or holes are large enough to allow for the expansion and contraction of the pipes. All exposed pipework within the joist spaces must be insulated.
Joist notching

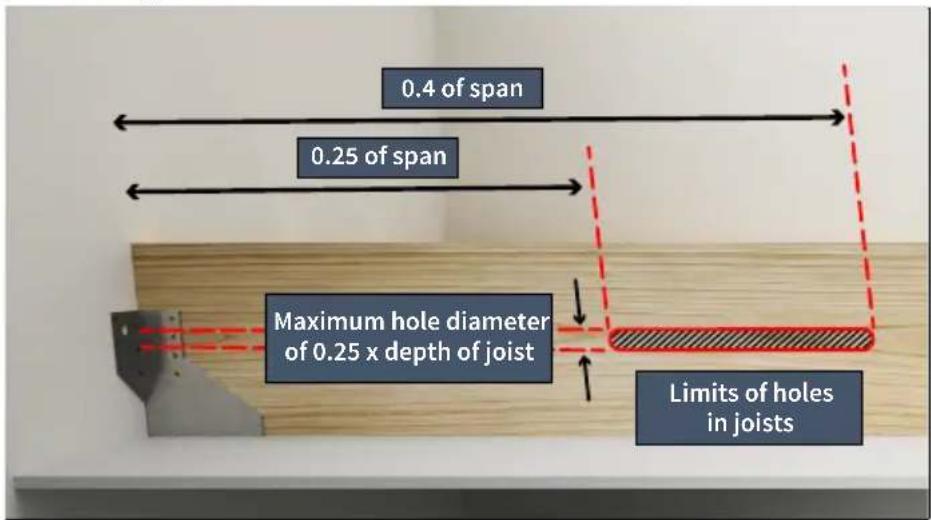

Joist drilling
The images above are for guidance only, please refer to building regulations for full information on how to notch/drill into joists.
- Lay the first panel in the corner of the room, perpendicular to the joists, leaving a minimum 10 mm gap between the end and edge of the panel and the walls. The two groove edges of the panel should be placed in the corner. The opposite end of the panel must sit on the centre line of a joist.
- Feed the pipe through the hole through to the manifold location, notching/drilling the joists as required in line with building regulations.
- Lay the panels in a run, ensuring the end of each panel is on the centre line of a joist.
- Panels should be laid in a brickbond pattern with a minimum overlap of 800 mm.
- Ensure that each row of panels has a group of return loops at each end.
- Screw the Econna-12 panels to the joists using 55 mm wood screws, 25 mm in from each top edge and then at 150 mm centres.


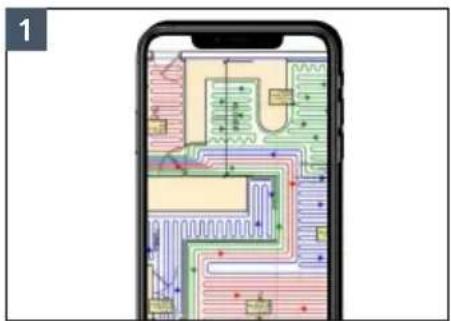

If the project has been supplied with a set of working drawings, follow the provided pipe layout. Ensure each circuits details are recorded in the commissioning log provided in the Warmup manifolds installation manual.
- Plan the circuit layout ensuring that the flow and return pipes can connect from the manifold to their respective heated area without crossing each other.
Econna-12 panels are structural, therefore additional pipe channels must not be routed.
• Install the sensor at least 300 mm into the heated area it will be controlling. It should be located centrally between parallel runs of pipe and not in an area influenced by other heat sources. - The sensor can be secured to the subfloor with tabs of tape.
• Refer to the manifold manual for detailed information on mounting, pressure testing and commissioning.
- Feed the pipe through the hole through to the manifold location, notching/drilling the joists as required in line with building regulations.
All exposed pipework within the joist spaces must be insulated with lagging.
Underfloor heating pipe within the joist space should be supported at 300 mm intervals on horizontal runs and 500 mm on vertical runs when fixing the pipe to vertical surfaces. Pipes should be secured to the joists using clips.
Use pipe bend supports on route to the manifold location.
A minimum 6 mm flooring grade plywood covering must be installed in the opposite direction to the Econna-12 panels. This layer must be screwed into the Econna-12 panels to complete the structural deck.
- Screw the plywood covering into the Econna-12 panels using 25 mm wood screws, 18 mm in from the edge of each plywood sheet and then at 150 x 150 mm centres, ideally in the centre line between the pipe runs.
It is best practice to predetermine and mark the pipe and screw positions on the top surface of the ply layer to avoid the straights and loop ends of the pipe runs.
- Ensure any floor coverings, underlays and adhesives used are suitable for use with underfloor heating at the intended operational temperatures and conditions.
Sensor resistance test
The expected resistance depending on temperature is listed below.
Sensor resistance by temperature - NTC10K
| Temperature Resistance Temperature Resistance | |
| 0 °C 32.5 kΩ 16 °C 15.0 kΩ | |
| 2 °C 29.4 kΩ 18 °C 13.7 kΩ | |
| 4 °C 26.6 kΩ 20 °C 12.5 kΩ | |
| 6 °C 24.1 kΩ 22 °C 11.4 kΩ | |
| 8 °C 21.9 kΩ 24 °C 10.5 kΩ | |
| 10 °C 19.9 kΩ 26 °C 9.6 kΩ | |
| 12 °C 18.1 kΩ 28 °C 8.8 kΩ | |
| 14 °C 16.5 kΩ 30 °C 8.1 kΩ | |
| ISSUE 1 - Excessive movement or creaking | |
| PROBLEM SOLUTION | |
| The Econna-12 panels layer have not been glued and screwed in line with the manual or the plywood layer has not be screwed down correctly. | Refit the panels in accordance with this manual. |
| ISSUE 2 - Cracked tiles | |
| PROBLEM SOLUTION | |
| There is excessive movement of the joists or the joist spacing is larger than recommended by building regulations causing the floor to flex leading to cracked tiles. | The issue with the subfloor has to be resolved otherwise the tiles will continue to crack |
| ISSUE 3 - Excessive / Insufficient heat output | |
| PROBLEM SOLUTION | |
| Incorrect water temperature | Refer to System Performance chart to calculate the required water temperature |
Warmup plc limited warranty - Hydronic floor heating pipe
Registration can be completed online at www.warmup.co.uk.
In the event of a claim, proof of purchase is required in the form of an invoice or receipt.
THIS WARRANTY DOES NOT EXTEND TO OTHER COMPONENTS WHICH ARE COVERED BY SEPARATE WARRANTIES. THIS WARRANTY DOES NOT AFFECT YOUR STATUTORY RIGHTS.
Limited warranty:
Warmup® underfloor heating pipe is warranted by Warmup plc ("Warmup") to be free from defects in manufacturing under normal use and maintenance, and is warranted to remain so subject to the limitations and conditions described below.
This warranty period begins on the date of purchase. The Lifetime warranty only applies if the product is registered with Warmup within 30 days after purchase and registered online at www.warmup.co.uk. Registration is confirmed only when confirmation of receipt is forwarded by Warmup plc
Warranty duration
- The PE-RT underfloor heating pipe is warranted for the LIFETIME of the floor under which it is fitted, except as provided below; your attention is drawn to the exclusions listed and the end of this warranty.
Notification of a suspected failure must be received in writing by Warmup within thirty (30) days of the suspected failure. Products believed to be defective must be made available to Warmup for testing and determination of cause.
Upon acceptance of any warranty claim, Warmup shall have ninety (90) business days in which to investigate and determine whether it recognises responsibility for any believed defects in material or workmanship and determines the appropriate course of action to be taken.
It is expressly agreed that the sole remedies under this limited warranty shall be at the discretion of Warmup, plc to either: issue a refund, repair or replace any article which is proven to be defective. Any and all allowances made to customers for transportation, labour, repairs or all other work, are at the exclusive discretion of Warmup and shall be authorised in writing, in advance, by Warmup. Such cost does not extend to any cost other than direct costs of repair or replacement by Warmup and does not extend to costs of relaying or repairing any floor covering or floor.
The lifetime warranty applies to the pipes(s) if they:
- Are registered with Warmup within 30 days after purchase.
- Have not operated at a pressure of greater than 8 Bar.
- Have not operated at a temperature of greater than 60^ C.
- Are filled with treated water subtitle for use with PE pipes.
- Are installed according to all applicable building code requirements.
- Are selected, designed and installed by a qualified contractor according to installation instructions provided by Warmup which are current as of the applicable installation date.
- Remain in their original installed location, such that the floor covering or screed over the product is not damaged, lifted, replaced, repaired or covered with subsequent layers of flooring.
- Do not show evidence of accidental damage, misuse, lack of care, tampering, or repair or modification without the prior written approval of Warmup plc.
SafetyNet™ Installation Guidelines: If you make a mistake and damage the pipe before covering the pipe with screed, levelling compound or floor covering, return the damaged pipe to Warmup within in 30 days along with your original dated sales receipt. WARMUP WILL REPLACE THE COIL OF PIPE (MAXIMUM 1 COIL OF PIPE PER ORDER) WITH ANOTHER COIL OF THE SAME MAKE AND MODEL - FREE.
Register your Warmup® warranty online at www.warmup.co.uk
(i) Pipes repaired by Warmup carry a 5 year warranty only. Under no circumstances is Warmup responsible for the repair or replacement of any tiles / floor covering which may be removed or damaged in order to affect the repair.
(ii) The SafetyNet™ Installation Guarantee is null and void once the pipe is covered with a screed, levelling compound, adhesive or floor deck.
(iii) Damage to the pipe that occurs after covering, such as lifting a damaged tile once adhesive has set, or subfloor movement causing floor damage, is not covered by the SafetyNet™ Guarantee.
Econna-12 panels
| Product code EC-PANEL | |
| Dimensions 2400 mm x 600 mm | |
| Thickness 22 mm | |
| Composition | Routed P5 grade chipboard with aluminium foil layer |
| Installation height 22mm (+ 6 mm plywood layer) | |
| Pipe centres 150 mm | |
| Weight with Water & 6mm Ply | Approx. 14 kg/m2 |
| Thermal conductivity 0.12 W/mK | |
| Soft Body Impact BS EN 12871 = Pass | |
BS EN 12871, joists at 600mm centres
Ultimate Load, Fmax (kN) = 7.01
Deflection at Fmax (mm) = 28.25
Floor Stiffness, R (Nmm-1) = 407.40
Deformation at 0.4 Fmax, Wm (mm) = 7.99
| kH Value - W/m2K | |||||||||||||||
| Resistance of Floor Covering, tog | 0.00 | 0.25 | 0.50 | 0.75 | 1.00 | 1.25 | 1.50 | 1.75 | 2.00 | 2.25 | 2.50 | 2.75 | 3.00 | ||
| 150mm Pipe Centres | 3.41 | 3.11 | 2.86 | 2.64 | 2.46 | 2.30 | 2.16 | 2.04 | 1.93 | 1.83 | 1.74 | 1.66 | 1.58 | ||
| q = Specific Heat Output, W/m2k | H = System Performance Factor, W/m2K |
| Twater = Mean water Temperature T | air = Room Air Temperature |
Using the system k_H value to calculate the system heat output:
$$ \mathbf {q} = \mathbf {k} _ {\mathrm{H}} \times \left(\mathbf {T} _ {\text { water }} - \mathbf {T} _ {\text { air }}\right) $$
Example:
The heat output through an 18 mm thick, ≈ 1.25 tog timber floor, over Econna-12 with 6 mm ply, fitted with pipe at 150 mm centres, in a 21°C room heated with 40°C water is;
$$ q = 2. 3 0 \times (4 0 - 2 1) = 2. 3 0 \times 1 9 = 4 3. 7 \mathrm{W} / \mathrm{m} ^ {2} $$
Alternatively, using the system k_H value to calculate the required water temperature, knowing the required heat output:
$$ T _ {\text { water }} = (q / k _ {H}) + T _ {\text { air }} $$
Example:
The water temperature required to produce a heat output of 55W/m ^2 , through a 3 mm thick ≈ 0.25 tog LVT floor finish, over Econna-12 panels with 6 mm ply, fitted with pipe at 150 mm centres, in a 22°C room is;
$$ T _ {\text { water }} = (5 5 / 3. 1 1) + 2 2 = 1 8. 5 + 2 2 \approx 4 0. 5 ^ {\circ} \mathrm{C} $$
Floor sensor setting for target heat output
line
| Specific Heat Output, W/m² | Temperature difference between design room air and floor surface OR floor sensor °C | | -------------------------- | -------------------------------------------------------------------------------------- | | 0 | 0.0 | | 10 | 1.0 | | 20 | 2.0 | | 30 | 3.0 | | 40 | 4.0 | | 50 | 5.0 | | 60 | 6.0 | | 70 | 7.0 | | 80 | 8.0 | | 90 | 9.0 | | 100 | 10.0 | | 110 | 11.0 | | 120 | 12.0 | | 130 | 13.0 | | 140 | 14.0 | | 150 | 15.0 | | 160 | 16.0 | | 170 | 17.0 | | 180 | 18.0 | | 190 | 19.0 | | 200 | 20.0 |The room with the highest water temperature requirement sets the design water temperature for the whole system based on the calculations from the previous section.
Using the graph above it is possible to limit the specific heat output to the required value.
The example above shows a design room air temperature of 20^ C and an design heat output of 52.5 W/m^2 . Based on a 0.150 m^2 K/W (1.5 tog) floor finish the floor sensor should be set to 33^ C ( 20^ C room air + 13^ C T ) to resulting in floor surface temperature of 25^ C ( 20^ C room air + 5^ C T ).
line
| Floor finish R-Value | 0.250 m²K/W | 0.225 m²K/W | 0.200 m²K/W | 0.175 m²K/W | 0.150 m²K/W | 0.125 m²K/W | 0.100 m²K/W | 0.075 m²K/W | 0.050 m²K/W | 0.025 m²K/W | |----------------------|-------------|-------------|-------------|-------------|-------------|-------------|-------------|-------------|-------------|-------------| | Floor Surface | - | - | - | - | - | - | - | - | - | - |Specific Heat Output, W/m²
The design floor surface temperature difference should not be more than 9 °C in occupied areas, 15 °C in unoccupied areas.
Heat output is limited by the floor finish resistance combined with the maximum probe setting of 40 °C.
Temperature limits of the floor finish or its adhesive may adversely limit the design heat output.
| 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
| 1,1 | 1,1 | 1,1 | 1,1 | 1,1 | 1,1 | 1,1 | 1,1 | 0.5 | |||||||||
| 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | ||||||||
| 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | ||||||||
| 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | \( {2.3}\mathrm{\;A} : {4.6}\mathrm{\;B} : {7.9}\mathrm{\;C} : {8.6}\mathrm{\;D} : {9.3}\mathrm{\;E} : {9.8}\mathrm{\;F} : {9.9}\mathrm{\;G} : {9.9}\mathrm{\;H} : {9.9}\mathrm{\;I} : {9.9}\mathrm{\;J} : {9.9}\mathrm{\;K} : {9.9}\mathrm{\;L} : {9.9}\mathrm{\;M} : {9.9}\mathrm{\;N} : {9.9}\mathrm{\;O} : {9.9}\mathrm{\;P} : {9.9}\mathrm{\;Q} : {9.9}\mathrm{\;R} : {9.9}\mathrm{\;S} : {9.9}\mathrm{\;T} : {9.9}\mathrm{\;U} : {9.9}\mathrm{\;V} : {9.9}\mathrm{\;W} : {9.9}\mathrm{\;X} : {9.9}\mathrm{\;Y} : {9.9}\mathrm{\;Z} : {9.9}\mathrm{\;A} : {4.6}\mathrm{\;B} : {7.9}\mathrm{\;C} : {8.6}\mathrm{\;D} : {9.3}\mathrm{\;E} : {9.8}\mathrm{\;F} : {9.9}\mathrm{\;G} : {9.9}\mathrm{\;H} : {9.9}\mathrm{\;I} : {9.9} | ||||||||
| \( {\text{空}}_{1}^{2} + {\text{空}}_{2} + {\text{空}}_{3} + {\text{空}}_{4} + {\text{空}}_{5} + {\text{空}}_{6} + {\text{空}}_{7} + {\text{空}}_{8} + {\text{空}}_{9} + {\text{空}}_{10} + {\text{空}}_{11} + {\text{空}}_{12} + {\text{空}}_{13} + {\text{空}}_{14} + {\text{空}}_{15} + {\text{空}}_{16} + {\text{空}}_{17} + {\text{空}}_{18} + {\text{空}}_{19} + {\text{空}}_{20} + {\text{空}}_{21} + {\text{空}}_{22} + {\text{空}}_{23} + {\text{空}}_{24} + {\text{空}}_{25} + {\text{空}}_{26} + {\text{空}}_{27} + {\text{空}}_{28} + {\text{空}}_{29} + {\text{空}}_{30} + {\text{空}}_{31} + {\text{空}}_{32} + {\text{空}}_{33} + {\text{空}}_{34} + {\text{空}}_{35} + {\text{空}}_{36} + {\text{空}}_{37} + {\text{空}}_{38} + {\text{空}}_{39} + {\text{空}}_{40} + {\text{空}}_{41} + {\text{空}}_{42} + {\text{空}}_{43} + {\text{空}}_{44} + {\text{空}}_{45} + {\text{空}}_{46} + {\text{空}}_{47} + {\text{空}}_{48} + {\text{空}}_{49} + {\text{空}}_{50} + {\text{空}}_{51} + {\text{空}}_{52} + {\text{空}}_{53} + {\text{空}}_{54} + {\text{空}}_{55} + {\text{空}}_{56} + {\text{空}}_{57} + {\text{空}}_{58} + {\text{空}}_{59} + {\text{空}}_{60} + {\text{空}}_{61} + {\text{空}}_{62} + {\text{空}}_{63} + {\text{空}}_{64} + {\text{空}}_{65} + {\text{空}}_{66} + {\text{空}}_{67} + {\text{空}}_{68} + {\text{空}}_{69} + {\text{空}}_{70} + {\text{空}}_{71} + {\text{空}}_{72} + {\text{空}}_{73} + {\text{空}}_{74} + {\text{空}}_{75} + {\text{空}}_{76} + {\text{空}}_{77} + {\text{空}}_{78} + {\text{空}}_{79} + {\text{空}}_{80} + {\text{空}}_{81} + {\text{空}}_{82} + {\text{空}}_{83} + {\text{空}}_{84} + {\text{空}}_{85} + {\text{空}}_{86} + {\text{空}}_{87} + {\text{空}}_{88} + {\text{空}}_{89} + {\text{空}}_{90} + {\text{空}}_{91} + {\text{空}}_{92} + {\text{空}}_{93} + {\text{空}}_{94} + {\text{空}}_{95} + {\text{空}}_{96} + {\text{空}}_{97} + {\text{空}}_{98} + {\text{空}}_{99} + {a}_{100}\;{\mathrm{{mm}}}^{2}\;{\mathrm{{mm}}}^{2}\;{\mathrm{{mm}}}^{2}\;{\mathrm{{mm}}}^{2}\;{\mathrm{{mm}}}^{2}\;{\mathrm{{mm}}}^{2}\;{\mathrm{{mm}}}^{2}\;{\mathrm{{mm}}}^{2}\;{\mathrm{{mm}}}^{2}\;{\mathrm{{mm}}}^{2}\;{\mathrm{{mm}}}^{2}\;{\mathrm{{mm}}}^{2} | |||||||||||||||||
Warmup plc
www.warmup.co.uk
uk@warmup.com
Tel: 0345 345 2288
Fax: 0345 345 2299
Please scan the QR code to provide feedback on your installation
- VLo Econna-12
- Warmup®
- Over 2.7 million installations in more than 72 countries
- Experience MyHeating™
- SmartGeo™
- Easy to use
- AutoSwitch™
- Download now for iOS and Android
- Joist notching/drilling
- Warmup plc limited warranty - Hydronic floor heating pipe
- Limited warranty:
- Warranty duration
- The lifetime warranty applies to the pipes(s) if they:
- Register your Warmup® warranty online at www.warmup.co.uk
- Example:
- Warmup plc
Brand : Warmup
Model : VLo Econna-12
Category : Heating
