Product Type	Freestanding Cooker
Brand	Premium
Model	PGS2000
Dimensions (H x W x D)	85 cm x 60 cm x 60 cm
Weight	Approx. 50 kg
Power Supply	220-240V, 50/60Hz, 10.5 kW total
Energy Source	Electric (oven) + Gas (hob)
Number of Burners	4 gas burners (including one triple-ring wok burner)
Oven Capacity	70 liters
Oven Functions	Conventional, fan-assisted, grill, defrost
Cleaning Type	Easy-clean enamel interior, removable oven door
Safety Features	Flame failure device on all burners, child lock, thermostat control
Spare Parts Availability	Available through authorized service centers
Repairability Index	7.5/10 (based on user ratings)
Documentation	Free PDF manual available online

Frequently Asked Questions - PGS2000 Premium

How do I clean the oven interior?

Use a damp cloth with mild detergent. Avoid abrasive cleaners. The oven has an easy-clean enamel coating.

What should I do if the gas burner does not light?

Check that the gas supply is on and the burner caps are properly placed. If it still fails, the thermocouple may need cleaning or replacement.

Can I use cookware of any size on the hob?

Use pans with flat bottoms and diameters matching the burner size. Oversized pans may cause uneven heating.

How do I activate the child lock?

Press and hold the child lock button for 3 seconds until the indicator lights up. Repeat to deactivate.

What is the maximum oven temperature?

The oven can reach up to 250°C (482°F) in conventional mode and 230°C (446°F) in fan-assisted mode.

How often should I replace the oven light bulb?

The oven bulb typically lasts for years. To replace, turn off the power, remove the glass cover, and fit a 25W 300°C resistant bulb.

Is installation included with purchase?

No, installation is usually not included. It must be performed by a qualified technician to ensure safety.

Why is my oven not heating evenly?

Check that the oven shelves are not overcrowded. Use the fan-assisted function for more even heat distribution.

What spare parts are available?

Common spare parts include knobs, burner caps, oven door seals, and heating elements. Order from authorized dealers.

How can I download the user manual?

Visit the Premium support website or scan the QR code on the product. Enter the model PGS2000 to get the free PDF.

USER MANUAL PGS2000 Premium

Freestanding Gas Stove

MODEL: PGS2000 PGS2009SK PISCIS

(Maximumpower:26W)

InstallationandMaintenanceManual

This product is for domestic use only

Use & Care Manual

Important Safeguards

Warning

Maintenancproductshouldbeariedubprofessionalandtechnicapersonnel withelevamqualificationsimpropermaintenancemayleadtootherdangers!
●Beforemaintenance,besuretocutoffthepower!
If powerlines have fault hidden dangers, it required to replace the powerlines with relevant technical parameters (seethemanual for parameters)!
- Beforemaintenanceofproduct,pleasereadthesafetywarningsinthismanualcarefully!

Table

SPECIFICATIONS....1

TECHNICALINFORMATION....1

INSTALLATIONS....2

SAFETYPRECAUTIONSFORINSTALLATION 2

INSTALLATIONOFOVEN....2

SERVICE INFORMATION....3

NECESSARYTOOLS....3

DISASSEMBLYANDADJUSTMENT....5

COMPONENTS THE PROCEDURE....6

TROUBLESHOOTING....7

EXPLODEVIEW......8

COMPONENTS LIST....9

TechnicalParameters

0.8/ 0.

ProductType	20inch
ProductDimensions (Height/width/depth)(mm)	495*556*850
Maximumtemperature250°C
Functionswitch(quantity)6
Grillnumberoflayers4
68/dz 0.53/di 0.65c(mm)
Heatingtubepower(down)(W)2700

BeforeMaintenance, pleasereadthefollowinginstructionscarefully!

InstallationWarning

1. All the equipment around 50 mm of the product should be able to have heat resistance above 75°C, otherwise, nearby apparatus may deform during the use of this product.
2. When removing packing materials, keep metal plates, packaging bags, foam, screws and other materials away from the reach of childrento avoid potential threat. Forexample, children mays wallow small parts or lead to asphyxiation when playpackaging bags.

OvenInstallation

1. Pleaseremovepackagingfirst, and then installinreferencetothebelowspecifiedsize. (Pleasedisposepackaging materialsproperly)
2. Ifitisnecessarytoliftormovetheoven, pleaseopentheovendoor,touchthetopandsquareholesontheback. Please donotdirectlyuseovendoorhandletolifttheoven.
3. Theovenshouldnottouchorgetclosetoflammable, explosive, non-temperature items.
   4.Floorforplacingtheovenshouldbesmoothenoughtoensuresufficientstabilityfortheproduct.
   5.Productdimensions(Height/width/depth)(mm)495*556*850

Front view of a laboratory oven with control panel and green indicator light (no text or symbols visible)

MaintenanceInformation

RelevantTools

Relevanttoolslist.

• Drillsteelclamp(vise)
  •Solderwire•
  •ACVoltageMeter•

• Needle-nosedpliers
  •Insulationtape•
  •Ohmmeter

•Phillipsscrewdriver•
•Sandpaper•

•Electriciron
•DCVoltageMeter

Disassembleandrepair

A. Theremovalofdoor

1) Openthecovendoortothehorizontalposition.
2) Slidesnapsoftheleftandrighthingetothemaximumposition.(Seebelowpictures)
3) Closethedoorto60degreesposition, graspthedoorwithbothhands, pulltogetherwiththehinge. (Seebelow pictures)

3D rendering of an open oven with a green base and a close-up view of the lid (no text or symbols visible)

Circular diagram showing a mechanical or robotic arm with motion arrows, no text or symbols present

Warning: the door cannot be pulled out forcibly to prevent brokenglass in theremoval process

B. Theremovalofcooktopcover

1)Removethescrewsforfixingthebackboard.(Seebelowpictures)

Removethescrews

3D rendering of a white oven with open door and green control buttons, showing internal wiring (no text or symbols visible)

C.Removetherightandleftbracketofthecooktop

1) Turnoffthegassource.
2)Removethescrewsonsupportingblocksofbothsidesofthecooktopcover.(Seebelowpictures)

Technical diagram of a mechanical or electrical enclosure with internal components and red directional arrows indicating flow or movement (no text or symbols)

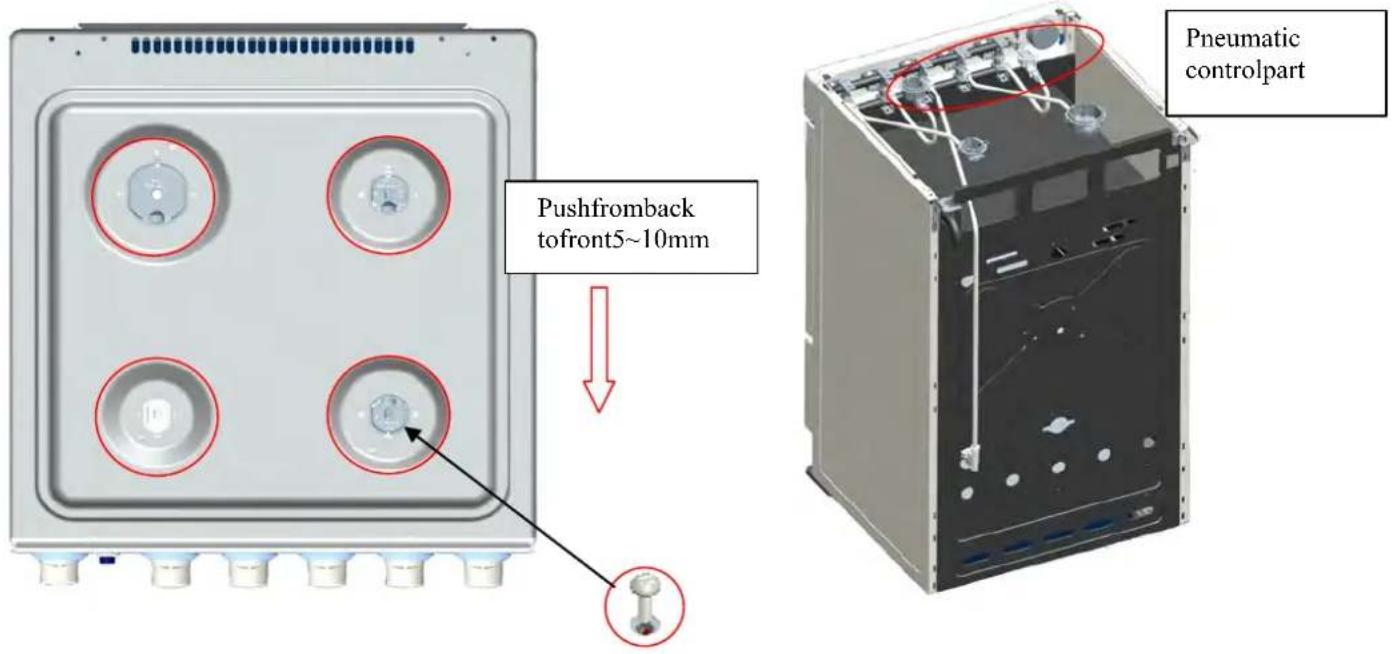

D.Removeofthestoveboard

1) Turnoffthegassupply, disconnect the power, removethe powerline.
2) Removebackplateconnectionboard
Removethescrewofhendthecookingplateconnectiontheup (Sebelovpictures)
4) Puslforward 0-20mnfronbehindthestovboardbyhandthenuschappropriatforctosqueezdsideofhe stoveboard,takedownthestoveboardcarefully(can'ttakedownforcibly)
5) According to the maintenance circuit diagram of part of the power failure, the inspection and maintenance

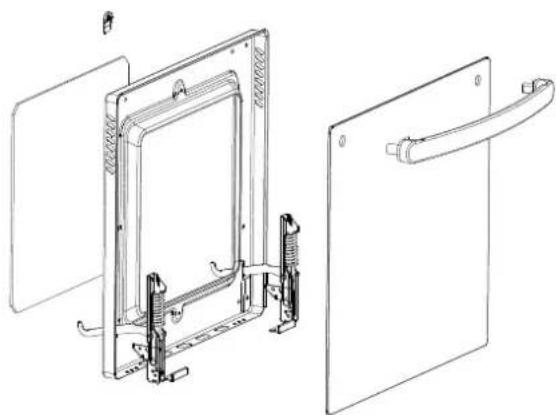

E. RemovalandReplacementofGlassDoor

1) Removethedoorandlieflatcarefully.
2)Removethescrewsforfixingsupportingblocksatthebottomofdoor.
3)Removethescrewsforfixinghandle,removethehandle,sealandwindowglassoutsidethedoor carefully.
4)Removethesilicainthefourcornersofinsideglasswithabladeorothertools.(Glasswithcare)
5) Replace glass in the same specifications provided by manufactures. (Glass must be high temperature and toughened)

Technical line drawing of a door frame assembly with mounting bracket and handle (no text or symbols)

RelevantTestofParts

Parts	TestprogramResults
Stovebody	Testtightness(useairtightinstrumenttest:under15kpa pressure)	Normal:lessthan0.5ml/min,Fault:∞ormorethan0.5

When you receive customer complaints, what need to do first is analyzing complaints carefully. If some of the following situation issuitable, please tell the customer how to set the oven properly. This will avoid unnecessary maintenance.

Attention!

1. Checkgroundingbeforetrouble
2. Notethatsomehigh-voltagecircuit


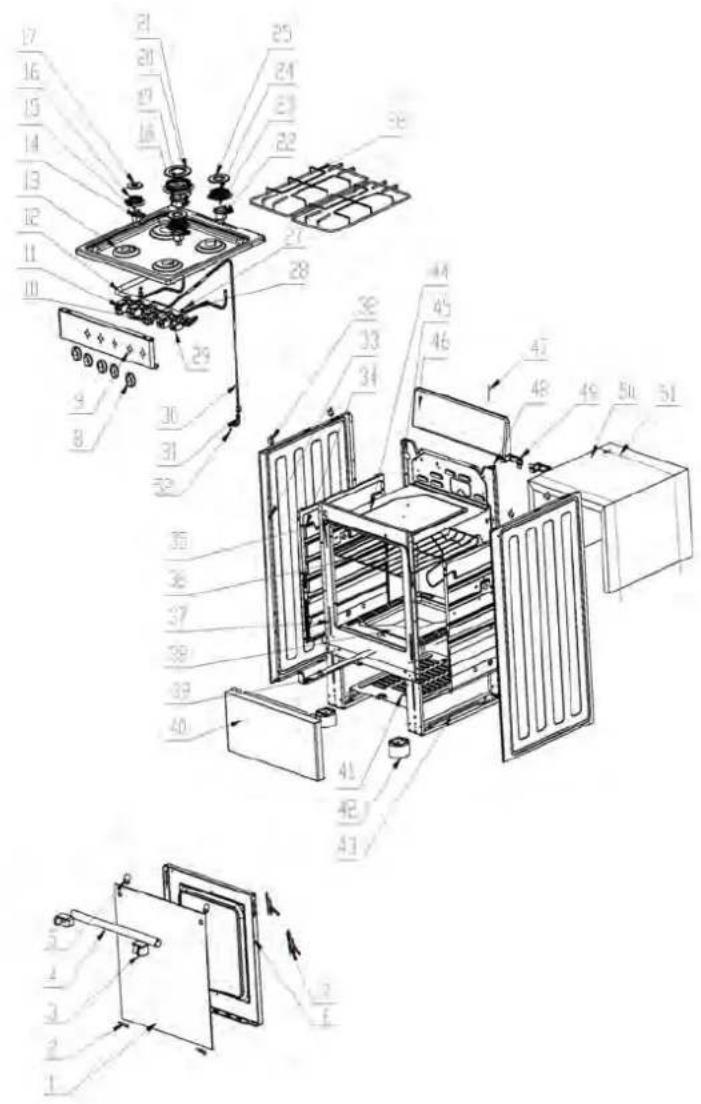

PartsName

Serial number	Namenumber
1Outerglass1
2Doorbracket2
3Handbase2
4handle1
5Handlebracket
6door

	7hinge2
	8knob5
	9Controlpanel1
	10	Valve0.682
	11	Valve0.52
	12Maingastube1
	13cooktop1
	14Burnercup41
	15Injector0.531
	16Burner41
	17Lid4
	18Burnercup21
	19Burner21
	20Injector0.8
	21Lid2
	22Burnercup32
	23Injector0.682
	24Burner32
	25Lid3
	26grate2
	2 27Gasrubefrontrow
	2 28Gasrubebaskrow
	29	Valve0.451
	30Bbottomburnergastube
	31Injectorbase
	32Cooktopbracket
	33Sideboard
	35Cavityseal
	36Backingrack
	37Frontplate
	38Bakingtray
	39Bottomtray
	40Drawerpanel
	3 41Cavitybottompalte
	42Food
	43Cavitybracket
	44Cavitytopplate
	45Backplate
	46Backguard

47Anti-fallchain1
48spring1
49Motorbracket2
50isolation2
51Ironwire2
52Injector0.741
