USER MANUAL BTV510 B-Tech

Flat Screen Wall Mount

Installation Guide

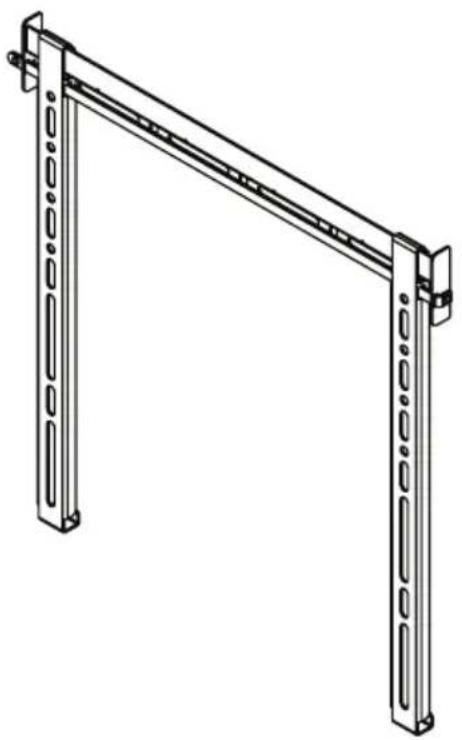

B-Tech BTV510 - Installation Guide - 1

natural_image Technical line drawing of a mechanical support bracket (no text or symbols)
  • Recommended for screens up to 55"
    • Max load: 50kg (110lbs)
  • Suitable for screens with VESA® & non-VESA fixings: up to 425 x 400mm
    • Distance from wall: 20mm (0.8")
  • Simple installation with all mounting hardware included
Recommended Max ScreenMax LoadMax VESAPost Install Alignment
55"140cm50kg[10lbs]400X400

Contents

Pg

BTV510

Installation Safety Notes2
Parts List4
Installation Instructions5
Product Dimensions7
B-Tech Contact Details8

B-Tech BTV510 - BTV510 - 1

natural_image Technical line drawing of a metal frame structure (no text or symbols)

Installation Safety Instructions

B-Tech BTV510 - Installation Safety Instructions - 1

Caution: This mount is intended for use only with the maximum weights indicated. Use with equipment heavier than the maximum indicated may result in instability causing possible injury.

Do not attempt to install this product until all instructions and warnings have been read and properly understood. Please keep these instructions for future reference.

Please check carefully to make sure there are no missing or defective parts - defective parts must never be used. B-Tech AV Mounts, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire.

General

B-Tech AV Mounts recommends that a professional AV installer or other suitably qualified person install this product. Great care must always be taken during installation as most AV equipment is of a fragile nature, possibly heavy and easily damaged if dropped. If you do not fully understand the instructions or are not sure how to install this product safely, then please consult a professional for advice and/or to install this product for you. Failure to mount this product correctly may cause serious injury or death both during installation and at any time thereafter. Do not mount any AV equipment that exceeds the specific weight limit of the product you are installing. This weight limit will be clearly stated on each product and its packaging and will vary from product to product.

Product location

Please pay careful attention to where this product is located. Check load capacity of the wall prior to installation as some surfaces are not suitable for installation. Designed for indoor use, this mount is suitable for public or home installation. If located in a public or frequently populated area ensure that the product is out of the immediate reach of people. If any AV equipment is to be suspended over the likely path or location of people then great care should be taken to secure all parts of the installation from falling. When drilling holes it is essential to avoid contact with electrical cables and water or gas pipes contained within. Use of a good quality live wire detector and hidden object locator is therefore recommended. Only drill into structures when you are sure it is safe to do so.

Fixing hardware

It is highly recommended that all fixing screws be used where supplied and that the purpose of all other fixing hardware is fully understood. In some cases more AV equipment fixing hardware will be supplied to accommodate different models of equipment and set up configurations. The installer must be satisfied that any supplied fixing hardware is suitable for each specific installation. The fixing kit supplied with the product may not be suitable for all walls. If any fixing screws or included hardware are deemed not sufficient for a safe installation then please consult a professional or your local hardware store.

Hazard limitation

When routing cables take advantage of any built in cable management features that the product might provide and ensure that all cables are tidy and secure. Check to see that any moving aspect of the product can do so unhindered by any cabling. Some products have moving parts and the potential to cause injury through the crushing or trapping of fingers or other body parts. Particular attention to the nature of moving parts is required especially when assembling installing and adjusting during set up. Immediately after installation double-check that the work done is safe and secure. Double-check all necessary fixings are present and are of ample tightness. It is recommended that periodic inspections of the product and its fixing points are made as frequently as possible (no more than 6 months apart) to ensure that safety is maintained. If in doubt consult a professional AV installer or other suitably qualified person.

EN B-Tech AV Mounts recommends that this product be installed by a qualified AV technician or other suitably qualified person. B-Tech AV Mounts, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire. This product must be mounted on a suitable surface and may only be used up to the specified maximum weight.

Please keep this for future reference

B-Tech BTV510 - Hazard limitation - 1

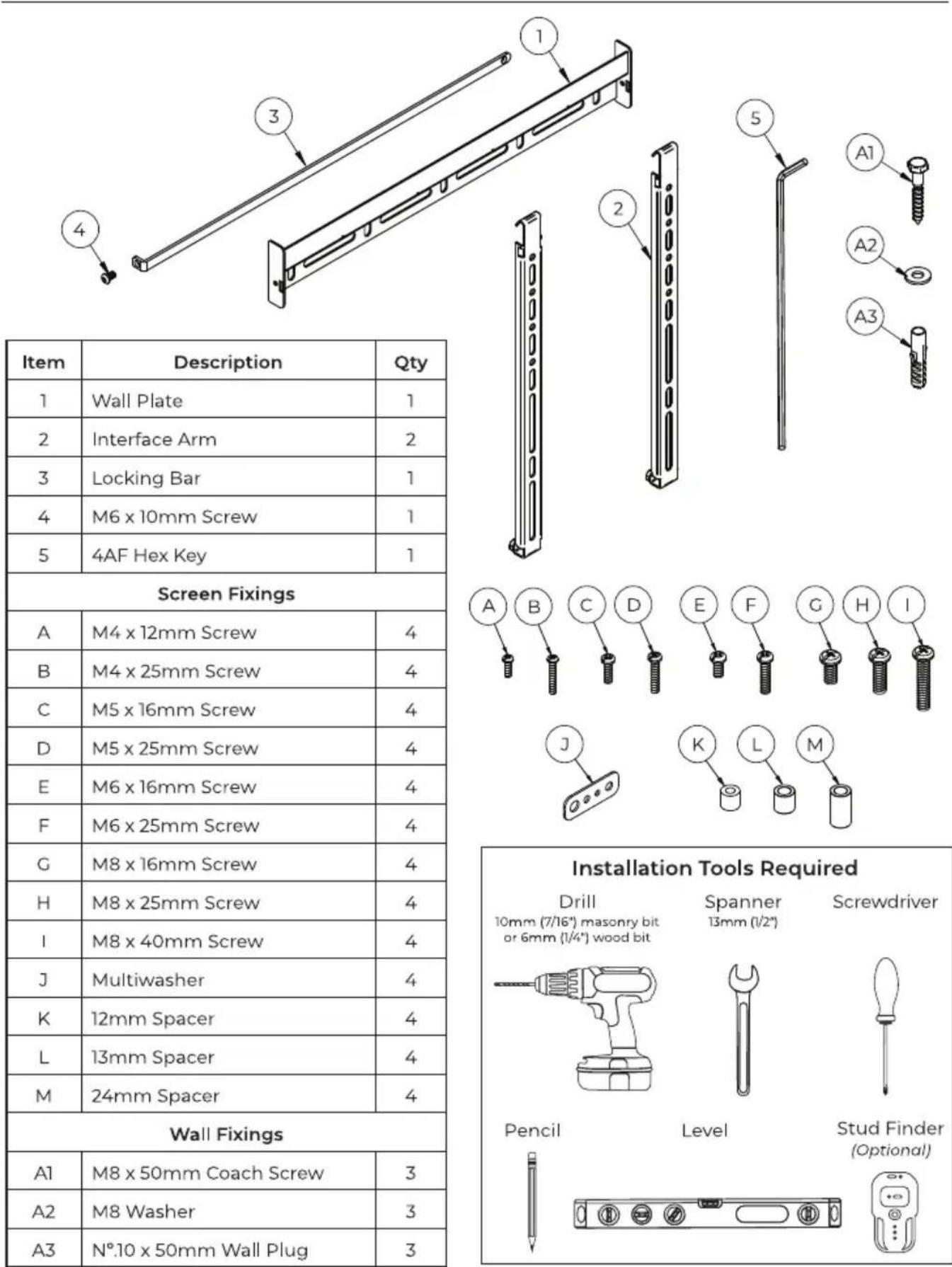

ItemDescriptionQty
1Wall Plate1
2Interface Arm2
3Locking Bar1
4M6 x 10mm Screw1
54AF Hex Key1
Screen Fixings
AM4 x 12mm Screw4
BM4 x 25mm Screw4
CM5 x 16mm Screw4
DM5 x 25mm Screw4
EM6 x 16mm Screw4
FM6 x 25mm Screw4
GM8 x 16mm Screw4
HM8 x 25mm Screw4
IM8 x 40mm Screw4
JMultiwasher4
K12mm Spacer4
L13mm Spacer4
M24mm Spacer4
Wall Fixings
A1M8 x 50mm Coach Screw3
A2M8 Washer3
A3N°.10 x 50mm Wall Plug3

Suitable for loads up to 50kg (110lbs)

Installation Instructions

1. Fix Wall Plate Fix item 1 to the

Fix item 1 to the wall using one of the following methods:

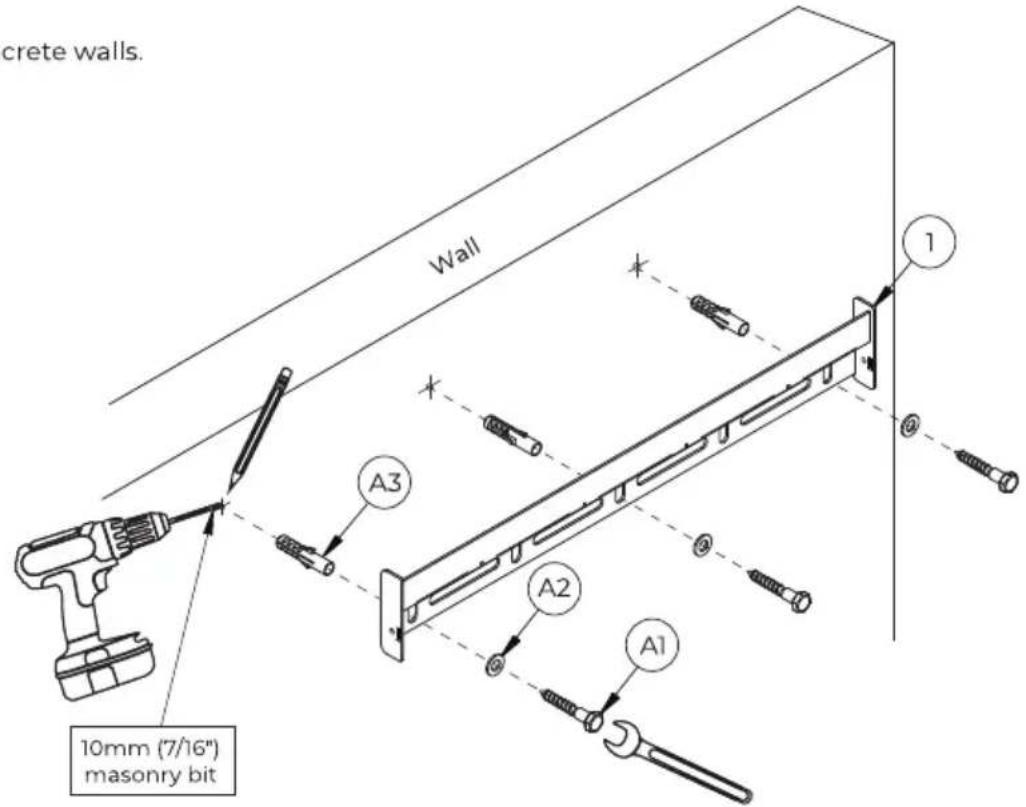

a. Brick / concrete walls.

crete walls. Wall A3 10mm (7/16") masonry bit A2 A1

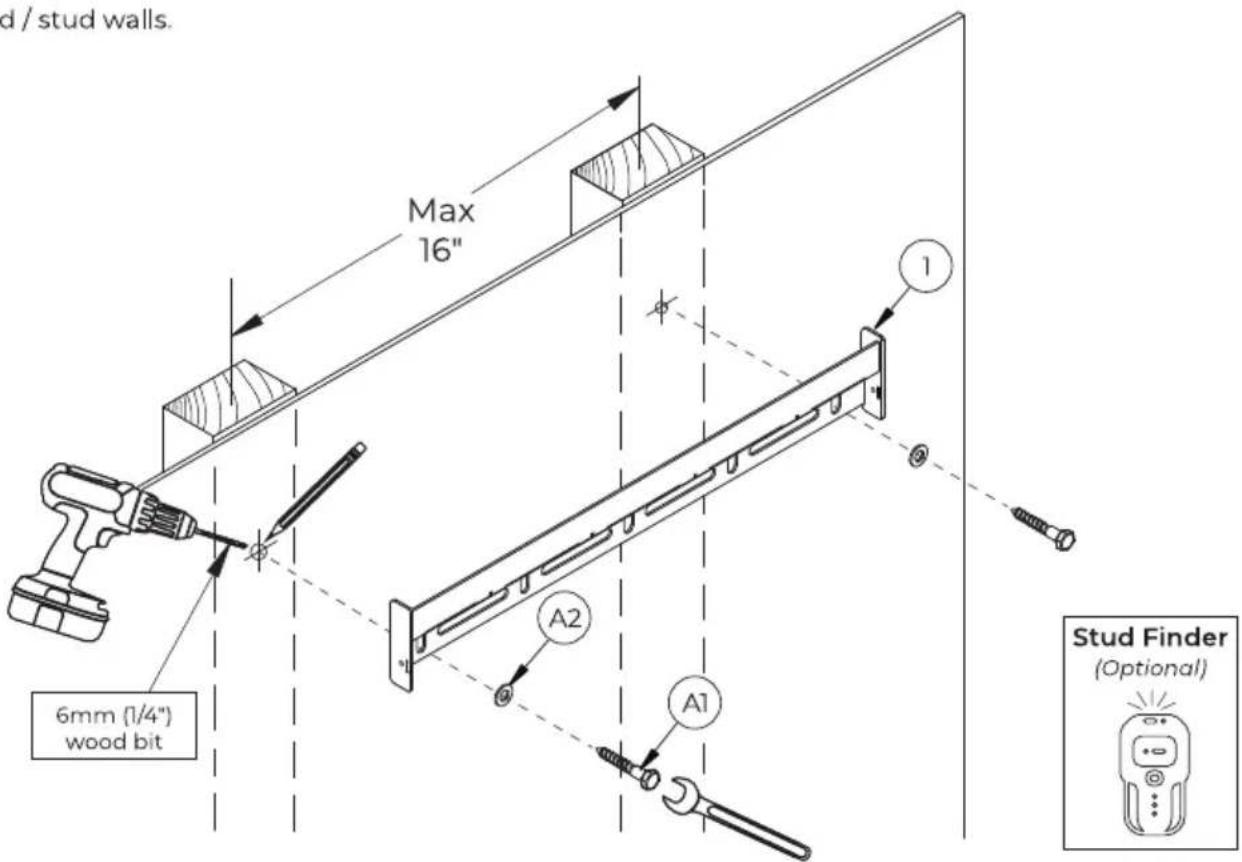

b. Wood / stud walls.

d / stud walls. Max 16" 6mm (1/4") wood bit A2 A1 1 Stud Finder (Optional)

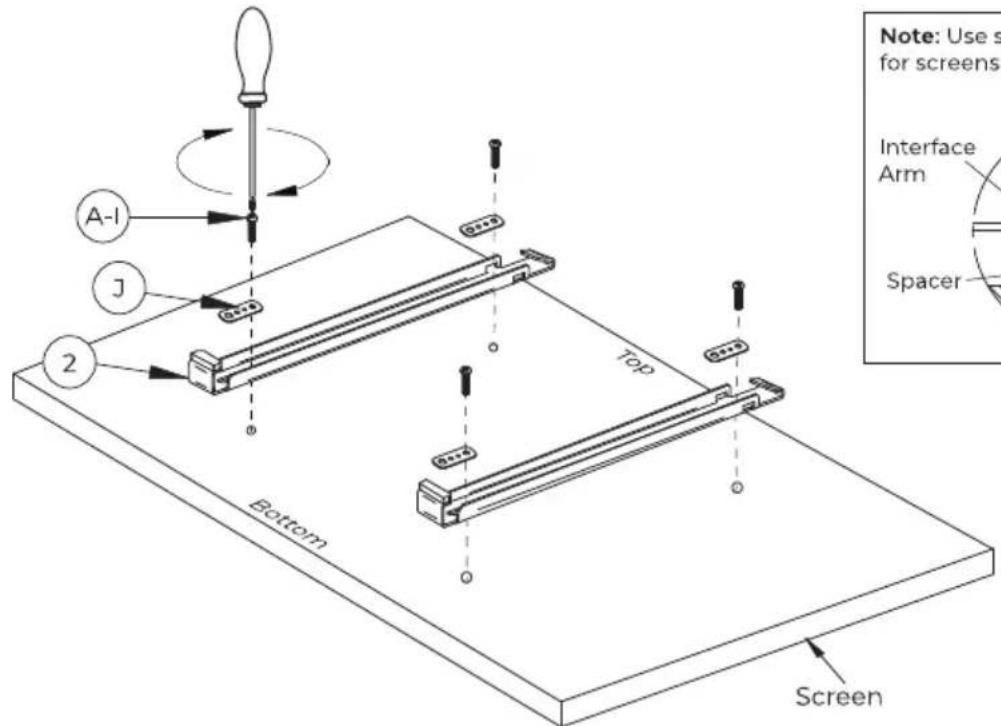

2 Fix Interface Arms To Screen

Fix item 2 to the rear of the screen using items A - M.

Note: Ensure the arms are facing the correct way round and the same holes are used on both arms.

A-I J 2 Bottom Top Screen Note: Use s for screens Interface Arm Spacer

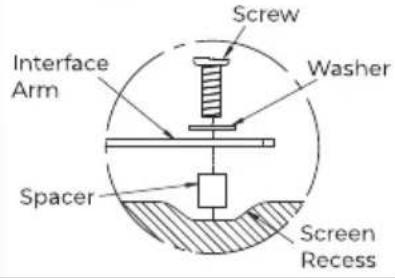

Note: Use spacers (items K, L & M) for screens with recessed fixings.

Screw Interface Arm Washer Spacer Screen Recess

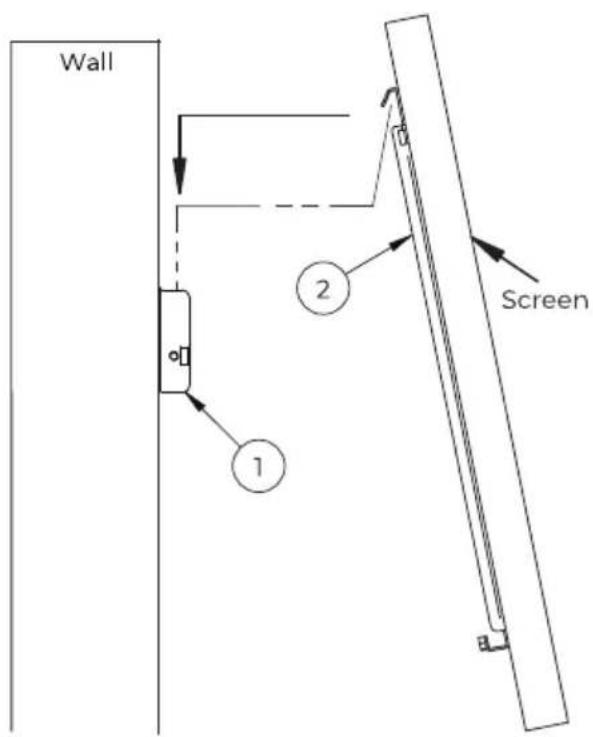

3. Mount Screen Onto Wall Plate

Hook item 2 onto item 1.

Note: This may require two people.

Wall Screen 1 2

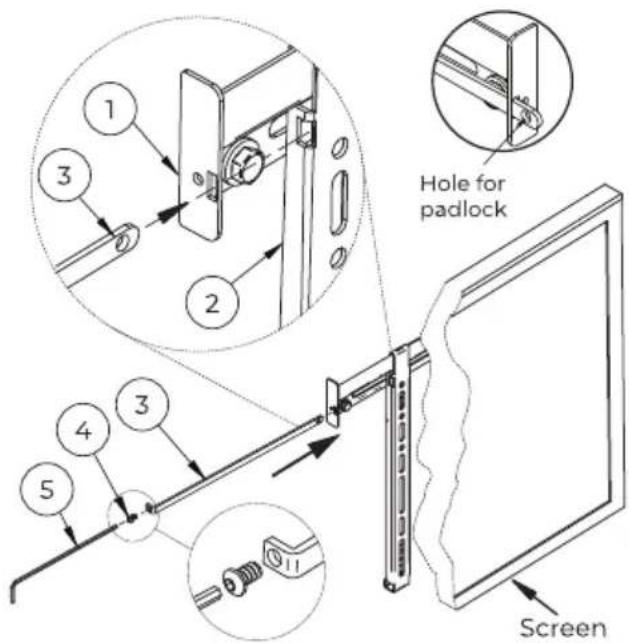

4 Insert Locking Bar

i. To secure screen on mount, insert item 3 into item 1 and through items 2. ii. Fasten item 4 to lock item 3 to item 1.

Optional: Secure item 3 with padlock (not supplied).

1 2 3 4 5 3 Hole for padlock Screen

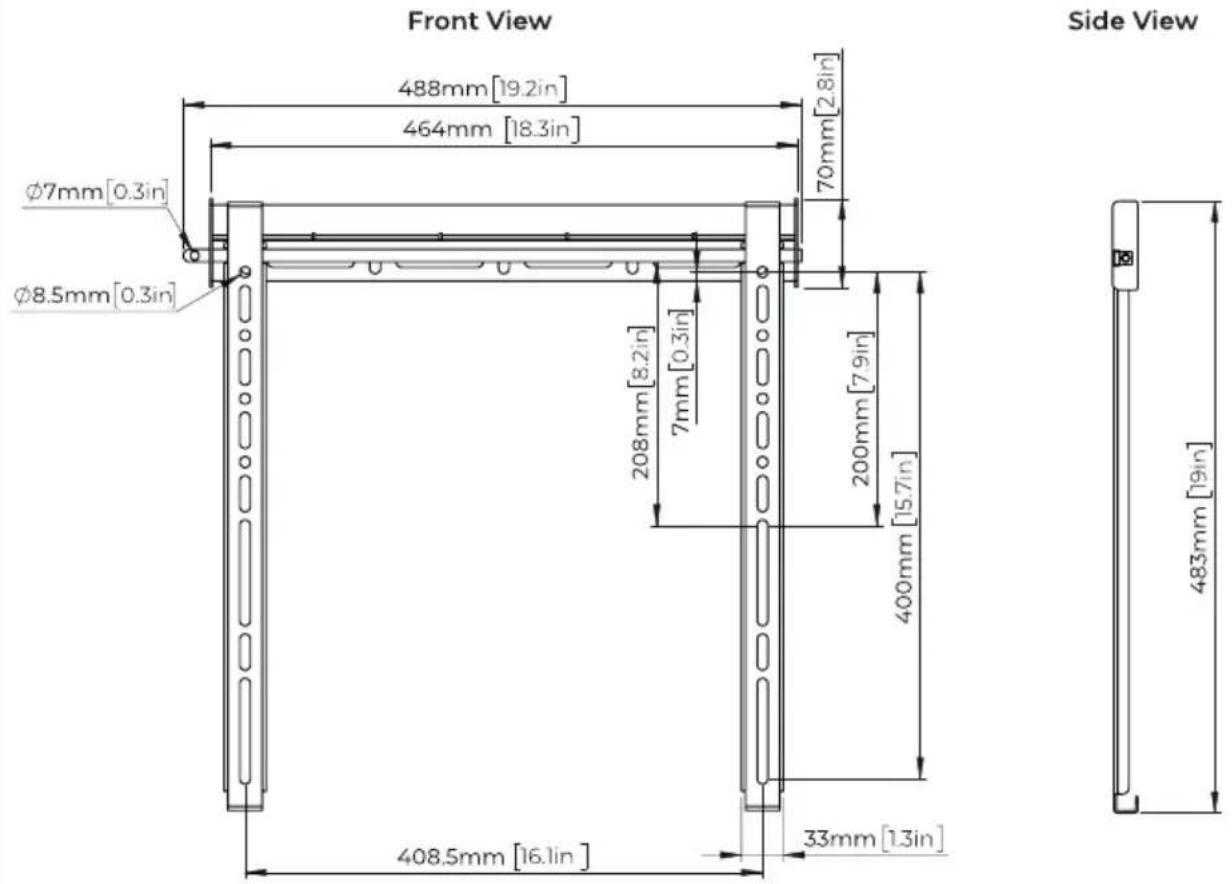

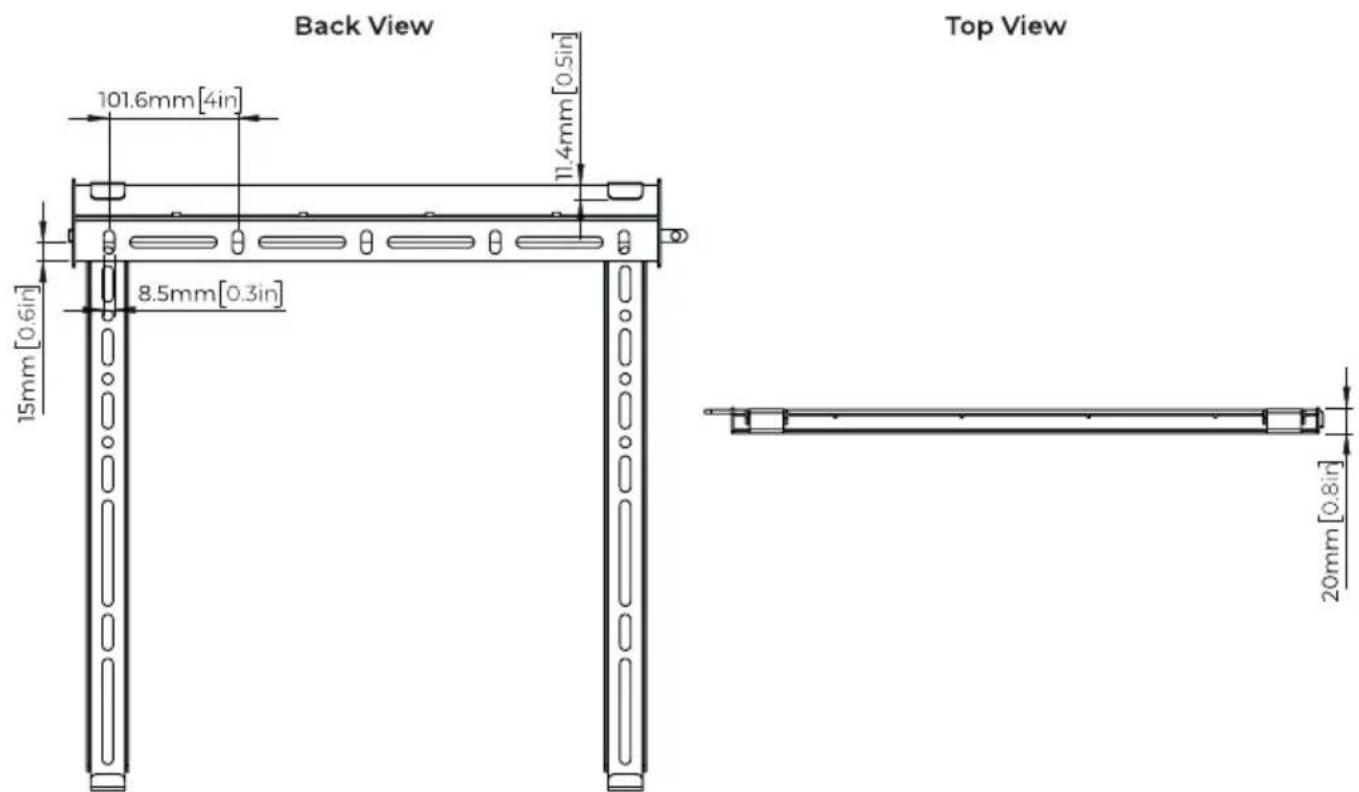

BTV510 Dimensions

Please keep this for future reference

Front View 488mm[19.2in] 464mm[18.3in] 70mm[2.8in] Ø7mm[0.3in] Ø8.5mm[0.3in] 208mm[8.2in] 7mm[0.3in] 200mm[7.9in] 400mm[15.7in] 408.5mm[16.1in] 33mm[1.3in] Side View 483mm[19in]

Back View 101.6mm[4in] 11.4mm[0.5in] 8.5mm[0.3in] 15mm[0.6in] 20mm[0.8in] Top View

These instructions are intended as a guide only and B-Tech accepts no liability for the accuracy of the information contained in this document.

Contact: info@btechavmounts.com

©2024 B-Tech AV Mounts Corporation Ltd. All rights reserved.

B-Tech AV Mounts is a division of B-Tech AV Mounts Corporation. Ltd.

B-Tech AV Mounts, the B-Tech logo and the Ventry logo are registered trademarks.

All B-Tech images and symbols are exclusive property of B-Tech AV Mounts Corporation Ltd.

All other brands and product names are trademarks of their respective owners.

Any reproduction, retransmission or republication of any part of this manual is strictly prohibited.

unless prior written permission has been granted by B-Tech AV Mounts Corporation Ltd.

Photographs are for illustrative purposes only. E&OE

AMA-BTV510-V3.1-0124-03 Made in the P.R.C.
