USER MANUAL BT9909 B-Tech
- Ideal for portrait mounting LG's 86BH5C Ultra Stretch Signage in a recessed wall
• Recommended screen size: 86"
• Max load: 50kg
• Max VESA® fixings: 600 x 200mm
• Depth (with micro-adjustment): 125mm - 139mm
• Distance from wall (popped out): 304mm - 319mm - Features pop-in, pop-out function to allow access to the rear of screen for servicing and maintenance and to aid installation
- Tool-less micro-adjustment for seamless display alignment
- Arms include locking screw to prevent accidental pop-out of screens
• Safety screws help prevent unauthorised removal of screens
• All mounting hardware included



CONTENTS
Installation Safety Notes....2
Parts List....4
Installation Instructions....6
Product Dimensions....14
Recess Mounting....15
B-Tech Contact Details....16
INSTALLATION TOOLS REQUIRED
Crosshead screwdriver
Drill
10mm masonary bit or 6mm wood bit
Pencil
10mm spanner or socket (optional)
Level (optional)
Stud finder (optional)







B-TECH AUDIO VIDEO MOUNTS
www.btechavmounts.com
INSTALLATION SAFETY INSTRUCTIONS

CAUTION: This mount is intended for use only with the maximum weights indicated. Use screens heavier than the maximum indicated may instability causing possible injury.
Do not attempt to install this product until all instructions and warnings have been read and properly understood. Please keep these instructions for future reference. Please check carefully to make sure there are no missing or defective parts - defective parts must never be used. B-Tech International Design and Manufacturing Limited, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire.
General
B-Tech International Design and Manufacturing Limited recommends that a professional AV installer or other suitably qualified person install this product. Great care must always be taken during installation as most AV equipment is of a fragile nature, possibly heavy and easily damaged if dropped.
If you do not fully understand the instructions or are not sure how to install this product safely, then please consult a professional for advice and/or to install this product for you. Failure to mount this product correctly may cause serious injury or death both during installation and at any time thereafter.
Do not mount any AV equipment that exceeds the specific weight limit of the product you are installing. This weight limit will be clearly stated on each product and its packaging and will vary from product to product.
Product location
Please pay careful attention to where this product is located. Check load capacity of wall prior to installation as some walls are not suitable for installation. Designed for indoor use, this mount is suitable for public or home installation. If located in a public or frequently populated area ensure that the product is out of the immediate reach of people. If any AV equipment is to be suspended over the likely path or location of people then great care should be taken to secure all parts of the installation from falling. If you install this product on drywall it must be securely fixed to a wooden stud, concrete block or other permanent structure behind the drywall board. Installing on drywall boards alone will not support the weight of most AV equipment.
When drilling holes in walls it is essential to avoid contact with electrical cables and water or gas pipes contained within. Use of a good quality live wire detector and hidden object locator is therefore recommended. Only drill into structures when you are sure it is safe to do so.
Fixing hardware
It is highly recommended that all wall fixing screws be used where supplied and that the purpose of all other fixing hardware is fully understood. In some cases more AV equipment fixing hardware will be supplied to accommodate different models of equipment and set up configurations.
The installer must be satisfied that any supplied fixing hardware is suitable for each specific installation. If any fixing screws or included hardware are deemed not sufficient for a safe installation then please consult a professional or your local hardware store.
Hazard limitation
When routing cables take advantage of any built in cable management features that the product might provide and ensure that all cables are tidy and secure. Check to see that any moving aspect of the product can do so unhindered by any cabling.
Some products have moving parts and the potential to cause injury through the crushing or trapping of fingers or other body parts.
Particular attention to the nature of moving parts is required especially when assembling installing and adjusting during set up.
Immediately after installations double-check that the work done is safe and secure. Double-check all necessary fixings are present and are of ample tightness.
It is recommended that periodic inspections of the product and its fixing points are made as frequently as possible to ensure that safety is maintained. If in doubt consult a professional AV installer or other suitably qualified person.
CS
SCREEN FIXING KIT
WALL FIXING KIT

| REF | PART NAME | QTY |
| 1 | WALL FIXING PLATE | 2 |
| 2 | M8 x 12mm CSK SCREW | 8 |
| 3 | M8 SLIDING NUT | 8 |
| 4 | 5AF HEX KEY | 2 |
| 5 | MOUNTING RAIL L:300mm | 1 |
| 6 | END CAP | 2 |
| 7 | INTERFACE ARM (LEFT) | 1 |
| 8 | INTERFACE ARM (RIGHT) | 1 |
| 9 | 5AF LONG HEX KEY | 1 |
| 10 | 4AF HEX KEY | 1 |
| 11 | 600mm ADAPTOR ARM | 2 |
| 12 | M6 x 12mm SCREW | 4 |
SCREEN INTERFACE KIT
| A | M6 x 16mm SCREW | 4 |
| B | M6 x 25mm SCREW | 4 |
| C | M6 x 40mm SCREW | 4 |
| D | WASHER | 4 |
| E | M8 x 16mm SCREW | 4 |
| F | M8 x 25mm SCREW | 4 |
| G | M8 x 40mm SCREW | 4 |
| H | 5mm SPACER | 4 |
| I | 13mm SPACER | 4 |
| J | 24mm SPACER | 4 |
WALL FIXING KIT
| A1 | ST8 x 50mm WOOD SCREW | 8 |
| A2 | N°10 WALL PLUG | 8 |
INSTALLATION INSTRUCTIONS

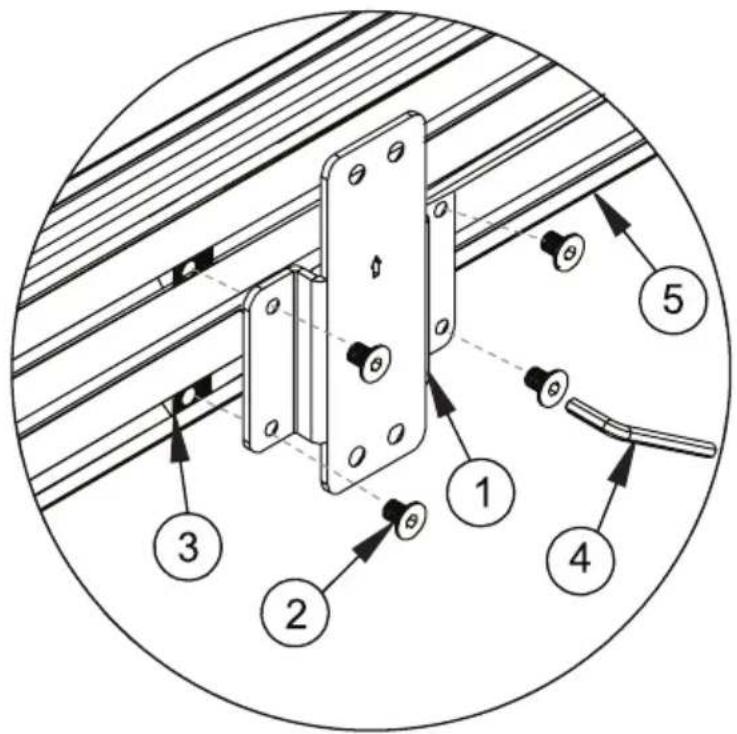

1 Attach Wall Fixing Plates to Mounting Rail

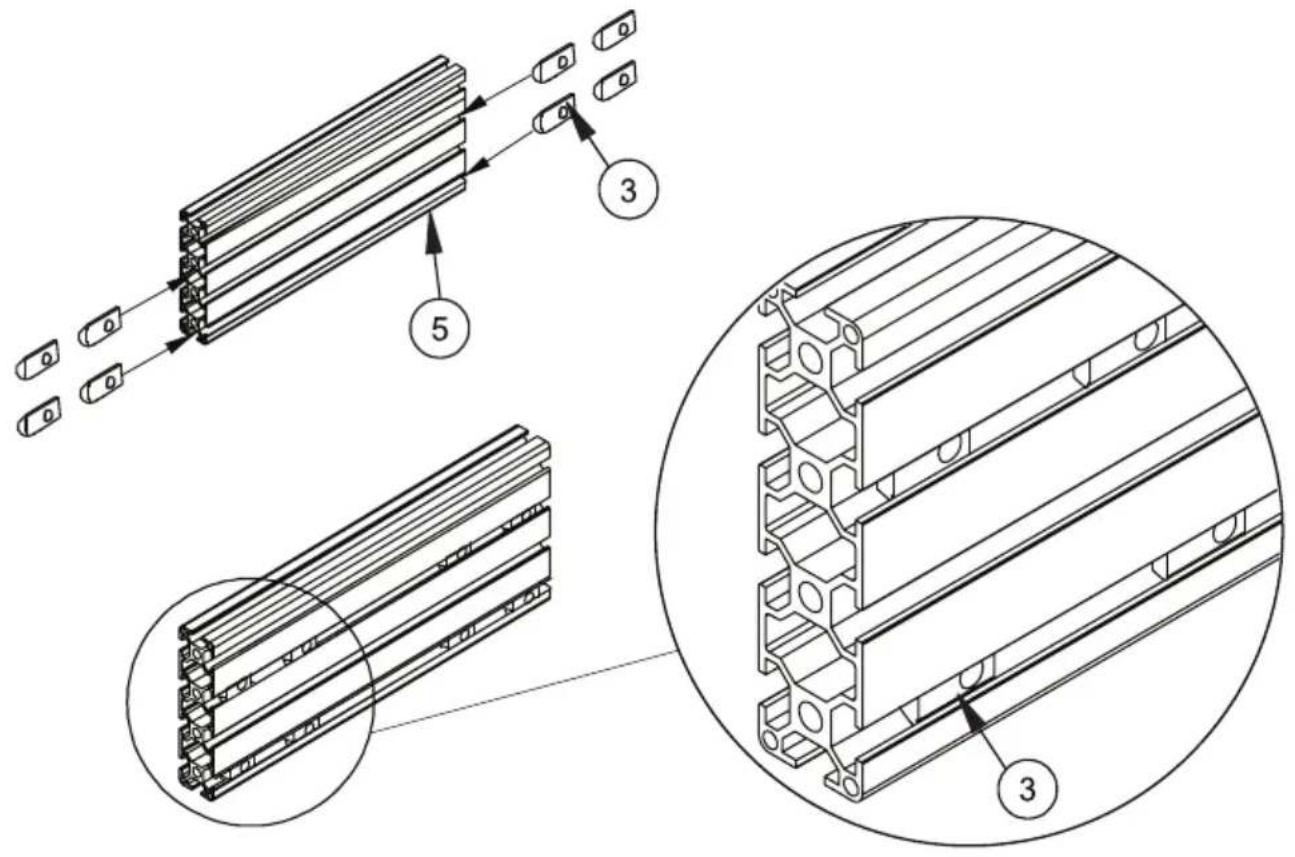

i. Insert 4 x M8 sliding nuts (part 3) on each side of the mounting rail (part 5). Two in the second slot / two in the bottom slot.

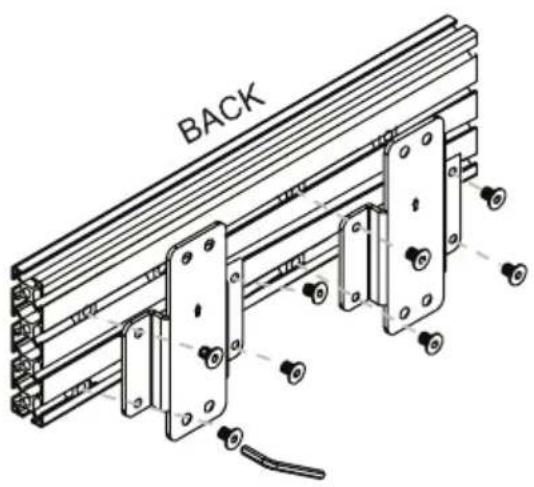

ii. Fasten both wall fixing plates (part 1) onto the mounting rail (part 5) using the M8 x 12mm Screws (part 2) and M8 sliding nuts (part 3)


2

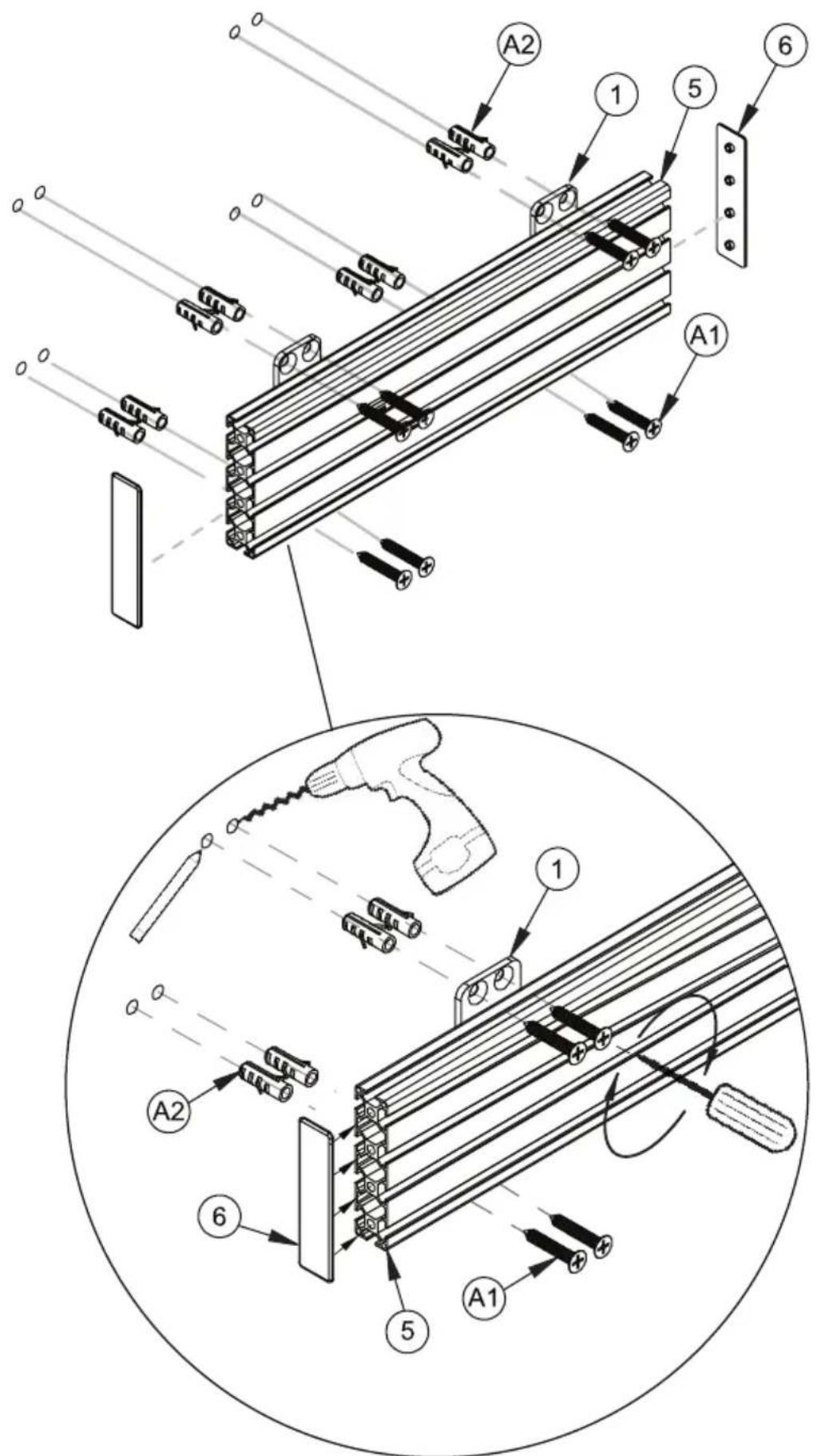

Fix mounting rail to the wall
Fix the wall plates (part 1) to the wall using the wall fixings (part A1 & A2). Once mounted, attach end caps (part 6) to mounting rail (part 5).

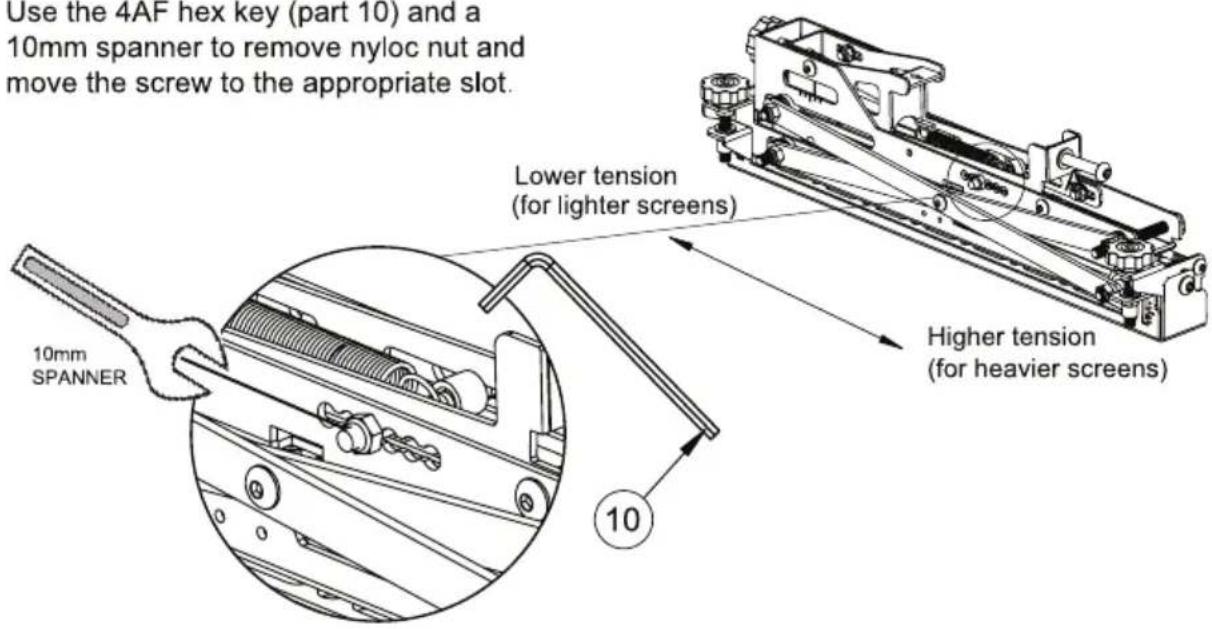

SPRING TENSION ADJUSTMENT (OPTIONAL)
Use the 4AF hex key (part 10) and a 10mm spanner to remove nyloc nut and move the screw to the appropriate slot.

3

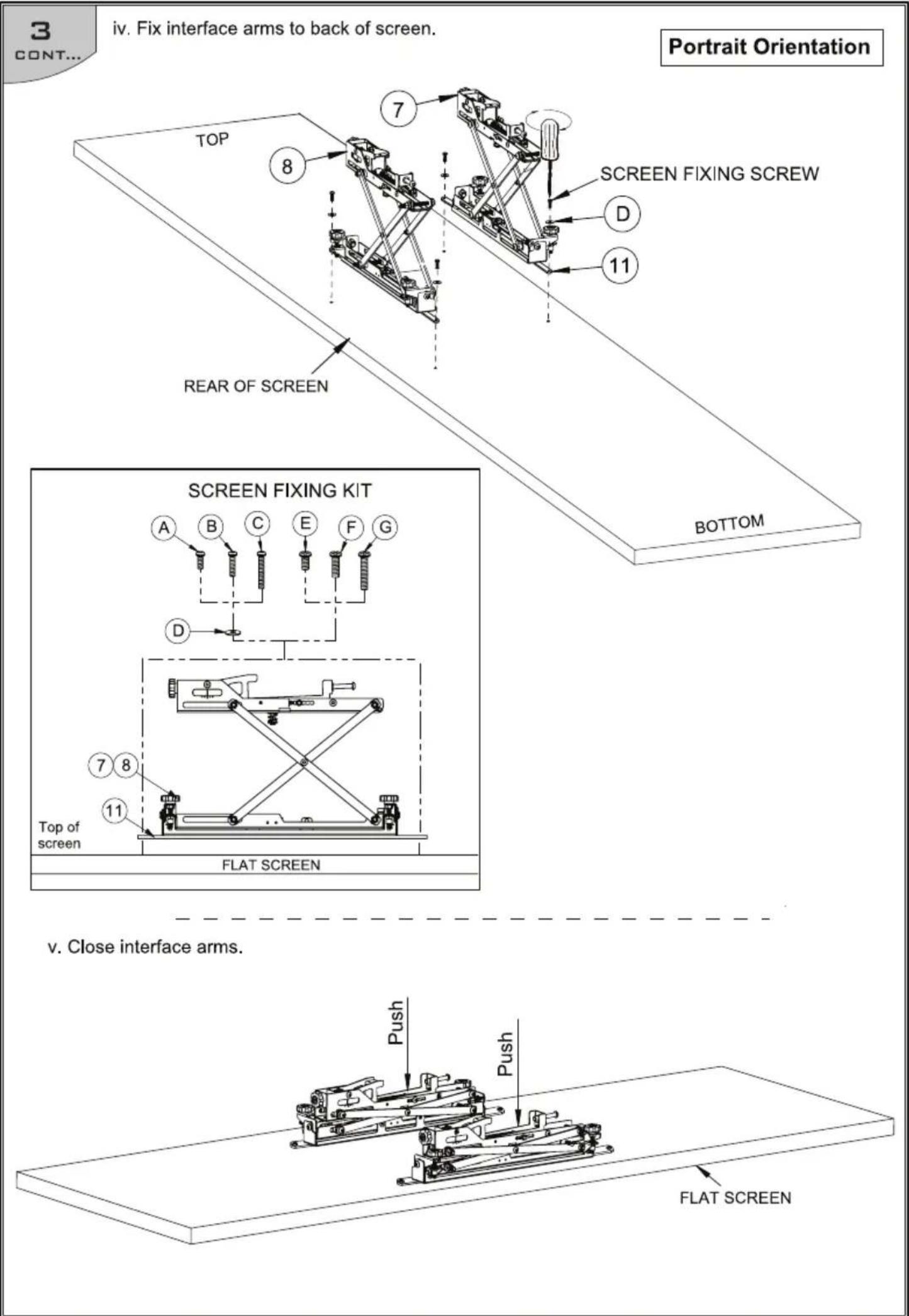

Fix interface arms to back of screen

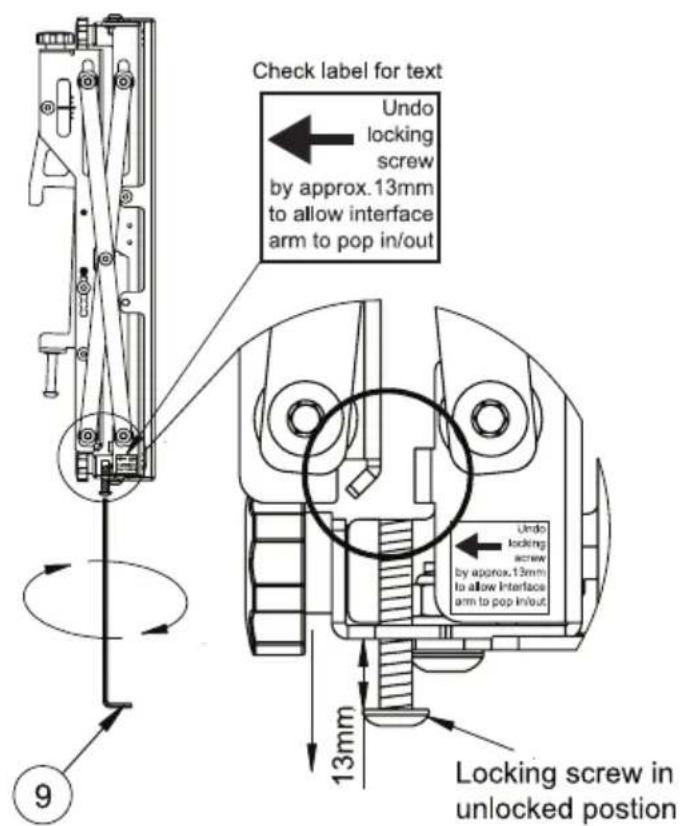

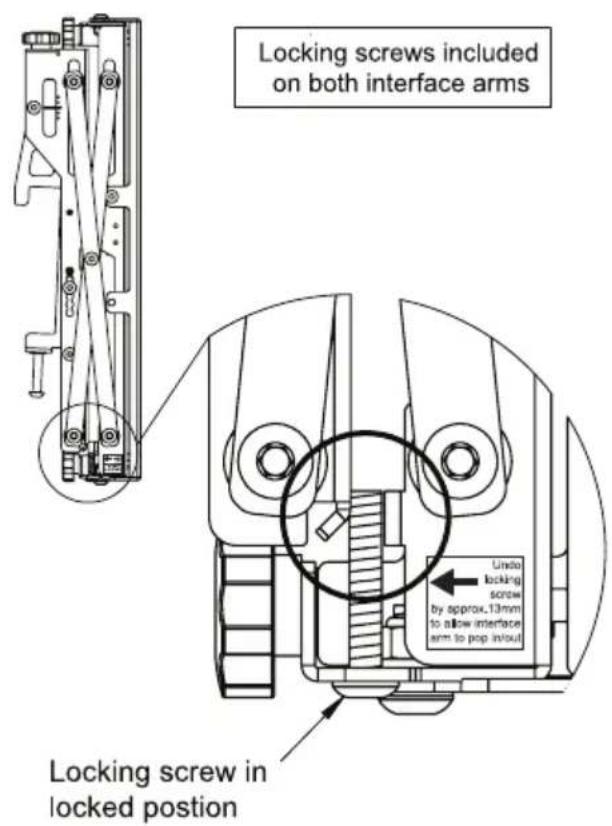

i. Unlock interface arms (parts 7 & 8) to allow pop-out function.
Locked position

Unlocked position

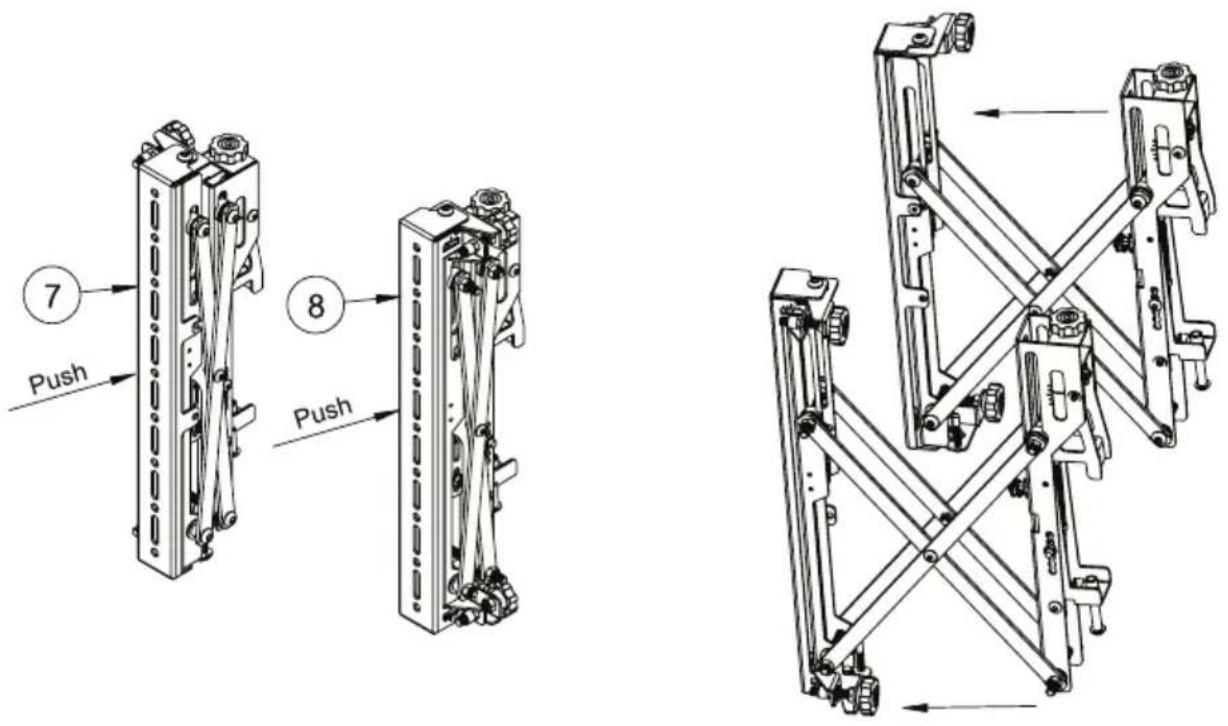

ii. Push in on both interface arms (parts 7 & 8) to pop out into open position.

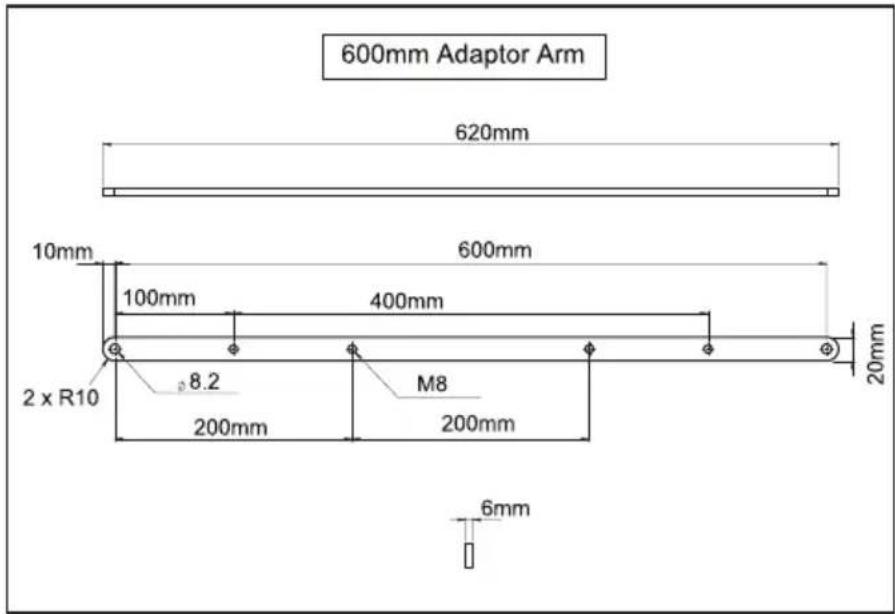

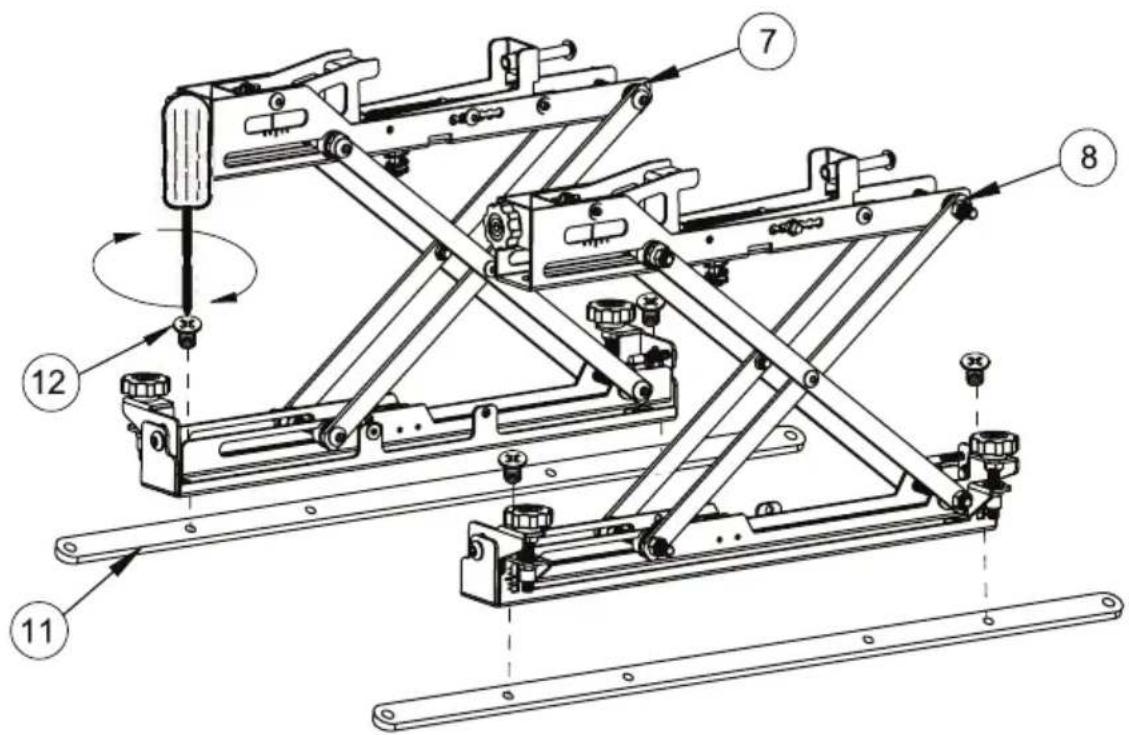

iii. Attach the 600mm adaptor arms (part 11) to the interface arms (parts 7 & 8).

Note: Screens with smaller than 600 VESA fixings do not require the adaptor arms

4

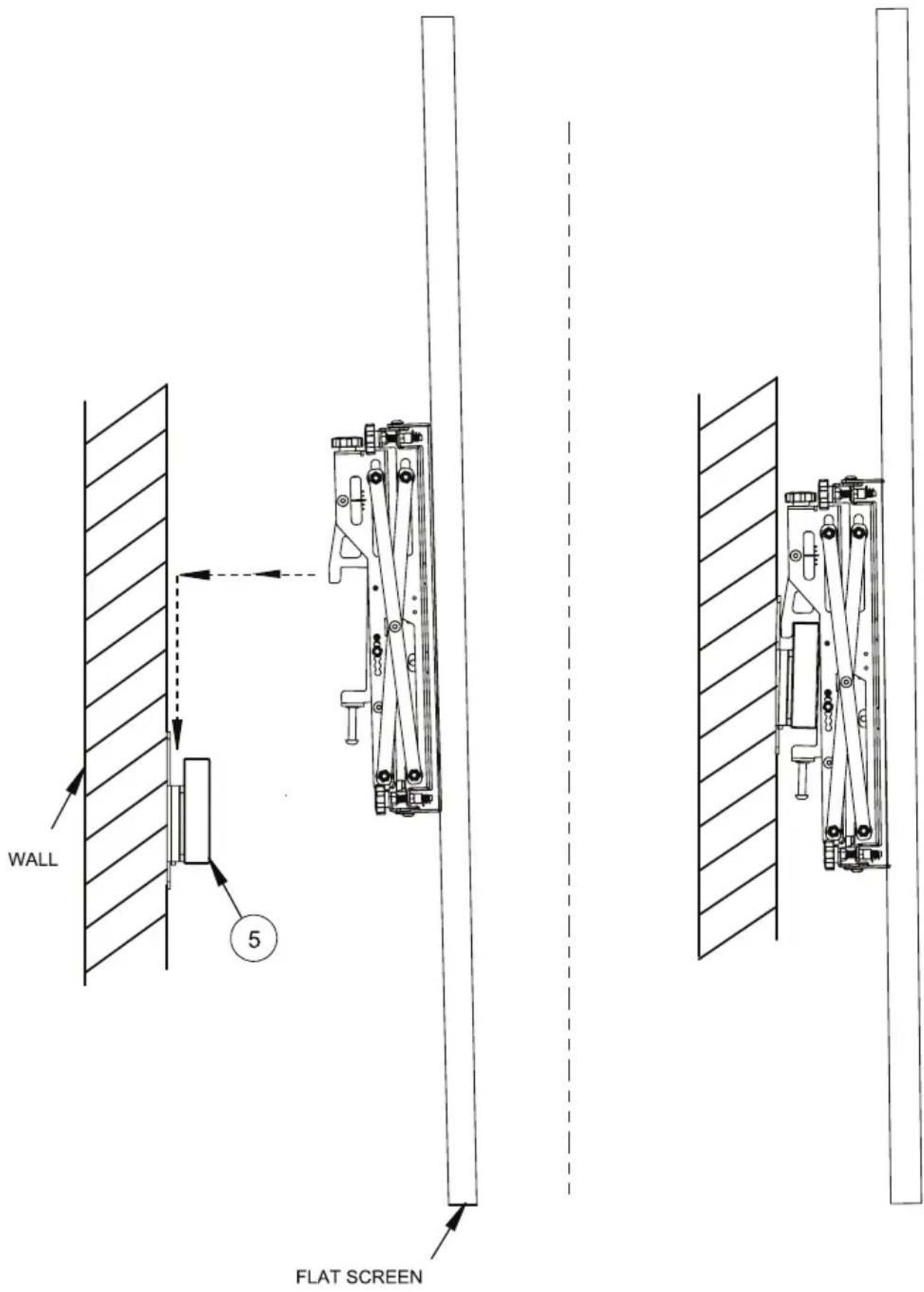

Mount screen to wall
Hook flat screen onto the mounting rail (part 5).

FLAT SCREEN ALIGNMENT

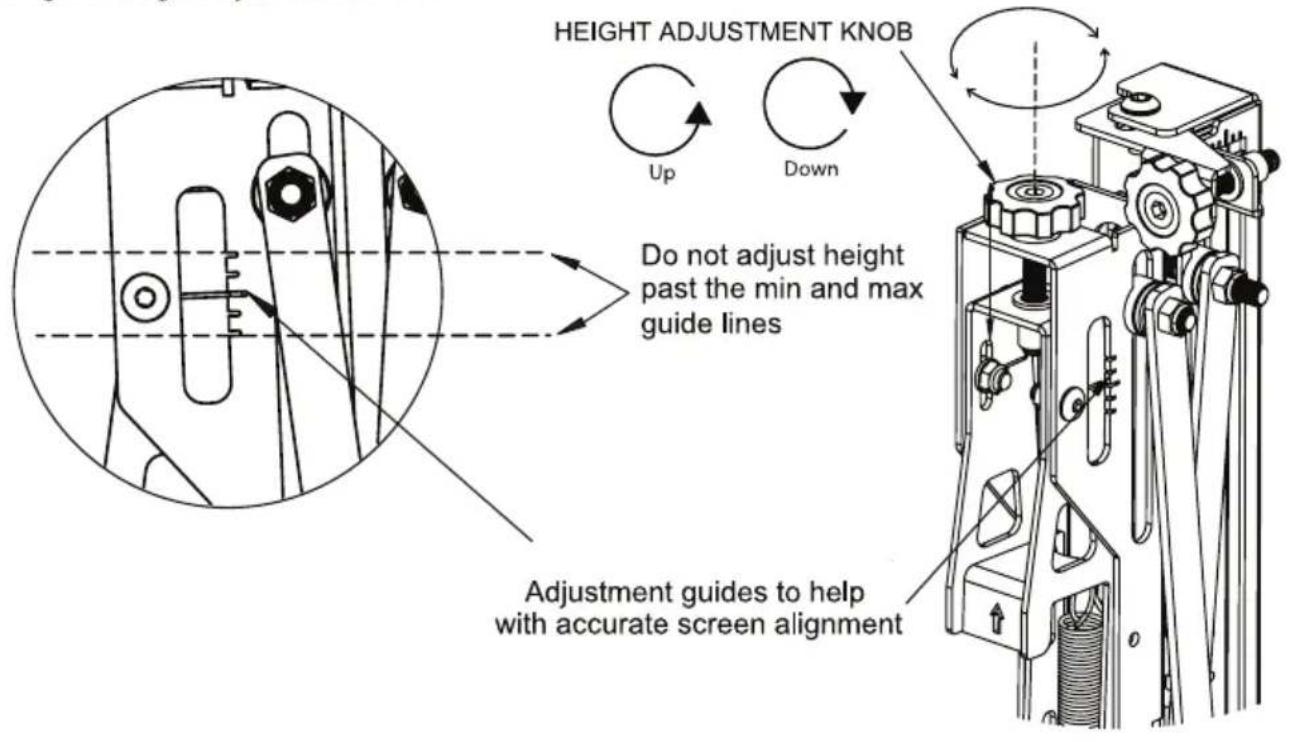

Height - Micro-Adjustment
Height adjustment +/-10mm
Using a level, align the screen parallel to the floor using the height adjustment knobs.

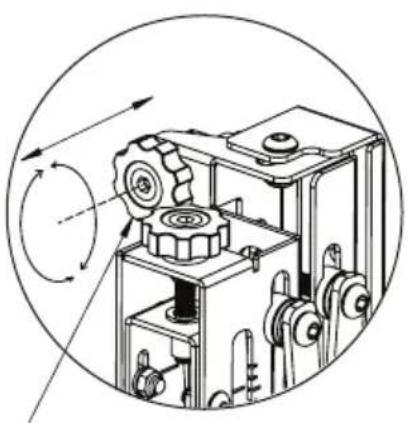

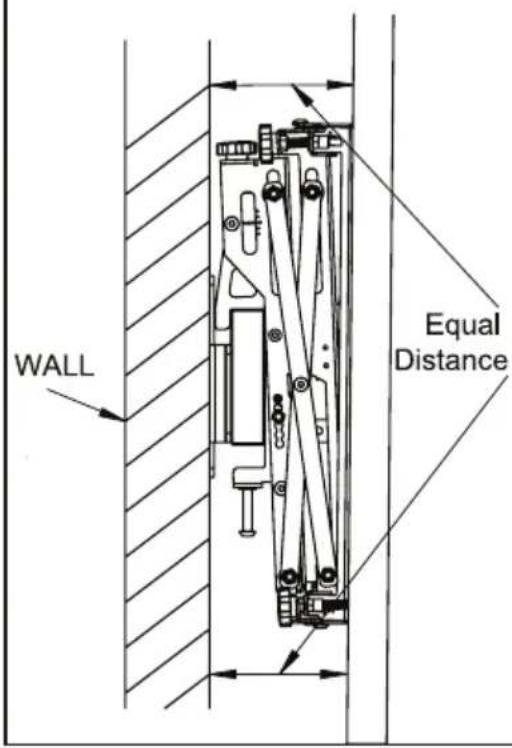

Depth - Micro-Adjustment
Depth adjustment +/- 7mm
Use the depth adjustment knobs to ensure that each corner of the flat screen is equidistant from the wall.

Top of interface arm


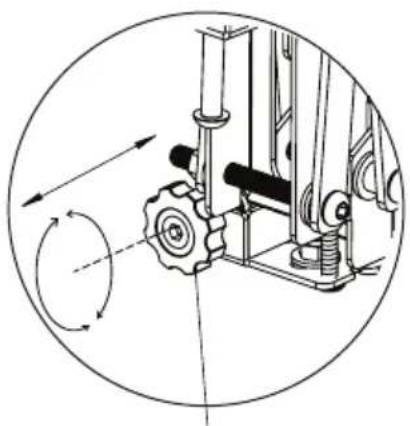

Technical line drawing of a mechanical assembly with gears and shafts, enclosed in a circular frame (no text or symbols)DEPTH ADJUSTMENT KNOB
Bottom of interface arm
5

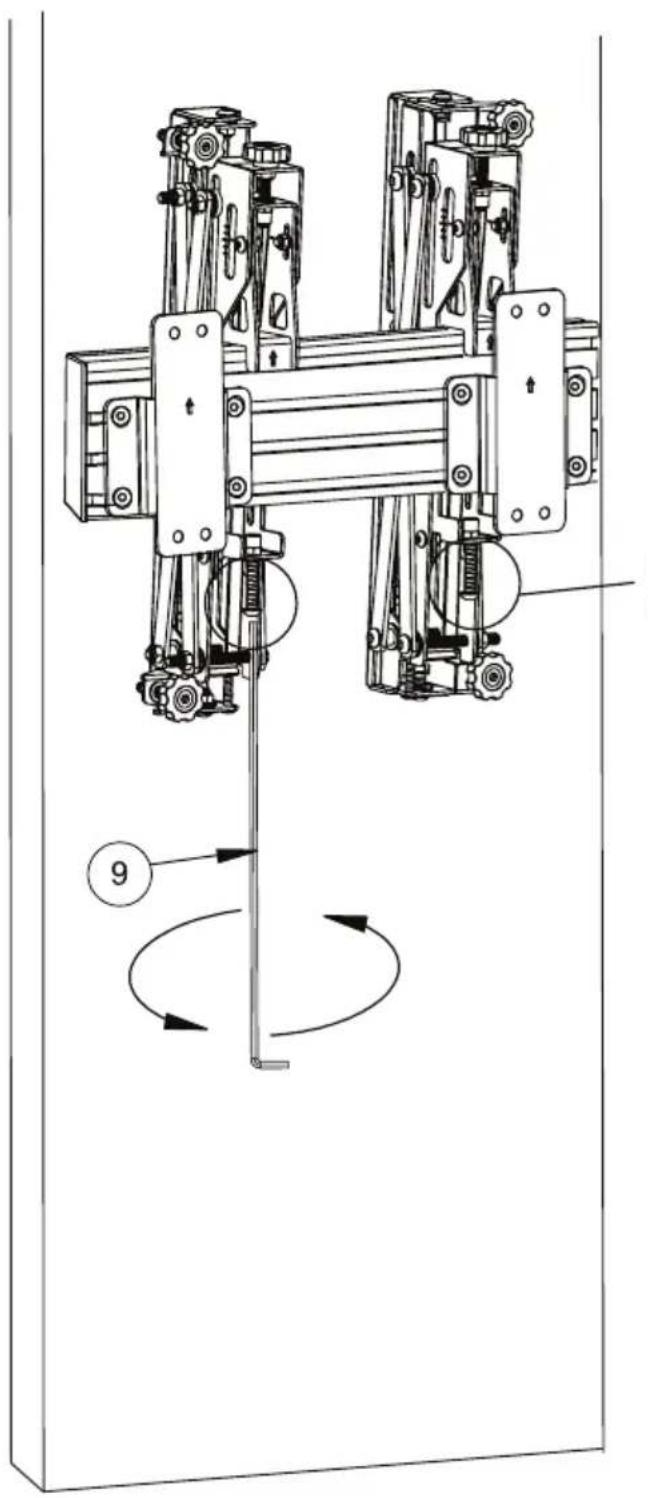

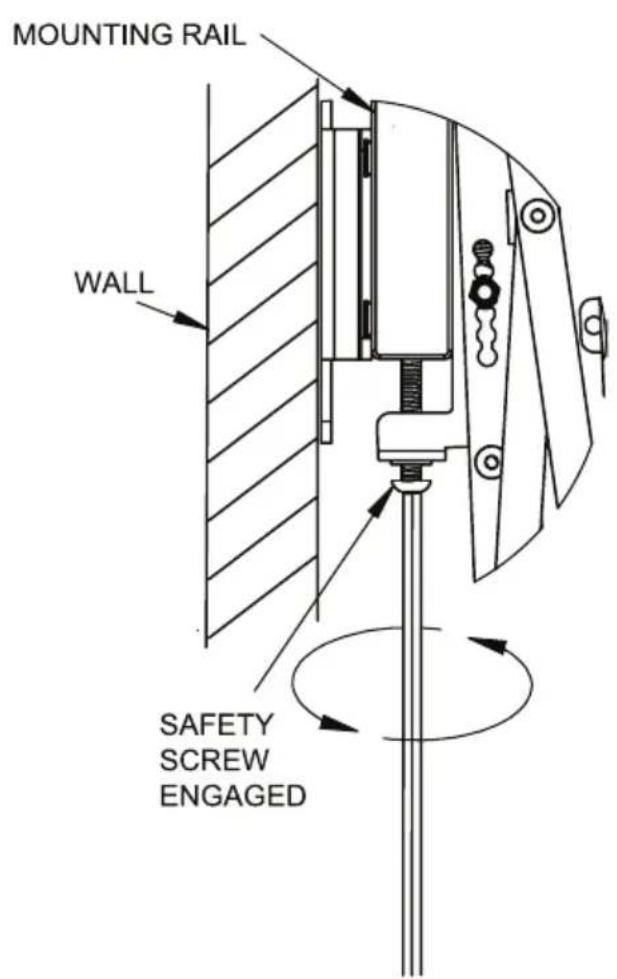

Secure Screen

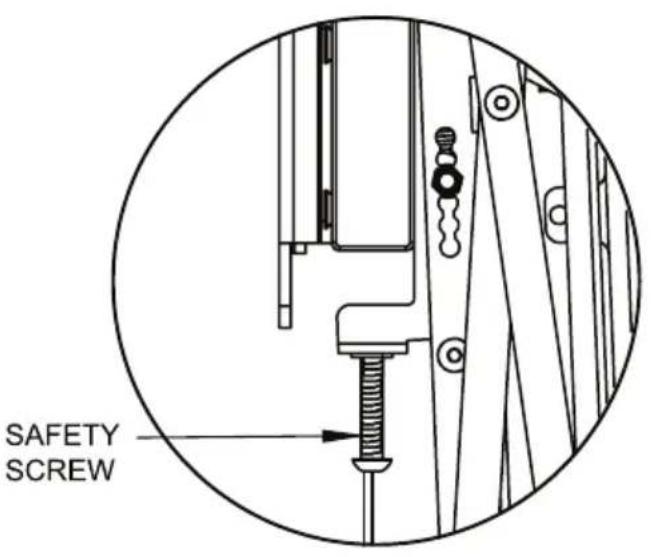

Secure interface arms to the rail using the safety screws on the interface arms.



BT9909

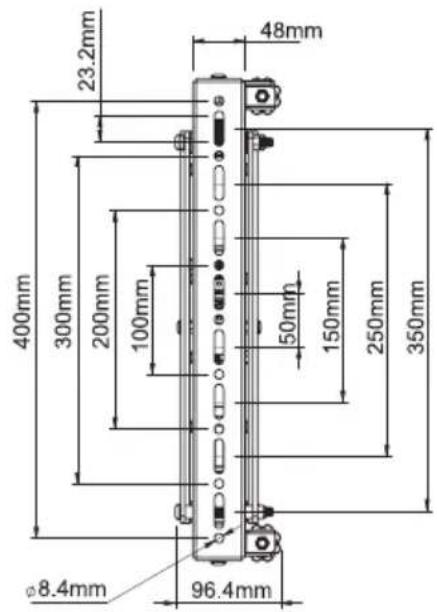

PRODUCT DIMENSIONS

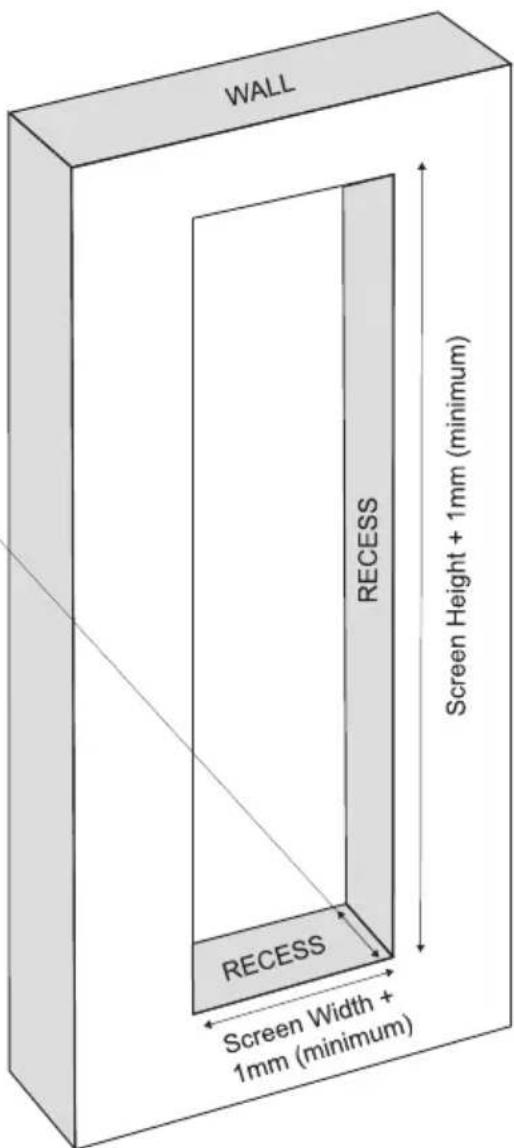

RECESS MOUNTING
Depth of recess = 132mm* + Depth of screen * Reduce by 6mm if 600mm adaptor arms are not used.

BT9909
PRODUCT DIMENSIONS


RECESS MOUNTING
Depth of recess = 132mm* + Depth of screen * Reduce by 6mm if 600mm adaptor arms are not used.
