Z-7000 - Air purifier TRUSENS - Free user manual and instructions

Product Type	Air Purifier
Brand	TruSens
Model	Z-7000
Dimensions (H x W x D)	24.8 x 12.6 x 12.6 inches
Weight	12.5 lbs
Power Supply	120V, 60Hz
Power Consumption	60W max
Coverage Area	Up to 300 sq. ft.
Filtration System	Pre-filter, HEPA filter, Activated Carbon filter
UV-C Light	Yes, for sanitization
Fan Speeds	3 speeds (Low, Medium, High)
Auto Mode	Yes, with sensor
Timer	2, 4, 8 hours
Filter Replacement Indicator	Yes
Noise Level	25-50 dB
CADR (Smoke/Dust/Pollen)	150 / 140 / 160 CFM
Maintenance	Clean pre-filter monthly; replace HEPA/carbon filter every 6-12 months
Safety Features	Auto shut-off when front cover opened; overheat protection
Spare Parts Available	Replacement filters (HEPA, carbon, pre-filter); UV-C bulb
Warranty	1 year limited
Certifications	Energy Star, CARB compliant

Frequently Asked Questions - Z-7000 TRUSENS

How often should I replace the filters?

The pre-filter should be cleaned every month. The HEPA and activated carbon filters should be replaced every 6 to 12 months, depending on usage and air quality. The filter replacement indicator will alert you when it's time.

Can I wash the HEPA filter?

No, the HEPA filter is not washable. Only the pre-filter is washable. Attempting to wash the HEPA filter can damage it and reduce efficiency.

What is the coverage area of the Z-7000?

The TruSens Z-7000 is designed for rooms up to 300 square feet. For best performance, place it in a room of that size or smaller.

Does the Z-7000 produce ozone?

No, the Z-7000 uses UV-C light for sanitization, but it is designed to be ozone-free. It is CARB compliant and safe for use.

How do I clean the UV-C bulb?

The UV-C bulb should be cleaned every few months with a dry cloth. Turn off and unplug the purifier before cleaning. The bulb is located inside the unit and can be accessed by removing the cover.

Why is my air purifier making a strange noise?

Strange noises may indicate a loose fan blade, debris in the filter, or that the filter needs replacement. Check the pre-filter and clean it. If the noise persists, contact customer support.

Can I use the Z-7000 in a bedroom?

Yes, the Z-7000 operates quietly, especially on low speed, making it suitable for bedrooms. The lowest fan speed produces around 25 dB, similar to a whisper.

How do I reset the filter replacement indicator?

After replacing the filter, press and hold the filter reset button for 3 seconds until the indicator light turns off. Consult the manual for exact button location.

Is the Z-7000 energy efficient?

Yes, the Z-7000 is Energy Star certified and consumes only 60W at maximum speed, making it one of the more efficient air purifiers on the market.

Where can I buy replacement filters?

Replacement filters for the Z-7000 can be purchased from the TruSens website, Amazon, or other authorized retailers. Look for the model-specific filter pack.

USER MANUAL Z-7000 TRUSENS

Abstract green and white graphic with a stylized 'U' shape and a dot (no text or symbols)

Z-6000 | Z-7000

OWNER'S MANUAL

PERFORMANCE AIR PURIFIERS

TruSens™

WELCOME TO CLEANER AIR

CONTENTS

SAFETY INFORMATION 4

FEATURE HIGHLIGHTS 6

PRODUCT OVERVIEW 7

GETTING STARTED 8

CONTROL PANEL 10

AIR QUALITY DISPLAY 11

SPECIFICATIONS 12

Washing the Prefilters 14

FAQ & TROUBLESHOOTING 15

WARRANTY & SUPPORT 17

SAFETY INFORMATION

READ & SAVE THESE INSTRUCTIONS / READ THE LABEL AND ANY OPERATING MANUAL BEFORE USING

PRECAUTIONS

Unplug or disconnect the appliance from the power supply before replacing filters, or when appliance is not in use.

WARNING: To reduce the risk of fire or electric shock, do not use this machine with any solid-state speed control device.

Do not operate any purifier with a damaged cord or plug, or if the wall socket is loose.

Do not run cord under carpeting, throw rugs, runners, or similar coverings. Do not run cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.

WARNING: Skin or eye damage may result from directly viewing the light produced by the lamps in the apparatus.

WARNING: UV radiation emitted from this device

• Unintended use of the device, or damage to the housing, may result in exposure to ultraviolet radiation.
  • Ultraviolet radiation may cause eye and skin irritation.
• Avoid exposing eyes and skin to ultraviolet radiation.
• Remove all packaging, including the filter bag, before use.

• Appliances that are obviously damaged must not be operated.

• This appliance must only be connected to a wall socket outlet matching the supply plug type and rating stated on the rating plate.

• Locate air purifier near the outlet wall socket and do not use extension cords.
  • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• KEEP OUT OF THE REACH OF CHILDREN. Children shall not play with the appliance.
• Do not attempt to sevice or repair this product yourself.
• Only use the air purifier and SensorPod with the power cable provided.
• Only clean this machine with a damp cloth, do not use solvents or bleach.
• Ensure appliance is always placed on firm level surface before operation.
• Do not block or obstruct the air intake or outlet vents.
• Do not insert fingers or other items into the air intake or outlet vents.
• When the air purifier is in standby mode the SensorPod is still transmitting a signal/data.

FIRST AID INSTRUCTIONS - Seek medical attention in event of injury.

The use of this device is a supplement to and not a substitute for standard infection control practices; users must continue to follow all current infection control practices, including those practices related to cleaning and disinfection of environmental surfaces.

Z-6000/Z-7000; FCC ID: GV3-21Z7000

C:6128A-2127000

Sensor: TCC ID: GV3-21SPOM2 X: 6128A-21SPOM2

EPA Est. No. 87627-CHN-1

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC RF Radiation Exposure Statement: This equipment should be installed and operated with minimum distance of 20cm between the radiator and all persons.

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

(2) This device must accept any interference, including interference that may cause undesired operation of the device.

FEATURE HIGHLIGHTS

TRU-BEAM.

TRU-BEAM™ UV-C

Proprietary TRU-BFAM UV-C system. No replacements required.

Dual-sided Filtration

Combination filter featuring True HEPA to capture pollutants and Activated Carbon to capture odors and VOCs on both sides.

SensorPod™

Remote air quality monitor that ensures cleaner air, right where you need it.

Informs and Adapts

Color-coded illumination provides additional information by communicating air quality in real-time.

PRODUCT OVERVIEW

Air Purifier

GETTING STARTED

Install the filter (combination True HEPA/Carbon)

Remove side panel door (a), prefilter (b) then bagged True HEPA/Carbon filter. Remove plastic bag from filter (c) and install inside the purifier with HEPA layer (white) on the inside, and the Carbon layer (black) on the outside. Replace the prefilter and side panel door.

NOTE: Perform steps on both left and right sides.

Setup

Plug-in your SensorPod™, and place upright on a tabletop or counter across the room, within line of sight of the purifier.

Plug-in your air purifier unit and power on. Place the purifier on a flat surface, free from obstructions.

Signal strength may vary by location. In the rare occasion that it doesn't work see page 16.

Start living with cleaner air!

The purifier will automatically adjust fan speeds based on the air quality readings from SensorPod, and will deliver purified air in the room.

CONTROL PANEL AIR QUALITY DISPLAY

SensorPod™ Signal Indicator

Power Button

Fan Speed Settings

Select fan speed or AUTO mode. In AUTO mode, purifier automatically adjusts fan speed based on air quality readings from SensorPod.

(AUTO more only available when purifies is paired with SensorPod and receiving signal)

Dimmer Mode

Display illumination turns off without sacrificing the effectiveness of the punifier. Simply press the button again to bring back all display features.

Filter

Reset

Filter Indicator Reset

HEPA and Carbon Indicators glow red when it is time to replace the filters. Simply hold Filter Reset button for 3 seconds to reset the indicators. If replacing the filter before HEPA and Carbon indicators turn red, hold Filter Reset button for 10 seconds to reset the indicators. (Six pages 14-16 for replacement instructions, follow above Reset button instructions after replacing filter.)

UV Mode

UV-C within the purifier's filter chamber are on when the symbol is on.

Timer Mode

Purifier will automatically turn off after 2, 4, 8, or 12 hours. To cancel this countdown, simply press button until no timer setting is displayed.

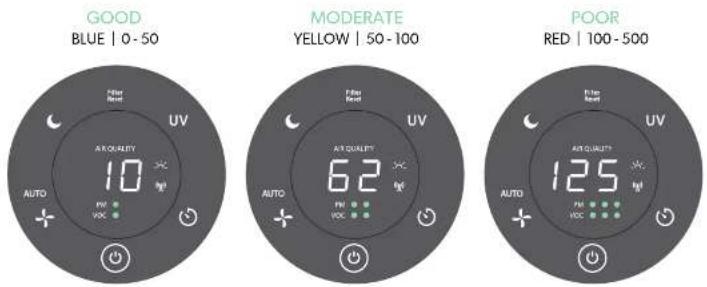

Real-time Feedback

The enhanced SensorPod™ evaluates the condition of your air by measuring both particulate matter (PM1.0, PM2.5, PM10) and volatile organic compounds (VOCs). It calculates the overall air quality using a proprietary algorithm that is reactive to genuine increases in pollutants without overreacting.

The illuminated, color-coded display communicates good, moderate or poor air quality and a numeric value provides a greater level of detail.

In AUTO mode, the purifier automatically adjusts the fan speed in response to these air quality readings.

Trasuradives the Air Quality Index (1-300) accessed by Pte U.S. Environmental Protection Agency (EPA).

SPECIFICATIONS

Air Inlet Dual-sided
Air Outlet Top
Smoke CADR Z-6000: 485 | Z-7000: 519
Room size at 2 air changes per hour (ACH)	Z-6000: 1,750 ft2(162 m2) | Z-7000: 2,000 ft2(186 m2)
Room size at 4.84 air changes per hour (ACH)	Z-6000: 752 ft2(70 m2) | Z-7000: 805 ft2(75 m2)
Sensor SensorPod	^w , works up to 49 ft (1.5 m) from purifier
Fan Speed Settings Whisper, 1, 2, 3, Turbo, AUTO
Purification Levels Washable Prefilter, Carbon, True HEPA, IRU-BEAM	^w UV-C
Timer Settings 2, 4, 8, 12 hr
Filter Change Indicators HEPA, Carbon
Noise Z-6000: 30.0 - 63.3 dB(A) | Z-7000: 30.0 - 65.9 dB(A)
Dimensions	Z-6000: 14.7 x 18.4 x 27.3 in (374 x 468 x 693 mm)Z-7000: 14.7 x 18.4 x 31.7 in (374 x 468 x 806 mm)
Weight	Z-6000: 42.1 lb (19.1 kg) | Z-7000: 45.2 lb (20.5 kg)
Motor Type	DC motor
Power Requirements	100-240VAC / 50-60 Hz
Power Consumption	Z-6000: 109.3 W | Z-7000: 118.7 W
Warranty	2 years

Replacement Filters

Combination True HEPA/Carbon Filter	Z-6000	AFCI Z6000-01	2 pack	Replace every 12 months
	Z-7000	AFCI-Z7000-01	2 pack

CARE & MAINTENANCE

WARNING: Always power off the purifier by pressing the Power Button and unplugging the power cord.

To access the filter chamber, gently remove both side panel filter doors (Fig. A).

REPLACING TRUE HEPA/CARBON FILTERS

The HEPA and Carbon indicators will glow red when it is time to change the combination filter.

1. Gently remove the washable prefilters from both sides (Fig. B). Refer to page 14 for cleaning instructions.
2. Remove the current combination True HEPA/Carbon filters from both sides (Fig. C).
3. Gently install the replacement combination True HEPA/Carbon filters with the HEPA layer (white) on the inside, and the Carbon layer (black) on the outside (page 8).
4. Replace the prefilters and side panel filter doors on both sides (page 8).
5. Plug-in and power on your purifier, and hold the Reset button until the red filter indicators turns off.

Refer to page 12 for "true HEPA/Carbon filter replacement part number.

Technical line drawing of a three-tiered industrial cabinet or enclosure with internal grating and ventilation slots (no text or symbols)

Technical line drawing of a rectangular industrial or storage unit with side grilles and ventilation grilles (no text or symbols)

Diagram of a server rack unit with ventilation ducts and doorways, showing internal components (no text or labels)

WASHING THE PREFILTERS

We recommend that you visually inspect the prefilters every month, and clean as needed. Hand wash the prefilters every time you change the combination True HEPA/Carbon filters.

1. Gently remove both side panel filter doors.
2. Gently remove the prefilters (Fig. D).
3. Gently clean with a dampened cloth – allow prefilters to air dry before re-installing.
4. Replace the prefilters (Fig. E) and both side panel filter doors.

Technical line drawing of a cabinet with two side panels, showing internal structure and directional arrows (no text or symbols)

Technical line drawing of a rectangular industrial or storage unit with two side panels, no text or symbols present.

FAQ & TROUBLESHOOTING

Where do I place the SensorPodTM?	Anywhere you want to measure the air quality within the room.For optimal results, place the SensorPodTM up to 49 ft (15 m) away from the air purifier one a counter or table, within line of sight of the purifier. In Auto Mode, the purifier will work to distribute clean air until the SensorPod reads an acceptable level of air quality.
How often do I need to change the filters?	That's easy! The purifier's replacement indicators will notify you when it is time to replace the combination True HCPA/Carbon filters.Plan on replacing the filters every 12 months.
How often do I need to wash the prefitters?	The prefilter captures larger particles and preserves the efficiency of the other filters, so we recommend that you visually inspect the prefitters every month and wasn as needed.
Purifier won't turn on.	Check that the power cord is connected security to both the wall outlet and the purifier. Check if there is a power outage in the outlet by trying a nearby light or device, or by trying a working device in the same outlet.Check that the filters and filter covers are fitted properly into filter chamber.Please contact us if you're still having a prob- eml (page 17)

FAQ & TROUBLESHOOTING WARRANTY

Purifier won't go into Auto Mode.ORAir quality indicators are off.ORPurifier's sensor signal indicator is blinking.	First, check that the SensorPod is plugged-in and that its light is solid,Next, check that the SensorPod is within range of the purifier (up to 49h/15m).If both are true and the connection is still failing, see below instructions on repairing the SensorPod's connection.
I've lost my SensorPodTM! Don't worry!	Please contact our customer support team and you can order a replacement SensorPod. Follow the easy pairing instructions below to pair your replacement SensorPod with your existing air purifier!

Pairing SensorPod™ and Purifier

The SensorPod communicates with the purifier using radio frequency signals, and will be paired on the production line and ready for use when you open the box. In the rare event that the signal is interrupted, the purifier's sensor indicator light (A) will blink. You can repair the connection in just a few easy steps.

1. Unplug the SensorPod.
2. HOLD the Power Button on the purifier for 3 seconds, when you should hear two chimes.
3. Plug-in the SensorPod and press and HOLD the pairing button underneath the SensorPod for 5-7 seconds (Fig. F).

16

1. The connection is established when the purifier's sensor indicator light is lit with no blinking, and the air quality indicators turn on.

Simple line drawing of a cylindrical object with a downward arrow and a hanging hook, labeled 'Fig. F' (no text or symbols on the object itself)

TruSens warrants the machine will perform to the specifications stated and be free from defects in materials and workmanship for a period of 2 years from date of purchase, subject to normal use. Dated proof of purchase will be required. Defects due to shipping, misuse, improper maintenance are not covered under this warranty. Only the use of TruSens brand accessories will guarantee the proper functioning and lifetime of your TruSens machine. Any damage to or malfunction of your air purifier resulting from the use of non TruSens filters or UV bulbs may not be covered by this warranty or may result in a service fee if the damage or malfunction is determined to be caused by such use.

Within the warranty period, TruSens will at its own discretion either repair or replace the defective machine free of charge. Repairs or alternations made by persons not authorized by TruSens will void the warranty.

This warranty only applies to air purifiers operated in the United States and Canada. This warranty does not affect the legal rights which consumers have under applicable national legislation governing the sale of goods.

SUPPORT

We value your feedback. Please contact us to share your experience.

Visit our website at www.trusens.com

Email us at [e-mail]

Call us at 1-833-TRUSENS (1-833-878-7367)

Subscribe to our YouTube channel TruSens

& Follow us @TruSensWellness

TrùSens™

www.trusens.com
