Product Type	HD Security Camera (Dome)
Model	V5T3M
Image Sensor	1/2.5" CMOS, 5MP
Resolution	2944 × 1656 (16:9)
Video Output	AHD/TVI/CVI/CVBS (default HD-TVI)
Lens	2.8~12mm motorized
IR Distance	98.4 ~ 164.0 ft
Min. Illumination	Color: 0.01 lux@F1.2, B/W: 0 lux with IR
Day/Night	ICR auto switch
Wide Dynamic Range (WDR)	Digital WDR
Backlight Compensation (BLC)	Yes
Digital Noise Reduction (DNR)	Yes
AGC	Yes
White Balance	Auto
OSD Control	UTC (coaxial) control
Audio Input	No (V5T3M does not have built-in MIC)
Power Supply	DC12V (±10%)
Power Consumption	IR OFF: <1W, IR ON: <6W
Dimensions (Φ × H)	Φ5.2 × 4.2 inches
Ingress Protection	IP67
Working Environment	-22°F ~ 122°F, 10% ~ 90% RH
Mounting	Ceiling or wall mount, 3-axis adjustment
Weight	Not specified (typically ~0.5 kg)

Frequently Asked Questions - V5T3M Speco Technologies

How do I switch the video output format on the V5T3M?

Remove the cover of the video switch cable, then press and hold the button for 5 seconds to cycle through AHD, TVI, CVI, and CVBS. The camera defaults to HD-TVI.

What is the maximum IR distance for the V5T3M?

The IR distance ranges from 98.4 to 164.0 feet, depending on environmental conditions.

Can I use the V5T3M outdoors?

Yes, it has an IP67 rating, making it suitable for outdoor use in rain or dust.

Does the V5T3M have a built-in microphone?

No, the V5T3M does not have a built-in microphone. Only models V5B3M and V5T3 have audio input.

What lens does the V5T3M use?

It has a motorized varifocal lens (2.8~12mm) with a D14 mount, allowing remote zoom and focus adjustment.

How do I adjust the camera angle after installation?

Loosen the fixed screw to adjust the dome, then preview the image on a monitor and rotate/tilt to the desired angle (tilt 0°~80°). Tighten the screw afterward.

What is the resolution and frame rate of the V5T3M?

It supports 5MP (2944×1656) at 20fps in TVI/AHD mode, and lower resolutions up to 30fps.

How do I access the OSD menu?

Use a DVR or monitor with UTC (coaxial) control. The OSD menu lets you adjust settings like WDR, BLC, and exposure.

What power supply is required?

A 12VDC power supply (±10%) is needed. Power consumption is less than 1W with IR off and less than 6W with IR on.

Can the V5T3M be used with existing coaxial cabling?

Yes, it supports HD video over standard coaxial cable, making it ideal for upgrading analog systems without rewiring.

USER MANUAL V5T3M Speco Technologies

Collection of white Kipeca Technologies security cameras with multiple camera heads and no visible text or symbols on the cameras themselves.

V5B3/V5B3M/V5D3/V5D3M/V5T3/V5T3M

USER MANUAL

Thank you for purchasing our product. Speco Technologies is constantly developing and improving products. We reserve the right to modify product design and specifications without notice and without incurring any obligation.

Warnings

■ If the product does not work properly, please contact the dealer or where the product was purchased. Speco Technologies is not responsible for any problems caused by improper operation or repair.

Do not expose the unit to heavy stress, violent vibration or long-term exposure to water and humidity during transportation, storage, and/or installation.

Do not install near sources of heat.

Only install the product in environments inside the specification operating temperature and humidity range.

Do not install the camera near power lines, radar equipment or other electromagnetic radiation.

Do not block any ventilation openings if any.

Use all the weatherproofing hardware requirement to minimize weather intrusion.

Introduction

This camera series is the latest technology and advanced circuit design, which features high definition and sensitivity, low noise and distortion and supports HD video transmission with the common coaxial cable, ensuring the requirement of the HD monitoring in the traditional surveillance system.

- High Resolution

Adopt high performance sensor, providing high definition and clear image.

• High Transmission Performance

Real-time transmission with high speed and long distance.

• DNR

Reduce noise from brightness and color signal.

- OSD

Access the camera settings which can be clearly displayed through the main menu.

- White Balance

Adjust the color temperature according to the environment automatically.

- ICR Auto Switch

The filter will filter infrared light during the daytime and change to normal at night to ensure a high sensitivity and clear image.

• AGC

Adjust the gain of amplifier, enabling the camera to output the standard video signal in different lighting condition.

- Wide Dynamic Range (WDR)

When there are both very bright and very dark areas simultaneously in the field of view, this function will balance the brightness level and provide clear images.

- Backlight Compensation (BLC)

When the back of the captured object is too much bright, you can set BLC for the captured object to make it clearer.

Cables

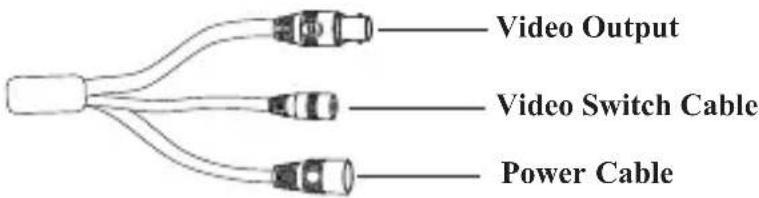

Video Switch: Four video output modes can be optional--AHD, TVI, CVI and CVBS (a) remove the cover of the video switch cable; (b) hold and press the button in the video switch cable for 5 seconds to switch the current video output.

Installation

Before you start, please make sure that the wall or ceiling is strong enough to withstand three times the weight of the camera. Please install and use the camera in the dry environment.

You'd better install back the lens cover or lower dome less than 4 hours after removing it. The mounting types of cameras are only for reference.

▶Mounting for V5B3/V5B3M

1. Drill the screw holes and the cable hole on the wall according to the drill template.

1. Route and connect the cables.

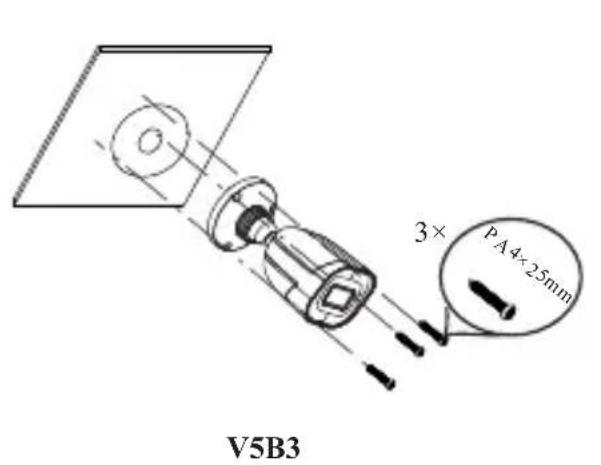

2. Secure the mounting base with camera to the wall with screws as shown below.

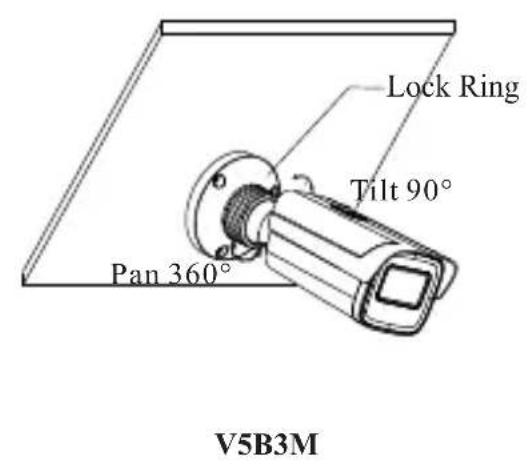

1. Bracket adjustment. Before adjustment, preview the image of the camera on a monitor and then loosen the lock ring to adjust the view angle of the camera. Tighten the lock ring after the adjustment.

▶Mounting for Dome Camera

- Mounting for V5D3/V5D3M

1. Attach the drill template to the place where you want to fix the camera and then drill the screw holes and the cable hole on the wall according to the drill template.

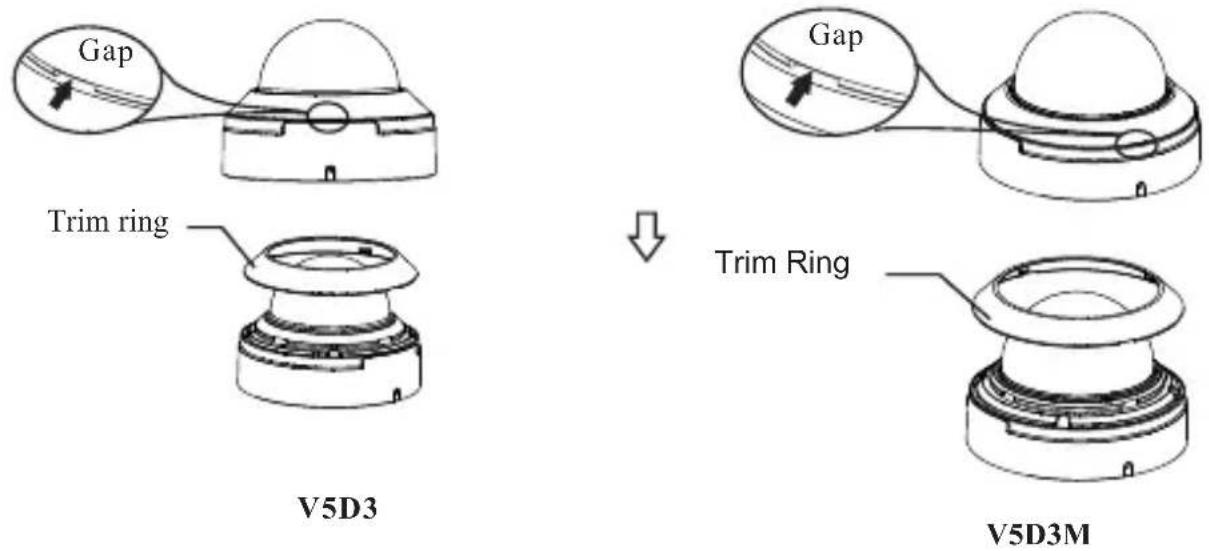

1. Then remove the trim ring from the gap of the camera as shown below.

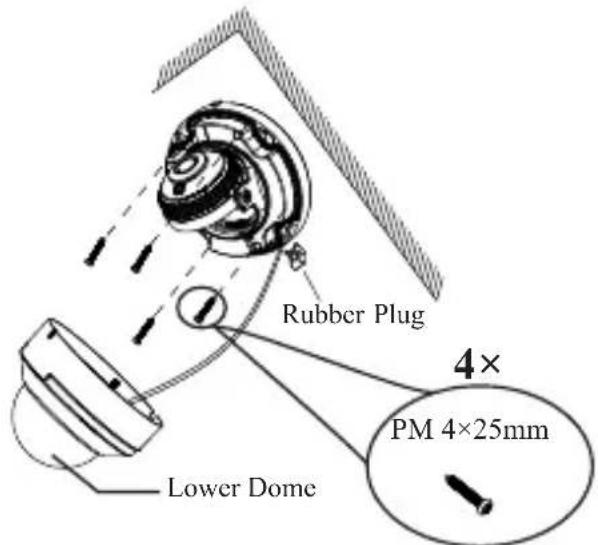

1. Loosen the screws to open the lower dome. Then route and connect the cables.
2. Secure the camera to the wall with screws provided as shown below.

V5D3

V5D3M

1. Three-axis adjustment. Before adjustment, preview the image of the camera on a monitor and then adjust the camera according to the figure below to get an optimum angle.

V5D3

Rotation 0°\~345°
V5D3M

1. Install the lower dome back to the camera and fasten it with the screws. Then put the trim ring onto the lower dome. Finally, remove the protection film softly.

- Mounting for V5T3/V5T3M

1. Drill the screw holes and the cable hole on the wall according to the drill template.

1. Loosen the fixed screw to disassemble the camera.
2. Route and connect the cables. Then secure the mounting base to the ceiling or wall with the screws provided.

V5T3

V5T3M

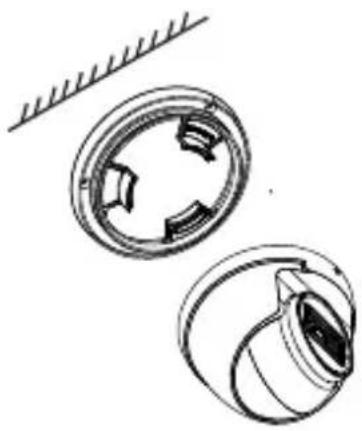

1. Install the dome and enclosure to the mounting base and then adjust the dome to obtain an optimum view angle. Finally, secure the camera with the fixed screw.

Technical line drawing of a mechanical component with two views (top and side), no text or symbols present.

Technical line drawing of a surveillance camera mounted on a wall (no text or symbols)

V5T3: Tilt: 0°\~75°
V5T3M: Tilt: 0^ 80^

Specifications

Specifications\Models	V5B3	V5B3M	V5D3
Camera
Image Sensor	1/2.5" CMOS
Resolution	5MP
Image size	2944×1656 (16:9)
Video Output	AHD/TVI/CVI/CVBS (*camera comes defaulted to HD-TVI)
Audio Input	1CH built-in MIC	No	1CH built-in MIC
Image System	PAL/NTSC
Electronic Shutter	Auto; 1/50s~1/100000s(PAL);1/60s~1/100000s (NTSC)
IR Distance (feet)	65.6~98.4	98.4~164.0	32.8~65.6
Frame Rate	TVI: 2944×1656@20fps, 2560×1440@25fps/30fpsAHD:2944×1656@20fps, 2560×1440@25fps/30fpsCVI: 2560×1440@25fps/30fpsCVBS: PAN/NTSC
Min. Illumination	Color:0.01lux@F1.2, AGC ON; B/W: 0lux with IR
Lens	2.8mm	2.8~12mm(motorized)	2.8mm
Lens Mount	M12	D14	M12
S/N Ratio	≥52dB(AGC OFF)
Ingress Protection	IP67	IP67	IP67&IK10
Functions
Function Control	OSD (UTC control)
Day &Night	ICR
Digital WDR	Yes
Digital NR	Yes
AGC	Yes
Auto White Balance	Yes
BLC	Yes
HLC	Yes
Sharpness	Yes
Image Setting	Yes
Defect Correction	Auto
Others
Power Supply	DC12V (± 10%)
Power Consumption	IR OFF: < 1W;IR ON : < 4W	IR OFF: < 1W;IR ON : < 4W	IR OFF: < 1W;IR ON : < 4W
Working Environment	-22 °F ~ 122 °F, 10 % ~ 90 %(relative humidity)
Dimensions (inch)	6.7 3.3 3.3× ×	8.7 3.4 3.4× ×	Φ4.7 3.5×
Specifications\Models	V5D3M	V5T3	V5T3M
Camera
Image Sensor	1/2.5" CMOS
Resolution	5MP
Image size	2944×1656 (16:9)
Video Output	AHD/TVI/CVI/CVBS (*camera comes defaulted to HD-TVI)
Audio Input	No	1CH built-in MIC	No
Image System	PAL/NTSC
Electronic Shutter	Auto; 1/50s~1/100000s(PAL);1/60s~1/100000s (NTSC)
IR Distance (feet)	65.6~98.4	65.6~98.4	98.4~164.0
Frame Rate	TVI: 2944×1656@20fps, 2560×1440@25fps/30fpsAHD:2944×1656@20fps, 2560×1440@25fps/30fpsCVI: 2560×1440@25fps/30fpsCVBS: PAN/NTSC
Min. Illumination	Color:0.01lux@F1.2, AGC ON; B/W: 0lux with IR
Lens	2.8~12mm (motorized)	2.8 mm	2.8~12mm (motorized)
Lens Mount	D14	M12	D14
S/N Ratio	≥52dB(AGC OFF)
Ingress Protection	IP67&IK10	IP67	IP 67
Functions
Function Control	OSD (UTC control)
Day &Night	ICR
Digital WDR	Yes
Digital NR	Yes
AGC	Yes
Auto White Balance	Yes
BLC	Yes
HLC	Yes
Sharpness	Yes
Image Setting	Yes
Defect Correction	Auto
Others
Power Supply	DC12V (± 10%)
Power Consumption	IR OFF: < 1W;IR ON : < 6W	IR OFF: < 1W;IR ON : < 4W	IR OFF: < 1W;IR ON : < 6W
Working Environment	-22 °F ~ 122 °F, 10 % ~ 90 %(relative humidity)
Dimensions (inch)	Φ5.6 3.9×	Φ4.7 3.7×	Φ5.2 4.2×

Model: V5B3/V5B3M/V5D3/V5D3M/V5T3/V5T3M

Federal Communications Commission (FCC) Statements

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

FCC Responsible Party:

Speco Technologies

200 New Highway

Amityville, NY 11701

www.specotech.com
