Product Type	IP Security Camera
Brand	Speco Technologies
Model	V5B3M
Dimensions	3.5 x 2.8 x 2.5 inches
Weight	1.2 lbs
Power Supply	12V DC, 1A
Resolution	2MP (1080p) at 30fps
Lens	3.6mm fixed, F2.0
Night Vision	IR LEDs up to 100ft
Connectivity	RJ45 Ethernet (10/100 Mbps)
Mounting	Wall mount bracket included
Storage	NVR or microSD up to 128GB
Weatherproof	IP67 rated
Operating Temperature	-20°C to 50°C
Main Features	Motion detection, remote viewing, ONVIF compatible
Cleaning and Maintenance	Wipe with dry soft cloth; avoid solvents
Safety	Surge protection, CE/FCC compliant
Spare Parts and Repairability	Power adapter, mounting screws; contact Speco support
General Information	1-year limited warranty

Frequently Asked Questions - V5B3M Speco Technologies

How do I install the V5B3M camera?

Mount the camera using the included bracket, connect the Ethernet cable to a PoE switch or use the power adapter, then configure via the Speco IP Finder tool.

What is the default IP address?

The default IP is 192.168.1.100. You can change it using the Speco IP Finder software on a computer within the same network.

How do I view the camera remotely?

Use the Speco Viewer app or web browser. Forward port 554 on your router and enter the WAN IP address with the port.

Does the camera support night vision?

Yes, it has built-in IR LEDs providing up to 100ft of night vision in complete darkness.

What power source does the V5B3M require?

It supports Power over Ethernet (PoE) 802.3af or a 12V DC power adapter (1A). Either works.

Can I use a microSD card for local recording?

Yes, the camera has a microSD slot supporting up to 128GB for edge storage. Insert the card and enable recording in the settings.

Is the camera weatherproof?

Yes, it has an IP67 rating, meaning it is dust-tight and can withstand rain and submersion up to 1 meter for 30 minutes.

How do I factory reset the camera?

Press and hold the reset button (inside the cable compartment) for 10 seconds while power is on. The camera will reboot to default settings.

Is the V5B3M compatible with third-party NVRs?

Yes, it supports ONVIF Profile S, so it works with many NVRs like Hikvision, Dahua, and Blue Iris.

What should I do if the camera loses connection?

Check the Ethernet cable, ensure PoE or power is active, and reboot the camera. Use Speco IP Finder to verify it is on the network.

USER MANUAL V5B3M Speco Technologies

Collection of white Kipeca Technologies security cameras with multiple camera heads and no visible text or symbols on the devices themselves.

V5B3/V5B3M/V5D3/V5D3M/V5T3/V5T3M

USER MANUAL

Thank you for purchasing our product. Speco Technologies is constantly developing and improving products. We reserve the right to modify product design and specifications without notice and without incurring any obligation.

Warnings

■ If the product does not work properly, please contact the dealer or where the product was purchased. Speco Technologies is not responsible for any problems caused by improper operation or repair.

Do not expose the unit to heavy stress, violent vibration or long-term exposure to water and humidity during transportation, storage, and/or installation.

Do not install near sources of heat.

Only install the product in environments inside the specification operating temperature and humidity range.

Do not install the camera near power lines, radar equipment or other electromagnetic radiation.

Do not block any ventilation openings if any.

Use all the weatherproofing hardware requirement to minimize weather intrusion.

Introduction

This camera series is the latest technology and advanced circuit design, which features high definition and sensitivity, low noise and distortion and supports HD video transmission with the common coaxial cable, ensuring the requirement of the HD monitoring in the traditional surveillance system.

- High Resolution

Adopt high performance sensor, providing high definition and clear image.

• High Transmission Performance

Real-time transmission with high speed and long distance.

• DNR

Reduce noise from brightness and color signal.

- OSD

Access the camera settings which can be clearly displayed through the main menu.

- White Balance

Adjust the color temperature according to the environment automatically.

- ICR Auto Switch

The filter will filter infrared light during the daytime and change to normal at night to ensure a high sensitivity and clear image.

• AGC

Adjust the gain of amplifier, enabling the camera to output the standard video signal in different lighting condition.

- Wide Dynamic Range (WDR)

When there are both very bright and very dark areas simultaneously in the field of view, this function will balance the brightness level and provide clear images.

- Backlight Compensation (BLC)

When the back of the captured object is too much bright, you can set BLC for the captured object to make it clearer.

Cables

Video Switch: Four video output modes can be optional--AHD, TVI, CVI and CVBS (a) remove the cover of the video switch cable; (b) hold and press the button in the video switch cable for 5 seconds to switch the current video output.

Installation

Before you start, please make sure that the wall or ceiling is strong enough to withstand three times the weight of the camera. Please install and use the camera in the dry environment.

You'd better install back the lens cover or lower dome less than 4 hours after removing it. The mounting types of cameras are only for reference.

▶Mounting for V5B3/V5B3M

1. Drill the screw holes and the cable hole on the wall according to the drill template.

1. Route and connect the cables.

2. Secure the mounting base with camera to the wall with screws as shown below.

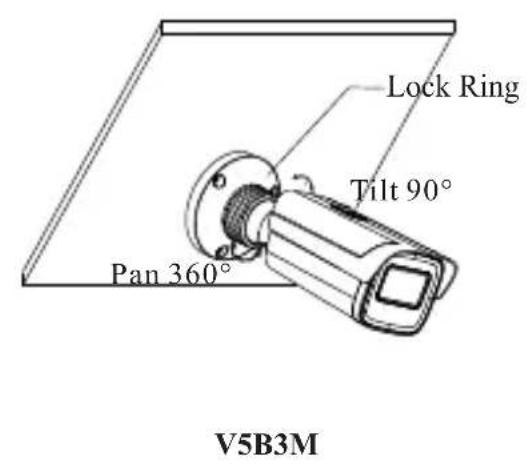

1. Bracket adjustment. Before adjustment, preview the image of the camera on a monitor and then loosen the lock ring to adjust the view angle of the camera. Tighten the lock ring after the adjustment.

▶Mounting for Dome Camera

- Mounting for V5D3/V5D3M

1. Attach the drill template to the place where you want to fix the camera and then drill the screw holes and the cable hole on the wall according to the drill template.

1. Then remove the trim ring from the gap of the camera as shown below.

1. Loosen the screws to open the lower dome. Then route and connect the cables.
2. Secure the camera to the wall with screws provided as shown below.

V5D3

V5D3M

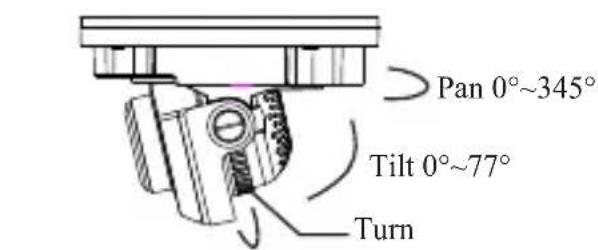

1. Three-axis adjustment. Before adjustment, preview the image of the camera on a monitor and then adjust the camera according to the figure below to get an optimum angle.

V5D3

Rotation 0°\~345°
V5D3M

1. Install the lower dome back to the camera and fasten it with the screws. Then put the trim ring onto the lower dome. Finally, remove the protection film softly.

- Mounting for V5T3/V5T3M

1. Drill the screw holes and the cable hole on the wall according to the drill template.

1. Loosen the fixed screw to disassemble the camera.
2. Route and connect the cables. Then secure the mounting base to the ceiling or wall with the screws provided.

V5T3

V5T3M

1. Install the dome and enclosure to the mounting base and then adjust the dome to obtain an optimum view angle. Finally, secure the camera with the fixed screw.

Technical line drawing of a mechanical component with two views: top shows circular features, bottom shows a cylindrical housing (no text or symbols)

Technical line drawing of a surveillance camera mounted on a wall (no text or symbols)

V5T3: Tilt: 0°\~75°
V5T3M: Tilt: 0^ 80^

Specifications

Specifications\Models	V5B3	V5B3M	V5D3
Camera
Image Sensor	1/2.5" CMOS
Resolution	5MP
Image size	2944×1656 (16:9)
Video Output	AHD/TVI/CVI/CVBS (*camera comes defaulted to HD-TVI)
Audio Input	1CH built-in MIC	No	1CH built-in MIC
Image System	PAL/NTSC
Electronic Shutter	Auto; 1/50s~1/100000s(PAL);1/60s~1/100000s (NTSC)
IR Distance (feet)	65.6~98.4	98.4~164.0	32.8~65.6
Frame Rate	TVI: 2944×1656@20fps, 2560×1440@25fps/30fpsAHD:2944×1656@20fps, 2560×1440@25fps/30fpsCVI: 2560×1440@25fps/30fpsCVBS: PAN/NTSC
Min. Illumination	Color:0.01lux@F1.2, AGC ON; B/W: 0lux with IR
Lens	2.8mm	2.8~12mm(motorized)	2.8mm
Lens Mount	M12	D14	M12
S/N Ratio	≥52dB(AGC OFF)
Ingress Protection	IP67	IP67	IP67&IK10
Functions
Function Control	OSD (UTC control)
Day &Night	ICR
Digital WDR	Yes
Digital NR	Yes
AGC	Yes
Auto White Balance	Yes
BLC	Yes
HLC	Yes
Sharpness	Yes
Image Setting	Yes
Defect Correction	Auto
Others
Power Supply	DC12V (± 10%)
Power Consumption	IR OFF: < 1W;IR ON : < 4W	IR OFF: < 1W;IR ON : < 4W	IR OFF: < 1W;IR ON : < 4W
Working Environment	-22 °F ~ 122 °F, 10 % ~ 90 %(relative humidity)
Dimensions (inch)	6.7 3.3 3.3× ×	8.7 3.4 3.4× ×	Φ4.7 3.5×
Specifications\Models	V5D3M	V5T3	V5T3M
Camera
Image Sensor	1/2.5" CMOS
Resolution	5MP
Image size	2944×1656 (16:9)
Video Output	AHD/TVI/CVI/CVBS (*camera comes defaulted to HD-TVI)
Audio Input	No	1CH built-in MIC	No
Image System	PAL/NTSC
Electronic Shutter	Auto; 1/50s~1/100000s(PAL);1/60s~1/100000s (NTSC)
IR Distance (feet)	65.6~98.4	65.6~98.4	98.4~164.0
Frame Rate	TVI: 2944×1656@20fps, 2560×1440@25fps/30fpsAHD:2944×1656@20fps, 2560×1440@25fps/30fpsCVI: 2560×1440@25fps/30fpsCVBS: PAN/NTSC
Min. Illumination	Color:0.01lux@F1.2, AGC ON; B/W: 0lux with IR
Lens	2.8~12mm (motorized)	2.8 mm	2.8~12mm (motorized)
Lens Mount	D14	M12	D14
S/N Ratio	≥52dB(AGC OFF)
Ingress Protection	IP67&IK10	IP67	IP 67
Functions
Function Control	OSD (UTC control)
Day &Night	ICR
Digital WDR	Yes
Digital NR	Yes
AGC	Yes
Auto White Balance	Yes
BLC	Yes
HLC	Yes
Sharpness	Yes
Image Setting	Yes
Defect Correction	Auto
Others
Power Supply	DC12V (± 10%)
Power Consumption	IR OFF: < 1W;IR ON : < 6W	IR OFF: < 1W;IR ON : < 4W	IR OFF: < 1W;IR ON : < 6W
Working Environment	-22 °F ~ 122 °F, 10 % ~ 90 %(relative humidity)
Dimensions (inch)	Φ5.6 3.9×	Φ4.7 3.7×	Φ5.2 4.2×

Model: V5B3/V5B3M/V5D3/V5D3M/V5T3/V5T3M
