Product Type	Canister Vacuum Cleaner
Brand	Hyundai
Model	HHN-SF60BL
Power Consumption	1200 W
Dust Capacity	2.0 L
Weight	4.5 kg
Dimensions (L x W x H)	40 x 25 x 30 cm
Cord Length	6.0 m
Filtration System	HEPA H13 Filter
Noise Level	78 dB(A)
Suction Power	250 Air Watts
Operating Radius	9 m
Bag Type	Bagless (Cyclonic)
Floor Type	Hard floors and carpets
Accessories Included	Crevice tool, brush tool, upholstery nozzle
Maintenance	Empty dust bin after each use; wash foam filter monthly
Filter Cleaning Indicator	Yes (light indicator)
Safety Features	Thermal overload protection, motor safety switch
Replacement Parts	Filter set (HEPA & foam), dust bin, accessories
Reparability	Modular design; motor and electronics accessible
Certifications	CE, RoHS

Frequently Asked Questions - HHN-SF60BL HYUNDAI

How do I clean the HEPA filter?

Turn off and unplug the vacuum. Open the filter cover, remove the HEPA filter, and gently tap it to remove dust. If very dirty, rinse with cold water and let it dry completely for 24 hours before reinstalling.

What should I do if the suction power decreases?

Check if the dust bin is full (empty it). Inspect the filter for clogging (clean or replace). Also check if the hose or nozzle is blocked.

Can I use the vacuum on hardwood floors?

Yes, the HHN-SF60BL is suitable for hard floors. Use the floor nozzle with bristles retracted or the included brush attachment to avoid scratches.

How do I replace the foam filter?

Unplug the vacuum. Remove the dust bin, take out the old foam filter, and insert a new one. It is recommended to replace the foam filter every 3-6 months depending on use.

What does the filter indicator light mean?

The filter indicator light turns on when the airflow is restricted due to a dirty filter. Clean or replace the filter as instructed.

How do I store the vacuum?

Wind the cord around the cord hooks. Store the vacuum in a dry place. Attach the accessories to the dedicated holders on the unit if available.

Is the dust bin washable?

Yes, the dust bin can be washed with mild soap and water. Make sure it is completely dry before reinserting.

Why does the vacuum overheat?

Overheating may occur if the filter is clogged, the dust bin is full, or airflow is blocked. Turn off and let it cool. Clean the filter and empty the bin before restarting.

What accessories are included?

The package includes a crevice tool, a brush tool, and an upholstery nozzle. These can be attached to the hose or wand.

Where can I purchase replacement parts?

Replacement parts such as filters and accessories are available through Hyundai's official website or authorized retailers. Use part numbers from the user manual.

USER MANUAL HHN-SF60BL HYUNDAI

SCOPA ELETTRICA CON FILO HHN-SF60BL

MANUALE D'USO E MANUTENZIONE

GENLINE PRODUCT OF HYUNDAI CORPORATION

Line drawing of a vacuum cleaner against a solid blue background (no text or symbols)

Technical line drawings of three mechanical components: a motor, a rod, and a robotic arm (no text or symbols present)

Two-step diagram showing a tool interacting with a grid-patterned surface and a mechanical component on a textured surface (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with a side view showing internal gear teeth (no text or symbols)

Supporto da muro

Diagram of a mechanical device with rope and base components, showing a transformation from a left-side assembly to a right-side view (no text or symbols present)

Technical line drawing of a mechanical device with no visible text or symbols

Pulire il filtro

Technical line drawing of a mechanical component with a side-view detail (no text or symbols)

Corporation Holdings, Korea.

Thank you for purchasing the HHN-SF60BL. We recommend that you read this instruction manual carefully before use and keep it for future reference.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic safety precautions should be followed, including:

• Before using the appliance, carefully read the instructions for use and in particular the safety warnings and comply with them. Keep this manual, for the entire life of the appliance, for consultation purposes. Failure to follow the instructions could cause accidents and void the guarantee, relieving the manufacturer from any liability.
• Before connecting the appliance, check that the mains voltage data shown on the data label correspond to those of the local electricity network. The data label is located on the appliance itself.
• The packing elements (plastic bags, cardboard, polystyrene, etc.) must not be left within the reach of children as they are potential sources of danger and must be disposed of in accordance with current regulations.
• After removing the appliance from the packaging, check for any transport damage and the integrity of the supply based on the drawing. In the event of damage or doubts as to its actual integrity, do not use the appliance and contact the authorized assistance service.
• To protect against electric shock, do not immerse the appliance or cord in water or other liquids. Do not let cord hang over countertop or touch hot surfaces.
• This product has been designed for DOMESTIC use only, it has not been designed for industrial or professional use.
• Disconnect the plug from the mains when the product is not in use.
• In the event of a breakdown or malfunction of the appliance, switch it off and do not tamper with it. For any repairs, contact only an authorized technical assistance centre.
• This product can be used by children aged 8 and over and by people with reduced physical, mental or sensory capabilities, or lack of experience and knowledge only if supervised or if they have received instructions regarding the safe use of the equipment and understand the risks associated with its use.
• Cleaning and maintenance operations must not be carried out by children without supervision.
  • This product is not a toy. Make sure that children do not play

with the appliance.

- Never let the cord hang over a surface where a child could grab it.

- Do not turn the product upside down while it is in operation or connected to the network.

- Never leave the product unattended when it is in operation.

- Store the product in a dry, dust-free environment away from direct sunlight and heat sources.

- NEVER immerse the motor base, power cord or plug in water or other liquids and never place them under running water.

- Unplug the unit before assembling, disassembling or cleaning the device.

- The appliance plug must fit snugly into the socket. Do not alter the plug in any way. Do not use adapters.

- Do not use the product outdoors.

- Do not use the product if it has been dropped, if there are visible signs of damage or leaks.

- Do not pull the power cable to lift, carry or remove the plug from the socket.

• Make sure that the cable has no knots or bends

- Check the condition of the electric cable. Damaged or knotted cords prolong the risk of electric shock.

- If the power cord is damaged, it must be replaced by the manufacturer, its after-sales service or qualified personnel in order to avoid danger.

- Do not use the plug or cord with wet or damp hands or feet.

- Do not leave the appliance when it is in operation.

- Do not disassemble the base.

• Do not insert foreign bodies

- Pay attention that the cable does not come into contact with hot, incandescent surfaces, open flames, pots and other hot utensils.

- Do not direct the appliance in operation at people or animals.

- Warning: There is a risk that the product will be damaged or that it may damage surrounding objects during use.

- Attention: Please keep the product away from flammable objects or liquids to avoid fire or explosion when using.

- This appliance uses a washable filter system, for conve-and effective cleaning.

• This appliance is suitable for cleaning homes, hotels and buildings due to its low noise level.
• The design of the dust container allows for its easy removal and cleaning.

PRODUCT DESCRIPTION:

Do not remove the plug by pulling the cord or the appliance itself.	Do not run the appliance over the power cord.	Do not block the air vent or brush.
Do not use the appliance on wet surfaces.	Do not use the appliance to vacuum lit matches, cigarette butts or hot ashes.	Do not use the appliance to suck up needles, drawing pins or threads.

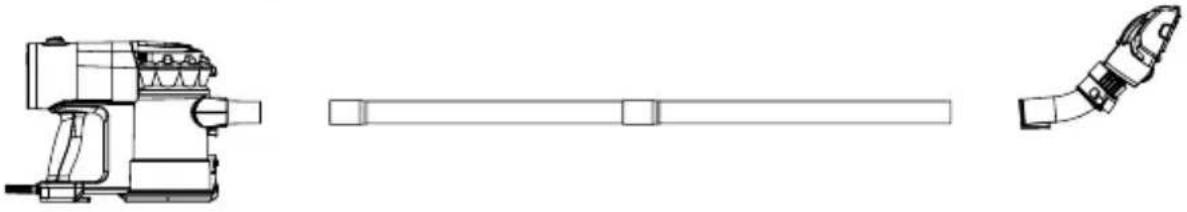

VACUUM CLEANER ASSEMBLY

Technical line drawings of mechanical components including a cylindrical rod, a bracket, and a curved arm (no text or symbols)

Make sure the motor body is unplugged from the power outlet.

Insert the metal tube into the special nozzle, and then insert the brush into the tube.

INSTRUCTIONS FOR USE

1. Extend the power cord, insert the plug into the electrical socket and press the power button: the vacuum cleaner is ready.
2. Tilt the vacuum cleaner during use by turning the handle.
3. Stop operation by pressing the ON/OFF button, disconnect the plug from the socket, store the power cord.

Dual function carpet/floor brush.

Diagram showing a tool interacting with a grid-patterned surface, no text or symbols present

Diagram showing a tool interacting with a surface, possibly cleaning or cleaning (no text or symbols present)

Position 1: bristles extended for hard floors

Position 2: retracted bristles for carpets

Use of cleaning accessories

Use of crevice nozzle (crumb vacuum)

Insert the crevice nozzle into the main suction hole, and use it to clean

crevices or as a crumb vacuum.

Technical line drawing of a mechanical device with no visible text or symbols

Use of Multi-purpose brush

Insert the multi-purpose brush into the main suction hole.

Technical line drawing of a mechanical device with a close-up view of its internal structure (no text or symbols)

Wall mount

The wall mount can be fixed to the wall (using the screw kit) to store the vacuum cleaner, crevice nozzle and multi-purpose brush.

Diagram of a hairdryer with a rope knot and a separate view showing the same mechanical component (no text or symbols present)

USE OF CLEANING ACCESSORIES

1. Lift the lid of the vacuum cleaner.
2. Take out the dust container.
3. Clean the dust inside the container.

CLEAN THE FILTER

1. Remove the filter when it is dirty.
2. Clean with water and air dry before next use.

Technical line drawing of a mechanical assembly (no text or symbols visible)

Technical line drawing of a mechanical component with a side-view detail (no text or symbols)

CLEANING AND MAINTENANCE

• Empty and clean the dust container.
• Always use the vacuum cleaner with the dirt container correctly installed.
- Disconnect the appliance from the power outlet before proceeding with any cleaning and maintenance operation.
- When the container is full, it will need to be emptied before continuing to use it.
- The filter should be washed at least twice a year, or when you notice that the dirt begins to solidify.
• Always use the vacuum cleaner with the filter correctly positioned.
On the contrary, it is possible to lose suction power or damage the motor.
- Be sure to unplug the appliance before cleaning the filter.
- Never use a washing machine or dishwasher to clean the filter, do not use a hair dryer to dry it.
- Brush the filter or wash it with warm water without any type of detergent or similar products.
- Let the filter dry completely before repositioning it correctly inside the container.

RATING LABEL

HYUNDAI

Corporation Holdings, Korea.

This product complies with all applicable European directives.

arefully the instruction manual

nce with class II electrical insulation

INFORMATION TO USERS according to Legislative Decree No. 49 of March 14, 2014 “2012/19/UE Implementation of the Directive on Waste Electrical and Electronic Equipment (WEEE)”

The crossed-out dustbin symbol indicates that the product at the end of its life must be collected separately from other waste.

The user should, therefore, take the equipment with the essential components at the end of its useful life to the separate collection center of electronic and electrical waste, or return it to the retailer when purchasing new equipment of equivalent type, in ratio of one to one, or one to zero for devices with larger side less than 25 CM.

The separate collection for the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes to avoid possible negative effects on the environment and human health and promotes recycling of the materials.

Improper disposal of the product by the user entails the application of administrative sanctions according to Legislative Decree No. 49 of 14 March 2014

HYUNDAI

REV. 04.2024
