USER MANUAL DJ LED251 Karma

• OTROS IDOMAS •
• OUTRAS LINGUAS •

Simple black-and-white icon of a portable radio with two speakers and a circular button (no text or symbols)

EFFETTO LUCE Light effect

Pure electrical circuit lines without any symbols

CAVO ALIMENT. Power cable

Simple icon of a remote control with no text or symbols

TELECOMANDO Remote control

Icon of an open book with a gear symbol, representing software or ideas (no text or symbols present)

MANUALE Manual

When you open the package check that product is in good condition and that all the parts are present. Immediately notify the seller if any part is damaged or missing.

SEGUICI E SCOPRI LE ULTIME NOVITA'

By purchasing your new product you have just started an extraordinary journey across the world of KARMA products.

Thousands of constantly updated items that you can discover also on our social channels.

Sign up now and don't miss the posts on the most interesting products of the moment.

INSTAGRAM:

https://www.instagram.com/karmaitaliana

FACEBOOK:

https://www.facebook.com/karmaitaliana.it

YOUTUBE:

https://www.youtube.com/@karma.italiana

GRAZIE PER IL VOSTRO ACQUISTO

XLR Pin Configuration

Pin 1 = Ground

Pin 2 = Negative

Pin 3 = Positive

FUNZIONI TELECOMANDO

The product you have purchased is the result of careful planning by specialized engineers. High quality materials were used for its construction, to ensure its functioning over time.

The product is manufactured in compliance with the strict regulations imposed by the European Union, a guarantee of reliability and safety.

Please read this manual carefully before starting using the device in order to take advantage of its full potential.

Hoping that you will be satisfied of your purchase, we thank you again for your trust in our brand and we invite you to visit our website www.karmaitaliana.it where you will find the whole range of our products, along with useful information and updates.

CAUTIONS AND WARNINGS

• Read and follow strictly the instructions contained in this manual.
• Keep this manual for future reference and include it if you give the product to another user.
• This device works with dangerous 110-230V mains power. Do not open, do not disassemble and don't try to operate inside it. In case of wrong use an electric shock may occur.
• The installation of the product must be carried out exclusively by specialized technicians. In case of wrong installation or connections, the manufacturer doesn't take any responsibility for damages to people or objects.
  • Make sure that your power outlet voltage matches with the voltage set on the product. A wrong voltage would seriously damage the fixture.
  • To avoid the risk of dangerous electric shocks, before turning on the product always check that it is connected to a circuit with suitable earth ground. Never cut internal or external ground wires.
• Before making any connection with other devices, check that all the fixtures are disconnected from the power source.
  • If you need to suspend the product use only the original bracket. Make sure that the structure where it is mounted can support its weight and fasten it firmly, using also a safety cable.
• The product is not suitable for outdoor use. To avoid the risk of shortcircuits don't expose it to high temperatures (above 40°), rain or humidity.
  • Do not allow flammable liquid, water or metal objects to enter the product.
  • Don't touch the product with wet hands.
• Do not place any recipients filled with liquids, such as vases, on top of or directly next to the appliance.
  • Install the product in a stable and ventilated position, far from heat sources and don't obstruct the air vents and the cooling fan.
  • Use the fixture and its controls with due accuracy, avoiding falls, vibrations or impacts.
• If the product doesn't turn on, check the fuse and if necessary replace it with one of the same type and rating, after disconnecting the fixture from power.
• In the event of a serious operating problem, stop using the product immediately. Never try to repair it by yourself, but contact the authorized technical service center. Repairs carried out by unskilled persons could lead to serious damages both to the fixture and to people.
• Never address the light beam directly towards people's eyes.
  • Do not turn the product on and off at short intervals, it may reduce the life of the device.
• Disconnect the unit from power when it is not used.
• Never disconnect the product from the power source by pulling on the cord. Do not cut, kink, otherwise damage nor modify the power supply cord and periodically check that it is in good condition.
  • Wait for the product to cool before cleaning or maintenance.
  • To clean the product, use only a dry or slightly damp cloth, avoiding solvents or detergents of any kind.
  • If the product is used in the presence of children they must be supervised.

WARNING

RISK OF ELECTRIC SHOCK, DO NOT OPEN

WARNING: to reduce the risk of electric shock, do not remove the cover. No serviceable parts for the user inside. For servicing refer to qualified personnel.

This symbol alerts you of the presence of important operating and maintenance instructions, in the manual or in the documentation accompanying the product

This symbol indicates a risk of electric shock in case of wrong use or alteration of the product.

The CE mark indicates that this product complies with the applicable European directives and their related standards. Compliance documentation in complete form is available at the company Karma Italiana Srl

Directive 2012/19/UE regarding electric and electronic equipment waste (WEEE).

The symbol of the crossed-out dustbin indicates that the product at the end of its life must be collected separately from other waste. The user must, therefore, confer the fixture complete with all the essential components to an authorized disposal center for collection of electronic and electrical waste, or return it to the dealer when buying new equipment of equivalent type, at a rate of one to one, or one to zero if external dimension is less than 25cm. Appropriate separate collection to send the decommissioned equipment to recycling, treatment and environmentally compatible disposal helps to prevent negative impact on the environment and human health and promotes recycling of the materials making up the product. In Italy illegal dumping of the product by the user entails the application of administrative sanctions pursuant to Legislative Decree n. 49 (14/03/2014).

The product's remote control is powered by a battery which, according to the European Directive 2013/56/EU, cannot be disposed of with normal household waste. Please inquire about the local regulations regarding the separate collection of batteries: a correct disposal allows to avoid negative consequences for the environment and health.

WARRANTY CONDITIONS

The product is covered by warranty according to current national and European regulations.

For detailed warranty conditions and RMA requests please refer to our website: www.karmaitaliana.it.

• The warranty covers manufacturing defects and faults occurred in the first 2 years from the date of purchase. In case of purchase with invoice, the warranty is limited to 1 year.
  • Damages caused by negligence or wrong use of the device are not covered by warranty.
  • The warranty is no longer effective if the item is modified or disassembled by not authorized people.
  • This warranty doesn't necessarily envisage the product's replacement.
• External components, batteries, knobs, switches and any removable or subject to wear and tear parts are excluded from warranty.
• Shipment for the return of faulty items is at expense and risk of the owner.
• For all intents and porpuses the warranty is effective only upon exhibition of the invoice or of the purchase receipt.
• If you send the product for repair, it must be shipped with complete original packaging: we therefore recommend to save it.

We also suggest to register your product on our website www.karmaitaliana.it, after signing in to access the reserved area. In this way you will have the possibility to keep track of the warranty validity and to receive updates on our items.

The product you have purchased includes a ball effect (4) and a wash + strobe effect (3) capable of producing a myriad of colourful rays, which will stand out if the fixture is used in combination with a smoke machine.

POSITIONING

This light effect can be placed on a surface or hung on stands by means of the bracket (1). Use the knobs (2) to lock it with the correct tilting. To better fasten the fixture you can use a safety cable, which can be fixed on the ring (6).

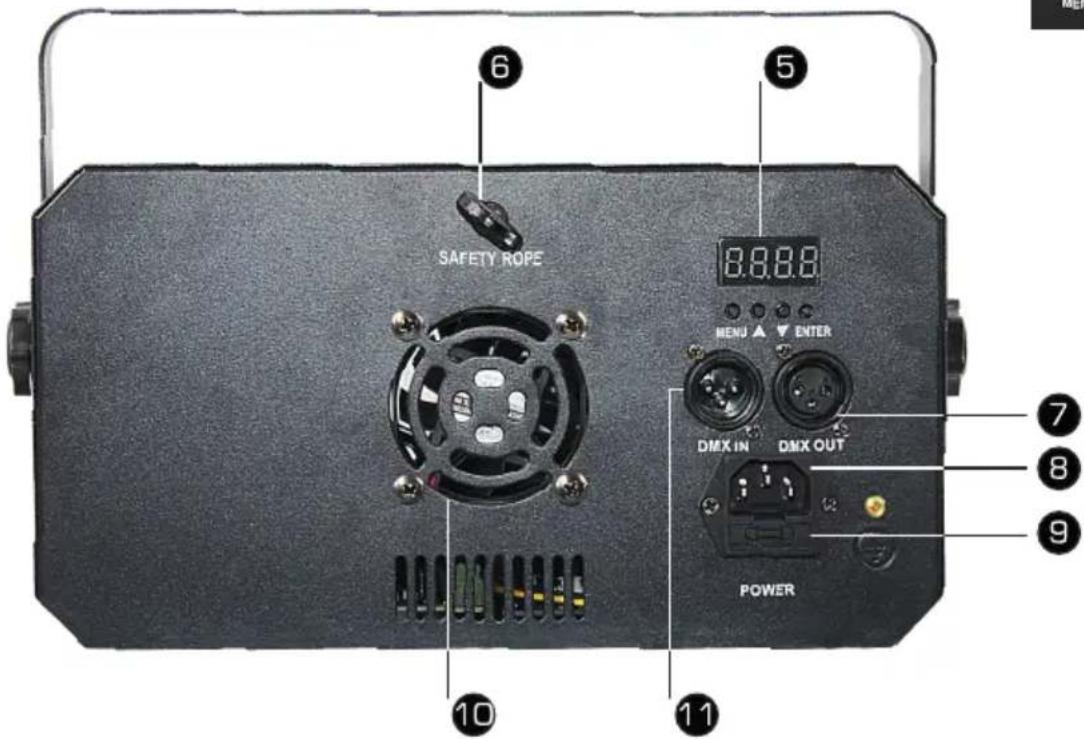

On the back it features a cooling fan (10). Take care that it is not covered or obstructed and keep it clean, removing dust, so that it can work properly.

OPERATION

To turn on the fixture connect the cable to the back socket (8) and then insert the plug into an electrical power outlet.

If the fixture doesn't turn on, disconnect the power cable, extract the fuse (9) and check if it is good. If it is blown replace it with one of the same rating.

The light effect can operate in auto mode, sound activated mode (thanks to the built-in microphone), manual mode (by means of the included remote control) or connected to a professional DMX 512 system.

If you mean to connect it to a DMX system with an external controller, you have to connect the input XLR cable to the DMX IN (11) socket and the output XLR cable to the socket DMX OUT (7). In this way the DMX signal will be transmitted from a fixture to another. On next page you will find some basic instructions on DMX operating mode.

If no controller is connected, it is possible to arrange a cascade connection of several fixtures, so that they perform the same effect. The first unit will operate as a master and the others will be slave (on the units you have to set the address d001).

DISPLAY CONTROLS

Under the display (5) there are 4 buttons allowing to select an option from the menu, change its value and confirm the choice.

The 4 buttons are:

Menu: It lists the menu main options.

UP: To skip to the next option or value

DOWN: To skip to the previous option or value

ENTER: To confirm your choice

The below diagram indicates the menu options and the corresponding functions.

INTRODUCTION TO DMX CONNECTION

In a DMX 512 connection there are 512 available channels. Each DMX fixture uses one or more channels to manage its functions. The user must assign a starting address to each DMX fixture connected to the system. This address will indicate the first channel used by the controller. You have to plan the starting address choice in order to avoid the channels' overlapping. Otherwise the fixture wouldn't work correctly.

Example: If you need to connect 3 DMX fixtures, each with 10 channels, the first unit is to be set on address 1, the second unit on address 11 and the third one on address 21. Anyway you can set the same starting address on more devices if you wish them to operate in synchrony. DMX devices are conceived to receive data through a serial Daisy Chain connection. With this kind of connection the data output of a fixture is connected to the data input of the following one. The connection order of the devices is not important and it doesn't affect on how the controller interacts with each of them. We suggest to put them in the easiest and most direct sequence for cable connection. The signal cable length should not be more than 100 m to avoid interferences with other signals or electric devices. To set the address you want to assign to the fixture (from 001 to 512), press the MENU key until the display shows the symbol "d". Then, by means of the UP and DOWN keys, set the address and confirm with ENTER.

To operate correctly with DMX systems it is necessary to know the number of channels available on each connected fixture and the function of these channels.

This fixture operates with 12 channels.

The below chart shows the functions related to each channel in DMX mode.

Before using the fixture it would be advisable to take a specific course on DMX systems for full understanding of its potential and functions.

DMX CHANNEL CHART
# Effect	Channel	VALUE	FUNCTION
BALL	1	0 - 255	Dimmer 0 - 100%
	2	9 - 255	Strobe effect - from slow to fast
	3	0 - 255	Red 0 - 100%
	4	0 - 255	Green 0 - 100%
	5	0 - 255	Blue 0 - 100%
	6	0 - 010	STOP
		011 - 255	Rotation - from slow to fast
WASH/ STROBE	7	0 - 255	Dimmer 0 - 100%
	8	0 - 008	Open
		9 - 255	Strobe effect - from slow to fast
	9	0 - 255	Red 0 - 100%
	10	0 - 255	Green 0 - 100%
	11	0 - 255	Blue 0 - 100%
	12	0 - 255	Yellow 0 - 100%

DMX CONNECTORS

When buying or creating DMX cables it is necessary to know exactly how the XLR type 3 pin connectors are to be connected. Please refer to the below diagrams.

XLR Pin Configuration

Pin 1 = Ground

Pin 2 = Negative

Pin 3 = Positive

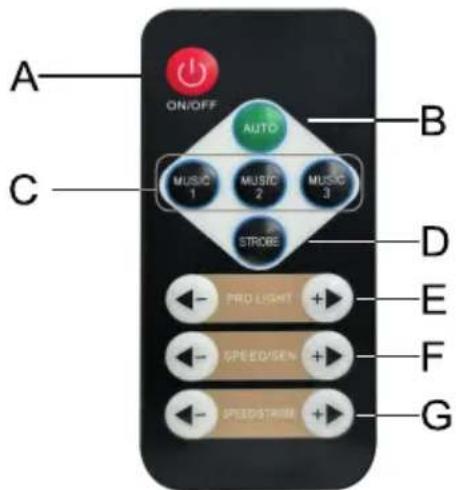

REMOTE CONTROL FUNCTIONS

A On/off
B AUTO mode activation
C SOUND mode activation
D Starts/ stops STROBE function
E To scroll through the submenus
F Microphone speed/sensitivity (in sound activated mode)
G Strobe speed (0 -99)

TECHNICAL SPECIFICATIONS

Wash and strobe leds	8 x 3W (RGBA)
Ball effect leds	6 x 3W RGB
Angle	15°
Cooling	1 fan
Operating modes	Auto / Manual / Sound / DMX / Master-slave
DMX channels	12
Dimmer function	Yes
Strobe function	Yes
Connectors	XLR 3 pin
Bracket	Included
Remote control	Infrared (battery CR 2025 3V)
Colour	Black
Display	Yes
Power	55W
Power supply	110/230V ~ ; 50-60Hz
Dimensions	280 x 180 x 150 mm
Weight	2,4 Kg

The manufacturer, in order to improve its products, reserves the right to modify their characteristics whether technical or aesthetic, at any time and without notice.

KARMA

Prodotto da/ produced by:

KARMA ITALIANA SRL

Via Gozzano 38 bis

21052, Busto Arsizio (VA) - Italy

Ver. 24.1

Made in China
