| Product Type | Automatic Transfer Switch |
| Brand | Generac |
| Model | RTSN400G3 |
| Rated Current | 400 Amps |
| Rated Voltage | 240 VAC |
| Phase | Single Phase |
| Enclosure Type | NEMA 3R (Rainproof) |
| Transfer Type | Automatic with load shedding capability |
| Number of Poles | 2 |
| Dimensions (H x W x D) | 36 in x 24 in x 12 in (approx.) |
| Weight | 120 lbs (approx.) |
| Utility Connection | Line side tap or main breaker |
| Generator Connection | NEMA 4-pin twist-lock |
| Display | LED status indicators |
| Controller | Digital control board with exercise timer |
| Frequency | 60 Hz |
| Operating Temperature | -20°C to 40°C |
| Maintenance | Annual inspection and test; clean enclosure with dry cloth |
| Safety Features | Overcurrent protection, voltage sensing, and interlocked disconnect |
| Spare Parts Availability | Contact Generac dealer; common parts include control board, contactors, fuses |
| Repairability | Designed for service by qualified electricians; replaceable modules |
| Certifications | UL 1008 listed, CSA certified |
| Warranty | Limited 2-year (confirm with seller) |
Frequently Asked Questions - RTSN400G3 Generac
What is the Generac RTSN400G3 transfer switch used for?
The Generac RTSN400G3 is an automatic transfer switch designed to safely switch between utility power and a standby generator during an outage. It is rated for 400 Amps and is suitable for residential or commercial applications.
How does the RTSN400G3 detect a power outage?
The transfer switch continuously monitors utility voltage. When it detects a sustained loss of power (typically below 70% of nominal for several seconds), it sends a start signal to the generator and transfers the load once generator voltage is stable.
Can I install the RTSN400G3 myself?
Installation must be performed by a licensed electrician in accordance with local codes and the National Electrical Code (NEC). Improper installation can cause electric shock, fire, or damage to equipment.
What maintenance does the transfer switch require?
Annual maintenance is recommended: inspect for loose connections, clean the enclosure with a dry cloth, test the transfer operation under load, and verify battery charger if equipped. Refer to the manual for detailed procedures.

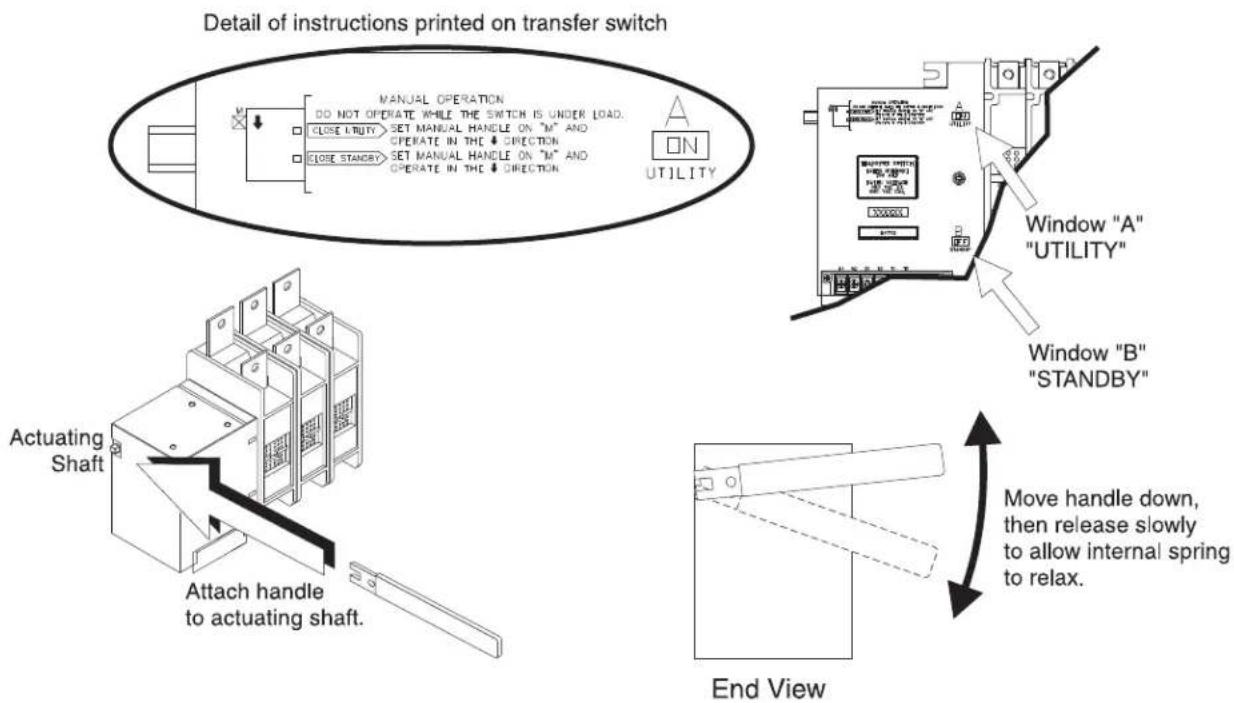

How do I test the transfer switch manually?
The RTSN400G3 includes a manual test mode. Turn the generator on, press the test button on the controller, and the switch will simulate a power outage and transfer the load. Observe LED indicators for proper operation.
What should I do if the transfer switch fails to transfer?
First, ensure the generator is running and producing voltage. Check the control panel for fault codes. Verify utility power is absent. If the problem persists, contact a qualified technician or Generac service center.
Is the RTSN400G3 compatible with all generators?
The switch is designed for use with Generac generators but can work with other brands if the generator's output and control signals match. Verify the generator's voltage, phase, and starting capability are compatible.
What safety precautions should I take when using this switch?
Always disconnect both utility and generator power before opening the enclosure. Do not exceed the rated current. Ensure the generator is properly grounded. Follow all warnings in the manual and local codes.
Where can I find replacement parts for the RTSN400G3?
Replacement parts such as control boards, contactors, and fuses can be ordered from Generac authorized dealers or online parts stores. Use the model number and serial number to ensure correct fit.
Does the RTSN400G3 have a built-in charger for the generator battery?
Yes, the RTSN400G3 includes a built-in battery charger to maintain the generator's starting battery during standby periods. It provides a float charge to prevent battery discharge.
