Product Type	Dash Cam (Car Camera)
Brand	Minolta
Model	MNCD2K10
Video Resolution	Full HD 1080p (1920x1080)
Lens Angle	170° wide angle
Display	2.7" LCD screen
Dimensions	2.4 x 1.6 x 1.2 inches (61 x 41 x 30 mm)
Weight	2.1 oz (60 g)
Power Input	12V/24V car cigarette lighter adapter
Battery	Built-in rechargeable lithium battery (200 mAh)
Storage Media	MicroSD card (up to 32 GB, Class 10 recommended)
Recording Mode	Loop recording, G-sensor emergency lock, motion detection
Night Vision	Built-in IR LEDs for low-light recording
GPS	Not included (optional external GPS module)
Mounting	Suction cup mount for windshield
Maintenance	Clean lens with soft, dry cloth; avoid moisture
Safety	Do not install where it obstructs driver's view; operate within 0-60°C
Spare Parts & Repairability	Contact Minolta support for replacement mount, charger, or battery
General Information	Designed for continuous recording while driving; supports up to 32 GB SD card

Frequently Asked Questions - MNCD2K10 MINOLTA

How do I install the dash cam in my car?

Attach the suction mount to the windshield, plug the power adapter into the 12V socket, route the cable neatly, and insert a MicroSD card before powering on.

How do I turn on the dash cam?

Press and hold the power button for 2-3 seconds until the screen lights up. It may start recording automatically when connected to power.

Why is my dash cam not recording?

Check that a MicroSD card is inserted and properly formatted (FAT32). Ensure the card is not full or write-protected. Also verify the loop recording setting is enabled.

How do I format the memory card?

Go to the settings menu, select Format (or use a computer with FAT32). Formatting erases all data, so back up important files first.

Can I use the dash cam while driving?

Yes, the dash cam is designed to record continuously while the car is moving. It plugs into the 12V socket for constant power.

How do I view recorded videos?

You can view videos on the dash cam's screen via Playback mode, or remove the MicroSD card and use a computer with an SD card reader.

What should I do if the screen shows 'Card Error'?

Turn off the device, remove the MicroSD card, clean the contacts, and reinsert. If the error persists, try formatting the card or replacing it with a Class 10 card.

How do I enable G-sensor protection?

Go to Settings > G-sensor and set the sensitivity (High/Medium/Low). When impact is detected, the current file is locked and protected from overwriting.

Can I charge the dash cam via USB?

The dash cam is powered via the included 12V car adapter (cigarette lighter). Some models may charge slowly via a standard USB port, but for reliable operation, use the car adapter.

How do I reset the dash cam?

Press and hold the Reset button (usually a small pinhole) with a paper clip for 5 seconds. This restores factory settings.

USER MANUAL MNCD2K10 MINOLTA

Black MINOLTA digital camera with visible lens and control buttons (no text or symbols on body)

MNCD2K10 User Manual

INTRODUCTION

Congratulations on purchasing your Minolta Camcorder! The contents of this manual are subject to change without notice. Note that the example screens and product illustrations shown in this User's Guide may differ somewhat from the screens and configuration of the actual camera. Please visit our website at www.minoltadigital.com for the latest updates.

This manual contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic or other means, in any form, without prior written permission of Elite Brands Inc. © 2023.

The Minolta MNCD2K10 Car Camcorder integrates multi-functions of 2K HD video capture, high resolution photo capture and a compact form factor. It adopts video decoding technology of high performance and compression ratios to deliver excellent video quality.

This camcorder is intended for in-vehicle shooting, which effectively enables the collection of evidence for driving accidents, daily life, traveling and outdoor activities. The Minolta MNCD2K10 allows you to record video when mounted to your car's windshield in a wide, large angle.

This quick guide explains how to use your camcorder and provides additional information, including precautions and technical specifications. Please read through it carefully and understand this quick guide before use. Keep it properly stored away for reference.

Safety and Handling Precautions

• Do not take apart or attempt to service the camcorder yourself.
• Do not expose the camcorder to moisture, or extreme temperatures.
• Allow the camera to warm up when moving from cold to warm temperatures.
• Do not touch and put pressure on the camera lens.
• Do not expose the lens to direct sunlight for extended periods.
• Do not use abrasive chemicals, cleaning solvents or strong detergents to clean the product. Wipe the product with a slightly damp soft cloth.
• When the camera is used for an extended period of time, it is normal for the camera body to feel warm.
• Do not subject the LCD monitor to impact.
• To prevent the risk of fire or electric shock, do not expose this appliance to rain or moisture.

1. GETTING STARTED

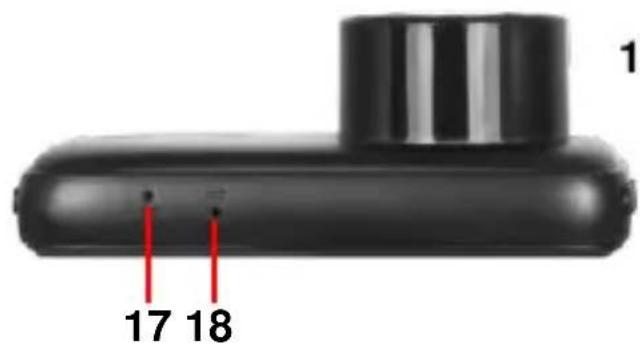

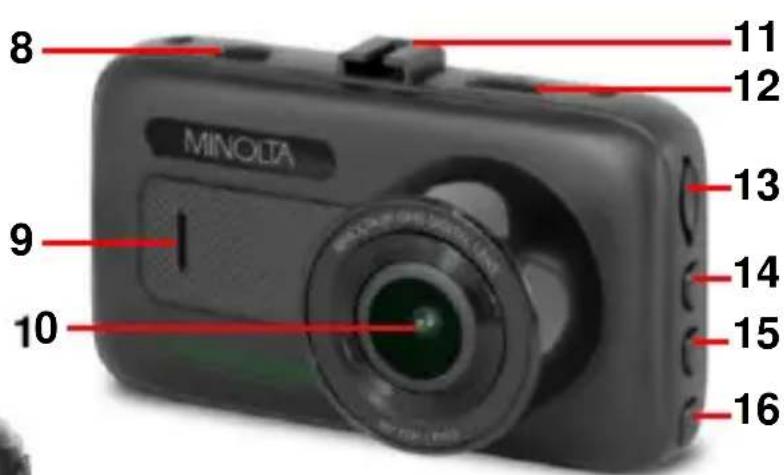

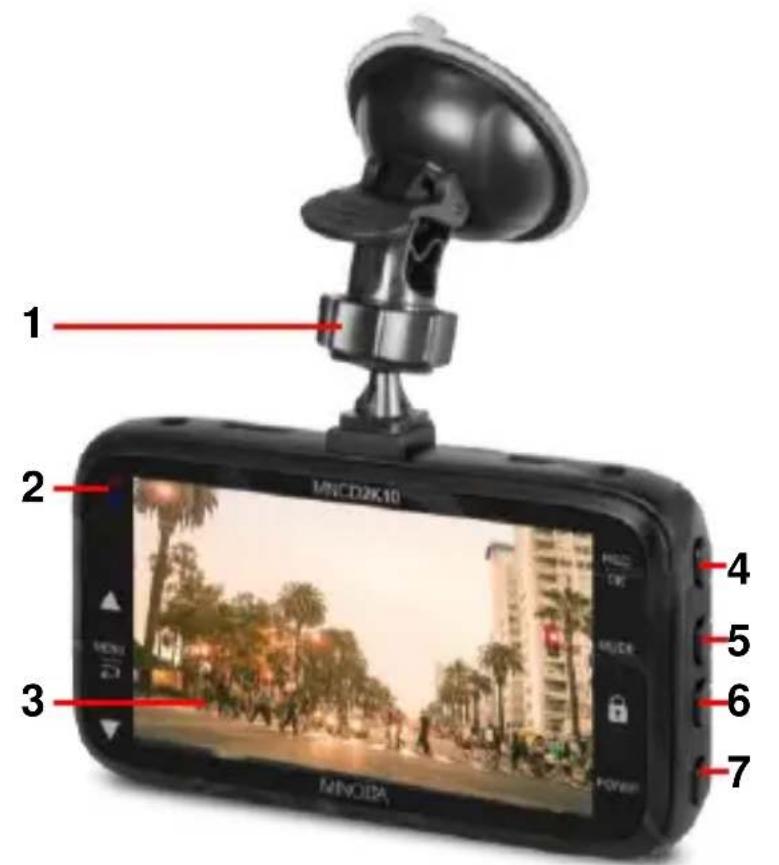

1.1 Overview

1	Windshield Mount
2	Status LEDs
3	Display
4	OK | Record
5	Mode
6	Lock File
7	Power | Display On/Off
8	USB Port
9	Speaker
10	Lens
11	Windshield Mount Port
12	Aux Camera HDMI Port
13	Memory Card Slot
14	Up | Record Audio
15	Menu
16	Down
17	Reset Pinhole
18	Microphone

1.2 Button and Functions Explanation

Function	Description
Display	Shows the current view and menu, options and different statuses of each mode.
Power	Press and hold for 3 seconds to power on and off.Tap once while power is on to turn off the display, tap again to turn the display on.
Mode	Tap once to cycle between Video, Photo and Playback modes.
Down	Button used during menu navigation and playback use.Tap to turn audio recording on and off.
OK | Record	OK button in menus.Record button in shooting modes.
Up | Record Audio	Button used during menu navigation and playback use.Tap to turn audio recording on and off.
Menu	Button used for accessing and exiting all menus and submenus.
Lock File	Tap to protect a video while recording and in playback mode.
Microphone	Built-in microphone for audio capture during video recording.
USB Port	Power port and data transfer port for transferring media to your computer.
IR LEDs	IR LEDs to aid with night vision.
Windshield Mount	Mount used to connect the camcorder to your windshield.
Memory Card Slot	Storage slot for inserting your MicroSD memory card.
Speaker	Built-in speaker output for playback of video files when audio recording is enabled.
Lens	Front capture device for all video and photo.
Reset Button	Button for power cycling your camcorder if it freezes or becomes unresponsive
Aux Camera HDMI Port	This port allows you to connect an auxiliary camera (not included).

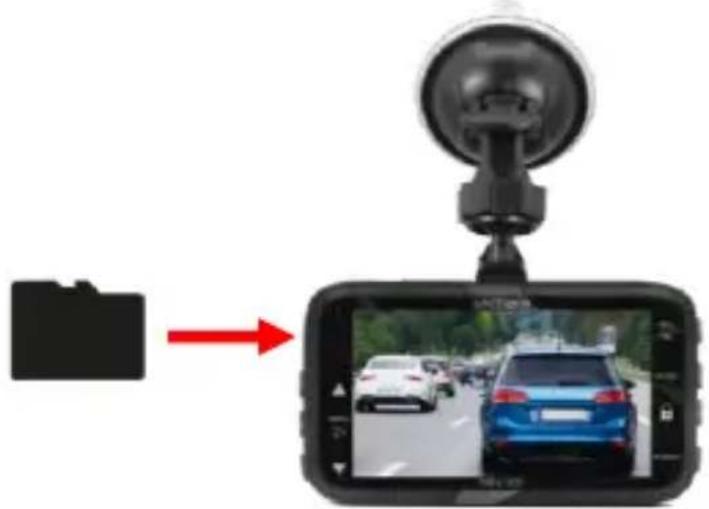

1.3 Memory Card Insertion and Removal

1. Ensure the camcorder is powered off.
2. Insert a MicroSD memory card into the MicroSD card slot with the gold pins facing the display screen. Do not force it through the MicroSD card into the slot as it can only be inserted in one direction. Once successfully inserted, it will click in.
3. To remove the MicroSD card, simply push the MicroSD card in and it will bounce back out of the slot.

Digital car dashboard with a mounted sensor and a black folder, showing a road scene (no text or symbols visible)

Do not remove or insert the memory card when recording. Doing so may cause the card to become damaged or cause data loss.

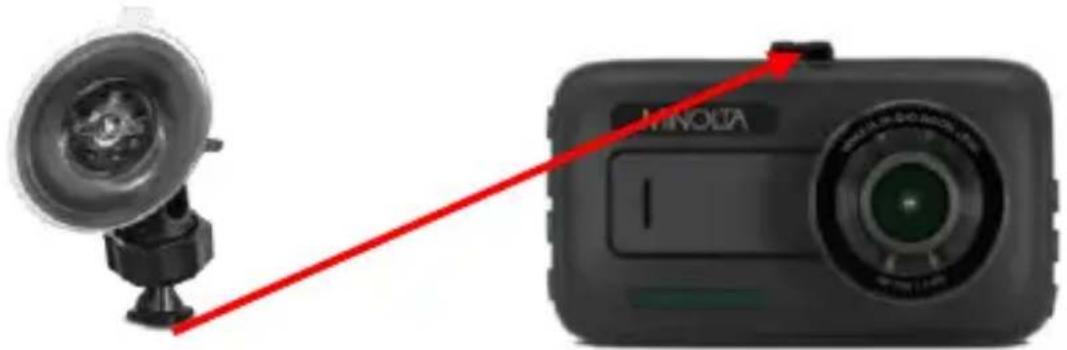

1.4 Windshield Mount

The included windshield mount is included for mounting your camcorder to your windshield. The mount can only be insert in one way. Simply attach the smaller plastic end of the mount to the front of your camcorder, and the suction cup side to the top of your windshield. Before applying to your windshield, make sure that your windshield is clean, dry and free of any dirt or debris.

NOTE: If the suction cup loses its grip over time, thoroughly clean the clear suction are with soap and water. After cleaning, allow it to dry for 2 hours and reapply it to your windshield.

Two devices: a spherical device and a black Minolta digital camera, connected by a red arrow (no text or symbols visible)

1.5 Startup

1.5.1 In-Car Use

Connect the included auxiliary DC power adaptor to your car's power port. Plug the USB plug into the camcorder's USB port. Charging will begin immediately. Please note that the camcorder's internal battery has a very limited capacity and is only intended for use in emergency use situations.

1.5.2 USB Cord / Computer Use

Connect the included USB cable to a free USB port on your computer, and connect the other end of the cable into the camcorder's USB port. The battery may be charged while the camcorder is powered on or off.

While charging, the red power indicator LED will illuminate. When charging is complete, the power indicator LED will automatically turn off.

Your camcorder acts like a memory card reader when connected and your videos and photos stored on your camcorder memory can easily be accessed this way.

To access the files on your PC, go to Start (or File Explorer) → This PC → and find Removable Disk. Your media will be stored in a folder on this drive.

1.5.3 Reset

If your camcorder freezes or becomes unresponsive, press the RESET button to reset and power cycle the camcorder. Insert a pointy object into the reset hole on the front body of the camcorder to fully reset it. Refer to the Section 1 of the user manual's illustration.

1.5.4 Auxiliary Camera Port

Using the built-in HDMI auxiliary camera port, an additional camera, not included, can be connected. This will allow you to record two views at the same time.

Using an auxiliary camera is optional and is not required for normal use of this camcorder.

Quick Use Instructions

Simply insert the MicroSD memory card into the MicroSD card slot, and insert the auxiliary power adaptor into the camcorder's USB port and your car's power port. The camcorder will automatically power on and begin recording a video file.

To start or stop recording at any time, press the OK/RECORD button. You may also remove the auxiliary DC power adaptor at any time to automatically save a recording and power the camcorder off. Just mount it to your windshield, plug in the power and drive!

Once you have inserted the MicroSD memory card and plugged your camcorder into a power source, your camcorder will automatically power on and begin recording. Press the OK button to stop recording. You may also manually power your camcorder on or off by pressing the POWER button for 2 seconds.

There are 3 operation modes available for use. To cycle through the different modes, simply press the MODE button. Your camcorder's screen will show the current mode in the display's upper left corner. Modes cannot change while a video is being recorded. The recording must stop first before changing to another mode.

3.1 Video Capture Mode

Once your camcorder powers on, it will default to Video Mode and begin recording automatically. To start or stop recording at any time, press the OK/RECORD button. To manually capture video when cycling from another mode, enter VIDEO Mode and press the OK/RECORD button to begin recording video again.

3.2 Photo Capture Mode

To capture a photo, enter PHOTO Mode by pressing the MODE button until a camera icon is show in the upper left corner of the screen. Press the OK/RECORD button to instantly capture a photo.

3.3 Playback Mode

To review your video and photo files, enter PLAYBACK Mode. Press the MODE button until a previously captured file is shown on the screen. The most recent file captured will be displayed first.

1. Press the UP and DOWN buttons to cycle through available playback files of photos and videos.
2. To delete a file or to protect a file from deletion, press the MENU button.
3. Press the MODE button again to exit PLAYBACK mode.

Playing Back Video Clips

• Press the OK/RECORD button to play or pause a video clip in PLAYBACK mode.
• To fast forward, press the DOWN button while video is playing back.
• To rewind, press the UP button while video is playing back.
• To delete a file or to protect a file from deletion, press the MENU button.

3.4 Main Screen and Icons Explanation

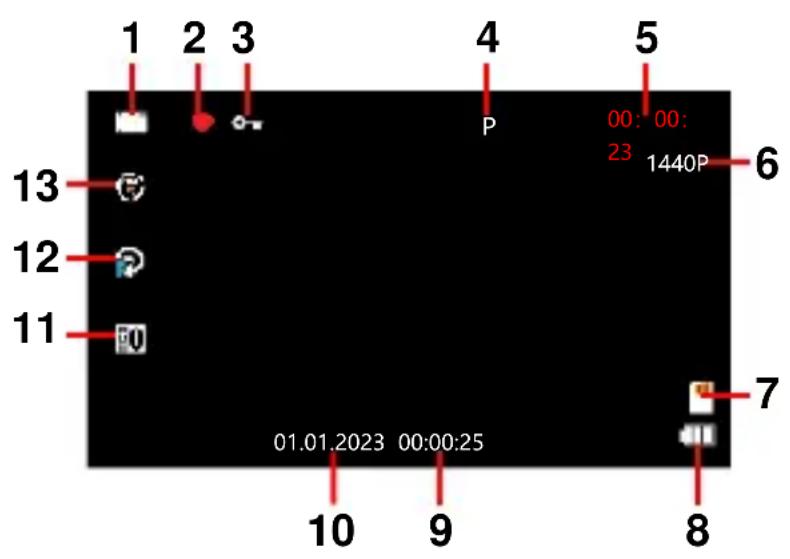

VIDEO MODE

1. VIDEO Mode
2. Recording Active
3. Protected Video
4. Park Mode Enabled
5. Recording Time Elapsed
6. Current Video Resolution
7. Memory Card Inserted
8. Current Battery Level
9. Current Time
10. Current Date
11. Exposure Value
12. Motion Detection Enabled
13. Loop Recording Enabled

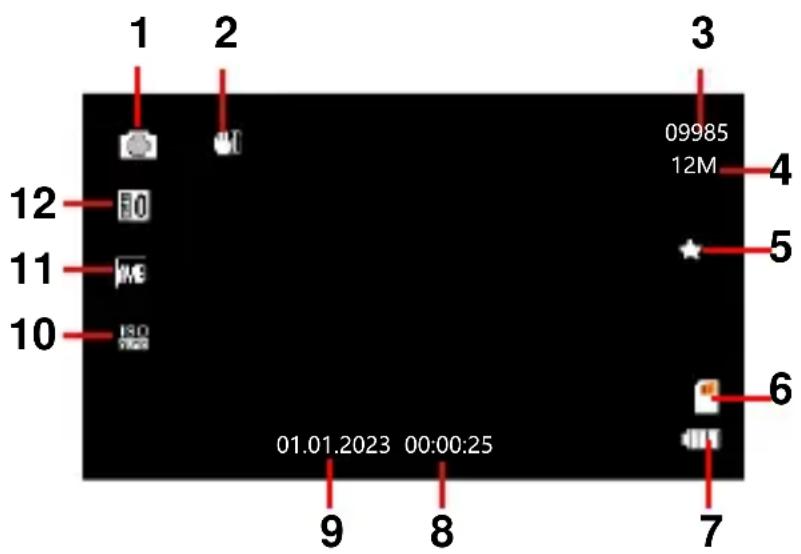

PHOTO MODE

1. PHOTO Mode
2. Digital Image
   Stabilization Enabled
3. Number of Pictures Remaining
4. Current Photo Resolution
5. Current Image Quality
6. Memory Card Inserted
7. Current Battery Level
8. Current Time
9. Current Date
10. ISO
11. White Balance
12. Exposure Value

4. MENU & SETTINGS INTERFACE

4.1 Video Mode Settings

Overview

Your camcorder comes preset with some user-adjustable settings to fine tune and customize how you would like your videos to be captured. The settings are already optimized and preset for the easiest experience.

Before you begin, ensure you are in VIDEO mode 📋. From the main screen, press the MODE button once. The current mode will be displayed in the upper right corner of the display. To cycle through the different modes, simply press the MODE button again.

NOTE: The settings menu cannot be accessed while the camcorder is recording a video file. If the camcorder is recording a file, you must stop recording before the settings menu can be accessed. To stop recording at any time, press the OK/RECORD button.

4.1.1 Video Resolution

Your camcorder has a number of preset resolution and frames per second rates. A higher resolution will produce a higher quality and lager video file.

1. In VIDEO mode, press the MENU button. Select 'Video Resolution' by using the UP or DOWN buttons. Press the OK/RECORD button to enter the 'Video Resolution' submenu.
2. Press the UP or DOWN buttons again to navigate the submenu, and select a setting. You can select from 1440P (highest quality), 1080P (medium quality), and 720P (low quality)
3. Press the OK/RECORD button to confirm your selected setting.
4. To exit the settings menu, press the MENU button twice and your camcorder will return to the main status screen of the current mode.

4.1.2 Loop Recording

This setting allows you to set a maximum duration for each video clip recorded. Once you select an option, your camcorder will record video clips in this time interval only. Once your selected duration recording time is reached, the camcorder will end the recording and begin recording a new video file seamlessly.

1. In VIDEO mode, press the MENU button. Select 'Loop Recording' by using the UP or DOWN buttons. Press the OK/RECORD button to enter the 'Loop Recording' submenu.

2. Press the UP or DOWN buttons again to navigate the submenu, and select a setting. You can select from OFF, 1 Minute Loop, 3 Minute Loop and 5 Minute Loop.

3. Press the OK/RECORD button to confirm your selected setting.
4. To exit the settings menu, press the MENU button twice and your camcorder will return to the main status screen of the current mode.

4.1.3 Audio Recording

This setting allows you to select the built-in microphone ON or OFF during a video recording. Once you select an option, your camcorder will either record audio within the video file, or record a video file without the audio.

1. In VIDEO mode, press the MENU button. Select 'Audio Recording' by using the UP or DOWN buttons. Press the OK/RECORD button to enter the 'Audio Recording' submenu.
2. Press the UP or DOWN buttons again to navigate the submenu, and select a setting. You can select from OFF and ON.
3. Press the OK/RECORD button to confirm your selected setting.
4. To exit the settings menu, press the MENU button twice and your camcorder will return to the main status screen of the current mode.

4.1.4 Motion Detection

This setting automatically begins recording if movement is detected in front of the camcorder lens. Once recording, the camcorder will stop recording if not further movement is detected within a 10-second period of the last movement registered. You may also manually stop recording anytime by pressing the OK/RECORD button during a recording.

1. In VIDEO mode, press the MENU button. Select 'Motion Detection' by using the UP or DOWN buttons. Press the OK/RECORD button to enter the 'Motion Detection' submenu.
2. Press the UP or DOWN buttons again to navigate the submenu, and select a setting. You can select from OFF and ON.
3. Press the OK/RECORD button to confirm your selected setting.
4. To exit the settings menu, press the MENU button twice and your camcorder will return to the main status screen of the current mode.

Note: When selecting OFF, your camcorder will still automatically record upon startup if you power it off.

4.1.5 Collision Sensitivity

This setting allows you to set the sensitivity level for automatic recording upon collision. When triggered or when the camcorder things a collision occurred, it will automatically begin recording and the recording will be stored with the icon. The video file will be locked and protected from deletion.

1. In VIDEO mode, press the MENU button. Select 'Collision Sensitivity' by using the UP or DOWN buttons. Press the OK/RECORD button to enter the 'Collision Sensitivity' submenu.
2. Press the UP or DOWN buttons again to navigate the submenu, and select a setting. You can select from OFF, LOW, MEDIUM and HIGH.
3. Press the OK/RECORD button to confirm your selected setting.
4. To exit the settings menu, press the MENU button twice and your camcorder will return to the main status screen of the current mode.

4.1.6 Date & Time Stamp

This setting allows you to imprint a date, or date & time onto your recorded video files. Once a video file is recorded with either imprint, the imprint cannot be removed.

1. In VIDEO mode, press the MENU button. Select 'Date & Time Stamp' by using the UP or DOWN buttons. Press the OK/RECORD button to enter the 'Date & Time Stamp' submenu.
2. Press the UP or DOWN buttons again to navigate the submenu, and select a setting. You can select from OFF, Date and Date & Time.
3. Press the OK/RECORD button to confirm your selected setting.
4. To exit the settings menu, press the MENU button twice and your camcorder will return to the main status screen of the current mode.

4.2 Photo Mode Settings

Overview

Your camcorder comes preset with some user-adjustable settings to fine tune and customize how you would like your photos to be captured. The settings are already optimized and preset for the easiest experience.

Before you begin, ensure you are in PHOTO mode. From the main screen, press the MODE button twice. The current mode will be displayed in the upper right corner of the display. To cycle through the different modes, simply press the MODE button again.

NOTE: The settings menu cannot be accessed while the camcorder is recording a video file. If the camcorder is recording a file, you must stop recording before the settings menu can be accessed. To stop recording at any time, press the OK/RECORD button.

4.2.1 Photo Resolution

Your camcorder has a number of preset photo resolution sizes. A higher resolution will produce a higher quality and lager photo.

1. In PHOTO mode, press the MENU button. Select 'Photo Resolution' by using the UP or DOWN buttons. Press the OK/RECORD button to enter the 'Photo Resolution' submenu.
2. Press the UP or DOWN buttons again to navigate the submenu, and select a setting. You can select from 12M Mega Pixels (highest quality), 8M Mega Pixels (high quality), 5M Mega Pixels (medium quality), 3M Mega Pixels (low quality), and 1.3M Mega Pixels (lowest quality).
3. Press the OK/RECORD button to confirm your selected setting.
4. To exit the settings menu, press the MENU button twice and your camcorder will return to the main status screen of the current mode.

4.2.2 Photo Stabilization

This setting enables image capture in shaky or low-light settings by electronically eliminating motion blur and canceling shake.

1. In PHOTO mode, press the MENU button. Select 'Photo Stabilization' by using the UP or DOWN buttons. Press the OK/RECORD button to enter the 'Photo Stabilization' submenu.
2. Press the UP or DOWN buttons again to navigate the submenu, and select a setting. You can select from OFF and ON.

3. Press the OK/RECORD button to confirm your selected setting.

4. To exit the settings menu, press the MENU button twice and your camcorder will return to the main status screen of the current mode.

4.2.3 Photo Quality

This setting determines the level of compression the camera uses when saving photos to your memory card. A high level of compression will produce a lower quality photo, and will also use less space when saving your photos.

1. In PHOTO mode, press the MENU button. Select 'Photo Quality' by using the UP or DOWN buttons. Press the OK/RECORD button to enter the 'Photo Quality' submenu.
2. Press the UP or DOWN buttons again to navigate the submenu, and select a setting. You can select from Super Fine (high quality, low compression), Fine (medium quality, medium compression), and Normal (low quality, high compression).
3. Press the OK/RECORD button to confirm your selected setting.
4. To exit the settings menu, press the MENU button twice and your camcorder will return to the main status screen of the current mode.

4.2.4 Photo Sharpness

This setting determines the visible detail of the photos being captured.

1. In PHOTO mode, press the MENU button. Select 'Photo Sharpness' by using the UP or DOWN buttons. Press the OK/RECORD button to enter the 'Photo Sharpness' submenu.
2. Press the UP or DOWN buttons again to navigate the submenu, and select a setting. You can select from Hard (sharp, saturated photo), Normal (medium sharpness), and Light (soft, duller photo).
3. Press the OK/RECORD button to confirm your selected setting.
4. To exit the settings menu, press the MENU button twice and your camcorder will return to the main status screen of the current mode.

4.2.5 White Balance

This setting determines the color of light present in your photos. It can make scenes seem warmer or cooler in lighting depending on how the scene you're shooting in affects the frame.

1. In PHOTO mode, press the MENU button. Select 'White Balance' by using the UP or DOWN buttons. Press the OK/RECORD button to enter the 'White Balance' submenu.

2. Press the UP or DOWN buttons again to navigate the submenu, and select a setting. You can select from Auto, Daylight, Cloudy, Tungsten, and Fluorescent.

3. Press the OK/RECORD button to confirm your selected setting.

4. To exit the settings menu, press the MENU button twice and your camcorder will return to the main status screen of the current mode.

4.2.6 ISO

This setting determines the light sensitivity in the photos being captured.

1. In PHOTO mode, press the MENU button. Select 'ISO' by using the UP or DOWN buttons. Press the OK/RECORD button to enter the 'ISO' submenu.
2. Press the UP or DOWN buttons again to navigate the submenu, and select a setting. You can select from Auto, 100 and 200.
3. Press the OK/RECORD button to confirm your selected setting.
4. To exit the settings menu, press the MENU button twice and your camcorder will return to the main status screen of the current mode.

4.2.7 Date & Time Stamp

This setting allows you to imprint a date, or date & time onto your captured photos. Once a photo is captured with either imprint, the imprint cannot be removed.

1. In PHOTO mode, press the MENU button. Select 'Date & Time Stamp' by using the UP or DOWN buttons. Press the OK/RECORD button to enter the 'Date & Time Stamp' submenu.
2. Press the UP or DOWN buttons again to navigate the submenu, and select a setting. You can select from OFF, Date and Date & Time.
3. Press the OK/RECORD button to confirm your selected setting.
4. To exit the settings menu, press the MENU button twice and your camcorder will return to the main status screen of the current mode.

4.3 Playback Mode Settings

Overview

Before you begin, ensure you are in PLAYBACK mode ▶. From the main screen, press the MODE button two times. The current mode will be displayed in the upper right corner of the display. To cycle through the different modes, simply press the MODE button again.

4.3.1 Delete

Your camcorder gives you the option of deleting your recording video and photo files right from your camcorder.

1. In PLAYBACK mode, press the MENU button. Select 'Delete' by using the UP or DOWN buttons. Press the OK/RECORD button to enter the 'Delete' submenu.
2. Press the UP or DOWN buttons again to navigate the submenu, and select a setting. You can select from Delete Current and Delete All.
3. Press the OK/RECORD button to confirm your selected setting.
4. Press the OK/RECORD button to confirm or cancel deletion.
5. To exit the settings menu, press the MENU button twice and your camcorder will return to the main status screen of the current mode.

NOTE: There is no way to recover deleted media. Once you delete a single file or all files, they cannot be recovered. Only files that are locked are protected from deletion in PLAYBACK mode.

4.3.2 Protect

Your camcorder gives you the option of protecting your recording video and photo files right from your camcorder. This will lock your files and prevent them from being deleted in PLAYBACK mode.

1. In PLAYBACK mode, press the MENU button. Select 'Protect' by using the UP or DOWN buttons. Press the OK/RECORD button to enter the 'Protect' submenu.
2. Press the UP or DOWN buttons again to navigate the submenu, and select a setting. You can select from Lock Current, Unlock Current, Lock All and Unlock All.
3. Press the OK/RECORD button to confirm your selected setting.
4. Press the OK/RECORD button to confirm or cancel locking or unlocking.
5. To exit the settings menu, press the MENU button twice and your camcorder will return to the main status screen of the current mode.

4.4 Setup Settings Menu

Overview

The Setup Settings Menu can be accessed while in any mode. From the main screen, press the MENU button twice. The menu will move right and switch tabs from the current mode's icon to the Setup Settings menu.

NOTE: The settings menu cannot be accessed while the camcorder is recording a video file. If the camcorder is recording a file, you must stop recording before the settings menu can be accessed. To stop recording at any time, press the OK/RECORD button.

4.4.1 Park Mode Sensitivity

This setting allows the camcorder to automatically power on and record a video clip, if the camcorder detects a collision while parked and is powered off. You can set the sensitivity level setting in this menu. This setting will only work activate if there is sufficient battery power remaining in the camcorder's built-in battery. When triggered or when the camcorder things a collision occurred, it will automatically begin recording and the recording will be stored with the icon. The video file will be locked and protected from deletion.

1. In any mode, press the MENU button twice. Select 'Park Mode Sensitivity' by using the UP or DOWN buttons. Press the OK/RECORD button to enter the 'Park Mode Sensitivity' submenu.
2. Press the UP or DOWN buttons again to navigate the submenu, and select a setting. You can select from OFF, LOW, MEDIUM and HIGH.
3. Press the OK/RECORD button to confirm your selected setting.
4. To exit the settings menu, press the MENU button twice and your camcorder will return to the main status screen of the current mode.

4.4.2 Date & Time Setup

This setting allows you to set a date and time for display on videos and photos.

1. In any mode, press the MENU button twice. Select 'Date & Time Setup' by using the UP or DOWN buttons. Press the OK/RECORD button to enter the 'Date & Time Setup' submenu.
2. The menu is presented as follows:

Date: MM / DD / YYYY

Time: HH : MM : SS (the time can only be displayed in a 24-hour format)

Date Format: You can change the format of how the date is displayed.

1. Press the UP or DOWN buttons to change the any of the values of the date and time. When you are satisfied with the highlighted value, press the OK/RECORD button to confirm that value and proceed to the next value.
2. Once you are completed, press the MENU button twice to save your setting and exit. Your camcorder will return to the main status screen of the current mode.

4.4.3 Auto Power Off Delay

This setting allows you to set the delay time of automatically powering the camcorder off once power is disconnected or your car's ignition is turned off. For example, if you select '1 Minute', your camcorder will automatically power off 1-minute after you either disconnect power, or you turn your car's ignition off.

1. In any mode, press the MENU button twice. Select 'Auto Power Off Delay' by using the UP or DOWN buttons. Press the OK/RECORD button to enter the 'Auto Power Off Delay' submenu.
2. Press the UP or DOWN buttons again to navigate the submenu, and select a setting. You can select from OFF, 1 Minute and 3 Minutes.
3. Press the OK/RECORD button to confirm your selected setting.
4. To exit the settings menu, press the MENU button twice and your camcorder will return to the main status screen of the current mode.

4.4.4 Language

This setting allows you to set the language for your camcorder's menus.

1. In any mode, press the MENU button twice. Select 'Language' by using the UP or DOWN buttons. Press the OK/RECORD button to enter the 'Language' submenu.
2. Press the UP or DOWN buttons again to navigate the submenu, and select a setting. You can select from several different languages.
3. Press the OK/RECORD button to confirm your selected setting.
4. To exit the settings menu, press the MENU button twice and your camcorder will return to the main status screen of the current mode.

4.4.5 Frequency

This setting allows you to set the power frequency of your camcorder. This setting is dependent on the region that the camcorder is being used in.

1. In any mode, press the MENU button twice. Select 'Language' by using the UP or DOWN buttons. Press the OK/RECORD button to enter the 'Language' submenu.

2. Press the UP or DOWN buttons again to navigate the submenu, and select a setting. You can select from 50Hz and 60Hz. The setting for North America is 60Hz.

3. Press the OK/RECORD button to confirm your selected setting.
4. To exit the settings menu, press the MENU button twice and your camcorder will return to the main status screen of the current mode.

4.4.6 Format Memory Card

This setting allows you to erase all video and photo files stored on your memory card.

1. In any mode, press the MENU button twice. Select 'Format Memory Card' by using the UP or DOWN buttons. Press the OK/RECORD button to enter the 'Format Memory Card' submenu.
2. Press the UP or DOWN buttons again to navigate the submenu, and select a setting. You can select from Cancel and OK.
3. Press the OK/RECORD button to confirm your selected setting.
4. To exit the settings menu, press the MENU button twice and your camcorder will return to the main status screen of the current mode.

NOTE: Use extreme caution when accessing this setting. There is no way to recover formatted media. Once you format your memory card, the previously stored files cannot be recovered.

4.4.7 Reset to Default

This setting allows you to reset all menu settings to the factory default settings. This function will not delete any media stored on your memory card.

1. In any mode, press the MENU button twice. Select 'Reset to Default' by using the UP or DOWN buttons. Press the OK/RECORD button to enter the 'Reset to Default' submenu.
2. Press the UP or DOWN buttons again to navigate the submenu, and select a setting. You can select from Cancel and OK.
3. Press the OK/RECORD button to confirm your selected setting.
4. To exit the settings menu, press the MENU button twice and your camcorder will return to the main status screen of the current mode.

4.4.8 Firmware Version

This setting displays the current firmware version of your camcorder.

1. In any mode, press the MENU button twice. Select 'Firmware Version' by using the UP or DOWN buttons. Press the OK/RECORD button to enter the 'Firmware Version' submenu.
2. The menu will display the current firmware version.

3. To exit the settings menu, press the MENU button twice and your camcorder will return to the main status screen of the current mode.

4. TECHNICAL SPECIFICATIONS

Model Number	MNCD2K10
LCD Display Screen	3.0 Inch LCD Screen
Anti-Shake Technology	Electronic Image Stabilization (Photo Mode only)
Field of View	Super wide angle; 160 Degrees
Video Resolution	1440P, 1080P, 720P
Photo Resolutions	12 Mega Pixels; 10 Mega Pixels; 8 Mega Pixels; 5 Mega Pixels; 3 Mega Pixels; 2 Mega Pixels; 1.3 Mega Pixels; VGA;
File Format	Picture: JPEG, Video: AVI
Loop Recording	Support
Collision Auto Recording	Support
Motion Detection Recording	Support
Time & Date Stamp	Support
External Storage	MicroSD, MicroSDHC, MicroSDXC Card (64GB max.) – Class 10 Recommended
Languages	English, French, German, Italian, Portuguese, Spanish, Chinese (simplified), Korean, Russian
USB Function	USB 2.0 Built-in
Microphone and Speaker	Built-in
Built-in Battery	3.7V 180mAh - for use as a backup power source during power outage

MINOLTA®

Minolta is a registered trademark of JMM Lee Properties, LLC and is used in the United States by Elite Brands Inc. under license. 40 Wall Street, 61st Floor, New York, NY 10005 USA • Tel: [phone]

www.minoltadigital.com • www.elitebrands.com

Copyright © 2023 Elite Brands Inc.

If you're having difficulties with your camera, or would like further assistance, please call our toll-free technical support hotline at 800-441-1100. Please be sure to have your camera handy when calling.

MINOLTA®

MNCD2K10

Dash Cam
