Product Type	Cordless Stick Vacuum Cleaner
Model	STORM 3
Brand	Hiberg
Dimensions (L x W x H)	Approx. 1100 x 250 x 200 mm
Weight	Approx. 2.5 kg
Battery Voltage	22.2 V DC
Battery Capacity	2500 mAh (Li-ion)
Runtime	Up to 45 minutes (Eco mode)
Charging Time	4-5 hours
Dust Cup Capacity	600 ml
Suction Power	22 kPa (max)
Filtration System	HEPA H13 washable filter
Self-Cleaning Function	Yes (automatic brush roll cleaning)
Noise Level	≤ 78 dB(A)
Power Supply	100-240 V, 50/60 Hz adapter
Display	LED touch panel with battery indicator
Attachments Included	Motorized brush, crevice tool, 2-in-1 brush
Wet Capability	Yes (water pickup mode)
Safety Features	Overheat protection, auto shut-off when clogged
Maintenance	Washable filter and dust cup; clean brush roll regularly
Manufacturer	Ningbo Foura Industry and Trade Co., Ltd.
Manufacturer Address	Room 1213, Taikang Building, No 467, Taikang Middle Road, Yinzhou District, Ningbo, Zhejiang, China
Contact	[e-mail]

Frequently Asked Questions - STORM 3 Hiberg

How do I assemble the STORM 3 vacuum cleaner?

Insert the main body into the handle until it clicks. Attach the desired accessory (e.g., motorized brush) to the front. Refer to page 5 of the manual for diagrams.

How do I charge the battery?

Connect the charging adapter to the charging port on the back of the handle. Plug into a wall outlet. The LED indicator will show charging status. Full charge takes about 4-5 hours.

Can I use the vacuum to pick up liquids?

Yes, the STORM 3 is designed for wet and dry pickup. Ensure the filter is properly installed and empty the dust cup after wet use. Do not submerge the vacuum.

How do I activate the self-cleaning function?

Press the self-cleaning button (icon with brush and arrows). The vacuum will automatically clean the brush roll for about 30 seconds. Perform this after each use for best performance.

What should I do if the suction power decreases?

Check for blockages in the hose, brush roll, and nozzle. Clean or replace the HEPA filter if it is clogged. Also ensure the dust cup is not full.

How often should I clean the filter?

Rinse the washable filter under running water every 2-4 weeks, or when the suction drops. Let it air dry completely for at least 24 hours before reinserting.

Is the battery removable?

Yes, the battery is detachable. Press the battery release button on the back of the handle and slide it out. Use only the original Hiberg battery for replacement.

What attachments come with the vacuum?

The package includes a motorized brush for carpets, a crevice tool for tight spaces, and a 2-in-1 brush (dusting brush/wide nozzle).

Can I use the vacuum without the extension rod?

Yes, you can attach accessories directly to the main body for handheld mode. This is useful for cleaning furniture, cars, and stairs.

Where can I find spare parts or accessories?

Visit the manufacturer's website at hiberg.ru or contact their support via email at [e-mail] for filters, batteries, brush rolls, and other parts.

USER MANUAL STORM 3 Hiberg

Line drawing of five cylindrical objects arranged in a row (no text or symbols)

4

5

6

7

8

9

10

11

12

13

14

Line drawing of a mechanical device with a downward arrow indicating motion or force (no text or symbols)

7

Technical diagram showing a mechanical assembly with an inset close-up of a component detail (no text or symbols)

2

Line drawing of a hand using a vacuum cleaner to lift a cylindrical device (no text or symbols)

3

Line drawing of a hand using a vacuum cleaner to lift a cylindrical device (no text or symbols)

4

Line drawing of a hand operating a vacuum cleaner on a base, with an arrow indicating direction (no text or symbols present)

5

Line drawing of a hand operating a vacuum cleaner with a black arrow indicating force (no text or symbols)

6

Diagram of a battery pack being inserted into a slot, showing mechanical components and an upward arrow (no text or symbols)

7

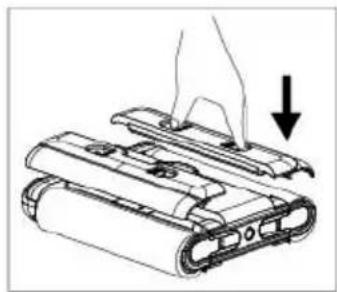

Diagram of a hand pressing down on a cylindrical device with a downward arrow indicating compression or disassembly (no text or symbols present)

2

Illustration of a hand holding a mechanical device with a magnified inset showing the close-up of the component (no text or symbols present)

7

Illustration of a hand holding a device with an arrow indicating motion (no text or symbols present)

2

Technical line drawing of a mechanical component with mounting holes and a directional arrow (no text or symbols)

дисплей

Diagram of a hand holding a device with an upward arrow indicating motion (no text or symbols present)

7

Illustration of a hand holding a tool near a faucet and sun (no text or symbols)

2

Line drawing of a hand holding a handheld device (no text or symbols visible)

3

Полезные советы:

Hand holding a mechanical device with a black arrow indicating rotation (no text or symbols)

4

Line drawing showing hands using a tool to clean or adjust a component, with no text or symbols present.

Line drawing of a hand holding a cylindrical object with a small inset showing internal components (no text or symbols)

7

Line drawing of a cleaning device with a hand holding a cloth (no text or symbols)

2

Illustration of a hand pouring liquid into a container with a brush, next to a faucet and a dish (no text or symbols)

3

Simple line drawing of a sun, a cup, and a bowl on a surface (no text or symbols)

4

Illustration of a hand holding a handheld device with a magnified inset showing the device's tip (no text or symbols present)

7

Simple line drawing of a faucet, a vertical bar, and a sun (no text or symbols)

2

Technical line drawing of a mechanical component or housing (no text or symbols)

1

Diagram showing a faucet pouring liquid into a pipe with a sun icon, alongside a mechanical component (no text or symbols)

2

Полезные советы:

Line drawing of a hand using a vacuum cleaner to lift a component (no text or symbols)

1

Diagram of a faucet pouring liquid into a cylindrical container (no text or symbols)

2

Illustration of a hand operating a vacuum cleaner with a right-hand arrow indicating force (no text or symbols present)

7

Simple line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols)

2

Line drawing of a mechanical device with a lever and base, showing motion lines without any text or symbols.

3

Illustration of a hand using a handheld device to press or install a component, with an arrow indicating the process (no text or symbols present)

4

Самоочистка и сушка

Line drawing of a vacuum cleaner with a stand and power outlet (no text or symbols)

7

Line drawing of a vacuum cleaner with attached power outlet (no text or symbols)

2

Полезные советы:

Technical line drawing of two sewing machine steps showing base, clamping mechanism, and wiring (no text or symbols)

Line drawing of a precision tool inserted into a rectangular block (no text or symbols)

Line drawing of a robotic arm operating on a mesh surface (no text or symbols)

Line drawing of a hand using a tool to clean or repair a tiled surface (no text or symbols)

Line drawing of a cleaning or cleaning tool mounted on a tiled floor, no text or symbols present

Pure electrical circuit lines without any symbols
