Product Type	Smart Switch
Dimensions	46 x 46 x 24 mm
Weight	55 g
Power Supply	220-240V AC, 50/60Hz
Max Load	10A (resistive)
Wireless Connectivity	Wi-Fi 2.4GHz (802.11 b/g/n)
Smart Control	Via Kogan Smart Home app
Voice Control	Compatible with Amazon Alexa and Google Assistant
Scheduling	Built-in timer and countdown
Energy Monitoring	Real-time power consumption tracking
Remote Control	On/off from anywhere via app
Installation	Plug-in, no wiring required
Material	Fire-resistant PC/ABS
Cleaning	Wipe with a soft, dry cloth
Safety Features	Overload protection, overheat protection
Operating Temperature	0°C to 40°C
Warranty	1 year

Frequently Asked Questions - KASMSWTH1GA Kogan

How do I set up the KASMSWTH1GA smart switch?

Download the Kogan Smart Home app, create an account, plug in the switch, and follow the in-app pairing instructions. Make sure your phone is connected to a 2.4GHz Wi-Fi network.

Can I use this switch with a 5GHz Wi-Fi network?

No, the KASMSWTH1GA supports only 2.4GHz Wi-Fi. Your phone must be on the same 2.4GHz band during setup.

Does it work with Amazon Alexa or Google Assistant?

Yes, it is compatible with Amazon Alexa and Google Assistant. Enable the Kogan Smart Home skill or action in the respective app to control the switch with voice commands.

How do I reset the switch to factory settings?

Press and hold the power button for about 10 seconds until the LED blinks rapidly, then release. The switch will enter pairing mode.

What is the maximum load this switch can handle?

The switch is rated for 10A (2400W) resistive loads. Do not exceed this rating to avoid damage.

Can I schedule on/off times?

Yes, the app allows you to set schedules for automatic on/off, as well as countdown timers and random on/off for security.

Does it monitor energy usage?

Yes, the switch provides real-time power consumption data in the app, helping you track energy usage of connected devices.

What should I do if the switch stops responding?

First, check if the Wi-Fi is working. Try rebooting your router and the switch (unplug for 10 seconds). If still not responding, reset the switch to factory settings and re-pair.

Is it safe to use outdoors?

No, the KASMSWTH1GA is designed for indoor use only. Keep it away from moisture, direct sunlight, and extreme temperatures.

Can I control multiple switches with one app?

Yes, you can add multiple KASMSWTH1GA switches to the Kogan Smart Home app and control them individually or in groups.

USER MANUAL KASMSWTH1GA Kogan

KOGAN SMARTERHOME™ SMART TOUCH LIGHT SWITCH

(1, 2 & 3 GANG)

Read and follow the installation instructions provided in the user guide before installation and operation. Retain this user guide for future reference.

Electrical Safety:

• This product must be installed by a licensed electrician or qualified trade professional.
• Before installing or handling the smart light switch, ensure that the power supply to the switch is turned off.
• Do not touch the electrical terminals of the switch with bare hands or conductive objects.
• Ensure that the electrical wiring is properly grounded and meets local electrical codes and regulations.
• Avoid exposing the smart light switch to water or other liquids to prevent electrical shock or damage.

Installation and Use:

• Ensure that the smart light switch is securely mounted to the wall or junction box to prevent it from falling or becoming loose.
• Avoid using the smart light switch in environments with extreme temperatures, high humidity, or excessive dust.
• Keep the smart light switch away from direct sunlight or heat sources that may damage the device.
• Use a soft, dry cloth to clean the surface of the smart light switch. Avoid using abrasive or corrosive cleaning agents that may damage the device.
• Do not disassemble the smart light switch or attempt to repair it yourself. Contact help.Kogan.com for support.

1 gang light switch

First button

Light switch	Operation	Methods	Indicator status
	ON/OFF	Short press any button	The indicator light turns on and off according to the load status.
	Network pairing mode	Long press (5 sec.) the first button	The first button indicator will flash quickly.The indicator will turn off to indicate successfully connected to network.

2 gang light switch

3 gang light switch

INSTALLATION

• This product must be installed by a licensed electrician or qualified trade professional.

- Before installation, ensure that the power supply to the switch is turned off.

- The installation location of the light switch must have a neutral wire. Where multiple neutral wires are present, ensure that it is the same neutral wire as the light intended to be controlled.

- When installing, the junction box should not be greater than: 71x45x26mm.

- Confirm all the wiring is correct before turning on the main power to avoid hazards.

Wiring Diagram

Follow the wiring diagram below to connect the wiring to the light switch. Note: The diagram is for a 3 gang switch, 1 & 2 gang models will have the respective number of lights to wire.

Notes:

• This product must be protected by a 10A circuit breaker.
• The switched circuits cannot be used in SELV/PELV circuits.

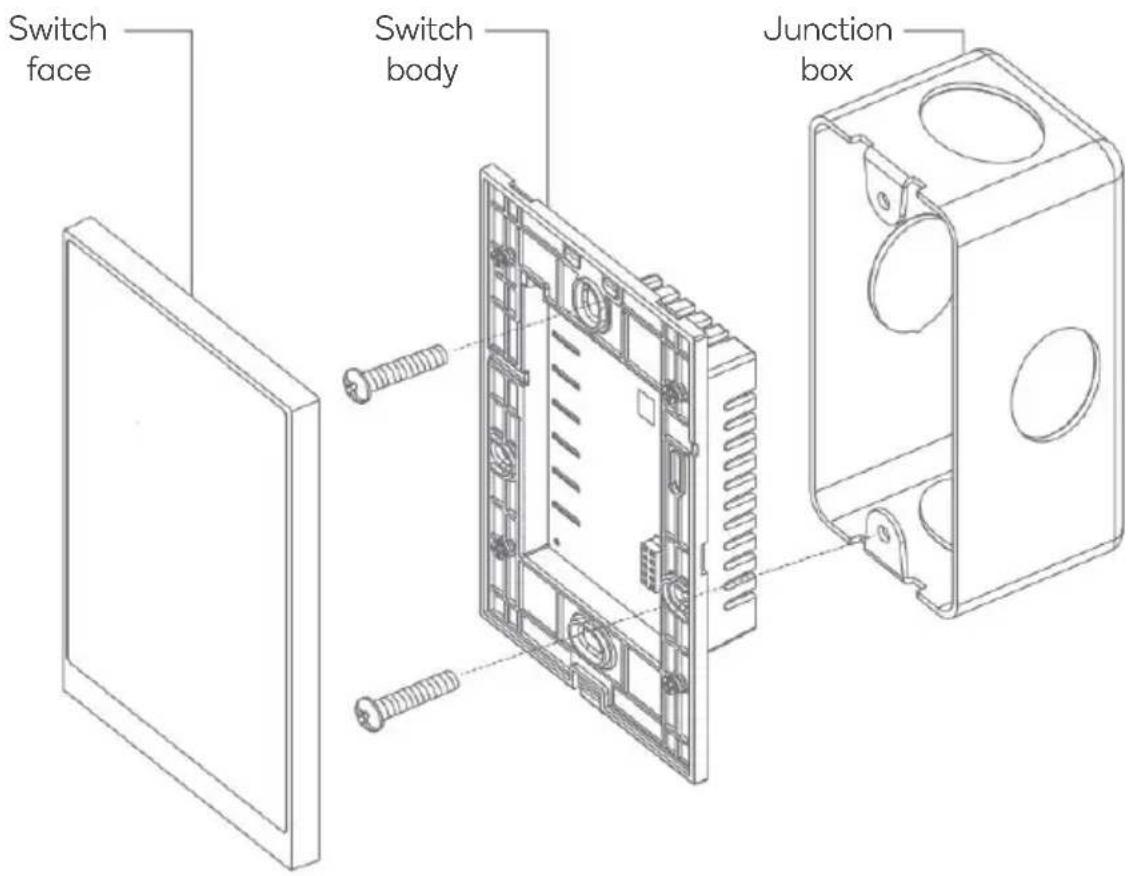

Installing the Switch

1. Separate the switch face from the switch body using a flat screwdriver.
2. Attach the switch body to the wall junction box using the supplied screws.
3. Attach the wall switch face to the switch body.
4. Ensure the wiring has been connected correctly before turning the power back on.

CONNECT TO SMARTERHOME™ APP

Install App

Download the "Kogan SmarterHome" app from the Play Store (Android) or App Store (iOS).

App Store (iOS)

To register:

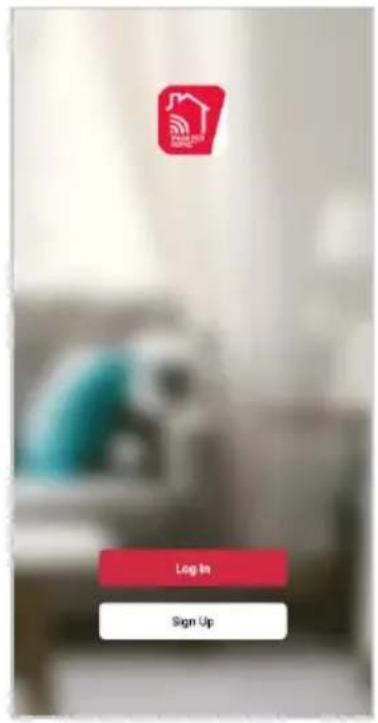

1. If you already have a SmarterHome account, select 'Log In'. To register a new account, select 'Sign Up'.
2. The system will automatically recognise your country. If needed, you can manually select your country from the drop-down box. Enter your email address and tap 'Get Verification Code' to continue.
3. A 6-digit code will be sent to the submitted email address. Enter this code before the one-minute timer expires.
4. Continue to the next page and complete your SmarterHome profile.

Set device in pairing mode

When the device is first turned on, it may automatically enter pairing mode (the indicator on the first button is flashing rapidly).

If not automatically in pairing mode when powered on, you can manually set the device in pairing mode by pressing and holding the first button for 5 seconds until the button indicator begins flashing rapidly.

Add device through network

1. Once registered, tap "Add Device" on the app's home page, or the "+" in the upper right corner, to add a new device through the network.
2. Select the product type from the list of options in the app (Electrical > Smart Touch Light Switch Gang).

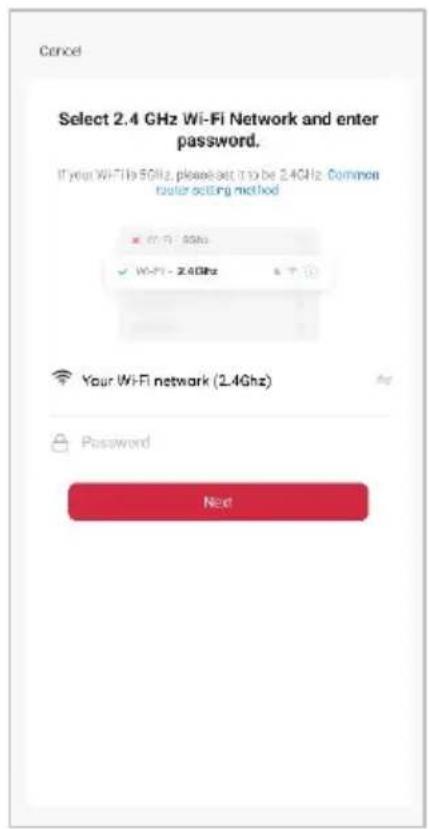

3. Enter your Wi-Fi details. It is important that your SmarterHome™ device and the app are connected to the same Wi-Fi network during setup.

Notes:

• The device and the app have to use the same Wi-Fi network.
• The device is only compatible with 2.4Ghz networks.
- Depending on the product, Steps 3 and 4 may be in opposite order.

1. Ensure that the device is in pairing mode, with the indicator on the first button flashing rapidly, select "Confirm indicator rapidly blink" and tap "Next".
2. The device will commence the pairing process and connect to the app. Ensure your Wi-Fi router, mobile phone, and the SmarterHome™ device are kept close until connection is complete.
3. After successfully being added, you will have the option to rename the device and assign it to a location. It will now be listed on the app's home page. Tap the device listing to enter its control page.

Note:

Once connected, you can select Create Scene from the “+” in the upper right corner (or from the Scene tab) to group connected SmarterHome™ products and automate their functions.

SPECIFICATIONS

Dimension	116 x 70 x 35mm
In-wall Size	71x45x26mm (LxWxH)
Output	Incandescent lamp 300W/gang.maxFluorescent lamp 150W/gang.max
Input	AC 100V-240V 50/60Hz
Wireless Protocol	Wi-Fi & Bluetooth
Transmit Power	19dBm
Receiving Sensitivity	-100dBm
Communication Distance	>300m (Open area)
Control Method	Manual control, App control

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up.

For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com

kogan.com
