Product Type	Soundbar with wireless subwoofer
Model	TAS 940 WSB
Brand	GoGen
Dimensions (Soundbar)	860 x 74 x 80 mm
Dimensions (Subwoofer)	115 x 250 x 420 mm
Power Input	100–240 V~, 50/60 Hz
Power Output (Adapter)	DC 24V / 1.75 A
Channels	2.1 CH
Audio Output Power (RMS)	2 x 25 W + 50 W
Frequency Response	55 Hz - 20 kHz
Bluetooth Version	V 5.0
Bluetooth Operating Frequency	2402 – 2480 MHz
Bluetooth Max Output Power	-3.26 dBm
Speakers	2 x 2.5" Full range, 5.25" Subwoofer
Audio Inputs	HDMI ARC (CEC), OPTICAL, AUX, USB, Bluetooth
USB Support	MP3 files, up to 32 GB
Display	2-digit white LED
Remote Control Range	8 m
Automatic Standby	After approx. 20 minutes without signal
Wall Mounting	Supported (brackets included)

Frequently Asked Questions - TAS 940 WSB GoGen

How do I pair the soundbar with my phone via Bluetooth?

Press the SOURCE button repeatedly to select Bluetooth mode. The display will show bL and flash slowly. On your phone, search for GoGEN TAS940WSB and select it. If prompted, enter password 0000. A beep confirms pairing.

Why is there no sound from the soundbar?

Check that the soundbar is not muted (press MUTE on remote). Ensure the correct input source is selected. For digital connections (HDMI/OPTICAL), set your TV's audio output to PCM. Also verify volume levels on both the soundbar and connected device.

How can I reset the soundbar to factory settings?

On the remote control, press and hold the ▶IRESET button for more than 2 seconds. The soundbar will reset to default settings.

Can I mount the soundbar on the wall?

Yes. Use the included wall mounting brackets and screws. Follow the instructions: attach EVA foam to brackets, secure brackets to soundbar, drill holes in the wall, insert plastic anchors, and hang the soundbar. Ensure the wall can support the weight and mounting height ≤ 1.5 m.

What audio formats are supported via USB?

The USB port supports only MP3 files. The soundbar can read USB devices up to 32 GB. Other file types will not play.

How do I connect the soundbar to my TV using HDMI ARC?

Use an HDMI 1.4 or higher cable to connect the soundbar's HDMI ARC socket to your TV's HDMI ARC socket. Ensure your TV supports HDMI-CEC and ARC, and enable these functions in your TV settings. Then select HDMI ARC as the input on the soundbar.

Why doesn't the remote control work?

First, ensure the correct source is selected. Reduce distance between remote and soundbar (< 8 m). Check battery polarity and replace if needed. Aim the remote directly at the sensor on the soundbar front. Remove obstacles blocking the IR signal.

How do I replace the remote control battery?

Slide the back cover off the remote. Insert two AAA batteries (included) matching the + and - markings. Close the cover. Dispose of old batteries properly.

What does the automatic power off function do?

If no audio signal is detected for about 20 minutes (e.g., TV turned off or disconnected), the soundbar automatically switches to Standby mode to save energy. Press the power button to turn it back on.

Can I use Bluetooth to connect the soundbar to my TV?

It is not recommended due to audio delays (lip-sync issues). Instead, use HDMI ARC, OPTICAL, or AUX connections for better synchronization.

USER MANUAL TAS 940 WSB GoGen

Abstract logo design with white stylized 'S' inside a circle on black background (no text or symbols)

TAS 940 WSB

GoGEN

Black audio streaming device with a speaker tower and sound block (no visible text or symbols)

CZ SK PL EN HU

ÚVOD

Diagram of a cylindrical device with two internal components connected by a cable, labeled with number 2 (no text or symbols on the device itself)

PŘIPOJENÍ NAPÁJENÍ

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

POZOR

NEBEZPEČIE ÚRAZU ELEKTRICKÝM PRŮDOM. NEOTVÁRAJTE.

POZOR: Z DÓVODU ZNÍŽENIA RIZIKA ÚRAZU ELEKTRICKÝM PRŮDOM, NEODSTRAŇUJTE KRYT (ANI ZADNÝ KRYT). VO VNÚTRI NIE SÚ ŽIADNE SÚČASTI URČENĚ K SERVISU UŽÍVATELOM. PRENECHEJTE SERVIS KVALIFIKOVANÝM SERVISNÝM TECHNIKOM.

Line drawing of a rectangular electronic device with two ports and a cable, no text or symbols present

PRIPOJENIE NAPÁJANIA

Diagram of a cylindrical device with two internal components connected by a cable, labeled with number 2 (no text or symbols on the device itself)

PODŁĄCZANIE ZASILANIA

Thank you for buying our product. Please read through these operating instructions, so you will know how to operate your equipment properly. After you finished reading the instructions manual, put it away in a safe place for future reference.

IMPORTANT SAFETY INSTRUCTIONS

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude as to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Safety

• Read these instructions – All the safety and operating instructions should be read before this product is operated.
• Keep these instructions – The safety and operating instructions should be retained for future reference.
• Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to.
• Follow all instructions – All operating and usage instructions should be followed.
• Do not use this apparatus near water – The appliance should not be used near water or moisture – for example, in a wet basement or near a swimming pool and the like.
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
• Do not install near any heat sources such as radiators, heaters, stoves, or other apparatus (including amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding plug. A polarized plug has two blades with one wider than the other. A grounding plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
  • Use only with the cart, stand, tripod, bracket or table specified by the manufacturer, or sold with the apparatus. When a cart or rack is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

• Unplug the apparatus during lightning storms or when unused for long periods of time.

• Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the unit has been exposed to rain or moisture, does not operate normally, or has been dropped.

• This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.
• The apparatus shall not be exposed to dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the apparatus.
• Minimum distance around the apparatus for sufficient ventilation is 5cm.
• The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc...
• No naked flame sources, such as lighted candles, should be placed on the apparatus.
• Batteries should be recycled or disposed of as per state and local guidelines.
• The use of apparatus in moderate climates.

Caution

• Use of controls or adjustments or performance of procedures other than those described herein, may result in hazardous radiation exposure or other unsafe operation.
• To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus must not be exposed to dripping or splashing and objects filled with liquids, such as vases, must not be placed on apparatus.
• The mains plug/appliance coupler is used as the disconnect device, the disconnect device must remain readily operable.
• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

Warning

• The battery (batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like.
• Before operating this system, check the voltage of this system to see if it is identical to the voltage of your local power supply.
• Do not place this unit close to strong magnetic fields.
• Do not place this unit on the amplifier or receiver.
• If any solid object or liquid falls into the system, unplug the system and have it checked by qualified personnel before operating it any further.
• Do not attempt to clean the unit with chemical solvents as this may damage the finish. Use a clean, dry or slightly damp cloth.
• When removing the power plug from the wall outlet, always pull directly on the plug, never yank on the cord.
• Changes or modifications to this unit not expressly approved by the party responsible for compliance will void the user's authority to operate the equipment.
• The rating label is pasted on the bottom or back of the equipment.

IDENTIFYING THE PARTS

Package Contents: Soundbar, Subwoofer, Power adapter, Remote Control,

2 x AAA Batteries, RCA to 3.5mm Audio Cable, Wall Mounting Bracket

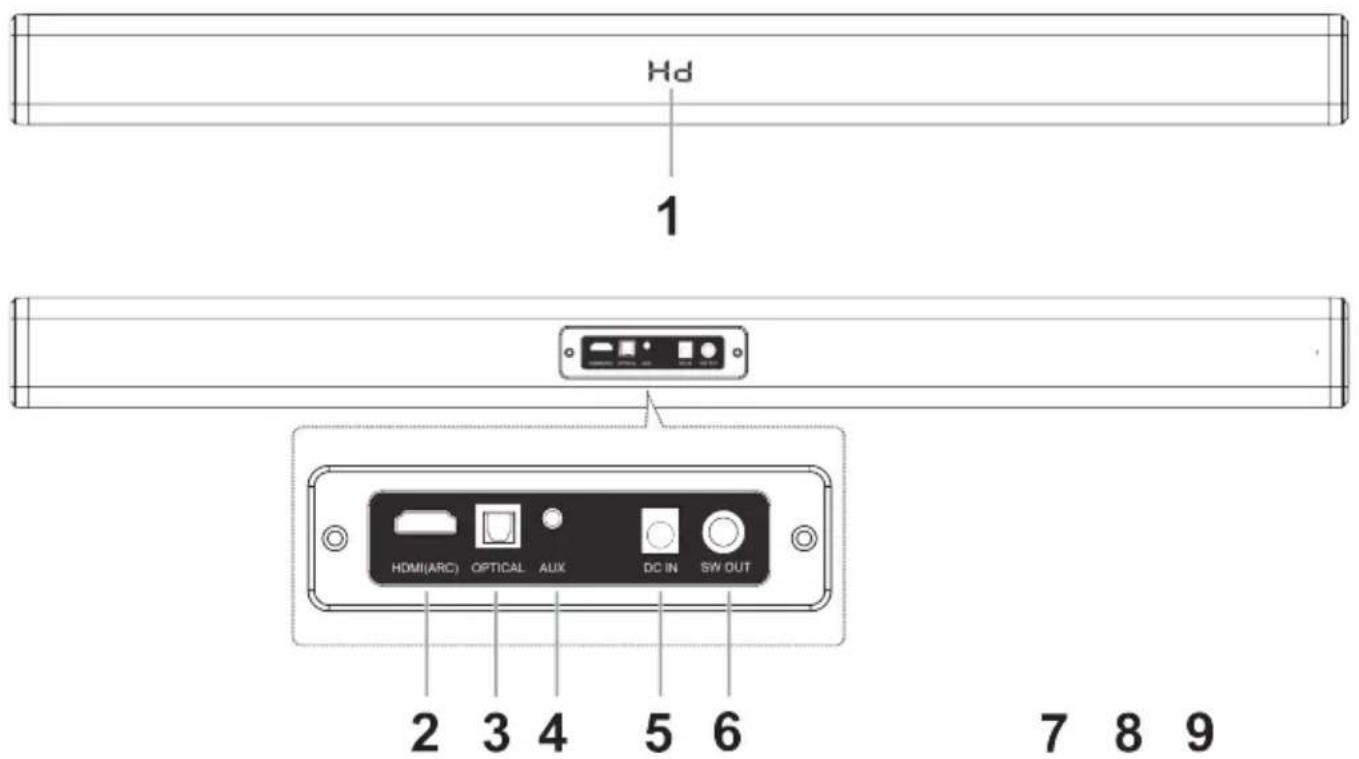

SOUNDBAR

1. Display
2. HDMI ARC (CEC) Socket
3. OPTICAL Socket
4. AUX Socket
5. DC Input

Connect DC adapter to power on the device.

1. SUBWOOFER Output

Use to connect to the subwoofer.

1. • (VOLUME) button

Decrease the volume level.

1. (ON/OFF) button

Switch the Soundbar between ON and Standby mode.

1. • (VOLUME) button

Increase the volume level.

1. (SOURCE) button

Select the play function.

1. USB Socket

Insert the USB device to play music.

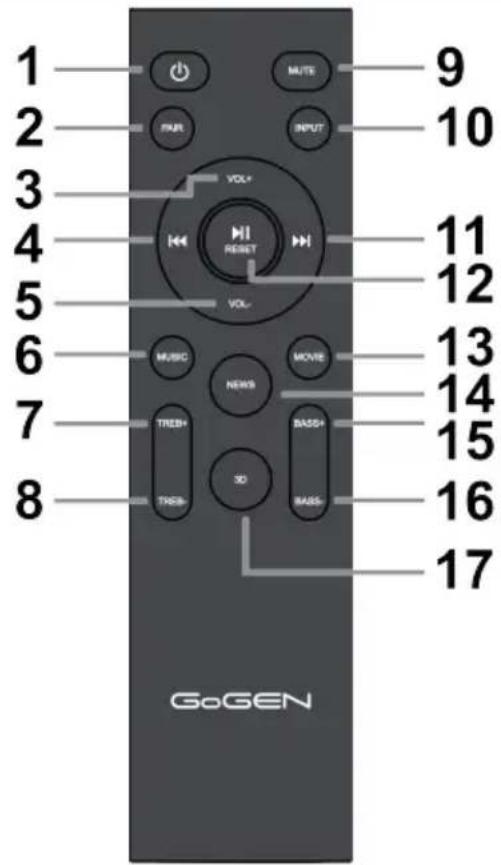

REMOTE CONTROL

1. button

Switch the Soundbar between ON and STANDBY mode.

2. PAIR button

Press for more than 2 seconds to connect and to disconnect the last paired device.

3. VOL+ button

Increase the volume level.

4. button

Skip to previous track in Bluetooth/USB mode.

5. VOL-button

Decrease the volume level.

6. MUSIC button

Press to select and activate the MUSIC EQ effect.

7. TREB+ button

Increase the treble level.

8. TREB-button

Decrease the treble level.

9. MUTE button

Mute or resume the sound.

10. INPUT button

Press to select the source.

11. ▶button

Skip to next track in Bluetooth/USB mode.

12. ▶IRESET button

Play/pause/resume playback in Bluetooth/USB mode.

Press for more than 2 seconds to reset to factory settings.

13. MOVIE button

Press to select and activate the MOVIE EQ effect.

14. NEWS button

Press to select and activate the NEWS EQ effect.

15. BASS+ button

Increase the bass level.

16. BASS- button

Decrease the bass level.

17. 3D button

Press to select and activate the 3D EQ effect.

Prepare the Remote Control

The provided remote control allows the Soundbar to be operated from a distance.

• Even if the remote control is operated within the effective range 8m, remote control operation may be impossible if there are any obstacles between the Soundbar and the remote control.
• If the remote control is operated near other products which generate infrared rays, or if other remote control devices using infrared rays are used near the Soundbar, it may operate incorrectly. Conversely, the other products may operate incorrectly.

Replace the Remote Control Battery

• Press and slide the back cover to open the battery compartment of the remote control.
• Insert two AAA size batteries (included). Make sure the + and ends of the batteries match the and ends indicated in the battery compartment.
• Close the battery compartment cover.

Precautions Concerning Batteries

• Be sure to insert the batteries with correct positive and negative polarities.
• Use batteries of the same type. Never use different types of batteries together.
• Either rechargeable or non-rechargeable batteries can be used. Refer to the precautions on their labels.

- Be aware of your fingernails when removing the battery cover and the battery.

- Do not drop the remote control.

- Do not allow anything to impact the remote control.

- Do not spill water or any liquid on the remote control.

- Do not place the remote control on a wet object.

- Do not place the remote control under direct sunlight or near sources of excessive heat.

- Remove the battery from the remote control when not in use for a long period of time, as corrosion or battery leakage may occur and result in physical injury, and/or property damage, and/or fire.

- Do not use any batteries other than those specified.

- Do not mix new batteries with old ones.

- Never recharge a battery unless it is confirmed to be a rechargeable type.

PLACEMENT AND MOUNTING

Placement

Option A

If your TV is placed on a table, you can place the Soundbar on the table directly in front of the TV stand, centered with the TV screen.

Option B

If your TV is attached to a wall, you can mount the Soundbar on the wall directly below the TV screen.

Wall Mounting (if using Option B)

• Installation must be carried out by qualified personnel only. Incorrect assembly can result in severe personal injury and property damage (if you intend to install this product yourself, you must check for installations such as electrical wiring and plumbing that may be buried inside the wall). It is the installer's responsibility to verify that the wall will safely support the total load of the Soundbar and wall brackets.
  • Additional tools (not included) are required for the installation.
• Do not overtighten screws.
• Keep this instruction manual for future reference.
• Use an electronic stud finder to check the wall type before drilling and mounting.

WARNING

• To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.
• Suggested wall mounting height: ≤ 1,5 meters.

Follow below steps to mount the sound bar on the wall

1. Paste 2 pieces of EVA foam (with holes) on the two wall brackets aligning at the hole position of wall brackets.

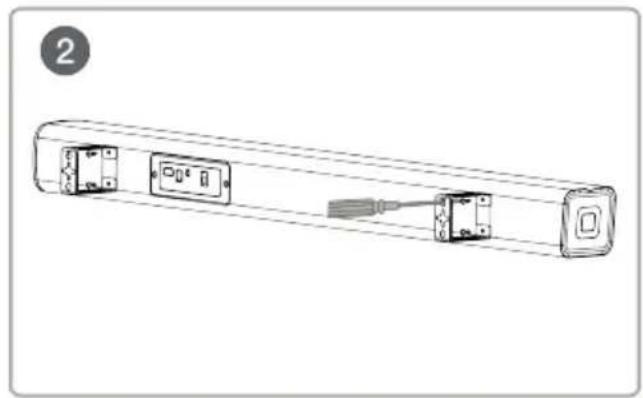

2. Remove 4 screws from the rear housing of sound bar, then insert the 4 screws over the wall bracket screw holes aligning (on the side of EVA foam pasted), and then fasten the screws again.

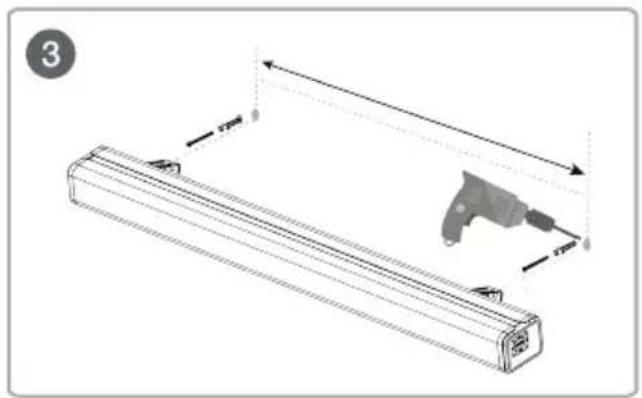

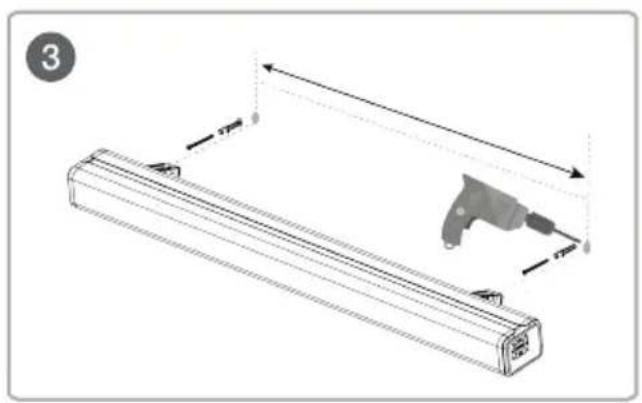

3. According to the two hanging wall positions on the rear of soundbar, calibrate and mark the two hanging brackets hole position on the wall. Then drill two holes on the wall, firstly insert two expansion plastic screws on the wall, then fasten the hanging screws into expansion screw holes.

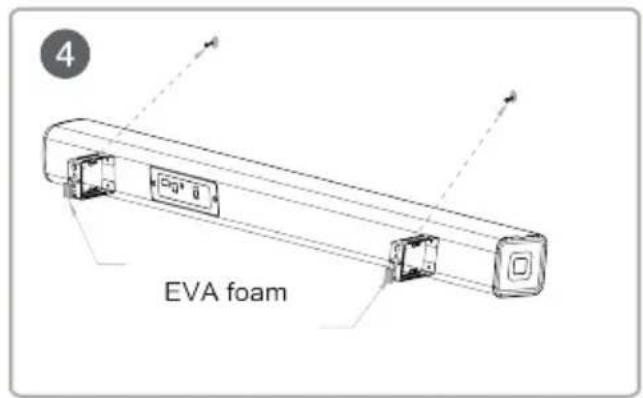

4. Then Paste the 2 pieces of EVA foam (without holes) on the two wall brackets downward. Then place the hollow cross in the center of the bracket against the screws on the wall and hang the sound bar on the wall finally.

NOTE: Wipe off any dirt such as oil on the adhesive surface of the soundbar before adhering. Make sure that the adhesive is securely attached. When peeling off the release paper of the double-sided tape, be careful not to get dirt such as finger oil on the adhesive surface. Be careful of deterioration of double-sided tape due to storage conditions.

Line drawing of a cylindrical electronic device with two ports and a cable, no text or symbols present

CONNECT POWER

Risk of product damage! Ensure that the power supply voltage corresponds to the voltage printed on the back of the power adapter.

• Connect the subwoofer to the soundbar.
• Connect the power adapter to the soundbar.
• Finally, plug the adapter into a power outlet, the Soundbar will be in Standby mode.

NOTE: Before connecting the power adapter, ensure you have completed all other connections.

STANDBY/ON

• Press the button on the Soundbar or on the remote control to switch the Soundbar ON. Press the button again to switch the Soundbar back to STANDBY mode.
• To switch the Soundbar off completely, remove the power adapter from the mains socket.
• Please turn the Soundbar off completely to save energy when not in use.

Automatic Power Off Function

The Soundbar automatically turns to Standby mode after about 20 minutes if the TV or the external unit is disconnected.

SELECT MODES

Press the SOURCE) button on the Soundbar or the INPUT button on the remote control to select the desired mode.

NOTE: The display brightness will decrease if there is no operation for 10 seconds

ADJUST THE VOLUME

Press the +/- (VOLUME) buttons on the Soundbar or VOL+/- buttons on the remote control to adjust the volume. If you wish to turn the sound off, press the MUTE button on the remote control. Press the MUTE again or press the +/- (VOLUME) buttons on the Soundbar or VOL+/- buttons on the remote control to resume normal listening.

Press the BASS +/- buttons on the remote control to adjust bass level.

Press the TREB +/- buttons on the remote control to adjust treble level.

Press the MUSIC/ MOVIE / NEWS / 3D buttons on the remote control to select your desired preset equalizer effects.

RESET TO FACTORY SETTINGS

Press the RESET button for more than 2 seconds to reset to factory settings.

CONNECTIONS

HDMI (ARC) CONNECTION

Connect the HDMI cable (not included) from the sounbar HDMI ARC socket to the HDMI (ARC) socket on your ARC compliant TV. Then press the remote control to select HDMI ARC.

NOTE: Your TV must support the HDMI-CEC and ARC function. HDMI-CEC and ARC must be set to On. The setting method of HDMI-CEC and ARC may differ depending on the TV. For details about ARC function, please refer to the owner's manual. ARC only works with devices that are HDMI ARC capable as well as with an HDMI 1.4 cable (and higher).

USE THE OPTICAL SOCKET

Connect an OPTICAL cable (not included) to the TV's OPTICAL OUT socket and the OPTICAL socket on the Soundbar.

USE THE AUX SOCKET

Use a 3,5mm to 3,5mm audio cable (not included) to connect the TV's or external audio device headphone socket to the AUX socket on the Soundbar.

Use a RCA to 3,5mm audio cable (included) to connect the TV's audio output sockets to the AUX socket on the Soundbar.

HDMI (ARC) / OPTICAL / AUX OPERATION

1. Ensure that the Soundbar is connected to the TV or audio device.
2. Press the ☑ (SOURCE) button repeatedly on the Soundbar or press the INPUT button on the remote control to select the desired mode.
3. Press the +/- (VOLUME) button to adjust the volume to your desired level.

NOTE: The Soundbar may not be able to decode all digital audio formats from the input source. In this case, the Soundbar will mute. This is NOT a defect. Ensure that the audio setting of the input source (e.g. TV, game console, DVD player, etc.) is set to PCM.

BLUETOOTH OPERATION

Pairing the Soundbar with a Bluetooth device to listen to music.

First time pairing

1. Press the ☑ (SOURCE) button repeatedly on the Soundbar or press the INPUT button on the remote control to select Bluetooth mode. Licon will flash slowly and hear a double beep sound.
2. Activate your Bluetooth device and select the search mode. "GoGEN TAS940WSB" will appear on your Bluetooth device list.
3. Select "GoGEN TAS940WSB" enter "0000" for the password if necessary. bE icon stops flash and a beep sounds after successful pairing.

Listen to Music from Bluetooth device

If your Bluetooth device supports A2DP, play music via your device.

If your Bluetooth device supports AVRCP, use the supplied remote control to control play.

• To increase/decrease the volume, press +/- (VOLUME) button.
• To pause/resume playback, press ▶|| button.
• To skip to a track, press ◀◀ button.

To disconnect the Bluetoothfunction, you can:

• Switch to another source on the Soundbar.
• Press the PAIR button for more than 2 seconds.
• Disable the function from your Bluetooth device.

NOTE:

The operational range between the Soundbar and the device is approximately 8 metres. Before connecting a Bluetooth device to the Soundbar, ensure you know the device's capabilities. Compatibility with all Bluetooth devices is not guaranteed.

Any obstacle between the device and the Soundbar can reduce operational range.

Keep this player away from other electronic devices that may cause interference.

The player will also be disconnected when your device is moved beyond the operational range.

Do not connect the TV to the soundbar via Bluetooth due to sound delays.

USB OPERATION

By connecting a USB mass storage device (e.g. USB flash drive) to this unit, you can enjoy the device's stored music through the Soundbar.

1. Press the (SOURCE) button on the Soundbar or press the INPUT button on the remote control to select USB mode.
2. Press button ▶pause/resume playback.
3. To skip to a track, press ◀◀ button.

NOTE:

The player supports the USB music file format of MP3 only.

The Soundbar can support USB devices with up to 32 GB of memory.

The Soundbar may not be compatible with all USB devices, this is not an indication of a problem with the unit.

TROUBLESHOOTING

To keep the warranty valid, never try to repair the system yourself. If you encounter problems when using this unit, check the following points before requesting service.

Problem Solution
No power	·Ensure that the power adapter is properly connected.·Ensure that there is power at the AC outlet.·Press ⏻ (standby) button to turn the Soundbar on.
Remote control does not work	·Before you press any playback control button, first select the correct source.·Reduce the distance between the remote control and the Soundbar.·Insert the battery with its polarities ⏻ / aligned as indicated.·Replace the battery.·Aim the remote control directly at the sensor on the front of the Soundbar.
No sound	·Make sure that the Soundbar is not muted. Press MUTE or +/- (VOLUME) button to resume normal listening.·Press ⏻ button on the Soundbar or on the remote control to switch the soundbar to standby mode. Then press the button again to switch the soundbar on.·Ensure the audio setting of the input source (e.g. TV, game console, DVD player, etc.) is set to PCM mode while using digital (e.g. HDMI, OPTICAL) connection.·The Soundbar may not be able to decode all digital audio formats from the input source. In this case, the Soundbar will mute. This is NOT a defect.·If using Bluetooth, ensure that the volume on your source device is turned up and that the device is not muted.
I can’t find the Bluetooth name of this unit on my Bluetooth device for Bluetooth pairing	·Ensure the Bluetooth function is activated on your Bluetooth device.·Re-pair the Soundbar with your Bluetooth device.·The Soundbar has a Bluetooth function that can receive a signal within 8 metres. Keep a distance within 8 metres between the Soundbar and your Bluetooth device.
There is no sound from soundbar (USB mode)	·Make sure that USB flash drive contains MP3 files because other file types are not supported.

SPECIFICATIONS

Power input 100–240 V\~; 50/60 Hz

Power output DC 24V / 1,75 A

Channel 2.1 CH

Frequency Response 55 Hz - 20 kHz

Audio Output Power 2 x 25 W + 50 W (RMS)

Bluetooth version V 5.0

BT Operation Frequency 2402 – 2480 MHz

Max. BT output power -3,26 dBm

Speaker 2 x 2,5" Full range speaker, 5,25" Subwoofer

Audio Input HDMI ARC (CEC) / OPTICAL / AUX/ USB/ Bluetooth

Display 2-digit in white

Dimension Soundbar: 860 x 74 x 80 mm

Dimension Subwoofer: 115 x 250 x 420 mm

WE RESERVE THE RIGHT TO CHANGE TECHNICAL SPECIFICATIONS.

WARNING: DO NOT USE THIS PRODUCT NEAR WATER, IN WET AREAS TO AVOID FIRE OR INJURY OF ELECTRIC CURRENT. ALWAYS TURN OFF THE PRODUCT WHEN YOU DON'T USE IT OR BEFORE A REVISION. THERE AREN'T ANY PARTS IN THIS APPLIANCE WHICH ARE

REPARABLE BY CONSUMER. ALWAYS APPEAL TO A QUALIFIED AUTHORIZED SERVICE. THE PRODUCT IS UNDER A DANGEROUS TENTION.

TO AVOID DANGER OF SUFFOCATION, KEEP THE PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

Disposal of old Electrical & Electronic Equipment

(Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human

health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Hereby, ETA a.s. declares that the radio equipment type TAS940WSB is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.gogen.cz/declaration_of_conformity

BEVEZETÉS

1. Kijelző
2. HDMI ARC (CEC) Aljzat
3. OPTICAL Aljzat
4. AUX Aljzat
5. DC IN Aljzat

1. SUBWOOFER OUT Aljzat

Subwoofer kimenet.

1. • (VOLUME) gomb

Diagram of a cylindrical device with two ports and a cable, no text or symbols present

TÁPKÁBEL CSATLAKOZÁSA

	EN - English
Charging adapter
A	Manufacturer's name or trademark, business registration number and address	AJS ELECTRONICS LIMITEDUnit E, 29F China Energy Storage Tower, No.3099 Keyuan Road, 518063,Nanshan District, Shenzhen, China
B	Model identifier FS51HS-L
C	Input voltage 100 - 240V AC
D	Input frequency 50 / 60 HZ
E	Output voltage 24 V (DC)
F	Output current 1,75 A
G	Output power 80 W
H	Average efficiency in active mode 80%
I	Low load efficiency (10%) 82%
J	Power consumption without load 0,15 W

Abstract logo design with white stylized 'S' inside a black circle (no text or symbols)

GoGEN
