USER MANUAL MI-7958A Mount-It!

Technical line drawing of a mechanical device with two legs and a central handle (no text or symbols)

Please scan this QR code to visit the product page

CORNER STANDING DESK CONVERTER

HAVE QUESTIONS?

Monday - Friday from 8:00am - 4:00pm PST

[e-mail]

[phone]

www.mount-it.com

Thank you for choosing Mount-It!

EN Read the entire instruction manual before you start installation and assembly. If you have any questions regarding any of the instructions or warnings, please contact Mount-It! for assistance.
CAUTION: Use with products heavier than the rated weights indicated may result in instability causing possible injury. • Please closely follow the assembly instructions. Improper installation may result in damage or serious personal injury. • This product contains small items that could be a choking hazard if swallowed. Keep these items away from children. IMPORTANT: Ensure that you have received all parts according to the component checklist prior to installation. If any parts are missing or faulty, contact Mount-It! for a replacement. MAINTENANCE: Check that the product is secure and safe to use at regular intervals (at least every three months).

Desktop Weight: (8.8-33lbs)

Keyboard Weight: (≤5lbs)

CAUTION: DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

PACKAGE CONTENTS

A (x1)
DESK CONVERTER

KEYBOARD TRAY KEYBOARD TRAY BRACKETS

B (x1)

D (x1)
KEYBOARD STOP M5x8 BOLTM5x10 BOLT

YID BOI

F (x4)

G (x2)
CABLE TIES

H (x1)
4mm HEX WRENCH

1(x1)
CABLE MANAGEMENT CLIP

J(x2)
EXTENDED FEET

DIMENSIONS & WEIGHT CAPACITY

Total standing desk converter weight capacity is 33lbs* (desktop + keyboard tray). Keyboard tray weight capacity 5lbs max. *Maximum weight capacity is 45lbs. 33lbs capacity is the maximum recommended load considered safe for raising and lowering the standing desk converter. The desk is capable of handling heavier monitors and computers if the user is capable of lifting and lowering the converter.

! WARNING

PINCH POINT

DO NOT place hands on or near support bars. Pinch points are created during lifting and lowering the worksurface. Failure to follow these instructions may result in serious personal injury.

Step 1 Step 3

Remove the Desktop from the Box

Remove the Desk Converter (#A) from the packaging.

Note: Two person lift recommended.

Illustration of hands assembling a cardboard box with an arrow indicating rotation (no text or symbols)

Step 2

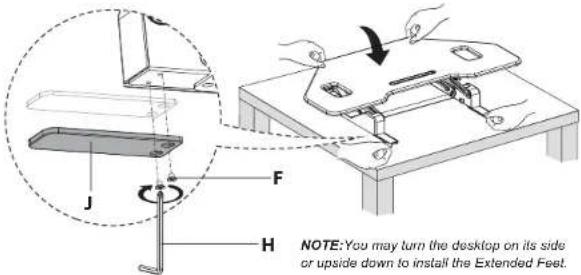

Place the Desktop on a Level Surface

Place the desktop on a level surface (such as a desk, table, or the floor.) Install the Extended Feet (#J) to the base of the desktop using Hex Wrench (#H) and M5x8 Bolt (#F).

Take care not to stand or lean directly above the product, and ensure your hands and fingers stay clear of the mechanism, as the product may be under pressure and might rise suddenly.

Illustration of a person using a table to interact with equipment, showing an upward arrow (no text or symbols present)

Raise the Desktop

If you have not already done so, squeeze the lever on the side of the Desk Converter and raise it to its highest position.

Illustration of a table with a hand operating the chair, showing mechanical movement and force arrows (no text or symbols)

Step 4

Attach the Keyboard Brackets

Attach the Keyboard Tray Brackets (#C) and Keyboard Stop (#D) to the bolt holes on the underside of the Keyboard Tray (#B) as shown, using the Bolts (#E).

Step 5

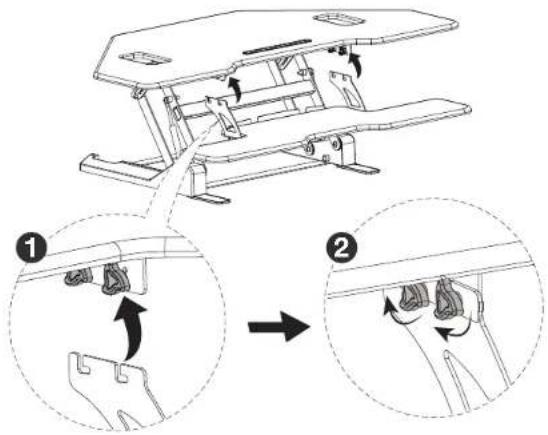

Attach the Keyboard Tray

1. Attach the Keyboard Tray by sliding it beneath the bolts shown in magnification bubble 1. Ensure the bolts reach the end of the channels on the bracket, by lifting the tray up unto the bolts and pushing it forward.
2. Tighten the knobs by hand until secure.

NOTE: If the brackets do not slide beneath the bolts, you may need to loosen them slightly using Hex Wrench (#F) before attempting this step again.

Step 6

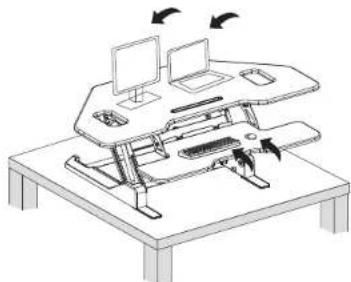

Place Items on the Desk Converter

Place all monitors, laptops, or other equipment on the desk. Ensure none of the equipment is hanging off the edge or otherwise unstable/unbalanced. Refer to the warnings section at the end of the manual for further information on equipment placement.

Line drawing of a desktop desk setup with monitor, keyboard, and mouse (no text or symbols)

Step 7

Keyboard Tray Cable Management

(Optional Step) Route the cables according to your device placement to determine the best location for the Cable Management Clip. Remove the cover from the adhesive on the Cable Management Clip (#) then attach it to the underside of the Desk Converter to manage the cables for the mouse, keyboard or other accessories.

Technical diagram of a workbench with monitor and keyboard, showing a close-up of a cable being inserted (no text or symbols present)

Step 8

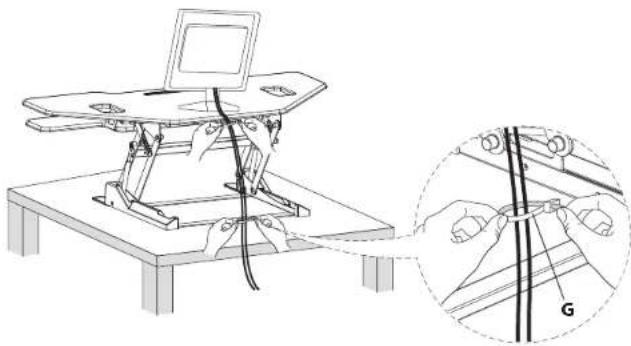

Worksurface Cable Management

(Optional Step) Use the provided Cable Ties (#G) to collect cables for all peripheral devices on the worksurface. Ensure that enough slack is left in the cables so that they do not pull any devices when raising or lowering the desk.

Technical line drawing of a mechanical device with an inset showing a close-up of a component labeled 'G' (no text or symbols present)

Warnings

No crossed-out diagram of a desktop computer setup with monitor, keyboard, and mouse (no text or symbols)

Keep all monitors, laptops and other equipment fully on the work surface at all times. Allowing any part of these to hang off the edge may result in property damage and/or personal injury.

Raise the work surface slowly. Raising the work surface too quickly may cause monitors, laptops and other equipment to fall resulting in property damage and/or personal injury.

Diagram of a mechanical device with no visible text, numbers, or symbols, featuring a diagonal line and directional arrows (no text or symbols present)

Ensure that enough slack is left in the cables so that they do not pull any devices when raising or lowering the desk and allow for the full range of vertical motion (19.7"/50cm). Failure to provide sufficient cable length may result in property damage or personal injury.

Prohibition sign showing a computer monitor on a desk with arrows indicating no movement or restriction (no text present)

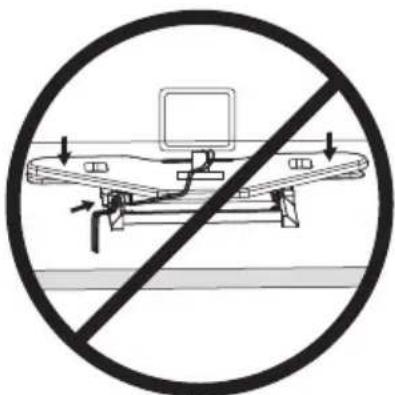

To avoid the potential to pinch cables in the mechanism it is important to follow the cable routing examples in this manual. Do not allow cables to pass through or rest upon the legs. Failure to follow these instructions may result in equipment damage or personal injury.
