Product Type	Overhead Soundbar
Brand	Memphis Audio
Model	MXA46SB28
Speaker Configuration	4 x 6.5" Mid-Bass Drivers + 4 Tweeters
Total Power Rating	300W
Audio Sources	Bluetooth, AUX, AM, FM, Weatherband
App Control	Memphis Radio App (iOS/Android)
App Features	RGB settings, custom EQ, balance/fade/subwoofer control, AM/FM presets
Output Channels	6-channel preamp (Front, Rear, Subwoofer)
Preamp Output Voltage	2.5V
USB Charging	Yes
RGB LED	Integrated, app-controlled
Protection Rating	IP66 (conformal coated PCB)
Grill Material	Protective aluminum mesh
Power Input	12V DC, 15A fuse
Dimensions (Approx.)	28 x 4.5 x 4.5 in (711 x 114 x 114 mm)
Mounting System	Bracket with dovetail, 14mm bolts
Warranty	1 year (3 years if dealer installed)
FCC Compliance	Class B digital device, 20cm radiation exposure
Maintenance	Clean with dry cloth; avoid liquids
Safety	Follow wiring instructions; ensure proper mounting
Spare Parts	Contact authorized dealer

Frequently Asked Questions - MXA46SB28 Memphis Audio

How do I pair the soundbar via Bluetooth for audio streaming?

Turn on the unit by holding the power button. The indicator light flashes blue. On your Bluetooth device, search for devices and select MXA46SB28. The light turns solid blue when connected.

How do I control the RGB lighting?

Use the LED Color Settings menu in the Memphis Radio App. You can turn RGB on/off, enable color cycling, or select a specific color using the color wheel or RGB sliders. Adjust brightness with the slider.

What should I do if no sound comes out?

Check all wiring connections. Ensure both +12V wires have power and the ground is connected to chassis or battery negative. Verify the audio source is connected via Bluetooth or AUX cable.

How do I adjust the EQ settings?

Open the EQ Settings Menu in the Memphis Radio App. You can choose preset EQ options or manually adjust frequency bands by sliding them. Your custom setting is saved as 'Custom Setting'.

How do I mount the soundbar?

Insert a 14mm bolt with lock washer through the bottom of the clamp into the dovetail piece. Slide the assembly into one of the three recessed areas at the desired angle, then tighten. Use both brackets and attach the top half with four bolts. Ensure secure mounting before use.

What power supply is required?

The unit requires 12V DC with an in-line 15A fuse. Wire the yellow wire to the positive battery terminal, black to ground, and connect the ignition wire for constant power.

How do I use the AM/FM radio?

Select AM or FM source from the app. Use SEEK, MANUAL, or PRESET modes to find stations. Save presets by holding a preset button (1-6) for several seconds.

Can I add additional speakers to the system?

Yes, the soundbar has Front, Rear, and Sub outputs (6-channel preamp). You can expand the system and control it via the app.

What is the warranty coverage?

The warranty is 1 year from original purchase (receipt required). If installed by an authorized Memphis dealer, it extends to 3 years. Refurbished units have a 3-month warranty.

How do I reset the soundbar to factory defaults?

In the Settings menu of the Memphis Radio App, select 'Restore Default Settings' to reset all configurations.

USER MANUAL MXA46SB28 Memphis Audio

Circular logo with stylized letter M in black and yellow against a blue and red gradient background (no text or symbols)

MEMPHIS

AUDIO SINCE 1965

MXA46SB28

28" APP CONTROLLED

OVERHEAD SOUNDBAR

SHOW US YOUR INSTALL

WWW.MEMPHISCARAUDIO.USA

@MEMPHISCARAUDIO

@MEMPHISCARAUDIOUSA

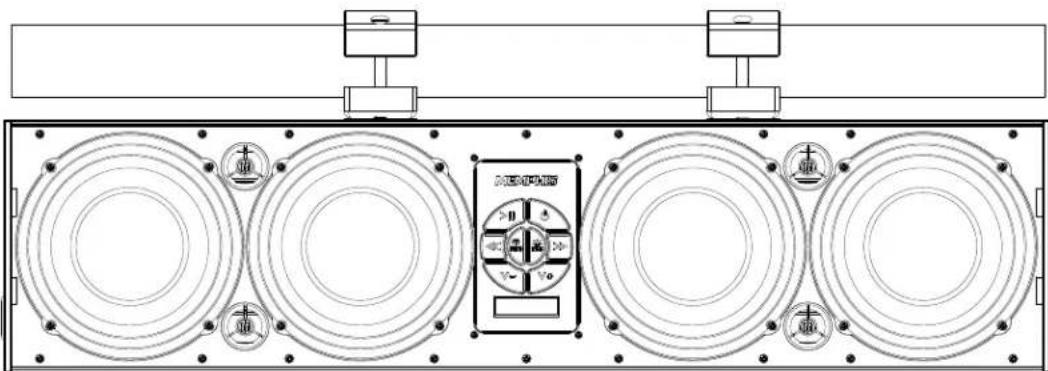

App Controlled Overhead Soundbar

The MXA46SB28 App Controlled Overhead Soundbar is an extremely innovative soundbar solution for powersports machines. Traditional soundbars are capable of streaming music from a Bluetooth device. The MXA46SB28 features a unique app controlled interface allowing you to use the soundbar as a hub for an entire audio system. The app allows you to select between five sources including Bluetooth, FM, AM, AUX, Weatherband radio. The app also enables users to control EQ settings, set radio presets, adjust fade/balance and more from the convenience of their Bluetooth devices interface. This unit features a slightly wider body than traditional soundbars allowing for 4 rich 6.5" mid bass drivers and 4 tweeters to crank out massive sound that it is unrivaled by anything in its class. If you need even more output, the MXA46SB28 features Front, Rear, and Sub outputs allowing you to expand your audio into a massive multi speaker set up which can be controlled via the app making this unit one of the most unique and versatile powersports solutions on the market.

Features

• 8 Speaker Soundbar System: 4 - 6.5" Mids 4 - Tweeters
• RGB LED included in speakers
- App Controlled Soundbar Features 5 Source options: AUX, BT, AM/FM, Weatherband
• USB Charging
- 6 Channel output: Front/Rear/Subwoofer
• 2.5-Volt preamp output
- Conformal coated PCB IP66 rated
- Protective aluminum mesh grill included
• AUX input
• 300w Power Rating

App Controls The Following

• RGB Settings
• Custom EQ settings
  • Balance, fade, subwoofer control
  • AM/FM Preset Control
• Radio search settings
• Manual/Seek/Presets

Warranty

Electronics limited warranty (including Memphis accessories) When purchased from an Authorized Memphis Dealer, Memphis warrants this product to be free from defects in material and workmanship under normal use for a period of ONE (1) YEAR from date of original purchase (receipt required), THREE (3) YEARS years if installed by an authorized Memphis dealer (receipt required). If this product is identified as "Refurbished" or "B Goods", the warranty is limited to a period of THREE (3) MONTHS from date of original purchase. In all cases you must have the original receipt. Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction during the warranty period, Memphis will repair or replace (at its discretion) the defective merchandise with equivalent merchandise. Warranty replacements may have cosmetic scratches and blemishes. Discontinued products may be replaced with more current equivalent products. Warranty is valid only for the original purchaser and is not extended to owners of the product subsequent to the original purchaser. Any applicable implied warranties are limited in duration to a period of the express warranty as provided herein beginning with the date of the original purchase at retail, and no warranties, whether express or implied, shall apply to this product thereafter. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and the receiver. Connect the equipment into an outlet or a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Warning: Changes or modifications to this unit not expressly approved by the part responsible for

Compliance could void the user's authority to operate the equipment.

FCC Radiation Exposure Statement

This equipment complied with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

App Controls

The MXA46SB28 Overhead soundbar can be connected via AUX or Bluetooth like a traditional soundbar. It is also capable of pairing with the MEMPHIS RADIO app which allows you to maximize your control over your audio system. See below for pairing instructions.

Downloading Memphis App

The Memphis App is available on iOS & Android in the app store. Search for "MEMPHIS RADIO" and locate the MEMPHIS RADIO App. Download and install the app to begin controlling your MXA46SB28.

Bluetooth Pairing (Audio Streaming Only)

Hold the power button to turn the unit on. The indicator light will begin flashing blue. On your Bluetooth device, search for Bluetooth devices. When you see MXA46SB28 click connect. The blue light will stay solid blue when connected. When connected via Bluetooth you can stream music to your MXA46SB28 soundbar.

Bluetooth Pairing The APP

To control you MXA46SB28 unit's settings and radio stations via the MEMPHIS RADIO App, you must establish a Bluetooth connection using the MEMPHIS RADIO App. Open the BLUETOOTH SETTINGS menu on the MEMPHIS RADIO App and follow the instructions on the next page to pair your MEMPHIS RADIO App with you MXA46SB28 unit.

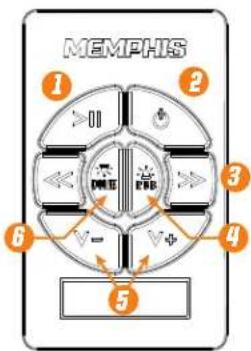

Button Function

CONTROLS

1. Play Music / Pause Music // MUTE(AUX Mode Only)
2. Long Push: Power ON and OFF // Short Push: Change Source
3. Previous/Next Track
4. Short Push: RGB ON / Change Color // Long Push: RGB OFF
5. Volume Down/Up
6. Dome light ON/OFF

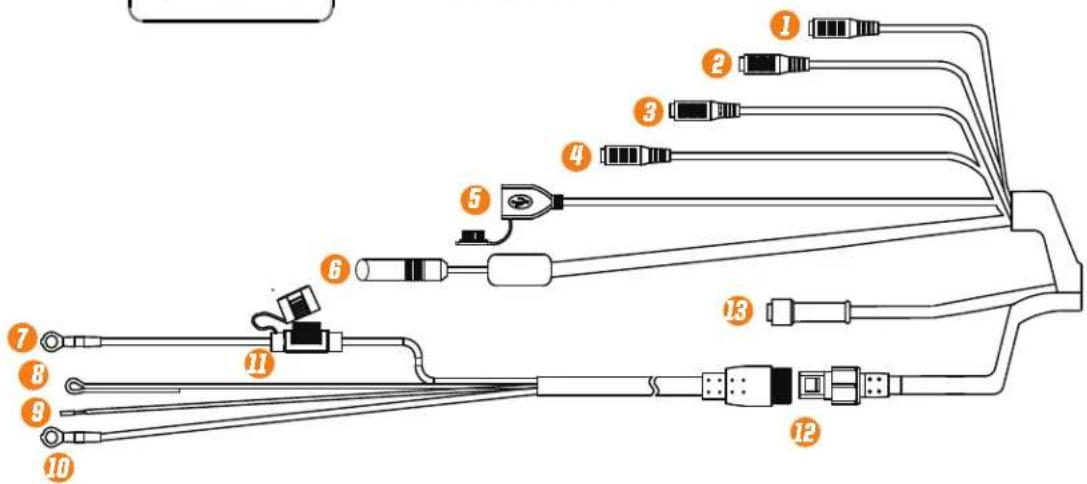

Connections

1. AUX Line Input
2. Front Output
3. Rear Output
4. Subwoofer Output
5. USB For Charging
6. Antenna Input
   7.12V + [Yellow]
7. Remote Turn On (blue)
8. Ignition (Red)
9. Ground (Black)
10. Quick connect/disconnect

11. RGB LED Output

12. In-Line 15A Fuse and Fuse Holder

Wiring Instructions

When wiring this soundbar the 12V+ should be wired directly to the vehicles positive battery terminal. The black wire should be connected directly to the vehicles chassis where the paint has been removed or the negative battery terminal. The ignition wire should receive constant power even when the vehicle is off. The Remote turn on wire should be wired receive power when the vehicle is in ACC or the ON position.

App Instructions

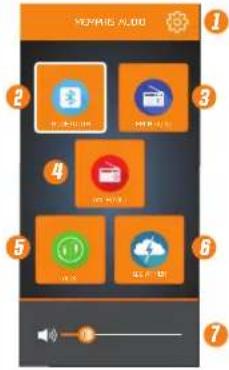

Main Menu/Source Selection

1. Settings
2. Bluetooth Source
3. FM Radio Source
4. AM Radio Source
5. AUX Source
6. Weather Band Source
7. Volume Control

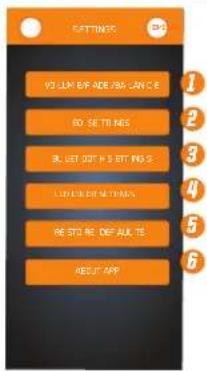

Settings

1. Adjust volume, fade, balance
2. EQ settings Menu
3. Bluetooth configuration
4. Adjust LED color settings
5. Restore Default settings
6. App version information

Bluetooth Settings Menu

Use this menu to connect your MEMPHIS RADIO App via Bluetooth to your MXA46SB28 Soundbar. This connection allows the MEMPHIS RADIO App to control your MXA46SB28. You should only have to make this connection once to pair the MEMPHIS RADIO App to the MXA46SB28.
1. Connect/Disconnect Bluetooth
2. Select MXA46SB28(BLE) to pair your MEMPHIS RADIO App on your Bluetooth Device with the MXA46SB46.

Volume/Fade/Balance Menu

1. Volume slider adjusts volume of system. Volume level is indicated in the box above slider.
2. Fade/Balance Adjuster: Adjust the fade/balance of your system by positioning the center of the slider to the location that best fits your listening needs. You can also tap the Front/Rear/Left/Right "+" icons to increase the level by +1 in the desired direction.
3. Reset the screen to the factory default settings.

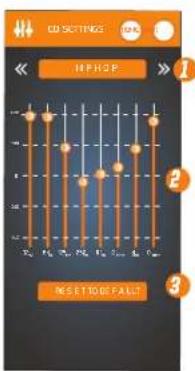

EQ Settings Menu

1. EQ Preset options. Top arrows to toggle through presets settings.
2. Manually adjust EQ settings. Slide the band you wish to adjust into the desired position. Desired EQ setting will be saved as "Custom Setting"
3. Restore to the factory default settings

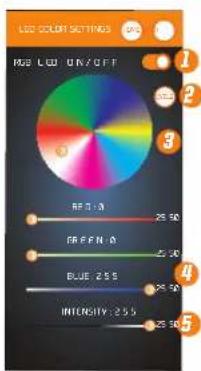

LED COLOR SETTINGS MENU

1. Turns the connected RGB LED Lighting on/off
2. Lighting color cycle on/off Light button system RGB LED color cycle
3. Use the wheel to select your systems RGB LED color. Touch the wheel and slide the indicator point to the desired color.
4. You can use the RGB sliders to dial in a specific color value. Adjust Red, Green and Blue individually until you've reached your desired color.
5. You can adjust the brightness using the slider.

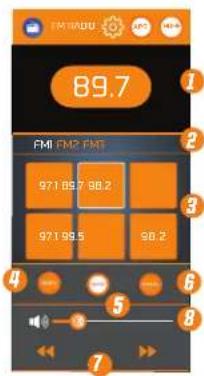

AM/FM/WB Source Screen

1. Indicates current radio station
2. Select radio preset category [FM1, FM2, FM3, AM1, AM2, AM3 allows you to store 3 stations in each preset category]
3. Presets 1-6. Use Seek/manual tuning to locate desired station. Press and hold desired preset button for several seconds to save station as a preset.
4. Puts unit into SEEK mode. Arrows will now seek for the next station.
5. Puts unit into PRESET mode. Tapping Left or Right arrows skips to the next programmed preset station.
6. Puts unit into MANUAL TUNER mode. The arrows will now manually tune to the next station.
7. Changes to the next available station. Select SEEK or MANUAL above to change the way the system locates the next station.
8. Adjusts volume of the unit

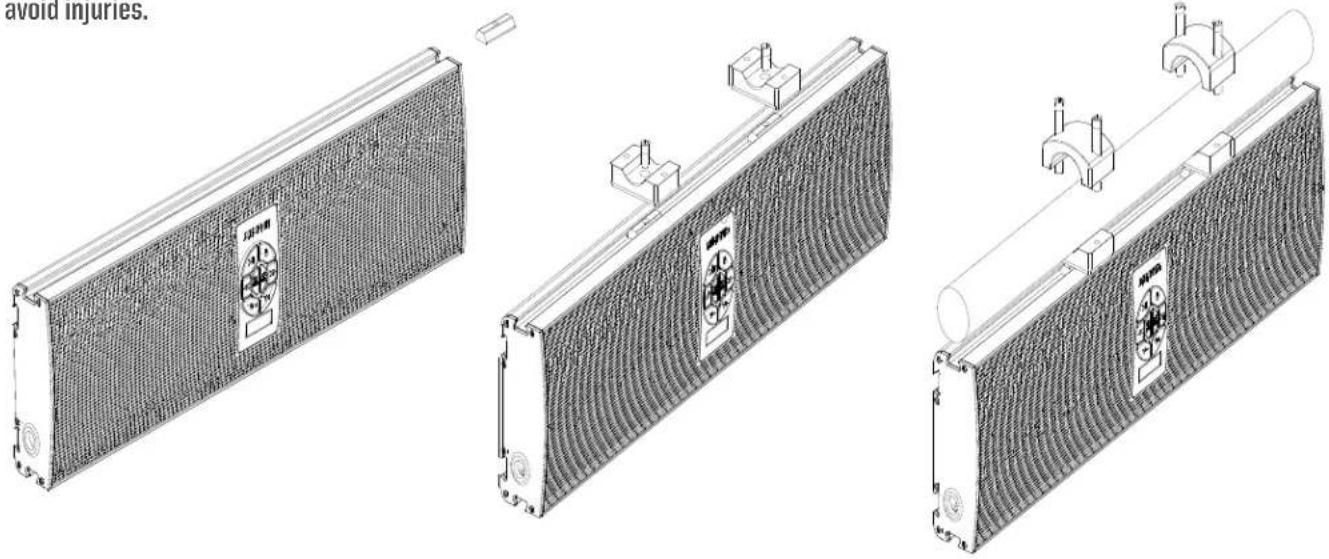

MOUNTING

• Take 14 mm bolt with lock washer and place it through bottom of clamp and slightly thread into Dove tailed piece.
- Slide assembly into one of the three dove tail recessed areas placing the unit at the desired angle.
- Tighten bolt to securely hold bracket in place.
- Repeat this step for both included brackets. Both brackets must be used during installation.
- Use bracket top half and tighten down over bar using the four included bolts, two per clamp.
- Tighten until the unit is secure.
- Connect necessary power wires and audio connections
• Always inspect the area carefully to be certain you are not drilling into any electrical, fuel or hydraulic lines.
- Be certain your unit is securely mounted on your vehicle prior to taking it out on the trail. This unit must be properly mounted to avoid injuries.

TROUBLESHOOTING

No Output:

• Confirm all wiring is firmly connected.
  Both +12V must have +12 Volts present and GND must be connected to chassis' ground or to the negative battery terminal.
• Confirm the signal source is connected via Bluetooth or the auxiliary cable is connected to both the source and the MXA46SB28 Weak Output
• Check Bluetooth device volume level.

Unwanted Noise

• Whine that increases and decreases with engine speed - confirm the Amp & Source unit are grounded properly.
• Clicking or popping noise at a rate that follows engine speed - this is often induced by the vehicles ignition system. Confirm that the vehicle is equipped with resistor spark plugs and wires. The ignition system may need service.
• Noise can be caused by routing speaker input wires too close to the light wires and other accessory wires in the vehicle. Re-route wires to avoid unwanted interference.

Red LED is Illuminated

• Speaker or wire is shorted • Battery voltage too low
• Battery voltage too high • Amplifier has overheated due to improper ventilation

If above steps do not improve/reduce noise, the system should be checked by a professional audio installer at a Memphis Authorized Dealer.

SHOW US YOUR INSTALL

WWW.MEMPHISCARAUDIO.USA

@MEMPHISCARAUDIO

@MEMPHISCARAUDIOUSA

CONTACT INFO

122 GAYOSO AVE

MEMPHIS, TN USA 38101

TECH SUPPORT

800-903-6979
