178 - Heating BROAN - Free user manual and instructions

Product Type	Fan-forced wall heater
Model	178
Brand	Broan
Power Rating	1500 W
Voltage	120 V
Heating Capacity	5120 BTU/h
Fan Settings	2 speeds (low/high)
Thermostat	Adjustable built-in thermostat
Dimensions (W x H x D)	10 in x 8 in x 4 in
Weight	4 lb
Mounting Type	Wall-mounted
Safety Features	Overheat protection, tip-over switch
Color	White
Material	Steel and plastic
Certification	UL listed
Warranty	1 year limited
Cleaning	Wipe with dry cloth; vacuum grille
Replacement Parts	Thermostat, fan motor, heating element
Repairability	DIY-friendly with basic tools

Frequently Asked Questions - 178 BROAN

How do I install the Broan 178 heater?

Mount the heater securely on a wall at least 6 inches from the floor and away from curtains. Connect to a 120V circuit following local electrical codes. Use the provided template for screw placement.

Can I use this heater in a bathroom?

No, the Broan 178 is not rated for damp locations. Use only in dry indoor areas.

How do I clean the heater?

Unplug the heater and let it cool. Wipe the exterior with a dry cloth. Use a vacuum with a brush attachment to clean the intake and outlet grilles.

What does the thermostat do?

The adjustable thermostat automatically maintains the desired room temperature by turning the heater on and off. Turn the knob to your preferred setting.

Why is the heater not blowing hot air?

Check that the thermostat is set above room temperature and the fan switch is on. Also ensure the heater is plugged in and the circuit breaker hasn't tripped. If still cold, the heating element may need replacement.

Is the heater noisy?

The fan produces a moderate sound similar to a desk fan. Slight clicking from the thermostat is normal. If loud rattling occurs, check for loose screws or debris.

Can I paint the heater?

Painting is not recommended as it may affect heat dissipation and safety. If desired, use only high-temperature paint and ensure not to cover vents.

What is the power consumption?

At maximum setting, it consumes 1500 watts (12.5 amps at 120V). This provides up to 5120 BTU of heat output.

How do I replace the fan motor?

Disconnect power. Remove the front cover by unscrewing screws. Unplug the fan motor wires, remove mounting screws, and install a compatible replacement. Reassemble in reverse order.

Where can I find the user manual?

Download the free PDF manual from notice-facile.com for detailed instructions and diagrams.

USER MANUAL 178 BROAN

READ AND SAVE THESE INSTRUCTIONS

IMPORTANT INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE INSTALLING OR USING THIS HEATER.

To reduce the risk of fire, electric shock, or injury to persons, observe the following:

1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction codes and standards.
4. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
5. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, etc. and curtains at least 3 feet (0.9 m) from the front of the heater.
6. Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended.
7. Do not operate any heater after it malfunctions. Disconnect power at service panel and have heater inspected by a reputable electrician before reusing.
8. Do not use outdoors.
9. To disconnect heater, turn controls to off, and turn off power to heater circuit at main disconnect panel (or operate internal disconnect switch, if provided).
10. Do not insert or allow foreign objects to enter any ventilation or exhaust opening, as this may cause an electric shock or fire, or damage the heater.
11. To prevent a possible fire, do not block air intakes or exhaust in any manner.
12. A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or flammable vapors or liquids are used or stored.
13. Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
14. Install heater at least 6 inches from floor or any adjacent wall.
15. To avoid electrical shock: Do not install unit in a tub or shower enclosure or any location where it may come in contact with water. Never place a switch where it can be reached from a tub or shower.
16. This product may ONLY be installed horizontally in a wall. Do not mount in any other position.
17. Do not connect heater to dimmer switch or speed control.
18. This product must be grounded.

SAVE THESE INSTRUCTIONS

LEA Y CONSERVE ESTAS INSTRUCCIONES

INSTRUCCIONES

IMPORTANTES

LEA TODAS LAS INSTRUCCIONES ANTES DE INSTALAR O USAR ESTE CALENTADOR.

This heater is intended to be used to supply supplemental heat from a wall location in new or existing construction.

The heater can be operated using its built-in thermostat or a remote thermostat (Broan Model 86W Line-Voltage Thermostat - purchase separately).

Plan to supply the heater with proper line voltage and appropriate power cable.

NOTE: Power can be tapped from a nearby circuit depending on the heater wattage required and the amperage rating of the circuit.

The table below lists the ratings for each model.

MODELS	VOLTS	AMPS	WAT	TS	BTU/HR
170	120	8.33/4.16	1000/500	3413/1707
		240	4.16	1000
		208	3.61	750
174	120	12.5/6.25	1500/750	5120/2560
		240	6.25	1500
		208	5.41	1125
178	240	8.33/4.16	2000/1000	6827/3413
	208	7.21/3.61	1500/750	5120/2560

BOLD ratings are factory wired. See "OPTIONAL WIRING CONVERSIONS" section on page 3 for wattage and voltage conversion instructions.

Heater can be converted to half-wattage to avoid overloading such circuits.

Follow these basic steps when installing this heater.

• Nail housing to studs.
• Connect power cable.
• Fasten heater assembly and grille to housing. (FIG. 1)

PLANIFICACION

WARNING: To reduce the risk of fire, do not store or use gasoline or other flammable vapors and liquids in the vicinity of the heater.

CAUTION: High temperature, risk of fire, keep electrical cords, drapery, furnishings, and other combustibles at least 3 feet (0.9 m) from the front of the heater and away from the side and rear.

1. Remove the retaining screw, unplug wiring harness and lift heater assembly from housing. (FIG. 2)
2. Slide the wiring cover out of housing. (FIG. 3)

(16"-ON-CENTER STUDS ONLY)

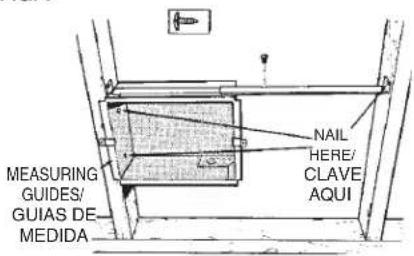

1. Choose which side of housing will be mounted directly to a wall stud. Then, insert a mounting bracket, from the opposite side, into the channel at the top of housing. (FIG. 4)
   NOTE: Locate housing at least 6" from the floor and any adjacent walls.
2. Use measuring guide on side of housing to position housing so that it will be flush with finished wall. Drive two (2) nails through the holes in side of housing and into stud. (FIG. 5)
3. Extend mounting bracket, level housing, and nail to other stud. (FIG. 6)

(24"-ON-CENTER STUDS ONLY)

1. Choose which side of housing will be mounted directly to a wall stud. From this side, push a mounting bracket as far as possible into the channel at the top of housing. (FIG. 4)
   NOTE: Locate housing at least 6" from the floor and any adjacent walls.
2. Use measuring guide on side of housing to position housing so that it will be flush with finished wall. Drive two (2) nails through the holes in side of housing and into stud. (FIG. 5)
3. Secure the two (2) mounting brackets together (with screw supplied). Level housing and nail to opposite stud, as shown. (FIG. 7)

WIRING

Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction codes and standards.

(ALL INSTALLATIONS)

1. Feed electrical power cable through open knockout in corner of housing and attach with appropriate connector. Allow 6" of wire inside of housing.
   NOTE: Use other housing knockout when wiring units in parallel.

2. Connect black to black, white to white, green to green or bare wire. Replace wiring cover. (FIG. 8)

FIG. 2

Technical line drawing of a mechanical device with no visible text or symbols

FIG. 3

Hand holding a container with liquid and a tool, no visible text or symbols

FIG. 4

Hand holding a rectangular device with a grid inside, no visible text or symbols

FIG. 5

FIG. 6

Hand using a tool to lift a wooden box (no text or symbols visible)

FIG. 7

INSTALACION

1. Conversion to half-wattage. (FIGS. 9 & 10) The heater will produce less heat and use less electricity if converted to half-wattage. Disconnect ONE of the two (2) black wires (with insulated terminals) from the motor.

2. 120 VAC to 240 VAC Conversion (FIGS. 11 & 12) (Factory-wired 120 VAC Models 170 and 174 ONLY) These heaters can be converted to operate on 240 VAC.

1) Disconnect ONE of the two (2) black wires (with insulated terminals) from the motor.

2) Disconnect the two (2) white wires (with insulated terminals) from each other. Do not remove the white wire from beneath plastic wire tie.

3) Connect the black wire to the white wire. NOTE: When heater is converted from 120 VAC to 240 VAC, half-wattage conversion is not possible.

COMPLETE INSTALLATION

(NEW CONSTRUCTION)

1. A housing mask has been provided to keep construction dust, drywall spray, paint, etc. from damaging heater.

Bend the flaps on the mask and push it into the heater housing.

NOTE: Mask can be put in place before or after heater assembly is re-installed.

1. Remove mask before operation.

(ALL INSTALLATIONS)

1. Secure heater assembly with retaining screw and plug wiring harness into receptacle.

2. Fasten grille to heater with two (2) screws provided. (FIG. 13)

3. Push knob onto thermostat stem.

4. Turn on power at service entrance. Turn thermostat to its highest setting and make sure heating element and blower come on. Then make sure element and blower shut off at lowest thermostat setting.

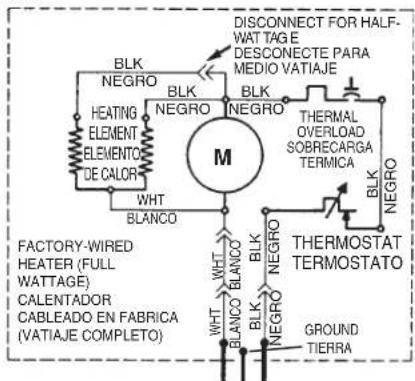

FIG. 9

LINE IN LINEA DE ENTRADA

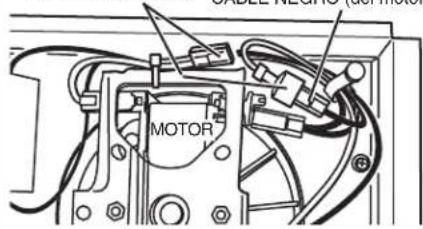

FIG. 10 - HALF-WATTAGE CONVERSION CONVERSIÓN DE MEDIO VATIAJE
(2) BLACK WIRES (connected to motor)
(2) CABLES NEGROS (conectados al motor)

FIG. 11 - 120VAC TO 240VAC CONVERSION CONVERSIÓN DE 120VCA A 240VCA
WHITE WIRES CABLES BLANCOS BLACK WIRE (from motor) CABLE NEGRO (del motor)

FIG. 12

240 VAC LINE IN LINEA DE ENTRADA 240 VCA

FIG. 13

Illustration of a flat panel with ventilation grilles and a screw, alongside a separate view of a screw (no text or symbols)

CONVERSIONES DE CABLEADO OPCIONAL

Before using heater, make sure heater has been properly installed according to installation steps beginning with the "PLANNING" section on page 1.

OPERACIÓN

The following maintenance and cleaning tasks can be performed by the user. All other servicing must be performed by an authorized technician if you have any questions, please consult with our customer service department at: 800-558-1711.

THERMAL OVERLOAD PROTECTOR

If heater fails to operate when thermostat is turned to its highest setting: Turn power off at service entrance. Remove knob and grille and press button marked "RESET".

LUBRICATION

The heater is permanently lubricated and never needs oiling or disassembly.

CLEANING

Clean heater once a month as follows:

1. Turn off power at service panel.

2. Make sure heating element is cool.

3. Use a soft brush attachment to gently vacuum grille openings or wipe grille clean with a soft cloth.

4. Restore power.

CAUTION: METAL AND ELECTRICAL PARTS SHOULD NEVER BE IMMERSED IN WATER.

MANTENIMIENTO

Warranty Period and Exclusions: Broan-NuTone LLC (the "Company") warrants to the original consumer purchaser of its product ("you") that the product (the "Product") will be free from material defects in the Product or its workmanship for a period of one (1) year from the date of original purchase.

The limited warranty period for any replacement parts provided by the Company and for any Products repaired or replaced under this limited warranty shall be the remainder of the original warranty period.

This warranty does not cover speed controls, fluorescent lamp starters, tubes, halogen and incandescent bulbs, fuses, filters, ducts, roof caps, wall caps and other accessories for ducting that may be purchased separately and installed with the Product. This warranty also does not cover (a) normal maintenance and service, (b) normal wear and tear, (c) any Products or parts which have been subject to misuse, abuse, abnormal usage, negligence, accident, improper or insufficient maintenance, storage or repair (other than repair by the Company), (d) damage caused by faulty installation, or installation or use contrary to recommendations or instructions, (e) any Product that has been moved from its original point of installation, (f) damage caused by environmental or natural elements, (g) damage in transit, (h) natural wear of finish, (i) Products in commercial or nonresidential use, or (j) damage caused by fire, flood or other act of God. This warranty covers only Products sold to original consumers in the United States by the Company or U.S. distributors authorized by the Company.

This warranty supersedes all prior warranties and is not transferable from the original consumer purchaser.

No Other Warranties: This Limited Warranty contains the Company's sole obligation and your sole remedy for defective products. The foregoing warranties are exclusive and in lieu of any other warranties, express or implied. THE COMPANY DISCLAIMS AND EXCLUDES ALL OTHER EXPRESS WARRANTIES, AND DISCLAIMS AND EXCLUDES ALL WARRANTIES IMPLIED BY LAW, INCLUDING WITHOUT LIMITATION THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. To the extent that applicable law prohibits the exclusion of implied warranties, the duration of any applicable implied warranty is limited to the period specified for the express warranty above. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Any oral or written description of the Product is for the sole purpose of identifying it and shall not be construed as an express warranty.

Whenever possible, each provision of this Limited Warranty shall be interpreted in such manner as to be effective and valid under applicable law, but if any provision is held to be prohibited or invalid, such provision shall be ineffective only to the extent of such prohibition or invalidity, without invalidating the remainder of such provision or the other remaining provisions of the Limited Warranty.

Remedy: During the applicable limited warranty period, the Company will, at its option, provide replacement parts for, or repair or replace, without charge, any Product or part thereof, to the extent the Company finds it to be covered by and in breach of this limited warranty under normal use and service. The Company will ship the repaired or replaced Product or replacement parts to you at no charge. You are responsible for all costs for removal, reinstallation and shipping, insurance or other freight charges incurred in the shipment of the Product or part to the Company. If you must send the Product or part to the Company, as instructed by the Company, you must properly pack the Product or part—the Company is not responsible for damage in transit. The Company reserves the right to utilize reconditioned, refurbished, repaired or remanufactured Products or parts in the warranty repair or replacement process. Such Products and parts will be comparable in function and performance to an original Product or part and warranted for the remainder of the original warranty period.

Exclusion of Damages: THE COMPANY'S OBLIGATION TO PROVIDE REPLACEMENT PARTS, OR REPAIR OR REPLACE, AT THE COMPANY'S OPTION, SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY AND THE COMPANY'S SOLE AND EXCLUSIVE OBLIGATION. THE COMPANY SHALL NOT BE LIABLE FOR INCIDENTAL, INDIRECT, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE PRODUCT, ITS USE OR PERFORMANCE.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state.

This warranty covers only replacement or repair of defective Products or parts thereof at the Company's main facility and does not include the cost of field service travel and living expenses.

Any assistance the Company provides to or procures for you outside the terms, limitations or exclusions of this limited warranty will not constitute a waiver of such terms, limitations or exclusions, nor will such assistance extend or revive the warranty.

The Company will not reimburse you for any expenses incurred by you in repairing or replacing any defective Product, except for those incurred with the Company's prior written permission.

How to Obtain Warranty Service: To qualify for warranty service, you must (a) notify the Company at the address or telephone number stated below within seven (7) days of discovering the covered defect, (b) give the model number and part identification and (c) describe the nature of any defect in the Product or part. At the time of requesting warranty service, you must present evidence of the original purchase date. If you cannot provide a copy of the original written limited warranty, then the terms of the Company's most current written limited warranty for your particular product will control. The most current limited written warranties for the Company's products can be found at www.broan.com.

Broan-NuTone LLC 926 West State Street, Hartford, WI 53027 www.broan.com 800-637-1453

Garantía limitada

Broan-NuTone LLC 926 West State Street, Hartford, WI 53027 www.broan.com 800-637-1453

SERVICE PARTS

FAN-FORCED WALL HEATERS

PIEZAS DE SERVICIO

CALENTADOR DE PARED IMPUSADO POR VENTILADORS

KEY NO.	PART NUMBER	DESCRIPTION	DESCRIPCION
NUMERO NUMERO DE
DE CODIGO	PIEZAS
2	98003036	Mounting Bracket (2 Required)		Soporte de montaje (se requieren 2)
3	99260512	#8-18 Sheet Metal Nut (2 Required)		Tuerca de chapa metálica #8-18 (se requieren 2)
5	97005422	Receptacle Assembly		Conjunto del enchufe
6	98006975	Wiring Cover		Cubierta del cableado
7		99020130 Blower Wheel		Rueda del soplador
8	99080248	Motor (Models 170 & 174)		Motor (Modelos 170 & 174)
		99080252 Motor (Model 178)		Motor (Modelo 178)
9	99270735	Tab Adaptor		Adaptador de lengua
10		99030194 Thermal Overload		Sobrecarga térmica
	11	99271091 Guard		Dispositivo de protección
12		98006974 Element Bracket		Soporte del elemento
13		99150491 Screw, #8-18 x 3/8 Ph. Pan Head (7 Required)		Tornillo, cabeza de chanfle #8-18 x 3/8 (se requieren 7)
14		99270741 Heating Element (Model 170)		Elemento de calor (Modelo 170)
		99270725 Heating Element (Model 174)		Elemento de calor (Modelo 174)
		99270742 Heating Element (Model 178)		Elemento de calor (Modelo 178)
15		93270619 Wire Clamp		Sujetador del alambre
	16	97008682 Partition Plate Assembly		Equipo de placa de partición
17		99260428 Nut, #6-32 x 5/16 Keps (2 Required)		Tuerca, keps #6-32 x 5/16 (se requieren 2)
	18	97008675 Plug Assembly		Conjunto del enchufe
	19	97008677 Thermostat Wire Assembly		Conjunto de cableado del termostato
	20	97008678 Overload Wire Assembly		Conjunto de cableado de la sobrecarga
	21	99030191 Thermostat		Termostato
22		98006973 Thermostat Bracket		Soporte de termostato
23		99260464 Lock Nut		Contratuerca
24		99150533 Screw, #8-18 x 5/8 Ph. Pan Head		Tornillo, cabeza chanfle . #8-18 x 5/8
	25	98006970 Grille		Rejilla
26		99150528 Grille Screw (2 Required)		Tornillo de rejilla (se requieren 2)
	27	99360135 Knob		Perilla
28		99090681 Grille Logo		Logotipo de la rejilla
	29	93270493 Wire Tie		Enlace de cable
	30	99150470 Screw, #8-18 x 3/8 Ph. Truss Hd.		Tornillo, cabeza "truss" 8-18 x 3/8 (se requieren 2)
