USER MANUAL RAK-CH24PCAST HITACHI

INDOOR UNIT

RAK-DH10PCAST

RAK-DH13PCAST

OUTDOOR UNIT

RAC-DH10PCAST

RAC-DH13PCAST

EN INSTRUCTION MANUAL

TH USER MANUAL

Access the full version

of the User Operation Manual by

scanning the code.

https://docs.hitachiaircon.com/

RAK-DH-PCAST-RAC-DH-PCAST

Cooling & Heating

SAFETY PRECAUTION

- Please read the "Safety Precaution" carefully before operating the unit to ensure correct usage of the unit.

- Pay special attention to signs of "Warning" and "Caution". The "Warning" section contains matters which, if not observed strictly, may cause death or serious injury. The "Caution" section contains matters which may result in serious consequences if not observed properly. Please observe all instructions strictly to ensure safety.

- The signs indicate the following meanings.

Make sure to connect earth line.	The sign in the fi gure indicates prohibition.
Indicates the instructions that must be followed.

WARNING	This symbol shows that this equipment uses a flammable refrigerant.If the refrigerant is leaked, together with an external ignition source, there is a possibility of ignition.
CAUTION	This symbol shows that the Operation Instructions should be read carefully.
CAUTION	This symbol shows that a service personnel should be handling this equipment with reference to the Installation Manual.
CAUTION	This symbol shows that there is information included in the Operation Manual and/or Installation Manual

- Please keep this manual after reading.

PRECAUTIONS DURING INSTALLATION

	Do not reconstruct the unit.Water leakage, fault, short circuit or fire may occur if you reconstruct the unit by yourself.
	Please ask your sales agent or qualified technician for the installation of your unit. Water leakage, short circuit or fire may occur if you install the unit by yourself.
	Please use earth line.Do not place the earth line near water or gas pipes, lightning-conductor, or the earth line of telephone. Improper installation of earth line may cause electric shock.
	Be sure to use the specified piping set for R32. Otherwise, this may result in broken copper pipes or faults.
	Do not use refrigerant other than the one indicated on the outdoor unit (R32) when installing, moving or repairing.Using other refrigerants may cause trouble or damage to the unit, and personal injury.
CAUTION	A circuit breaker should be installed depending on the mounting site of the unit. Without a circuit breaker, the danger of electric shock exists.
	Do not install near location where there is flammable gas. The outdoor unit may catch fire if flammable gas leaks around it.
	Please ensure smooth flow of water when installing the drain hose.
	Do not install the indoor unit in a machine shop or kitchen where vapor from oil or its mist flows to the indoor unit.The oil will deposit on the heat exchanger, thereby reducing the indoor unit performance and may deform and in the worst case, break the plastic parts of the indoor unit.

PRECAUTIONS DURING SHIFTING OR MAINTENANCE

WARNING

Should abnormal situation arises (like burning smell), please stop operating the unit and turn off the circuit breaker. Contact your agent. Fault, short circuit or fire may occur if you continue to operate the unit under abnormal situation. Please contact your agent for maintenance. Improper self maintenance may cause electric shock and fire.Please contact your agent if you need to remove and reinstall the unit. Electric shock or fire may occur if you remove and reinstall the unit yourself improperly.If the supply cord is damaged, it must be replaced by the special cord obtainable at authorized service/parts centers.If the air conditioner is not cool, one possible cause could be due to refrigerant leakage, so consult your dealer.The refrigerant gas used in the air conditioner is harmless, But if refrigerant gas leaks into the room, harmful products are generated when in contact with fire from appliances such as a stove heater.When there is refrigerant gas accumulation in the room, immediately stop the air conditioner. Open the windows for ventilation and contact your agent.

PRECAUTIONS DURING OPERATION

● Avoid an extended period of direct air flow for your health.
	● Do not insert a finger, a rod or other objects into the air outlet or inlet. As the fan is rotating at a high speed, it will cause injury. Before cleaning, be sure to stop the operation and turn the breaker OFF.
● Do not use any conductor as fuse wire, this could cause fatal accident.
	● During thunder storm, disconnect and turn off the circuit breaker.
● Spray cans and other combustibles should not be located within a meter of the air outlets of both indoor and outdoor units.As a spray can's internal pressure can be increased by hot air, a rupture may result.		[TAEX]

PRECAUTIONS DURING OPERATION

- The product shall be operated under the manufacturer specification and not for any other intended use.

- Do not attempt to operate the unit with wet hands, this could cause fatal accident.

- When operating the unit with burning equipments, regularly ventilate the room to avoid oxygen insufficiency.

- Do not direct the cool air coming out from the air-conditioner panel to face household heating apparatus as this may affect the working of apparatus such as the electric kettle, oven etc.

- Please ensure that outdoor mounting frame is always stable, firm and without defect. If not, the outdoor unit may collapse and cause danger.

- Do not splash or direct water to the body of the unit when cleaning it as this may cause short circuit.

- Do not use any aerosol or hair sprays near the indoor unit. This chemical can adhere on heat exchanger fin and blocked the evaporation water flow to drain pan. The water will drop on tangential fan and cause water splashing out from indoor unit.

- Please switch off the unit and turn off the circuit breaker during cleaning, the high-speed fan inside the unit may cause danger.

- Turn off the circuit breaker if the unit is not to be operated for a long period.

- Do not climb on the outdoor unit or put objects on it.

- Do not put water containers (like vases) on the indoor unit to avoid water dripping into the unit. Dripping water will damage the insulator inside the unit and cause short-circuits.

- Do not place plants directly under the air flow as it is bad for the plants.

• When operating the unit with the door and windows opened (the room humidity is always above 80%) and with the air deflector facing down or moving automatically for a long period of time, water will condense on the air deflector and drip down occasionally. This will wet your furniture. Therefore, do not operate under such conditions for a long time.
• If the amount of heat in the room is above the cooling or heating capability of the unit (for example: more people entering the room, using heating equipment, etc.), the preset room temperature cannot be achieved.
• This appliance is not intended for use by persons (including children) who are physically handicapped, sensory or mental, or lack of experience and knowledge, unless supervised or instructed on the use of electrical appliances by persons responsible for their safety.

NAMES AND FUNCTIONS OF EACH PART

INDOOR UNIT

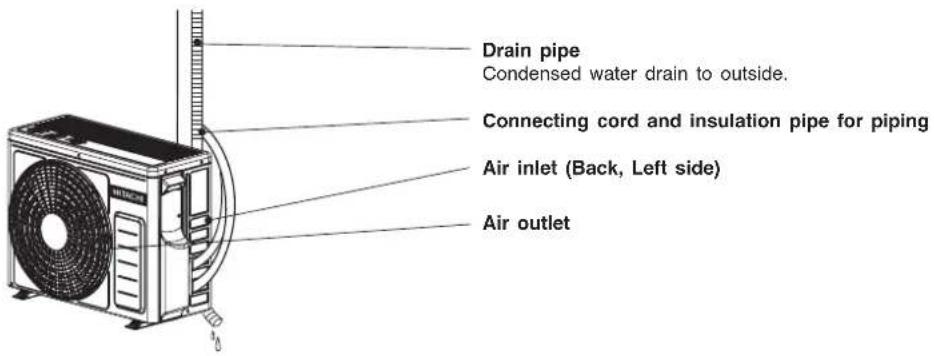

OUTDOOR UNIT

MODEL NAME AND DIMENSIONS

INDOOR UNIT INDICATIONS

CAUTION

Turn off the circuit breaker if the unit is not to be operated for a long period.

Temporary Switch

Use this switch to start and stop when the remote controller does not work.

• By pressing the temporary switch, the operation is done in automatic mode.
• When the operation is done using the temporary switch after the power source is turned off and turn on again, the operation is done in automatic mode.

NAMES AND FUNCTIONS OF REMOTE CONTROLLER

This remote controller controls the operation and timer setting of the room air conditioner. The operating range of the remote controller from the indoor unit is 7m. If indoor lighting is used, the range may be shorter.

Precautions for Use

• Do not put the remote controller under direct sunlight and high temperature.
• Do not drop it on the floor, and protect it from water.
• If you press the FUNCTION button during operation, the air conditioner may stop for about 3 minutes for protection before you can start it again.

INFORMATION

Capabilities

CAUTION

Do not use a stove or any other high temperature devices in proximity to the indoor unit.

PROHIBITION

Cooling and Dehumidifying Capabilities

- If the heat present in a room exceeds the unit's cooling capacity (for example, if there are many people in the room or other heating appliances are used), the preset room temperature may not be reached.

Refrigerant Information

- For the refrigerant charge information, please refer to the outdoor unit installation manual or specification label.

Suitable Room Temperature

Warning

Freezing temperature is bad for health and a waste of electric power.

Ventilation

Caution

Do not close the room for a long period of time. Occasionally open the door and windows to allow the entrance of fresh air.

Effective Usage Of Timer

At night, please use the "OFF or ON timer or SLEEP timer operation mode", together with your wake up time in the morning. This will enable you to enjoy a comfortable room temperature. Please use the timer effectively.

Install curtain or blinds

It is possible to reduce heat entering the room through windows.

Do Not Forget To Clean The Pre-Filter

Dusty air filter will reduce the air volume and the cooling efficiency. To prevent from wasting electric energy, please clean the filter every 2 weeks.

Please Adjust Suitable Temperature For Baby And Children

Please pay attention to the room temperature and air flow direction when operating the unit for baby, children and old folks who have difficulty in movement.

FOR USER'S INFORMATION

The Air Conditioner And The Heat Source In The Room

Caution

If the amount of heat in the room is above the cooling capability of the air conditioner (for example: more people entering the room, using heating equipments and etc.), the preset room temperature cannot be achieved.

Not Operating For A Long Time

When the indoor unit is not to be used for a long period of time, please switch off the power from the mains. If the power from mains remains "ON", the indoor unit still consumes about 3W in the operation control circuit even if it is in "OFF" mode.

When Lightning Occurs

Warning

To protect the whole unit during lightning, please stop operating the unit and remove the plug from the socket.

Interference From Electrical Products

Caution

To avoid noise interference, please place the indoor unit and its remote controller at least 1m away from electrical products.

ATTACHING THE AIR PURIFYING FILTERS

Open the front panel

- Pull up the front panel by holding it at both sides with both hands.

Remove the Pre-filter

- Push upward to release the claws and pull out the Pre-filter.

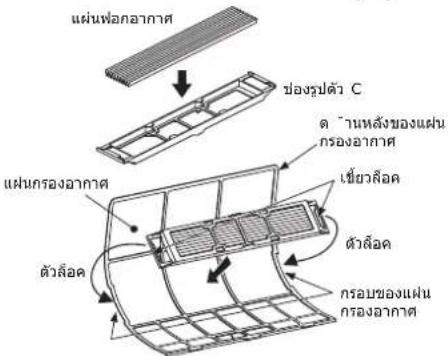

Attaching the air purifying filters (Accessories) to the filter frame.

• Attach the air purifying filters to the C-case to the designated position.
• The cooling capacity is slightly weakened and the cooling speed becomes slower when the air purifying filters are used.
• The air purifying filters are not washable. It is recommended to use vacuum to clean. They can be used for 1 year. When you want to renew them, please ask your sales agent.

Air purifying filter

CAUTION

Do not bend the air purifying filter as it may cause damage to the structure.

Please do not smell directly from the source of the filter.

Insert the hook into the hole

Attach the Pre-filters

• Attach the Pre-filters by ensuring that the surface written "FRONT" is facing front. ● After attaching the Pre-filters, push the front panel at three arrow portions as shown in the figure and close it.

NOTE

• In case of removing the air purifying filters, please follow the above procedures.
• The cooling capacity is slightly weakened and the cooling speed becomes slower when the air purifying filters are used. So, set the fan speed to "HIGH" when using it in this condition.
• Air purifying filters are not washable. It is recommended to use vacuum to clean it. It can be used for 1 year time. Type number for this air purifying filter is . Please use this number for ordering when you want to renew it.
• Do not use detergent on the air purifying filter as some detergent may deteriorate the air purifying filter electrostatic performance.

MAINTENANCE

CAUTION

Before cleaning, stop operation and switch off the power supply.

1. PRE-FILTER

Clean the Pre-filter, as it removes dust inside the room. In case the Pre-filter is full of dust, the air flow will decrease and the cooling capacity will be reduced. Further, noise may occur. Be sure to clean the Pre-filter following the procedure below.

PROCEDURE

Open the front panel and remove the Pre-filter ● Gently lift and remove the air purifying filters from the air purifying filter frame.

Vacuum dust from the Pre-filter and air purifying filter using vacuum cleaner. If there is too much dust, rinse under running tap water and gently brush it with soft bristle brush. Allow filters to dry in shade.

insert the hook to the hole

- Re-insert the air purifying filter to the filter frame. Set the Pre-filter with "FRONT" mark facing front, and slot them into the original state. - After attaching the Pre-filters, push the front panel at three arrow portions as shown in figure and close it.

CAUTION

• Do not wash with hot water at more than 40°C. The pre-filters may shrink.
• When washing it, shake off moisture completely and dry it in the shade; do not expose it directly to the sun. The pre-filters may shrink.
• Do not use detergent on the pre-filter as some detergent may deteriorate the pre-filter electrostatic performance.

2. CLEANING OF FRONT PANEL

• Remove the front panel and wash with clean water. Wash it with a soft sponge. After using neutral detergent, wash thoroughly with clean water.
• When front panel is not removed, wipe it with a soft dry cloth. Wipe the remote controller thoroughly with a soft dry cloth.
• Wipe the water thoroughly. If water remains at indicators or signal receiver of indoor unit, it causes trouble.

Method of removing the front panel.

Be sure to hold the front panel with both hands to detach and attach it.

Removing the Front Panel Attaching the Front Panel

- When the front panel is fully opened with both hands, push the right arm to the outside to release it, and while closing the front panel slightly, pull it out forward.

- Move the projections of the left and right arms into the flanges in the unit and securely insert them into the holes.

CAUTION

Never use hot water (above 40°C), benzine, gasoline, acid, thinner or a brush, because they will damage the plastic surface and the coating.

WIRING ARRANGEMENT

CAUTION

- Please use earth line.

Do not place the earth line near water or gas pipes, lightning-conductor, or the earth line of telephone. Improper installation of earth line may cause electric shock

- A circuit breaker should be installed depending on the mounting site of the unit. Without a circuit breaker, the danger of electric shock exists.

IMPORTANT

The wires in this mains lead are coloured in accordance with the following code:

Green-and-yellow : Earth

Blue : Neutral

Brown : Live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol ↓ or coloured green or green-and-yellow.

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

NOTE

If the supply cord is damaged, it must be replaced by the special cord obtainable at authorized service/parts centers.

CAUTION

Cleaning and maintenance must be carried out only by qualified service personnel. Before cleaning, stop operation and switch off the power supply.

FROSTWASH OPERATION

FrostWashOperation does not start	It does not wash when outside temperature is less than about 21°C or more than 43°C.When "FrostWash" is done by operating a remote controller, it does not wash when the room temperature is less than about 21°C or more than about 32°C.
	When 60 minutes after the end of "FrostWash", "FrostWash" is not operated for product protection.
Noise occurred during FrostWash operation	It is the sound that the internal machine is inflated and contracted by the temperature change and the fin of the heat exchanger is frozen and thawed
(Clean Function Lamp) blinks	Repeat for 1 second on and 1 second off for 10 secondsBecause "FrostWash" can not work when operating the "FrostWash" with remote controller.The air conditioner is operatingOutside air temperature, room temperature and room humidity are not suitable for "FrostWash"It has not been over 60 minutes since the end of "FrostWash"
	Repeat for 4 seconds on and 1 second off for 15 secondsBecause FrostWash has not been done for a long time.→Operate the remote controller to operate "FrostWash".

Mold Guard Operation

Mold Guard operation does not start	If the air conditioner has operated in cooling and drying mode, including auto mode, for less than 10 minutes, the Mold Guard operation will not start even if the air conditioner is in off mode.If operation of the air conditioner is stop by OFF Timer or GoodSleep Timer, the Mold Guard will not operate.If ON Timer is set and on time is within about 2 hours, the Mold-Guard will not operate.
During Mold Guard	(Clean Function Lamp) on the indoor unit lights up during Mold Guard operation. If Mold Guard operation stop at middle point, FrostWash and Filter sign indicator will turn off.
Notes	The horizontal defi ector remain open.Room temperature or humidity may rise.Depending on situation, Mold Guard will operate with Fan Mode.When there would be the window near indoor unit, the water might condense on the window during Mold Guard. If necessary, to cancel Mold Guard.When after FrostWash operation, the water inside the indoor unit evaporates and depending on the room conditions, may emitted as steam. But this is not a malfunction. If necessary, to cancel Mold-Guard.

■ The following phenomena do not indicate unit failure.

Hissing or fi zzy sounds	Refrigerant fl ow noise in the pipe or valve sound generated when fl ow rate is adjusted.
Squeaking noise	Noise generated when the unit expands or contracts due to temperature changes.
Rustling noise	Noise generated with the indoor unit fan's rpm changing such as operation start times.
Clicking noise	Noise of the motorized valve when the unit is switched on.
Perking noise	Noise of the ventilation fan sucking in air present in the drain hose and blowing out dehumidifying water that had accumulated in the condensed water collector. For details, consult your sales agent.
Changing operation noise	Operation noise changes due to power variations according to room temperature changes.
Mist emission	Mist is generated as the air within the room is suddenly cooled by conditioned air.
Odors	Caused as the smells and particles of smoke, food, cosmetics, etc. present in room air become attached the unit and blown off into the room again.
Does not reach the temperature setting	Actual room temperature may deviate slightly from the remote controller's temperature setting depending on the number of people in the room, indoor or outdoor conditions.

REGULAR INSPECTION

PLEASE CHECK THE FOLLOWING POINTS BY QUALIFIED SERVICE PERSONNEL EITHER EVERY HALF YEARLY OR YEARLY. CONTACT YOUR SALES AGENT OR SERVICE SHOP.

1		Is the earth line disconnected or broken?
2		Is the mounting frame seriously affected by rust and is the outdoor unit tilted or unstable?
3		Is the plug of power line firmly plugged into the socket?(Please ensure no loose contact between them).

If the unit still fails to operate normally after performing the above inspections, turn the circuit breaker off and contact your sales agent immediately.

Contact your sales agent immediately if the following phenomena should occur

• The circuit breaker switches off or the fuse blows frequently.
• The switch operation is not stable.
• Foreign matter or water accidentally enters the unit interior.
• The power cord gets excessively hot or its insulation is torn or stripped.
• TIMER lamp on the indoor unit display blinks. (As the nature of the failure can be identified by the blinking cycle, check the blinking cycle before turning off the circuit breaker.)

AFTER SALE SERVICE AND WARRANTY

WHEN ASKING FOR SERVICE, CHECK THE FOLLOWING POINTS

CONDITION	CHECK THE FOLLOWING POINTS
If the remote controller is not transmitting a signal.Remote controller display is dim or blank.)	Do the batteries need replacement?Is the polarity of the inserted batteries correct?
When it does not cool well	Is the fuse all right?Is the voltage extremely high or low?Is the circuit breaker “ON”?Is the setting of operation mode different from other indoor units?Is the pre-filter blocked with dust?Does sunlight fall directly on the outdoor unit?Is the air flow of the outdoor unit obstructed?Are the doors or windows opened, or is there any source of heat in the room?Is the set temperature suitable?Are the air inlets or air outlets of indoor and outdoor units blocked?Is the fan speed “LOW” or “SILENT”?

Please contact your sales agent immediately if the air conditioner still fails to operate normally after the above inspections. Inform your agent of the model of your unit, serial number, and date of installation. Also inform him regarding the fault.

Please note:

On switching on the equipment, particularly when the room light is dimmed, a slight brightness fluctuation may occur. This is of no consequence.

The conditions of the local Power Supply Companies are to be observed.

Note

- Avoid using the room air conditioner for cooling operation when the outside temperature is below 21°C (70°F).

The recommended maximum and minimum operating temperatures of the hot and cold sides should be as below:

		Minimum	Maximum
Indoor DryWet bulb	bulb °C 21 32
	°C 15 23
OutdoorWet bulb	Dry bulb °C 21 46
	°C 15 26

RAC-DH10PCAST

RAC-DH13PCAST

EN INSTRUCTION MANUAL

TH USER MANUAL

PRECAUTIONS
