USER MANUAL CSP2940HQ WHIRLPOOL

Free Standing Appliance

SAMSUNG

Contents

Safety information 4

What you need to know about the safety instructions 4

Important safety symbols and precautions: 6

Important safety precautions 7

Severe warning signs for transportation and site 10

Critical installation warnings 11

Installation cautions 14

Critical usage warnings 14

Usage cautions 19

Cleaning cautions 21

Critical disposal warnings 23

Additional tips for proper usage 24

Instructions about the WEEE 25

Installation 26

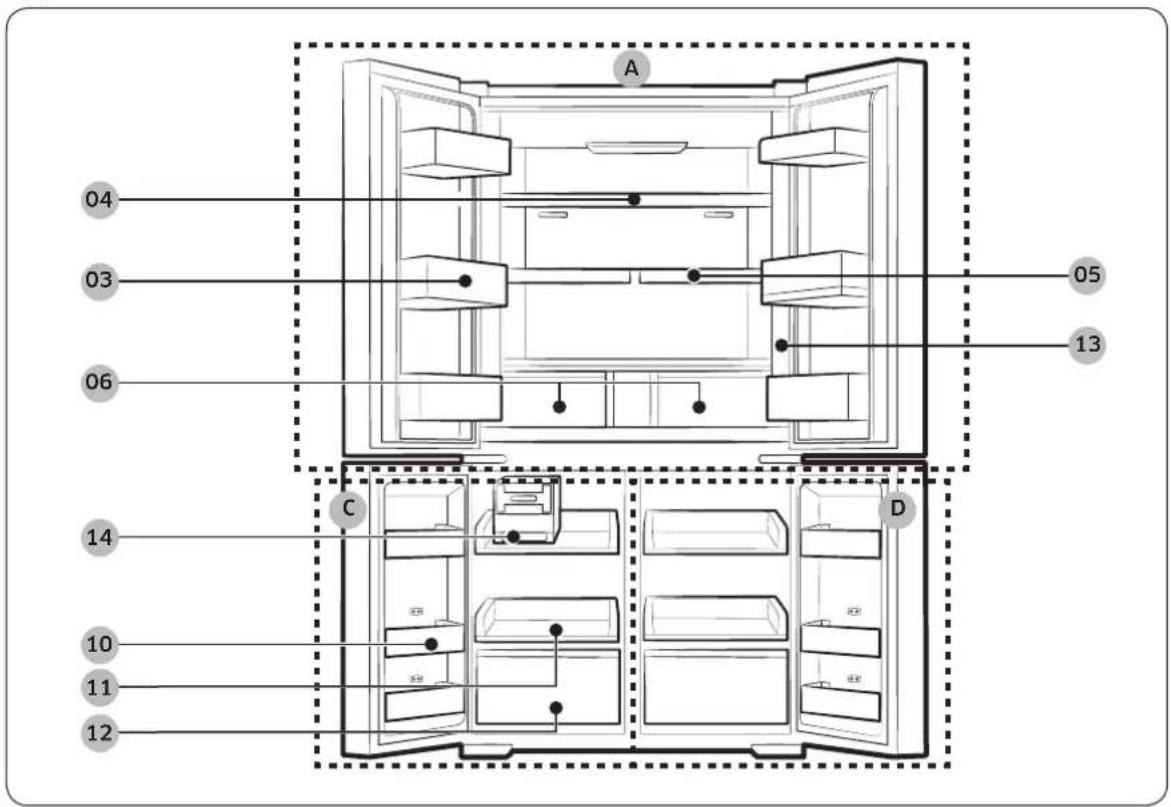

Refrigerator at a glance 27

Step-by-step installation 31

Operations 49

Control panel 49

SmartThings 53

Special features 56

Maintenance 63

Handling and care 63

Cleaning 67

Replacement 68

Troubleshooting 71

General 71

Do you hear abnormal sounds from the refrigerator? 75

SmartThings 77

Open Source Announcement 78

English2

Appendix 79

Safety Instruction 79

Install Instruction 79

Temperature Instruction 80

Information for model and ordering spare parts 83

Safety information

Before using your new Samsung Refrigerator, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers safely and efficiently.

What you need to know about the safety instructions

• Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your appliance.
• Because these following operating instructions cover various models, the characteristics of your refrigerator may differ slightly from those described in this manual and not all warning signs may be applicable. If you have any questions or concerns, contact your nearest service center or find help and information online at www.samsung.com.
• R-600a or R-134a is used as a refrigerant. Check the compressor label on the rear of the appliance or the rating label inside the fridge to see which refrigerant is used for your appliance. When this product contains flammable gas (Refrigerant R-600a), contact your local authority in regard to safe disposal of this product.
• In order to avoid the creation of a flammable gas-air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be sited depends on the amount of refrigerant used.
• Never start up an appliance showing any signs of damage. If in doubt, consult your dealer. The room must be 1m^3 in size for every 8 g of R-600a refrigerant inside the appliance. The amount of refrigerant in your particular appliance is shown on the identification plate inside the appliance.

English4

- Refrigerant squirting out of the pipes could ignite or cause an eye injury. When refrigerant leaks from the pipe, avoid any naked flames and move anything flammable away from the product and ventilate the room immediately.

- Failing to do so may result in fire or explosion.

- To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making icecream and making ice cubes.
• One-, two- and three-star compartments are not suitable for the freezing of fresh food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Safety information

Important safety symbols and precautions:

Please follow all safety instructions in this manual. This manual uses the following safety symbols.

WARNING

Hazards or unsafe practices that may result in severe personal injury, property damage, and/or death.

CAUTION

Hazards or unsafe practices that may result in severe personal injury and/or property damage.

NOTE

Useful information that helps users understand or benefit from the refrigerator.

These warning signs are here to prevent injury to you and others.

Please follow them carefully.

After reading this section, keep it in a safe place for future reference.

English6

Important safety precautions

Warning; Risk of fire / flammable materials

WARNING

• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
• Fill with potable water only.
• Connect to potable water supply only.
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or any other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or those who lack experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

Safety information

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• The socket must be easily accessible so that the appliance can be quickly disconnected from the supply in an emergency.
• It must be outside the area of the rear of the appliance.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• If the product is equipped with LED lamps, do not disassemble the Lamp Covers and LED lamps yourself.
• Contact a Samsung service center.
• Use only the LED Lamps provided by the manufacturer or its service agents.
• New hose-sets supplied with the appliance are to be used and old hose-sets should not be reused.
• Have the refrigerator's water supply connected only to a potable water supply. To operate the ice maker properly, water pressure of 206-861 kPa (30-125 psi) is required.
• For the most efficient use of energy, please keep the all inner fittings such as baskets, drawers, shelves on the position supplied by manufacturer.

English8

- To get the best energy efficiency of this product, please leave all shelves, drawers and baskets on their original position.

How to minimize the energy consumption

• Install the appliance in a cool, dry room with adequate ventilation.
- Ensure that it is not exposed to direct sunlight and never put it near a direct source of heat (radiator, for example).

• Not to block any vents or grilles is recommended for energy efficiency.
• Allow warm food to cool down before placing it in the appliance.
• Put frozen food in the refrigerator to thaw. You can then use the low temperatures of the frozen products to cool food in the refrigerator.
• Do not keep the door of the appliance open for too long when putting food in or taking food out.
• The shorter time for which the door is open, the less ice will form in the freezer.

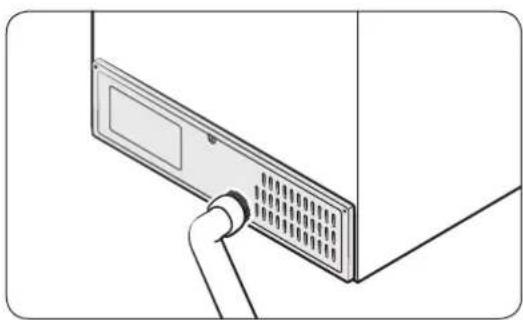

• Clean the rear of the refrigerator regularly. Dust increases energy consumption.
• Do not set temperature colder than necessary.
• Ensure sufficient air exhaust at the refrigerator base and at the back wall of the refrigerator. Do not cover air vent openings.
• Allow clearance to the right, left, back and top when installing. This will help reduce power consumption and keep your energy bills lower.

Safety information

This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

Severe warning signs for transportation and site

WARNING

- When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged.

- Refrigerant leaking from the pipe work could ignite or cause an eye injury. If a leak is detected, avoid any naked flames or potential sources of ignition and air the room in which the appliance is standing for several minutes.

- This appliance contains a small amount of isobutane refrigerant (R-600a), a natural gas with high environmental compatibility that is, however, also combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged.

- When transporting and installing the refrigerator, do not touch the water hose on the back side of the refrigerator.

- This may damage the refrigerator and as a result the water dispenser can not be used.

English10

Critical installation warnings

WARNING

• Do not install the refrigerator in a damp location or place where it may come in contact with water.
• Deteriorated insulation on electrical parts may cause an electric shock or fire.
• Do not place this refrigerator in direct sunlight or expose it to the heat from stoves, room heaters, or other appliances.
• Do not plug several appliances into the same multiple power strip. The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the voltage listed on the refrigerator's rating plate.

- This provides the best performance and also prevents overloading of house wiring circuits, which could cause a fire hazard from overheated wires.

- If the wall socket is loose, do not insert the power plug.

- There is a risk of electric shock of fire.

- Do not use a power cord that has cracks or abrasion damage along its length or at either end.

- Do not bend the power cord excessively or place heavy objects on it.

- Do not pull or excessively bend the power cord.

- Do not twist or tie the power cord.

- Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power cord between objects, or push the power cord into the space behind the appliance.

- When moving the refrigerator, be careful not to roll over or damage the power cord.

- This may result in an electric shock or fire.

Safety information

- Never unplug your refrigerator by pulling on the power cord. Always grip the plug firmly and pull straight out from the outlet.

- Damage to the cord may cause a short-circuit, fire, and/or electric shock.

- Do not use aerosols near the refrigerator.

- Using aerosols near the refrigerator may cause an explosion or fire.

- Do not install this appliance near a heater or inflammable material.

- Do not install this appliance in a location where gas may leak.

- This may result in an electric shock or fire.

- This refrigerator must be properly located and installed in accordance with the instructions in this manual before you use it.

- Connect the power plug in the proper position with the cord hanging down.

- If you connect the power plug upside down, the wire can get cut off and cause a fire or electric shock.

- Make sure that the power plug is not crushed or damaged by the back of the refrigerator.

- Keep the packing materials out of reach of children.

- There is a risk of death from suffocation if a child puts the packing materials on his or her head.

- Do not install this appliance in a humid, oily or dusty location, in a location exposed to direct sunlight and water (rain drops).

- Deteriorated insulation of electrical parts may cause an electric shock or fire.

- If any dust or water is in the refrigerator, pull out power plug and contact your Samsung Electronics service center.

- Otherwise there is a risk of fire.

English12

- Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.

- This may result in an electric shock, fire, problems with the product, or injury.

- You need to remove all the protective plastic film before you initially plug the product in.

- Children should be supervised to ensure that they do not play with the snap rings used for door adjustment or the water tube clips.

- There is risk of death by suffocation if a child swallows a snap ring or water tube clip. Keep the snap rings and water tube clips out of children's reach.

- The refrigerator must be safely grounded.

- Always make sure that you have grounded the refrigerator before attempting to investigate or repair any part of the appliance. Power leakages can cause severe electric shock.

- Never use gas pipes, telephone lines, or other potential lightning attractors as an electrical ground.

- You must ground the refrigerator to prevent any power leakages or electric shocks caused by current leakage from the refrigerator.

- This may result in an electric shock, fire, explosion, or problems with the product.

- Plug the power plug into the wall socket firmly. Do not use a damaged power plug, damaged power cord, or loose wall socket.

- This may result in an electric shock or fire.

- The fuse on the refrigerator must be changed by a qualified technician or service company.

- Failing to do so may result in an electric shock or personal injury.

Safety information

Installation cautions

CAUTION

• Allow sufficient space around the refrigerator and install it on a flat surface.
• If your refrigerator is not level, cooling efficiency and durability can be declined.
• Allow the appliance to stand for 2-3 hours before loading foods after installation and turning on.
• We strongly recommend you have a qualified technician or service company install the refrigerator.
• Failing to do so may result in an electric shock, fire, explosion, problems with the product, or injury.

Critical usage warnings

WARNING

• Do not insert the power plug into a wall socket with wet hands.
• This may result in an electric shock.
• Do not store articles on the top of the appliance.
• When you open or close the door, the articles may fall and cause personal injury and/or material damage.
• Do not insert hands, feet or metal objects (such as chopsticks, etc.) into the bottom or the back of the refrigerator.
• This may result in an electric shock or injury.
• Any sharp edges may cause a personal injury.
• Do not touch the inside walls of the freezer or products stored in the freezer with wet hands.
• This may cause frostbite.
• Do not put a container filled with water on the refrigerator.
• If spilled, there is a risk of fire or electric shock.

English14

- Do not keep volatile or flammable objects or substances (benzene, thinner, propane gas, alcohol, ether, LP gas, and other such products) in the refrigerator.

• This refrigerator is for storing food only.
• This may result in fire or explosion.

- Children should be supervised to ensure that they do not play with the appliance.

- Keep fingers out of “pinch point” areas. Clearances between the doors and cabinet are necessarily small. Be careful when you open the doors if children are in the area.

- Do not put your fingers or children's fingers between the doors.

- Keep fingers out of the left and right door gaps. Be careful when you open the doors if your fingers are in between the doors.

• Do not let children hang on the door or door bins. A serious injury may occur.
• Do not let children go inside the refrigerator. They could become trapped.
• Do not insert your hands into the bottom area under the appliance.
• Any sharp edges may cause personal injury.
• Do not store pharmaceutical products, scientific materials, or temperature sensitive products in the refrigerator.

- Products that require strict temperature controls must not be stored in the refrigerator.

- If you smell pharmaceutical or smoke, pull out power plug immediately and contact your Samsung Electronics service center.

- If any dust or water is in Refrigerator, pull out power plug and contact your Samsung Electronics service center.

- Otherwise there is a risk of fire.

Safety information

• Do not let children step on a drawer.
• The drawer may break and cause them to slip.
• Do not leave the doors of the refrigerator open while the refrigerator is unattended and do not let children enter inside the refrigerator.
• Do not allow babies or children go inside the drawer.
• It can cause death from suffocation by entrapment or personal injury.
• Do not overfill the refrigerator with food.
• When you open the door, an item may fall out and cause personal injury or material damage.
• Do not spray volatile material such as insecticide onto the surface of the appliance.
• As well as being harmful to humans, it may also result in an electric shock, fire, or problems with the product.
• Never put fingers or other objects into the water dispenser hole, ice chute and ice maker bucket.
• It may cause a personal injury or material damage.
• Do not use or place any substances sensitive to temperature such as flammable sprays, flammable objects, dry ice, medicine, or chemicals near or inside of the refrigerator.
• Do not use a hair dryer to dry the inside of the refrigerator. Do not place a lighted candle in the refrigerator for removing bad odours.
• This may result in an electric shock or fire.
• Fill the water tank, ice tray and water cubes only with potable water (mineral water or purified water).
• Do not fill the tank with tea, juice or sports drink, this may damage the refrigerator.

English16

- Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. This may result in an electric shock, fire, problems with the product, or injury. Do not put a container filled with water on the appliance.

- If spilled, there is a risk of fire or electric shock.

- Never stare directly at the UV LED lamp for long periods of time.

- This may result in eye strain due to the ultraviolet rays.

- Do not put shelf in upside down. Shelf stopper could not work.

- It may cause a personal injury because of glass shelf drop.

- Keep fingers out of “pinch point” areas. Clearances between the doors and cabinet are necessarily small. Be careful when you open the doors if children are in the area.

- If a gas leak is detected, avoid any naked flames or potential sources of ignition, and air the room in which the appliance is standing for several minutes.

- Do not touch the appliance or power cord.

- Do not use a ventilating fan.

- A spark may result in explosion or fire.

- Bottles should be stored tightly together so that they do not fall out.

- This product is intended only for the storage of food in a domestic environment.

- Never put fingers or other objects into the water dispenser hole, ice chute and ice maker bucket.

- It may cause a personal injury or material damage.

- Do not attempt to repair, disassemble, or modify the refrigerator yourself.

- Do not use any fuse (such as cooper, steel wire, etc.) other than a standard fuse.

Safety information

• If your refrigerator needs to be repaired or reinstalled, contact your nearest service center.
• Failing to do so may result in an electric shock, fire, problems with the product, or injury.
• If the refrigerator emits a burning smell or smoke, unplug the refrigerator immediately and contact your Samsung Electronics service center.
• Failing to do so may result in an electric or fire hazards.
• Pull the power plug out of the socket before changing the interior lamps of the refrigerator.
• Otherwise, there is a risk of electric shock.
• If you experience difficulty changing a non-LED light, contact a Samsung service center.
• Plug the power plug into the wall socket firmly.
• Do not use a damaged power plug, damaged power cord or loose wall socket.
• This may result in an electric shock or fire.

English18

Usage cautions

CAUTION

- Do not refreeze thawed food.

• Frozen and thawed food will develop harmful bacteria faster than fresh.
• The second thaw will break down even more cells, leaching out moisture and changing the integrity of the product.

- Do not thaw meat at room temperature.

- Safety will depend on whether the raw product was handled properly.

- Do not place glass bottles or carbonated beverages into the freezer.

- The container may freeze and break, and this may result in injury.

• Use only the ice maker provided with the refrigerator.
• If you will be away from home for a long period of time (on vacation, for example) and won't be using the water or ice dispensers, close the water valve.

- Otherwise, water leakage may occur.

• If you won't be using the refrigerator for a very long period of time, (3 weeks or more) empty the refrigerator including the ice bucket, unplug it, close the water valve, wipe excess moisture from the inside walls, and leave the doors open to prevent odors and mold.
  • To get the best performance from the product:

• Do not place food too close to the vents at the rear of the refrigerator as this can obstruct free air circulation in the refrigerator compartment.

• Wrap food up properly or place it in airtight containers before putting it into the refrigerator.

Safety information

- Please observe maximum storage times and expiration dates of frozen goods. - There is no need to disconnect the refrigerator from the power supply if you will be away for less than three weeks. However, if you will be away for more than three weeks, remove all the food and ice in the ice bucket, unplug the refrigerator, close the water valve, wipe excess moisture from the inside walls, and leave the doors open to prevent odors and mold.

• Service Warranty and Modification.

- Any changes or modifications performed by a 3rd party on this finished appliance are not covered under Samsung warranty service, nor is Samsung responsible for safety issues that result from 3rd party modifications.

- Do not block the air vents inside the refrigerator.

- If the air vents are blocked, especially with a plastic bag, the refrigerator can be over cooled. If a cooling period lasts too long, the water filter may break and cause water leakage.

- Use only the ice-maker provided with the refrigerator.

- Wipe excess moisture from the inside and leave the doors open.

- Otherwise, odor and mold may develop.

- If the refrigerator is disconnected from the power supply, you should wait for at least five minutes before plugging it back in.

- When the refrigerator got wet by water, pull out the power plug and contact your Samsung Electronics service center.

- Do not strike or apply excessive force to any glass surface.

- Broken glass may result in a personal injury and/or property damage.

English20

- Fill the water tank and ice cube trays with potable water only (tap water, mineral water, or purified water).

- Do not fill the tank with tea or a sports drink. This may damage the refrigerator.

- Be careful that your fingers are not caught in.

- If the refrigerator is flooded, make sure to contact your nearest service center.

- There is a risk of electric shock or fire.

- Do not keep vegetable oil in your refrigerator's door bins. The oil can solidify, making it foul-tasting and difficult to use. In addition, the open container can leak and the leaked oil can cause the door bin to crack. After opening an oil container, it is best to keep the container in a cool and shaded place such as a cupboard or pantry.

- Examples of vegetable oil: olive oil, corn oil, grape-seed oil, etc.

Cleaning cautions

CAUTION

- Do not spray water directly on the inside or outside the refrigerator.

- There is a risk of fire or electric shock.

- Do not use a hair dryer to dry the inside of the refrigerator.

- Do not place a lighted candle in the refrigerator to remove bad odors.

- This may result in an electric shock or fire.

- Do not spray cleaning products directly on the display.

- Printed letters on the display may come off.

- If any foreign substance such as water has entered the appliance, unplug the power plug and contact your nearest service center.

- Failing to do so may result in an electric shock or fire.

Safety information

• Use a clean, dry cloth to remove any foreign matter or dust from the power plug blades. Do not use a wet or damp cloth when cleaning the plug.
• Otherwise, there is a risk of fire or electric shock.
• Do not clean the appliance by spraying water directly onto it.
• Do not use benzene, thinner, or Clorox, Chloride for cleaning.
• They may damage the surface of the appliance and may cause a fire.
• Never put fingers or other objects into the dispenser hole.
• It may cause a personal injury or material damage.
• Before cleaning or performing maintenance, unplug the appliance from the wall socket.
• Failing to do so may result in an electric shock or fire.
• Use a clean sponge or soft cloth and a mild detergent in warm water to clean the refrigerator.
• Do not use abrasive or harsh cleansers such as window sprays, scouring cleansers, flammable fluids, muriatic acid, cleaning waxes, concentrated detergents, bleaches, or cleansers containing petroleum products on exterior surfaces (doors and cabinet), plastic parts, door and interior liners, and gaskets.
• These can scratch or damage the material.
• Do not clean glass shelves or covers with warm water when they are cold. Glass shelves and covers may break if exposed to sudden temperature changes or impacts such as bumping or dropping.

English22

Critical disposal warnings

WARNING

• Please dispose of the packaging material from this product in an environmentally friendly manner.
• Ensure that none of the pipes on the back of the refrigerator are damaged prior to disposal.
• R-600a or R-134a is used as a refrigerant. Check the compressor label on the rear of the appliance or the rating label inside the fridge to see which refrigerant is used for your refrigerator. If this refrigerator contains flammable gas (Refrigerant R-600a), contact your local authority in regard to safe disposal of this product.
• When disposing of this refrigerator, remove the door/door seals and door latch so that small children or animals cannot become trapped inside. Children should be supervised to ensure that they do not play with the appliance. If trapped inside, a child may get hurt or suffocate to death.
• If trapped inside, the child may become injury and suffocate to death.
• Cyclopentane is used in the insulation. The gases in the insulation material require a special disposal procedure. Please contact your local authorities in regard to the environmentally safe disposal of this product.
• Keep all packaging materials well out of the reach of children, as packaging materials can be dangerous to children.
• If a child places a bag over his or her head, the child could suffocate.

Safety information

Additional tips for proper usage

• In the event of a power failure, call the local office of your electric company and ask how long the failure is going to last.
• Most power failures that are corrected in an hour or two will not affect your refrigerator temperatures. However, you should minimize the number of door openings while the power is off.
• Should the power failure last more than 24 hours, remove and discard all frozen food.
• The refrigerator might not operate consistently (frozen contents can thaw or temperatures can become too warm in the frozen food compartment) if sited for an extended period of time in a location where ambient air temperatures are constantly below the temperatures for which the appliance is designed.
• In case of particular foods, keeping it under refrigeration can have a bad effect on preservation due to its properties.
• Your appliance is frost free, which means there is no need to manually defrost your appliance. This will be carried out automatically.
• Temperature rise during defrosting complies with ISO requirements. If you want to prevent an undue rise in the temperature of frozen food while the appliance defrosts, wrap the frozen food in several layers of newspaper.
• Do not re-freeze frozen foods that have thawed completely.
• The temperature of two star section (sections) or compartment (compartments) which have two star symbol (*) is slightly higher than other freezer compartment (compartments).
  The two star section (sections) or compartment (compartments) is (are) based on the instruction and/or the condition as delivered.

English24

Instructions about the WEEE

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

For information on Samsung's environmental commitments and product regulatory obligations, e.g. REACH, WEEE or Batteries, visit our sustainability page available via www.samsung.com

(For products sold in European countries and in the UK only)

Installation

Follow these instructions carefully to ensure a proper installation of this refrigerator and to prevent accidents before using it.

WARNING

• Use the refrigerator only for its intended purpose as described in this manual.
• Any servicing must be performed by a qualified technician.
• Dispose of the product packaging material in compliance with the local regulations.
• To prevent electric shock, unplug the power plug before servicing or replacing parts.

English26

Refrigerator at a glance

The actual refrigerator and provided component parts of your refrigerator may differ from the illustrations in this manual, depending on the model and the country.

Type A

Installation

Type B

Installation

English28

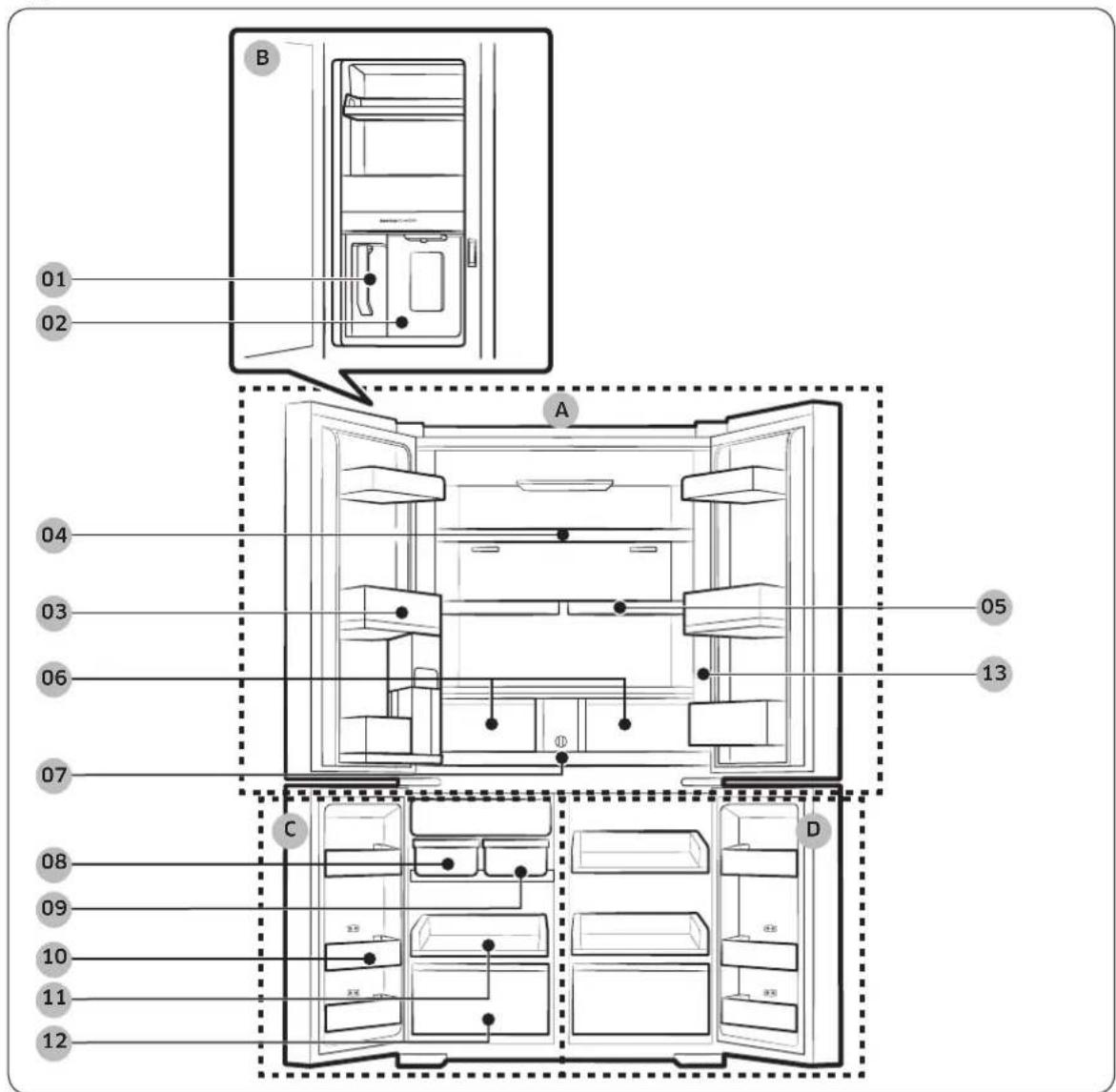

01 AutoFill pitcher *
02 Water dispenser **
03 Fridge door bin
04 Fridge shelf
05 Quick Space shelf *
06 Crisper / Flex Crisper Drawers *
07 Water filter *
08 Auto ice maker - Cubed Ice *
09 Auto ice maker - Ice Bites *
10 Freezer door bin
11 Freezer shelf
12 Freezer drawer
13 Control panel
14 Twist ice maker *

* Applicable models only

** Dispenser models only

A. Fridge
B. Beverage Center **
C. Freezer
D. Cool Select+

NOTE

• For energy efficiency, keep all shelves, drawers, and baskets in their original positions.
• When closing the door, make sure the vertical hinged section is in the correct position to avoid scratching the other door.
• If the vertical hinged section is reversed, put it back into the correct position, and then close the door.
• Moisture may form at times on the vertical hinged section.
• If you close a door forcefully, the other door may open.
• If the internal or external LED lamp is out of order, contact a local Samsung service center.

Installation

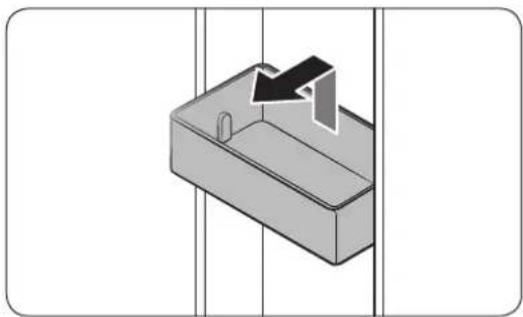

Door bins

Your refrigerator ships with door bins of different types and sizes. If the door bins for your refrigerator were packaged separately, use the figure below to help you position the bins properly.

NOTE

The actual refrigerator and provided component parts of your refrigerator may differ from the illustrations in this manual, depending on the model and the country.

English30

Step-by-step installation

STEP 1 Select a site

The site must:

• Have a solid level surface without carpeting or flooring that may obstruct ventilation
• Be out of direct sunlight
• Have adequate room for opening and closing the door
• Be away from any heat source
• Provide room for maintenance and servicing
  • Have a temperature range between 10 °C and 43 °C

Installation

Clearance

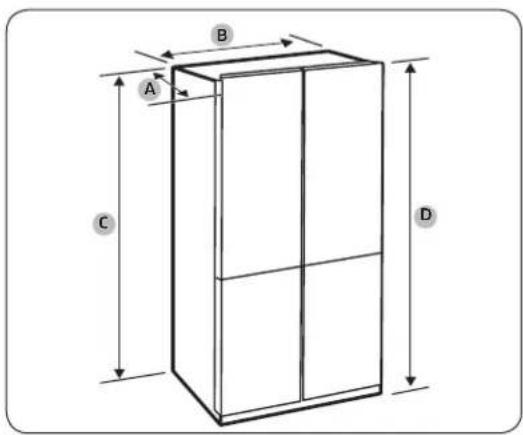

See the following figures and tables for installation space requirements.

Depth “A” 723 mm

Width “B” 912 mm

Height “C” 1797 mm

Overall Height “D” 1825 mm

01 50 mm

02 125 ^a

03 1472 mm

04 282 mm

05 610 mm

06 47 mm

07 1093 mm

NOTE

The measurements in the tables may differ slightly from the actual measurements, depending on the measuring and rounding method.

English32

STEP 2 Flooring

If the refrigerator cannot pass through the entrance due to its size, see Door removal for entrance.

Diagram showing two mechanical components with directional arrows and a prohibition sign, no text or symbols present.

NOTE

To prevent floor damage, make sure the front leveling legs are in the upright position.

• The surface you install the refrigerator on must support a fully loaded refrigerator.
• To protect the floor, put a large piece of cardboard along the path to the refrigerator's final installation location.
• Once the refrigerator is in its final position, do not move it unless necessary to protect the floor. If you have to move the refrigerator, place thick paper or cloth such as old carpets along the path of movement.

Installation

STEP 3 Door removal for entrance

If the refrigerator cannot pass through the entrance to your home or kitchen due to its size, follow these instructions to remove and then re-install the refrigerator's doors. If you do not need to remove the doors, go to page 42 to continue the installation procedure.

WARNING

Unplug the power cord of the refrigerator before removing the doors.

Tools required (not provided)

Phillips screwdriver Flat-head screwdriver Socket wrench

^3/_8 " (10 mm)

Pliers Allen wrench

^1/_4 " (5 mm)

Detach the fridge doors

Mechanical assembly diagram showing a bracket with mounting holes and a directional arrow (no text or symbols)

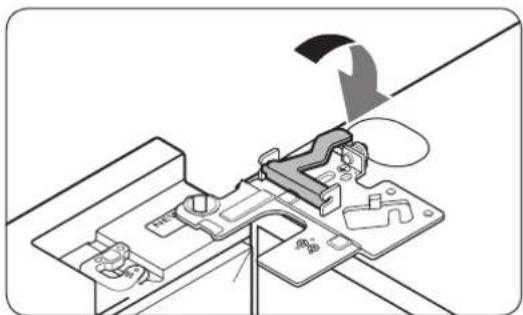

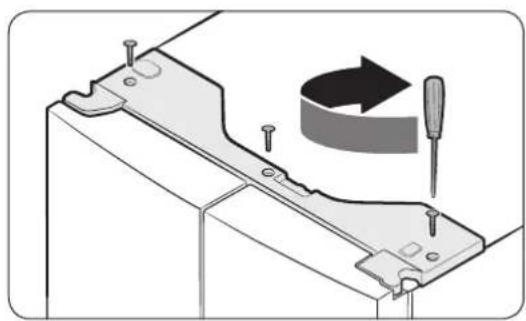

1. With the doors closed, use a Phillips screwdriver to remove the screws (x3) from the top cover. Pull up and remove the top cover with the connectors.

English34

Diagram showing mechanical assembly with directional arrows and a magnified view of connected components (no text or symbols)

Technical diagram of a mechanical assembly with a person operating a workpiece, showing motion arrows (no text or symbols)

Technical line drawing of a mechanical assembly with a lever and bracket (no text or symbols)

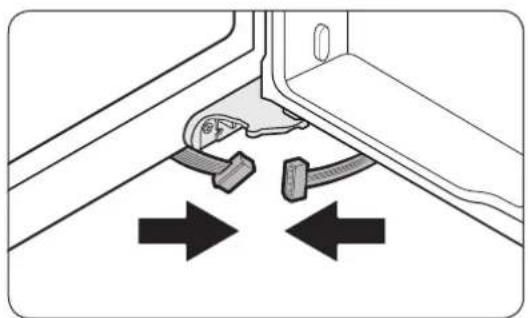

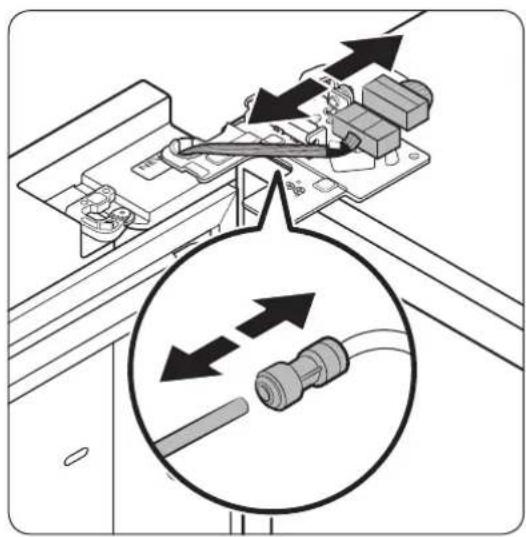

1. Disconnect the two wire connectors on the left door. The position of the connectors differs with the model.

CAUTION

• Do not remove both doors simultaneously. Make sure to remove one door at a time. Otherwise, any of the doors may fall and cause physical injury.
• Make sure the refrigerator is off before disconnecting the connectors.

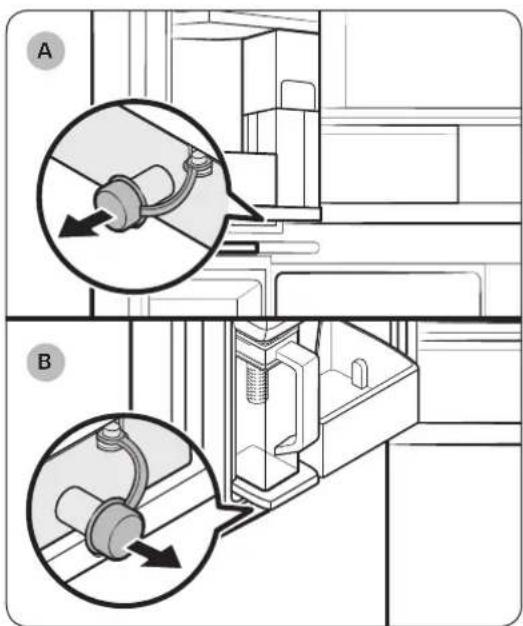

• Disconnect the water tube from the coupler on the left door as shown.

• This step does not apply to the models without the AutoFill pitcher and the water dispenser.

• Gently draw up the clamp in several steps. To prevent finger injuries, do not apply a sudden force to the clamp.
• Pull up the clamp to remove.

Installation

Installation

Mechanical assembly diagram showing a component being inserted into a housing (no text or symbols visible)

Technical line drawing of a door frame with mounting bracket and side panel, showing internal components and an arrow indicating direction (no text or symbols)

1. Open the door 90 degrees. While holding the door, pull up and remove the top hinge. Be careful not to damage the connector wires when you remove the hinge.
2. Gently pull up the door vertically to remove. Do not apply excessive force to the door. The door may fall, causing physical injury.
3. Lay the door down on a flat surface.
4. Repeat steps 1-8 for the other door, except for step 3. There is no water tube on the right side door.

- Step 2 does not apply to the models without the Showcase door.

English36

Detach the freezer doors

CAUTION

• Be sure to remove the fridge doors before removing the freezer doors.
• Use caution when disconnecting the bottom connectors.

Diagram showing a person using a seatbelt to lift a door, with a black arrow indicating direction (no text or symbols)

Diagram showing a mechanical linkage with two bidirectional arrows indicating movement or force (no text or symbols present)

Technical diagram showing a mechanical joint or bracket with an arrow indicating direction (no text or symbols present)

1. Open the freezer door.

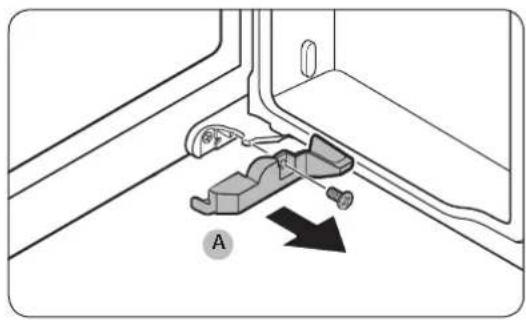

2. Use a Phillips screwdriver to remove the screw holding the cover (A).

3. This step only applies to the right side freezer door (Cool Select+ door).

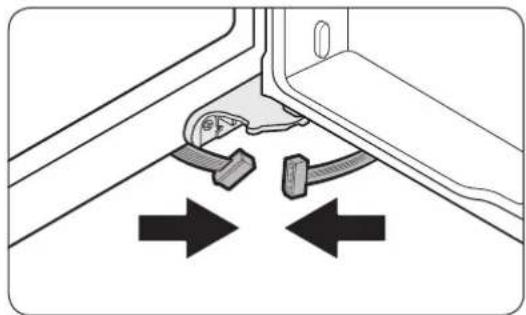

4. Disconnect the wire connectors.

5. This step only applies to the right side freezer door (Cool Select+ door).

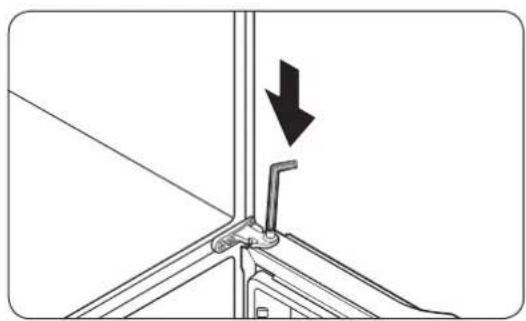

6. Locate the hinge shaft. While holding the door with one hand, use a flat-head screwdriver or Allen wrench to press the shaft down. Make sure to hold the door to prevent the door from falling.

Installation

Diagram of a door panel with an inset showing a close-up of the door and a directional arrow indicating rotation (no text or symbols present)

1. To prevent contact with the middle hinge, slightly tilt the door to the front, and then lift it up to remove.

2. Repeat steps 1-5 for the other door, except for steps 2 and 3.

To reattach the freezer doors

CAUTION

• After re-attaching the doors, make sure all the electrical connectors are properly connected.
• The freezer doors must be re-attached before the fridge doors.
• Be careful not to damage or step on the wires during this process.

Diagram of a door opening with a wall-mounted panel and a directional arrow indicating movement (no text or symbols)

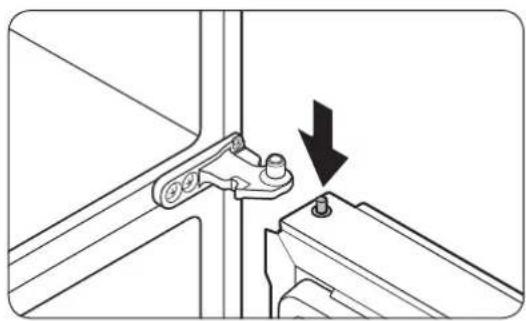

1. Insert the freezer door into the bottom hinge while pushing the freezer door in the direction of the arrow.

CAUTION

- Be careful not to damage or step on the wires during this process.

English38

Technical diagram showing a mechanical clamp or bracket assembly with a downward arrow indicating force or direction (no text or symbols present)

Diagram showing a car door with two attached clips and directional arrows indicating movement or force (no text or symbols)

Diagram of a car seatbelt mechanism inside a vehicle, showing a valve and pushpin (no text or symbols)

1. While pressing the hinge shaft down, position the door so that the hinge shaft is below the shaft hole in the middle hinge. Release the hinge shaft so that it enters the shaft hole.

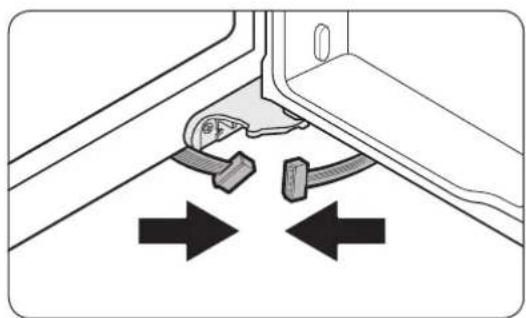

2. With the door open, connect the bottom connectors in the direction of the arrows.

- This step only applies to the right side freezer door (Cool Select+ door).

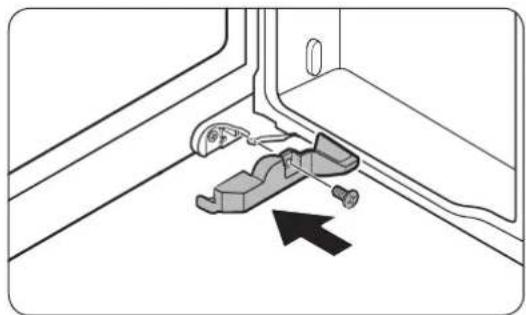

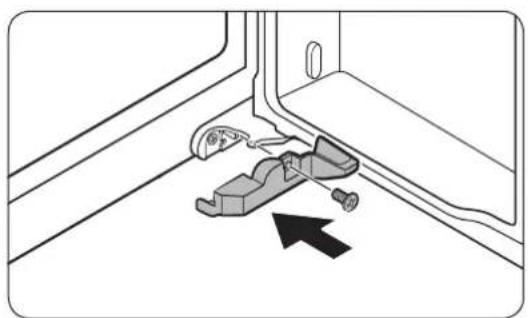

1. Attach the cover using a Phillips screwdriver. Be careful not to damage or step on the connectors.

- This step only applies to the right side freezer door (Cool Select+ door).

1. Repeat steps 1-5 for the other door, except for steps 3 and 4.

Installation

To reattach the fridge doors

Diagram of a door hinge with a black arrow pointing to a handle (no text or symbols present)

Technical diagram of a mechanical assembly with a black arrow indicating a component (no text or symbols present)

Technical diagram of a mechanical assembly with a lever mechanism and mounting bracket (no text or symbols)

Technical diagram of a mechanical assembly with a clamping tool interacting with a bracket (no text or symbols visible)

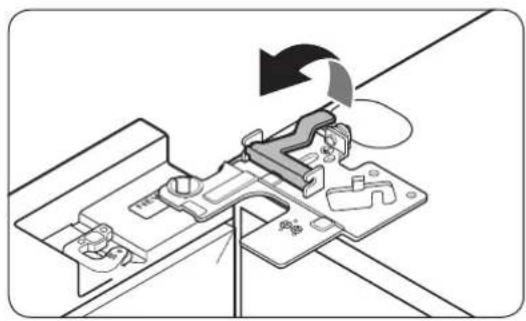

1. While holding the door open by more than 90 degrees, insert the shaft on the middle hinge into the hole on the bottom of the door.

2. Put the top hinge into position on the top of the refrigerator, and then insert the hinge shaft into the top hole of the door. Make sure the wires from the door pass through the hole in the hinge shaft.

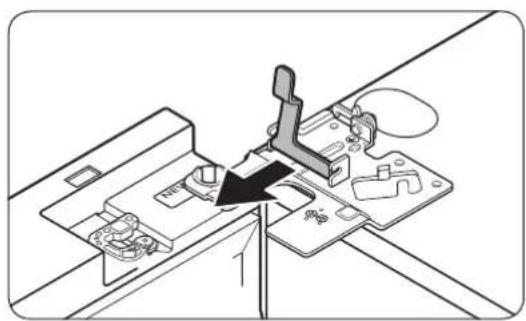

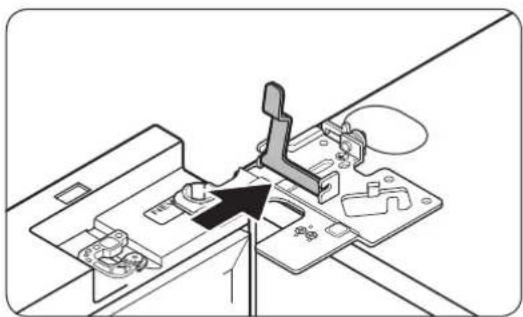

3. Insert the clamp in the direction of the arrow.

4. Push back the clamp as shown.

English40

Diagram showing mechanical assembly with arrows indicating direction, magnified inset shows cable connections (no text or symbols)

Technical diagram of a mechanical assembly with screw fasteners and a curved arrow indicating rotation (no text or symbols)

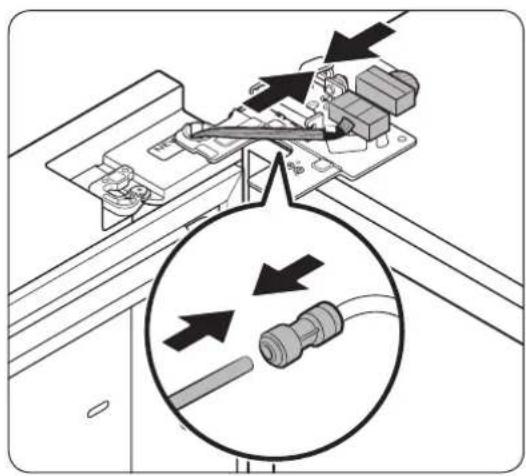

1. Connect the wire connectors.

CAUTION

• Make sure the wire connectors are connected properly. Otherwise, the display will not operate.
• Connect the water tube.

- This step does not apply to the models without the AutoFill pitcher and the water dispenser.

CAUTION

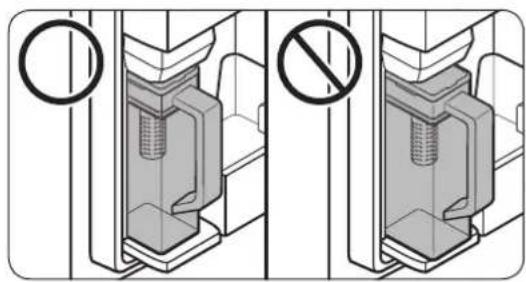

• To prevent water leaks, make sure the red clips tighten the coupler properly.
- Keep the clips out of children's reach.

1. Repeat steps 1-5 for the other door.
2. Step 5 does not apply to the models without the Showcase door.
3. Attach the top cover with the front side first, and then press down on its back to get it into position. Then, tighten the screws (x3).

Installation

STEP 4 Leveling the refrigerator

CAUTION

• When installed, the refrigerator must be leveled on a flat, solid floor. Not leveling the refrigerator can cause damage to the refrigerator or physical injury.
• Leveling must be performed with the refrigerator empty. Make sure no food items are inside the refrigerator.
• For safety reasons, adjust the front a little higher than the rear.

Level the refrigerator using the special screws (levelers) on the front legs. Use a flat-head screwdriver to turn the levelers.

Diagram showing a mechanical device with a tool inside a circular inset, no text or symbols present

• To adjust the height of the left side: Insert a flat-head screwdriver into the leveler of the left side front leg. Turn the leveler clockwise to raise the left side or turn it counterclockwise to lower.
• To adjust the height of the right side: Insert a flat-head screwdriver into the leveler of the right side front leg. Turn the leveler clockwise to raise the right side or turn it counterclockwise to lower.

English42

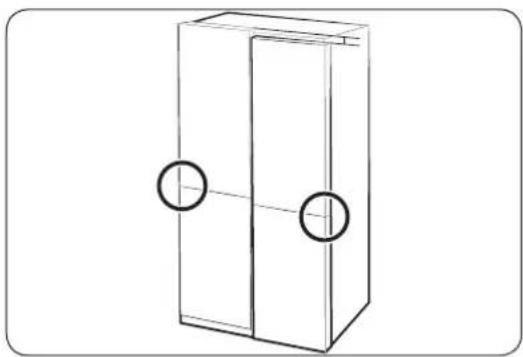

STEP 5 Adjust the door height

Adjusting the height with the height lever (applicable models only)

Line drawing of a door with an open lid and circular button (no text or symbols)

• Before aligning the door height, make sure the refrigerator is level. Use the leveling legs for this purpose.

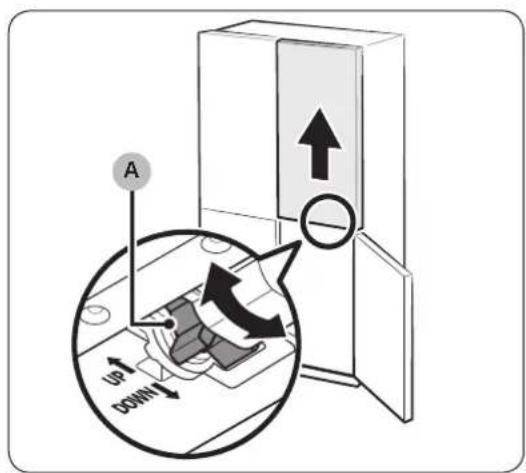

• You can use the height lever at the bottom of the right-side door of the fridge. Open the right-side door of the freezer with both fridge doors closed and use the lever to adjust the door height.
• Turn the height lever (A) until the two doors are aligned at the top. Turn the lever toward UP (as marked) to raise the right-side door and turn it toward DOWN (as marked) to lower the door.
• Lift the fridge door slightly to make alignment easier. The maximum adjustable height is 3 mm.

- The lever will not turn past the maximum limit. It may make a noise it if is turned too far.

- Excessive height may interfere with the upper hinge cover of the fridge door.

- If you align the door height with the door bins empty and then store items in the bins, the heights may differ again. If this happens, follow the steps above to realign the doors.

Installation

Adjusting the height with the snap rings

For the models with the height lever on the right-side door of the fridge, use the snaps rings only if you cannot align the doors with the height lever.

Two identical abstract curved shapes with internal lines, no text or symbols present

NOTE

The height of a door can be adjusted using the provided snap rings, which come in 4 different sizes (1 mm, 1.5 mm, 2 mm, and 2.5 mm).

Simple line drawing of a two-door cabinet with two circular buttons on one side (no text or symbols)

1. Check the height difference between the doors, and then lift up and hold the door with the lower height.

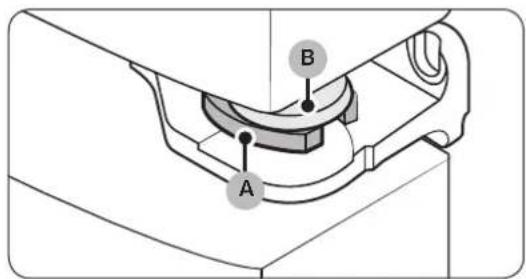

1. Insert a suitable-sized snap ring (A) between the door grommet (B) and the hinge as shown.

CAUTION

• Insert only one snap ring. If you insert two or more snap rings, the rings may slip out or make a rubbing noise.
• Keep the snap rings out of children's reach and keep them for future use.
• Do not raise the door too much. The door can contact and damage the top cover.

English44

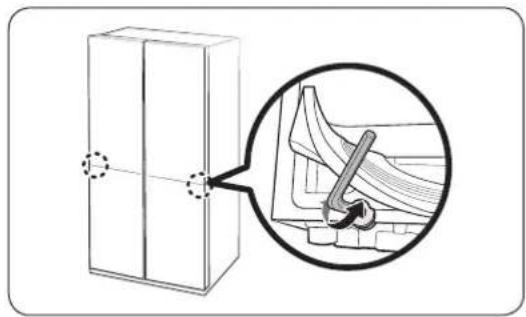

Adjusting the freezer door height (applicable models only)

Diagram showing a mechanical assembly with an inset close-up of a component being inserted (no text or symbols present)

• Before aligning the door height, make sure the refrigerator is level. Use the leveling legs for this purpose.
• You can adjust the height of both freezer doors using the lever located at the bottom hinge.
• Open the door, lift it a little, and then turn the lever left or right to adjust the height.

Adjusting the gap between the fridge doors and the main body of the refrigerator (applicable models only)

Diagram showing a cabinet with a magnified inset of a mechanical component (no text or symbols)

• You can adjust the gap between both fridge doors and the main body of the refrigerator using the adjustment bolt located at the bottom of the fridge compartment.
• Lift the door gasket and located the adjustment bolt underneath the gasket. Use the 4 mm Allen wrench to adjust the gap.

CAUTION

Make sure you firmly attach the gasket. Otherwise, cold air from the refrigerator may leak.

Installation

STEP 6 Connect to a water source (applicable models only)

CAUTION

• The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.
• The water line must be connected by a qualified technician.
• The warranty for your refrigerator does not cover the water line installation. The water line installation will be performed at your own costs unless the installation fee is included in the retailer's price.
• Samsung takes no responsibility for the water line installation. If water leaks occur, contact the installer of the water line.

To connect the cold water pipe to the water filtering hose

CAUTION

- Make sure the water filtering hose is connected to a cold, potable water source pipe. Connecting to the hot water pipe may cause the purifier to malfunction.

A. Close Main Water pipe
B. No gap

1. Shut off the water supply by closing the main water valve.
2. Locate the cold, potable water pipe (1).
3. Follow the Water Line Installation to connect to the water pipe.
4. When connection is complete, open the main water valve and dispense about 3 liters of water. This is to remove impurities inside the pipe.

English46

To connect the water filtering hose to the water line

A. Water Line from unit

B. Water Line from Kit

1. Loosen and remove the compression nut (a) from the water line of the refrigerator, and insert it to the water filtering hose.
2. Tighten up the compression nut (a) to connect the water filtering hose and the water line.
3. Open the main water valve and check for any leaks.
4. If there are no leaks, dispense about a 3 liters of water before actually using the refrigerator to remove impurities inside the water filtering system.

NOTE

If you have to relocate the refrigerator after connecting the water line, make sure the joined section of the water line must is straight.

CAUTION

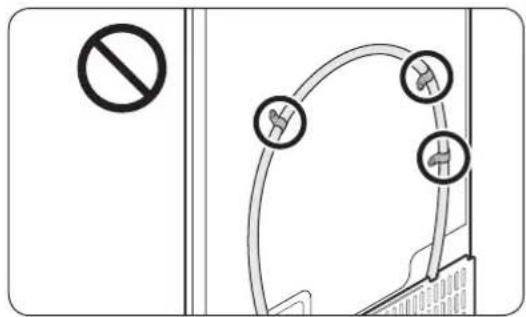

Do not mount the water filter on any part of the refrigerator. This may damage the refrigerator.

To repair the water line

CAUTION

The waterline must be repaired by a qualified professional. If you encounter a water leak, contact a local Samsung service centre or the installer of the waterline.

Installation

STEP 7 Initial settings

By completing the following steps, the refrigerator should be fully functioning.

1. Plug the power cord into the wall socket to turn the refrigerator on.
2. Open the door, and check if the interior light lights up.
3. Set the temperature to the coldest setting, and wait for about an hour. Then, the freezer will be slightly chilled, and the motor should be running smoothly.
4. Wait until the refrigerator reaches the set temperature. Now the refrigerator is ready for use.

STEP 8 Final check

When installation is complete, confirm that:

• The refrigerator is plugged into an electrical outlet and grounded properly.
• The refrigerator is installed on a flat, level surface with a reasonable clearance from walls and cabinets.
• The refrigerator is level and is sitting firmly on the floor.
• The door opens and closes freely, and the interior light turns on automatically when you open the door.

English48

Operations

Control panel

01 Display Displays the menu, settings, and other information.
02 Buttons	When the display is off, tap any button to wake up the display.Tap or to navigate left and right.Tap to confirm your selection.Tap and hold to enter the AP mode. (For more information, see the "SmartThings > Getting started" section on page 54.)

NOTE

• The control panel is designed to stay off when the refrigerator is not in use. It only becomes active and lights up when you open the door or tap the buttons.
• If the door is left open for 5 minutes, the internal light will blink for 5 minutes and turn off. It is to alert deaf and hard of hearing users that a door is open. Note that this function is normal.
• When you change the temperature on the panel, the panel displays the actual temperature inside the refrigerator until the temperature matches the temperature you set. Then, the panel displays the new set temperature. Note that it will take time for the refrigerator to reach the new temperature. It is normal. During this time, you need not set the temperature again.

Using the control panel

1. Tap any button ( ≤ , or ) to wake up the display.
2. Tap < or > to select the desired menu, and then tap ○ to confirm.
3. Tap < or > to select the desired setting, and then tap ○ to confirm.

- For more information on available settings, see the Menu descriptions section.

Operations

Menu descriptions

Fridge	You can set the fridge temperature from 1~7 °C or set the Power Cool function.Power Cool speeds up the cooling process at maximum fan speed. The fridge keeps running at full speed for two and a half hours and then returns to the previous temperature.
Freezer	You can set the freezer temperature from -23 ~ -15 °C or set the Power Freeze function.Power Freeze speeds up the freezing process at maximum fan speed. The freezer keeps running at full speed for 50 hours and then returns to the previous temperature. To freeze large amounts of food, activate Power Freeze for at least 20 hours before putting food in the freezer.
Cool Select+	You can set the Cool Select+ mode from one of the following modes.Freeze: The temperature sets to the same temperature as the freezer.Soft Freeze: The temperature sets to -5 °C.Meat/Fish: The temperature sets to -1 °C.Fruit/Veggies: The temperature sets to 2 °C.Beverage: The temperature sets to 4 °C.CAUTIONSelect the Cool Select+ mode accordingly to the type of food you store in there.Do not store meat or food in the Cool Select+ with the Fruit/Veggies or Wine mode. Meat or food may spoil.Do not store glass bottles in the Cool Select+ in Freeze or Soft Freeze mode. They may break and cause physical injury.

English50

Flex Crisper	You can set the Flex Crisper mode from one of the following modes.Fridge: The temperature sets to the same temperature as the fridge.Meat/Fish: Select this mode to store meat and fish fresh. (We recommend setting the fridge temperature below 3 °C to store meat and fish fresher in the Flex Crisper)NOTEMeat and fish can be store in the meat drawer for 3 to 5 days (with some exceptions like ground meat, which should only be kept for one or two days). Store them in the freezer if you want to keep it longer than 5 days.
AutoFill Pitcher *	You can set the AutoFill Pitcher mode from one of the following modes.On: Set to fill your water pitcher automatically.Off: Set to turn off the function.NOTEYou can put tea or fruit into the infuser to make infused tea or water. If you want to keep the infused water in its initial concentration, turn the AutoFill Pitcher function off. (For more information, see the Water pitcher (Autofill Pitcher) (applicable models only) section on page 56.)
Cubed Ice * You can start or stop making cubed ice.
Ice Bites * You can start or stop making ice bites.

Operations

More Options

You can change the settings for the following functions. Tap< or >to select the menu, and then tap ⓞ confirm.Filter Reset*: When you get the filter replacement message on the display, select this menu, and replace the filter according to onscreen instructions.Temp. Unit: You can set the temperature scale to Celsius or Fahrenheit.Door Alarm: You can turn on or off the Door Alarm.Wi-Fi Connect: You can turn on or off the Wi-Fi Connect.Turn it on to control and monitor your refrigerator on the SmartThings app. (For more information on SmartThings, see theSmartThingssection on page 53).* applicable models only

NOTE

Using Power Cool or Power Freeze increases power consumption.

English52

SmartThings

Installation

Visit the Google Play Store, Galaxy Apps, or Apple App Store and search for "SmartThings". Download and install the SmartThings app provided by Samsung Electronics to your smart device.

NOTE

• The SmartThings app is not available for some tablet and iPad and some smartphone.
• Support that [Android] OS 6.0 or higher. (minimum 2 GB RAM Size)
• Support that [iOS] 10.0 or higher/iPhone 6 or higher.
• For improved performance, the SmartThings app is subject to change without notice or discontinued support according to the manufacturer's policy. In addition, further updates on the app or the function in the app may stop due to usability and security reasons, even if updates are currently supported on your OS.
• Recommended encryption systems include WPA/TKIP and WPA2/AES. Any newer or non-standard Wi-Fi authentication protocols are not supported.
• Wireless networks may be affected by the surrounding wireless communication environment.
• If your Internet service provider has registered the MAC address of your PC or modem for identification, your Samsung Smart Refrigerator may fail to connect to the Internet. If this happens, contact your Internet service provider for technical assistance.
• The firewall settings of your network system may prevent your Samsung Smart Refrigerator from accessing the Internet. Contact your Internet service provider for technical assistance. If this symptom continues, contact a local Samsung service center or retailer.
• To configure the wireless access point (AP) settings, see the user manual of the AP (router).
• Samsung Smart Refrigerators support both Wi-Fi 2.4 GHz with IEEE 802.11 b/g/n and Soft-AP protocols. (IEEE 802.11 n is recommended.)
• Unauthorized Wi-Fi wireless routers may fail to connect to applicable Samsung Smart Refrigerators.

Operations

Samsung account

You are required to register your Samsung account to use the app. If you don't have a Samsung account, follow the app's onscreen instructions to create a free Samsung account.

Getting started

Turn on the device you want to connect, open the SmartThings app on your phone, and then follow the instructions below.

If a pop-up appears saying that a new device has been found, tap ADD NOW.

If a pop-up doesn't appear, tap the + button, and then select the device you want to connect from the list of available devices.

If your device isn't in the list of available devices, tap Supported Devices, select the device type (Refrigerator), and then select the specific device model.

Follow the instructions in the app to set up your device. Once setup is complete, your refrigerator will appear as a "card" on your Devices screen.

Refrigerator app

Integrated control

You can monitor and control your refrigerator at home and on the go.

• Tap the refrigerator icon on the SmartThings Dashboard or tap the Devices icon at the bottom of the Dashboard, and then tap the refrigerator "card" to open the Refrigerator page.
• Check the operation status or notifications related to your refrigerator, and then change options or settings if necessary.

NOTE

Some options or settings of the refrigerator may not be available for remote control.

English54

Category Item	Description
Monitoring	Fridge temperature	Displays the desired temperature setting of the fridge.
	Freezer temperature	Displays the desired temperature of the freezer.
	Cool Select+ settings D	splays the settings of the Cool Select+.
	Diagnosis	Detects abnormal operations of the refrigerator.
	Energy monitoring	Checks the accumulated power consumption of the refrigerator for the last 180 days.
Functions	Ice making	You can turn the ice making function on or off, and check the current settings of the function.
		You can also check the status and progress of ice making.
	Power Cool	You can turn Power Cool on or off, and check the current settings.
	Power Freeze	You can turn Power Freeze on or off, and check the current settings.
	Fridge temperature	You can set the desired temperature of the fridge.
	Freezer temperature	You can set the desired temperature of the freezer.
	Cool Select+ settings You can set the desired Cool Select+ mode.
Alarms	Abnormally high temperature	This alarm is triggered when the fridge, the freezer, or the Cool Select+ has abnormally high temperatures.
	Door opening	This alarm is triggered if the fridge door, the freezer drawer, or the Cool Select+ drawer is open for a specific time.
	Autofill Pitcher overflowing	If the Autofill Pitcher function senses an overflow, it triggers this alarm to let you know the status of the overflow.
	Water filter replacement	This alarm reminds you that the water filter must be replaced.

Operations

Special features

Water pitcher (Autofill Pitcher) (applicable models only)

Cold, purified water is always ready in the AutoFill Pitcher. You can put tea or fruits in the infuser to enjoy the various infused water you like.

01 Lid
02 Infuser holder
03 Infuser
04 Body

To fill the Water pitcher

Diagram of a mechanical device with an upward arrow indicating force or direction (no text or symbols present)

1. Grasp a handle groove of the lid, and then pull up to open the lid.
2. Put tea leaves or fruit to your taste into the infuser.

NOTE

If you want to keep the infused water in its initial concentration, turn the Autofill Pitcher function off.

Technical diagram showing two mechanical assembly views (A and B) with arrows indicating direction of movement or force, no text or symbols present.

1. Enable the Autofill Pitcher function on the control panel. Open the Beverage Center door (Type A) or the left door of the fridge (Type B), and then mount the water pitcher onto the holder. Push it straight in as shown in the figure.
2. Close the door. The water pitcher will start to fill with chilled water a short time later.

A. Type A models
B. Type B models

English56

CAUTION

Make sure the water pitcher fits in the water pitcher holder.

Technical diagram of a mechanical assembly with labeled components A and B, showing internal components without any text or symbols.

A. Type A models

B. Type B models

1. To drink tea, open the Beverage Center door (Type A) or the left door of the fridge (Type B), and then detach the water pitcher. Pull it straight out.

CAUTION

• We recommend consuming fruit infused water within 24 hours. After that, the infused water can spoil over time.
- You must clean the water pitcher after you have consumed the infused water. Also clean the water pitcher if you haven't used it for a long time.

Technical illustration of a mechanical assembly with no visible text or symbols

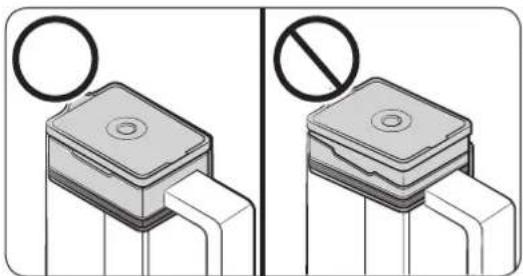

• To prevent the water pitcher from tipping over or leaking, make sure the water pitcher fits in the water pitcher holder.

Two diagrams showing a device with a circular symbol above and a prohibition sign below, no text or labels present.

- To prevent the water pitcher from spilling over or leaking, make sure the infuser holder is properly inserted.

Operations

3D diagram of a mechanical device with a circular aperture and rectangular base (no text or symbols)

operations

A. Type A models
B. Type B models

NOTE

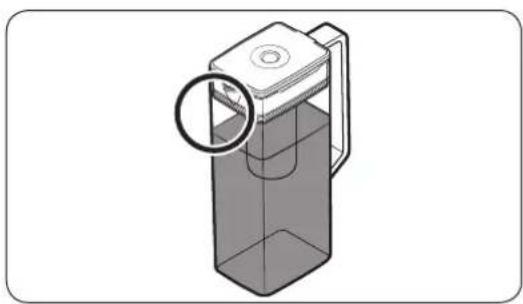

• If the front side (specifically marked area) of the water pitcher has too much moisture, the water pitcher may not fully fill. Remove the moisture, and then try again.
• Autofill Pitcher function will stop supplying water to the water pitcher if the water pitcher does not fill after a certain amount of time. If this happens, check if the water line is properly connected. Remove and reinsert the water pitcher, and then try again.

NOTE

• Wipe around the water pitcher holder if the water pitcher overflows or leaks.

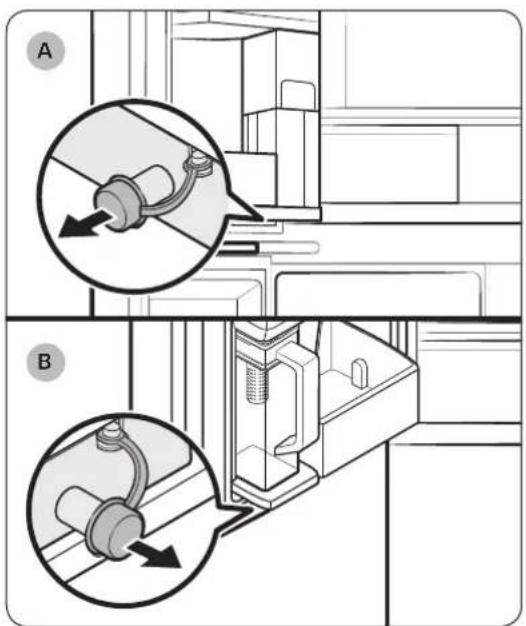

  • Water drops off if the rubber cap is opened.
• An alert message appears on the control panel if there is a leak. In case of a leak, open the rubber cap so that the leaked water drains. If the alert message does not disappear after draining, there might be a system failure. Contact your local Samsung service center.

English58

Water dispenser (applicable models only)

Diagram of a door with a door handle and internal panel, showing a black arrow pointing to the door panel (no text or symbols present)

To dispense chilled water, open the Beverage Center and press the dispenser lever.

NOTE

• The dispenser will stop dispensing if you keep pushing the dispenser lever for about 1 minute. To dispense more water, release and push the lever again.
• Make sure the glass is in line with the dispenser to prevent the dispensed water from spilling out.
• If you do not use the water dispenser for 2-3 days, the dispensed water may have an abnormal smell or taste. This is not a system failure. Discard the first 1-2 glasses of water.

Water clouding

Water supplied to the refrigerator flows through a core alkaline filter. During this filtering process, the water pressure of the water increases and the water becomes saturated with oxygen and nitrogen. This causes the water to look misty or cloudy temporarily when dispensed. This is normal and the water will look clear after a few seconds.

Operations

Auto Ice maker (applicable models only)

The refrigerator has a built-in ice maker that automatically dispenses ice.

- The overall design and/or accessories may differ with the model.

Cross-sectional diagram of a mechanical or electrical component with layered structure (no text or symbols)

- This product has two types of ice makers.

Ice making

After you have installed your refrigerator and plugged it in, follow these instructions to ensure proper ice making and to keep the ice bucket full of ice.

For first-time use

• Let the ice maker make ice for 1-2 days.
• Discard the first 1-2 buckets of ice to remove impurities in the water supply system.

Diagnosis

Diagram of a refrigerator interior showing seating arrangement and a magnified view of the front portion of the refrigerator (no text or symbols present)

• The overall design and/or accessories may differ with the model.
• If ice does not dispense, first check the status of ice maker using the Test button on the bottom of the ice maker.
• Press the Test button on the back of the ice maker. You will hear a chime (ding-dong) when you press the button. You will hear another chime if the ice maker is operating properly.

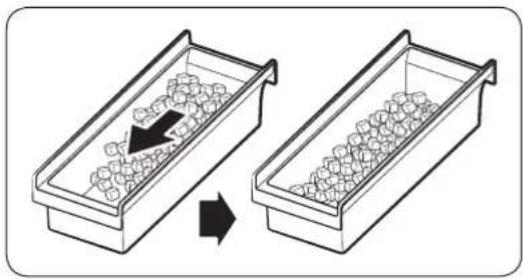

• Ice accumulating on one side of the tray is normal. Arrange the ice evenly in the tray to store more ice.

Diagram showing two containers with granular material inside, one moving right and the other horizontally (no text or symbols)

English60

CAUTION

• Leaving the water line disconnected may cause the water valve to produce a buzzing sound over time. If this is the case, make sure to turn the ice making function (Cubed Ice / Ice Bites) off.
• If the ice making chime rings repeatedly, contact the waterline installer or a local Samsung service center.
• Do not put food in the ice bucket. The frozen food may damage the ice maker, especially when you open or close the door.
• When the refrigerator recovers power after a power failure, the ice bucket may contain a mix of melted and jammed ice cubes, which can prevent the ice maker from working properly. To prevent this, make sure to empty the ice bucket before using the refrigerator.
• Do not put fingers or any objects into the ice maker. This can cause physical injury or property damage.
• Due to sublimation, ice stored in the freezer for a long time gets smaller and then forms large ice chunks. Therefore, if it will be a long time before you use ice, turn the ice maker off as follows.
• Use the new hose-sets supplied with the appliance only. Do not re-use an old hose set.

Twist ice maker (applicable models only)

Diagram of a water heater with a pitcher pouring liquid, showing internal grid structure and a magnified inset (no text or symbols)

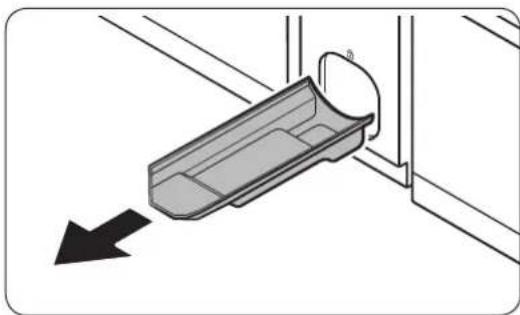

1. Open the freezer door, and slide open the ice tray.
2. Fill the tray with water up to the maximum level (A) marked on the inner rear of the tray.
3. Slide the tray back into position.

Operations

Line drawing of a microwave oven with a scroll wheel and directional arrow indicating rotation (no text or symbols)

1. When the water freezes into ice cubes, turn the ice tray handle clockwise to empty the ice cubes into the ice box. Repeat this until all the ice cubes are emptied into the ice box.

Diagram of a device with a file inserted into a drawer, showing internal components and an upward arrow (no text or symbols)

1. To remove the ice box, gently lift up and pull out.

CAUTION

• Do not use the ice box specifically for making ice. The box may break.
  • Make sure the ice box is in place under the ice tray.
  • The ice box has a drain hole at the bottom.

• Do not store ice in the box in ambient temperatures. The ice melts and runs out.

• In case of a power failure, the ice melts into water and runs out. After the power recovery, the water may freeze back and cause the box to break. To prevent damage to the box, remove and empty the box after the power failure.
• Use only potable water.

NOTE

- The ice making time depends on your temperature settings.

English62

Maintenance

Handling and care

Ice bucket (applicable models only)

If you do not dispense ice for an extended period, ice may form clumps inside the bucket. If this happens, remove and empty the ice bucket.

CAUTION

• To prevent injury, make sure to clean up any ice or water that has fallen on the floor.
- To prevent accidents or injury, do not let children play with the water dispenser or the ice maker.
- Use only the provided ice bucket. Third-party ice buckets may cause a system failure.

NOTE

• The water pressure required for ice making is between 206-861 kPa.
- Noise from the ice maker as it produces ice during the ice making process is normal.

Autofill pitcher (applicable models only)

Diagram of a mechanical device with an upward arrow indicating motion or force, no text or symbols present

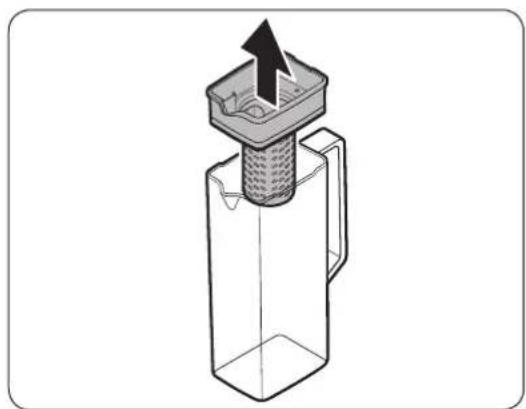

1. Grasp a handle groove of the lid, and then pull up to remove.

Diagram of a mechanical component with a handle and internal structure, no text or symbols present

1. Grasp both sides of the infuser holder, and then lift to remove.

Maintenance

Diagram of a cylindrical device with a black arrow pointing upward, placed on a base with a small mouth (no text or symbols)

1. While slightly twisting the infuser, pull it out of the sealed mouth.
2. Clean the infuser with neutral agents and running water. Rinse and dry well.
3. Reassemble the Autofill pitcher in the reverse order of disassembly.

CAUTION

The water pitcher and lid are not dishwasher and microwave safe and can melt or deform if exposed to heat (including hot water). Please hand wash in cool or warm water as needed.

English64

Fridge shelves

The appearance of the shelves differs by model.

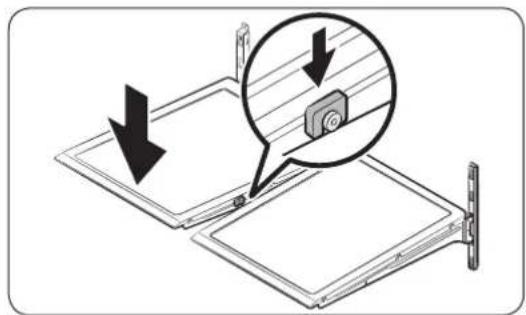

Isometric diagram of a folding panel with a curved arrow indicating rotation (no text or symbols)

Diagram showing a door panel being inserted into a plastic hinge, with an arrow indicating the insertion direction (no text or symbols present)

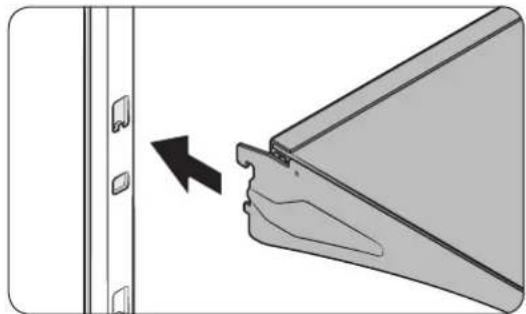

- To remove a shelf, fully open the corresponding door. Hold the front of the shelf, and then gently lift up and pull out.

NOTE

Do not lift up the shelf fully when removing or reinserting the shelf. The rear wall of the fridge room can be dented.

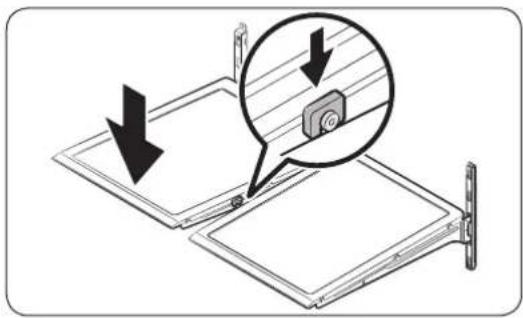

- To reinsert, hold the shelf at an angle so the front is higher than the back, and then insert the top hook into the top shelf notch. Then, lower the shelf and insert the bottom shelf hook into the bottom shelf notch.

CAUTION

• The tempered glass shelves are heavy. Use caution when removing them.
• The shelf must be inserted correctly. Do not insert upside down.
  • Glass containers may scratch the surface of glass shelves.

Maintenance

Door bins

3D diagram of a rectangular container with a black arrow pointing to a vertical slot, no text or symbols present

• To remove the door bin, hold the front sides of the bin, and then gently lift up to remove.
• To reinsert, insert the door bin slightly above its final location making sure that the back of the bin is against the door. Hold the rear of the door bin with both hands, and then press down so that it fits snugly.

CAUTION

• Do not remove a bin that is filled with food. Empty the bin beforehand.
• Use caution when opening the door if the bottom bin contains larger bottles, which may fall over.
• Do not allow children to play with the bins. Sharp corners of the bin may cause injury.

Fridge drawers

Crisper / Flex Crisper Drawers

Diagram of a refrigerator interior with an open drawer and a black arrow indicating direction (no text or symbols)

Gently lift up the front of the drawer and slide out.

• We recommend that you remove the door bins before removing the drawer. This is to prevent damage to the door bins.
- To reinsert, insert the drawer into the frame rails and then slide inward.

English66

Cleaning

Interior and exterior

WARNING

• Do not use benzene, thinner, home/car detergent, or Clorox™ to clean the refrigerator. They may damage the surface of the refrigerator and cause a fire.
• Do not spray water onto the refrigerator. This may cause electric shock.

Regularly use a dry cloth to remove all foreign substances such as dust or water from the power plug terminals and contact points.

1. Unplug the power cord.
2. When done, use a dry cloth or paper towel to dry well.

3. Plug in the power cord.

4. Use a moistened, soft, lint-free cloth or paper towel to clean the refrigerator's interior and exterior.

Dispenser cock (applicable models only)

Diagram of a door with an arrow indicating upward motion, no text or symbols present

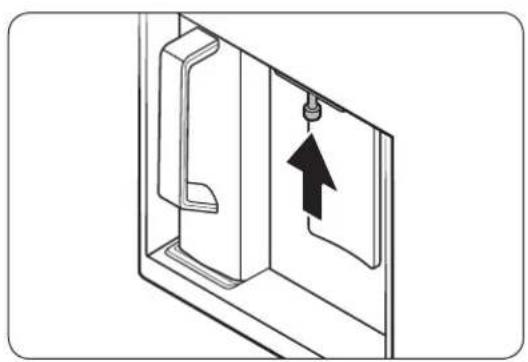

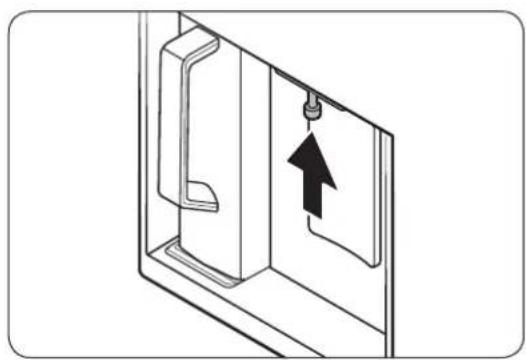

1. Hold the end of the dispenser cock (A).

2. While turning the dispenser cock (A) left, pull it down to remove it from the dispenser.

3. Clean the dispenser cock thoroughly, and then assemble it back.

CAUTION

• Fully insert the dispenser cock, so it is back to its original position.
• Do not use a scrub with rough textures for cleaning the dispenser cock.

Maintenance

Rubber seals

If the rubber seals of a door become dirty, the door may not close properly and reducing refrigerator performance and efficiency. Use a mild detergent and damp cloth to clean the rubber seals. Then, dry well with a cloth.

Rear panel

Diagram of a device rear panel with a pipe inserted, showing ventilation slots and a label (no text or symbols present)

To keep cords and exposed parts of the rear panel free of dirt, vacuum the panel once or twice a year.

CAUTION

Do not remove the rear panel cover. Electric shock may occur.

Replacement

Water filter (applicable models only)

WARNING

• Do not use third-party water filters. Use only Samsung-provided or -approved filters.
• Unapproved filters may leak and damage the refrigerator, causing electric shock.
  Samsung is not responsible for any damage that may occur from use of third-party water filters.

The "Replace water filter" message appears on the control panel to let you know it is time to replace the water filter. Before replacing the filter, make sure the water supply line is shut off.

English68

Diagram of a mechanical assembly with a rotating component and directional arrow (no text or symbols)

Diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Diagram of a mechanical component with an arrow indicating direction, no text or symbols present

1. Shut off the water supply line.

2. Open the filter cartridge cover.

3. Turn the knob of the filter cartridge counter clockwise 90 degrees ( 1/4 turn). The filter cartridge unlocks.

4. Pull out to remove the cartridge.

5. If the water filter is severely contaminated, the cartridge may not be easy to remove. If that is the case, use force to remove the cartridge.

6. To prevent water leaks from the filter opening, pull the cartridge straight out while removing it.

7. Insert a new filter cartridge. Use only Samsung-provided or approved filters.

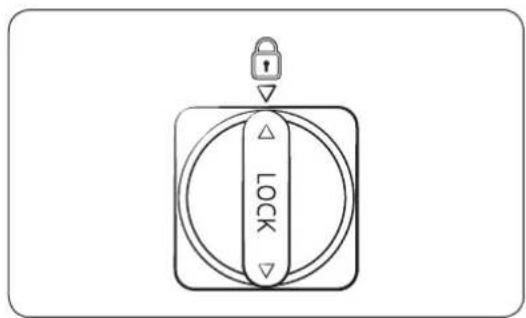

8. Turn the cartridge knob clockwise to lock into place.
9. Close the filter cartridge cover.
10. On the control panel, go to More Options, and then run Filter Reset.

Maintenance

NOTE

• A newly installed filter may cause the water dispenser to spurt water briefly. This is because air has entered the waterline.
• The replacement process may cause the water dispenser to drip for a short period of time. If it drips, simply wipe up any water on the floor with a dry towel.

Reverse osmosis water filtration system

The water pressure of the water supply system to a reverse osmosis water filtration system must be between 206-861 kPa.

The water pressure of the reverse osmosis water filtration system to the refrigerator's cold water line must be at least 206 kPa. If the water pressure is below these specifications:

• Check if the sediment filter in the reverse osmosis system is blocked. Replace the filter if necessary.
• Refill the water tank in the reverse osmosis system with water.
• If your refrigerator has a water filter, it may further reduce the water pressure when used in conjunction with a reverse osmosis system. Remove the water filter.

For more information or servicing, contact a licensed plumbing professional.

Ordering a new filter

To purchase a new water filter, contact a local Samsung service center.

LED Lamps

To replace the lamps of the refrigerator, contact a local Samsung service center.

WARNING

- The lamps are not user-serviceable. Do not attempt to replace a lamp yourself. This can cause electric shock.

English70

Troubleshooting

Before calling for service, review the checkpoints below. Any service calls regarding normal situations (No Defect Cases) will be charged to users.

General

Temperature

Symptom Possible causes Solution
Fridge/freezer does not operate.Fridge/freezer temperature is warm.	Power cord is not plugged in properly.Temperature control is not set correctly.Refrigerator is located near a heat source or direct sunlight.Not enough clearance between refrigerator and nearby walls or cabinets.The refrigerator is overloaded. Food is blocking the refrigerator vents.	Properly plug in the power cord.Set the temperature lower.Keep the refrigerator away from direct sunlight or a heat source.Make sure there is a gap of at least 5 cm between the refrigerator back and sides and any nearby walls or cabinets.Do not overload the refrigerator. Do not allow food to block vents.
Fridge/freezer is over-cooling.	Temperature control is not set correctly.	Set the temperature higher.
Interior wall is hot.	Refrigerator has heat-proof piping in the interior wall.	To prevent condensation from forming, the refrigerator has heat-proof piping in the front corners. If the ambient temperature rises, this equipment may not work effectively. This is not a system failure.

Troubleshooting

Odors

Symptom Possible causes Solution
Refrigerator has odors.	• Spoiled food.	• Clean the refrigerator and remove any spoiled food.
	• Food with strong odors.	• Make sure strong smelling food is wrapped airtight.

Frost

Symptom Possible causes Solution
Frost around the vents.	Food is blocking the vents.	Make sure no food blocks the refrigerator vents.
Frost on interior walls.	Door is not closed properly.	Make sure food does not block the door. Clean the door gasket.
Fruits or vegetables are frozen.	Fruits or vegetables are stored in the Cool Select+.	Do not store most kinds of fruit or vegetables in the Cool Select+.

Condensation

Symptom Possible causes Solution
Condensation forms on the interior walls.	If door is left open, moisture enters the refrigerator.	Remove the moisture and do not leave a door open for extended periods of time.
	Food with high moisture content.	Make sure food is wrapped airtight.

English72

Water/ice (dispenser models only)

Symptom Possible causes Solution
Water flow is weaker than normal.	·Water pressure is too low.	·Make sure the water pressure is between 206-861 kPa.
Ice maker makes a buzzing sound.	·The ice maker function is activated, but the water supply to the refrigerator has not been connected.	·Turn off the Ice Maker.
Ice maker does not make ice.	·Ice maker has just been installed.	·You must wait for 12 hours for the refrigerator to make ice.
	·Freezer temperature is too high.	·Set the freezer temperature below -18 °C or -20 °C in warm ambient air.
	·Ice maker is off. ·Turn on the ice maker.
Ice does not dispense.	·Ice may jam if the ice dispenser is not used for a long time (approx. 3 weeks).	·If you won't be using the refrigerator for a long time, empty the ice bucket and turn off the ice maker.
	·Ice bucket is not properly inserted.	·Make sure the ice bucket is properly inserted.
	·Water line is not connected properly or water supply is not on.	·Check if the water line is installed correctly. Check if the water line stopcock is closed.

Troubleshooting

Symptom Possible causes Solution
Water does not dispense.	·Water line is not connected properly or water supply is not on.	·Check if the water line is installed correctly. Check if the water line stopcock is closed.
	·A third-party water filter was installed.	·Use only Samsung-provided or approved filters.·Unapproved filters may leak and damage the refrigerator.
	·The "Replace water filter" message appears on the control panel.	·Replace the water filter. Then, on the control panel, go to More Options, and then run Filter Reset.

English74

Do you hear abnormal sounds from the refrigerator?

Before calling for service, review the checkpoints below. Any service calls related to normal sounds will be charged to the user.

These sounds are normal.

- When starting or ending an operation, the refrigerator may make sounds similar to a car engine igniting. As the operation stabilizes, the sounds will decrease.

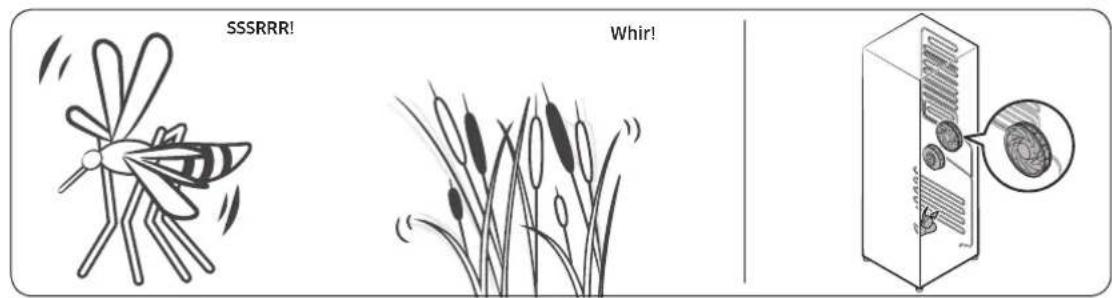

- While the fan is operating, these sounds may occur. When the refrigerator reaches the set temperature, no fan sound will occur.

- During a defrost cycle, water may drip on the defrost heater, causing sizzling sounds.

Troubleshooting

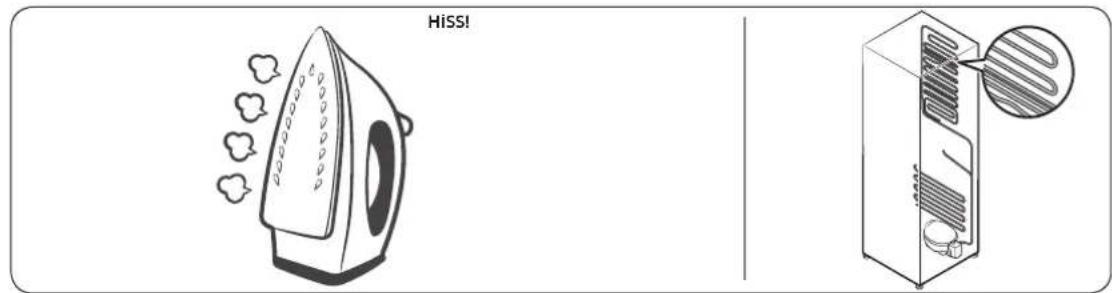

- As the refrigerator cools or freezes, refrigerant gas moves through sealed pipes, causing bubbling sounds.

- As the refrigerator temperature increases or decreases, plastic parts contract and expand, creating knocking noises. These noises occur during the defrosting cycle or when electronic parts are working.

• For ice maker models: When the water valve opens to fill the ice maker, buzzing sounds may occur.
• Due to pressure equalizing when opening and closing the refrigerator door, whooshing sounds may occur.

English76

SmartThings

Symptom Action
Could not find “SmartThings” in the app market.	The SmartThings app is not available for some tablet and iPad and some smartphone. - support that [Android] OS 6.0 or higher(minimum 2GB RAM Size) - support that [iOS]10.0 or higher/iPhone6 or higher.
The SmartThings app fails to operate.	The SmartThings app is available for applicable models only. The old Samsung Smart Refrigerator app cannot connect with Samsung Smart Home models.
The SmartThings app is installed but is not connected to my refrigerator.	You must log into your Samsung account to use the app. Make sure that your router is operating normally. If the Wi-Fi icon on the refrigerator's display is off, this indicates that no network connection has been established yet. In this case, use the SmartThings app to connect and register your refrigerator to the access point (AP) of your house.
Could not log into the app.	You must log into your Samsung account to use the app. If you don't have a Samsung account, follow the app's onscreen instructions to create one.
An error message appears when I try to register my refrigerator.	Easy Connection may fail due to the distance from your access point (AP) or electrical interference from the surrounding environment. Wait a moment and try again.
The SmartThings app is successfully connected to my refrigerator but does not run.	Exit and restart the SmartThings app, or disconnect and reconnect the router. Power off the refrigerator, and then power it on again after 1 minute.

Open Source Announcement

The software included in this product contains open source software.

The following URL http://opensource.samsung.com/opensource/SMART_TP2_0/seq/0 leads to open source license information as related to this product.

English78

Appendix

Safety Instruction

• For the most efficient use of energy, please keep the all inner fittings such as baskets, drawers, shelves and ice cube tray on the position supplied by manufacturer.
• This refrigerating appliance is not intended to be used as a built-in appliance.

Install Instruction

For refrigerating appliances with climate class

Depending on the climate class, This refrigerating appliance is intended to be used at ambient temperatures range as specified following table.

The climate class can be found on the rating plate. The product may not operate properly at temperatures outside of the specific range.

You can find climate class on label inside of your refrigerator

Effective temperature range

The refrigerator is designed to operate normally in the temperature range specified by its class rating.

Class Symbol		Ambient Temperature range (°C)
		IEC 62552 (ISO 15502)	ISO 8561
Extended Temperate SN	+10 to +32	+10 to +32
Temperate N +16 to	+32 +16 to	+32
Subtropical ST +16	to +38 +18 to	+38
Tropical T +16 to	+43 +18 to	+43

NOTE

The cooling performance and power consumption of the refrigerator may be affected by the ambient temperature, the door-opening frequency, and the location of the refrigerator. We recommend adjusting the temperature settings as appropriate.

Appendix

Temperature Instruction

Recommended Temperature

The optimal temperature setting for food storage:

• Fridge: 3 °C
• Freezer: -19 °C

NOTE

The optimal temperature setting of each compartment depends on the ambient temperature. Above optimal temperature is based on the ambient temperature of 25 ^ .

Power Cool

Power Cool speeds up the cooling process at maximum fan speed. The fridge keeps running at full speed for two and a half hours and then returns to the previous temperature.

Power Freeze

Power Freeze speeds up the freezing process at maximum fan speed. The freezer keeps running at full speed for 50 hours and then returns to the previous temperature. To freeze large amounts of food, activate Power Freeze for at least 20 hours before putting food in the freezer.

NOTE

When you use this function the energy consumption of the refrigerator will increase. Remember to turn it off when you don't need it and return the freezer to your original temperature setting.

How to store for best preservation (applicable models only)

Cover foods to retain moisture and prevent them from picking up odors from other foods. A large pot of food like soup or stew should be divided into small portions and put in shallow containers before being refrigerated. A large cut of meat or whole poultry should be divided into smaller pieces or placed in shallow containers before refrigerating.

English80

Placement of Foods

Shelves	Shelves should be adjustable to accommodate a variety of packages.
Specialized compartment (applicable models only)	Sealed crisper drawers provide an optimal storage environment for fruits and vegetables. Vegetables require higher humidity conditions while fruits require lower humidity conditions.Crispers are equipped with controls devices to control the humidity level. (*Depending on model and options) An adjustable temperature meat drawer maximizes the storage time of meats and cheeses.
Stored on the door	Don’t store perishable foods in the door. Eggs should be stored in the carton on a shelf. The temperature of the storage bins in the door fluctuate more than the temperature in the cabinet. Keep the door closed as much as possible.
Freezer Compartment	You can store frozen food, make ice cubes and freeze fresh food in the freezer compartment.

NOTE

Freeze fresh, undamaged food only. Keep food which is to be frozen away from food which is already frozen. To prevent food from losing its flavour or drying out, place in airtight containers.

Refrigerator & Freezer Storage Chart

The freshness longevity depends on temperature and exposure to moisture. Since product dates aren't a guide for safe use of a product, consult this chart and follow these tips.

Milk products

Product Refrigerator	Freezer
Milk 1 week 1 month
Butter 2 weeks 12 months
Ice cream - 2-3 weeks
Natural cheese 1 month 4-6 months
Cream cheese 2 weeks Not recommended
Yogurt 1 month -

Appendix

Meat

Product Refrigerator	Freezer
Fresh roasts, steaks, chops 3-4 days	2-3 months
Fresh ground meat, stew meat 1-2 days	3-4 months
Bacon 7 days 1 month
Sausage, Raw from pork, beef, turkey	1-2 days 1-2 months

Poultry / Eggs

Product Refrigerator	Freezer
Fresh poultry 2 days 6-8 months
Poultry salad 1 day -
Eggs, Fresh in shell 2-4 weeks Not recommended

Fish / Seafood

Product Refrigerator	Freezer
Fresh fish 1-2 days 3-6 months
Cooked fish 3-4 days	1 month
Fish salad	1 day	Not recommended
Dried or pickled fish	3-4 weeks	-

Fruits

Product Refrigerator	Freezer
Apples	1 month	-
Peaches	2-3 weeks	-
Pineapple	1 week	-
Other fresh fruit	3-5 days	9-12 months

Vegetables

Product Refrigerator	Freezer
Asparagus	2-3 days	-
Broccoli, Brussels sprouts, green peas, mushrooms	3-5 days	-

English82

Product Refrigerator	Freezer
Cabbage, cauliflower, celery, cucumbers, lettuce	1 week -
Carrots, beets, radishes 2 weeks -

Information for model and ordering spare parts

Model information

To access the EPREL registration of the model :

1. Go to https://eprel.ec.europa.eu
2. Get the model identifier from the energy label of the product and type it in the search box
3. Energy Labelling information of the model is shown

Part information

• The minimum period during which spare parts, necessary for the repair of the appliance, are available
• 7 Years thermostats, temperature sensors, printed circuit boards and light sources, door handles, door hinges, trays, baskets (boxes or drawers)
• 10 Years door gaskets
• The minimum duration of the guarantee of the refrigerating appliance offered by the manufacturer 24 Months.
• Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorized representative
• You can find professional repair information on http://samsung.com/support You can find user servicing manual on http://samsung.com/support.

SAMSUNG

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

Country Contact Center Web Site
CYPRUS 8009	4000 only from landline, toll free	www.samsung.com/gr/support
GREECE	80111-SAMSUNG (80111 726 7864) only from land line([phone] from mobile and land line
ITALIA 800-SA	AMSUNG (800.7267864) www.samsung.com	/it/support
PORTUGAL 808	207 267 www.samsung.com/pt/support
SPAIN 91 175	00 15 www.samsung.com/es/support

DA68-04023P-00

Frigorifero

Manuale dell'utente

Open Source Announcement 80

Italiano2

Appendice 81

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Technical line drawing of a refrigerator interior showing door, drawer, and seat compartments with directional arrows indicating movement (no text or labels)

Installazione

Diagram showing two mechanical components with directional arrows and a prohibition sign, no text or symbols present.

NOTA

Mechanical assembly diagram showing a bracket with mounting holes and a directional arrow (no text or symbols)

Diagram showing mechanical assembly with directional arrows and a magnified view of connected components (no text or symbols)

Mechanical assembly diagram showing a clamping mechanism with rotating arrow (no text or symbols)

Technical line drawing of a mechanical assembly with a black arrow indicating a component (no text or symbols present)

Mechanical assembly diagram showing a clamp device inserted into a housing component (no text or symbols visible)

Technical line drawing of a door panel with an arrow indicating direction (no text or symbols)

Diagram of a car seatbelt buckle being installed into the door, with a directional arrow indicating motion (no text or symbols present)

Diagram of a mechanical component with two bidirectional arrows indicating movement or force (no text or symbols present)

Technical diagram showing a mechanical joint or bracket with an arrow indicating direction (no text or symbols present)

Diagram of a door panel with an inset showing a hand holding a bracket, indicating left-hand rule or adjustment (no text or symbols present)

Per ricollegare le porte del freezer

ATTENZIONE

Diagram of a door opening with a wall-mounted panel and a directional arrow indicating left motion (no text or symbols)

Technical diagram showing a mechanical clamp or bracket assembly with a downward arrow indicating force or motion (no text or symbols present)

Diagram showing a car door handle and two black arrows indicating left-hand side (no text or symbols present)

Diagram of a car seatbelt mechanism inside a vehicle, showing a valve and pushpin (no text or symbols)

Diagram showing electrical connections with arrows and a magnified inset of cable routing (no text or symbols)

Technical illustration of a mechanical component with screw fasteners and a curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical device with a tool inside a circular inset, no text or symbols present

Line drawing of a door with an open lid and circular hole (no text or symbols)

Two identical curved mechanical or electrical components with no visible text or symbols

Simple line drawing of a two-door cabinet with two circular buttons on one side (no text or symbols)

NOTA

Diagram showing a mechanical assembly with a magnified inset highlighting a component (no text or symbols present)

Diagram showing a cabinet with a magnified inset of a mechanical component (no text or symbols)

Diagram of a mechanical device with a handle and internal components, showing an upward arrow (no text or symbols)

Technical diagram showing two mechanical assembly views labeled A and B, with arrows pointing to component components (no text or symbols beyond labels)

A. Modelli Tipo A
B. Modelli Tipo B

Technical diagram of a mechanical assembly with labeled components A and B, showing internal components without any text or symbols.

A. Modelli Tipo A

B. Modelli Tipo B

Technical illustration of a mechanical assembly with two views showing internal components and a no-smoking symbol (no text or labels present)

Two diagrams showing a device with a circular symbol above and a prohibition sign below, no text or labels present.

3D diagram of a mechanical device with a magnified circular detail (no text or symbols)

A. Modelli Tipo A
B. Modelli Tipo B

NOTA

Diagram of a door with a door handle and internal panel, showing a black arrow pointing to the door panel (no text or symbols present)

Cross-sectional diagram of a mechanical or electrical component with layered structure (no text or symbols)

Diagram of a refrigerator interior showing seating arrangement and a magnified view of the front portion (no text or symbols)

Diagram showing two containers with granular material inside, one moving right and the other horizontally (no text or symbols)

Diagram of a lathe machine with a cup pouring liquid into a grid-patterned tray, showing a magnified inset (no text or symbols)

Line drawing of a microwave oven with a rotary knob and lid (no text or symbols)

Diagram of a computer device with an open drawer and internal compartments, showing a black arrow pointing to the handle (no text or symbols present)

Diagram of a mechanical device with a top component and an arrow indicating upward motion (no text or symbols)

Diagram of a mechanical component with a handle and internal structure, no text or symbols present

Diagram of a cylindrical device with a black arrow pointing upward, placed on a base with a small mouth (no text or symbols)

Diagram of a mechanical assembly with a rotating component and a flat plate (no text or symbols)

Diagram showing a mechanical component with an arrow indicating direction, no text or symbols present

3D diagram of a rectangular container with a black arrow pointing to it, no text or symbols present

Diagram of a refrigerator interior showing a drawer with an arrow indicating direction (no text or symbols present)

Technical diagram of a mechanical component with a downward arrow and labeled point A (no text or symbols beyond label)

Diagram of a door panel with an arrow indicating upward motion (no text or symbols)

Diagram of a device rear panel with a cable inserted, showing ventilation slots and a handle (no text or symbols)

Diagram of a mechanical assembly with a rotating component and directional arrow (no text or symbols)

Diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

Simple line drawing of a kettle with smoke rising from its side (no text or symbols)

Diagram of a vertical container with internal heat exchanger and a magnified inset showing internal flow (no text or symbols)

Open Source Announcement

The software included in this product contains open source software.

The following URL http://opensource.samsung.com/opensource/SMART_TP2_0/seq/0 leads to open source license information as related to this product.

Italiano80

Appendice

Open Source Announcement 78

Español2

Apéndice 79

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Technical line drawing of a refrigerator interior showing door, seats, and storage compartments (no text or labels)

Español30

Diagram showing two mechanical components with directional arrows and a prohibition sign, no text or symbols present.

NOTA

Mechanical assembly diagram showing a bracket with mounting holes and a directional arrow (no text or symbols)

Diagram showing mechanical assembly with directional arrows and a magnified view of connected components (no text or symbols)

Mechanical assembly diagram showing a person operating a clamp or fixture with a rotating arrow (no text or symbols)

Technical line drawing of a mechanical assembly with a lever and bracket (no text or symbols)

Mechanical assembly diagram showing a component being inserted into a housing (no text or symbols visible)

Technical line drawing of a door frame with an arrow indicating direction (no text or symbols)

Diagram showing a car seatbelt buckle being inserted into the door, with a directional arrow indicating motion (no text or symbols present)

Diagram of a mechanical or electrical component with two bidirectional arrows indicating movement or force (no text or symbols present)

Technical diagram showing a mechanical joint or bracket with an arrow indicating direction (no text or symbols present)

Diagram of a door panel with an inset showing a close-up of the door handle and a directional arrow indicating rotation (no text or symbols present)

Diagram of a door opening with a wall-mounted panel and a directional arrow indicating left motion (no text or symbols)

Technical diagram showing a mechanical clamp or bracket assembly with a downward arrow indicating force or motion (no text or symbols present)

Diagram showing a car seatbelt buckle and two directional arrows indicating movement or movement (no text or symbols present)

Diagram of a car seatbelt mechanism inside a vehicle door, showing a valve and pushpin (no text or symbols)

Diagram of a door hinge with a black arrow pointing to a handle (no text or symbols present)

Mechanical assembly diagram showing a clamping mechanism interacting with a bracket (no text or symbols visible)

Technical diagram of a mechanical assembly with a lever mechanism and mounting bracket (no text or symbols)

Technical diagram of a mechanical assembly with a tool interacting with a component (no text or symbols visible)

Diagram showing a mechanical assembly with arrows indicating direction, and a magnified view of connected components (no text or symbols)

Technical diagram of a mechanical assembly with screw fasteners and a curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical device with a tool inside a circular inset, no text or symbols present

Line drawing of a door with an open lid and circular button (no text or symbols)

Two identical abstract curved shapes with internal lines, no text or symbols present

Simple line drawing of a two-door cabinet with two circular buttons on one side (no text or symbols)

NOTA

Diagram showing a cabinet with a magnified inset highlighting a mechanical component (no text or symbols present)

Diagram showing a mechanical component with a magnified inset highlighting a specific part (no text or symbols present)

Diagram of a mechanical device with an upward arrow indicating force or direction (no text or symbols present)

Technical diagram showing two mechanical components with arrows indicating assembly or movement (no text or symbols present)

Technical diagram of a mechanical assembly with labeled components A and B, showing internal components without any text or symbols.

Technical illustration of a mechanical assembly with no visible text or symbols

Two diagrams showing a device with a circular symbol above and a prohibition sign below, no text or labels present.

3D technical illustration of a mechanical device with a circular aperture and rectangular body (no text or symbols)

Funcionamiento

Diagram of a door with a door handle and internal panel, showing a black arrow pointing to the door panel (no text or symbols present)

Cross-sectional diagram of a mechanical or electrical component with layered structure (no text or symbols)

Diagram of a refrigerator interior showing seating arrangement and a magnified view of the front portion of the refrigerator (no text or symbols present)

Diagram showing two containers with granular material inside, one moving right and the other horizontally (no text or symbols)

Diagram of a container being poured into a rack, with an inset showing a magnified view of the structure (no text or symbols present)

Diagram of a microwave oven with a rotary button and lid, showing internal compartments (no text or symbols)

Diagram of a device with a file inserted into a drawer, showing internal components and an upward arrow (no text or symbols)

Diagram of a mechanical device with an upward arrow indicating force or direction (no text or symbols present)

Diagram of a mechanical component with a handle and internal structure, no text or symbols present

Diagram of a cylindrical device with a black arrow pointing upward, placed on a base with a small mouth (no text or symbols)

Diagram of a mechanical assembly with a rotating component and a flat plate (no text or symbols)

Diagram showing a mechanical component with an arrow indicating direction, no text or symbols present

3D diagram of a rectangular container with a black arrow pointing to it, no text or symbols present

Diagram of a cabinet or drawer with an arrow indicating direction, no text or symbols present

Technical diagram of a door handle assembly with a downward arrow indicating force or direction (no text or symbols)

Diagram of a door with an arrow indicating upward motion, no text or symbols present

Diagram of a computer monitor with ventilation slots and a cable inserted, no text or symbols present

Diagram of a mechanical assembly with a rotating component and directional arrow (no text or symbols)

Diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Diagram of a mechanical component with an arrow indicating direction, no text or symbols present

Open Source Announcement

The software included in this product contains open source software.

The following URL http://opensource.samsung.com/opensource/SMART_TP2_0/seq/0 leads to open source license information as related to this product.

Español78

Apéndice

Open Source Announcement 79

Português2

Apêndice 80

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Technical line drawing of a refrigerator interior showing door, seats, and storage compartments (no text or labels)

Português30

Diagram showing two mechanical components with directional arrows and a prohibition sign, no text or symbols present.

NOTA

Technical diagram of a mechanical bracket with mounting holes and an upward arrow indicating force or direction (no text or symbols)

Diagram showing mechanical assembly with directional arrows and a magnified view of connected components (no text or symbols)

Illustration of a person working on a mechanical device with an arrow indicating motion (no text or symbols present)

Technical diagram of a mechanical assembly with a lever and bracket (no text or symbols)

Mechanical assembly diagram showing a component being inserted into a housing (no text or symbols visible)

Technical line drawing of a door panel with an arrow indicating direction (no text or symbols)

Diagram of a car seatbelt buckle being inserted into the door, with a black arrow indicating direction (no text or symbols)

Diagram of a mechanical or electrical component with two bidirectional arrows indicating movement or force (no text or symbols present)

Technical diagram showing a mechanical joint or bracket with an arrow indicating direction (no text or symbols present)

Diagram of a door panel with an inset showing a close-up of the door handle and a directional arrow indicating rotation (no text or symbols present)

Diagram of a door opening with a wall-mounted panel and a directional arrow indicating left motion (no text or symbols)

Technical diagram showing a mechanical clamp or bracket assembly with a downward arrow indicating force or direction (no text or symbols present)

Diagram showing a car seatbelt buckle and two directional arrows indicating movement or movement (no text or symbols present)

Diagram of a car seatbelt mechanism inside a vehicle door, showing a valve and pushpin (no text or symbols)

Para reinstalar as portas do frigorífico

Diagram of a door hinge with a black arrow pointing to a handle (no text or symbols present)

Technical illustration of a mechanical assembly with a black arrow indicating a component (no text or symbols present)

Technical diagram of a mechanical assembly with a lever mechanism and mounting bracket (no text or symbols)

Technical diagram of a mechanical assembly with a tool interacting with a component (no text or symbols visible)

Diagram showing a mechanical assembly with arrows indicating direction, and a magnified view of connected components (no text or symbols)

Technical diagram of a mechanical assembly with screw fasteners and a curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical device with a tool inside a circular inset, no text or symbols present

Line drawing of a door with an open lid and circular button (no text or symbols)

Two identical abstract curved shapes with internal lines, no text or symbols present

Simple line drawing of a two-door cabinet with two circular buttons on one side (no text or symbols)

NOTA

Diagram showing a cabinet with a magnified inset highlighting a mechanical component (no text or symbols present)

Diagram showing a mechanical joint or bracket with an inset close-up of the joint detail (no text or symbols present)

Diagram of a mechanical device with an upward arrow indicating motion or force, no text or symbols present

Technical diagram showing two mechanical assembly views (A and B) with arrows pointing to components, no text or symbols present.

A. Modelos do Tipo A
B. Modelos do Tipo B

Technical diagram of a mechanical assembly with labeled components A and B, showing internal components and directional arrows (no text or symbols beyond labels)

A. Modelos do Tipo A
B. Modelos do Tipo B

Technical illustration of a mechanical assembly with two views showing internal components and a no-smoking symbol (no text or labels present)

Two diagrams showing a device with a circular symbol above and a prohibition sign below, no text or labels present.

3D diagram of a mechanical device with a circular aperture and rectangular base (no text or symbols)

Diagram of a door with a door handle and internal panel, showing a black arrow pointing to a device (no text or symbols present)

Cross-sectional diagram of a mechanical or electrical component with layered structure (no text or symbols)

Diagram of a refrigerator interior showing seat arrangement and a magnified inset of the seat (no text or symbols)

Diagram showing two containers with granular material inside, one moving right and the other horizontally (no text or symbols)

Diagram of a lathe machine with a cup pouring liquid into a grid-patterned tray, showing a magnified inset (no text or symbols)

Line drawing of a microwave oven with a rotary knob and lid, showing internal components (no text or symbols)

Diagram of a computer device with an open drawer and internal grid array (no text or symbols)

Diagram of a mechanical device with an upward arrow indicating force or direction (no text or symbols present)

Diagram of a mechanical component with a handle and internal structure, no text or symbols present

Diagram of a cylindrical filter with an upward arrow, placed on a base with a small inset showing internal components (no text or symbols)

Diagram of a mechanical assembly with a rotating component and a flat plate (no text or symbols)

Diagram showing a mechanical component with an arrow indicating direction, no text or symbols present

3D diagram of a rectangular container with a black arrow pointing to it, no text or symbols present

Diagram of a refrigerator interior with an open drawer and a black arrow indicating direction (no text or symbols)

Diagram of a door panel with an arrow indicating upward motion (no text or symbols)

Diagram of a device rear panel with a pipe inserted, showing ventilation slots and a label (no text or symbols present)

Diagram of a mechanical assembly with a rotating component and directional arrow (no text or symbols)

Diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Diagram of a mechanical component with an arrow indicating direction, no text or symbols present

Open Source Announcement

The software included in this product contains open source software.

The following URL http://opensource.samsung.com/opensource/SMART_TP2_0/seq/0 leads to open source license information as related to this product.

Apêndice

Open Source Announcement 78

Ελληνικά2

Παράρτημα 79

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Technical line drawing of a refrigerator interior showing door, seats, and storage compartments (no text or labels)

Ελληνικά30

Diagram showing two mechanical components with directional arrows and a prohibition sign, no text or symbols present.

ΣΗΜΕΙΩΣΗ

Technical diagram of a mechanical bracket with mounting holes and a directional arrow indicating motion (no text or symbols)

Diagram showing mechanical assembly with directional arrows and a magnified view of connected components (no text or symbols)

Illustration of a person using a device on a platform with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a clamp device inserted into a housing component (no text or symbols visible)

Technical line drawing of a door frame with mounting holes and a directional arrow (no text or symbols)

Diagram of a car seatbelt buckle being installed into the door, with a black arrow indicating direction (no text or symbols)

Diagram of a mechanical device with two bidirectional arrows indicating movement or force (no text or symbols present)

Technical diagram showing a mechanical joint or bracket with an arrow indicating direction (no text or symbols present)

Diagram of a door opening with an inset showing a mechanical component and directional arrows (no text or symbols)

Diagram of a door opening with mounting feet and a wall-mounted panel, showing no text or symbols

Technical diagram showing a mechanical clamp or bracket assembly with a downward arrow indicating force or motion (no text or symbols present)

Diagram showing a mechanical component with two attached parts and directional arrows indicating movement or force (no text or symbols present)

Diagram of a car seatbelt mechanism inside a vehicle, showing a valve and pushpin (no text or symbols)

Diagram of a door hinge joint with a black arrow indicating a detail (no text or symbols present)

Mechanical assembly diagram showing a bracket with a black arrow indicating a force or movement (no text or symbols present)

Mechanical assembly diagram showing a lever mechanism interacting with a bracket (no text or symbols visible)

Technical diagram of a mechanical assembly with a tool and component, no visible text or symbols

Diagram showing electrical circuit components with arrows indicating connection to a device, and a magnified inset illustrating cable routing (no text or symbols present)

Technical diagram of a mechanical assembly with screw fasteners and a curved arrow indicating rotation (no text or symbols)

Diagram showing a mechanical device with a tool inside a circular inset, no text or symbols present

Line drawing of a door with an open lid and circular button (no text or symbols)

Two identical curved, segmented objects resembling medical or surgical instruments (no text or symbols)

Line drawing of a two-door cabinet with two circular buttons on one side (no text or symbols)

ΣΗΜΕΙΩΣΗ

Diagram showing a cabinet with a magnified inset highlighting a mechanical component (no text or symbols present)

Diagram showing a cabinet with a magnified view of a mechanical component inserted into a brick wall (no text or symbols)

Diagram of a mechanical device with an upward arrow indicating force or direction (no text or symbols present)

Technical diagram showing two mechanical assembly views (A and B) with arrows pointing to components, no text or symbols present.

Technical diagram of a mechanical assembly with labeled components A and B, showing internal components without any text or symbols.

A. Μοντέλα τύπου Α

B. Μοντέλα τύπου Β

Technical illustration of a mechanical assembly with two views showing internal components and a no-smoking symbol (no text or labels present)

Two identical diagrams showing a device with a circular symbol above and a prohibition sign below, no text or labels present.

3D diagram of a mechanical device with a circular aperture and handle (no text or symbols)

Aetoupyics

Diagram of a door with a door handle and a black arrow pointing to the interior panel (no text or symbols)

Cross-sectional diagram of a mechanical or electrical component with layered structure (no text or symbols)

Diagram of a refrigerator interior with a magnified inset showing the exterior view (no text or symbols)

Diagram showing two containers with granular material inside, one moving right and the other horizontally (no text or symbols)

Ελληνικά60.

ΠΡΟΣΟΧΗ

Diagram of a lathe machine with a cup pouring liquid into a grid-patterned tray, showing a magnified inset (no text or symbols)

Line drawing of a microwave oven with a rotary knob and lid, showing internal components (no text or symbols)

Diagram of a device with a file inserted into a drawer, showing internal components and an upward arrow (no text or symbols)

Diagram of a mechanical device with an upward arrow indicating force or direction (no text or symbols present)

Diagram of a mechanical device with a handle and internal component, no text or symbols present

Diagram of a cylindrical device with a black upward arrow emerging from it, placed on a base with a small inset component (no text or symbols)

Diagram of a mechanical assembly with a rotating component and a flat plate (no text or symbols)

Diagram showing a door panel being inserted into a plastic hinge, with an arrow indicating the insertion direction (no text or symbols present)

3D diagram of a rectangular basin with a black arrow pointing to a small object on top, no text or symbols present

Diagram of a refrigerator interior showing a door, drawer, and air conditioner unit (no text or symbols)

Diagram of a door with a hanging hook and an arrow indicating direction (no text or symbols)

Diagram of a device rear panel with a pipe inserted, showing ventilation slots and a label (no text or symbols present)

Diagram of a mechanical assembly with a rotating component and directional arrow (no text or symbols)

Diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Diagram of a mechanical component with an arrow indicating direction, no text or symbols present

Open Source Announcement

The software included in this product contains open source software.

The following URL http://opensource.samsung.com/opensource/SMART_TP2_0/seq/0 leads to open source license information as related to this product.

Ελληνικά78.

Παράρτημα
