USER MANUAL C10DA AJA

C10DA Mini-Converter 1x6 Analog Video Distribution Amplifier Installation & Operation Guide

Version 1.0r1

Published: September 27, 2016

Table of Contents

Notices....4

Trademarks 4

Copyright 4

Contacting Support 4

Chapter 1: Introduction ....5

Overview.... 5

Features 5

Formats....5

Inputs 5

Outputs 5

User Controls 5

Simplified Block Diagram 5

I/O Connections....6

Installation 6

Configuration 6

Input Termination Control.... 6

Gain Control 7

DIP Switch Configuration Example 1....7

Input is Terminated 7

Gain Control Set to +1dB....7

DIP Switch Configuration Example 2....7

Input is Open 7

Gain Control Set to 0....7

Appendix A: Specifications 8

Formats....8

Inputs 8

Outputs 8

Termination 8

Video Bandwidth....8

Gain 8

Diff Gain 8

Diff Phase....8

H/V Tilt 8

Response Variation.... 8

Coupling 8

Max Common Mode Signal 8

Return Loss 8

Output Isolation 8

User Controls 9

Size (w x d x h) 9

Weight 9

Power 9

Environment....9

Appendix B: Safety and Compliance....10

Federal Communications Commission (FCC) Compliance Notices 10

Class A Interference Statement 10

FCC Caution 10

Canadian ICES Statement.... 10

European Union and European Free Trade Association (EFTA)

Regulatory Compliance.... 11

Declaration of Conformity.... 11

Recycling Notice 12

Korean KCC Compliance Statement 12

Taiwan Compliance Statement 12

Japanese Compliance Statement 12

Translated Warning and Caution Messages.... 13

Before Operation Please Read These Instructions 13

Warranty Information....18

Limited Warranty.... 18

Trademarks

AJA^® , Io^® , Ki Pro ^® , KONA ^® , KUMO ^® , T-TAP ^® , Because it matters. ^® and ROI ^® are registered trademarks of AJA Video Systems, Inc. in the United States. AJA and Ki Pro are trademarks of AJA Video Systems, Inc. registered in other countries. AJA Control Room™, CION™, Corvid Ultra™, FiDO™, Science of the Beautiful™, TruScale™, TruZoom™, V2Analog™ and V2Digital™ are trademarks of AJA Video Systems, Inc.

AirPort, Apple, Apple logo, AppleShare, AppleTalk, FireWire, iPod, iPod touch, Mac and Macintosh are registered trademarks of Apple Inc. FinalCut Pro, QuickTime and QuickTime logo are trademarks of Apple Inc.

Avid, Avid DNxHD and Media Composer are registered trademarks of Avid Technology, Inc.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC.

DVI is a registered trademark of DDWG.

TASCAM is a registered trademark of TEAC Corporation.

Dolby® and the double-D Dolby logo are registered trademarks of Dolby Laboratories Licensing Corporation.

All other trademarks are the property of their respective holders.

Copyright

Copyright © 2016 AJA Video Systems, Inc. All rights reserved. All information in this manual is subject to change without notice. No part of the document may be reproduced or transmitted in any form, or by any means, electronic or mechanical, including photocopying or recording, without the express written permission of AJA Video Systems, Inc.

Contacting Support

When calling for support, have all information at hand prior to calling.

To contact AJA for sales or support, use any of the following methods:

Telephone: [phone]

FAX:[phone]

Web: http://www.aja.com

Support Email: [e-mail]

Sales Email: [e-mail]

Chapter 1: Introduction

Overview

The C10DA is a miniature, low-cost utility 1x6 analog video distribution amplifier that can be used for distributing analog video, bi-level video reference, and tri-level video reference signals. It can also be used to distribute other single ended signals such as AES3-id and Linear Timecode (LTC). Featuring six separately buffered analog outputs, the C10DA provides gain adjustment.

Features

Formats · NTSC

• P A L
- Bi-level Reference
• Tri-level Reference
• AES 3 - id
• LTC

Inputs · 1 Analog, Differential, 1 x BNC

Outputs · 6 Analog, 6 x BNC

User Controls · External Dipswitch

• Termination
• Gain

Simplified Block Diagram

I/O Connections

Installation

Typically, C10DA installation consists of the following steps:

1. Disconnect power from the converter.
2. Connect video equipment to the BNCs.
3. Apply DC power to the converter.

Configuration

NOTE: There is no Mini-Config support for this product.

You can configure the C10DA by using the DIP Switches on the back of the unit.

Input Termination Control

DIP Switch 4 determines whether the input is terminated (75 ohm) or open.

Put in the left position, the input is terminated. Put in the right position, the input is open.

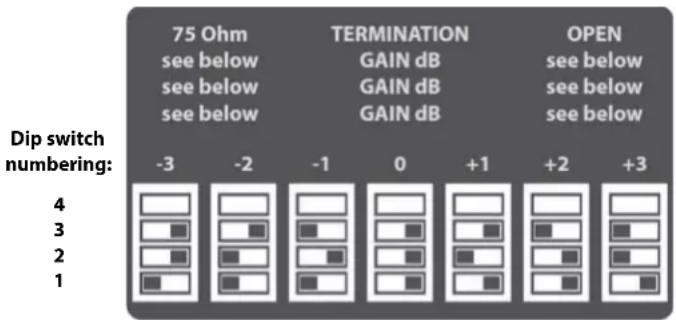

Gain Control

The positions of DIP Switches 3, 2, and 1 determine the gain setting, from -3dB to +3dB in 1dB increments, as indicated in the illustration below.

DIP Switch Configuration Example 1

Dip switch 4 positioned to the left (Input is terminated)

Dip switches 3, 2, and 1 are set for a gain setting of +1dB

Input is Terminated

In example 1, DIP Switch 4 is positioned to the left, meaning that the input is terminated.

Gain Control Set to +1dB

In example 1, DIP Switches 3, 2, and 1 are configured for a gain control setting of +1dB .

DIP Switch Configuration Example 2

Dip switch 4 positioned to the right (Input is open)

Dip switches 3, 2, and 1 are set for a gain setting of 0

Input is Open In example 2, DIP Switch 4 is positioned to the right, meaning that the input is open.

Gain Control Set to 0

In example 2, DIP Switches 3, 2, and 1 are configured for a gain control setting of 0.

Appendix A: Specifications

Formats · NTSC

• P A L
- Bi-level Reference
• Tri-level Reference
• AES 3 - id
• LTC

Inputs · 1 Analog, Differential, 1 x BNC

Outputs · 6 Analog, 6 x BNC

Termination · 75 Ohms or nonterminated

Video Bandwidth · 0 - 6 MHz +/- 0.1 dB

Gain - -3dB, -2dB, -1dB, 0dB, +1dB, +2dB, or +3dB, +/- 0.3dB

Diff Gain · 0.15%, not load dependent

Diff Phase · 0.1 degree, not load dependent

H/V Tilt • < 0.1%

Response Variation • < 0.1dB 1 to 6 loads

Coupling · D C

Max Common Mode · 10 V p - p Signal

Return Loss • > 35dB to 6 MHz all inputs and outputs

Output Isolation · > 40 dB

User Controls · External Dipswitch

- Termination

• Gain

Size (w x d x h) · 5.8" x 3.1" x 1.0" (147mm x 79mm x 25mm)

Weight·12 oz.

Power

- 5VDC Regulated, 2 Watts, power supply required, included with purchase

Environment

Safe Operating Temperature · 0 to 40 degrees C (32 to 104 degrees F)

Safe Storage Temperature • -40 to 60 degrees C (-40 to 140 degrees F) (Power OFF)

Operating Relative Humidity • 10-90% noncondensing

Operating Altitude • <3,000 meters (<10,000 feet)

Appendix B: Safety and Compliance

Federal Communications Commission (FCC) Compliance Notices

Class A Interference Statement

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15, Subpart B of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Canadian ICES Statement

Canadian Department of Communications Radio Interference Regulations

This digital apparatus does not exceed the Class A limits for radio-noise emissions from a digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications. This Class A digital apparatus complies with Canadian ICES-003.

European Union and European Free Trade Association (EFTA) Regulatory Compliance

This equipment may be operated in the countries that comprise the member countries of the European Union and the European Free Trade Association. These countries, listed in the following paragraph, are referred to as The European Community throughout this document:

AUSTRIA, BELGIUM, BULGARIA, CYPRUS, CZECH REPUBLIC, DENMARK, ESTONIA, FINLAND, FRANCE, GERMANY, GREECE, HUNGARY, IRELAND, ITALY, LATVIA, LITHUANIA, LUXEMBOURG, MALTA, NETHERLANDS, POLAND, PORTUGAL, ROMANIA, SLOVAKIA, SLOVENIA, SPAIN, SWEDEN, UNITED KINGDOM, ICELAND, LICHTENSTEIN, NORWAY, SWITZERLAND

Declaration of Conformity

Marking by this symbol indicates compliance with the Essential Requirements of the EMC Directive of the European Union 2014/30/EU

This equipment meets the following conformance standards:

Safety: EN 60065: 2002 + A1: 2006 + A11: 2008 + A2: 2010 + A12: 2011 (GS License)

IEC 60065: 2001 + A1: 2005 + A2: 2010 (CB Scheme Report/Certificate)

Additional licenses issued for specific countries available on request.

Emissions: EN 55032: 2012, EN 55022: 2010, CISPR 22: 2008,

EN 61000-3-2: 2014, EN 61000-3-3: 2013

Immunity: EN 55103-2: 2009, EN 61000-4-2: 2009, EN 61000-4-3: 2006 + A1: 2008 + A2: 2010,

EN 61000-4-4: 2004 + A1: 2010, EN 61000-4-5: 2006, EN 61000-4-6: 2009,

EN 61000-4-11: 2004

Environments: E2, E3 and E4

The product is also licensed for additional country specific standards as required for the International Marketplace.

Warning!

This is a Class A product. In a domestic environment, this product may cause radio interference, in which case, the user may be required to take appropriate measures.

This symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

Korean KCC Compliance Statement

A급 기기 (업무용 방송통신기자재)

Class A (Broadcasting Communication Equipment for Office Use)

As an electromagnetic wave equipment for office use (Class A), this equipment is intended to use in other than home area. Sellers or users need to take note of this.

Taiwan Compliance Statement

警告使用者：

This is a Class A product based on the standard of the Bureau of Standards, Metrology and Inspection (BSMI) CNS 13438, Class A. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

Japanese Compliance Statement

1. Class A | TE

This is a Class A product based on the standard of the VCCI Council (VCCI V-3/2015.04). If this equipment is used in a domestic environment, radio interference may occur, in which case, the user may be required to take corrective actions.

Translated Warning and Caution Messages

The following caution statements, warning conventions, and warning messages apply to this product and manual.

Warning Symbol

Caution Symbol

Before Operation Please Read These Instructions

Warning!

Read and follow all warning notices and instructions marked on the product or included in the documentation.

Do not use this device near water and clean only with a dry cloth.

Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the device.

Unplug this device during lightning storms or when unused for long periods of time.

Do not open the chassis. There are no user-serviceable parts inside. Opening the chassis will void the warranty unless performed by an AJA service center or licensed facility.

Refer all servicing to qualified service personnel. Servicing is required when the device has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the device, the device has been exposed to rain or moisture, does not operate normally, or has been dropped.

Only use attachments and accessories specified and/or sold by the manufacturer.

AJA Video Systems, Inc. (AJA Video) warrants that this product will be free from defects in materials and workmanship for a period of five years from the date of purchase. If a product proves to be defective during this warranty period, AJA Video, at its option, will either repair the defective product without charge for parts and labor, or will provide a replacement in exchange for the defective product.

In order to obtain service under this warranty, you the Customer, must notify AJA Video of the defect before the expiration of the warranty period and make suitable arrangements for the performance of service. The Customer shall be responsible for packaging and shipping the defective product to a designated service center nominated by AJA Video, with shipping charges prepaid. AJA Video shall pay for the return of the product to the Customer if the shipment is to a location within the country in which the AJA Video service center is located. Customer shall be responsible for paying all shipping charges, insurance, duties, taxes, and any other charges for products returned to any other locations.

This warranty shall not apply to any defect, failure or damage caused by improper use or improper or inadequate maintenance and care. AJA Video shall not be obligated to furnish service under this warranty a) to repair damage resulting from attempts by personnel other than AJA Video representatives to install, repair or service the product, b) to repair damage resulting from improper use or connection to incompatible equipment, c) to repair any damage or malfunction caused by the use of non-AJA Video parts or supplies, or d) to service a product that has been modified or integrated with other products when the effect of such a modification or integration increases the time or difficulty of servicing the product.

THIS WARRANTY IS GIVEN BY AJA VIDEO IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED. AJA VIDEO AND ITS VENDORS DISCLAIM ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. AJA VIDEO'S RESPONSIBILITY TO REPAIR OR REPLACE DEFECTIVE PRODUCTS IS THE WHOLE AND EXCLUSIVE REMEDY PROVIDED TO THE CUSTOMER FOR ANY INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES IRRESPECTIVE OF WHETHER AJA VIDEO OR THE VENDOR HAS ADVANCE NOTICE OF THE POSSIBILITY OF SUCH DAMAGES.
