ME109MSTD - Oven SAMSUNG - Free user manual and instructions

Product Type	Microwave Oven
Model	ME109MSTD
Brand	Samsung
Power Source	220 V - 50 Hz
Power Consumption	1500 W
Output Power	1000 W (IEC-705), 10 power levels including 100 W keep warm
Operating Frequency	2450 MHz
Magnetron	OM75P(31)
Cooling Method	Cooling fan motor
External Dimensions (W x H x D)	517 x 297 x 411 mm
Oven Cavity Dimensions (W x H x D)	336 x 241 x 349 mm
Capacity	28 liters
Net Weight	Approx. 15 kg
Clock	12/24-hour display
Programs	Auto Power Defrost (meat, poultry, fish, bread/cake), Quick Meal, Rice+Steam, Soup, Simple Menu
Power Levels	10 (100W to 1000W)
Deodorization	5-15 minutes
Steam Cleaning	Yes, with water bowl (50 ml)
Child Safety Lock	Yes, display shows "L"
Beeper On/Off	Yes, can be switched off
Turntable	Glass turntable, can be turned off
Accessories Included	Coupler, roller ring, turntable, water bowl, power steam cooker
Cookware Compatibility	Microwave-safe dishes only; do not use metal or aluminum foil in large quantities
Safety Features	Door safety interlocks, automatic shutoff when empty, child lock
Cleaning	Wipe with damp cloth; use steam clean function; do not use abrasive cleaners
Standby Power Consumption	Not specified

Frequently Asked Questions - ME109MSTD SAMSUNG

How do I set the clock on my Samsung ME109MSTD microwave?

Press the Clock button. Use the + and - buttons to set the hour, then press Clock again. Set minutes using + and -, then press Clock to confirm. To toggle 12/24 hour format, press the Clock button once for 24-hour or twice for 12-hour.

Can I use metal utensils or aluminum foil in this microwave?

No, do not use metal containers, foil, or dishes with metal trim. They can cause arcing and damage the oven. Small amounts of aluminum foil may be used to shield food, but keep it away from the oven walls.

How do I use the Auto Power Defrost function?

Press the Power Defrost button repeatedly to select the food type (meat, poultry, fish, bread/cake). Use the + and - buttons to enter the weight (max 2000g for meat/poultry/fish, 1000g for bread/cake). Press Start. The oven will beep halfway to remind you to turn the food over. Press Start again to continue.

How do I clean the interior of the microwave?

For regular cleaning, wipe with a damp cloth and mild soapy water. For tough stains, place a cup of diluted lemon juice on the turntable and heat on maximum power for 10 minutes, then wipe. Use the Steam Clean function: fill the water bowl to the 50 ml line, place it in the bowl holder, close the door and press Steam Clean. After the cycle, wipe the cavity with a dry cloth.

How do I lock the microwave to prevent children from using it?

Press the + and - buttons at the same time. The display will show 'L' indicating the oven is locked. To unlock, press + and - again simultaneously.

Why does my microwave make a clicking noise or spark?

Sparking (arcing) can occur if you have used metal utensils, aluminum foil too close to the walls, or dishes with metal trim. Stop the oven immediately and remove the source. Ensure you only use microwave-safe cookware.

How do I adjust the cooking time while the oven is running?

Press the +30s button to add 30 seconds each press. You can also change the power level by pressing the Power Level button and then using +/- to select a new level.

What is the maximum cooking time I can set?

The maximum time you can set is 99 minutes and 99 seconds (99:99 on display). However, for very long cooking, consider using lower power levels.

Can I turn off the beep sound?

Yes. Press the + and - buttons at the same time. The display will show a beeper-off icon. Repeat to turn the sound back on.

What should I do if the oven does not start?

Ensure the door is completely closed. Check that the timer is set and you pressed Start. If the oven still does not start, check if the child lock is active (display shows 'L'). If so, unlock it. Also check that the oven is plugged in and the circuit breaker has not tripped.

USER MANUAL ME109MSTD SAMSUNG

Owner's instructions

ME109MSTD

imagine the possibilities

Thank you for purchasing this Samsung product. Please register your product at

www.samsung.com/register

Planet First

100% Recycled Paper

This manual is made with 100 % recycled paper.

CONTENTS OVEN

Oven 2

Control panel 3

Accessories 3

Using this instruction booklet 4

Important safety information ....4

Legend for symbols and icons ....4

Precaution to avoid possible exposure to excessive microwave energy. ...4

Important safety instructions ....5

Installing your microwave oven 8

Setting the time 8

What to do if you are in doubt or have a problem....9

Cooking/Reheating 9

Power levels 10

Stopping the cooking 10

Adjusting the cooking time....10

Using the Deodorization Feature 10

Using the quick meal feature ....11

Quick meal settings 11

Using the Rice+Steam feature ....12

The Rice+Steam settings 12

Using the soup feature ....13

The soup settings 13

Using the Simple Menu feature ....14

The Simple Menu settings 14

Using the auto POWER defrost feature 16

Auto Power defrost settings 16

Switching the beeper off 17

Safety-Locking Your Microwave Oven 17

Using the steam cleaning 17

Cookware guide 18

Cleaning your microwave oven 19

Storing and repairing your microwave oven....19

Technical specifications 20

1. DOOR HANDLE 7. TURNTABLE
2. VENTILATION HOLES 8. COUPLER
3. LIGHT
4. ROLLER RING
5. DISPLAY 10. SAFETY INTERLOCK HOLES
6. DOOR LATCHES 11. CONTROL PANEL
7. DOOR

2

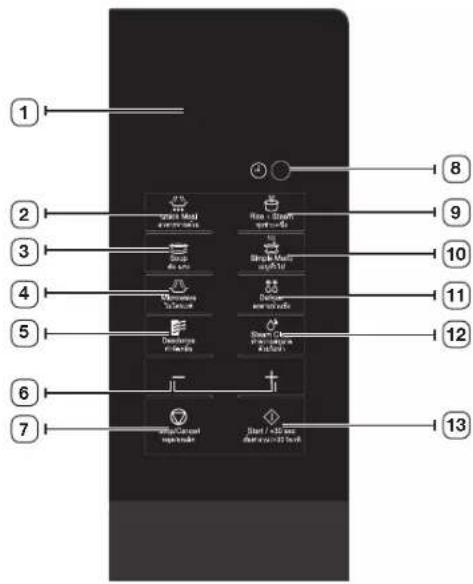

CONTROL PANEL

1. DISPLAY
2. AUTO POWER DEFROST BUTTON
3. POWER STEAM SELECTION
4. POWER LEVEL SETTING
5. DEODORIZATION BUTTON

6. UP (✗/DOWN () BUTTON (Cook time, weight and serving size)

7. STOP/CANCEL BUTTON

8. CLOCK SETTING
9. AUTO REHEAT SELECTION
10. MEMORY BUTTON
11. STANDING TIME SETTING
12. TURNTABLE ON/OFF BUTTON
13. START BUTTON

ACCESSORIES

Depending on the model that you have purchased, you are supplied with several accessories that can be used in a variety of ways.

1. Coupler, already placed over the motor shaft in the base of the oven.
   Purpose: The coupler rotates the turntable.
2. Roller ring, to be placed in the centre of the oven.
   Purpose: The roller ring supports the turntable.
3. Turntable, to be placed on the roller ring with the centre fitting to the coupler.
   Purpose: The turntable serves as the main cooking surface; it can be easily removed for cleaning.
4. Clean Water Bowl see page 17.
   Purpose: The water bowl can be used to clean.
5. Power steam cooker, see page 12.
   Purpose : The plastic steam cooker when using power steam function.
   DO NOT operate the microwave oven without the roller ring and turntable.

3

USING THIS INSTRUCTION BOOKLET

You have just purchased a SAMSUNG microwave oven. Your Owner's Instructions contain valuable information on cooking with your microwave oven:

• Safety precautions
  • Suitable accessories and cookware
• Useful cooking tips
• Cooking tips

IMPORTANT SAFETY INFORMATION

IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Before using the oven, confirm that the following instructions are followed.

• Use this appliance only for its intended purpose as described in this instruction manual. Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your appliance.
• Because these following operating instructions cover various models, the characteristics of your microwave oven may differ slightly from those described in this manual and not all warning signs may be applicable. If you have any questions or concerns, contact your nearest service centre or find help and information online at www.samsung.com.
• This microwave oven is supposed for heating food. It is intended for domestic home-use only. Do not heat any type of textiles or cushions filled with grains, which could cause burns and fire. The manufacturer cannot be held liable for damage caused by improper or incorrect use of the appliance.
• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possible result in a hazardous situation.

LEGEND FOR SYMBOLS AND ICONS

WARNING

CAUTION

Hazards or unsafe practices that may result in severe personal injury or death.

Hazards or unsafe practices that may result in minor personal injury or property damage.

Warning; Fire hazard Warning; Hot surface

Warning; Electricity Warning; Explosive material

Do NOT attempt. Follow directions explicitly.

Do NOT disassemble.

Do NOT touch. Make sure the machine is

Important Call the service center for help. ☑ Advanced to prevent electric shock. ☑ Note

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY.

Failure to observe the following safety precautions may result in harmful exposure to microwave energy.

(a) Under no circumstances should any attempt be made to operate the oven with the door open or to tamper with the safety interlocks (door latches) or to insert anything into the safety interlock holes.
(b) Do NOT place any object between the oven door and front face or allow food or cleaner residues to accumulate on sealing surfaces. Ensure that the door and door sealing surfaces are kept clean by wiping after use first with a damp cloth and then with a soft dry cloth.
(c) Do NOT operate the oven if it is damaged until it has been repaired by a qualified microwave service technician trained by the manufacturer. It is particularly important that the oven door closes properly and that there is no damage to the:

(1) Door (bent)
(2) Door hinges (broken or loose)
(3) Door seals and sealing surfaces

(d) The oven should not be adjusted or repaired by anyone other than a properly qualified microwave service technician trained by the manufacturer.

This product is a Group 2 Class B ISM equipment. The definition of group 2 which contains all ISM equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and EDM and arc welding equipment.

For Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.

IMPORTANT SAFETY INSTRUCTIONS
Make sure that these safety precautions are obeyed at all times.

WARNING
	Only qualified staff should be allowed to modify or repair the microwave oven.	√	√	√
	Do not heat liquids and other food in sealed containers for microwave function.	√	√	√
	For your safety, do not use high-pressure water cleaners or steam jet cleaners.	√	√	√
	Do not install this appliance; near heater, inflammable material; in a humid, oily or dusty location, in a location exposed to direct sunlight and water or where gas may leak; on un level ground.	√	√	√
	This appliance must be properly grounded in accordance with local and national codes.	√	√	√
	Remove all foreign substances such as dust or water from the power plug terminals and contact points using a dry cloth on a regular basis.	√	√	√
	Do not pull or excessively bend or place heavy objecton the power cord.	√	√	√
	In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate immediately without touching the power plug.	√	√	√
	Do not touch the power plug with wet hands.	√	√	√
	Do not turn the appliance off by unplugging the power plug while an operation is in progress.	√	√	√
	Do not insert fingers or foreign substances, If any foreign substance such as water has entered the appliance, unplug the power plug and contact your nearest service centre.	√	√	√
	Do not apply excessive pressure or impact to the appliance.	√	√	√
	Do not place the oven over a fragile object such as a sink or glass object. (Counter top model only)	√	√

	Do not use benzene, thinner, alcohol, steam cleaner or high pressure cleaner to clean the appliance.	√	√	√	√
	Ensure that the power voltage, frequency and current are the same as those of the product specifications.	√	√		√
	Plug the power plug into the wall socket firmly. Do not use a multiple plug adapter, an extension cord or an electric transformer.	√	√	√
	Do not hook the power cord on a metal object, insert the power cord between the objects or behind the oven.	√	√	√
	Do not use a damaged power plug, damaged power cord or loose wall socket. When the power plug or power cord is damaged, contact your nearest service centre.	√	√	√	√
	Appliances are not intended to be operated by means of an external timer or separate remote-control system.	√	√
	Do not pour or directly spray water onto the oven.	√	√
	Do not place objects on the oven, inside or on the door of the oven.	√	√	√
	Do not spray volatile material such as insecticide onto the surface of the oven.	√	√
	Children should be supervised to ensure that they do not play with the appliance	√	√	√	√
	The appliance is not intended for installing in road vehicles, caravans and similar vehicles etc.	√	√	√	√
	Do not store flammable materials in the oven. Take special care when heating dishes or drinks that contain alcohol as alcohol vapours may contact a hot part of the oven.	√		√	√
	The microwave oven is intended to be used on the counter or counter top use only, the microwave oven shall not be placed in a cabinet. (Counter top model only)	√	√	√	√
	WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.	√	√	√	√

WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.	√	√	√	√
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.	√	√	√	√
WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.	√	√	√	√
WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.	√	√	√	√
WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.	√	√	√
WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.	√		√	√
WARNING: Accessible parts may become hot during use. To avoid burns young children should be kept away.	√		√
WARNING: Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container. To prevent this situation ALWAYS allow a standing time of at least 20 seconds after the oven has been switched off so that the temperature can equalize. Stir during heating, if necessary, and ALWAYS stir after heating.In the event of scalding, follow these FIRST AID instructions:Immerse the scalded area in cold water for at least 10 minutes.Cover with a clean, dry dressing.Do not apply any creams, oils or lotions.	√	√	√	√
During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.	√		√	√

WARNING: The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns;		√
The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.	√	√	√
This oven should be positioned proper direction and height permitting easy access to cavity and control area.	√	√	√
Before using the your oven first time, oven should be operated with the water during 10 minute and then used.	√	√	√
This microwave oven has to be positioned so that plug is accessible. If the oven generates a strange noise, a burning smell, or smoke is emitted, unplug the power plug immediately and contact your nearest service center.	√	√	√
During cleaning conditions the surfaces may get hotter than usual and children should be kept away (Cleaning function model only)		√	√
Excess spillage must be removed before cleaning and utensils which state in cleaning manual can be left in the oven during cleaning. (Cleaning function model only)	√	√	√
Appliance should allow to disconnection of the appliance from the supply after installation. The disconnection may be achieved by having the plug accessible or by incorporating a switch in the fixed wiring in accordance with the wiring rules. (Built-in model only.)	√	√	√
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.		√
Warning: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.		√
The temperature of accessible surfaces may be high when the appliance is operating.		√

	The door or the outer surface may get hot when the appliance is operating.	√
CAUTION
	Only use utensils that are suitable for use in microwave ovens;DO NOT use any metallic containers, Dinnerware with gold or silver trimmings, Skewers, forks, etc.Remove wire twist ties from paper or plastic bags.Reason: Electric arcing or sparking may occur and may damage the oven.	√		√
	When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition;	√		√
	Do not use your microwave oven to dry papers or clothes.	√		√
	Use shorter times for smaller amounts of food to prevent overheating and burning food.	√		√
	If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames;	√		√
	The oven should be cleaned regularly and any food deposits removed;	√	√
	Do not immerse the power cable or power plug in water and keep the power cable away from heat.	√	√
	Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended; Also do not heat airtight or vacuum-sealed bottles, jars, containers, nuts inshells, tomatoes etc.			√
	Do not cover the ventilation slots with cloth or paper. They may catch fire as hot air escapes from the oven. The oven may also overheat and switch itself off automatically, and will remain off until it cools sufficiently.	√		√
	Always use oven mitts when removing a dish from the oven to avoid unintentional burns.			√
	Do not touch heating elements or interior oven walls until the oven has cooled down.			√

	Stir liquids halfway during heating or after heating ends and allow the liquid stand at least 20 seconds after heating to prevent eruptive boiling.		√
	Stand at arms length from the oven when opening the door to avoid getting scalded by escaping hot air or steam.		√
	Do not operate the microwave oven when it is empty. The microwave oven will automatically shut down for 30 minutes for safety purposes. We recommend placing a glass of water inside the oven at all times to absorb microwave energy in case the microwave oven is started accidentally.	√		√
	Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.	√		√
	Install the oven in compliance with the clearances stated in this manual (see Installing Your Microwave Oven)	√		√
	Take care when connecting other electrical appliances to sockets near the oven.	√	√	√

ENGLISH

7

Place the oven on a flat level surface 85 cm above the floor. The surface should be strong enough to safely bear the weight of the oven.

1. When you install your oven, make sure there is adequate ventilation for your oven by leaving at least 10 cm (4 inches) of space behind and, on the sides of the oven and 20 cm (8 inches) of space above.

1. Remove all packing materials inside the oven. Install the roller ring and turntable. Check that the turntable rotates freely.

1. This microwave oven has to be positioned so that plug is accessible.
   If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent. For your personal safety, plug the cable into a 3-pin, 220 Volt, 50Hz, AC earthed socket. If the power cable of this appliance is damaged, it must be replaced by a special cable.
   Do not install the microwave oven in hot or damp surroundings like next to a traditional oven or radiator. The power supply specifications of the oven must be respected and any extension cable used must be of the same standard as the power cable supplied with the oven. Wipe the interior and the door seal with a damp cloth before using your microwave oven for the first time.

SETTING THE TIME

Your microwave oven has an inbuilt clock. When power is supplied,":0", "88:88" or "12:00" is automatically displayed on the display. Please set the current time. The time can be displayed in either the 24-hour or 12-hour notation. You must set the clock:

• When you first install your microwave oven
  • After a power failure

Do not forget to reset the clock when you switch to and from summer or winter time.

1. To display the time in the...

24-hour notation
12-hour notation

Then press the Ⓐ button...

Once
Twice

1. Press the (÷ and ( ) + buttons to set the hour.
2. Press the (button.
3. Press the (+ and ( ) buttons to set the minute.
4. Press the (button.

8

WHAT TO DO IF YOU ARE IN DOUBT OR HAVE A PROBLEM

If you have any of the problems listed below try the solutions given.

This is normal.

• Condensation inside the oven.

• Air flow around the door and outer casing.

• Light reflection around the door and outer casing.

- Steam escaping from around the door or vents.

The oven does not start when you press the ◁button.

• Is the door completely closed?

The food is not cooked at all.

- Have you set the timer correctly and/or pressed the button?

- Is the door closed?

- Have you overloaded the electric circuit and caused a fuse to blow or a breaker to be triggered?

The food is either overcooked or undercooked.

- Was the appropriate cooking length set for the type of food?

- Was an appropriate power level chosen?

Sparking and cracking occur inside the oven (arcing).

- Have you used a dish with metal trimmings?

- Have you left a fork or other metal utensil inside the oven?

• Is aluminum foil too close to the inside walls?

The oven causes interference with radios or televisions.

- Slight interference may be observed on televisions or radios when the oven is operating. This is normal. To solve this problem, install the oven away from televisions, radios and aerials.

- If interference is detected by the oven's microprocessor, the display may be reset. To solve this problem, disconnect the power plug and reconnect it. Reset the time.

If the above guidelines do not enable you to solve the problem, contact your local dealer or SAMSUNG after-sales service.

COOKING/REHEATING

The following procedure explains how to cook or reheat food. Always check your cooking settings before leaving the oven unattended. First, place the food in the centre of the turntable. Then, close the door.

1. Press the (button.

Result: The 1000 W (maximum cooking power) indications are displayed: Select the appropriate power level by pressing the button again until the corresponding wattage is displayed. level table.

1. Set the cooking time by pressing the (÷) and ( ) + buttons as required.

1. Press the (button.

Result: The oven light comes on and the turntable starts rotating. Cooking starts. When it has finished:.

1) The oven beeps four times
2) The end reminder signal will beep 3 times(once every minutes).
3) The current time is displayed again. Cooking starts and when it has finished the oven beeps four times.

Never switch the microwave oven on when it is empty.

If you wish to heat a dish for a short period of time at maximum power (1000 W), simply press the +30s button once for each 30 seconds of cooking time. The oven starts immediately.
You can change the power level during cooking by pressing the button.

POWER LEVELS

You can choose among the power levels below.

Power level Output
FULL 1000 W
HIGH 850 W
MEDIUM HIGH 600 W
MEDIUM 450 W
MEDIUM LOW 300 W
DEFROST 180 W
LOW/KEEP WARM 100 W

If you select higher power level, the cooking time must be decreased.
If you select lower power level, the cooking time must be increased.

STOPPING THE COOKING

You can stop cooking at any time to check the food.

1. To stop temporarily; Open the door.

Result: Cooking stops. To resume cooking, close the door and press (again.

1. To stop completely; Press the Ⓤbutton.

Result: The cooking stops. If you wish to cancel the cooking setting, press the Stop (button again.

You can cancel any setting before you start cooking by simply pressing Stop

ADJUSTING THE COOKING TIME

You can increase the cooking time by pressing the +30s button once for each 30 seconds to be added. Press the +30s button once for each 30 seconds to be added.

USING THE DEODORIZATION FEATURE

Use this feature after cooking odorous food or when there is a lot of smoke in the oven interior. First clean the oven interior.

Press the Deodorization (button after you have. finished cleaning, you will hear four beeps.

The deodorization time has been specified as 5 minutes. increases by 30 seconds whenever the +30s button is pressed.
The maximum deodorization time is 15 minutes.

USING THE QUICK MEAL FEATURE

With the Quick meal feature, the cooking time is set automatically. First, place the food in the centre of the turntable and close the door.

1. Press the Quick meal button.

1. Select the type of food that you are cooking by pressing the Quick meal button. Refer to the table on the following page for a description of the various preprogrammed settings.

Result: The food is cooked according to the preprogrammed setting selected.

- When cooking has finished, the oven will beep and flash "0" four times. The oven will then beep one time per minute.

QUICK MEAL SETTINGS

The following table presents the various Quick meal Programmes, quantities, standing times and appropriate recommendations.

Code	Food Serving	size	Ingredients
1	Instant Noodle 670 g minced pork	-	100 gegg - 1, boiled water - 2 cupsany vegetables - 100 g, instantnoodle - 1 bag
	Recommendations
	1.Put instant noodle, minced pork, vegetable and egg together and cook.
2	Frozen ShrimpDumpling (kanom jeeb kung)	192 g(16/p)	Frozen Shrimp Bumpling (kanom jeeb kung) - 192 g
	Recommendations
	1.Cut the corner of the package and cook.
3	Frozen Chinese Bun(salapao sai moo)	180 g(30/p)	Frozen Chinese Bun (salapao sai moo) - 180 g
	Recommendations
	1.Cut the corner of the package and cook.
4	Frozen Wonton Shrimp (keaw kung)	250 g	Frozen Wonton Shrimp (keaw kung) - 250 g
	Recommendations
	1.Remove the outer bag before reheating.2.Pierce cover film for 3-4 time and cook.
5	Frozen Congee with Grouper Fish (kow tom pla kao)	350 g	Frozen Congee with Grouper Fish (kow tom pla kao) - 350 g
	Recommendations
	1.Remove the outer seal before reheating.2.Open the cover. Add water to fill line.3.Cover lid loosely to lot stream esacape during heat and cook.

USING THE RICE+STEAM FEATURE

With the Rice+Steam feature, the cooking time is set automatically. First, place the food in the centre of the turntable and close the door.

1. Press the Rice+Steam button.

1. Select the type of food that you are cooking by pressing the Rice+Steam button. Refer to the table on the following page for a description of the various preprogrammed settings.

Result: The food is cooked according to the preprogrammed setting selected.

- When cooking has finished, the oven will beep and flash "0" four times. The oven will then beep one time per minute.

• Power steam cooking hint

Components of Power Steam Cooker

Bowl Insert tray Lid

Handling of Power Steam Cooker

+

(Bowl + lid) (Bowl with insert tray + lid)

THE RICE+STEAM SETTINGS

The following table presents the various Rice+Steam Programmes, quantities, standing times and appropriate recommendations.

Code Food Serving size Ingredients
1 Rice 320 g rice - 1 cup			water - 1 1/4 cup
	Recommendations
	1. Put rice, water in a bowl and cover with the lid.2. Cook and keep the lid closed for another 15-20 minutes before serve.
2 Brown rice 350 g brown rice - 1 cups			water for cooking - 2 cups, water for cleaned rice
3	Sticky rice 350 - 400 g		sticky rice - 1 cup, water - 1⁄2 cup
	Recommendations
	1. Put the sticky rice, add water in bowl and cover with the lid.2. Cook and keep the lid closed for another 15-20 minutes before serve.
4	Steamed egg (egg custard)	400 - 450 g	fresh egg - 2 evaporated milk - 2 tos water - 3/4 cup Japanese soy sauce - 1 ts salt - 1/8 ls kani crab - 1/4 cup boiled shrimps - 4
	Recommendations
	1. Put eggs in a bowl, beated then add evaporated milk, water and seasoning with Japanese soy sauce and salt mixed well.2. Cook and decorate with Kani crab and shrimp before serve.

Code Food Serving size Ingredients
5	Steamed jack potato	400 g	potato - 400 gwater - 45 ml
	Recommendations
	1. Weight the potato, wash and chop the potato in the same size.2. Put the insert tray in the steam bowl and put the chopped potato on top.3. Add 45 ml (3 tbs) water for 400-450 g potato.4. Close lid and cook.
6	Steamed vegetable	400 g	vegetable - 400 gwater - 45 ml
	Recommendations
	1. Weight the potato, wash and chop vegetable in the same size.2. Put the insert tray in the steam bowl and put the chopped potato on top.3. Add 45 ml (3 tbs) water for 400-450 g potato.4. Close lid and cook.

USING THE SOUP FEATURE

With the Soup feature, the cooking time is set automatically. First, place the food in the centre of the turntable and close the door.

1. Press the Soup button.

1. Select the type of food that you are cooking by pressing the Soup button. Refer to the table on the following page for a description of the various preprogrammed settings.

Result: The food is cooked according to the preprogrammed setting selected.

- When cooking has finished, the oven will beep and flash "0" four times. The oven will then beep one time per minute.

THE SOUP SETTINGS

The following table presents the various Soup Programmes, quantities, standing times and appropriate recommendations.

Code Food Serving		size	Ingredients
1	Clear broth soup with soft tofu and seaweed	850 g chopped ground pork - 100 g pepper - 1⁄4 ts, water - 500 ml spring onion - 1⁄4 cup chopped coriander - 1 tbs fish sauce - 1 tbs, strips soft tofu - 2 dried seaweed - 1⁄4 cup oyster sauce - 1 tbs, pepper - 1 ts
	Recommendations
	1. Marinated ground pork and pepper for 5 mins.2. Put water, chopped pork, soft tofu, and cook.3. Add spring onion, coriander, and pepper dried seaweed Ready to serve.
2	Tom yum soup with shrimp	920 g shrimp - 150 g, sliced galangal - 4 pieces sliced kaffir - 1⁄4 cup, lemongrass - 2 boiled water - 500 ml, mushroom - 1 cup tomatoes - 4, chili paste - 1 tbs evaporated milk - 1⁄4 cup fish sauce - 3 tbs lime juice - 3 tbs, chilis - 10
	Recommendations
	1. Put galangal, lemongrass, tear kaffir leave, tomato, tom yum khung paste in Boiled water wait for 2 mins.2. Add shrimp, mushroom, chili, and cook.3. Then add the evaporated milk seasoning with fish sauce, lime juice, chili paste then serve hot.

Code Food Serving		size	Ingredients
3	Tom kha soup with chicken	800 g chicken - 150 g, mushroom - 50 g coconut milk - 250 ml sliced galangal - 6 pieces sliced lemongrass - 2, kaffir leave - 3 charlotte - 3, coriander - 1, fried chili - 3 palm sugar - 2 ts, fish sauce - 3 tbs lime juice - 3 tbs, water - 250 ml
	Recommendations
	1. Mixed water and coconut milk and add charlotte, lemongrass; kaffie leave, chicken and mushroom. 2. Cook and season with fish sauce, lime juice, palm sugar, and chili then serve.
4	Green curry with shrim	900 - 1000 g	chicken breast - 200 g green curry paste - 2 tbs coconut milk - 2 cup, sweet basil - 1⁄4 cup cut in squared egg plant - 1 cup fish sauce - 1 lbs, palm sugar - 1 ls
	Recommendations
	1. Mixed Coconut Milk, Green Curry paste, Chicken, egg plant, palm sugar, fish sauce mixed well, then cook, move out and add sweet basil then serve.
5	Miso soup 600 - 700 g		water - 500 ml, miso - 1 lbs, dashi - 1 lbs, wakame seaweed - 2 tbs diced soft tofu - 100 g Japanese soy suace - 1/2tbs, Salt - 1⁄4 tossliced Japanese onion - 1⁄4 cup Japanese Mushroom - 50 g
	Recommendations
	1. Added Dashi, Wakame seaweed,soft Tofu and Japanese mushroom and Salt, in water stir well. 2. Garnished with sliced spring onion and cook
6	Banana in coconut milk	500 - 600 g	sliced banana - 100 g coconut milk - 150 ml, palm sugar - 3 tbs water - 1 cup (240 ml), salt - 1⁄4 ts
	Recommendations
	1. Mixed coconut milk, water, palm sugar, and salt stir until dissolved. Then add sliced banana. 2. Cook.

USING THE SIMPLE MENU FEATURE

With the Simple Menu feature, the cooking time is set automatically. First, place the food in the centre of the turntable and close the door.

1. Press the Simple Menu button.

1. Select the type of food that you are cooking by pressing the Simple Menu button. Refer to the table on the following page for a description of the various preprogrammed settings.

Result: The food is cooked according to the preprogrammed setting selected.

- When cooking has finished, the oven will beep and flash "0" four times. The oven will then beep one time per minute.

THE SIMPLE MENU SETTINGS

The following table presents the various Soup Programmes, quantities, standing times and appropriate recommendations.

Code Food Serving		size	Ingredients
1Pork congee/Porridge		600 - 750 g	cooked rice - 1 cup, water - 500 mlpork chopped - 1/2 cuppepper ground - 1 ts, soy suace - 1 tosoyster sauce - 1 tos, spring onionsliced Celery, coriander - 1⁄2 cup
Recommendations

Code Food Serving		size	Ingredients
2	spaghetti	220 g	spaghetti - 80 g, boiled water - 500ml
	Recommendations
	1. Add salt in water stir well, then add spaghetti and cook2. Drain and soak in cold water. Add a bit vegetable oil and stir.
3	Omelets	120 g	egg - 2, chopped tomato - 1 toschopped onion - 1 tos, Soy sauce - 1⁄2 tosbutter - 1 lbs
	Recommendations
	1. Mix the beaten eggs, chopped tomato, chopped onion and soy sauce and stir well.2. Spread the butter on the plate, put the mixer on the plate and cook
4Spaghetti cream sauce		450 -500 g	onion - 1/4 cup, water - 1⁄2 cupcooked ham - 1⁄2 cupcooked spaghetti - 80 gsalted butter - 2 tos, bay leaves - 3plain four - 1 tos, whipping cream - 100 mlsliced mushroom - 1/2 cup, Saltpepper - 1/4 ts, mozzarella cheese - 2 tbs
5Spaghetti meat ball		500 -550 g	cooked spaghetti - 80 g, Salt - 1/2 tsminced meat - 200 g, black pepper - 1⁄2 tschoped onion - 1⁄2 cup, bay leave - 3butter - 2 tos, diced tomatoes - 1 cuptomatoes sauce - 1/4 cup, water - 1/3 cup

Code Food Serving	size	Ingredients
6Steamed Sea bass with spicy lemon sauce	550 g sea	bass - 500 g, salt - 1⁄4 tschoped garlic - 2 tbs,chilli - 2 tbslime juice - 3 lbs,fish suace - 1 1/2 tbs,celery cut - 1⁄4 cupchopped coriander - 1 toslemon grass - 2,a bit sugar
Recommendations
1. Spring salt all over the fish,and put the Lemongrass inside the fish2. Lay down cut celery on the plate and put the fish on top and cook3. Seasoning with the spicy sauce (chopped garlic and chilli,fish sauce,lime juice and sugar.)4. Decorated with coriander and celery. Serve hot.
7Slow cock chicken	800 - 1200 g	chicken wing (about 250 g) - 5 postomato sauce - 1⁄2 cup,water - 500 mldiced carrot - 1 cup,salt - 1⁄4 tbsdiced onion - 1 cup,diced potato - 1 cupchopped Coriander root - 1 tscchopped garlic - 1 tbs,pepper - 1⁄4 tbsbay leaves - 2,oyster sauce - 3 tbs
Recommendations
1. Marinate chicken wing with chopped coriander root,salt and pepper for 10 mins2. Add water,onion,potato,tomato in a bowl stir well3. Seasoning with oyster sauce and bayleave.put in microwave.set microwave function 450 watt for 30 mins,then serve hot
8	Coconut custard	130 g duck eggs - 3,crane sugar - 1⁄2 cupcoconut milk - 1 cup,pandanus leaf - 2-3small diced pumpkins - 1 cup
Recommendations
1. Mixed egg and stir with squeezed pandanus leaf unitl have a smell of pandanus leaf;then stir with the crane sugar.Fill cut only the juice2.Add the diced pumpkin and cook,then serve in room tempurate

USING THE AUTO POWER DEFROST FEATURE

The Auto Power Defrost feature enables you to defrost meat, poultry, fish and bread/cake. The defrost time and power level are set automatically.

Use only dishes that are microwave-safe.

First, place the frozen food in the centre of the turntable and close the door.

1. Press the Power Defrost (💡) button which you want the required number of time.

Example: Press the Power Defrost () Button three times to defrost fish.

1. Select the food weight by pressing (and() buttons. It is possible to set up to a maximum of 2000 g. (Bread/Cake is possible to set up to a maximum of 1000 g.)

1. Press the (button.

Result :

• Defrosting begins.
• The oven beeps half way through defrosting to remind you to turn the food over.
• Press ◆ button again to finish defrosting.

You can also defrost food manually. To do so, select the microwave cooking/reheating function with a power level of 180 W. Refer to the section entitled "Cooking/Reheating" on page 9 for further details.

AUTO POWER DEFROST SETTINGS

The following table presents the rapid defrost programme, quantities, standing times and appropriate recommendations. Remove all kind of package material before defrosting. Place meat, poultry and fish on a flat ceramic plate.

Code/Food Serving size (g)	Standing time (min.)	Recommendations
1. Meat 200-2000 20-60 Shield the edges	with aluminium foil. Turn the meat over, when the oven beeps. This programme is suitable for beef, lamb, pork, steaks, chops, minced meat.
2. Poultry 200-2000 20-60 Shield the leg and wing tips with aluminium foil. Turn the poultry over, when the oven beeps. This programme is suitable for whole chicken as well as for chicken portions.
3. Fish 200-2000 20-50 Shield the tail of a whole fish with aluminium foil. Turn the fish over, when the oven beeps. This programme is suitable for whole fishes as well as for fish fillets.
4. Bread/Cake	125-1000 5-30 Put bread on a piece of kitchen paper and turn over, as soon as the oven beeps. Place cake on a ceramic plate and if possible, turn over, as soon as the oven beeps. (Oven keeps operating and is stopped, when you open the door.) This programme is suitable for all kinds of bread, sliced or whole, as well as for bread rolls and baguettes. Arrange bread rolls in a circle. This programme is suitable for all kinds of yeast cake, biscuit, cheese cake and puff pastry. It is not suitable for short/crust pastry, fruit and cream cakes as well as for cake with chocolate topping.

SWITCHING THE BEEPER OFF

You can switch the beeper off whenever you want.

1. Press the (and ( ) buttons at the same time.

Result :

• The following indication is displayed.
• The oven will not beep each time you press a button.

1. To switch the beeper back on, press the ( ) and () buttons again at the same time.

Result :

• The following indication is displayed.
• The oven operates with the beeper on again.

Your microwave oven is fitted with a special Child Safety programme, which enables the oven to be "locked" so that children or anyone unfamiliar with it cannot operate it accidentally.

The oven can be locked at any time.

1. Press the (and ( ) Buttons at the same time.

Result :

• The oven is locked (no functions can be selected).
  • The display shows "L".

1. To unlock the oven, press the ( ) and () button again at the same time.

Result: The oven can be used normally.

USING THE STEAM CLEANING

The steam provided by steam clean system will soak the cavity surface. After using steam clean function, you can easily clean the cavity of oven.

Use this function only after the oven has completely cooled. (Room temperature)

Use normal water only, and no distilled water.

Water Bowl only can be used during "Steam Clean" mode. When cooking non-liquid items, remove water bowl because it will damage and cause fire to the microwave oven.

1. Open the door.
2. Fill with water following guide line (water level) outside the water bowl. (The line is about 50 ml.)
   More than 50 ml water may cause a leak at the back through the hole. Ensure that it is not more than 50 ml.
3. Insert water bowl into upper water bowl holder on the right wall of cooking chamber.
4. Close the door.
5. Press the Steam Clean (button. It can be seen MISTY during steam cleaning, but it is not a defect BUT STEAM SHIELDS THE light INSIDE.
6. Open the door.
7. Please clean cavity of oven with dried dishtowel. Remove the turntable and only under rack with kitchen paper.

COOKWARE GUIDE

To cook food in the microwave oven, the microwaves must be able to penetrate the food, without being reflected or absorbed by the dish used. Care must therefore be taken when choosing the cookware. If the cookware is marked microwave-safe, you do not need to worry. The following table lists various types of cookware and indicates whether and how they should be used in a microwave oven.

Cookware Microwave-safe	Comments
Aluminum foil	√ XCan be used in small quantities to protect areas against overcooking.Arcing can occur if the foil is too close to the oven wall or if too much foil is used.
Browning plate	√Do not preheat for more than eight minutes.
China and earthenware	√Porcelain, pottery, glazed earthenware and bone china are usually suitable, unless decorated with a metal trim.
Disposable polyester cardboard dishes	√Some frozen foods are packaged in these dishes.
Fast-food packaging
Polystyrene cups containers	√Can be used to warm food.Overheating may cause the polystyrene to melt.
Paper bags or newspaper	XMay catch fire.
Recycled paper or metal trims	XMay cause arcing.
Glassware
Oven-to-table ware	√Can be used, unless decorated with a metal trim.

Cookware Microwave-	safe	Comments
Fine glasswareGlass jars	√	Can be used to warm foods or liquids. Delicate glass may break or crack if heated suddenly.Must remove the lid. Suitable for warming only.
	√
MetalDishesFreezer bag twist ties	✗✗	May cause arcing or fire.
PaperPlates, cups, napkins and kitchen paperRecycled paper	√✗	For short cooking times and warming. Also to absorb excess moisture.May cause arcing.
PlasticContainersCling filmFreezer bags	√√√✗	Particularly if heat-resistant thermoplastic. Some other plastics may warp or discolour at high temperatures. Do not use melamine plastic.Can be used to retain moisture.Should not touch the food. Take care when removing the film as hot steam will escape.Only if boliable or oven-proof.Should not be airtight. Prick with a fork, if necessary.
Wax or grease-proof paper	√	Can be used to retain moisture and prevent spattering.

√ : Recommended

√X : Use caution

x : Unsafe

The following parts of your microwave oven should be cleaned regularly to prevent grease and food particles from building up:

• Inside and outside surfaces
- Door and door seals
- Turntable and roller rings

Always ensure that the door seals are clean and the door closes properly.
Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

1. Clean the outside surfaces with a soft cloth and warm, soapy water. Rinse and dry.
2. Remove any splashes or stains on the inside surfaces or on the roller ring with a soapy cloth. Rinse and dry.
3. To loosen hardened food particles and remove smells, place a cup of diluted lemon juice on the turntable and heat for ten minutes at maximum power.
4. Wash the dishwasher-safe plate whenever necessary.

Do not spill water in the vents. Never use any abrasive products or chemical solvents. Take particular care when cleaning the door seals to ensure that no particles:

• Accumulate
• Prevent the door from closing correctly

STORING AND REPAIRING YOUR MICROWAVE OVEN

A few simple precautions should be taken when storing or having your microwave oven serviced.

The oven must not be used if the door or door seals are damaged:

• Broken hinge
  • Deteriorated seals
  • Distorted or bent oven casing

Only a qualified microwave service technician should perform repair.

Never remove the outer casing from the oven. If the oven is faulty and needs servicing or you are in doubt about its condition:

• Unplug it from the wall socket
- Contact the nearest after-sales service centre

If you wish to store your oven away temporarily, choose a dry, dust-free place.

Reason : Dust and damp may adversely affect the working parts in the oven.

This microwave oven is not intended for commercial use.

TECHNICAL SPECIFICATIONS

SAMSUNG strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change without notice.

Model ME109MSTD
Power source 220 V - 50 Hz
Power consumption Microwave 1500 W
Output power 100 W / 1000 W (IEC-705)
Operating frequency 2450 MHz
Magnetron OM75P(31)
Cooling method Cooling fan motor
Dimensions (W x H x D)
Outside	517 x 297 x 411 mm
Oven cavity	336 x 241 x 349 mm
Volume 28 liter
Weight
Net 15 kg approx

SAMSUNG

QUESTIONS OR COMMENTS

COUNTRY CALL DR VISIT US ONLINE AT
AUSTRALIA	1300-362-603	www.samsung.com
NEW ZEALAND	0800-SAMSUNG (3800-725-786)
CHINA	400-810-5858
HONG KONG	(852) 3898-4898	www.samsung.com/whkwww.samsung.com/whk_en/
INDIA	3030-82821800-1100 111800-3000-02821800-266-6262	www.samsung.com
INDONESIA	0800-112-6869021-5609-7777
JAPAN	0120 327-527
MALAYSIA	1800-58-9999
PHILIPPINES	1-800-10-SAMSUNG (726-7864) for PLDT1-800-3-SAMSUNG (726-7864) for Digitel-800-8 SAMSUNG (726-7864) for Globe02-5805777
SINGAPORE	1800-SAMSUNG (726-7864)
THAILAND	1800-29-323202-689-3232
TAIWAN	0800-325-9990266-026-066
VIETNAM	1-800-589-989

Code No.: DE68-04001A-01

20
