USER MANUAL EH-NE72 PANASONIC
Operating Instructions
(Household) Hair Dryer
EH-NE72
Model No. EH-NE71
English....3
中文....13
Iny....23
Tiếng Việt 33
Bahasa Indonesia 43
Operating Instructions
(Household) Hair Dryer
EH-NE72
EH-NE71
Contents
Safety precautions.... 4 Shine boost design ....9
Parts identification....8 Maintenance of the hair dryer ....10
How to use the hair dryer .....9 Troubleshooting .....11
About ion....9 Specifications....11
Thank you for purchasing this Panasonic product.
Before operating this unit, please read these instructions completely and save them for future use.
Safety precautions
To reduce the risk of injury, loss of life, electric shock, fire, malfunction, and damage to equipment or property, always observe the following safety precautions.
Explanation of symbols
The following symbols are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed.
WARNING
Denotes a potential hazard that could result in serious injury or death.
CAUTION
Denotes a hazard that could result in minor injury or property damage.
The following symbols are used to classify and describe the type of instructions to be observed.
This symbol is used to alert users to a specific operating procedure that must not be performed.
This symbol is used to alert users to a specific operating procedure that must be followed in order to operate the unit safely.
WARNING
Do not store within the reach of children or infants. Do not let them use it.
- Doing so may cause burn, electric shock, or injury.
Never modify, disassemble, or repair.
- Doing so may cause ignition or injury due to abnormal operation.
Contact an authorized service center for repair.
Do not damage or modify, or forcefully bend, pull, or twist the cord. Also, do not place anything heavy on or pinch the cord.
- Doing so may cause electric shock or fire due to a short circuit.
Do not use with the cord bundled.
- Doing so may cause fire or electric shock.
Do not wrap the cord around the main body when storing.
- Doing so may cause the wire in the cord to break with the load, and may cause electric shock or fire due to a short circuit.
Do not use when the plug or cord is damaged or hot.
- Doing so may cause burn, electric shock, or fire due to a short circuit.
WARNING
Never use the appliance if the plug fits loosely in a household outlet.
- Doing so may cause burn, electric shock, or fire due to a short circuit.
Do not connect or disconnect the plug to a household outlet with a wet hand.
- Doing so may cause electric shock or injury.
Do not use the appliance with a wet hand.
- Doing so may cause electric shock or fire due to a short circuit.
Do not leave the area with the power switch left on.
- Doing so may cause fire.
Do not store the appliance in a bathroom or location with high humidity. Also, do not place in a location where water may spill (such as top of a vanity).
- Doing so may cause electric shock or fire.
Do not block, or insert hair pins or other foreign objects into the air inlet, air outlet, or ion outlet.
- Doing so may cause fire, electric shock, or burn.
Do not use in proximity of flammable materials (such as alcohol, benzine, thinner, spray, hair care product, nail polish remover).
- Doing so may cause an explosion or fire.
This appliance is not designed for commercial use, and is not intended for use without appropriate maintenance.
- Doing so may cause burn or fire due to a continuous load or overload.
Do not immerse the appliance in water. Do not use the appliance near water.
Do not use the appliance near bathtubs, showers, basins or other vessels containing water.
- Doing so may cause electric shock or fire.
This symbol with prohibition sign in red on the appliance means "Do not use this appliance near water".
Immediately stop using and remove the plug if there is an abnormality or malfunction.
- Failure to do so may cause fire, electric shock, or injury.
• Air is not emitted
• Unit stops sporadically
• Interior becomes red hot and smoke is emitted
- Immediately request inspection or repair at an authorized service center.
Use the household outlet alone: do not use with an extension cord.
Fully insert the plug.
Always ensure the appliance is operated on an electric power source matched to the rated voltage indicated on the appliance.
- Failure to do so may cause fire or electric shock.
When you see sparks around the air outlet while using the hot air setting, stop use and remove the lint on the air outlet and air inlet.
- Failure to do so may cause burn or fire.
WARNING
Always turn OFF the power switch and disconnect the plug from the household outlet after use.
- Failure to do so may cause fire or burn.
Disconnect the plug by holding onto it instead of pulling on the cord.
- Failure to do so may cause the wire in the cord to break, and may cause burn, electric shock, or fire due to a short circuit.
Regularly clean the plug to prevent dust from accumulating.
- Failure to do so may cause fire due to insulation failure caused by humidity.
Disconnect the plug and wipe with a dry cloth.
When the appliance is used in a bathroom, unplug it after use since the proximity of water presents a hazard even when the appliance is switched off.
- Failure to do so may cause an accident or injury.
For additional protection, the installation of a residual current device (RCD) having a rated residual operating current not exceeding 30 mA is advisable in the electrical circuit supplying the bathroom. Ask your installer for advice.
- Failure to do so may cause an accident or injury.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
- Failure to do so may cause an accident or injury.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
- Failure to do so may cause an accident or injury.
CAUTION
Do not store the cord in a twisted state.
- Doing so may cause the wire in the cord to break with the load, and may cause electric shock or fire due to a short circuit.
Do not drop or subject to shock.
- Doing so may cause electric shock or ignition.
Do not use with the air inlet damaged.
- Your hair may get tangled in the air inlet, which could damage the hair.
Do not touch the air outlet, set nozzle, and diffuser, which will become very hot.
- Doing so may cause burn.
Do not use on infants.
- Doing so may cause burn.
CAUTION
When unfolding or folding the handle, do not touch the shaded area as shown in figures below.
- Doing so may cause finger injury.
Please keep a distance of over 3 cm between the air outlet and your hair. (Except when using the diffuser)
- Failure to do so may result in your hair being burned.
Be sure to keep your hair at least 10 cm away from the air inlet.
- Your hair may get tangled in the air inlet, which could damage the hair.
Only use for drying or styling human hair. (Do not use on pets, or to dry clothing, shoes, etc.)
- Failure to do so may cause fire or burn.
Notes
- This appliance is equipped with an automatic overheating protective device. If the appliance overheats, it will switch to cool air mode. Switch off the appliance and unplug it from the household outlet. Allow it to cool down for a few minutes before using it again. Check that no dust, hair, etc. is in the air inlet and air outlet before switching it on again.

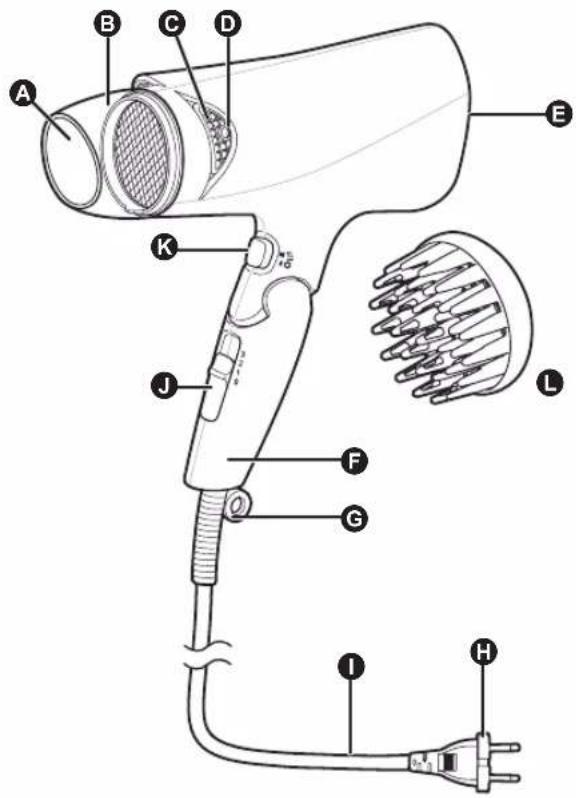

Parts identification
A Air outlet
B Set nozzle
© Cool air outlet
(one on each side)
D lon outlet
(one on each side)
Air inlet
F Handle
© Ring for hanging
H Plug
(The shape of the plug differs depending on the area)
Cord
J Power switch K Cool-shot switch
3: Turbo
2: Heat Protection
1 : Set
0:Off
: Hot airflow
Cool airflow
| 3 Strong hot airflow | Strong cool airflow |
| 2 Strong warm airflow | |
| 1 Gentle hot airflow Gentle | cool airflow |
| 0 Off | |
Diffuser EH-NE72 only
How to use the hair dryer
1 Before using the hair dryer, confirm that the power switch is at position "0", then plug into a household outlet and turn on the power switch.
2 Select the temperature of the airflow with the cool-shot switch.
3 Select the intensity of the airflow with the power switch, and then dry your hair.
4 Set the power switch to position "0", and then remove the plug from the household outlet.
▶ Set nozzle
- If you want to achieve a hairstyle, please attach the set nozzle to the hair dryer as it helps to concentrate the flow onto a specific area of the hair. This will give you more control for easy styling and blow-drying of hair.
▶ Diffuser EH-NE72 only
For creating full-bodied hair with lots of volume and styling, attach the diffuser to the hair dryer.
- Select "2"-position when using the diffuser. You may feel heat on your face or scalp when "3"-Turbo air is selected.
- For people who want (hair with) volume on top: Apply the diffuser to your scalp at the top of your head, and move in a circular motion.
- For people who want volume on their sides: Start from above your ear and move the diffuser slowly along your scalp toward the top of your head. Repeat 2 to 3 times.
- Drying wavy hair: Place the wavy portion of your hair on the diffuser and dry from the bottom while pushing upward.
About ion
(Ion generation method: High-voltage discharge)
Its diameter is smaller than 1/1000 of steam, and it cannot be seen with the naked eye.
Ions are particles that combine negatively charged oxygen and moisture in the air.
In general, hair is easily positively charged. By exposing hair to the negatively charged ions, the hair's static electricity can be neutralized and thus its smoothness can be enhanced.
Notes
- You may notice a characteristic odor when using this hair dryer. This is not harmful to the human body.
- The effects of ion might not be felt by the following people. People with crimpy hair, strong curly hair, very smooth hair, short hair, or who have had a hair straightening perm in the last three or four months.
Shine boost design
This hair dryer simultaneously blows cool air on the outer side of the hot air when the cool-shot switch is selected to the hot airflow. By moving the hair dryer when using, hot and cool air alternately hit your hair, making it easier to style and bring out its shine.
Maintenance of the hair dryer
Make sure to turn OFF the power switch and disconnect the plug from the household outlet. (Except when performing maintenance on the air outlet)
Maintaining the hair dryer
Clean the main body when the hair dryer gets dirty.
Clean the housing only with a soft cloth slightly dampened with tap water or soapy tap water.
Notes
- Do not use alcohol, polish remover, or detergent (liquid hand soap, etc.).
- Doing so may cause malfunction, cracking/discoloration of parts, etc.
- Leaving the hair dryer with hair products or makeup still adhered to the handle or body may degrade the plastic, causing discoloration or cracking, and malfunction.
Maintaining the ion outlet
Clean the ion outlet about once every 6 months.
- Use commercially available cotton swabs. (We recommend
the thin cotton swabs made for use with babies.) - This maintenance allows the hair dryer to sustain the generated level of ion over a long period.
- Softly insert the cotton swab until it stops (approximately 6 mm), and turn it softly for 2 or 3 times.
Gently rub the tip of the needle portion
lon outlet (one on each side)
Clean the air inlet once a month or over.
- Wipe to clean lint, hair, or other matter from the air inlet with a tissue or toothbrush.
- Do not press or rub the air inlet with a nail or other sharp object. Doing so may damage the air inlet.
Maintaining the air outlet and the cool air outlet
Clean the air outlets once a month or over.
- The hair dryer should be plugged into the household outlet only in case of maintenance for the air outlets.
- Use a commercially available toothbrush.
- Set the cool-shot switch to "Cool" and blow away the dust, hair etc. blocking the mesh as you scrub with the toothbrush.
- During maintenance, do not block the air inlet with your hands, etc.
- Be careful when using the hair dryer for the first time after maintenance, since it may blow out dust, etc.
Troubleshooting
Problem Possible cause Action
| It switches frequently to cool air while using in “Hot” mode, or sparks can be seen within the body.(These sparks are caused by the thermostat switch, the protective device, and are not dangerous.) |
| The hot air repeatedly turns into cool air. |
| The hot air is abnormally hot. |
| The plug is abnormally hot. |
| Sparks are generated inside the ion outlet. |
| The ion outlet emits a noise (crackling noise). |
Lint has accumulated on the air inlet or air outlet.
Hair or something is blocking the air inlet.
| ▶ |
| ▶ |
The connection to the household outlet is loose.
▶ Abnormality caused by a dirty electrode (needle portion).
Remove accumulated lint. Do not block the air inlet.
▶ Use a household outlet that fits securely.
▶ Perform maintenance of the ion outlet.
If the problems still cannot be solved, contact the store where you purchased the unit or a service center authorized by Panasonic for repair.
Specifications
| Product model | EH-NE72, EH-NE71 | ||||
| Power source | 220 V~ 50 - 60 Hz | 230 V~ 50 - 60 Hz | 240 V~ 50 - 60 Hz | 240 V~ 50 Hz ^1 | |
| Power consumption | 1700 W 1 | 850 W 2 | 000 W 2 | 000 W | |
| Accessory | EH-NE72 Set nozzle, Diffuser | ||||
| EH-NE71 Set nozzle | |||||
*1: Only available in Kuwait and Qatar.
This product is intended for household use only.
MEMO
Panasonic
使用說明書
(家用) 吹風機
EH-NE72
型號
EH-NE71
目錄
安全須知....144
部件說明....188
使用吹風機的方法....199
關於離子....199
光澤提升設計....199
保養吹風機....200
疑難排解....21
規格....201
A 出風口
B 造型吹嘴
©冷風出風口
(兩側各一個)
D 離子出風口
(兩側各一個)
E 入風口
F把手
©掛環
H插頭
(插頭形狀會依地區而異)
① 電源線
J 電源開關
3: 強風
2: 高溫防護
1:柔風
0:關
K 速冷定型開關
每個月清潔入風口一次或以上。
每個月清潔出風口一次或以上。
A ช่องอากาศออก
B ชุดหัวเป่า
A Miêng thôi gió
B Đầu sấy tập trung
Diagram of a hand holding a pipe with a valve, labeled (a), showing no text or symbols beyond the label.natural_image
Diagram of a curved surface with grid pattern and a small circular object at the top (no text or symbols)natural_image
Diagram of a hand holding a pipe fitting with a labeled component (a), no text or symbols present.natural_image
Simple line drawing of a hand holding a textured object over a wavy surface (no text or symbols)
[NO TEXT]
دهانه تنظيم
Operating Instructions
(Household) Hair Dryer
EH-NE72
Model No. EH-NE71
70....فارسی
60....عربي
http://www.panasonic.com
© Panasonic Corporation 2016-2019
EN, HK, TH, VN, IND, AR, PER
Printed in Thailand
EH9210NE716054 Z0816-30619
- Panasonic
- Contents
- Safety precautions
- Explanation of symbols
- WARNING
- CAUTION
- Notes
- Parts identification
- How to use the hair dryer
- ▶ Set nozzle
- ▶ Diffuser EH-NE72 only
- About ion
- Shine boost design
- Maintenance of the hair dryer
- Maintaining the hair dryer
- Maintaining the ion outlet
- Maintaining the air inlet
- Maintaining the air outlet and the cool air outlet
- Troubleshooting
- MEMO
- 目錄
- 入風口的保養
- 維護出風口和冷風出風口
Brand : PANASONIC
Model : EH-NE72
Category : Hair Dryer
