CBL-HDMI-FL - Cables for Computers and Peripherals AMX - Free user manual and instructions

Product Type	HDMI Cable
Brand	AMX
Model	CBL-HDMI-FL
Color	Black
Connector Type	HDMI Male to HDMI Male
HDMI Version	2.0
Maximum Resolution	4K @ 60Hz
Audio Support	Yes, up to 8 channels
3D Support	Yes
Ethernet Channel	No
Audio Return Channel (ARC)	Yes
Length	1.8 m (6 ft)
Weight	100 g
Material	PVC jacket with braided shielding
Connector Plating	Gold-plated
Plug and Play	Yes
Warranty	1 year
Maintenance	Wipe with a dry cloth
Safety	No special safety precautions required
Spare Parts	None available
General Information	Compatible with all HDMI-enabled devices such as TVs, monitors, projectors, and computers

Frequently Asked Questions - CBL-HDMI-FL AMX

Is the AMX CBL-HDMI-FL cable compatible with my TV?

Yes, this cable is compatible with any device that has an HDMI port, including TVs, monitors, projectors, and computers. It supports resolutions up to 4K @ 60Hz.

Does this cable support 4K resolution?

Yes, it supports 4K resolution at 60Hz, making it suitable for Ultra HD content.

What is the length of the cable?

The standard length is 1.8 meters (6 feet). Other lengths may be available; please check the product packaging.

Is the cable shielded?

Yes, it features braided shielding to reduce electromagnetic interference and ensure stable signal transmission.

Does it support Audio Return Channel (ARC)?

Yes, it supports ARC, allowing audio to be sent from the TV back to a soundbar or receiver through the same HDMI cable.

Can I use this cable for my gaming console?

Absolutely. The cable supports high-speed data transfer and is suitable for gaming consoles, including PS4, Xbox One, and Nintendo Switch.

Does this cable support 3D video?

Yes, it supports 3D video formats as per HDMI 2.0 specifications.

Is the cable bidirectional?

HDMI cables are bidirectional in terms of signal direction, but the connectors are male-to-male. It can transmit both video and audio in one direction.

What is the warranty period?

The cable comes with a 1-year warranty against manufacturing defects.

How should I clean the cable?

To clean, simply wipe the connectors and cable with a dry, soft cloth. Avoid using liquids or abrasive materials.

USER MANUAL CBL-HDMI-FL AMX

Flat cables provide several benefits including weight reduction, space efficiency, flexibility and strength. The following Flat Cables are available to purchase from AMX:

CBL-HDMI-FL-16: HDMI Flat Cable

CBL-HDMI-FL-16 CABLE SPECIFICATIONS
FG#: FG10-2180-16
Cable Length 16.4 ft (5m)
Connectors: • SOURCE:	HDMI (male) - connects to the source device.• DISPLAY: HDMI (male) - connects to the display device.• M o l d e d S t r a i n R e l i e f
Data Rate: 10.2 Gbps
Signal Support: 1920×	1080P @ 120Hz
Color:	48 Bits (16 bits per color)
Supported Features:	Deep Color, 3D, HEC, ARC
Plating:	24K Gold

CBL-DP-FL-16: DisplayPort Flat Cable

CBL-DP-FL-16 CABLE SPECIFICATIONS
FG#: FG10-2181-16
Cable Length 16.4 ft (5m)
Connectors: • SOURCE:	DisplayPort (male) - connects to the source device.• DISPLAY: HDMI (male) - connects to the display device.• M o l d e d S t r a i n R e l i e f
Data Rate: 10.2 Gbps
Signal Support: 1920×	1080P @ 120 Hz
Color:	48 Bits (16 bits per color)
Supported Features:	Deep Color, 3D
Plating:	24K Gold

Directional Cables

The CBL-HDMI-FL-16 and CBL-DP-FL-16 cables are directional (FIG. 1):

The connector labeled SOURCE must be connected to the source device (example: Blu-ray player) and the other connector labeled DISPLAY connects to the display device (example: HDTV monitor).

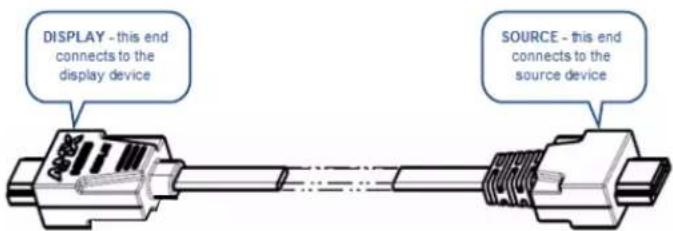

FIG. 1 DIRECTIONAL FLAT CABLE

Directional Cables: Notes

• Use of an extension cable on either end of the CBL-HDMI-FL-16 and CBL-DP-FL-16 cables should be avoided, or performance issues may result.
• Connecting the cable backwards, with the connector labeled "DISPLAY" into the video source, will not damage the equipment. However when incorrectly installed, the cable will not transmit a signal.

CBL-RGB+A-FL-16: RGB-Audio Flat Cable

CBL-RGB+A-FL-16 CABLE SPECIFICATIONS
FG#:	FG10-2183-16
Cable Length	16.4 ft (5m)
Connectors:	SOURCE: 15-pin HD VGA (male), with two 3.5mm ports (female): The port labeled with theSpeakericon connects to the source device, via the separate (Included)Stereo Audio Patch Cable.The port labeled with thePlugIcon isInactive-use this port to store the Stereo Audio Patch Cable when not in use.See FIG. 2 for details.DISPLAY: 15-pin HD VGA (male), with a 3.5mm Stereo pigtail (male) - connects to the display device.The pigtail is 12" (30.5cm) long.Molded Strain Relief
Included:	3.5mm Stereo Audio Patch Cable (18" / 45.7cm)

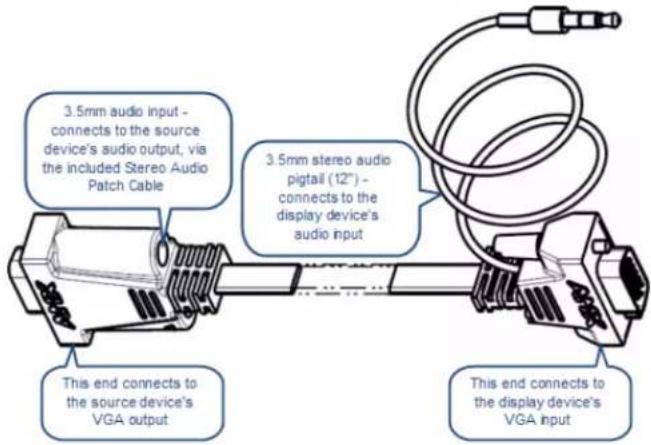

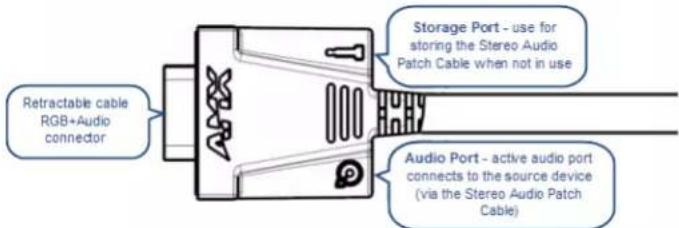

FIG. 2 RGB + AUDIO FLAT CABLE AND SOURCE CONNECTOR DETAILS

Use the separate 3.5mm Stereo Audio Patch Cable (included) to connect to the audio output on the Source Device.

CBL-ETH-FL-16: Ethernet Flat Cable

CBL-ETH-FL-16 CABLE SPECIFICATIONS
FG#:	FG10-2182-16
Cable Length	16.4 ft (5m)
Connectors:	• RJ45 (male, both ends)• M o l d e d S t r a i n R e l i e f
Category:	CAT 5e
Wiring:	• 26 AWG• 4 twisted pairs• S i n g l e - c or e

Additional Documentation

Refer to the Products > Architectural Connectivity catalog page on www.amx.com (Dealer Site) for additional product documentation.
