Product Type	Laptop
Brand	Averatec
Model	3150HD
Display Size	15.4 inches
Display Resolution	1280 x 800 (WXGA)
Processor	Intel Pentium M or Celeron M, up to 1.8 GHz
Memory (RAM)	512 MB or 1 GB DDR2
Hard Drive	40-80 GB SATA
Optical Drive	CD-RW/DVD-ROM combo
Graphics	Integrated Intel Graphics
Operating System	Windows XP Home Edition
Wireless	802.11b/g Wi-Fi
Ethernet	10/100 Mbps
Ports	3x USB 2.0, VGA, audio, RJ45, RJ11 (modem)
Dimensions (W x D x H)	33.0 x 27.5 x 3.5 cm (13.0 x 10.8 x 1.4 in)
Weight	2.7 kg (6.0 lbs)
Power Adapter	AC 100-240V, 50-60Hz, Output 19V DC, 3.42A
Battery	Li-Ion, 6-cell, 4400 mAh
Battery Life	Up to 2.5 hours
Security	Kensington lock slot
Cleaning	Use soft, lint-free cloth; avoid liquids and solvents
Repairability	Modular design; user-accessible RAM and hard drive
Spare Parts	Battery, AC adapter, keyboard, and LCD panel available

Frequently Asked Questions - 3150HD Averatec

How can I increase the battery life of my Averatec 3150HD?

To extend battery life, reduce screen brightness, disable unused hardware like Wi-Fi, and close unnecessary programs. Consider replacing an old battery with a new one.

Can I upgrade the RAM on the Averatec 3150HD?

Yes, the RAM is user-upgradeable. The laptop supports up to 2 GB of DDR2 memory. Open the memory compartment on the bottom to access the SODIMM slots.

What type of hard drive does the 3150HD use?

It uses a 2.5-inch SATA hard drive. The original capacity is typically 40-80 GB, but you can upgrade to a larger SATA SSD for better performance.

How do I enter the BIOS on my Averatec 3150HD?

Press the F2 key repeatedly during startup (when the Averatec logo appears) to enter the BIOS setup utility.

Why does my 3150HD overheat?

Overheating is often caused by dust in the cooling fan or vents. Clean the vents with compressed air and ensure the fan is spinning freely. Place the laptop on a hard surface.

Can I install Windows 7 on the Averatec 3150HD?

While possible, Windows 7 requires at least 1 GB of RAM and a 1 GHz processor. The 3150HD may run slowly. Windows XP is the recommended OS for optimal performance.

How do I connect to Wi-Fi?

Make sure the wireless switch on the laptop is turned on. Then click the network icon in the system tray, select your network, and enter the password if required.

What is the maximum resolution for an external monitor?

The VGA port supports resolutions up to 1920x1200 at 60 Hz. Connect an external monitor and use the Fn+F4 key combination to toggle displays.

How do I replace the keyboard?

Gently pry up the plastic bezel above the keyboard, remove the screws securing the keyboard, lift it, disconnect the ribbon cable, and reverse the steps for installation.

Where can I find drivers for the Averatec 3150HD?

Drivers are available on the Averatec support website or from third-party archives. Essential drivers include chipset, graphics, audio, and LAN. For Windows XP, service pack 3 is recommended.

USER MANUAL 3150HD Averatec

Safety and Maintenance

Checklists

Features

Where to Look For Information

Quick Start

Adjusting the Volume

Adjusting the Brightness

Turning off Your Computer

Tips for New Owners

CHAPTER 2

GETTING STARTED

Hardware and Software

Front View

Left View

Right View

Bottom View

LCD Status Indicators

Power Indicators

Function Keys

Numeric Keypad

Touchpad

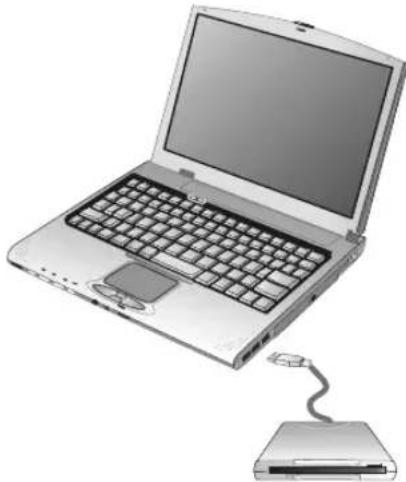

Connecting a USB Floppy Drive

Disk Drives

Connecting the Printer

The PC Card Slot

Memory

The Graphics System

CHAPTER 3

MAKING CONNECTIONS

Making Connections

Left Side Connectors

Right Side Connectors

Front Side Connectors

CHAPTER 4

POWER MANAGEMENT

Power Management

Power Saving Modes

Power Saving Tips

When to Replace the Battery

Heat Considerations

CHAPTER 5

USING THE BIOS SETUP UTILITY

Using the BIOS Setup Utility

Navigating and Entering Information in BIOS

The Main Menu

Standard CMOS Setup

Standard Feature Description

Advanced CMOS Setup

Power Management

Auto-Detect Hard Disk

Change User Password

Change Supervisor Password

Auto Configuration with Optimal Settings

Exiting and Saving

APPENDIX A

FREQUENTLY ASKED QUESTIONS

Frequently Asked Questions

APPENDIX B

STATEMENTS

Statements

European Notice

UL CAUTION

Canadian Department of Communications

Battery Disposal

CAUTION FOR ADAPTER

BATTERY CAUTION

CLASS 1 LASER PRODUCT

Chapter 1

Introduction

Getting Started

Congratulations on your purchase of a notebook computer! Your new notebook features the most innovative advances in portable computing technology. It combines state-of-the-art ergonomics with sophisticated architecture to provide you with a personal computer that is compact, powerful, and easy to use. Designed for a wide range of general, business, and personal productivity applications, the notebook is an ideal choice for use in the office, at home, and on the road.

For maximum expandability without compromising portability, the notebook accommodates a number of modules, including a combo DVD+CD-RW drive, one PCMCIA card and three USB devices. The high capacity hard disk drive provides you with plenty of storage space for multimedia files and applications.

The notebook features an 85/87-key keyboard and a touch pad with scroll buttons. The high-resolution 12.1-inch LCD panel provides clear and crisp viewing.

This Manual contains all the information you need to set up and use your new notebook. It describes all the features of the notebook in an easy-to-read yet thorough manner.

Inventory

This computer system is designed for years of productive and pleasurable computing. Use this section to keep details of your purchase. This information will be required should you need to make repairs to your notebook during the warranty period. Update this section when you add new options.

DATE OF PURCHASE:

PLACE OF PURCHASE:

DEALER'S ADDRESS:

TELEPHONE:

E-MAIL ADDRESS/WWW:

CONTACT PERSON:

MODEL NUMBER:

SERIAL NUMBER:

The serial number is located on the label (with a bar code) on the bottom side of the computer and begins with "SY".

Safety and Maintenance

You can use your computer under a wide range of environmental conditions. However, to ensure long use and continued high performance, consider the following factors when setting up your computer:

• Follow all warnings and instructions noted in this documentation and in the Windows Help program.
• The first time you use your computer, we recommend that you carefully read the Making Connections section of this manual and initialize the battery to ensure optimum battery performance.
• Unplug the computer from the power outlet before cleaning. Use a damp cloth for cleaning. Do not use aerosols, solvents, or strong detergents.
• Do not use the computer near open water or other liquids. Never spill liquid onto the computer.
• Do not place the computer in an unstable location where it might slip or be knocked over. Serious damage could result from a fall.
• Slots and openings in the system cabinet are for ventilation purposes. Do not block or cover these openings or the system could overheat. Do not use or store the computer near a source of heat or dust.
• On the base or rear panel of this notebook, there is a label with information on the power requirements of this system. These requirements must be followed. If you are unsure of your local power supply, consult your dealer or local Power Company.
• Do not step on or place anything on the power cord.
• If you use the computer with an extension cord, ensure that the total ampere ratings of all the devices sharing the extension do not exceed the rating of the extension cord or the rating of the wall outlet.

• Never push foreign objects into the computer through any of the slots or openings. Dangerous voltages are present, which could cause electric shock or fire, or damage sensitive components.

• For best results, use a power strip with a built-in surge protector. Do not use inferior extension cords as this may result in damage to your computer.

• Set the computer on a flat, stable surface. To prevent damage to the computer's hard disk drive, avoid using the computer where it will be exposed to strong vibration.

Checklists

After opening the package, carefully inspect the contents. If any of the items is missing or appear damaged, contact your dealer. The shipping carton should contain the following:

STANDARD

• A notebook computer
• An internal battery
• A combo DVD+CD-RW drive
• An AC adapter with power cord
• Recovery Media
• Operating System Guide

OPTIONS

The following items are optional accessories that are available for purchase separately. Visit www.averatec.com for additional information.

• 256 MB or 512 MB Memory Module
- USB FDD Drive
- Wireless LAN PC Card
- Auto Adapter
- Spare or Additional AC Adapter with Power Cord
- Spare or Additional Battery

Caution: When purchasing any of the accessories listed above, purchase only those accessories that are approved for use with your computer. The above accessories may be proprietary items. Your system vendor can obtain these approved accessories. If you use items that are not approved for use with this computer, you may cause your computer to malfunction, or to emit or receive electro-magnetic radiation in excess of local regulations. For non-proprietary accessories such as PC cards or printers, ensure that the accessory functions properly in your computer before making the purchase. Your system vendor may be able to recommend reliable brands and models.

Features

High Capacity Hard Disk Drive

The computer has a high capacity hard disk drive, to store your favorite programs and large multimedia files.

Built-in Modem/LAN Capability

A built-in 56k modem and 10/100 Mbps Ethernet port allows you to access the Internet or a local area network (LAN).

Built-in Wireless LAN Capability (some models only)

A built-in wireless LAN allows you to access the Internet or a local area network (LAN) without wires.

Large LCD

Your computer has an easy-to-view XGA (1024x768 resolution) LCD panel.

Built-in Stereo Speakers

The stereo speakers enable you to run a variety of multimedia applications.

Convenient Audio Control

The conveniently located audio control knob enable you to easily adjust the volume to the stereo speakers.

Scrolling Button

Comfortably scroll through documents with the ergonomically designed scrolling button.

Where to Look For Information

About Your Computer

This User's Manual describes the key elements of your computer. New users can find a simple step-by-step orientation in the Quick Start section of this chapter.

Quick Start

Turning on the Computer for the First Time

1. Connect the AC adapter power cord to the AC adapter.
2. Connect the AC adapter to the DC power port on the left side of your computer.
3. Connect the AC adapter power cord to an AC outlet.
4. Slide the cover latch in

Diagram of a laptop with labeled parts including power, cable, and speaker connections

the direction of the arrow to open the LCD.

1. Open the LCD panel to a comfortable viewing angle.
2. Press the power button to turn on the power.

Note: The battery is not fully charged. Allow your battery to fully charge before using it (i.e., before disconnecting AC power). Calibrating the battery before use is also highly recommended. Refer to Chapter 4, Power Management, for further information.

Use the touchpad to move the cursor on the screen. Move your finger across the pad to control the cursor, and press the right and left buttons beneath with your thumb. These buttons have the same functions as the right and left buttons of a standard mouse. You can also click or double-click by tapping on the touchpad. The middle button can be used to scroll up and down in documents and Web pages.

Adjusting the Volume

You can adjust the volume with the volume control knob located below the touchpad.

Diagram of a device with a screen and control buttons, showing an arrow pointing to a component (no text or symbols present)

Volume control button

Alternatively, you can adjust the volume with the Windows volume control applet located on the taskbar.

Volume Mute

Adjusting the Brightness

Use the following hot key combinations to adjust the LCD panel brightness:

• Fn + F6 decreases the brightness
• Fn + F7 increases the brightness

Turning off Your Computer

Turning off the computer properly is important to maintaining your computer.

1. On the Start menu, click Turn Off Computer.

2. ClickTurn Off.

If you are going to be away from the computer for a short period, there are ways of conserving power without shutting down the system. See Chapter 4, Power Saving Modes, for details or refer to your Operating System's Online Help.

Warning: Shutting off the computer improperly may result in data loss.

Tips for New Owners

Take responsibility for backup

Back up files often. Users who need to manage large amounts of data may wish to use backup devices such as a tape backup unit or a ZIP drive. If you use your notebook as a networked workstation with system backup, talk to the system administrator about backup procedures for your notebook.

Don't leave passwords anywhere on your notebook or carrying case

Be careful when placing your notebook on an airport security conveyor belt

In most airports, security conveyor belts are safe for computers. If you are not sure, ask the security staff. You should keep a close eye on your computer. When you are in a hurry, make sure that you walk away with the correct notebook computer!

Tape your business card to the notebook and accessories

In the workplace, notebooks and accessories may often look exactly alike, leading to equipment mix-ups. Prevent such mix-ups by placing your name on your equipment.

Develop ergonomic work habits

The science of ergonomics studies the relationship between health and a suitable work environment. For more information on ergonomics, contact your nearest computer bookstore, or local library. The Internet also has information on this and other related subjects.

Never take the notebook anywhere without the carrying case

A broken screen or case can be costly to repair. Prevent accidents by carrying the computer in a suitable carrying case.

Consider using a lock

For added security, consider purchasing a Kensington lock to put into the Kensington lock hole on the left side of your computer (see Chapter 2, Left View). Use the Kensington lock to secure the computer to a desk or table.

Note: Using a computer for extended periods of time with a poor workstation setup and incorrect work habits can cause health problems.

Chapter 2

Getting Started

Hardware and Software

This chapter introduces the different components and controls of your notebook computer, including the hardware components, the software, and the audio and video systems.

Getting Started

Before you begin using your computer, read this chapter to familiarize yourself with the main components installed in the system.

Slide the screen latch on the front edge of the cabinet towards the right to release the cover latch and open up the computer.

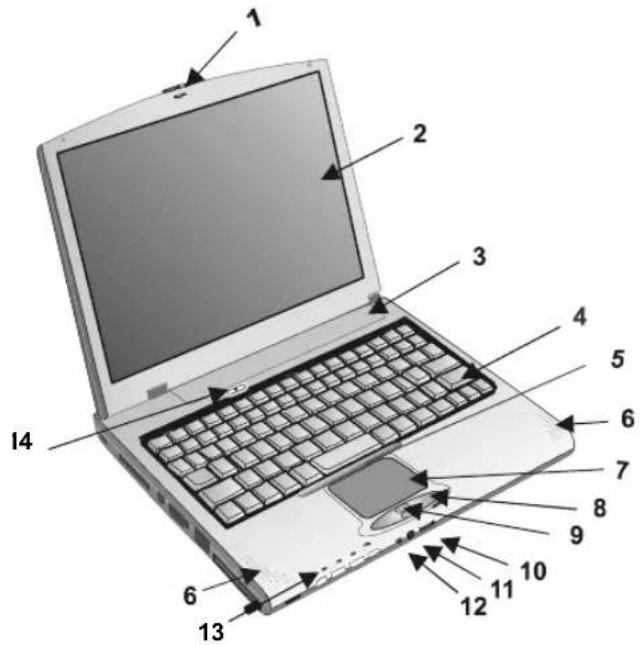

Front View

1. LCD release latch
2. LCD panel
3. Battery
4. Keyboard
5. Activity indicators
6. Speakers
7. Touchpad
8. Touchpad buttons

9. Scrolling button

10. Volume control knob

11. Microphone-in jack
12. Audio-out jack for external speakers or headphones
13. Power and wireless LAN indicators
14. Power button

Laptop diagram with numbered parts for identification and assembly reference

- Figure of notebook above may not be representative of actual product. However, location of devices and ports is accurate as indicated. Specification subject to change without notice.

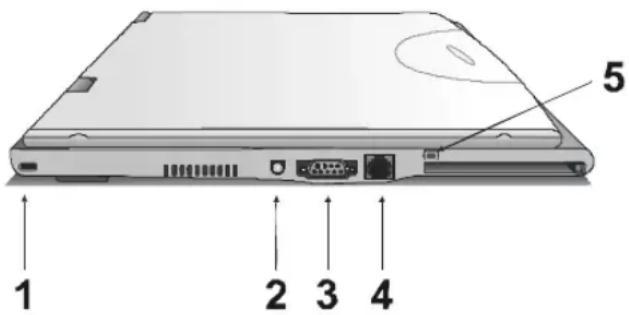

Left View

1 2 3 4 5 6 7 8

* Figure of notebook above may not be representative of actual product. However, location of devices and ports is accurate as indicated. Specification subject to change without notice.

1. Kensington lock hole
2. Ventilation slots
3. DC-adapter port
4. VGA port external video display
5. LAN RJ-45 jack
6. PCMCIA card slot
7. PCMCIA card eject button
8. Integrated Wireless LAN On/Off Switch (wireless LAN equipped models only)

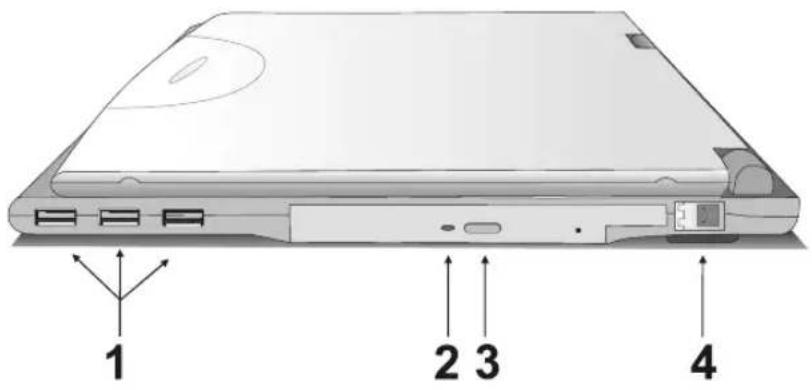

Right View

1. USB 2.0 ports
2. Combo DVD+CD-RW Drive
3. Combo DVD+CD-RW Drive Eject Button
4. Phone jack for internal modem

1 2 3 4

* Figure of notebook above may not be representative of actual product. However, location of devices and ports is accurate as indicated. Specification subject to change without notice.

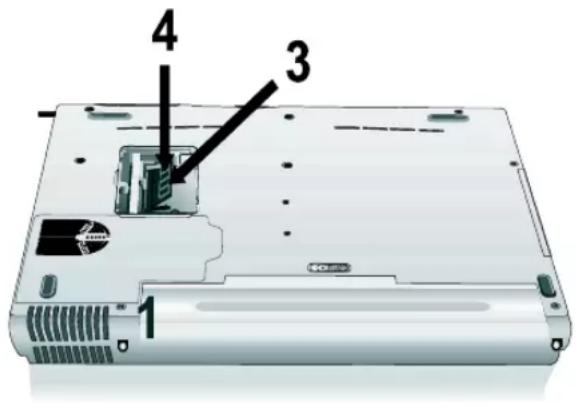

Bottom View

1. Ventilation slots
2. SO-DIMM RAM compartment
3. Battery release button
4. Battery

1 2 3 4

LED Status Indicators

The status indicators in the upper left corner of the keyboard light up when a particular function of the computer is active. Each indicator is marked with a symbol.

	CD ROM Drive	The computer is reading information from the CD-ROM, CD-RW or the DVD ROM drive.
	HDD	The computer is reading from, or writing to the built-in hard disk.
	Number-Lock	The keyboard is in Num-Lock mode.
	Caps-Lock	The keyboard is in Caps-Lock mode.
	Scroll-Lock	The keyboard is in Scroll-Lock mode.

Power Indicators

The power indicators show which power source the system is using. They also show battery status and low battery power alerts. The power indicators remain active and viewable even when the LCD panel is closed.

Icon	Light	Description
	Green Power is ON
	Flashing Green	Standby mode
	Green	Wireless LAN Enabled (by switch)
	No Light	Wireless LAN Disabled (by switch)
	Flashing Green	Battery Charging
	Green	Battery Full
	Red	Battery Error

Diagram of a device's front panel with labeled components including battery, wireless signal, and megaphone icons

Function Keys

Hold the Fn key while pressing the numbered function key.

Function key Description
Fn + F3	Toggles display on/off
Fn + F4	Suspend to RAM/HDD
Fn + F5	Toggles between LCD/CRT displays
Fn + F6	Decreases LCD brightness
Fn + F7	Increases LCD brightness

Numeric Keypad

The embedded numeric keypad consists of ten keys that make number intensive input more convenient. Press to enable or disable the numeric keypad.

7 8 9 * 4 5 6 - 1 2 3 + 0 . / Enter

Touchpad

The touchpad is a pressure sensitive pointing device that provides all the features of a two-button mouse. Its primary function is to move the cursor around the screen.

Touchpad buttons Touchpad Scrolling button

The instructions listed below describe how to use the touchpad.

1. First, place your fingers on the keyboard in the normal typing position. The touchpad is easily accessible by moving either your left or right thumb off the space bar and on to the touchpad.
2. Gently move your thumb across the pressure-sensitive touchpad in the direction you want the cursor to move. The pad detects the change in pressure and moves the cursor in the corresponding direction.
3. The touchpad offers another method of making selections in a software program. It is called double-tapping. This function corresponds to double-clicking with a mouse. Once the cursor has been moved to the object you want to select, lightly double-tap the pressure sensitive

touchpad. This double-tapping on the touchpad will select the desired item and prompt the software to perform the related operation.

1. The buttons located directly below the touchpad are the same in function as those on a two-buttoned mouse. Clicking these buttons makes selections, drags objects, or performs a variety of other functions depending on the software. To select an object, first move the pointer over the object you want to select, and then press the left button one time. The functions of these buttons are software specific.
2. Double-clicking is a common technique for selecting objects or launching programs from icons. Once you have moved the pointer over the object you wish to select, rapidly press the left button two times. This action is commonly referred to as "double-clicking" an object.

Dragging

There are two ways to drag:

• Move the pointer to the desired location then press down the left button. While still holding down the left button, move the pointer to the desired location. Release the button.
• Move the pointer to the desired location. Tap the touchpad twice quickly as if you were double-clicking, however do not remove your finger after the second tap. Move the cursor to the desired location. Lift your finger to finish dragging.

Adjust the touchpad settings by selecting Settings/Control Panel/Mouse/Buttons. These settings allow you to change the orientation of the touchpad from right-handed to left-handed, and fine tune the pointer movement and timing of clicks.

Touchpad Precautions

The Touchpad is a pressure-sensitive device. If not properly cared for, it can be easily damaged. Please take note of the following precautions.

• Make sure the touchpad does not come into contact with dirt, liquids or grease.
- Do not touch the touchpad if your fingers are dirty.
- Do not rest heavy objects on the touchpad or the touchpad buttons.

Scrolling Buttons

If you are scrolling through a document, you may find that using the scrolling button is more restful to your hand than holding down a mouse button. The scrolling button is located between the touchpad buttons. Push the top of the button to scroll up in a document or Web page; press the bottom of the button to scroll down in a document or Web page.

Connecting a USB Floppy Drive (not included)

Illustration of a laptop connected to a physical drive (no text or symbols visible)

Disk Drives

Your computer comes with several components for reading and writing (recording) information.

Hard Disk Drive

The hard disk provides high-capacity storage and fast access. Windows and most programs are stored here. Your notebook identifies the hard disk drive as drive C.

The DVD+CD-RW Drive

Your computer comes with a pre-installed DVD+CD-RW drive. This drive can read CDs (data and audio), read DVDs (data, video and audio) and write to CD-R and CD-RW media.

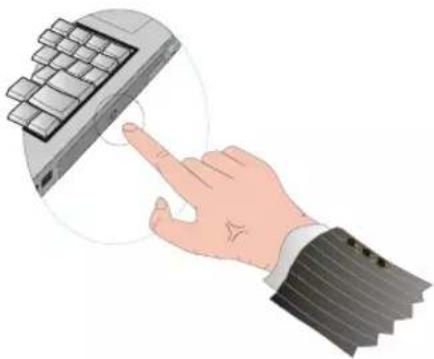

Inserting a CD/DVD

1. Press the button on the front of the drive to open the disk tray and pull the tray open.
2. Place the disk on the tray, label side up.
3. Place the disk on the central spindle and press gently until the disk clicks into place.
4. Slide back the tray until it clicks shut.

Illustration of a hand interacting with a computer keyboard (no text or symbols present)

Removing a Disk

1. Make sure the computer is not accessing the DVD+CD-RW drive.
2. Press the eject button and pull the tray all the way out.
3. Pick up the CD/DVD by the edges and remove the DVD+CD-RW from the tray. Push the tray into the computer until it closes fully.

Warning: When the computer is reading from the DVD+CD-RW, the indicator light for the CD-ROM will flash on. Do not attempt to remove a disk while this light is active.

Precautions for Handling CD-ROM Discs

Keep these precautions in mind when handling CD-ROM discs.

• Always hold the disc by the edges; avoid touching the surface of the disc.
• Use a clean, dry, cloth to remove dust, smudges, or fingerprints. Wipe from the center outward.
- Do not write on the surface of the disc.
• Extremes in temperature may damage discs. Store discs in a cool dry place.

• Do not use benzene, thinners, or cleaners with detergent. Only use CD-ROM cleaning kits.
• Do not bend or drop the discs.
• Do not place objects on top of discs.

Warning: Do not insert any foreign objects into the disc tray. Do not force the tray to open or close manually. When not in use, keep the tray closed to prevent dust or dirt from entering the drive unit. If you experience difficulty when removing a CD disc, stretch a paper clip (or use a pin or a thin metal rod) and insert it into the emergency eject hole located on the front panel:

Illustration of a computer monitor with a grid of app icons and an upward arrow, no text or symbols present.

The CD disk tray should eject immediately. This procedure can also be used to remove a CD from the drive when the notebook is powered off.

Connecting the Printer

To connect a printer to your notebook via the USB port, use an optional USB to printer adapter cable.

Note: Before use, you may be required to install the driver for the adapter cable.

The PC Card Slot

The PC card slot can be used as an interface between your computer and a variety of communications devices, such as network adapters, SCSI adapters, fax/modems, or provide additional data storage capacity. Your computer's PC card slot supports PCMCIA Type II and 32-bit CardBus cards.

Installing a Card

1. The top side of a PC card is usually identified with a label. Insert the card into the slot with the label side up and the edge with pinhole contacts going in first.
2. Insert the card into the slot. You will feel some resistance as the card slides into the back of the slot.
3. PC cards require drivers, or a program that allows the operating system to use a specific device. Many drivers are included with Windows, but if not, you will be prompted to install the driver included with your card.
4. The computer will beep twice to indicate successful installation. A single beep means that there was a problem recognizing the card.
   Push the button to eject the card.

Note: Please read the instructions included with individual PC cards. Some cards may be inserted with power on, while others require that the computer be turned off.

Slide the card into the slot.

Removing a Card

1. If a card is in use, you must shut down the card before removing it. Or you can click the PCMCIA icon on the right side of the taskbar, then click Stop.

2. Press the eject button on the card slot to release the button.

3. Press again to release the card.

Memory

Adding memory allows the computer to operate faster, handle more tasks simultaneously, and work more smoothly with large files. Users who increase memory demands - by adding additional programs, for example - may notice a slowdown in operating speed, and wish to increase memory. The notebook includes a memory card slot for adding additional memory.

Note: Use only 1" 200-pin SO-DIMM (PC-2100).

Calculate memory size by adding the size of the memory module to the existing built-in memory. For example: 256 MB (module) + 128 MB (built-in memory) = 384 MB Total

Replacing a Memory Card

Warning: Memory modules can be easily damaged by static electricity. Leave the module inside its static-proof bag until it is ready for installation.

Removing a Memory Card

1. Turn off the computer and disconnect the AC adapter. Turn the computer upside down and lay it on a flat surface.
2. Carefully remove the two RAM compartment cover screws and remove the RAM compartment cover.
3. Gently pull tabbed latched in the direction of the arrows (1). The card will pop up slightly.

1 2 1

1. Pull upwards on the card and then slide the card out (2).

Inserting a Memory Card

1. Hold the memory card by its edges with the edge-connector side towards the slot.
2. Hold the card at a shallow angle (about 25 degrees) and insert the edge connector into the connector slot (3). The "gold teeth" of the edge connector should no longer be visible when the card is fully inserted.

1 2 3 4

1. Press the card downwards so that it is flat inside the compartment (4). You may hear an audible click as the latches of the connector lock the card in place.
2. Replace the RAM compartment cover and secure it with the two screws.

Your notebook computer will automatically detect the change in RAM capacity when it restarts.

The Graphics System

Your computer has a high-performance graphics system, which can easily handle the demands of today's multimedia computing.

Screen Controls

Brightness

Function keys can increase or decrease the brightness of the monitor.

• + decreases the LCD panel brightness
• + increases the LCD panel brightness

Resolution

1. Click My Computer/Control Panel/Display/Settings. Click the Settings tab. The dialog box indicates the monitor resolution.
2. Use the slide bar to adjust the resolution. Normally, you should use the resolution the LCD or monitor was designed for.

Note: Using a lower resolution than the screen was designed for will reduce the area of the display. Using the computer in DOS mode may produce the same effect, because it uses a 640 by 480 resolution by default. You can stretch these low resolution displays to full screen size by selecting either the Expanded Display or Display Expansion Mode features in the BIOS utility. However, the stretching may cause distortion, especially to fonts.

High Resolution with an external monitor

Higher resolution modes may be used, as long as the monitor supports them.

Connecting to an External Monitor

The notebook has a VGA monitor port to connect your computer to an external monitor.

Using the VGA monitor port

1. Locate the 15-pin VGA monitor port on the left side of your notebook and connect the video signal cable from the external monitor (or the VGA adapter) to the monitor port.
2. Connect the power cable from the external monitor to a power outlet and turn on the monitor.
3. On your notebook, click the right touchpad button on the Windows desktop to open the desktop menu. Click Properties to open the Display Properties window.

4. In the Display Properties window, click Advanced in the Settings tab. Click the Display Modes tab.

5. Under Driver mode, you can select the appropriate options to change the display to an external monitor.

6. Adjustments to screen resolution and color depth can also be made in this dialog box.

Note: Light or dark dots may appear on the LCD due to technical limitations of LCD manufacturing. This will not effect normal operation of the LCD.

Chapter 3

Making Connections

Making Connections

Your computer is equipped with a full array of ports and connectors, including standard input/output (I/O) ports for quickly and easily adding peripheral devices such as printers, keyboards, and mice. Refer to documentation included with individual devices for details on connecting these devices to your computer. Along with the standard ports found on most computers, your computer also includes USB 2.0, modem and LAN ports, offering advanced communications technology.

Left Side Connectors

1 2 3 4 5

* Figure of notebook above may not be representative of actual product. However, location of devices and ports is accurate as indicated. Specification subject to change without notice.

1. Kensington Lock

Your computer includes a Kensington lock hole to be used with a standard Kensington lock. You can connect the notebook to a large object with the Kensington lock to prevent theft of your notebook. See the documentation that comes with your Kensington lock for more information.

2. DC-in Jack

Connect the DC power cable from the AC adapter to this jack.

3. VGA Out (External Video) Port

The 15-pin VGA port can be used to connect your computer to an external monitor. (See the Graphics System in chapter 2 for more information).

4. LAN RJ-45 Jack

With the built-in Ethernet LAN combo, you can make LAN connections without installing PC cards. Connection speed is 10/100 Mbps. When using the LAN function, wrap your LAN cable around the EMI ferrite suppression box to inhibit electromagnetic interference.

5. Wireless LAN On/Off Switch (only on wireless LAN equipped models)

This switch allows you to quickly enable or disable the integrated wireless LAN.

Right Side Connectors

Illustration of a computer monitor base with labeled components (no text or symbols beyond labels 1 and 2)

* Figure of notebook above may not be representative of actual product. However, location of devices and ports is accurate as indicated. Specification subject to change without advance notice.

1. USB (Universal Serial Bus) 2.0 Ports

The Universal Serial Bus (USB) is the latest standard for attaching monitors, input devices, scanners, and other devices to a PC. USB devices can be chained together on a single cable. This port supports 1.0, 1.1 and 2.0 devices.

2. Fax/modem RJ-11 Jack

The fax/modem can transmit data using the 56 Kbps V.90 protocol, and send and receive faxes at 14.4 Kbps. In some countries, local regulations may not permit the use of the fax/modem designed for this system. In this case, you may use a PCMCIA modem.

Warning: Plug your modem into an analog telephone jack only. Most homes use analog lines. Do not use digital lines, such as the PBX and ISDN systems found in many offices. Digital lines may damage your modem.

Front Side Connectors

Diagram of a laptop rear panel with labeled ports and indicator lights (no text or symbols beyond labels)

* Figure of notebook above may not be representative of actual product. However, location of devices and ports is accurate as indicated. Specification subject to change without notice.

1. Audio-out Jack

Connect a stereo headset or external speakers to this jack to listen to multimedia.

2. Microphone-in Jack

Connect a microphone this jack to record audio.

Chapter 4

Power Management

Power Management

Battery Calibration

The first time you use a battery, you should calibrate it. The calibration process empties and charges the battery one time. This allows the Windows battery gauge to accurately monitor battery status. To calibrate a battery, follow these steps:

1. Plug in the AC adapter.
2. Restart the computer and when the startup screen appears, press Del key to enter the BIOS Setup Utility.
3. In the BIOS Setup Utility, select Power Management Setup, choose Battery Auto Calibration, then press .

Please make sure that AC adapter & Battery are present?
Would you to do battery auto-learning?
Yes.
No. (System Reboot)

1. Press at the above Battery Auto Calibration dialog to begin the battery calibration. Please press [Space Bar] to select option, and [Enter] to continue.

Battery Calibration will take from 8 to 10 hours, depending on how much power the battery may already contain.

Note: For optimum performance, we recommend calibrating the battery again every three months. Each time you charge and discharge a battery, it loses a tiny part of its storage capacity, so that, over time, it will store less than its potential charge. Similarly, if you do not use the battery for a few days, it will slowly self-discharge, and when it is recharged, it will hold less than 100% of the potential charge.

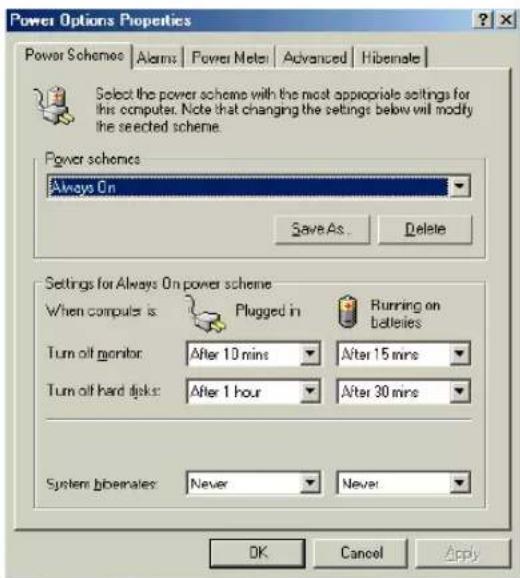

Monitoring Battery Power

There are two ways to monitor how much power the battery has left.

1. Click start/Settings/Control Panel/Power Options; then click Power Meter.

2. Moving the cursor to the battery icon on the taskbar is the simplest way to check on battery power status.

Power Options Properties Power Schemes | Alarms | Power Meter | Advanced | Hibernate | Select the power scheme with the most appropriate settings for this computer. Note that changing the settings below will modify the selected scheme. Power schemes Always On Save As... Delete Settings for Always On power scheme When computer is: Plugged in Running on batteries Turn oil monitor: After 10 mins After 15 mins Turn oil hard disks: After 1 hour After 30 mins System hibernates: Never Never OK Cancel Apply

If you do not see the battery icon, enable it in Start/Settings/Control Panel/Power Options. Choose the Advanced tab and click "Always show icon on the taskbar."

Low Battery Alarms

How your computer responds to a low battery condition is set under Start/Settings/Control Panel/Power Options/Alarms.

Two different power alarms can be enabled or disabled: the Low Battery Alarm, and the Critical Battery Alarm. Use the slider to set the power level at which the alarms are activated. Click on the Alarm Action button to choose whether the alarm sounds, displays a message, or both.

Warning: When battery power is low, the battery indicator will flash red, and the alarm will beep or display a warning on your screen. Take immediate action, such as saving files or connecting to the AC adapter, or data may be lost.

When the computer alerts you that the battery is low, immediately do one of the following:

• Connect the AC power adapter
• Save your work, and suspend to disk +
• Save your work, then select Shut Down from the Start menu
• Turn off or suspend the computer and replace the discharged battery with a charged battery (See Changing the Battery below).

Do not restart the computer until you have connected to an AC adapter, or replaced the discharged battery with a charged battery.

Battery Charging

When you use the AC adapter to connect your Notebook to a power outlet, the internal battery will automatically begin to recharge. While the battery is charging, the Battery Charge icon on the Indicator panel will be active. When the battery is fully charged, the Battery Charge icon will turn off.

If your computer is turned off, a fully discharged battery will take about 3 hours to recharge. If your computer is turned on and is not in suspend mode, it will take about 4 hours to recharge the battery. Refer to the following table:

	Charging	Discharging
System On	4 hours 3.5 hours
System Off (suspend to RAM)	3 hours —

Note: A fully charged Li-Ion battery can run the Notebook for up to 3.5 hours.

Power Saving Modes

Adjust the default power management settings in the Power Options/ Advanced dialog box in the Control panel. The Power Options Properties dialog box allows you to set different actions to take when the computer is left idle for a certain amount of time.

Suspend Mode

There are several possible settings for suspend mode, which can be selected in the Power Management dialog box: You may have the notebook standby, hibernate, or you can power off the computer altogether.

Standby

All devices are powered up and in suspend mode except for the CPU clock.

Hibernate

Suspend to Disk is similar to turning off the computer, except that the current state of the computer is copied to the hard disk as a special file. When the computer returns from suspend mode, the desktop appears with the same files and programs open as when the computer was suspended. Suspend to Disk is very useful when you don't want to take the time to shut down all open programs one by one to shut off the computer, only to have to open the same programs and files the next time you use the computer. This mode is also called hibernation mode.

Suspend-to-disk Partition/Suspend-to-disk File

In order to Suspend to Disk, you must have a special suspend-to-disk partition/file on your hard disk drive. This partition is pre-installed on your computer. The pre-installed partition is large enough to store all system memory.

Power Off

System is shutdown.

Initiating Suspend Mode

There are four ways to initiate suspend mode. The settings can be adjusted in the Power Management dialog box:

• The computer will automatically enter suspend mode when not used for a set period of time.
• Selecting the Stand by button in the Shut Down Windows dialog box.
• Closing the screen cover (assuming no external monitor has been connected).
• Pressing the power button (if enabled in power settings).

- Pressing the suspend function key <Fn> + <F4> .

Using the BIOS Utility for Power Management

With Windows running in ACPI mode, power can be controlled through the Power Management dialog box only. With operating systems that use ACPI power management, BIOS power settings have no effect.

Power Button Settings

The function of the power button can be set to Shutdown or Standby in the Power Management Properties dialog box in the Windows Control Panel. However, holding the power button down for more than four seconds will force a power off while operating under any situation, resulting in the loss of any unsaved information.

Power Saving Tips

- Avoid operating the fax/modem, or audio and video applications when using battery power. Operating a fax modem, video, or audio equipment increases the computer's power requirements.

- Decreasing monitor brightness can also save power. Decrease brightness by pushing + . Increase it by pushing + .

When to Replace the Battery

Over time, the battery's capacity gradually decreases. We recommend that you replace your battery when you notice that it begins to store significantly less charge.

Changing the Battery

Change the main battery pack as follows:

1. Turn off the computer.
2. Close the screen cover and turn the computer over.
3. Slide the side battery latch (1) away from the battery. Continue to hold it until the battery is removed.
4. Push in the latch on the battery (2) while lifting the battery out of the compartment. Remove the battery.
5. Make sure the replacement battery is properly orientated. Slide back the side battery latch (1) then insert the battery into the battery compartment. Check that the latch locks back into position.

1 2 2

Heat Considerations

The computer's processor has been specially designed to consume little power, and generates very little heat. However, working in a hot environment, or working for long periods may raise the temperature. Your computer takes the following steps to lower temperature:

1. The cooling fan will automatically turn on. You may feel air coming from a vent at the left side when this happens.
2. If the temperature continues to rise, processor activity will be reduced. You may notice a slight loss of performance when this happens.

Chapter 5

Using the BIOS Setup Utility

Using the BIOS Setup Utility

Your notebook has a BIOS setup utility which allows you to configure important system settings, including settings for various optional functions of the computer. This chapter explains how to use the BIOS setup utility.

BIOS Setup Menu

The BIOS setup Utility allows you to configure your computer's basic settings. When you turn your computer on, the system reads this information to initialize the hardware so that it can operate correctly. Use the BIOS setup utility to change your computer's start-up configuration. For example, you can change the security and power management routines of your system.

Starting the BIOS Setup Utility

You can only enter the BIOS setup utility as the computer is booting, that is between the time you turn on the computer and before the Windows interface appears. If your computer is already on, shut down your computer completely (power off) and restart it and then press the Del key to enter the setup utility.

Navigating and Entering Information in BIOS

Use the following keys to move between fields and to enter information:

Key	Function
Del	Press Del to start the BIOS utility after turning on the computer.
ESC	Press Esc to exit any section. If you wish to exit the BIOS utility without saving changes, go to the main menu, then press Esc.
Up, down keys (↑↓)	Push the up and down arrow keys to move among selections, then press Enter to make a selection.
PgUp or PgDn	Use the PgUp, PgDn keys to modify a field. Use PgUp to increase a value, such as a date or number, and PgDn to decrease it. For other types of choices, such as “enabled,” or “disabled,” use either key to move between choices.
Enter Press e	enter to make a selection
F2 or F3	Pressing either key changes the color of the graphic display.
F10	Press F10 to save changes, then exit

The Main Menu

The Setup Utility menu bar has nine main screens: Standard CMOS Setup, Advanced CMOS Setup, Power Management Setup, Auto-Detect Hard Disks, Change User Password, Change Supervisor Password, Auto Configuration with Optimal Settings. Save Settings and Exit, and Exit Without Saving are used to exit the Setup Utility.

AMIBIOS HIFLEX SETUP UTILITY

(C)2000 American Megatrends, Inc. All Rights Reserved

Standard CMOS Setup

Advanced CMOS Setup

Power Management Setup

Auto-Detect Hard Disks

Change User Password

Change Supervisor Password

Auto Configuration with Optimal Settings

Save Settings and Exit

Exit Without Saving

Standard CMOS setup for changing time, date, hard disk type, etc.

ESC:Exit ↑↓:Sel F2/F3:Color F10:Save & Exit

Figure 6-1

Standard CMOS Setup

The Standard CMOS Setup page of the Setup Utility has a list of fields that describe the basic configuration of your computer. CMOS is simply a type of random access memory, or RAM, used to store the basic configuration of the computer.

AMIBIOS SETUP - STANDARD CMOS SETUP(C)2000 American Megatrends, Inc. All Rights Reserved
Date (mm/dd/yyyy): Sun Jan 12,2003	Base Memory: 640 KB
Time (hh/mm/ss) : 16:55:24	Extd Memory: 223 MB
	LBA Blk PIO 32Bit
Type Size Cyln Head WPcom Sec Mode Mode Mode Mode
Pri Master: Auto	On
Sec Master: Auto	On
Boot Sector Virus Protection Disabled
Month: Jan - Dec	ESC:Exit ↑↓:Sel
Day: 01 - 31	PgUp/PgDn:Modify
Year: 1980 - 2099	F1:Help F2/F3:Color

Figure 6-2

Standard Feature Description

Field	Setting	Function
System Time & Date	Use these fields to set the time and date. The time is displayed in 24-hour format. The date can be set from January 1, 1980 to December 31, 2099. The values set in these two fields take effect immediately.
Type	Shows type of system installed, including the following options: (Pri. Master) Auto, CD-Rom /DVD, No Installed, User; (Sec. Master) Auto, CD-Rom /DVD, Not Installed, User.
Pri. Master	Auto	The Default setting is Auto. Auto lets the system automatically read setup information from the device. When set to Auto, the BIOS will automatically detect hard disk capacity.
	CD-ROM/DVD
	Not Installed
	User
Sec. Master	Auto	The Default setting is Auto. Auto lets the system automatically read setup information from the device.
	CD-ROM/DVD
	Not Installed
	User
Size Hard disk capacity.
Cylinders Displays the number of cylinders on the hard disk drive.
Heads Displays the number of heads per cylinder on the hard disk drive.
LBA Mode Only some hard disk drives support Logical Block Addressing. Default depends on the Hard Disk Drive type.
Blk Mode Only some hard drives support block (multi-sector) transfer of data
PIO Mode The default value Auto lets the system automatically
	read setup information it needs for setup from hard disk drive. Five explicit values, 0 to 4, are also possible.
Field	Setting	Function
32Bit Mode Only some hard disk controllers support 32 bit data transfer
Base Memory; Extended Memory	These two items are detected automatically at start-up time and cannot be changed

Advanced CMOS Setup

AMIBIOS SETUP - ADVANCED CMOS SETUP(C)2000 American Megatrends, Inc. All Rights Reserved
1st Boot Device	CD-ROM	Available Options:
2nd Boot Device	USB FDD
3rd Boot Device	IDE-0	ESC:Exit ↑↓:Sel
S.M.A.R.T. for Hard Disks	Enabled	PgUp/PgDn:Modify
BootUp Num-Lock	Off	F1:Help F2/F3:Color
Display Expansion Support	Enabled
Password Check	Setup
Share Memory Size	32 MB
Field	Setting	Function
1st Boot Device2nd Boot Device3rd Boot Device	CD-ROM	1st Boot Device default is CD-ROM.2nd Boot Device default is USB FDD.3rd Boot Device default is IDE-0.
	USB FDD
	IDE-0
Disks	Disabled S.M.A.	Only for Hard T. Hard Disks are supported. The default is Enabled.
	Enabled
	Off Bootup Num	Used this field to initially disable the NumLock feature of the internal keyboard when the notebook starts.The default is Off.
	On
Display Expansion Support	Disabled	If you are using DOS or a 640 x 480 resolution to run windows, the display will not fill the entire screen. Enable this mode to expand the display to the entire screen. The default is Enabled.
	Enabled
Password Check	Setup The def	default value is Setup, which specifies that a password is only required to enter the setup utility.
	Always	If Always is selected, the passw required when the system is booted up or resuming from a suspend-to-disk.
Share Memory Size 8MB This field displays the amount of
	16MB
	32MB

Figure 6-3

Power Management

This section of the BIOS manages' power settings in operating systems other than Windows 98 or above, or operating systems using ACPI power management. In Windows XP, power management is controlled through the Power Management window in My Computer, and BIOS power management settings have NO effect. In other operating systems that use ACPI power management, BIOS settings likewise have no effect.

AMIBIOS SETUP - POWER MANAGEMENT SETUP(C)2000 American Megatrends, Inc. All Rights Reserved
Cover Close	Panel Off	Available Options:
Auto DIM	Enabled
Battery Auto Calibration	Disabled	ESC:Exit ↑↓:SelPgUp/PgDn:ModifyF1:Help F2/F3:Color
FAN Auto Learning	Disabled
Field	Setting	Function
Cover Close	Panel off The	LCD will turn off when the cover is closed.
	Suspend The	LCD will turn off and the computer will enter suspend mode when the cover is closed.
Auto DIM	Enabled When	AC adapter is not in use, the monitor is run in power-saving mode.
	Disabled The	monitor does not go into power-saving mode.
Calibration	Disabled Battery	calibration is disabled. Battery Auto
	Enabled Battery	calibration is enabled. Battery calibration will optimize the battery performance.
Learning	Disabled FAN	learning is disabled. FAN Auto
	Enabled FAN	learning is enabled. FAN learning will optimize the fan speed.

Figure 6-4

Auto-Detect Hard Disk

When Auto-Detect Hard Disk is selected, the BIOS will automatically detect Pri. Master and Sec. Master settings.

AMIBIOS SETUP - STANDARD CMOS SETUP(C)2000 American Megatrends, Inc. All Rights Reserved
Date (mm/dd/yyyy): Sun Jan 12,2003	Base Memory: 640 KB
Time (hh/mm/ss) : 16:55:24	Extd Memory: 223 MB

Type Size Cyln Head WPcom Sec Mode Mode Mode Mode

Pri Master:User 12073Mb 23392 16 0 63 On On 4 On

Sec Master: CDROM 4 On

Boot Sector Virus Protection Disabled

Month: Jan - Dec ESC:Exit ↑↓:Sel Day: 01 - 31 PgUp/PgDn:Modify Year: 1980 - 2099 F1:Help F2/F3:Color

Figure 6-5

Change User Password

With a User password, you can enter the Setup Utility and change or remove the User password, but you cannot enter the Setup Utility and change or remove the Supervisor password, nor enable diskette access if it has been disabled.

Change Supervisor Password

A supervisor password must be set before a lower-level user password can be set. After selecting Change Supervisor Password, press Enter. You will be prompted for the new password, and then again to verify it. Type in 6 or fewer keystrokes. If you make an error, press Esc to start over.

Enter new supervisor password:

Auto Configuration with Optimal Settings

The Auto Configuration pages reset the computer to default values. The Auto Detect Hard Disks likewise helps users to configure their systems quickly. When you see the following prompt, choose Y to reset the computer to default values.

Load high performance settings (y/n)? N

Exiting and Saving

Save Settings and Exit	Select this option to save changes to the field values, and restart the computer using the new values. (Pressing F10 from any of the menu screens also allows you to save settings and exit.)
Exit Without Saving	Select this option to discard any changes you have made to the field values, and restart the computer using the old values.

Appendix A

Frequently Asked Questions

Frequently Asked Questions

Q: My screen seems to time out too quickly. I have to constantly hit a key or move the mouse in order to bring it back. How can I adjust the screen time-out?

A: This is part of Windows Power Management. Access Power Management by clicking on Start/Settings/Control Panel/Power Management. Adjust the display time-out by selecting a time next to the Turn off monitor option. You may also select different time-out values for adapter and battery power states.

Q: What kind of external microphone can I use with my notebook computer?

A: You will need to use a self-amplifying microphone.

Q: There is feedback noise coming from my speakers. What can I do?

A: Double click on the Speaker icon on the task bar. Then, under Microphone Balance, check the Mute box.

Q: Because of a software problem, I was unable to shut down power normally. I pressed the power button to force a power off, but it didn't work. How can I force a power off?

A: Make sure you press the power button for at least 5 seconds. Normally, this will force a power off. If this does not work, you can shut down the computer by inserting a needle into the reset button pinhole. (The reset button is located on the computer bottom side.)

Q: Why can't I charge the battery of my portable computer after it was out of use for some time?

A: After portable computers have not been used for a long time (more than one month), the batteries will go into the low voltage protection mode due to data back-ups and natural electrical discharge. At that point, restoring normal voltage will require slow charging over a period of several hours. Calibration can be performed after the battery has returned to a normal condition.

Q: My computer alerts "CMOS Battery Low", what can I do?

A: If you keep your computer in no power situation (unplug the computer from the power outlet and remove battery at the same) over 45 days, your data in CMOS will be lost.

Please reconfigure your CMOS by following steps:

1. Press to enter the BIOS setup utility.
2. Select "Auto Configuration with Optimal Settings". When you see the following prompt, choose and then press .

Load high performance settings (y/n)? Y

1. Select "Save Settings and Exit". When you see the following prompt, choose and then press to restart your computer.

Save current settings and exit (y/n)? Y

Appendix B

Statements

Statements

Federal Communications Commission Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and the receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.

Shielded interconnect cables and shielded AC power cable must be employed with this equipment to insure compliance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by the system's manufacturer could void the user's authority to operate the equipment.

Declaration of Conformity

This device complies with part 15 of the FCC rules. Operation is subject to the following conditions:

• This device may not cause harmful interference
- This device must accept any interference received, including interference that may cause undesired operation.

About The Modem

This equipment complies with Part 68 of FCC rules. On the bottom of this equipment is a label that contains, among other information, the FCC registration number and ringer equivalence number (REN) for this equipment. If requested, this information must be provided to the telephone company.

The modem jack of this equipment complies with Sub-part F of Part 68 of FCC rules.

The REN is used to determine the quantity of devices that may be connected to the telephone line. Excessive RENs on the telephone line may result in the devices not ringing in response to an incoming call. In most, but not all areas, the sum of the RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to the line, as determined by the total RENs contact the telephone company to determine the maximum REN for the calling areas.

If the terminal equipment causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. However, if advance notice isn't practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a compliant with the FCC if you believe it necessary.

The telephone company may mark changes in its facilities, equipment, operations, or procedures that could affect the operation of the equipment. If this happens, the telephone company will provide advance notice in order for you to make the necessary modifications in order to maintain uninterrupted service.

If trouble is experienced with this equipment, please contact the manufacturer for repair and (or) warranty information. If the trouble is causing harm to the telephone network, the telephone company may request you remove the equipment from the network until the problem is resolved.

The equipment cannot be used on public coin service provided by the telephone company. Connection to Party Line Service is subject to state tariffs. (Contact the state public utility commission, public service commission or corporation commission for information.)

The Telephone Consumer Protection Act of 1991 marks it unlawful for any person to use a computer or other electronic device, including fax machines, to send any message unless such message clearly contains in a margin at the top or bottom of each transmitted page or on the first page of the transmission, the date and time it is sent and an identification of the business or other entity, or other individual sending the message and the telephone number of the sending machine or such business, other entity, or individual. (The telephone number provided may not be a 900 number or any other number for which charges exceed local or long-distance transmission charges.) To program this information, refer to the manual of the communication software.

European Notice

Products with the CE Marking comply with both the EMC Directive (89/336/EEC) and the Low Voltage Directive (73/23/EEC) issued by the Commission of the European Community.

Compliance with these directives implies conformity to the following European Norms:

● EN 55022 ( CISPR 22 ) Radio Frequency Interference
EN 55024 (EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11, EN61000-3-2, EN61000-3-3) Generic Immunity Standard
EN 60950 (IEC950) Product Safety

UL CAUTION

To reduce the risk of fire, use only No. 26 AWG or larger telecommunication line cord.

IMPORTANT SAFETY INSTRUCTIONS

When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:

Do not use this product near water, for example, near a bathtub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.

Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning.

Do not use the telephone to report a gas leak in the vicinity of the leak.

Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire.

They may explode. Check with local codes for possible special disposal instructions.

Canadian Department of Communications

This class B digital apparatus meets all requirements of the Canadian Interference-causing Equipment Regulations.

About the Modem

The Industry Canada label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operational and safety requirements. The department does not guarantee the equipment will operate to the user's satisfaction.

Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company.

The equipment must also be installed using an acceptable method of connection. In some cases, the company's inside writing associated with a single line individual service may be extended by means of a certified connector assembly (telephone extension cord). The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations.

Repairs to certified equipment should be made by an authorized Canadian maintenance facility designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.

Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.

CAUTION: Users should not attempt to make such connections themselves, but should contact the appropriate electric inspection authority, or electrician, as appropriate.

"The Load Number (LN) assigned to each terminal device denotes the percentage of the total load to be connected to a telephone loop which is used by the device. To prevent overloading, the termination on a loop may consist of any combination of devise subject only to the requirement that the total of the Load Numbers of all the devices does not exceed 100."

Battery Disposal

THIS PRODUCT CONTAINS A LITHIUM-ION OR NICKEL-METAL HYDRIDE BATTERY. IT MUST BE DISPOSED OF PROPERLY. CONTACT LOCAL ENVIRONMENTAL AGENCIES FOR INFORMATION ON RECYCLING AND DISPOSAL PLANS IN YOUR AREA.

CAUTION FOR ADAPTER

THIS NOTEBOOK COMPUTER IS FOR USE WITH MODEL NO. PA-0060A-002

BATTERY CAUTION

DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED.

REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISPOSE OF USED BATTERIES ACCORDING TO THE MANUFACTURER'S INSTRUCTIONS.

CLASS 1 LASER PRODUCT

LASERSCHUTZKLASSE 1 PRODUKT TO EN60825

CAUTION: THIS APPLIANCE CONTAINS A LASER SYSTEM AND IS CLASSIFIED AS A "CLASS 1 LASER PRODUCT." TO USE THIS MODEL PROPERLY, READ THE INSTRUCTION MANUAL

CAREFULLY AND KEEP THIS MANUAL FOR FUTURE REFERENCE. IN CASE OF ANY TROUBLE WITH THIS MODEL, PLEASE CONTACT YOUR NEAREST "AUTHORIZED SERVICE STATION." TO PREVENT DIRECT EXPOSURE TO THE LASER BEAM, DO NOT TRY TO OPEN THIS ENCLOSURE.
