Product Type	Towel Heater
Model	TH 01 750W
Power Supply	220-240V~ 50-60 Hz
Heating Power	500W / 750W (selectable)
Heating Modes	Comfort, ECO, Anti-frost, Programs P1/P2/P3
Comfort Temperature Range	10°C to 35°C
ECO Temperature Range	6°C to 31°C (Comfort minus 4°C)
Anti-frost Temperature	7°C (fixed, non-adjustable)
Timer Function	0-8 hours or preset 2h/4h/8h
Open Window Detection	Yes, auto shut-off if temperature drops rapidly
Protection Class	Class II
Water Resistance	IP24
Installation Type	Wall-mounted, vertical only
Minimum Distance from Ceiling	0.2 m
Minimum Distance from Sides to Wall	0.25 m
Minimum Distance from Floor to Lowest Rail	0.6 m (for children safety)
Minimum Distance from Water Source	1 m
Overheat Protection	Yes, automatic shut-off
Clock/Weekday Setting	Yes, programmable weekly timer
Cleaning Method	Wet cloth, vacuum cleaner, or brush; do not submerge

Frequently Asked Questions - TH 01 750W Tesy

How do I set the clock and day of the week?

Press and hold the button Ⓛ for 3 seconds. The screen will display a day symbol. Use ⊕ and ⊖ to select the day (1=Monday, 7=Sunday). Press Ⓛ to confirm. Then set hour and minute similarly.

How do I switch between heating modes?

Press the Ⓜ button repeatedly to cycle through modes: Comfort (☀), ECO (), Anti-frost (F-r), and programs P1/P2/P3.

What is the Open Window function?

If the room temperature drops rapidly (over 2°C in 2 minutes) while heating, the appliance automatically stops heating and displays flashing 'F□' to save energy. It exits after 20 minutes or by pressing Ⓜ.

How do I set the timer?

Press the Ⓛ button once. The screen will flash '0h'. Use ⊕ and ⊖ to set a timer from 0 to 8 hours, or press Ⓛ repeatedly to cycle through 2h, 4h, 8h, 0h.

What safety precautions should I take?

Do not cover the heater. Keep inflammable objects at least 1 m away. Install at least 0.2 m from ceiling, 0.25 m from side walls, and 0.6 m above floor. Do not use directly under a socket. Children under 3 must be supervised.

Can I use an extension cord or programmer?

No. Do not use with a programmer, timer, or device that automatically turns it on, as this may cause fire if the appliance is covered or misplaced. Only use approved connection blocks.

How do I clean the towel heater?

Turn off and unplug the heater. Clean with a damp cloth, vacuum cleaner, or brush. Do not use abrasive detergents. Never immerse in water.

What does the Anti-frost mode do?

Anti-frost mode maintains a target temperature of 7°C to prevent freezing. The temperature is fixed and cannot be adjusted.

How do I adjust the program P3?

While in P3 mode, press Ⓜ for 3 seconds to enter day setting. Select day d1-d7, then each hour (00-23) choose Comfort, ECO, or Anti-frost mode. Repeat for all hours.

What should I do if the overheating protection activates?

Unplug the heater and set the switch to OFF. Allow it to cool for 10-15 minutes before restarting. If the problem repeats, contact an authorized service center.

USER MANUAL TH 01 750W Tesy

EN TOWEL HEATER 6-10 Usage and Storage Instructions

TH-01 220-240V\~ 50-60 Hz 500/750W

1

2

4

5

6

①

②

③

I. IMPORTANT SAFETY PRECAUTIONS

WARNING!

- Please read this manual before operating the appliance and keep it at a safe place for future reference. In case the appliance is obtained by a new owner, it should be transferred together with its manual.

CAUTION: Children under 3 years of age should be kept away from the appliance unless they are under constant supervision.

- Children from 3 to 8 years of age are allowed to operate the on/off button ONLY, provided that the appliance is installed and ready for operation and such children have been supervised and instructed in safe operation of the appliance and they understand all related risks.

- Children from 3 to 8 years of age MUST NOT: connect the plug to power sockets, make adjustments, clean it or carry out user maintenance operations.

- This appliance can be used by children older than 8 years of age and by people with reduced physical, sensor and mental capabilities, as well as by people with insufficient experience and knowledge provided they are supervised or instructed in safe operation of the appliance and understand the related risks. Children should not be allowed to play with the appliance. Cleaning and user maintenance operations must not be carried out by children without supervision.

- CAUTION: Some of the appliance parts may get very hot during operation and thus cause burns to users. In case there are children and vulnerable people in the room, special attention should be paid.

- WARNING: In order to avoid overheating, do not cover the appliance!

- The appliance should not be positioned right under a power socket!

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Before connecting the towel heater, you should check if the voltage on the technical information plate corresponds to the voltage of the main electrical system of the place of use /at home or in the office/. The appliance is intended for the voltage, shown on the technical information plate.

- TESY Towel Heater TH 01 must be installed in accordance with the good professional practices and in accordance with the legislature of the particular state (Electricity Directive of EU and requirements for special installations and places of installation including bathroom or shower box HD60364-7-701:2007(IEC 60364-7-701:2007)).

- The heater is classified as class II and is provided with IP24 water protection. For that reason it must be mounted in position (VOLUME) 2. That prevents the chance of reach to the control board (switch and thermostat) of the towel heater by a person who is in a shower or in a bath. Minimum permissible distance between the appliance and a water source must not be less than 1 meter! The appliance is to be mounted on a wall only!

- This appliance must be used only with its main function, which it was intended for, i.e. heating of domestic

premises. Every different usage is considered incorrect and hence dangerous. The manufacturer does not assume responsibility for break-downs, caused by incorrect and unreasonable usage. Non-adherence to the safety precautions will render the guarantee invalid

- Do not leave your home, while the appliance is turned on: assure that the switch is in position OFF(0) (turned-off) and the thermostat switch is in position – minimum. Always disconnect the plug of the device from the socket.

- Keep inflammable objects as furniture, cushions, bedding, paper, clothes, curtains etc. at a distance of minimum 100 cm away from the fan heater.

- Do not use the device in areas of usage and storage of inflammable substances. Do not use the device in combustible areas /for example near inflammable gases and aerosols/ - there is a great risk of explosion and fire!

- Do not insert or allow any objects to get into the ventilation openings (inlets and outlets), because that can cause break-down of the appliance or any other damages.

- The appliance is not suitable for animal breeding and is intended only for domestic use!

- You should never touch the appliance with wet or moist hands – there is danger for your life!

- In order to disconnect the plug from the socket outlet when necessary the socket should be accessible all the time!

- You must never pull the electric cord or the appliance itself when disconnecting from the mains

- Warning! The air outlet gets hot when the appliance is operating (more than 80°C).

- The electrical system to which the appliance is connected must be provided with automatic safety fuse. The distance between the sockets and the appliance (in turned-off state) must be at least 3mm.

• Grounding is forbidden!

- After unpacking and before use you must check if the mechanical parts and their gear are in a good state. If you have any doubts you should not use the appliance and search advice from a qualified electrician.

- If the appliance is damaged or not functioning properly you must stop it and not try to repair it yourself. For any type of repairs you must consult the Service Center for post-sale help. There you will have your damaged part replaced with an original spare one. Not obeying this instruction will compromise the appliance safety.

- If you decide to stop using an appliance of that kind it is recommended to make it unusable as you cut the electric cord, after you have disconnected it from the mains. It is also recommended all hazards, related to the appliance to be checked. That is very important if there is a chance the discarded appliance to be used for play by children.

- You should never keep the appliance unnecessarily plugged-in. Disconnect the appliance from the mains if you do not intend to use it for a long time.

- In order to avoid any overheating of the electric cord it is recommended to unravel the whole electric cord.

- Warning: Do not use this appliance with a programmer, counter or another device which can automatically turn it on because if the appliance is covered or incorrectly positioned there is a danger of fire.

• Place the electric cord in such a way that it does not hamper the movement of people and not to be stepped on! You must use only approved connection blocks, which are suitable for the appliance, i.e. there is a sign of compliance!
  • The electric cord must not be in touch with the hot parts of the appliance!
• You must never move the appliance by pulling it by its electric cord. You must never use the electric cord for moving of other objects.
• Do not reel the electric cord round the appliance! Do not use the appliance with its electric cord reeled – this is also valid if a cable drum is used!
• Do not press the cord and do not stretch it by sharp edges. Do not place the cord over hot plates or in open fire!
• Warning: In order to avoid a hazard for very young children, this appliance should be installed so that the lowest heated rail is at least 600 mm above the floor.

Note: This appliance is intended only for drying textiles washed in water.

II. PACKAGE FIG. 1

• After unpacking the appliance you should check if it is not damaged during transportation and if all the components are included! In case that you find out any damage or incomplete package you should connect with your authorized retailer!
• Do not discard the original packing box! It could be used to store the appliance during transportation in order damages to be avoided!
• The disposal of the packing material should be done in the appropriate way! Children should be prevented from playing with the polyethylene bags!

III. MOUNTING ON A WALL FIG. 2

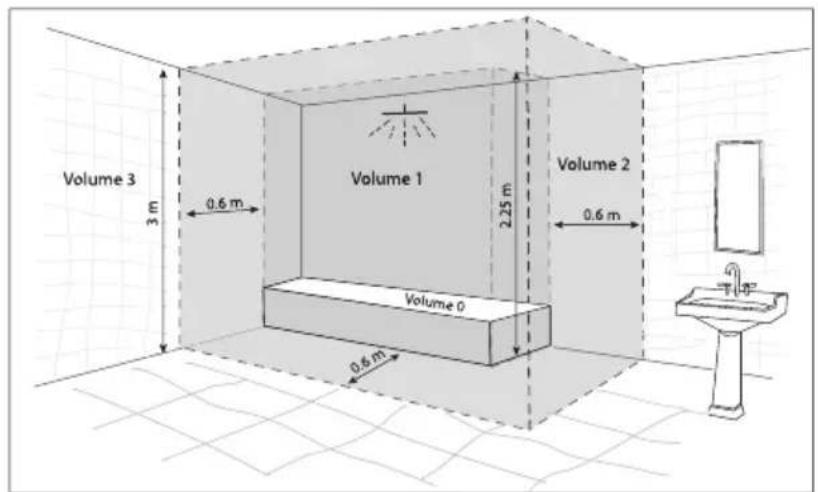

1. Please ensure that the walls of the installation location without wires, pipes, etc., to ensure that the device can be securely mounted on the wall

2. WARRNING! In order to avoid harm to the user and (or) third parties in case of a malfunction in the system, it is necessary to install the appliance in rooms with floor waterproofing and (or) drainage in the sewer. Do not under any circumstances place objects that are not waterproof under the device. If the device is leaking, you should contact the nearest service center of the manufacturer in your area.

3. The appliance is intended only for vertical wall mounting! Floor or ceiling mounting is forbidden!

4. Never position the appliance right below a socket outlet!
5. The appliance should be assembled and connected by a qualified electrician. The installation process should be isolated from the mains before electrical connection works are to be done.
6. The power cord should not be in touch with hot parts of the appliance!
7. Do not use the appliance in rooms smaller than 4 square meters.

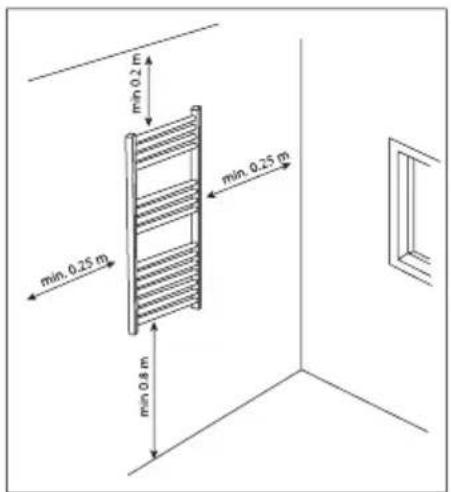

8. The appliance inlet and outlet openings must not be blocked! Distance between the appliance and the ceiling

is at least 0.2m. Distance on both sides of the appliance to the wall is at least 0.25m. Distance between the outlet and the bottom is min 0.8m (recommended).

IV. MOUNTING

1. Choose a good horizontal position, then mark 4 points as suggestive dimensions on the drilling position, then drill with a suitable drill holes at the marked locations in the wall.

Warning: Be sure to keep the safety distances as shown on the above drawing.

1. Fit the fasten tube in the hole and fit the bracket on the wall with screws
2. Hang the unit on the bracket gently, after ensuring the unit is right fixed, turn the lock in the bracket as picture show.

Warning: Before using the heater, make sure it is mounted tightly to the wall.

We thank you for choosing TESY Towel Heater TH 01. This is a product, which provides heating at 500W or 750W in cold weather in accordance with the desired temperature conditions in the room. The appliance will provide long-life service if being correctly maintained and taken care of in accordance with the manual.

V. OPERATION

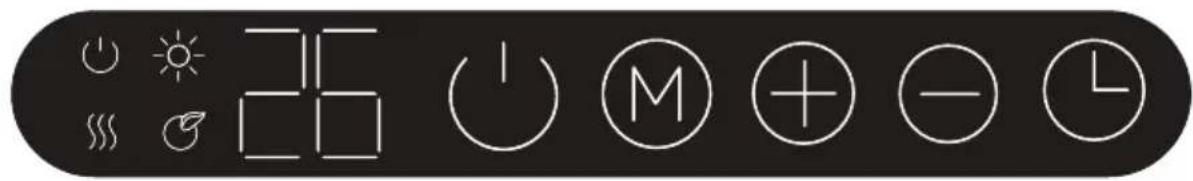

Control panel fig. 4

Indicator		Name	Button	Name
	[VWTCG]	Standby mode		ON/OFF button
	[AHOD]	Heating mode		Increase button
		Comfort mode		Decrease button
		ECO mode		Mode selection
	[T7AS]	Display		Timer settings

How to use:

• Plug the appliance to type AC 220-240V 50-60Hz socket accompanied with sound signal.
  • The indicator ⏻ lights up.
• Press the button ⏻ to turn on the heater.
  • To stop the appliance from working, press the button
• Unplug the product when it's not in use.

Clock and day of week setting:

1. Press down the button Ⓛ for 3 secs to enter clock and day of the week setting.
2. The screen display "☐". Press ⊕ and ⊖ to select the day from 1-7.

EN

1	Monday
2	Tuesday
3	Wednesday
4	Thursday
5	Friday
6	Saturday
7	Sunday

1. Press the button Ⓛ to confirm day setting. The screen displays the symbol h for the clock-hour setting.
2. Press ⊕ and ⊖ to set the current hour.
3. Press the button Ⓛ to confirm hour setting. The screen displays the symbol ⌊ for the minute setting.
4. Press ⊕ and ⊖ to set the current minute.
5. Press the button Ⓛ to confirm all settings.

Note: The clock and calendar will be reset to their default settings if the power supply is cut off.

Heating mode fig.6

1. Press the button Ⓜ to enter mode selection menu. The chosen heating mode runs in a continuous cycle as it is shown below:
2. ⚙ Comfort mode: Press ⊕ and ⊖ to set the temperature from 10-35 °C.
3. Ⓗ ECO mode: Press ⊕ and ⊖ to set the temperature from 6-31 °C.

Note: ECO mode has the same set-up temperature as the Comfort mode minus 4 °C.

1. F-r Anti-frost mode. The target temperature is 7°C. The temperature can't be adjusted.
2. Programs P1/P2/P3: Pre-set heating program. Fig. 7

Note: If the clock and day setting are not finished, the first time to enter P1/P2/P3 program setting, requested to set day and clock setting in advance.

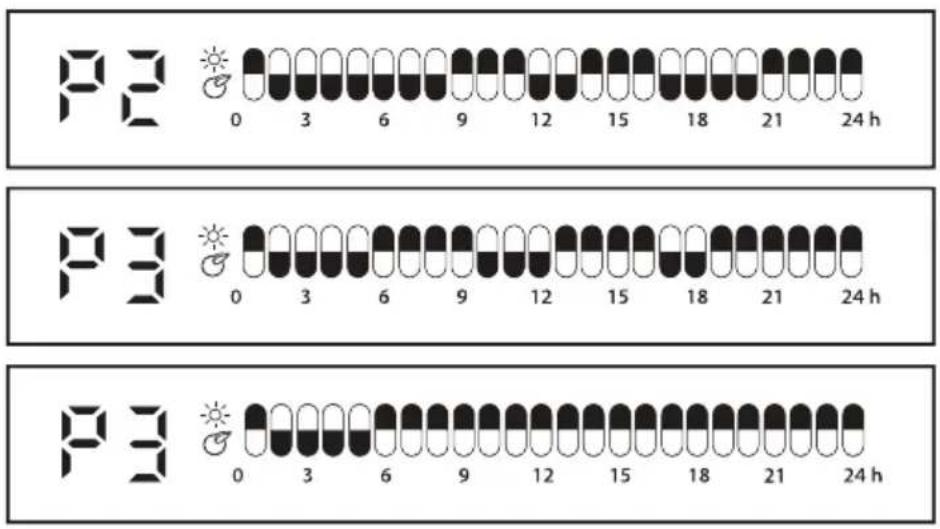

The image below (Figure 1-5) is just for illustration purposes only and not shown on the LED display.

P1: (Monday-Sunday) Unadjustable program - Figure 1

00:00am – 01:00am ✪ Comfort mode, 01:00am – 07:00am ⚙ ECO mode and 07:00am – 00:00am ✪ Comfort mode.

P2:(Monday-Friday) Unadjustable program - Figure 2

00:00am – 01:00am ⚙ comfort mode, 01:00am – 05:00am Ⓗ ECO mode 05:00am – 09:00am ⚙ comfort mode 09:00am – 19:00pm Ⓗ ECO mode 19:00pm – 00:00am ⚙ comfort mode

P2:(Saturday-Sunday) Unadjustable program -Figure 3

00:00am - 01:00am ⚙ comfort mode,

01:00am – 08:00am Ⓗ ECO mode 08:00am – 11:00am ⚙ comfort mode, 11:00am – 13:00pm Ⓗ ECO mode 13:00pm – 16:00pm ⚙ comfort mode, 16:00pm – 20:00pm Ⓗ ECO mode 20:00pm – 00:00am ⚙ comfort mode.

P3:(Monday-Friday) Adjustable program - Figure 4

00:00am - 01:00am ⚙ comfort mode, 01:00am - 05:00am Ⓗ ECO mode 05:00am - 09:00am ⚙ comfort mode, 09:00am - 12:00pm Ⓗ ECO mode 12:00pm - 16:00pm ⚙ comfort mode, 16:00pm - 18:00pm Ⓗ ECO mode 18:00pm - 00:00am ⚙ comfort mode.

P3:(Saturday-Sunday) Adjustable program - Figure 5

00:00am – 01:00am ⚙ comfort mode, 01:00am – 05:00am Ⓐ ECO mode 05:00am – 00:00am ⚙ comfort mode

P3 adjustable program setting

• When under P3 mode, press the button Ⓜ over 3 secs to enter day setting.
• The screen displays □, press ⊕ and ⊖ to set from d1 - d7 (Monday-Sunday). Press the button Ⓜ to confirm and enter hour setting
• The screen displays ☐, press ⊕ and ⊖ to set the time from (00-23). Press the button Ⓜ to choose heating mode for every hour (Comfort mode(☀) or ECO mode(💡) or anti-frost mode (without light indicator))
• Repeat the operation until you have completed the schedule of every hour and every day.

Note: After setting heating mode for hour 23, press ⊕ to come back to day setting.

Note: when the screen displays ☐, press ⊕ to finish all setting for program P3.

Timer off function

Press the button Ⓛ one time. The screen displays "☐-” and keeps flashing. Keep pressing Ⓛ. The screen will display 2h - 4h - 8h-0h in a cycle. Or press ⊕ and ⊖ to set the timer from 0-8 hours.

Open window function

To turn on open window function, press together Ⓜ and ⊕ The screen will display F□, after 3 seconds, the screen will display the set temperature. When the appliance is heating up, the detected room temperature drops rapidly over 2 degrees in 2 minutes, the open window function would be activated, while the screen displays F□ and flashes. The appliance stops heating.

Press the button Ⓜ to exit open windows function. This will return you to the working mode when the open window function was activated. The screen stops flashing F[ . You can also wait 20 minutes to automatically come back to

previous working mode.

You can press the ⏻ to enter the standby mode. The open window function will be turned off when the appliance is turned on again.

To turn off open window function, press together Ⓜ and ⊖ The screen will display FF, after 3 seconds, the screen will display the set temperature.

VI. OVERHEATING PROTECTION

The in-built overheating protection automatically turns the appliance off in case of an error! In that situation the plug must be disconnected from the mains and the control switch put in position "0". After a short period of cooling the appliance is ready for operation (in about 10-15 minutes)! If that error is repeated – consult an authorized service at your location!

VII. CLEANING

• You must first turn off the appliance and disconnect its plug from the socket. Do not use abrasive detergents!
• Clean the body with wet cloth, vacuum cleaner or a brush!
• You must never submerge the appliance under water – there is life danger!
• If the appliance should not be used for a certain period of time it must be secured from excessive dirt and dust by placing it in its original package.
• You must never place the hot appliance in its package!

Instructions for environment protection

Electric appliances out of use contain valuable materials and hence must not be disposed in domestic dumbs! We kindly ask you for cooperation and active role in preservation of natural resources by disposing the appliance to the organized buy-back locations (if there are any).

Item	Symbol	Value1	Value2	Unit	Item	Unit
Heat output					Type of heat input for electric storage local space heaters only (select one)
Nominal heat output	Pnom	0.50	0.80	kW	Manual heat charge control, with integrated thermostat	[N/A]
Minimum heat output (indicative)	Pmin	[N/A]	[N/A]	kW	Manual heat charge control, with room and/or outdoor temperature feedback	[N/A]
Maximum continuous heat output (indicative)	Pmax,C	0.493	0,741	kW	Electric heat charge control, with room and/or outdoor temperature feedback heat charge control, with integrated thermostat	[N/A]
Auxiliary electricity consumption					Fan assisted head output	[N/A]
At nominal heat output	elmax	0.000	0.000	kW	Type of heat output/room temperature control (select one)
At minimum heat output	elmin	0.000	0.000	kW	Single stage heat output and no room temperature control	[no]
In standby mode	el SB	0.00021	0.00021	kW	Two or more manual stages, no room temperature control	[no]
					With mechanic thermostat room temperature control	[no]
					With electronic room temperature control	[no]
					With electronic room temperature control plus day timer	[no]
					With electronic room temperature control plus week timer	[yes]
					Other control options (multiple selections possible)
					Room temperature control, with presence detection	[no]
					Room temperature control, with open window detection	[yes]
					With distance control option	[no]
					With adaptive start control	[no]
					With working time limitation	[no]
					With black bulb sensor	[no]
