Product Type	Ground Loop Isolator
Brand	Boss
Model	B25N
Dimensions (Approx.)	2.6 x 1.8 x 1.0 inches
Weight	0.2 lbs
Power Requirement	Passive (no external power)
Main Function	Eliminates noise, hum, and alternator whine caused by ground loops
Application	Car audio systems with head unit and amplifier on different ground potentials
Input/Output Type	RCA jacks
Material	Metal housing with composite core
Installation	In-line between head unit and amplifier
Noise Reduction	Up to 40 dB (typical)
Frequency Response	20 Hz - 20 kHz
Maintenance	Wipe with dry cloth; no user-serviceable parts
Safety	No specific safety warnings; use with standard car audio voltages
Spare Parts	Not available; unit is sealed
Repairability	Non-repairable; replace if defective
Warranty	1 year limited

Frequently Asked Questions - B25N BOSS

What is a ground loop isolator?

A ground loop isolator breaks the electrical connection between audio components' grounds, eliminating noise caused by potential differences. The Boss B25N is designed to eliminate hum and alternator whine in car audio systems.

How do I install the B25N?

Simply connect the RCA cables from your head unit to the input jacks of the B25N, then from the output jacks to your amplifier. It is a passive device and requires no power connection. Ensure all connections are secure.

Will the B25N affect sound quality?

The B25N is designed to have minimal impact on sound quality, with a frequency response of 20 Hz - 20 kHz. It only removes noise without altering the audio signal.

Can I use the B25N with any amplifier?

Yes, the B25N is universal and works with most car amplifiers that use RCA inputs. It handles typical head unit output levels without distortion.

What causes alternator whine in car audio?

Alternator whine is usually caused by ground loops where the head unit and amplifier have different ground potentials. The B25N isolates the grounds to eliminate this noise.

Does the B25N require power?

No, the B25N is a passive device that does not need external power. It uses transformers to isolate the audio signal.

How can I tell if a ground loop isolator will fix my noise?

If the noise changes with engine RPM or when certain accessories turn on, it is likely alternator whine or ground loop hum. The B25N is effective for such scenarios.

Can I stack multiple B25N units?

It is not recommended to stack multiple isolators. One unit should suffice for a typical two-component system. If noise persists, check cable quality and grounding.

What is the warranty on the Boss B25N?

The Boss B25N comes with a 1-year limited warranty against defects. Contact Boss support for warranty claims.

How do I clean the B25N?

Use a dry, soft cloth to wipe the exterior. Do not use liquid cleaners or open the unit, as it is sealed and not serviceable.

USER MANUAL B25N BOSS

ELIMINATES NOISE, HUM AND ALTERNATOR WHINE

B25N GROUND LOOP ISOLATOR

helps eliminate noise caused by ground

loops

which occur in systems with two or more audio components connected to different

ground locations.

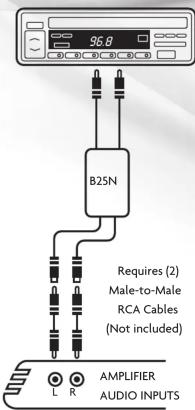

AUDIO SYSTEMS

HEAD UNIT

AMPLIFIER

AUDIO SYSTEMS

GROUND LOOP ISOLATOR MODEL NO. B25N
