Product Type	Steam Cleaner / Water Extraction Unit
Model	Flood Hog 7000LX-230
Power Supply	230V AC, 50/60 Hz
Heating Element	High-efficiency heating coil for steam generation
Water Tank Capacity	15 gallons (approx. 57 liters)
Recovery Tank Capacity	10 gallons (approx. 38 liters)
Vacuum Motor	Two-stage vacuum motor, 120 CFM
Hose Length	15 feet (approx. 4.6 m) vacuum hose
Weight	85 lbs (approx. 38.6 kg)
Dimensions (L x W x H)	36 x 18 x 30 inches (approx. 91 x 46 x 76 cm)
Solution Flow	Adjustable flow control for precise cleaning
Heat Exchanger	Continuous heat recovery system
Safety Features	Automatic shut-off on overheat, low water float, circuit breaker
Maintenance	Regular cleanout of recovery tank and vacuum screens; descale heating element periodically
Spare Parts Availability	Replacement hoses, wand tips, vacuum motors, and heating elements widely available
Repairability	Modular design with accessible components for service
Accessories Included	Wand, 6” and 12” cleaning tools, spray nozzle, water hose
Noise Level	Approximately 70 dB
Certifications	CE, UL listed

Frequently Asked Questions - Flood Hog 7000LX-230 Mytee

How do I start using the Mytee Flood Hog 7000LX-230 for the first time?

First, ensure the unit is on a stable surface. Fill the water tank with clean water and add a recommended cleaning solution if desired. Connect the power cord to a 230V outlet, plug in the vacuum hose and wand. Turn on the machine using the main power switch. Allow the water to heat up for about 10 minutes until the heater indicator light turns off. Then you can begin steam cleaning.

What type of cleaning solution should I use?

Use a low-foaming, pH-neutral cleaning solution specifically designed for steam cleaners or carpet extractors. Avoid using household detergents or bleach as they can damage the machine and void the warranty. Mytee recommends their own brand of cleaning agents for best results.

Why is the vacuum not picking up water?

Check if the recovery tank is full or if the float valve is stuck. Also inspect the vacuum hose for clogs. Ensure the vacuum motor is running and the seals around the tank are properly seated. If the issue persists, the vacuum motor may need replacement.

How often should I clean the recovery tank?

After each use, empty and rinse the recovery tank with clean water. Periodically, clean the tank with a mild detergent to remove residue and prevent odors. The tank should be dried thoroughly before storage.

What does the 'Low Water' indicator mean?

The 'Low Water' indicator lights up when the water level in the solution tank is low. You need to refill the tank with water and cleaning solution to continue operation. Do not run the heater dry as it may damage the heating element.

How do I descale the heating element?

Mix a descaling solution (vinegar and water or a commercial descaling product) and fill the solution tank. Run the machine in steam mode for a few minutes until the solution flows through the system. Then flush with clean water. Perform this every 3-6 months depending on water hardness.

Can I use an extension cord?

It is recommended to plug the unit directly into a wall outlet. If an extension cord is necessary, use a heavy-duty cord rated for 15 amps and as short as possible to avoid voltage drop. Ensure the cord is fully unwound to prevent overheating.

What safety precautions should I take?

Always wear protective gloves and eyewear when handling chemicals. Do not leave the machine unattended when plugged in. Keep the machine away from water sources to prevent electrical shock. Unplug the unit before cleaning or servicing.

Where can I find replacement parts?

Replacement parts can be sourced from Mytee authorized dealers or through online retailers. Common spare parts include vacuum motors, heating elements, hoses, and wand tips. Refer to the parts diagram in the manual for part numbers.

How do I troubleshoot low steam output?

Low steam output can be due to a clogged nozzle, insufficient water in the tank, or a malfunctioning heating element. Check the nozzle for mineral buildup and clean it. Ensure the water tank is full and that the temperature of the water is adequate. If the issue continues, the heater may need servicing.

USER MANUAL Flood Hog 7000LX-230 Mytee

Line drawing of a mechanical vacuum cleaner with wheels and control panel (no text or symbols)

Dear Customer:

Congratulations on the purchase of your new Flood Hog™ Flood Extractor. As technology continues to develop you can work confidently knowing that both Mytee Products and its employees are equally dedicated to developing with the industry and its advances.

Like any other piece of machinery or technology, the 7000LX also requires proper maintenance and care to keep the product working over extended use. Neglecting your machine, abusing it or not operating it properly can void its warranty and prevent the machine from performing to the quality and standard you'd expect out of the Mytee Products line.

If you have any warranty concerns or questions, please review this manual thoroughly or do not hesitate to contact your distributor. If there are questions regarding maintenance, replacement, or ordering parts please contact an authorized Mytee Products Service Center. To see an updated list please visit our website at http://www.mytee.com/support/service-centers.

Before using your Mytee product, please read this manual thoroughly.

Sincerely,

Mytee Customer Care Dept.

Important Safety Information ....4

1 At a Glance 6.

1.1 - Technical Specifications 6....
1.2 - Included with the Flood Hog™ 6....
1.3 - Flood Hog™ Front View 7....
1.4 - Flood Hog™ Rear View 8....
1.5 - Switch Plate 9....

2 Machine Operation 10....

2.1 - Powering the Flood Hog™.10....
2.2 - Connecting Vacuum Hose 10....
2.3 - Connecting Pump-Out Hose 10....
2.4 - Switching On the Flood Hog™ 10....
2.5 - Flood Extraction ...... 10
2.6 - Emptying the Recovery Tank 10

3 Machine Maintenance ....11

3.1 - Opening the Flood Hog ^TM for Internal Maintenance ..... 11
3.2 - Regular Maintenance ....11

4 Accessories For Your Flood Hog™ 12

5 Troubleshooting 13

Important Safety Information

Grounding Instructions

This machine must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electrical shock. This machine is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be plugged into an appropriate outlet that is properly installed in accordance with all local code and ordinances. Do not remove ground pin; if missing, replace plug before use.

DANGER

Improper installation of the equipment-grounding conductor can result in a risk of electric shock. Be sure to check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. If the plug will not fit in the outlet do not modify the plug on the machine's cord, instead have a proper outlet installed by a qualified technician.

This machine is for use on a nominal 120-volt circuit and with a grounding plug similar to the one in Figure 1 below. If a proper outlet is not available, follow the illustrations of Figure 2 & 3 to install a temporary-grounding plug. This temporary work-around should be used only until a proper outlet (Figure 1) can be installed by a qualified electrician. When and if this type of adapter is employed, screw the adapter's extended tab into place with a metal screw. However, grounding adapters are not approved for use in Canada.

Again, be sure to check the grounding pin for damages and replace if necessary.

The Green, or Green-Yellow, wire in the cord is the grounding wire. When replacing a plug, this wire must be attached to only the grounding pin.

DO NOT use extension cords.

Please Note for America use only.

Figure 1
Figure 2 Figure 3

Parts and Service

Please contact Mytee service personnel or a Mytee authorized Service Center using Mytee original replacement parts and accessories if repairs need to be performed. When and if calling Mytee for support, please have your Model and Serial Number available for faster assistance.

Name Plate

The Model and Serial Number are located on the lower half of the back of the machine near the power plug and will be required for ordering replacement parts. You can use the space provided in this manual to note down both for future referencing.

Unpacking the Machine

When your new machine is delivered, please carefully inspect both the shipping carton and the machine for damages. If damage is evident, save both the shipping carton and machine so that the delivering carrier can inspect it. Contact the carrier immediately to file a freight claim if there has been any damage.

Caution and Warnings

Symbols

Mytee uses the symbols below to signal potentially dangerous conditions. Always read this information carefully and take the necessary steps to protect personnel and property.

DANGER

Is used to warn of immediate hazards that will cause severe personal injury or death.

WARNING

Is used to call attention to a situation that could cause severe personal injury.

Is used to call attention to a situation that could cause minor personal injury or damage to the machine or other property. When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using this machine. This product is intended for commercial use only.

To reduce the risk of fire, electrical shock, or injury:

1. Read all instructions before using equipment.

2. Use only as described in this manual. Use only manufacturer's recommended attachments.

Important Safety Information

1. Always unplug power cord from electrical outlet before attempting any adjustments or repairs.
2. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
3. Do not pull or carry by cord. Do not close a door on cord or pull cord around sharp edges or corners.
4. Do not run appliance over cord. Keep cord away from heated surfaces.
5. Do not use with damaged cord or plug. If cord is damaged, repair immediately.
6. Do not use outdoors or on wet surfaces and/or standing water.
7. Always unplug or disconnect the appliance from power supply when not in use.
8. Do not allow to be used as a toy. Close attention is necessary when used by or near children.
9. Do not use in areas where flammable or combustible material may be present.
10. Do not leave the unit exposed to harsh weather elements. Temperatures below freezing may damage components and void warranty.
11. Use only the appropriate handles to move and lift unit. Do not use any other parts of this machine for this purpose.
12. Keep hair, loose clothing, fingers, and all parts of the body away from all openings and moving parts.
13. Use extra care when using on stairs.
14. To reduce the risk of fire or electric shock, do not use this machine with a solid-state speed control device.
15. The voltage and frequency indicated on the name plate must correspond to the wall receptacle supply voltage.
16. When cleaning and servicing the machine, local or national regulations may apply to the safe disposal of liquids which may contain: chemicals, grease, oil, acid, alkalines, or other dangerous liquids.
17. Do not leave operating unattended.

1 - At a Glance

1.1 - Technical Specifications

Recovery Tank	12 Gallons
Vacuum	Dual Mytee® Hybrid Ametek vacuum motors
CFM	225-250
Water Lift	182"
Pump-Out GPM	66
Power Consumption	Cord 1: 18 amps @ 115V 60HzCord 2: 13 amps @ 115V 60Hz
Machine Weight	124 lbs.
Machine Dimensions	29" x 17.5" x 35"
Power Cord	Dual 50' 12/3

1.2 - Included with the Flood Hog™

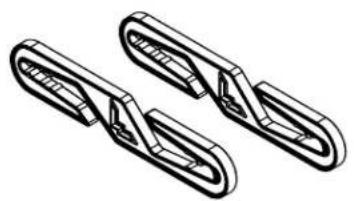

Two identical mechanical clamping clips with no text or symbols

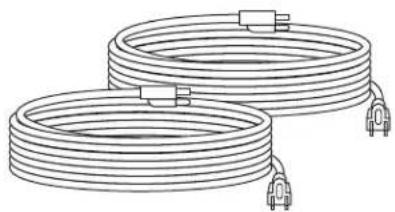

Illustration of two coiled cable connectors with connectors and terminal blocks (no text or symbols)

Technical line drawing of a coiled industrial pipe fitting (no text or symbols)

2x P568A Cord Locks, S-Type 2x E530 Extension Cords, 50' 12/3 A294 Pump-Out Hose, 25'

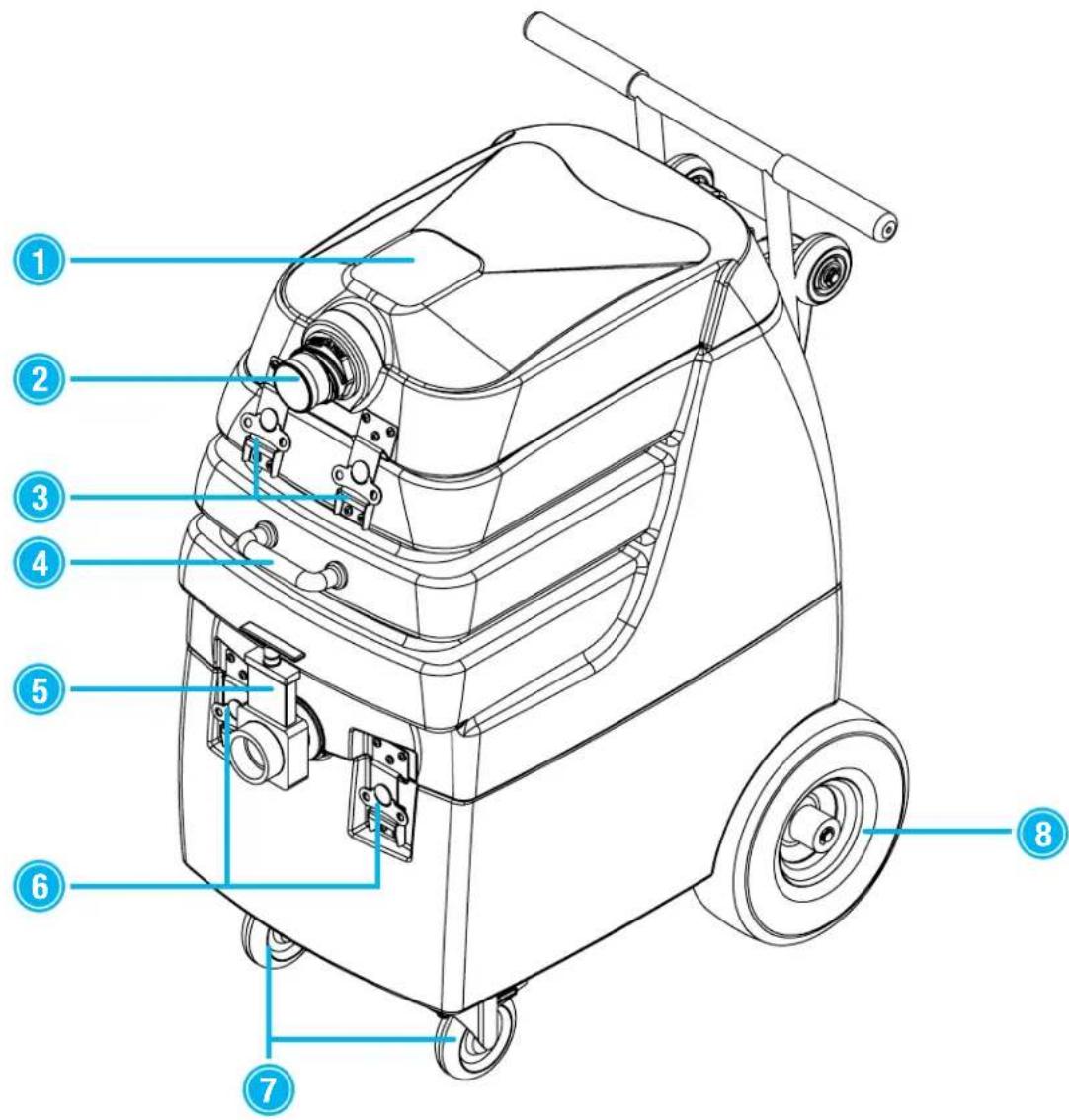

1.3 - Flood Hog™ Front View

1. Recovery Tank Lid
2. 2" Cuff-Lynx™ Male Starter
3. Recovery Tank Lid Latches

4. Front Handle

5. Recovery Tank Drain

6. Maintenance Access Latches
7. Front 4" Locking Casters
8. 10" Foam-Filled Wheels

1 - At a Glance

1.4 - Flood Hog™ Rear View

1. Rear Handle
2. Recovery Tank Lid Latch

3. Rear Upper Wheels

4. Pump-Out Hose Connection

5. Dual Power Cord Pigtails
6. Switch Plate

1.5 - Switch Plate

1. Vacuum Switch 1

2. Vacuum Switch 2

3. Pump-Out Switch

4. Dual Circuit Indicator Light

2 - Machine Operation

2.1 - Powering the Flood Hog™

Each power cord on the Flood Hog™ requires a grounded 20 amp outlet. The dual circuit indicator light and tone will activate when this is achieved. If only one 20 amp power outlet is available, just the primary cord can be used, which powers one vacuum and the pump-out.

a location where dirty water can drain.

2.4 - Switching On the Flood Hog™

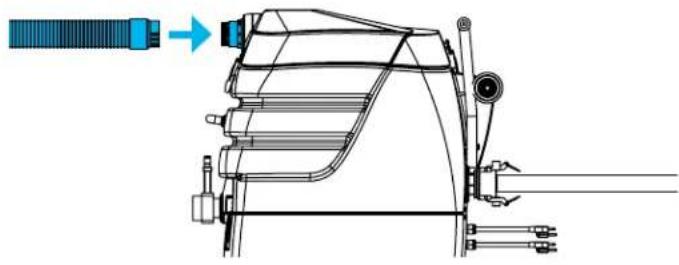

2.2 - Connecting Vacuum Hose

Technical line drawing of a mechanical assembly with no visible text or symbols

Vacuum hose can be connected to the Cuff-Lynx™ connection on the front of the lid on top of the machine.

Switch on the vacuums using the two vacuum switches. Switch on the pump-out using the pump-out switch.

2.5 - Flood Extraction

2.3 - Connecting Pump-Out Hose

Technical diagram of a vehicle suspension system showing valve positions and airflow direction (no text or labels)

Attach the pump-out hose to the Auto Pump-out fitting. Secure the hose to the fitting using the cam lock. Push the hose cuff onto the fitting, making sure the silver ears and rings are extended forward. Pull the ears down using the rings until connection is tight. Place the end of the hose in

In shallow or light flooding situations, a flood wand can be used (included in the A138 Accessory Kit) for flood extraction. For heavier flooding situations, a stand-on flood extraction tool can be used or just a vacuum hose (included in the A138 Accessory Kit).

2.6 - Emptying the Recovery Tank

The recovery tank can be emptied using the pump-out feature or via the tank drain valve on the front of the machine.

Illustration of a water pump spraying into a container with blue liquid (no text or symbols)

3 - Machine Maintenance

In order to keep the Flood Hog™ running smoothly and reduce the risk of damage to the machine and subsequent downtime, Mytee recommends following the maintenance schedule below:

Maintenance Item Daily Weekly
Clean and inspect tanks.	X
Clean and inspect hoses.	X

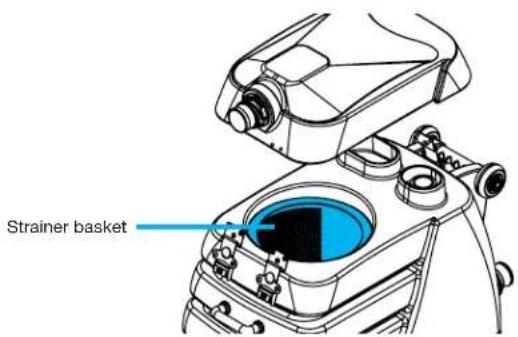

Check and clean strainer basket.	X
Check power cable.	X
Clean machine with all-purpose cleaner and cloth.	X
Inspect vacuum hoses for holes and loose cuffs.		X
Lubricate wheels with water resistant oil.		X
Inspect machine for water leaks and loose hardware.		X

3.1 - Opening the Flood Hog™ for Internal Maintenance

Line drawing of a mechanical device with wheels and control panel (no text or symbols)

The Flood Hog™ can be opened for maintenance via the two lower latches on the front of the machine.

3.2 - Regular Maintenance

To keep the Flood Hog™ running smoothly for a long time, regular maintenance is necessary. Regularly inspect and clean the strainer basket, recovery tank, and all hoses. Also keep all wheels lubricated and check for leaks or loose hardware.

4 - Available Accessories

The A138 Flood Hog™ Accessory Kit Contains:

Line drawing of a straight pipe fitting with flanged ends and a central gap (no text or symbols)

H908 - S-Bend Swivel Wand Tube

Technical line drawing of a mechanical component with curved and straight lines (no text or symbols)

P570 - Scalloped Head

Technical line drawing of a mechanical assembly with a cylindrical component mounted on a rectangular base (no text or symbols)

G200 - Squeegee Head

Isometric illustration of a coiled pipe with threaded ends and flanges (no text or symbols)

H294 - 25' x 1.5" Extraction Hose

5.1 - Vacuum Troubleshooting

Vacuum is not turning on.
Possible Cause Solution
Vacuum may not be getting power.	Check the electrical connections and the switch.Look for loose or damaged wires.To check the switch:Unbolt the switch plate.Take a picture of the layout of the wires or tag the wires for future reference. Switch the wires from the vacuum switch with the wires from the pump-out switch. Turn on the pump-out switch.If the vacuum turns on,then you know the vacuum switch is bad.

Vacuum is not producing suction.
Possible Causes Solutions	the recovery tank.
Recovery tank is full. Empty	Open the machine and find the hose running from the recovery tank to the vacuum motor. Check if it is disconnected. If so, reconnect it. If it has a leak, replace the hose (Part # PH627 if 1.5", PH628 if 2").
If the vacuum exhausts but there is no suction, then the hose from the recovery tank to the vacuum motor is disconnected.
Vacuum hose blockage (if there is no suction or exhaust).	Check for blockage in the hose, starting from the cleaning tool to the machine.
Clogged filter in vacuum tank.	Clean out filter regularly.
Hose cuffs are loose and causing air leakage.	Tighten all hose cuffs regularly as may loosen over time. Use a glue to prevet cuffs from coming loose (optional).
Lid on tank is loose and is causing air leakage.	Make sure the lid is tight.

Vacuum blows water out the exhaust.
Possible Causes Solutions
Foam building up in the recovery tank.	Use a defoamer chemical.

Boot behind vacuum port is turned the wrong way.

Make sure this plastic boot is turned toward the right wall of the machine and not toward the ball float.

There is a loud grinding noise coming from the vacuum.
Possible Cause Solution
Debris has been sucked into the vacuum motor chamber. Usually results from dry vacuuming.	Replace the vacuum motor. To avoid repeat problem, DO NOT dry vacuum with your extractor.

5.2 - Pump-Out Troubleshooting

No water flow from pump-out.
Possible Causes Solutions
Filter is clogged. Clean the filter.
Kinked hose inside the machine.	Open the machine and check hoses. If any hoses are kinked, undo the kink.
