Product Type	Fixed Dome Security Camera
Model	V3320BX-DN
Brand	Verint
Image Sensor	1/3-inch Progressive Scan CMOS
Resolution	1920 x 1080 (Full HD)
Minimum Illumination	0.01 lux (Color), 0 lux with IR
IR Range	Up to 30 meters
Day/Night Function	Yes, with mechanical IR cut filter
Lens Type	Fixed 2.8 mm or 3.6 mm (depending on variant)
Field of View	Approximately 90° (horizontal)
Housing Material	Aluminum with vandal-resistant dome
Ingress Protection	IP66 (weatherproof)
Dimensions (W x H)	Φ 140 mm x 100 mm
Weight	Approximately 800 g
Power Supply	12 V DC or PoE (802.3af)
Power Consumption	Max 5 W
Video Compression	H.264, H.265, MJPEG
Interface	Ethernet (RJ-45), BNC (analog optional)
Storage	MicroSD slot (up to 128 GB)
Operating Temperature	-20°C to 50°C
Certifications	CE, FCC
Cleaning	Use a soft, dry cloth. Avoid abrasive cleaners.
Repairability	Contact Verint authorized service center for spare parts.

Frequently Asked Questions - V3320BX-DN Verint

What is the default IP address of the Verint V3320BX-DN camera?

The default IP address is typically 192.168.1.99. You can find it using the Verint IP Utility software.

How do I reset the camera to factory settings?

Press and hold the reset button (located near the Ethernet port) for 10 seconds using a paperclip. The camera will reboot with default settings.

Is this camera compatible with third-party NVRs?

Yes, it supports ONVIF Profile S, allowing integration with many ONVIF-compliant NVRs and VMS systems.

What is the maximum PoE cable length?

The maximum cable length for reliable PoE is 100 meters (328 feet). Use Cat5e or higher cable.

Does the camera support audio?

Yes, it has a built-in microphone and a line-out for external speaker. Audio compression is G.711 or AAC.

How do I install the camera outdoors?

The camera is rated IP66 for outdoor use. Ensure all connections are properly sealed using weatherproof connectors.

What is the warranty period?

Verint typically offers a 3-year warranty. Check with your dealer for exact terms.

Can the camera be used with analog systems?

This model is primarily IP-based. It does have an optional BNC output for analog connection, but it is not HD-TVI/CVI compatible.

How do I access the camera remotely?

Enable UPnP or port forwarding on your router. Use the Verint mobile app (VMS for Mobile) or web browser via the public IP.

What microSD card is recommended?

Use a Class 10 or higher microSD card up to 128 GB. Format it to FAT32 before use.

USER MANUAL V3320BX-DN Verint

Verint Camera Mounting Selection Reference Guide

January 26, 2015

About this Guide

The Verint Camera Mounting Selection Guide is designed to be a quick and comprehensive guide for users seeking detailed mounting information on any Verint IP Camera.

In some instances, such as dome cameras, the standard package already includes in the required accessories for standard mounting. For example, if you install a V3320FD-DN Indoor Dome Camera to a drywall or drop-ceiling surface, no other mounting adapter is required. However, if you wanted a 90° Wall Mount or a Pendant Mount for the V3320FD-DN, you would reference this guide to see which additional mounting accessory(s) you would need to complete the installation.

This guide offers information to assist you in choosing the correct mounting configuration and ordering information for Verint IP Cameras:

• Pictures of each camera in each available mounting configuration
• Ordering Chart that presents exactly which camera and mount combination will achieve the desired result

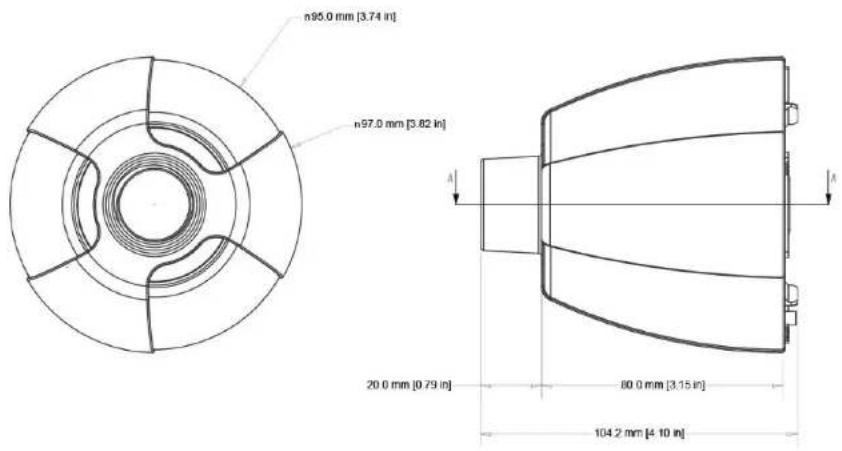

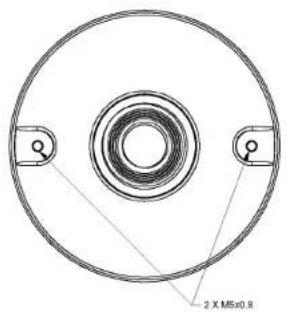

• Mechanical drawings of every Verint IP camera and mounting adapter

For standard mounting instructions, refer to the following:

• V-Series Mounting and Installation Guide
• V3320 Series User Guide
• V4320 Series User Guide
S5120/5250 User Guide
• V5620 PTZ User Guide

S5120BX-DN and S5250BX-DN Box Cameras

The S5120BX-DN and S5250BX-DN are box cameras, which must be ordered separately, on the front and the connections on the back. Like many other traditional cameras, the S5120BX-DN and S5250BX-DN lines are equipped with top and bottom 1/4" x 20 threaded mounts, which are compatible with 99.9% of mounts and enclosures designed for box cameras. Likewise, these cameras have CS lens mounts and standard auto-iris connector ports — making them compatible with most lenses available in the security market today. (Note that the S5250BX-DN-L1 does include a megapixel rated wide varifocal lens. It is the only Verint box camera that ships with a lens.)

For basic indoor mounting, these box cameras can be used with hundreds of different arms and mounts. Verint does not provide its own line of mounts for these box cameras due to the wide selection available on the market today.

For outdoor mounting, the S5120BX-DN and S5250BX-DN can be used with a variety of different enclosures. Verint offers a single enclosure (the VPOE-2) with mounting brackets and sunshield that is environmentally-rated and works with the S5120BX-DN and S5250BX-DN. If you choose a third-party enclosure, please be sure that the housing's internal dimensions can accommodate the camera. All Verint box cameras have the following dimensions: 152.9mm (6.02") L x 55.1mm (2.17") H x 71.6mm (2.82") W.

Note

This does not include the length of any lens you install, nor extra space needed for for the connections on the rear of the camera and the auto-iris connector on the side of the camera.

Mounting Type What to

Outdoor Wall VPOE-2

Exterior view of a white and black VBRIF camera with lens (no visible text or symbols)

S5120BX-DN and S5250BX-DN

White surveillance camera with a curved cover and mounted sensor base (no visible text or symbols)

VPOE-2

S5120FD-DN and S5250FD-DN Indoor Dome Cameras

The S5120FD-DN is a 1080p 2MP Indoor Dome camera featuring H.264 compression, and a motorized lens for remote zoom and focus.

The S5250FD-DN is similar, but offers 5 MP resolution. Both the S5120FD-DN and S5250FD-DN are surface mount, and offer recess mount, pendant mount and wall mount capabilities with optional mounting kits.

Mounting Type What to
Wall WM-S51FD

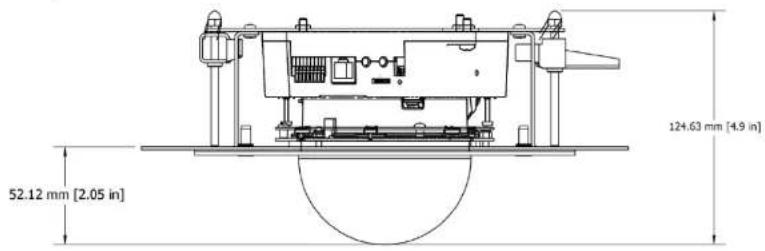

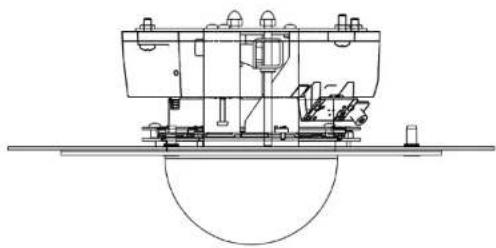

In-ceiling IC-S51-S52
Pendant PM-S51FD	1

Close-up of a white surveillance camera with a spherical lens and control buttons (no visible text or symbols)

S5120FD-DN and S5250FD-DN

Close-up of a white surveillance camera mounted on a wall, showing its lens and mounting holes (no text or symbols visible)

Wall Mount In-ce

Close-up of a dark spherical object mounted on a circular metallic frame (no text or symbols visible)

ng Mount Pendant Mount

Close-up of a white mechanical component with a metallic rod and circular base (no visible text or symbols)

Close-up of a metallic cylindrical component with a small protrusion and a small square hole, no visible text or symbols.

S5120FDW-DN and S5250FDW-DN Outdoor Dome Cameras

The S5120FDW-DN and S5250FDW-DN IP cameras offer multi-megapixel performance in a versatile, vandal resistant and weatherized dome housing. A variety of mounting options make these dome cameras easy to install in nearly any environment.

Mounting Type What to Order
Wall	1. WM-S50FDW2. PM-S51-S52-FDW
Pendant Mount Option	11 PM-S51-S52-FDW2. PP-S50FDW3. PB-S50FDW
Pendant Mount Option	PM-S51-S52-FDW ^1
Corner	1. CM-S50FDW2. PM-S51-S52-FDW3. WM-S50FDW

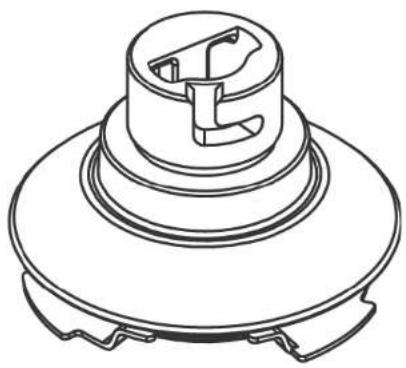

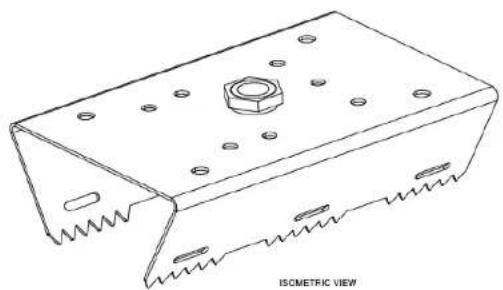

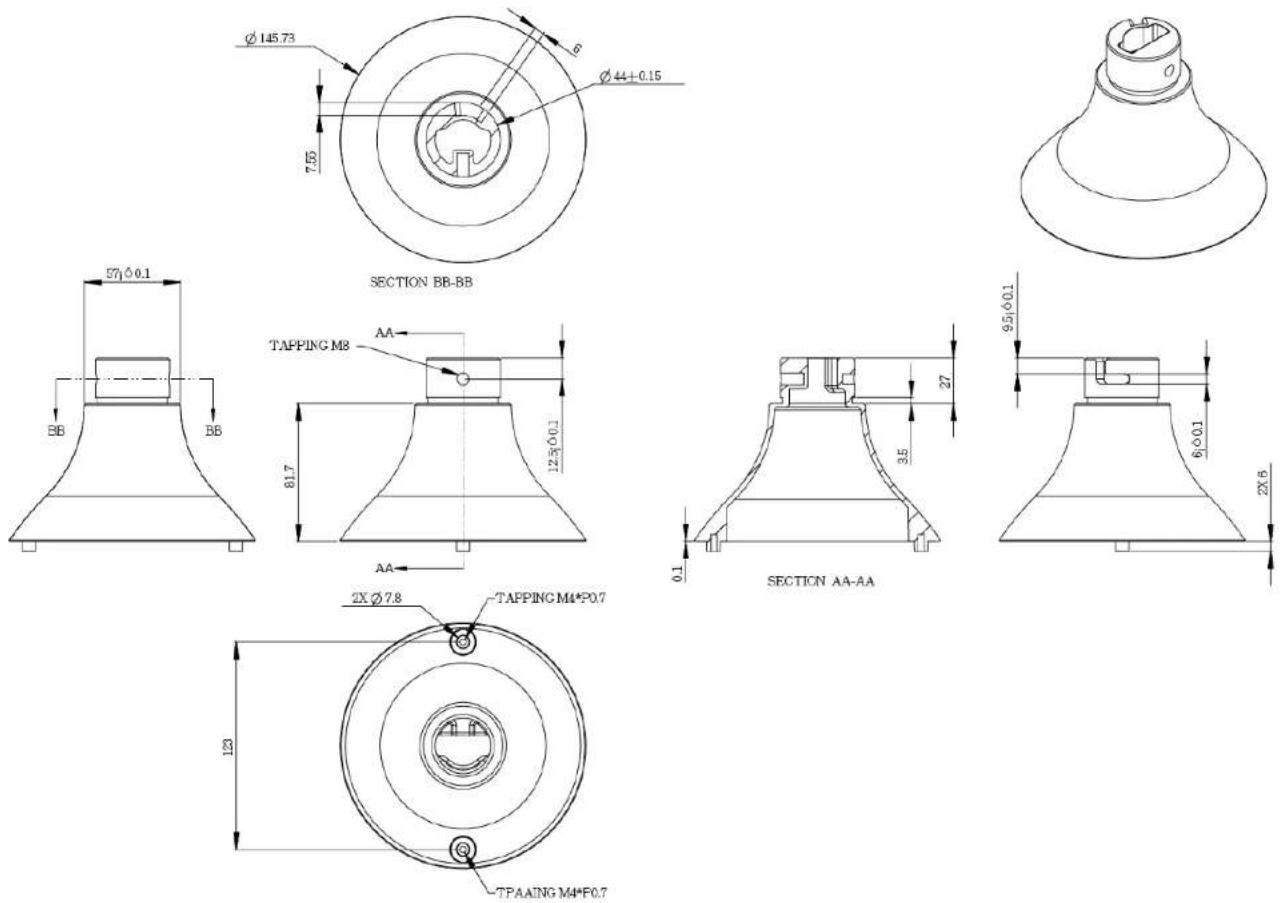

Pole	1. PL-S50FDW2. PM-S51-S52-FDW3. WM-S50FDW

Close-up of a white spherical camera lens mounted on a ceiling, labeled S5120FDW-DN and S5250FDW-DN (no other text or symbols visible)

Close-up of a white wall-mounted security camera with a mesh head and sensor array (no visible text or symbols)

Close-up of a security camera mount with adjustable arm and head (no text or symbols visible)

Pendant mount component with metallic rod and circular base (no text or symbols visible)

Close-up of a security camera mounted on a wall-mounted bracket, labeled 'Corner Pole' below (no other text or symbols visible)

Close-up of a white surveillance camera mounted on a black cylindrical pole (no visible text or symbols)

^1 1.5" BST Female pipe not supplied by Verint.

V3320BX-DN and V4320BX-DN Box Cameras

The V3320BX-DN offers 1080p resolution at a great price. The V4320BX-DN also offers 1080p resolution, but with the latest WDR technology that delivers stunning images in both dynamic and low light scenes. Both cameras are equipped with top and bottom 1/4" x 20 threaded mounts.

For basic indoor mounting, these cameras can be used with many different arms and mounts available on the market. For outdoor mounting, Verint offers the VPOE-2 enclosure with mounting brackets and sunshield, or you can use any compatible third party housing that will accommodate the box camera dimensions - 139.5 mm (5.49") L x 82 mm (3.2") W x 52 mm (2.0") H.

Note

This does not include the length of any lens you install, nor extra space needed for for the connections on the rear of the camera and the auto-iris connector on the side of the camera.

Mounting Type What to

Outdoor Wall VPOE-2

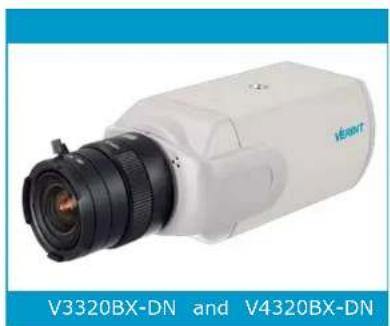

White V3320BX-DN optical device with black lens and blue logo (no text or symbols on device body)

White surveillance camera with a curved cover and mounted sensor base (no visible text or symbols)

V3320FD-DN and V4320FD-DN Indoor Dome Cameras

The V3320FD-DN offers 1080p resolution and IR LED illumination in a compact indoor dome camera at a great price. The V4320FD-DN offers these same features, but also includes cutting-edge WDR performance as well as a motorized lens for real-time remote-zoom and auto-focus. Both models are surface mountable by default, but are compatible with various mounting kits in order to pendant, wall or recess mount the cameras. Verint also offers a "Dummy" version of the V3320FD-DN which is the DMY-V3320FD and which does not have any internal electronics. The DMY-V3320FD is fully compatible with all of the mounts listed.

Mounting Type What to

Indoor Wall WM-V33-43FD

In-ceiling IC-V33-43FD

Pendant PM-V33-43FD

Close-up of a black spherical security camera with 'VIMINT' branding on the dome (no additional text or symbols visible)

V3320FD-DN V43

Close-up of a white security camera with 'vénner' branding on the lens (no additional text or symbols visible)

0FD-DN Wall Mount

White surveillance camera with a spherical lens (no visible text or symbols)

n-ceiling Mount Penc

Exterior view of a modern stainless steel cooking pot with black handles (no text or symbols visible)

nt Mount

Close-up of a white surveillance camera with a spherical lens (no visible text or symbols)

m = 311

V3320FDW-DN and V4320FDW-DN Vandal Dome Cameras

The V3320FDW-DN offers 1080p resolution and IR LED illumination in a weatherized, vandal resistant enclosure that provides a great balance between robustness and value. The V4320FDW-DN offers similar features, but also includes cutting-edge WDR performance as well as a motorized lens for real-time remote-zoom and auto-focus. Both models are surface mountable by default, but are compatible with available pendant and wall mounts.

Mounting Type What to Order
Wall	1. PM2-V33-43FDW2. WM-V33-43FDW (long version) or WM-S-V33-43FDW (short version)
In-ceiling IC-V33-43FDW
Pendant PM-V33-43FDW 1
Corner	1. CM-V5620PTZ2. WM-V33-43FDW (long version) or WM-S-V33-43FDW (short version)
Pole	1. PL-V5620PTZ2. WM-V33-43FDW (long version) or WM-S-V33-43FDW (short version)

Close-up of a white and black security camera with 'věnory' branding on the lens (no additional text or symbols visible)

V3320FDW-DN V4

Close-up of a white security camera with 'viremy' branding on the lens (no additional text or symbols visible)

20FDW-DN Wall Mou

White surveillance camera with mounted arm and spherical base (no visible text or symbols)

t - long In-ceiling M

Exterior view of a modern office building (no signage)

unt Pendant Mount

Close-up of a white spherical security camera with a dark dome lens (no visible text or symbols)

m = 311

V3320RD Cameras

The Verint V3320RD is a 1080p 2MP Recess Mount Indoor Dome with an optional Pendant Mount option. The V3320RD comes with three fixed focal lens options—2.5mm, 3.4mm or 6.0mm.

Mounting Type What to Order
Pendant PM-V3	320RD

Angle, FoV and Pixel Density Chart

Camera Model Lens Angle			Camera to Object Distance (meters (feet))
			3m (10ft)Horizontal FoV	4.5m (15ft)	6.1m (20ft)	12.2m (40ft)	3m (10ft)Horizontal	4.5m (15ft)Pixel	6.1m (20ft)Density - Pixels/meters	12.2m (feet)
V3320RD-L2	2.5mm	98.1°	6.6 m(21.6ft)	9.3m(30.6ft)	12.2m(39.9ft)	23.8m(78ft)	292(89)	206(63)	158(48)	81(25)
V3320RD-L3	3.4mm	80.0°	2.5m(17.1ft)	7.4m(24.2ft)	9.6m(31.5ft)	18.8m(61.6ft)	368(112)	260(79)	200(61)	102(31)
V3320RD-L6	6.0mm	51.3°	3.2m(10.4ft)	4.5m(14.7ft)	5.8m(19.1ft)	11.4m(37.4ft)	606(185)	429(131)	330(101)	168(51)

Close-up of a white surveillance camera with a blue lens, labeled V3320RD (no other text or symbols visible)

Close-up of a white security camera with a black lens, labeled 'Pendant' below (no other text or symbols visible)

V5620PTZ PTZ Cameras

The V5620 is a true 1080p High Definition IP PTZ cameras with 18× or 30× zoom in an indoor and outdoor options.

The V5620PTZ indoor version is surface mount, and has available pendant, wall, corner and recess mounts.

The V5620PTZ outdoor version is pendant mount, and has available wall and corner mounts.

White surveillance camera with a dome and lens, labeled 'V5620PTZ Outdoor' below (no other text or symbols visible)

To assist you in understanding the part number nomenclature of the V5620PTZ, please reference the following chart:

V5620 PTZ Nomenclature

Example Part Number: V5620PTZ-18DW-C

V56 = V56 Series

20 = 1080p 2 megapixel resolution

PTZ = Pan/Tilt/Zoom

18 = 18× optical zoom or 30 = 30× optical zoom

DW = Outdoor vandal dome or ID = Indoor dome

C = Clear bubble

V5620PTZ-18ID-C/V5620PTZ-30ID-C Indoor PTZ

The V5620PTZ surface mount indoor PTZ features 1080p 2 megapixel high definition performance, 18× or 30× optical zoom. The V5620PTZ-18ID-C accepts UL listed 802.3at type 2 class 4 PoE power input, as well as 24V AC. For more information on the power supply, see "V5620 PTZ Power Supply Options" (page 13).

Mounting Type What to Order
Surface V5620PTZ-18ID-C or V5620PTZ-30ID-C

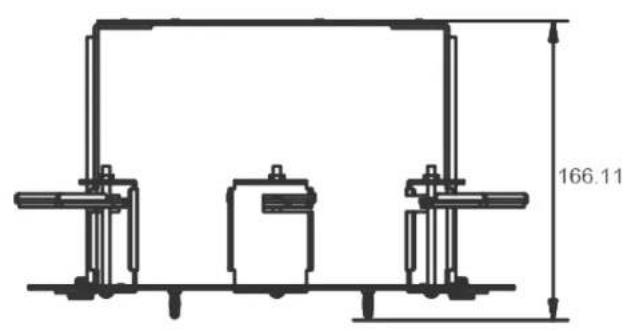

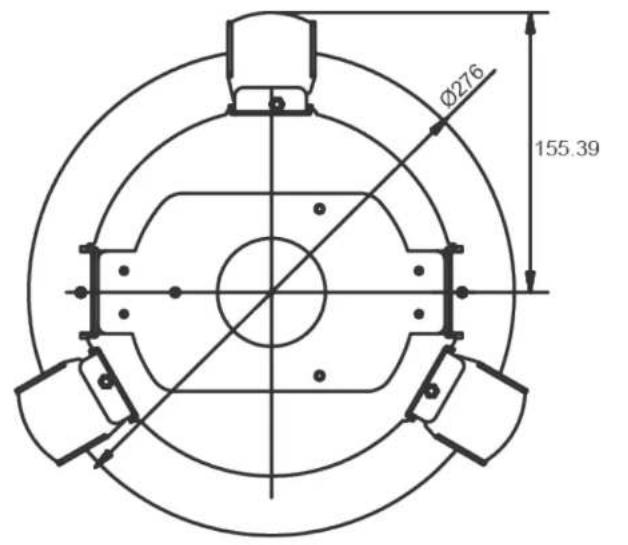

In-ceiling IC-V5620PTZ
Pendant	1. PM-V5620PTZ2. NPT-V5620PTZ ^1
Wall	1. PM-V5620PTZ2. WM-V5620PTZ (long version) or WM-S-V5620PTZ (short version)

White hard hat with 'VISA' logo, labeled 'Surface Mount I' below (no other text or symbols visible)

Exterior view of a mechanical assembly with a circular base and mounting bracket (no text or symbols visible)

Exterior view of a white outdoor security camera with a dome-shaped head (no text or symbols visible on the device itself)

White outdoor security camera mounted on a wall, labeled 'Wall Mount-long (Outdoor Model Shown)' (no other text or symbols visible)

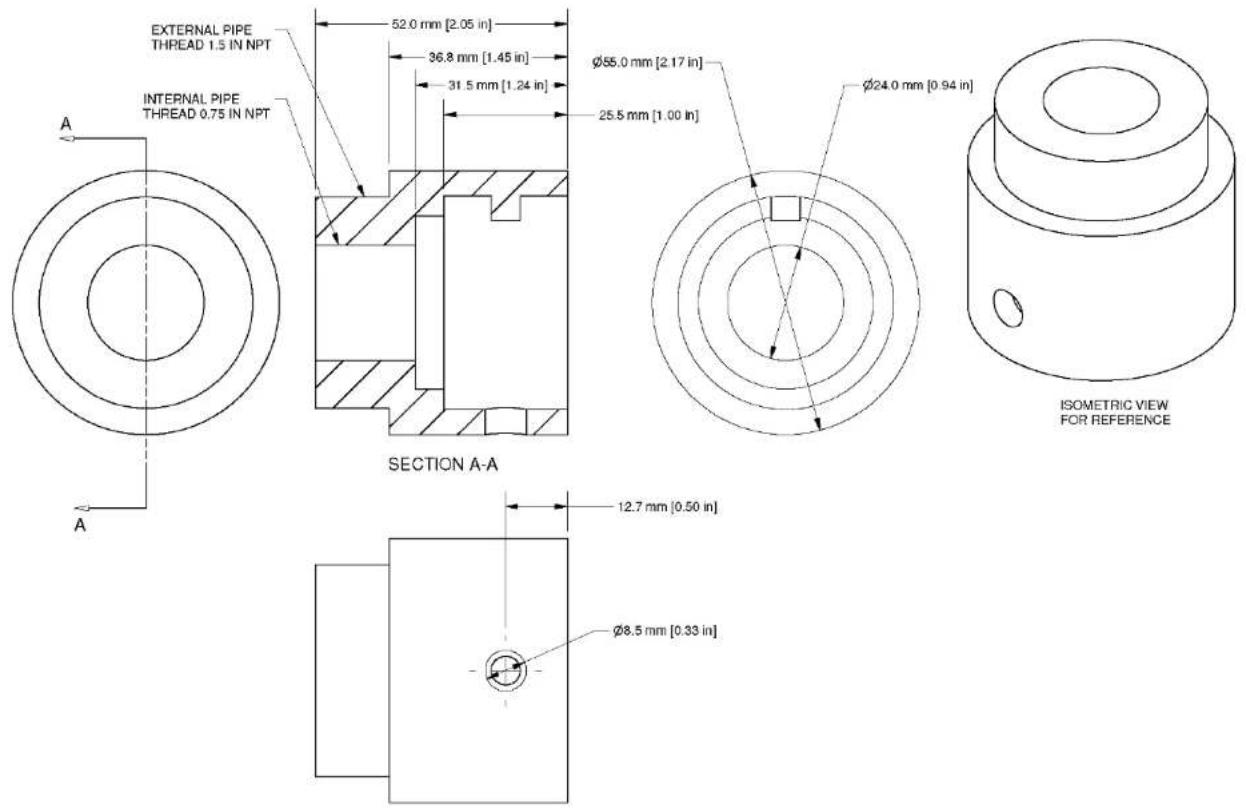

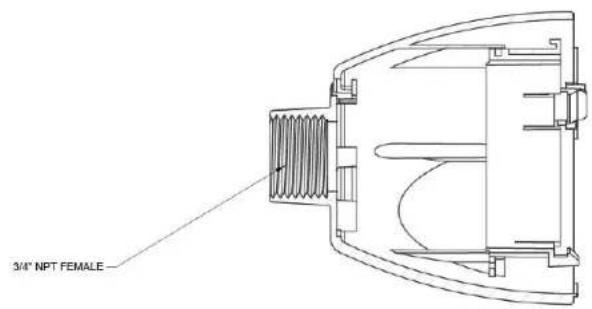

^1 Female 1.5" or Male 3/4" NPT pipe not supplied by Verint

V5620PTZ-18DW-C/V5620PTZ-30DW-C Outdoor PTZ

The V5620PTZ outdoor model can use either a UL listed PoE ultra 60W power injector or a UL listed 24V AC 3A power supply. For the PoE ultra, Verint suggests using the Microsemi (formerly known as PowerDsine) PD-9501G/AC PoE ultra injector. This injector has been tested with the camera in all of its operating condition. For more information on the power supply, see "V5620 PTZ Power Supply Options" (page 13).

The V5620PTZ outdoor PTZ features 1080p 2 megapixel high definition performance, 18× or 30× optical zoom and a blower and heater for in climate weather conditions. The included sunshield deflects the hot sun from the camera and also serves to keep water from dripping down the bubble surface. The V5620PTZ can be mounted pendant style, or with available adapters can be mounted to poles, wall or corner mount styles.

Mounting Type What to Order
Pendant Female 1.5" or Male 3/4" NPT pipe ^1
Wall	WM-V5620PTZ or WM-S-V5620PTZ
Corner	1. CM-V5620PTZ2. WM-V5620PTZ
Pole	1. WM-V5620PTZ2. PL-V5620PTZ

White security camera with dome and lens, labeled 'Pendant Mount' (no other text or symbols visible)

Close-up of a white security camera mounted on a wall, showing the dome and antenna (no visible text or symbols)

White security camera mounted on a wall, labeled 'Mount Pole Mount' (no other text or symbols visible)

White surveillance camera mounted on a pole, no visible text or symbols

^1 Female 1.5" or Male 3/4" NPT pipe not supplied by Verint

V5620 PTZ Power Supply Options

There are several different power supply options for the V5620PTZ depending on the model and region. Please reference the chart below to choose the power supply that best meets your needs.

Camera Type Region Type Part Number Description
Indoor using 24VAC NA 120VAC/24VAC 1.25A PS-24VAC-30-US Power Supply; Linear; Wall Mount; NA;120VACIN; 60Hz; 24VAC- 1.25A; 30VA;Efficiency Level IV Compliant; UL; ROHS
	EU 220VAC/24VAC 1.5A (36W)	PS2440-EU	Power Supply; 220VIN; 24VACOUT;1.5A; 50 Hz; Desktop (Built-In Power Cord); Europe; CE; ROHS
	UK	220VAC/24VAC 1.5A (36W)	PS2440-UK	Power Supply; 220VIN; 24VACOUT;1.5A; 50Hz; Desktop (Built-In Power Cord); United Kingdom; CE,GS; ROHS
Indoor using PoE+	NA PoE+ NA	PS34POE	Power Supply Kit PoE+ (IEEE 802.3at Compliant); 90~264VAC Input; 33.6WOutput Power; Desktop; North America;RoHS
	EU PoE+ EU	PS34POE-EU	Power Supply Kit PoE+ (IEEE 802.3at Compliant); 90~264VAC Input; 33.6WOutput Power; Desktop; European; RoHS
	UK	PoE+ UK	PS34POE-UK	Power Supply Kit PoE+ (IEEE 802.3at Compliant); 90~264VAC Input; 33.6WOutput Power; Desktop; UK; RoHS
Outdoor using 24VAC	NA	Transfo 120VAC-24VAC 75VA	PS-24VAC-75	Power Supply; 120VAC, 24 VAC Output;3.13A-75VA; Output Screw Terminals;Include Mounting Blade For Electric Gang Box
	EU Transfo 230VAC-24VAC 105VA	PS-24VAC-105-EU	Power Adapter; 230VAC 50Hz Input,24VAC 4.37A Output; Built-in Power Cord w/ Euro Plug; Stripped Tinned output wires; CE; RoHS
Outdoor using PoE utra 60W	NA, EU	PoE utra 60W	PD-9501G/AC ^1	Single port Gigabit Midspan, PoE injector60W over 4-pairs, 100 to 240VAC input,54-57Vdc 60W output, UL, RoHS

^1 This product is not available from Verint.

S5120BX-DN and S5250BX-DN

S5120FD-DN

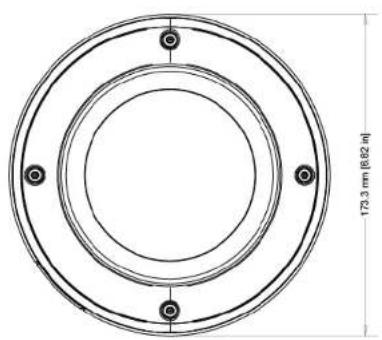

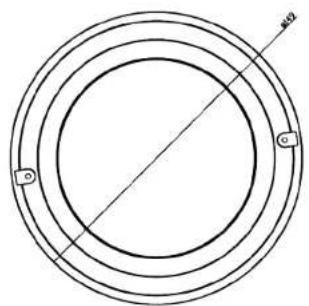

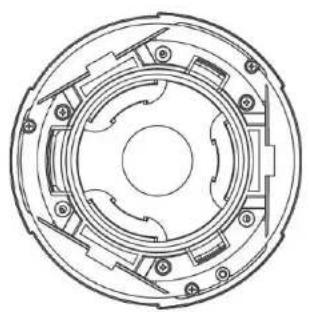

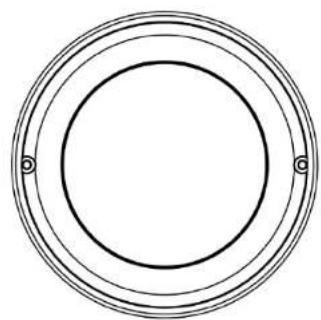

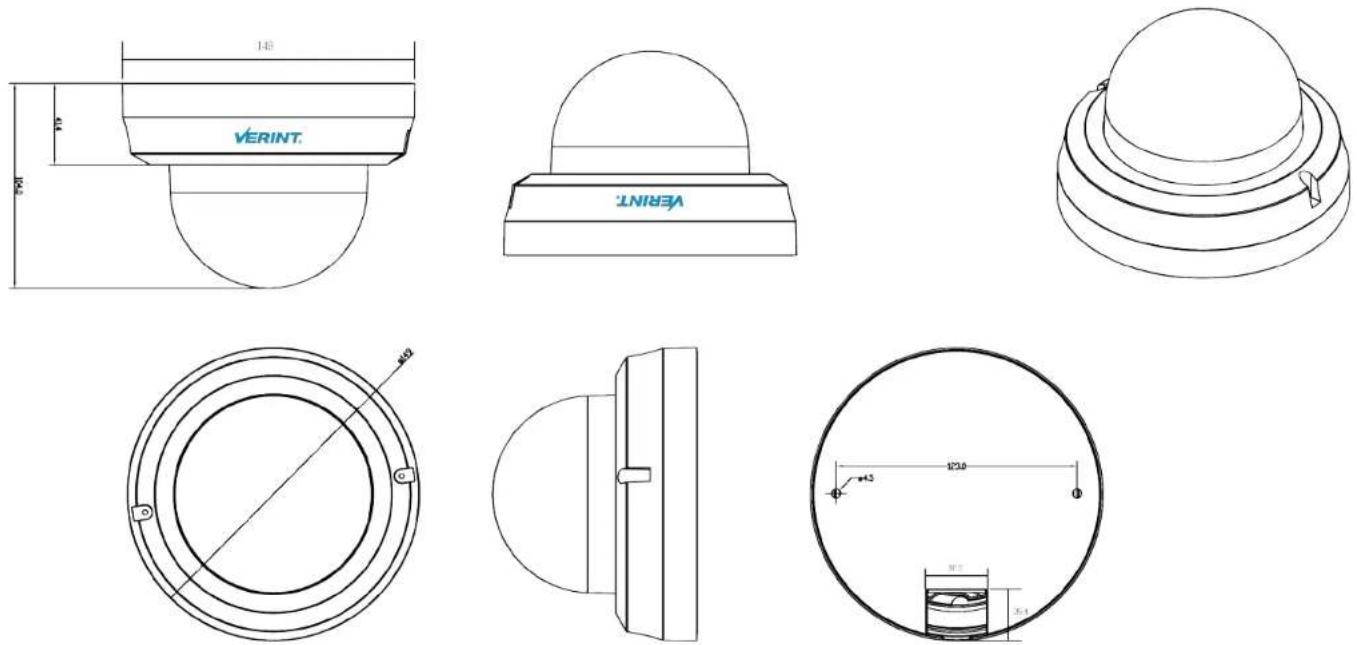

S5120FDW-DN and S5250FDW-DN

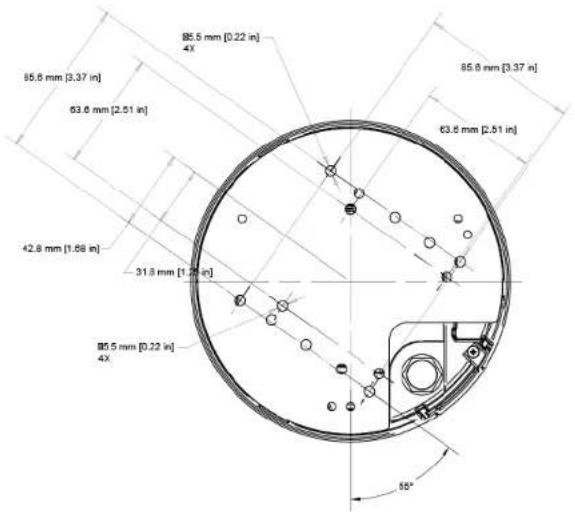

Technical drawing of a circular mechanical component with concentric rings and mounting holes (no text or symbols)

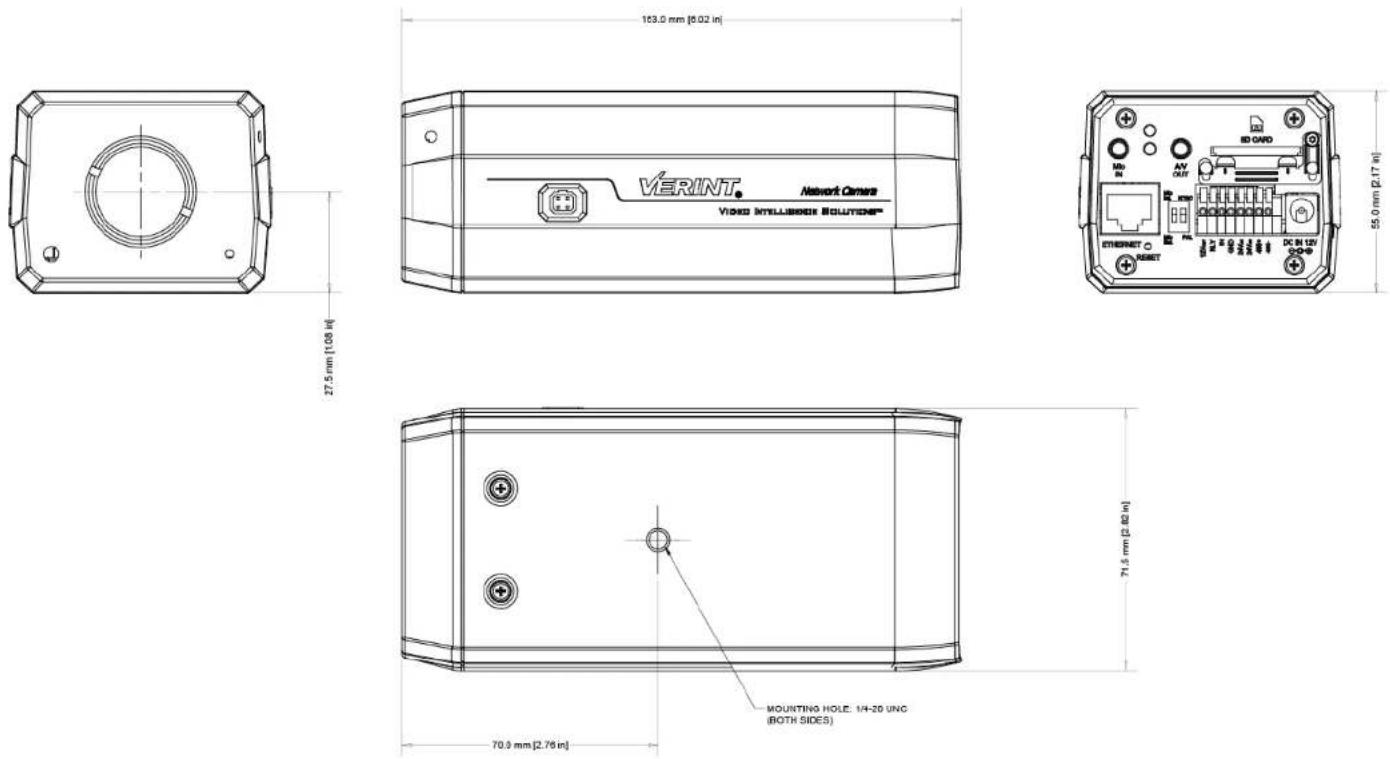

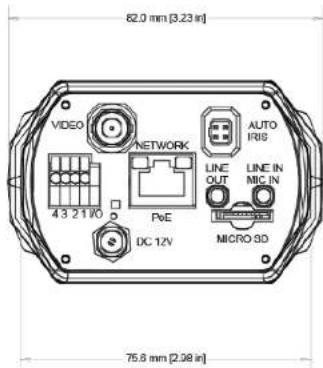

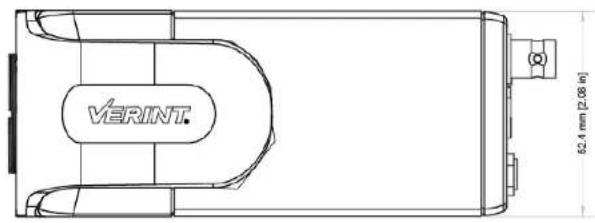

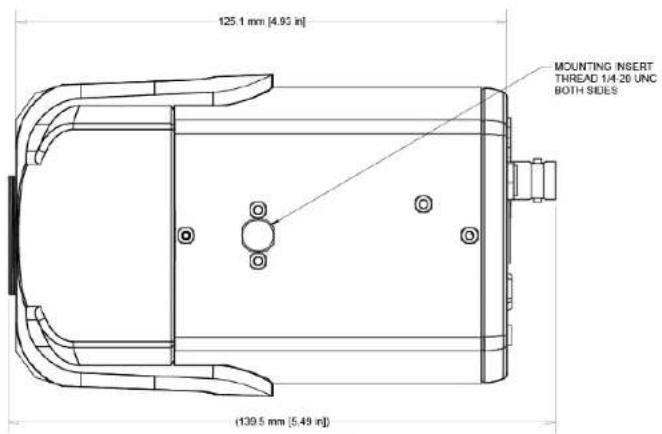

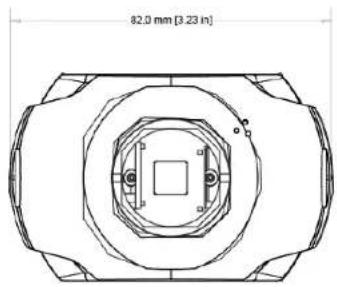

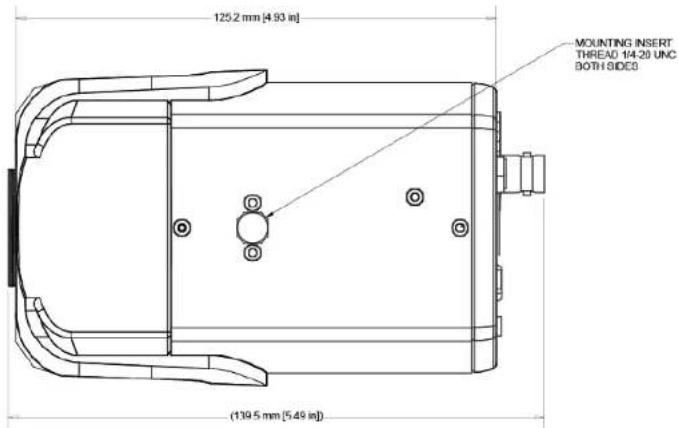

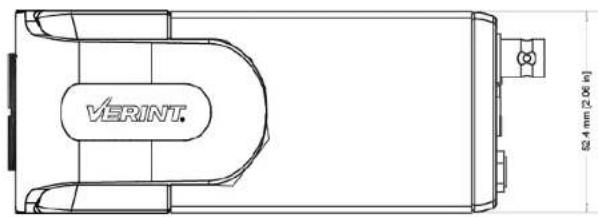

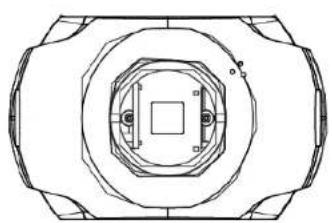

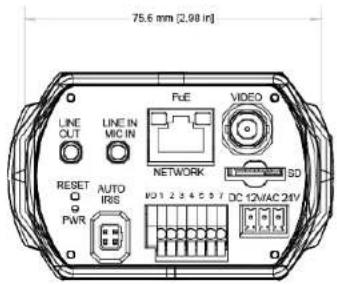

V3320BX-DN

Top-down schematic of a mechanical component with concentric circular features and central square (no text or symbols)

V4320BX-DN

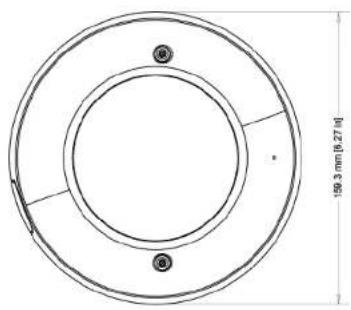

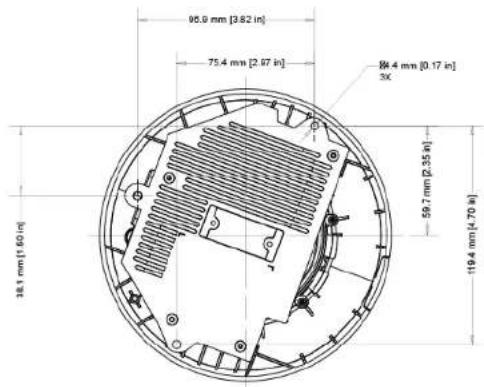

V3320FD-DN/V4320FD-DN

V3320FDW-DN/V4320FDW-DN

Simple circular diagram with concentric rings and two small circular markers at the center (no text or symbols)

DMY2-V3320FD

Simple line drawing of a dome-shaped object placed on a base (no text or symbols)

Simple line drawing of a dome-shaped object with concentric rings and a small arrow on the base (no text or symbols)

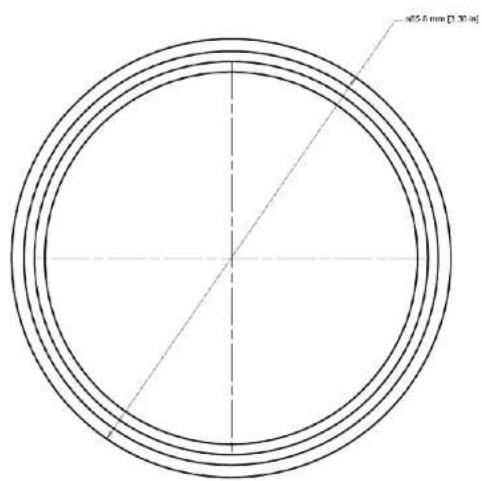

Pure technical drawing of concentric circular rings with no text or symbols

Simple line drawing of a door handle and lid (no text or symbols)

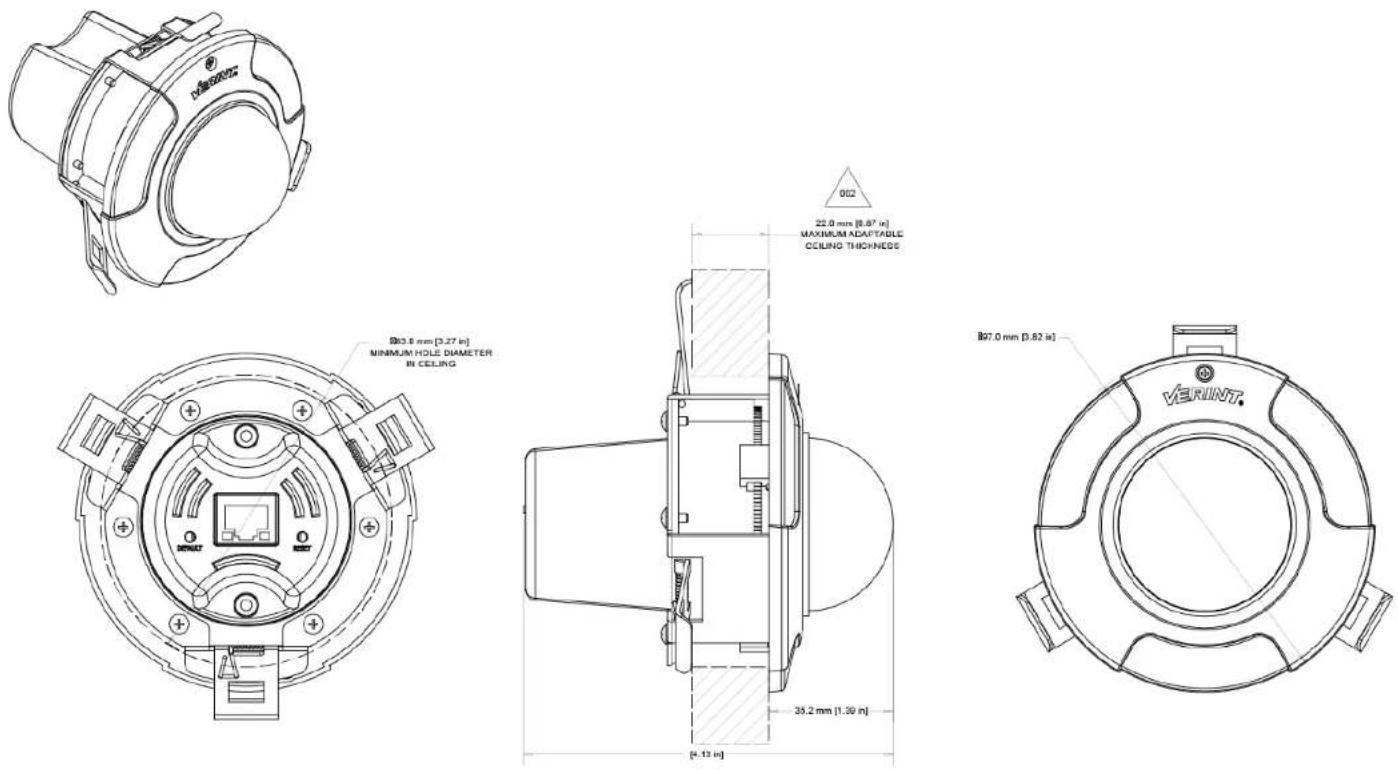

V3320RD-L2, V3320RD-L3, V3320RD-L6

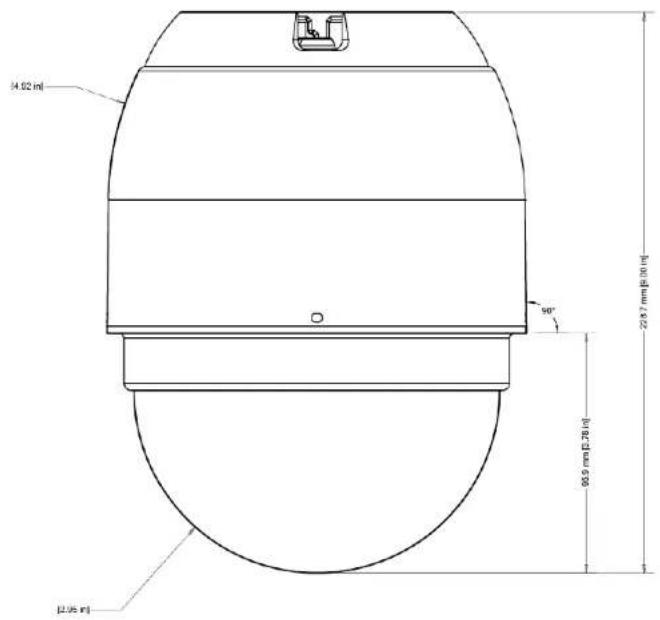

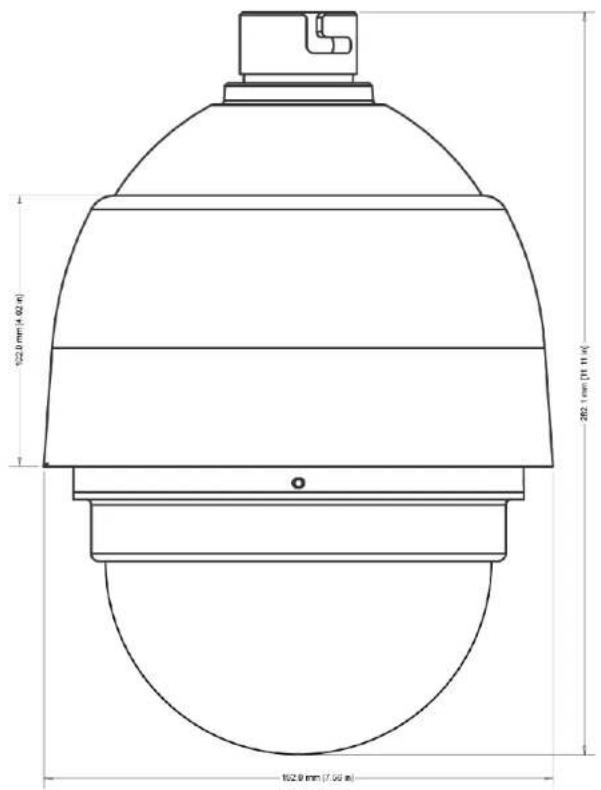

V5620PTZ Outdoor 1080p PTZ Camera

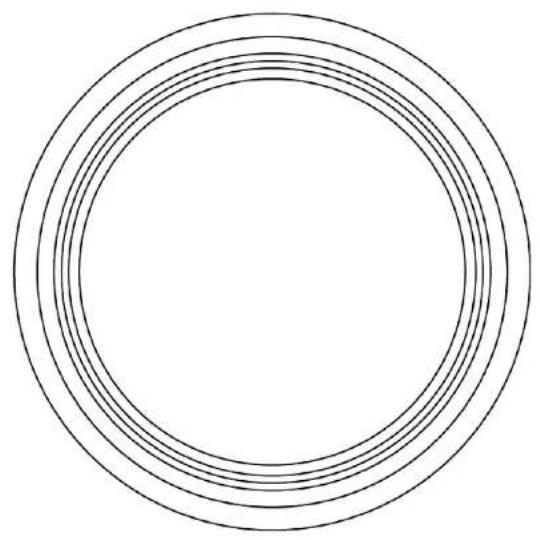

Concentric circular lines diagram with no text or symbols

V5620PTZ Indoor 1080p PTZ Camera

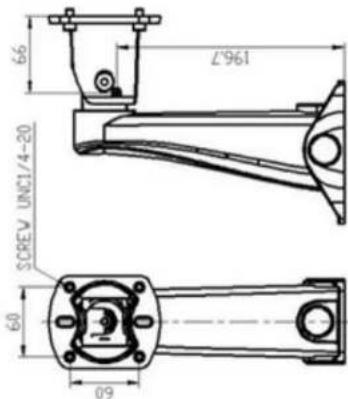

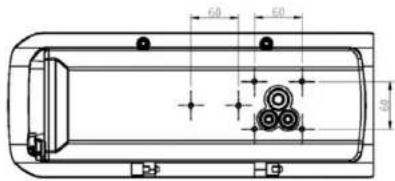

VPOE-2

For V3320BX, V4320BX, S5120BX-DN and S5250BX-DN

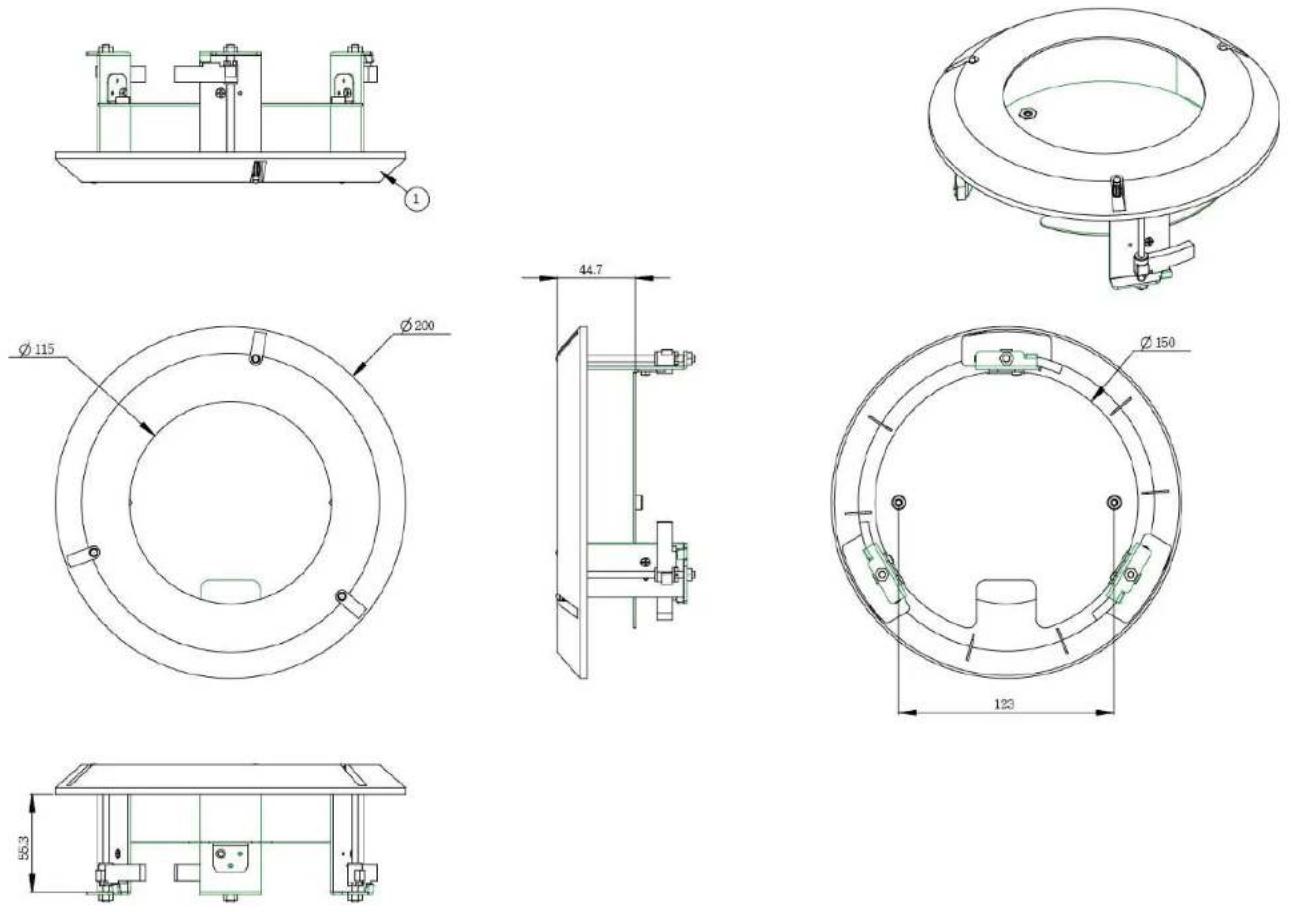

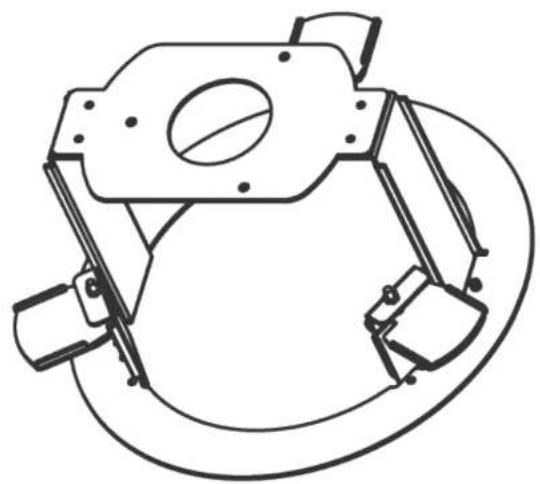

IC-S51-S52 In-Ceiling Mount

Compatible with S5120FD-DN and S5250FD-DN

Technical line drawing of a mechanical assembly with no visible text or symbols

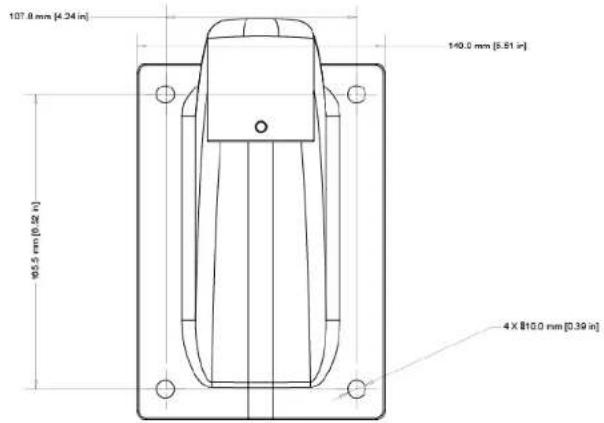

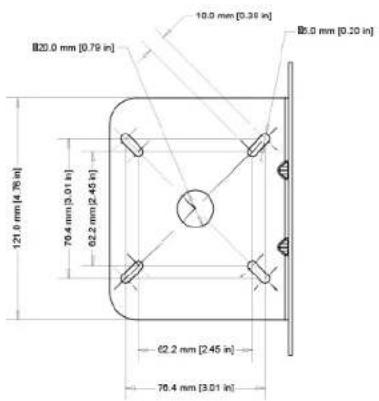

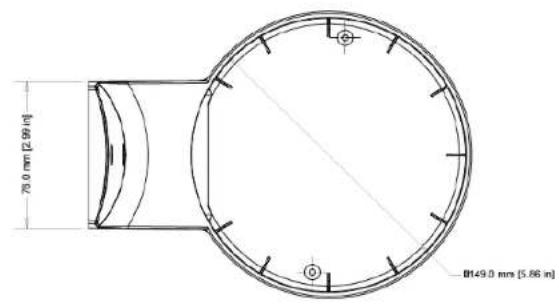

WM-S51FD - Wall Mount

Compatible with S5120FD-DN and S5250FD-DN

PM-S51FD - Pendant Mount

Compatible with S5120FD-DN and S5250FD-DN

WM-S50FD - Wall mount kit

For S5003FD and S5020FD-DN

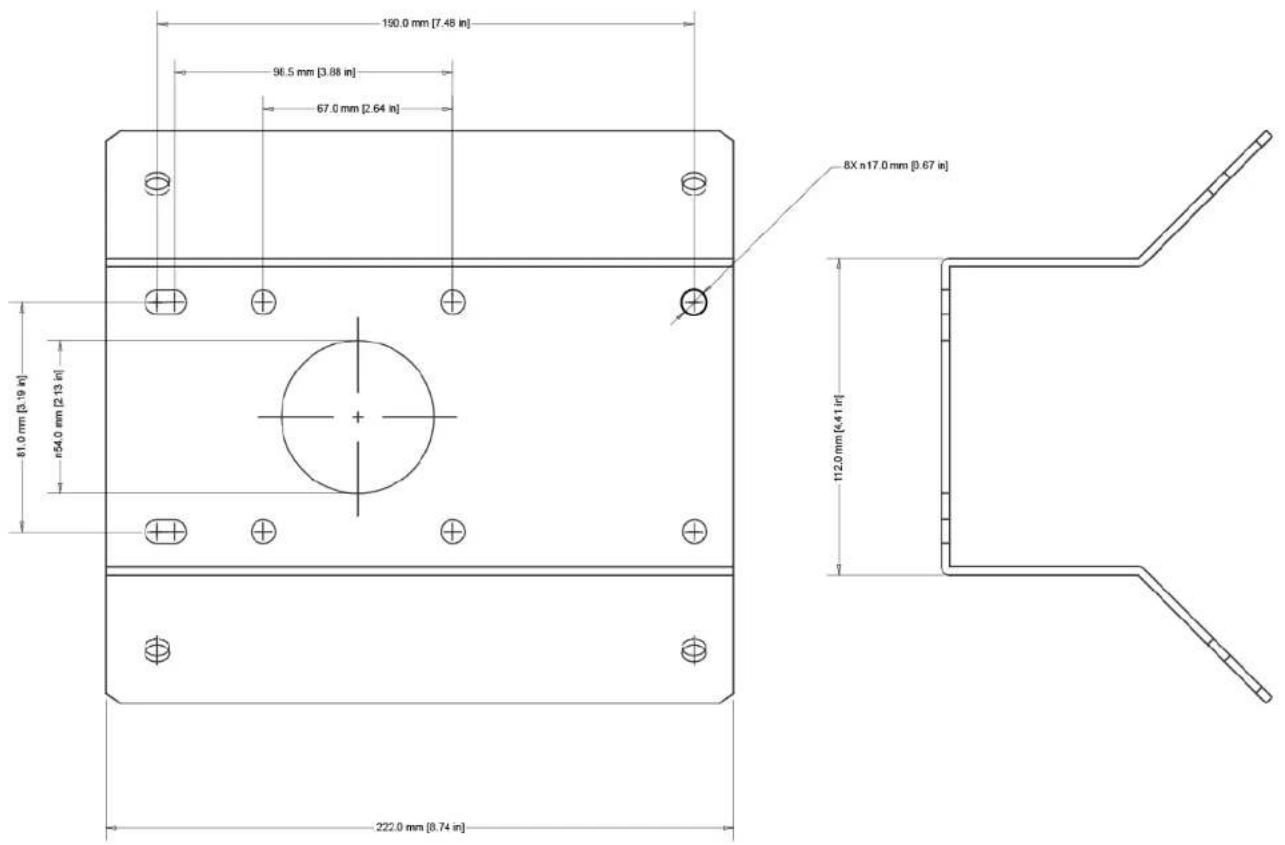

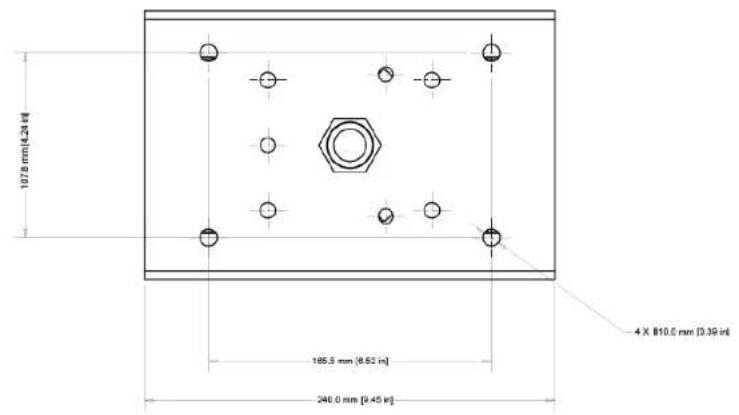

CM-S50FDW - Corner mount kit

Compatible with WM-S50FDW

Technical drawing of a rectangular panel with mounting holes and dimension label (no text or symbols beyond measurement)

Technical line drawing of a metal bracket with mounting holes and a hexagonal bolt (no text or symbols)

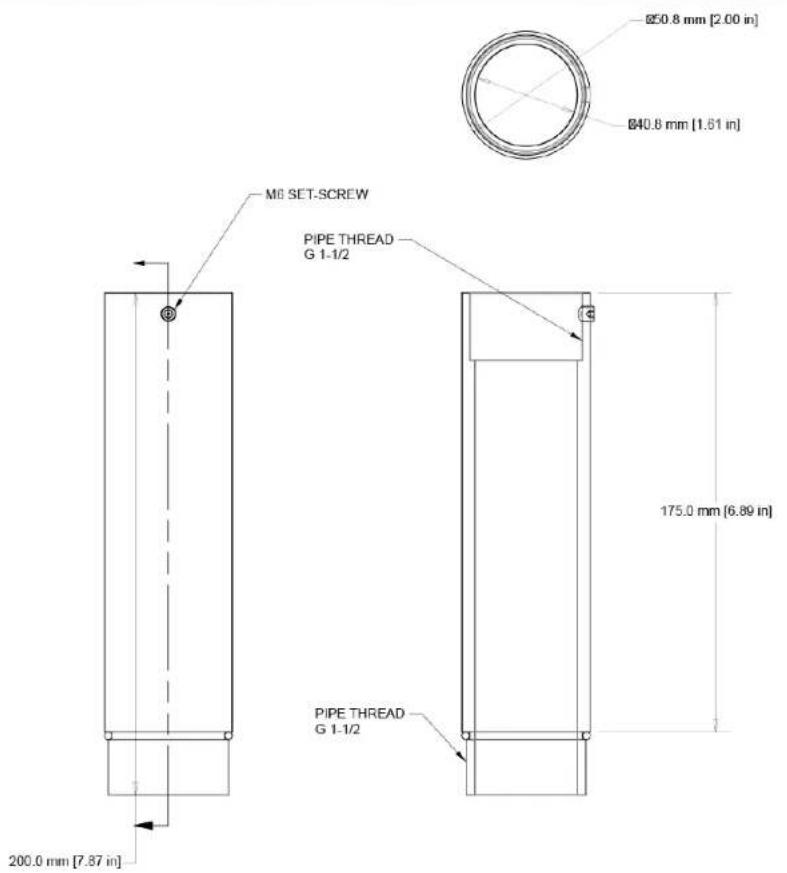

PP-S50FDW - Pipe Kit

Compatible with PM-S50FDW and PB-S50FDW

Isometric view of a cylindrical mechanical part with a flanged end (no text or symbols)

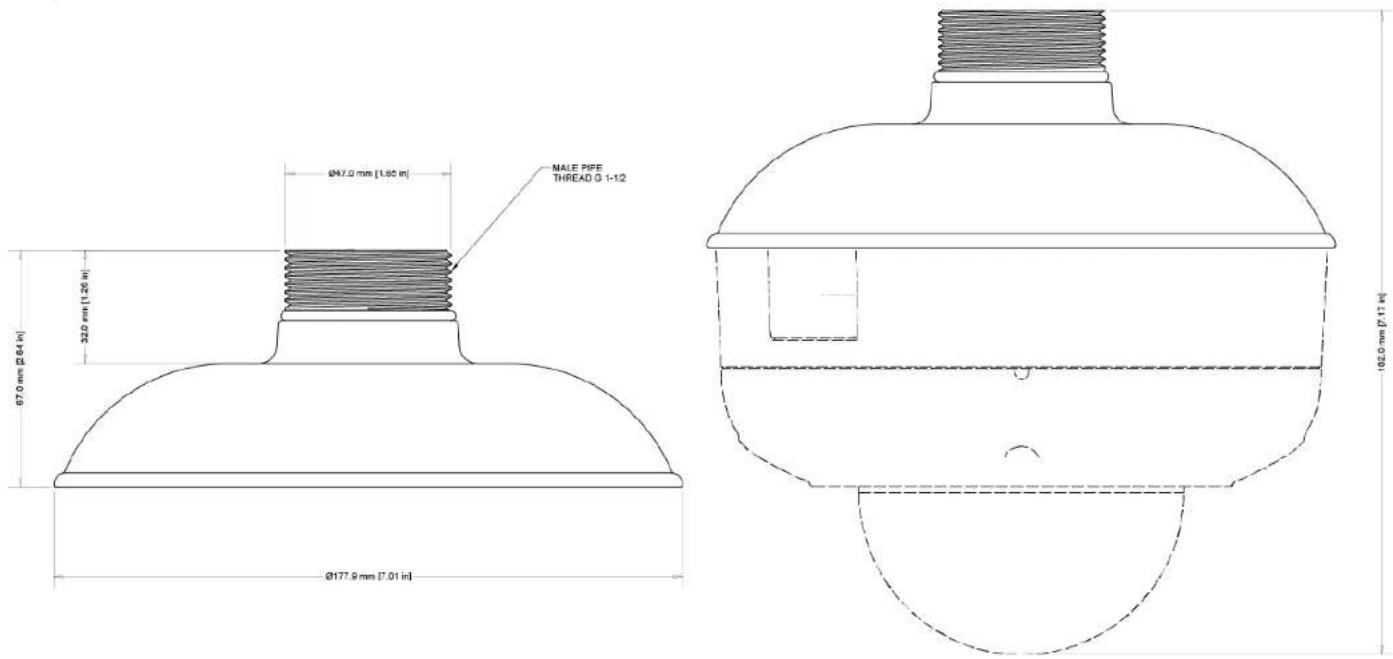

PB-S50FDW - Pendant Head kit

Compatible with PP-S50FDW or any 1.5" G male threaded pipe

Technical line drawing of a mechanical component with flanged ends and central bore (no text or symbols)

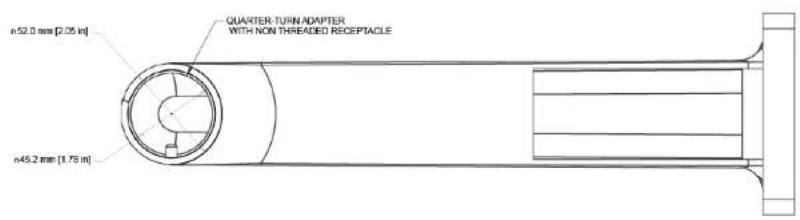

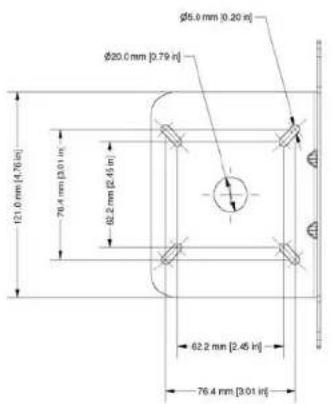

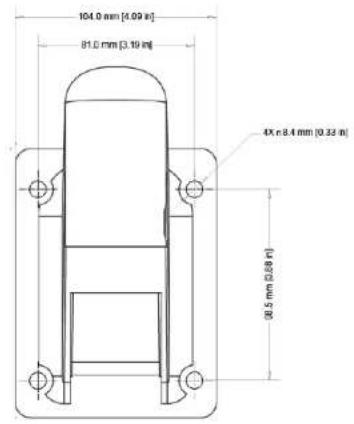

WM-S50FDW - Wall Mount Kit

Compatible with PM-S50FDW, PM-S51-S52-FDW, PL-S50FDW and CM-S50FDW mounts

Isometric view of a curved mechanical component with flanged base (no text or symbols)

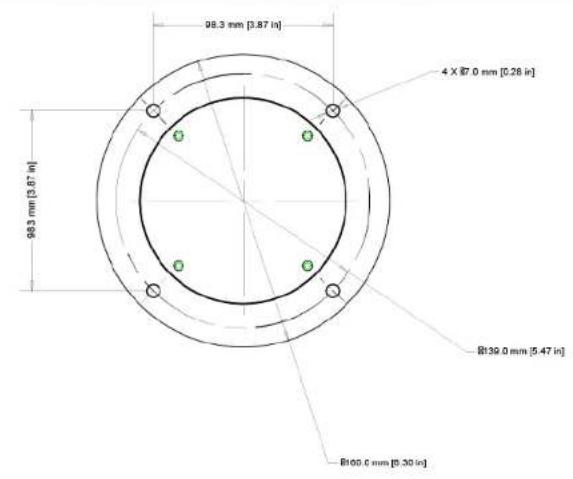

PM-S51-52-FDW - Pendant Mount Cap

Compatible with S5120FDW-DN & S5250FDW-DN

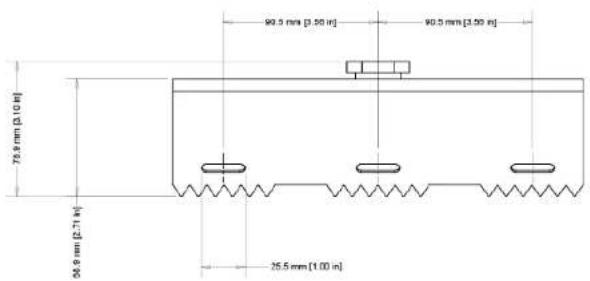

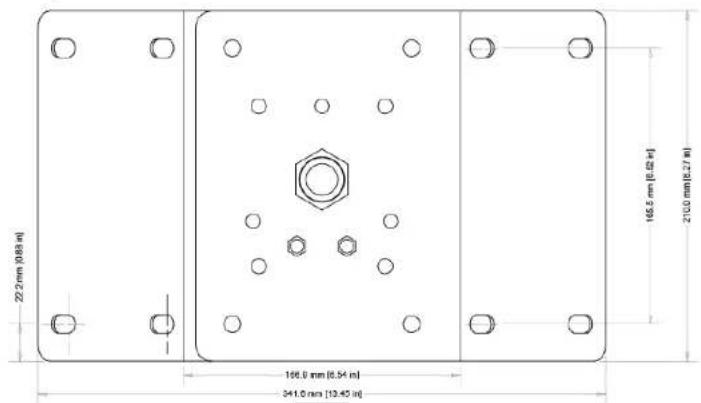

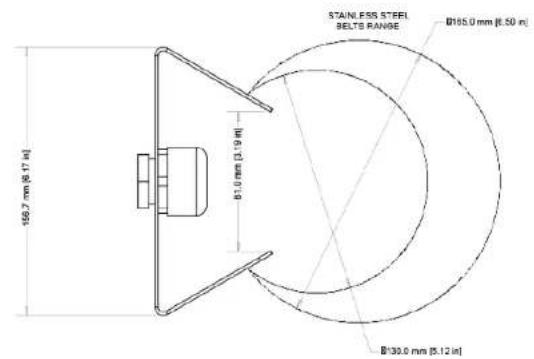

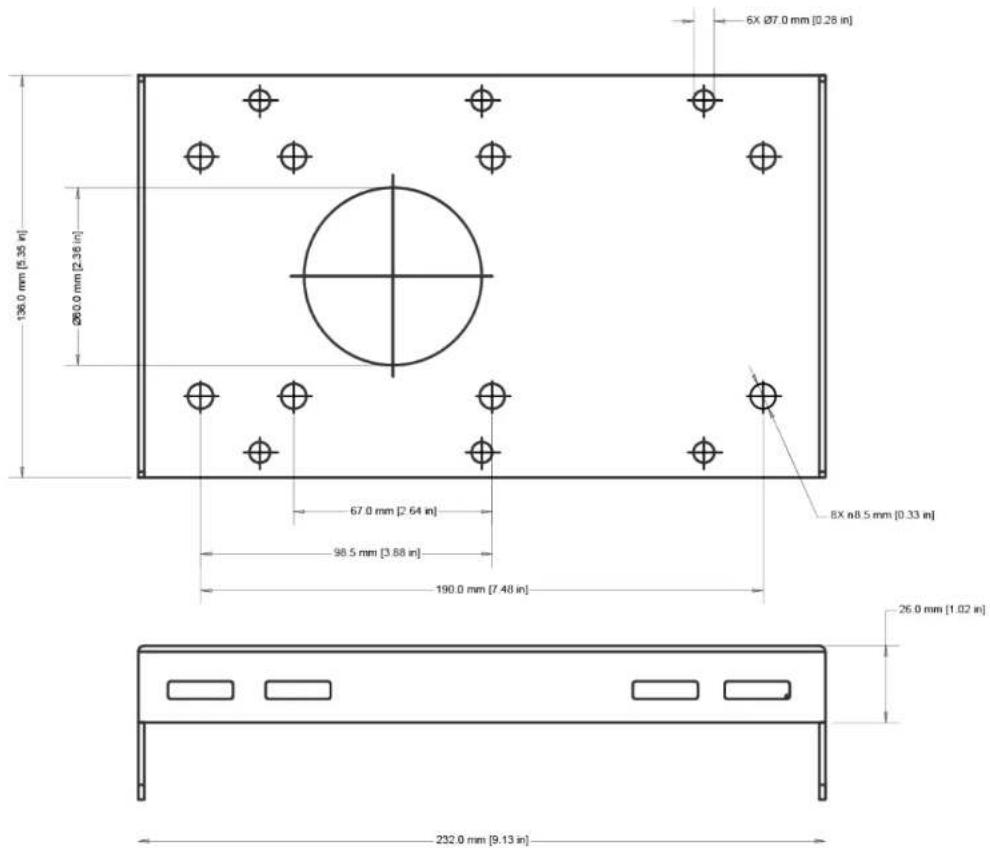

PL-S50FDW - Pole Mount

Compatible with WM-S50FDW

Technical line drawing of a metal bracket with bolt holes and zigzag base (no text or symbols)

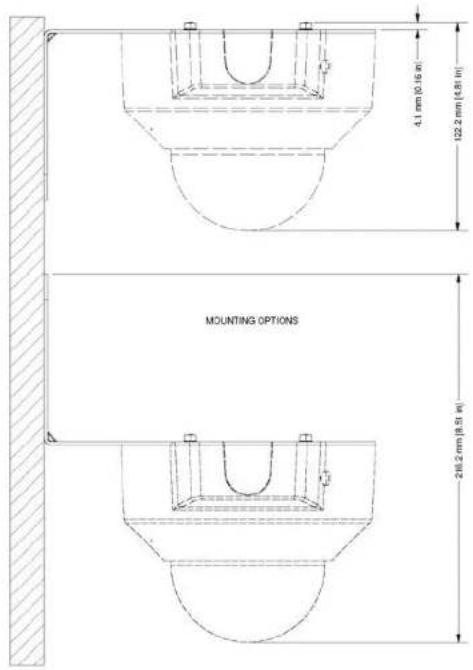

WM-V33-43FD Wall Mount

Isometric line drawing of a circular mechanical component with a flanged base (no text or symbols)

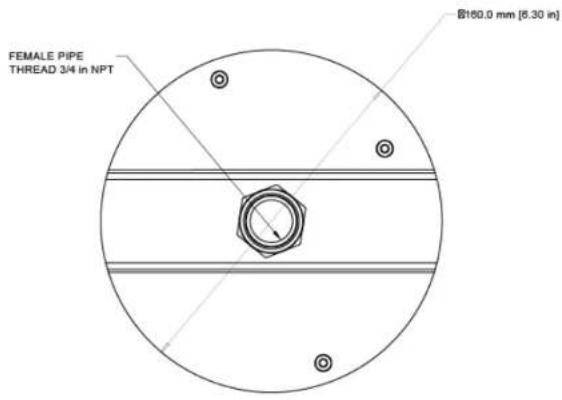

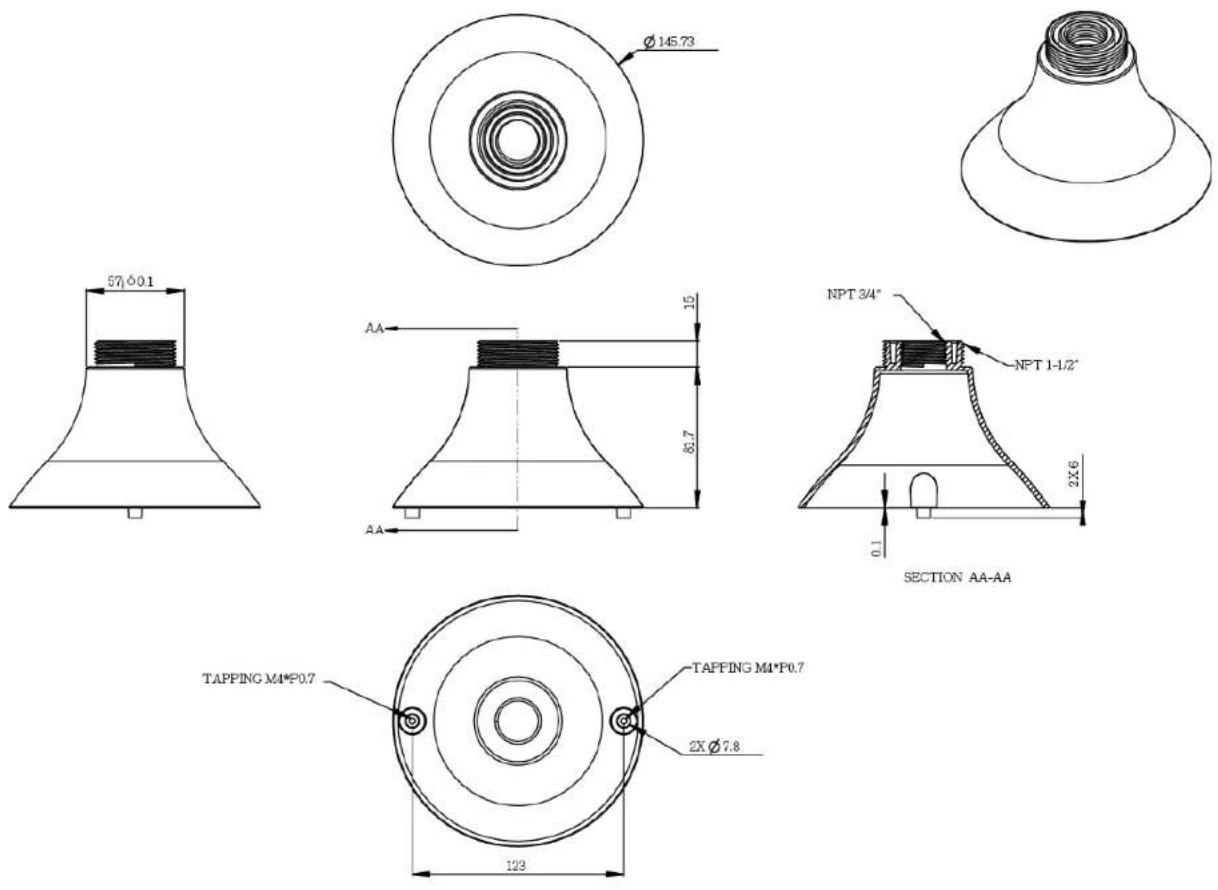

PM-V33-43FD NPT Pendant Mount

Technical line drawing of a circular mechanical component with internal components and mounting holes (no text or symbols)

PM-V33-43FDW NPT Pendant Mount

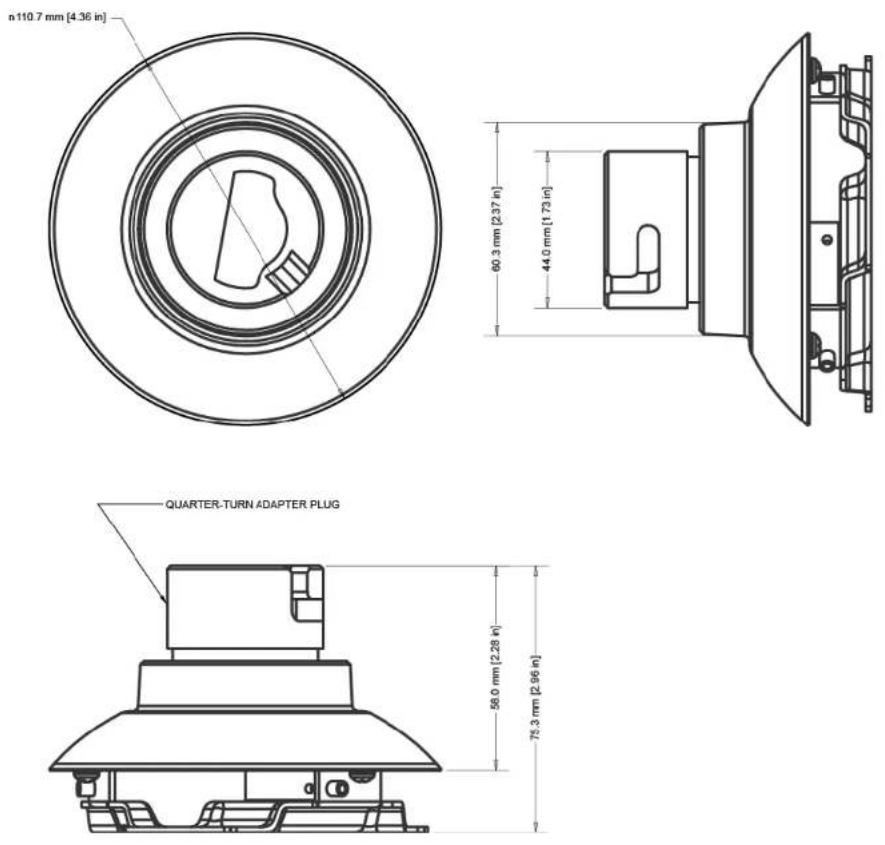

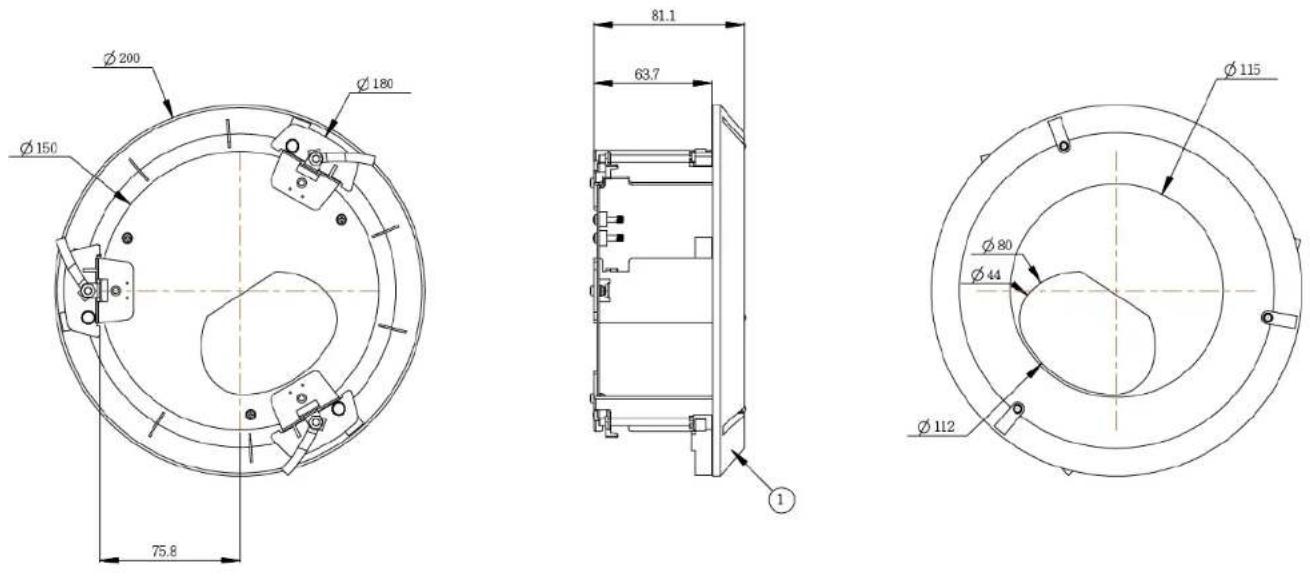

IC-V33-43FDW Inceiling Mount

PM2-V33-43FDW 14 Turn Pendant Mount

IC-V33-43FD Inceiling Mount

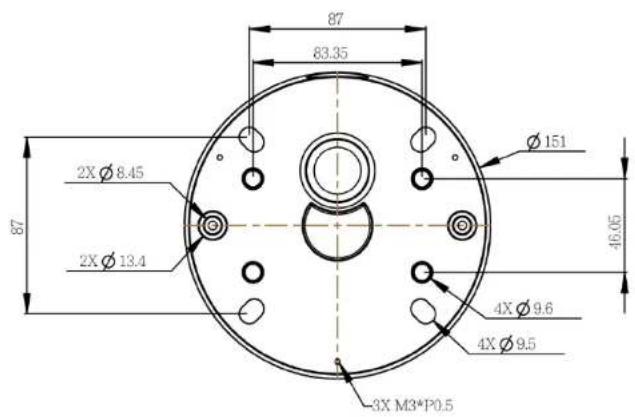

PM-V3320RD Pendant Mount

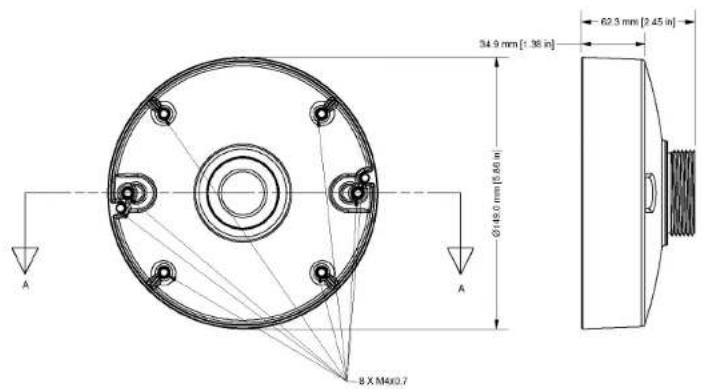

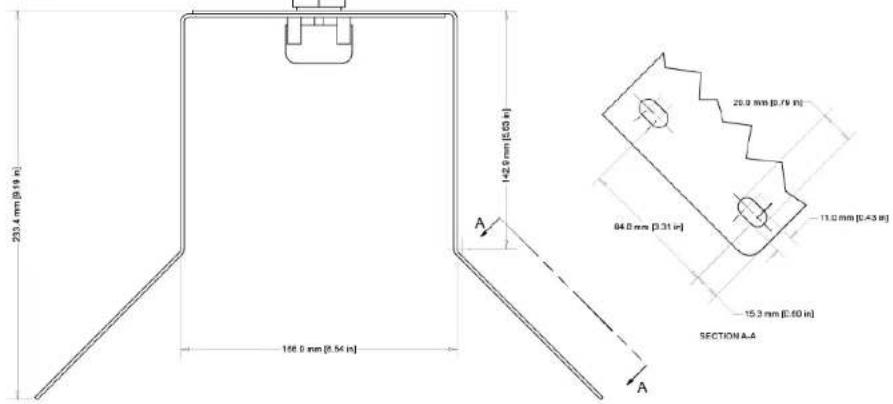

SECTION A-A

Technical line drawing of a circular mechanical component with symmetrical slots and mounting holes (no text or symbols)

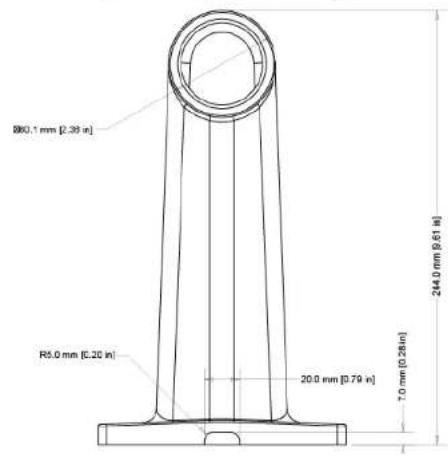

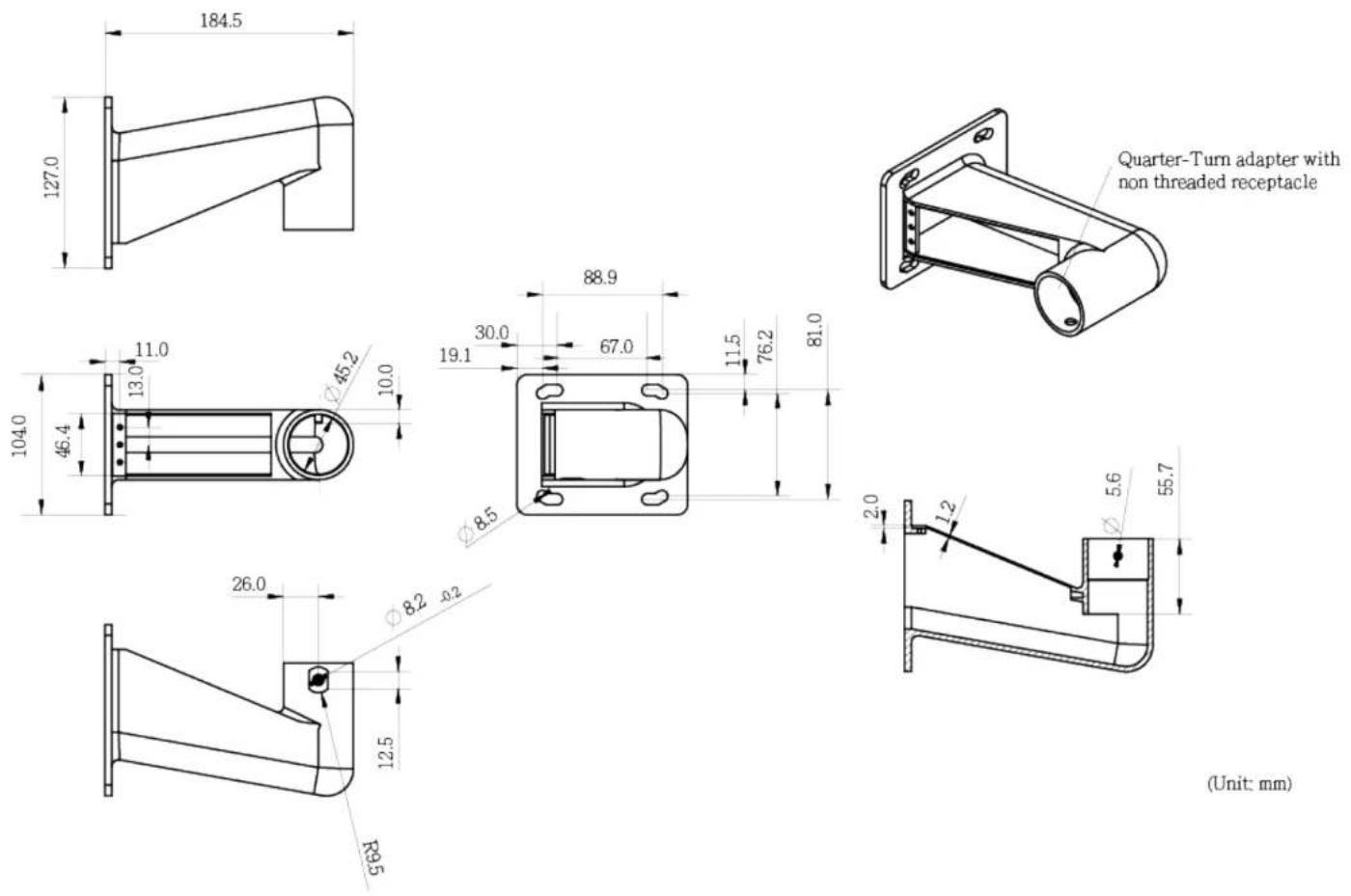

WM-S-V5620PTZ / WM-S-V33-43FDW Wall Mount - Short

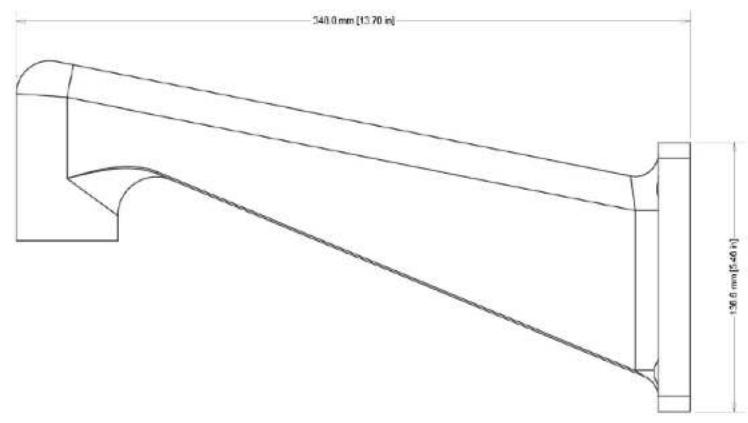

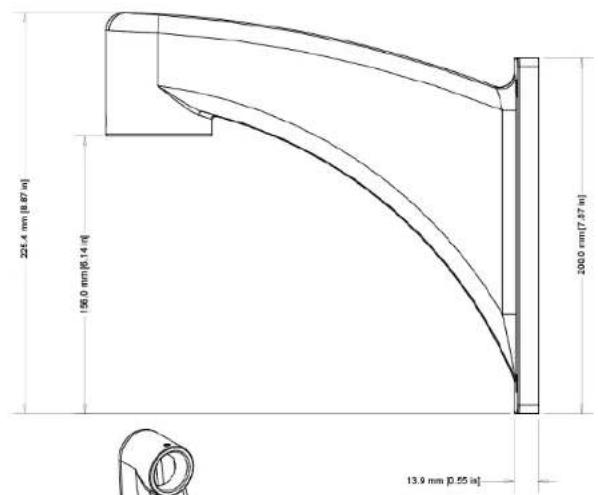

WM-V5620PTZ / WM-V33-43FDW Wall Mount - Long Arm

CM-V33-43FDW/CM-V5620PTZ Corner Mount

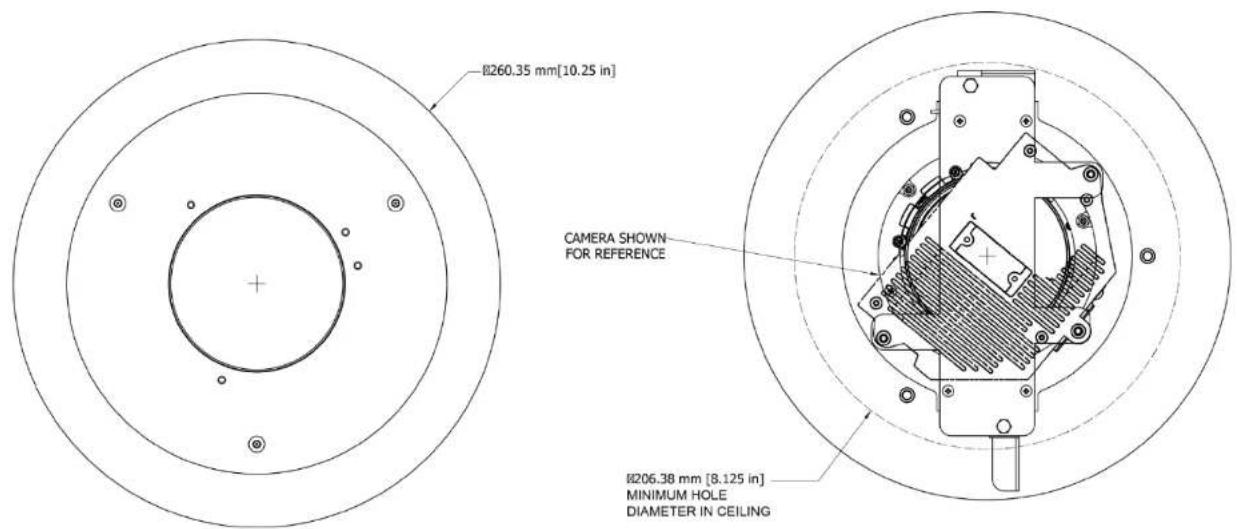

IC-V5620PTZ Recess Mount

Technical line drawing of a mechanical assembly with mounting flanges and a central housing (no text or symbols)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

NPT-V5620PTZ NPT Adapter

PL-V33-43FDW/PL-V5620PTZ Pole Mount

PM-V5620PTZ Pendant Mount

Technical line drawing of a mechanical component with a central cylindrical shaft and flanged base (no text or symbols)
