PMKS56 - Microphone Pyle - Free user manual and instructions

Product Type	Dynamic Vocal Microphone
Model	PMKS56
Brand	Pyle
Polar Pattern	Cardioid
Frequency Response	50 Hz – 15 kHz
Impedance	600 ohms
Connector	XLR (3-pin)
Cable Length	15 ft (4.6 m) attached XLR cable
Material	Zinc alloy die-cast body
On/Off Switch	Yes, on the microphone body
Includes	Microphone clip, stand adapter, carrying pouch
Dimensions (mic only)	7.5 x 2.0 x 2.0 inches (19 x 5 x 5 cm)
Weight (mic only)	0.7 lbs (320 g)
Power Requirement	No battery required (passive dynamic)
Compatibility	PA systems, karaoke machines, mixers with XLR input
Care Instructions	Wipe with dry cloth; avoid moisture; store in pouch
Safety	Keep away from heat sources; do not drop
Repairability	No user-serviceable parts; contact Pyle support
Certifications	RoHS compliant

Frequently Asked Questions - PMKS56 Pyle

Is the Pyle PMKS56 a dynamic or condenser microphone?

The Pyle PMKS56 is a dynamic microphone, ideal for live vocals and karaoke. It does not require phantom power.

What type of connector does the PMKS56 use?

It uses a standard XLR (3-pin) connector for balanced audio. There is a fixed 15-foot cable attached.

Does the microphone have an on/off switch?

Yes, the PMKS56 includes a convenient on/off switch on the microphone body for muting during performances.

Can I connect this microphone to my computer?

Directly connecting to a computer requires an XLR-to-USB interface or a mixer with USB output. The microphone itself has an analog XLR output.

What accessories are included with the PMKS56?

The package includes a microphone clip, a stand adapter (5/8" to 3/8"), and a carrying pouch.

Is the microphone suitable for outdoor use?

While dynamic microphones are more robust than condensers, the PMKS56 is not weatherproof. Avoid exposure to rain or extreme humidity.

What is the frequency response range of the PMKS56?

It has a frequency response of 50 Hz – 15 kHz, optimized for vocal clarity and presence.

How do I clean the microphone?

Use a soft, dry cloth to wipe the body. For the grille, you can use a lightly dampened cloth and allow it to dry completely before use. Avoid submerging.

Does the PMKS56 require phantom power?

No, as a dynamic microphone, it is passive and does not need phantom power. It works with any standard XLR mixer or PA system.

What is the warranty on the Pyle PMKS56?

Pyle offers a limited 1-year warranty against defects in materials and workmanship. Contact Pyle support for warranty claims.

USER MANUAL PMKS56 Pyle

Black tripod-mounted optical instrument with adjustable boom and stand (no text or symbols visible)

USER'S MANUAL

HEAVY-DUTY TRIPOD BOOM MICROPHONE MIC STAND

Thank you for choosing PyleUSA!

To enjoy of the unit's features, along with proper and safe operation, please be sure to read through this manual before use.

It is especially important to thoroughly understand and follow all system warnings and precautions. Keep the manual in a safe location for future reference when necessary. Contact your dealer or the nearest authorized repair center for any service, repair or technical support assistance.

Professional Recording Microphone Stand

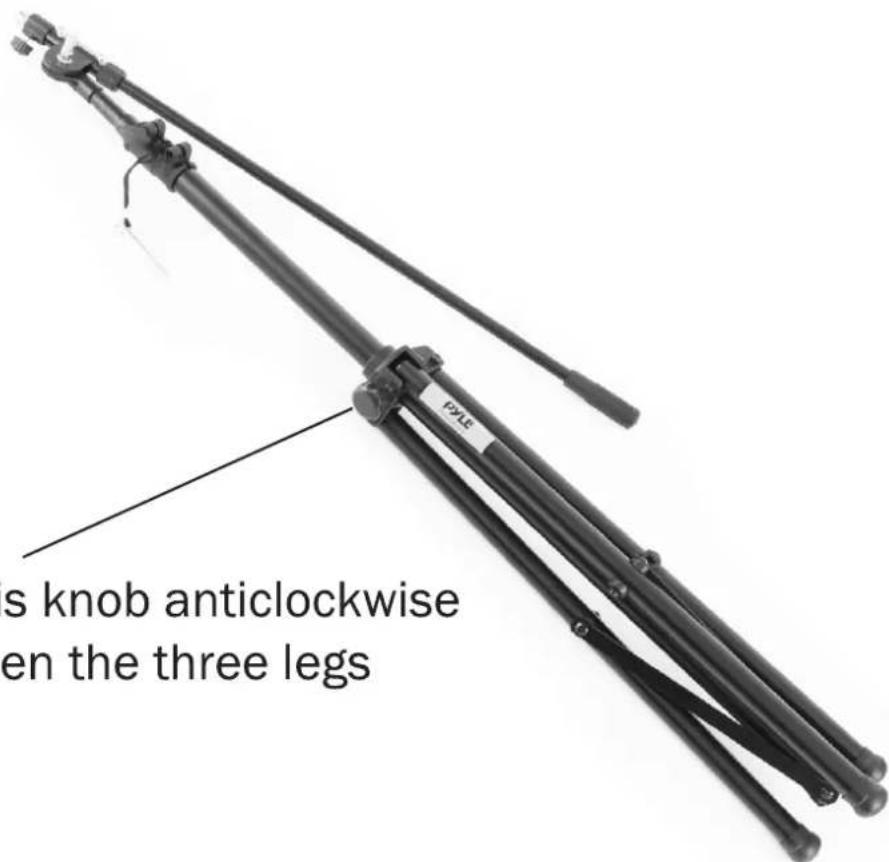

1) Open the box, you will find the complete assembled recording microphone stand.

PYLE s knob anticlockwise en the three legs

Rotate this knob anticlockwise before open the three legs

2) Open the three legs so it can stand on the floor.

3) You can adjust the angle of the T-Bar.

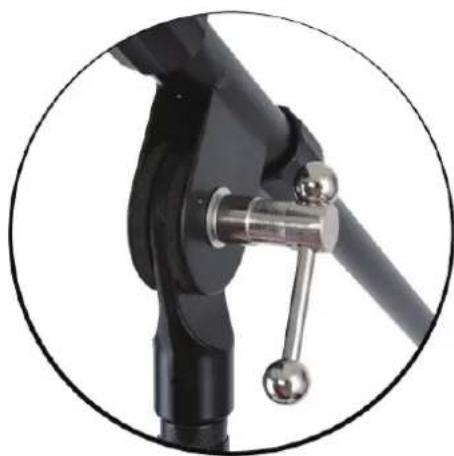

Close-up of a black mechanical clamp with metal components and a spherical head, enclosed in a circular frame (no text or symbols visible)

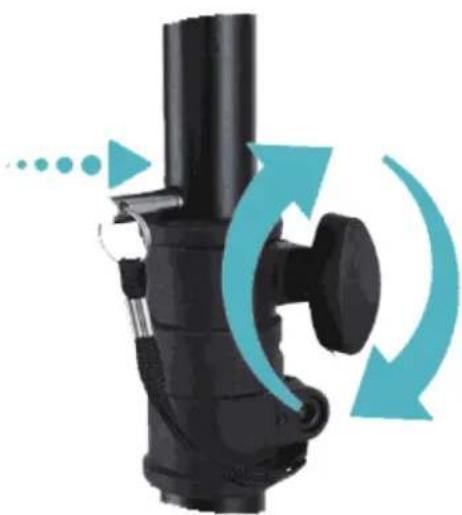

4) You can adjust the height by loosening and tightening the knob. The height adjustment ranges from 51.2" to 78.75"

Close-up of a black mechanical valve with blue circular arrows indicating rotational or feedback motion (no text or symbols)
