Product Type	Consumer-grade 2.5-inch SATA Solid State Drive
Model	DHI-SSD-C800AS512G
Capacity	512 GB (1 GB = 1 billion bytes)
Form Factor	2.5 inch
Interface	SATA III 6 Gb/s
Memory Component	3D NAND (wafer level chip)
Dimensions (Product)	100.20 x 69.90 x 7.00 mm (3.94 x 2.75 x 0.28 in)
Weight (Net)	40 g (0.09 lb) max
Sequential Read Speed	Up to 550 MB/s
Sequential Write Speed	Up to 470 MB/s
Power Consumption (Active)	1910 mW max
Power Consumption (Idle)	415 mW
MTBF	1,500,000 hours
TBW (Total Bytes Written)	200 TB
Operating Temperature	0°C to +70°C (32°F to 158°F)
Storage Temperature	-40°C to +85°C (-40°F to 185°F)
Operating Humidity	5% to 95% (non-condensing)
Supported Technologies	S.M.A.R.T., TRIM, NCQ, Garbage Collection
Warranty	3-year limited warranty
Installation	Cable connection or direct insertion into SATA slot
Maintenance & Cleaning	No specific maintenance needed; store in a dry, dust-free environment
Safety	Standard electronic device precautions; avoid static discharge, moisture, and physical shock
Spare Parts & Repairability	Not user-serviceable; no spare parts available; replacement under warranty if defective
General Information	Designed for personal desktops, notebooks, and all-in-one computers

Frequently Asked Questions - SSD-C800AS512G Dahua Technology

How do I install the Dahua SSD-C800AS512G SSD?

You can install the drive either by connecting it via a SATA cable to the motherboard and power supply, or by directly inserting it into a compatible 2.5-inch SATA slot. Refer to your computer's manual for specific mounting instructions.

Is this SSD compatible with my laptop or desktop?

The SSD uses the standard 2.5-inch SATA III interface, which is widely compatible with most laptops and desktops that have a SATA port. Check if your device has a 2.5-inch drive bay and SATA III support for optimal performance.

What are the maximum read and write speeds?

The sequential read speed is up to 550 MB/s and the sequential write speed is up to 470 MB/s. Actual speeds may vary depending on system configuration and workload.

What is the lifespan of this SSD?

The drive has an MTBF (Mean Time Between Failures) of 1,500,000 hours and a TBW (Total Bytes Written) rating of 200 TB. This means it can handle up to 200 terabytes of data writes before failure is likely.

Does this SSD support TRIM?

Yes, it supports TRIM and NCQ, which help maintain high performance over time by managing unused data blocks efficiently.

What is S.M.A.R.T. and does this SSD support it?

S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) monitors drive health. This SSD supports S.M.A.R.T., allowing you to check its status using compatible software.

What is the power consumption of the SSD?

Active power consumption is 1910 mW max and idle consumption is 415 mW, making it energy-efficient for laptops and always-on systems.

What are the operating temperature limits?

The drive operates safely from 0°C to +70°C (32°F to 158°F) and can be stored between -40°C to +85°C (-40°F to 185°F).

How does this SSD compare to a traditional HDD?

This SSD offers much faster read/write speeds, lower power consumption, silent operation, and greater resistance to physical shock compared to a traditional hard disk drive (HDD). It is ideal for improving system responsiveness.

What is the warranty period for this model?

The Dahua SSD-C800AS512G comes with a 3-year limited warranty. The warranty covers defects in materials or workmanship, but not wear from exceeding the TBW limit.

USER MANUAL SSD-C800AS512G Dahua Technology

2.5 inch SATA Solid State Drive

Exterior view of a black electronic device labeled 'athua' (no additional text or symbols visible)

System Overview

As a new generation of 2.5 inch SSD product launched by Dahua, C800 series adopts high-quality 3D wafer level chip and high-performance controller. It is consumer-grade solid state drive designed for personal desktops and notebooks. The product can process data efficiently and ensure quick start-ups. In multi-tasking, it can ensure high speed and stability.

Scene

C800 series is standard 2.5 inch consumer-grade solid state drive which is applicable to personal desktops, notebooks, all-in-one computers, and more.

Technical Specification

Product Model	DHI-SSD-C800AS128G	DHI-SSD-C800AS256G	DHI-SSD-C800AS512G	DHI-SSD-C800AS1TB	DHI-SSD-C800AS2TB
Capacity 1	128 GB 256 GB 512 GB 1 TB 2 TB
Form Factor	2.5 inch
Port	SATA III 6Gb/s
Net Weight	Max 40 g (0.09 lb)
Product Dimensions	100.20 mm × 69.90 mm × 7.00 mm (3.94" × 2.75" × 0.28")
Packaging Dimensions	140.50 mm × 105.50 mm × 15.50 mm (5.53" × 4.15" × 0.61")
Memory Component	3D NAND
Power Consumption	1065 mW (max)400 mW (idle)	1186 mW (max)412 mW (idle)	1910 mW (max)415 mW (idle)	1960 mW (max)840 mW (idle)	2500 mW (max)960 mW (idle)
S.M.A.R.T	Support
TRIM	Support

• Adopts high-quality wafer level chip
  • Supports SATA III protocol with transmission speed up to 550 MB/s
  • View information through S.M.A.R.T
• Provides better read and write performance with TRIM and NCQ
• Low power consumption management

Garbage Collection	Support
Sequential Read2	Up to 500 MB/s	Up to 550 MB/s	Up to 550 MB/s	Up to 550 MB/s	Up to 540 MB/s
Sequential Write2	Up to 400 MB/s	Up to 460 MB/s	Up to 470 MB/s	Up to 500 MB/s	Up to 460 MB/s
MTBF	1,500,000 hours
Operating Temperature	0°C to +70°C (+32°F to +158°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Operating Humidity	5%-95% (non-condensing)
Vibration Resistance	10-200 Hz, 0.5G
TBW	Up to 50 TB Up to 100 TB Up to 200 TB Up to 400 TB Up to 800 TB
Warrantya	3-year limited warranty 5-year limited warranty
Reference Information	1. Capacity calculation: 1GB = 1 billion bytes (IDEMA). Actual available capacity might be reduced (due to formatting, partition, operating system applications, or other necessary usage).2. System configuration of performance test: Intel Z390 Chipset, Intel Core i9-9900KF@3.6GHz, 16GB DDR4; operating system-Windows 10 x64; testing tool-CrystalDiskMark 6.0.0.3. Warranty period or maximum write amount (TBW), whichever comes first.4. High performance SLC cache has been enabled. (*Above data based on internal testing of Dahua Memory Laboratory)

Ordering Information

Type Model Description
	DHI-SSD-C800AS128G	Dahua 2.5 inch SATA Solid State Drive 128G Dramless 0~70°C
	DHI-SSD-C800AS256G	Dahua 2.5 inch SATA Solid State Drive 256G Dramless 0~70°C
C800 Series	DHI-SSD-C800AS512G	Dahua 2.5 inch SATA Solid State Drive 512G Dramless 0~70°C
	DHI-SSD-C800AS1TB	Dahua 2.5 inch SATA Solid State Drive 1TB Dramless 0~70°C
	DHI-SSD-C800AS2TB	Dahua 2.5 inch SATA Solid State Drive 2TB Dramless 0~70°C

Installation

Install by Cable Connection Install by Direct Insertion

Technical line drawings of electronic devices showing front, side, and internal components (no text or symbols)

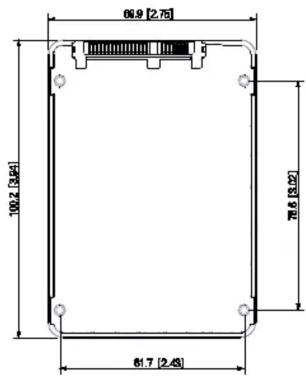

Dimensions (mm[inch])
