Product Type	Solid State Drive (SSD)
Brand	Dahua Technology
Model	SSD-C800AS500G
Capacity	500 GB
Form Factor	2.5 inch
Interface	SATA III (6 Gbps)
Dimensions (L x W x H)	100 x 69.85 x 7 mm (3.94 x 2.75 x 0.28 in)
Weight	Approximately 50 g (0.11 lb)
Operating Temperature	0°C to 70°C (32°F to 158°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Operating Humidity	5% to 95% (non-condensing)
Input Voltage	5 V DC (via SATA power connector)
Data Port	SATA data connector (7-pin)
Power Port	SATA power connector (15-pin)
Installation	Cable connection or direct insertion into motherboard SATA slots
Compatibility	PCs and devices with SATA interface
Maintenance	Keep dry; avoid heat, sunlight, and liquid; do not disassemble
Safety Precautions	Operate within rated voltage; ensure proper ventilation; read manual before use
Spare Parts	None user-serviceable; purchase SATA cables separately if needed
General Information	Designed for reliable storage and faster performance compared to HDD

Frequently Asked Questions - SSD-C800AS500G Dahua Technology

What is the capacity of the Dahua SSD-C800AS500G?

The Dahua SSD-C800AS500G has a capacity of 500 GB.

What form factor does this SSD use?

It uses the standard 2.5-inch form factor, suitable for most laptops and desktops.

How do I install the SSD?

You can install it via cable connection using a SATA data cable and power cable, or by direct insertion into the motherboard's SATA ports. Ensure your motherboard has available SATA slots.

What is the interface of this SSD?

It uses a SATA III interface with a data transfer rate of up to 6 Gbps.

What are the operating temperature limits?

The operating temperature range is 0°C to 70°C (32°F to 158°F).

Can I use this SSD in a desktop PC?

Yes, as long as your desktop has a SATA port and a power supply with a SATA power connector.

What should I do to maintain the SSD?

Keep the SSD in a dry, well-ventilated area, avoid exposure to sunlight or heat, and do not disassemble it. Handle with care to prevent physical shock.

Is the SSD compatible with Windows or macOS?

Yes, it is compatible with any operating system that supports SATA storage devices, including Windows, macOS, and Linux.

How do I properly shut down before removing the SSD?

Always shut down your computer completely before disconnecting or installing the SSD to avoid data loss or damage.

What cables are included with the SSD?

No cables are included. You need to purchase a SATA data cable and SATA power cable separately if required.

USER MANUAL SSD-C800AS500G Dahua Technology

Abstract geometric design with gray and red color blocks (no text or symbols)

ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. V1.0.0

Foreword

General

This manual introduces the structure and installation of the Solid State Drive (hereinafter referred to as "the SSD").

Application

Applied to Dahua SSD 2.5 inch SATA.

Safety Instructions

The following categorized signal words with defined meaning might appear in the manual.

Signal Words	Meaning
DANGER	Indicates a high potential hazard which, if not avoided, will result in death or serious injury.
WARNING	Indicates a medium or low potential hazard which, if not avoided, could result in slight or moderate injury.
CAUTION	Indicates a potential risk which, if not avoided, could result in property damage, data loss, lower performance, or unpredictable result.
TIPS	Provides methods to help you solve a problem or save you time.
NOTE	Provides additional information as the emphasis and supplement to the text.

About the Manual

• The manual is for reference only. If there is inconsistency between the manual and the actual product, the actual product shall prevail.
• We are not liable for any loss caused by the operations that do not comply with the manual.
• The manual would be updated according to the latest laws and regulations of related jurisdictions. For detailed information, refer to the paper manual, CD-ROM, QR code or our official website. If there is inconsistency between paper manual and the electronic version, the electronic version shall prevail.
• All the designs and software are subject to change without prior written notice. The product updates might cause some differences between the actual product and the manual. Please contact the customer service for the latest program and supplementary documentation.
• There still might be deviation in technical data, functions and operations description, or errors in print. If there is any doubt or dispute, we reserve the right of final explanation.
• Upgrade the reader software or try other mainstream reader software if the manual (in PDF format) cannot be opened.
• All trademarks, registered trademarks and the company names in the manual are the properties of their respective owners.
• Please visit our website, contact the supplier or customer service if there is any problem occurring when using the device.
  • If there is any uncertainty or controversy, we reserve the right of final explanation.

Important Safeguards and Warnings

This section introduces the proper way of using the SSD, and danger and property damage preventions. Before using the SSD, read this manual carefully. Follow the instructions and keep this manual properly.

Operating Requirements

• Do not place or install the product in a place exposed to sunlight or near the heat source.
• Keep the product installed horizontally or on a stable place to prevent it from falling.
• Do not drop or splash liquid onto the product, and make sure that there is no object filled with liquid on the product to prevent liquid from flowing into the product.
  • Install the product in a well ventilated place, and do not block the ventilation of the product.
• Operate the product within the rated range of power input and output.
  • Do not dissemble the product.
• Transport, use and store the product under the allowed humidity and temperature conditions.

Table of Contents

Foreword....I

Important Safeguards and Warnings....II

1 Structure....1

1.1 Dimensions....1
1.2 Ports....1

2 Installation 2

2.1 Preparation.... 2
2.2 Installing SSD 2

1 Structure

1.1 Dimensions

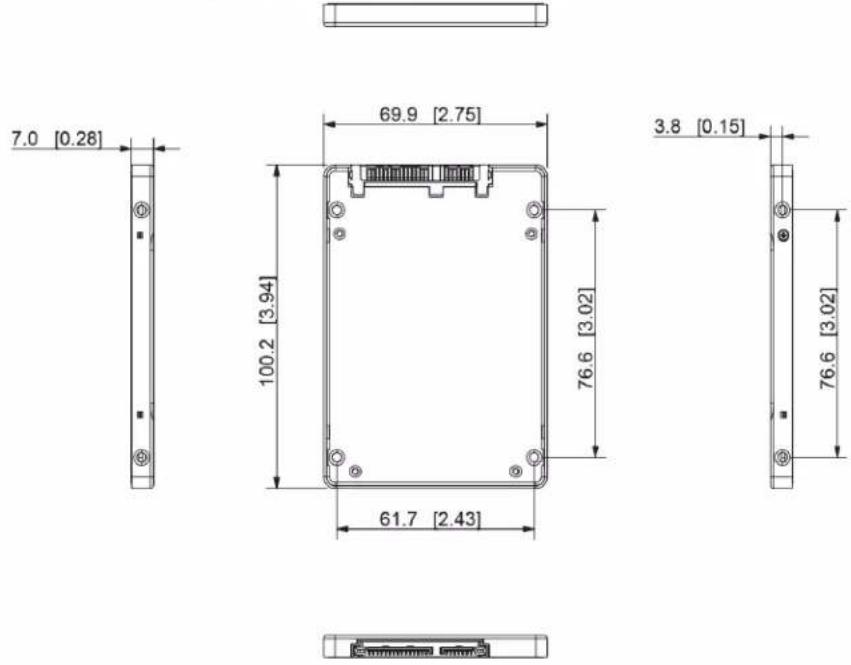

Figure 1-1 Dimensions (mm [inch])

1.2 Ports

Table 1-1 Port description

No.	Name	Description
1	Data port	Connect the SSD to the SATA data port on devices such as PC with SATA data cable.
2	Power port	Connect the SSD to SATA power port on devices such as PC with SATA power cable.

2 Installation

2.1 Preparation

Table 2-1 Environment requirements

Installation Environment	Description
Operating temperature	0°C to 70°C (32°F to 158°F)
Storage temperature	-40°C to 85°C (-40°F to 185°F)
Operating Humidity	5%-95% (non-condensing)

2.2 Installing SSD

Before installing, make sure that your PC mainboard supports SSD, and there are enough SATA slots to be used by the SSD.

There are two installation methods for the SSD: Cable connection and direction insertion.

- Cable connection: Connect corresponding ports on the main board of devices to the SSD with SATA data cable and power cable.

SATA data cable and power cable of the SSD are not included. You can purchase them separately as needed.

- Direct insertion: Insert data and power ports of the SSD directly to the corresponding ports on the main board of devices.

Figure 2-1 Install by cable connection

Technical line drawing of a rectangular electronic device with a separate inset showing internal components (no text or symbols)

Figure 2-2 Install by direct insertion

Technical line drawing of a rectangular electronic device with mounting holes and a separate internal component (no text or symbols)
