BSD4868 - Refrigerator Becken - Free user manual and instructions

Product Type	Freestanding Refrigerator
Brand	Becken
Model	BSD4868
Total Capacity	350 Liters
Refrigerator Capacity	250 Liters
Freezer Capacity	100 Liters
Dimensions (H x W x D)	1700 x 600 x 650 mm
Weight	65 kg
Power Supply	220-240V, 50Hz
Energy Consumption	300 kWh/year
Energy Efficiency Class	E (EU)
Climate Class	N-ST (16°C - 38°C)
Noise Level	42 dB(A)
Cooling System	Static (Fan-assisted)
Defrost	Automatic (Refrigerator), Manual (Freezer)
Number of Shelves	4 (adjustable)
Door Type	Reversible hinge
Interior Light	LED

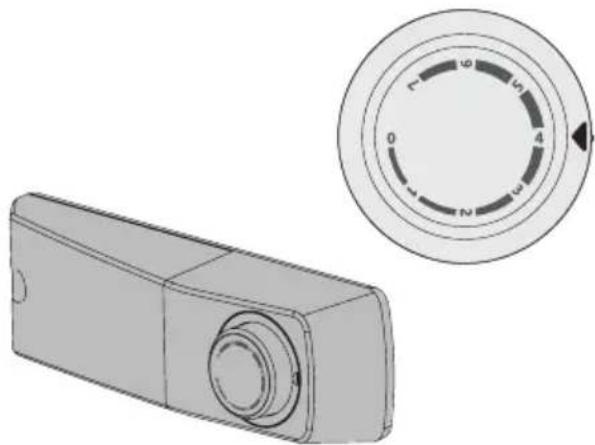

Temperature Control	Mechanical dial
Refrigerant	R600a (Isobutane)
Spare Parts Availability	At least 7 years
Maintenance	Clean condenser coils annually

Frequently Asked Questions - BSD4868 Becken

How do I adjust the temperature on my Becken BSD4868 refrigerator?

The temperature is controlled by a mechanical dial inside the fridge compartment. Turn the dial to a higher number for colder temperature. A medium setting (3-4) is recommended for normal use.

Why is my refrigerator not cooling properly?

Check if the door is fully closed, the condenser coils are clean, and the temperature dial is set correctly. Also ensure the appliance is not placed near a heat source or in direct sunlight. If problem persists, contact a technician.

How often should I defrost the freezer?

The freezer requires manual defrosting when ice buildup reaches about 5mm thickness. This typically occurs every 6-12 months depending on usage. Follow the defrost instructions in the manual.

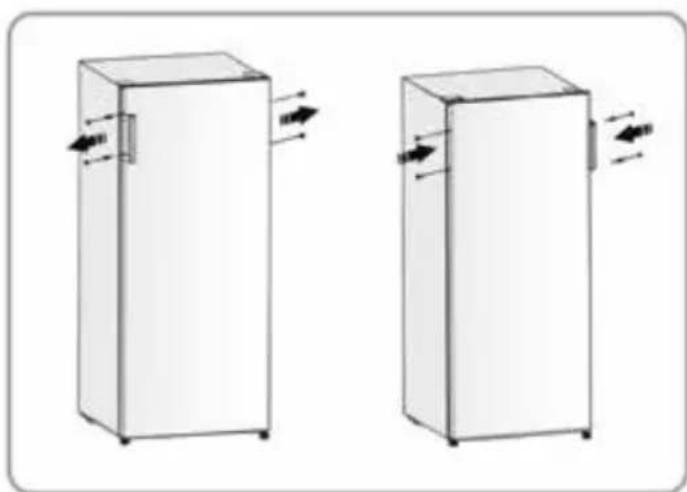

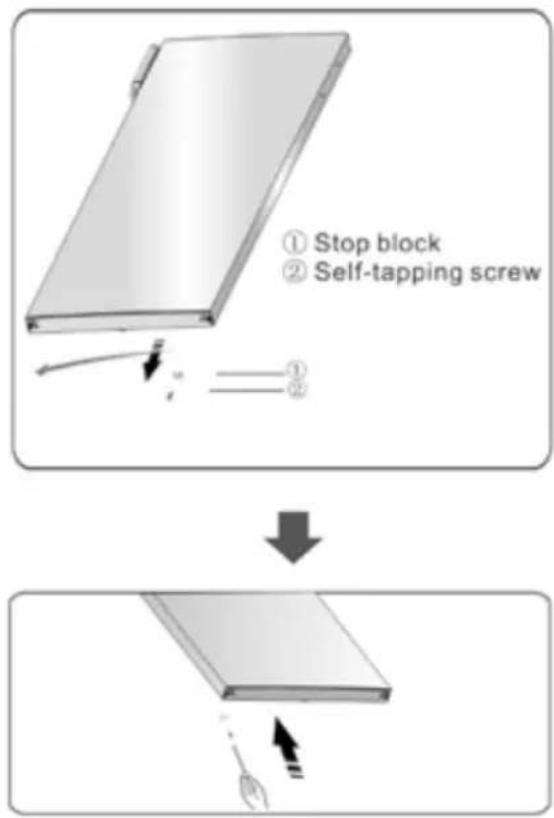

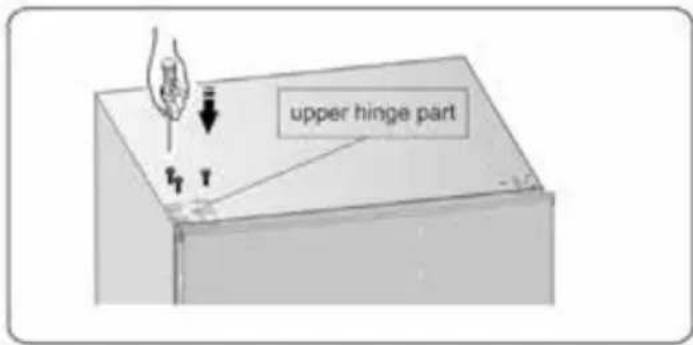

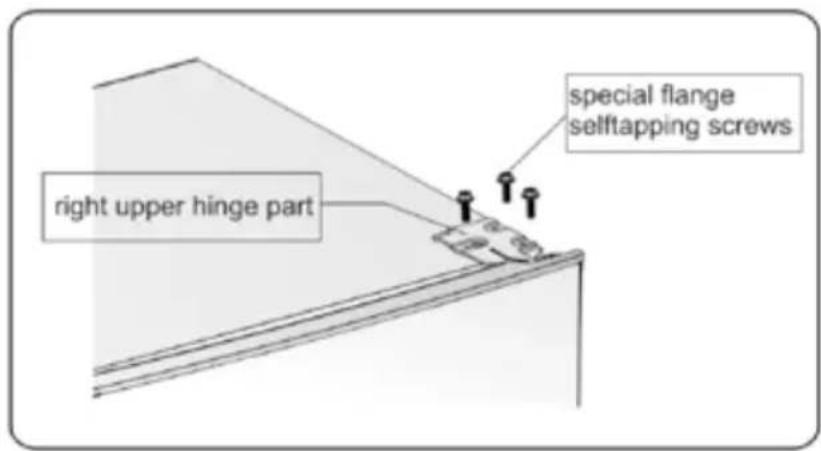

Can I reverse the door opening direction?

Yes, the door hinge is reversible. The user manual provides step-by-step instructions to change the door swing. You will need a screwdriver and possibly a helper.

What should I do if the interior light is not working?

First, check if the door switch is functioning properly. If the bulb (LED) is faulty, it must be replaced by a qualified technician as it is not user-serviceable. Contact Becken support.

How do I clean my Becken BSD4868 refrigerator?

Unplug the appliance. Remove all food and shelves. Clean the interior with a mild detergent and warm water. Avoid abrasive cleaners. Wipe dry and replace shelves. Clean the condenser coils at least once a year with a vacuum cleaner.

What is the energy consumption of this refrigerator?

The Becken BSD4868 has an estimated annual energy consumption of 300 kWh. This corresponds to energy efficiency class E (EU energy label). Actual consumption depends on usage and environment.

How long does it take for the refrigerator to reach the correct temperature after first use?

It may take up to 4-6 hours for the refrigerator to reach its optimal temperature after first plugging in. Avoid opening the door frequently during this period.

Are spare parts available for this model?

Yes, Becken commits to providing spare parts for at least 7 years after the model is discontinued. Common spare parts include shelves, door gaskets, and temperature dials.

What is the noise level of this refrigerator?

The noise level is rated at 42 dB(A), which is slightly audible but considered normal for a refrigerator. If you hear unusual sounds like clicking or buzzing, refer to the troubleshooting guide.

USER MANUAL BSD4868 Becken

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instructions manual is provided to simplify the use of the appliance as well as to guarantee a safe use.

Please read carefully the instructions and safety measures described in this manual.

We sincerely hope you will be satisfied when using your new appliance.

INDEX

1. SAFETY INSTRUCTIONS 4

1.1. Power Supply 5
1.2. Power Cord and Other Cables 5
1.3. Humidity and Water 5
1.4. Cleaning 6
1.5. General Precautions 6

2. OPERATING INSTRUCTIONS 15

2.1. Product Description 15
2.2. Product usage 16
2.3. Maintenance 29
2.4. Troubleshooting 32

3. POST-SALE SERVICE 34

4. ENVIRONMENTAL PROTECTION 35

BECKEN

1. SAFETY INSTRUCTIONS

WARNING

RISK OF ELECTRIC SHOCK DO NOT OPEN

Warning: to avoid the risk of electric shock, do not remove the cover. The interior does not contain any parts that can be repaired by the user. Ask for assistance from the Customer Support Service.

Important Warnings

Before using your appliance read this instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance should not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope, any incorrect use, as well as any manual modifications to the product will not be covered and automatically voids the warranty.

Assistance

This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case, please consult the Customer Support Service.

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket.

Take it to the Customer Support Service for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous.

To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

BECKEN

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main power supply. Always allow the unit to cool down before cleaning. To clean the exterior of the product, use a dry soft cloth only.

1.5. General Precautions

• Please follow the instructions in the user manual which will help you to properly install and operate this product and enjoy its advanced features. Please keep the instructions for future reference.
• Read all instructions before using the product.
• Maintenance and service operations are only to be carried out by authorized professionals.
• Any damage caused by manual modifications to the product is not covered by the warranty.
• If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.
• To avoid unnecessary mistakes and accidents, it is important to make sure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and be sure that they remain with the appliance if it is moved or sold, so that anyone using it throughout its life will be properly informed on its usage and safety notices.
• For the safety of life and property, keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

• Children should be supervised to ensure that they do not play with the appliance.

• Keep all packaging away from children as there is risk of suffocation.

• If you are discarding the appliance, remove the plug from the socket, cut the connection cable (as close to the appliance as possible) and remove the door to prevent playing children from suffering an electric shock or from closing themselves inside it.
• If this appliance, featuring a magnetic door seals, is to replace an older appliance with a spring lock (latch) on the door or lid, make sure you render the spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

WARNING — This appliance is intended to be used in household and similar applications such as

- staff kitchen areas in shops, offices and other working environments;

- farm houses and hotels, motels and other residential type environments;

- bed and breakfast type environments;

- catering and similar non-retail applications.

- WARNING — Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- WARNING — If the supply cord is damaged, it must be replaced by the manufacturer, the Customer Support Service or similarly qualified persons in order to avoid a hazard.

- WARNING — Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

- WARNING — Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

BECKEN

• WARNING — Do not damage the refrigerant circuit.
• WARNING — Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

Safety for children and other vulnerable people

According to EN standard

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.

Note: Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

According to IEC standard

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning
• WARNING — The refrigerant and insulation blowing gas are flammable. When disposing of the appliance, do so only at an authorized waste disposal centre. Do not expose to flame.
• WARNING — When positioning the appliance, ensure the supply cord is not trapped or damaged.
• WARNING — Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

- WARNING — Food needs to be packed in bags before putting into the refrigerator, and liquids need to be packed in bottles or capped containers to avoid the problem of cleaning the product design structure, which is not easy to do.

- Thesymbol is a warning and indicates the refrigerant and insulation blowing gas are flammable.

WARNING: Risk of fire / flammable materials Replacing the lighting lamp

- WARNING—The lighting lamp must not be replaced by the user! If the lighting lamp is damaged, contact the Customer Support Service for assistance.

- This warning is only for refrigerators with a lighting lamp.

Refrigerant

- WARNING! During using, service and disposal the appliance, please pay attention to a similar symbol, which is located on rear of appliance (rear panel or compressor) There are flammable materials in refrigerant pipes and compressor. Please be far away fire source during using, service and disposal.

- The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility which is, nevertheless, flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit become damaged.

- The refrigerant (R600a) is flammable.

- WARNING — Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal.

BECKEN

• Should the refrigerant circuit be damaged:
• Avoid starting flames and sources of ignition.
• Thoroughly ventilate the room in which the appliance is situated
• It is dangerous to alter the specifications or modify this product in any way.
• Any damage to the cord may cause a short-circuit, fire, and/or electric shock

Electrical safety

• The power cord must not be lengthened.
• Make sure the power plug is not pressed or damaged. A pressed or damaged power plug may overheat and cause a fire.
• Make sure that you can access the appliance main plug.
• Do not pull the main cable.
• If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
• You must not operate the appliance without the interior lighting lamp cover.
• The refrigerator is only powered with power supply of single-phase alternating current of 220-240V/50Hz. If there are voltage fluctuations in the user's district so large that the voltage exceeds the above scope, for safety reasons, make sure to apply an A.C. Automatic voltage regulator of more than 350 W to the refrigerator. The refrigerator must be plugged in to a designated socket and not a common socket shared with other appliances. Its plug must match the socket with ground wire.

Daily use

• Do not store flammable gas or liquids in the appliance, there is a risk of an explosion.
• Do not operate any electrical appliances in the appliance (e.g. electric ice cream makers, mixers etc.).
• When unplugging, always pull the plug from the mains socket, not on the cable.
• Do not place hot items near the plastic components of this appliance.
• Do not place food products directly against the air outlet on the rear wall.
• Store pre-packed frozen food in accordance with the frozen food manufacturer's instructions.
• The appliances manufacture storage recommendations should be strictly adhered to. Refer to REL relevant instructions for storage.
• Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.
• Frozen food can cause frost burns if consumed straight from the freezer compartment.
• Do not place the appliance under direct sunlight.
• Keep burning candles, lamps and other items with naked flames away from the appliance not to set the appliance on fire.

BECKEN

- The appliance is intended to keep food stuff and/or beverages in normal households; as explained in this instruction booklet, the appliance is heavy. Care should be taken when moving it.

- Do not remove or touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.

- Never use the base, drawers, doors etc. to stand on or as supports.

- Frozen food must not be refrozen once it has been thawed out.

- Do not consume ice popsicles or ice cubes straight from the freezer as these can cause freezer burn to the mouth and lips.

- To avoid items falling and causing injury or damage to the appliance, do not overload the door racks or put too much food in the crisper drawers.

- This refrigerating appliance is not intended to be used as a built-in appliance, and it is not suitable for freezing foodstuffs.

- Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.

- Do not clean the appliance with metal objects, steam cleaner, ethereal oils, organic solvents or abrasive cleansers.

- Do not use sharp objects to remove frost from the appliance. Use a plastic scraper..

Installation Important!

- For electrical connection, carefully follow the instructions given in this manual.

• Unpack the appliance and check if there are damages on it.
• Do not connect the appliance if it is damaged. Report possible damages immediately to Worten. In that case, retain the packing.
• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.

- There should be adequate air circulation around the appliance; lacking thereof will lead to overheating. To achieve sufficient ventilation, follow the instructions relevant to installation.

- Wherever possible, the back of the product should not be too close to a wall to avoid touching or catching warm parts (compressor, condenser) to prevent the risk of a fire. Follow the instructions relevant to installation.

- The appliance must not be located close to radiators or cookers.

- Make sure the mains plug is accessible after installation of the appliance.

Service

• Any electrical work required to do the servicing of the appliance should be carried out by qualified electrician, a competent person or the Customer Support Service.
• This product must be serviced by an authorized Customer Support Service, and only genuine spare parts must be used.
• If the appliance is Frost Free.
• If the appliance contains freezer compartment.

BECKEN

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Store meat or fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

Order	Compartments Type	Target storage temp. [°C]	Appropriate food
1	Refrigerator +2≤+8 Eggs	cooked food	food, packaged food, fruits and vegetables, dairy products, cakes, drinks and other foods are not suitable for freezing.
2	Fresh Food 0≤+4 Fresh	pork, beef, fish	chicken, cooked food, etc. (Recommended to eat within the same day, preferably no later than 3 days)
3	Wine +5≤+20 Red wine	white wine,	sparkling wine etc.

Note: please store different foods according to the compartments or target storage temperature of your purchased products.

If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Water dispenser cleaning (special for water dispenser products):

Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.

2. OPERATING INSTRUCTIONS

2.1. Product Description

View of the appliance

1. Controller box and LED light

2. Refrigerator shelf

3. Vegetable drawer cover

4. Vegetable drawer

5. Adjustable feet

6. Handles

7. Upper door shelf

8. Lower door shelf

9. Refrigerator door

Note: Due to constant development of our products, your refrigerator may be slightly different from this instruction manual, but its functions and usage remain the same.

BECKEN

2.2. Product usage

Installing the appliance

Before using the appliance for the first time, you should review the following tips.

Ventilating the appliance

In order to improve the cooling system's efficiency and save energy, it is necessary to maintain a good ventilation around the appliance. For this reason, sufficient clear space should be available around the refrigerator.

It is advisable to keep at least a 50-70mm space between the back of the appliance and the wall, at least 100 mm from its top, at last 100 mm between the sides and the walls and a clear space in front to allow the doors to open 135°. Please see the following diagrams.

Note:

This appliance performs well within the climate class from N to ST showed in the table below.

It may not work properly if left at a temperature above or below the indicated range for a long period.

Climate class Ambient temperature

SN +10 °C to +32 °C

N +16 °C to +32 °C

ST +16 °C to +38 °C

T +16 °C to +43 °C

- Place your appliance in a dry place to avoid moisture damage.

- Keep the appliance out of direct sunlight, rain or frost. Place the appliance away from heat sources such as stoves, fires or heaters.

Levelling the appliance

• For sufficient levelling and air circulating in the lower rear section of the appliance, the feet may need to be adjusted.
• You can adjust them manually using a suitable spanner.
• To allow the doors to self-close, tilt the top backwards about 10 mm.

Using your appliance

Accessories 1)

Movable shelves/trays

- Various glass, plastic storage shelves or wire trays are included with your appliance - different models have different combinations and different features.

BECKEN

- The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

Illustration of a hand placing a directional arrow on a shelf (no text or symbols)

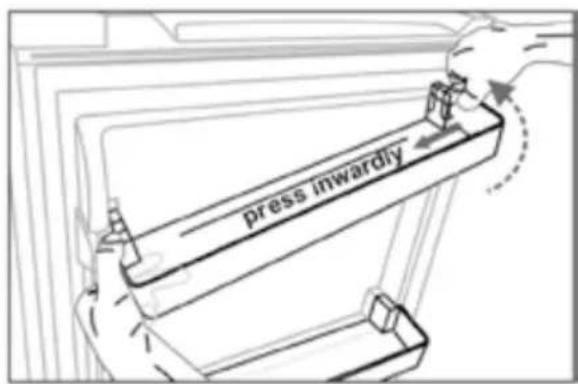

Removing and installing the door shelf

Warning: The door shelf must not be removed and installed by the user! If the door shelf is damaged, contact the Customer Support Service for assistance. To replace the door shelf, follow the steps below: Remove the door shelf.

Press the right side of the door shelf inwardly, while holding the left side. When the notch of the shelf has been detached from the refrigerator door, remove the rack obliquely upwardly. Installing the door shelf.

Tilt the left side of the door shelf, and make sure the notch is fastened to the door. Then, press the right side inwardly, push it down to the right place.

Refrigerator compartment 2)

- To store food that does not need to be frozen and different sections suitable for different kinds of food.

Vegetable Drawer

• To store fruit and vegetables.

Operation

Starting up and temperature regulation

- Plug in the appliance to a power plug socket with a protective earth contact. When the refrigerator compartment door is opened, the internal lights are switched on. After the refrigerator has been placed in position, wait 5 minutes before turning it on Don't store anything until the temperature inside the refrigerator becomes low enough.

- The temperature selector knob is located on the right of the refrigerator compartment.

- For optimum food preservation, a medium setting is generally the most suitable.

BECKEN

Setting 0 means:

Off.

Rotate the knob clockwise to turn on the appliance.

Setting 1 means:

Highest temperature, warmest setting.

Setting 7 (end-stop) means:

Lowest temperature, coldest setting. Important! Normally, we advise you to select the 2 or 3 or 4 setting; if you want the temperature higher or colder please turn the knob to warmer or colder setting accordingly. When you turn the knob to the colder setting, it can lead to a more energy-efficient use. Otherwise, it would result in a more energy-consuming.

Important! High room temperatures (e.g. hot summer days) and a cold setting (position 6 to 7) may cause the compressor to run continuously or even non-stop!

Reason: When the room temperature is high, the compressor must run continuously to maintain the low temperature in the appliance.

NOTE: High temperature setting will accelerate food waste.

Technical illustration of a rectangular device with a circular dial and its side view showing internal components (no text or symbols)

Changing the LED light

⚠ Warning! If the LED light is damaged. DO NOT CHANG IT BY YOURSELF!

Changing the LED light carry out by inexperienced persons may cause injury or serious malfunctioning. It must be replaced by a qualified persons in order to avoid a hazard. Contact the Customer Support Service for assistance.

• Before changing the LED fight, switch off the appliance and unplug it, or pull the fuse or the circuit breaker.
  • LED light data: 220-240 V, MAX 2 W
  • Unplug the appliance.
  • To change the LED light, undo the screw.
• Change the defective LED light.
• Place the refrigerator back into operation.

Reversing the door

The side at which the door opens can be changed, from the right side (as supplied) to the left side, if required.

Warning! When reversing the door, the appliance must not be connected to the mains. Make sure the plug is removed from the mains socket.

BECKEN

Tools required

Not provided
8 mm socket wrench Thin-blade screwdriver Putty knife
Cross-shaped screwdriver Monkey wrench 8 mm wrench
Additional parts (in the plastic bag)
Left Hinge Cover

Note: If required you may lay the refrigerator on its back in order to gain access to the base; you should rest it on a soft foam packaging or similar material to avoid damaging the refrigerator backboard. To reverse the door, the following steps are generally recommended.

1. Stand the refrigerator upright. Open the upper door to take out all door racks (to avoid damage) and then close the door.

Removing the door shelf.

[you can trust]

1. Use a putty knife or thin-blade screwdriver to remove the screw hole cover, located at the top left corner of the refrigerator, and the upper hinge cover, located at the top right corner of the refrigerator.

1. Unscrew the special flange self-tapping screws which are used for fixing the right upper hinge part with an 8 mm socket driver or spanner (please support the upper door with your hand when doing it).

1. Remove the upper hinge axis, transfer it to reversed side, tighten ir securely and then put it in a safe place.

BECKEN

1. Remove the door from the lower hinge

NOTE: When removing the door, watch for washer(s) between the lower hinge and the bottom of the lower door that may stick to the door. Do not lose.

Illustration of a refrigerator with doors open and arrows indicating motion (no text or symbols)

1. Place it on a smooth surface with its panel upwards. Loose screw.

1. Lay the refrigerator on a soft foam packaging or similar material. Remove both adjustable feet parts, and the lower hinge part by unscrewing the special flange self-tapping screws.

1. Replace the lower hinge part to the left side and fixing it with the special flange self-tapping screws. Replace the adjustable feet parts to another side and fixing it.

BECKEN

Diagram of a hand using a tool to lift a device into a tray, with arrows indicating motion (no text or symbols)

1. Transfer the door to the property position, adjust the lower hinge part, make the hinge axis into the lower hole of the door.

Illustration of a refrigerator with hands holding the door and a downward arrow indicating cooling (no text or symbols)

1. Transfer the upper hinge part and make the upper hinge axis into the upper hole of the door, and adjust the position of the door (please support the door with your hand when doing it), fixing the upper hinge part with the special flange self-tapping screws.

1. Install the screw hole cover on the top right corner of the refrigerator. Install the upper hinge cover (which is in the plastic bag) on the left corner. Put the other upper hinge cover into the plastic bag.

1. Move the handle from the left side of door to the right side.

Two identical white rectangular storage cabinets with directional arrows indicating movement, no text or symbols present.

BECKEN

1. Open the upper door and install the door shelves, then close it.

Warning!

When changing the side at which the door opens, the appliance must not be connected to the mains. Remove the plug from the mains beforehand.

Helpful hints and tips

Noises during operation

The following noises are characteristic of refrigeration appliances:

Clicks Whenever the compressor switches on or off, a click can be heard.

Humming As soon as the compressor is in operation, you can hear it humming.

Bubbling When refrigerant flows into thin tubes, you can hear bubbling or splashing noises.

Splashing Even after the compressor has been switched off, this noise can be heard for a short time.

Energy saving tips

• Do not install the appliance near cookers, radiators or other sources of warmth.
• Do not open the door too often or leave the door open any longer than necessary. Do not set temperature colder than necessary.
• Make sure the side plates and back plate of the appliance are at a distance from the wall, follow the relevant instructions regarding installation.
• If the sketch map shows the right combination of the drawers, crisper and shelves, do not adjust the combination, it would result in more energy-consuming.

Hints for fresh food refrigeration

To obtain the best performances:

• Do not store warm foods or evaporating liquids in the appliance.
• Do cover or wrap the food, particularly if it has a strong flavour.
• Position food so that air can circulate freely around.

Hints for refrigeration

• Meat (all types): wrap in polythene bags and place on the glass shelf above the vegetable drawer. For safety, store in this way only one or two days at the most.
• Cooked foods, cold dishes, etc...: these should be covered and may be placed on any shelf. Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.
• Butter and cheese: these should be placed in aluminium foil or polythene bags to exclude as much air as possible.
• Milk bottle: these should have a cap on and should be stored in the bottle rack on the door

NOTE: To get the best energy efficiency out of this product, position all shelves and drawers on their original position as show above.

2.3. Maintenance

For hygienic reasons, the interior of the appliance should be cleaned regularly.

The refrigerator should be cleaned and maintained at least every two months.

BECKEN

Warning! Danger of electrical shock!

- The appliance should not be connected to the mains during cleaning. Before cleaning, switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse.

Important!

• Remove the food from the appliance before cleaning. Store them in a cool, well covered place.
• Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components,
• Hot vapours can damage plastic parts.
• Ethereal oils and organic solvents can damage plastic parts, e.g. lemon juice or the juice from orange peel, butyric acid or cleanser with acetic acid. Do not allow such substances to come into contact with appliance parts.
• Do not use any abrasive cleansers.
• Clean the appliance and the interior accessories with a cloth and lukewarm water. Commercially available dish washing detergents may also be used.
  • After cleaning, wipe with fresh water and a clean dish cloth.
• Accumulation of dust in the condenser increases energy consumption, clean the condenser at the back of the appliance once a year with a soft brush or a vacuum cleaner.

• Check the water drain hole on the rear wall of the refrigerator compartment.

• Clear a blocked drain hole with the aid of something like a soft sponge, be careful not to damage the cabinet with sharp utensils.
  • After everything is dry, place appliance back into service.

Defrosting

Why you should defrost your appliance

- Water contained in food or that gets inside the refrigerator when opening its doors may form a frost layer inside. This can weaken the refrigeration when the frost is thick. This it accumulates in a layer thicker than 10 mm, defrost.

Defrosting the fresh food storage compartment

- Defrosting is automatically controlled by switching the temperature regulator on or off so that there is no need to defrost it by yourself. Water from defrosting will be drained into a drip tray through a drain pipe at the back of the refrigerator automatically.

Not in use for a long period of time

• Remove all refrigerated packages.
• Switch off the refrigerator by turning the temperature regulator to the "0" position.
• Remove the mains plug or switch off or disconnect the electricity supply.
• Clean thoroughly (refer to the Maintenance section)
• Leave the door open to avoid the build-up of odours.

Note: If the appliance contains a freezer compartment

Disposal of the appliance

It is prohibited to dispose of this appliance as household waste.

BECKEN

Packaging materials

Packaging materials with the recycle symbol are recyclable. Dispose of the packaging into a suitable waste collection container to recycle it.

Before disposal of the appliance.

1. Disconnect the mains plug from the mains socket.
2. Cut off the mains cable and discard it.

2.4. Troubleshooting

⚠ Warning! Before troubleshooting, disconnect the power supply. Only a qualified electrician of competent person must carry out troubleshooting that is not in the manual.

Important! During normal use, the refrigerator will emit some sounds (compressor, refrigerant circulation)

Important!

Repairs to refrigerators/freezers may only be performed by competent service personnel. Improper repairs can give rise to significant hazards for the user. If your appliance needs repairing, please contact your specialist dealer or the Customer Support Service.

Problem	Possible cause	Solution
Appliance does not work.	Appliance is not switched on.	Switch on the appliance.
	Mains plug is not plugged in or is loose.	Insert the mains plug firmly.
	Fuse has blown or is defective.	Check fuse, replace if necessary.
	Socket is defective. Mains malfunctions are to be corrected by an electrician.
Appliance cools too much.	Temperature is set too cold.	Turn the temperature regulator to a warmer setting temporarily.
The food is too warm.	Temperature is not properly adjusted.	Refer to the “Product usage” section.
	Door was open for an extended period.	Open the door only as long as necessary.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the temperature regulation to a colder setting temporarily.
	The appliance is near a heat source.	Please look in the “installation location” section.
Interior lighting does not work.	Light bulb is defective Please refer to the “Replacing the lighting lamp” section
Heavy build-up of frost, possibly also on the door seal.	Door seal is not air-tight (possibly after reversing the door).	Carefully warm the leaking sections of the door seal with a hair dryer (on a cool setting). At the same time shape the warmed door seal by hand such that it sits correctly.
Unusual noises.	Appliance is not levelled. Readjust the feet.
	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.
The compressor does not start immediately after changing the temperature setting.	This is normal, no error has occurred.	The compressor starts after a period of time.

BECKEN

Problem	Possible cause	Solution
Water on the floor or storage shelves.	Water drain hole is blocked.	Refer to the “Maintenance” section.

3. POST-SALE SERVICE

Becken has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Customer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 2-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

4. ENVIRONMENTAL PROTECTION

In order to protect the environment, we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic. The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Estimado cliente:

Illustration of a hand placing a door panel with an arrow symbol (no text or labels)

Technical illustration of a rectangular device with a circular dial and its side view showing internal components (no text or symbols)

Diagram of a refrigerator with doors open and arrows indicating airflow or movement (no text or symbols)

Diagram of a hand using a tool to clean or remove objects from a device (no text or symbols present)

Simple line drawing of a refrigerator with hands holding and a downward arrow indicating a drop (no text or symbols)

Two identical white rectangular storage cabinets with directional arrows indicating movement, no text or symbols present.

[you can trust]

Symbol of a trash bin crossed with two crossed lines, no text or labels present

ES

Caro(a) cliente,

Illustration of a hand placing a black arrow on a shelf inside a refrigerator (no text or symbols)

Technical illustration of a rectangular device with a circular dial and its side view showing internal components (no text or symbols)

Trocar a luz LED

[you can trust]

Inversão da porta

Diagram of a refrigerator with doors open and arrows indicating airflow or movement (no text or symbols)

Diagram of a hand using a tool to clean or remove objects from a device (no text or symbols present)

Simple line drawing of a refrigerator with hands holding and a downward arrow indicating a drop (no text or symbols)

Two identical white rectangular storage cabinets with directional arrows indicating movement, no text or symbols present.

[you can trust]

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

PT

BECKEN

Imported, produced and distributed by:

Worten Equipamentos p/o Lar S.A.
