OMK1-1 - Wall mount IIYAMA - Free user manual and instructions

Product Type	Wall Mount
Brand	Iiyama
Model	OMK1-1
VESA Compatibility	75x75mm, 100x100mm
Maximum Screen Size	32 inches
Weight Capacity	Up to 20 kg (44 lbs)
Material	Steel (SPCC)
Surface Finish	Black powder coated
Distance from Wall	Approximately 10 mm
Tilt Adjustment	Fixed (no tilt)
Swivel	No swivel
Rotation	No rotation
Installation	Wall mount with included hardware
Mounting Standard	VESA MIS-D
Warranty	2 years
Compatibility	Iiyama monitors with VESA holes
Package Contents	Wall plate, bracket, screws, anchors, manual
Weight (Product Only)	0.45 kg (1 lb)
Dimensions (Product Only)	115 x 115 x 10 mm
Color	Black
Security Cable Slot	Not included
Installation Tools Required	Phillips screwdriver, drill, level
Certifications	CE, TÜV

Frequently Asked Questions - OMK1-1 IIYAMA

What is the VESA pattern supported by the Iiyama OMK1-1 wall mount?

The Iiyama OMK1-1 supports VESA patterns of 75x75mm and 100x100mm. Always verify your monitor's VESA pattern before mounting.

What is the maximum weight capacity of the OMK1-1?

The maximum weight capacity is 20 kg (44 lbs). Do not exceed this limit to ensure safety.

Does this wall mount allow tilt or swivel adjustments?

No, the OMK1-1 is a fixed mount. It does not offer tilt, swivel, or rotation. Your monitor will sit flush against the wall.

What tools are required for installation?

You will need a Phillips screwdriver, a drill (for masonry walls), and a level to ensure proper alignment. All necessary screws and anchors are included.

Can I mount a non-Iiyama monitor on this bracket?

Yes, as long as the monitor has a VESA pattern of 75x75mm or 100x100mm and weighs less than 20 kg. The mount is universal for compatible monitors.

What is the distance between the wall and the monitor after mounting?

The monitor will sit approximately 10 mm from the wall, giving a very slim profile.

Is the OMK1-1 suitable for drywall installation?

Yes, but you must use the included anchors. For drywall, make sure to drill into studs or use toggle bolts if studs are not available. The provided anchors are for concrete/masonry.

Does the mount include a security lock to prevent theft?

No, the OMK1-1 does not have a built-in security lock. However, some compatible monitors have Kensington lock slots that can be used independently.

How do I clean the wall mount?

Wipe the mount with a soft, dry cloth. Avoid abrasive cleaners or solvents, as they may damage the powder-coated finish.

What should I do if I lose the installation manual?

You can download the manual for free from notice-facile.com by searching for 'Iiyama OMK1-1'. PDF versions are available in multiple languages.

USER MANUAL OMK1-1 IIYAMA

For ProLite TF1534MC, ProLite TF1634MC, ProLite TF1734MC, ProLite TF1934MC, ProLite TF2234MC

CHECKING THE CONTENTS OF THE PACKAGE

The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama office.

■ Mount-Bracket (Bracket A) : 4pcs (7221316A101: 2pcs for ProLite TF1534MC / ProLite TF1634MC / ProLite TF1734MC / ProLite TF1934MC, 7221354A101: 2pcs for ProLite TF2234MC)
L-Bracket (Bracket B): 2pcs (7221317A0101:2pcs for ProLite TF1534MC / ProLite TF1634MC / ProLite TF1734MC / ProLite TF1934MC / ProLite TF2234MC)
■ Bracket Screw M4x8 : 8pcs (8pcs for ProLite TF1534MC / ProLite TF1634MC / ProLite TF1734MC / ProLite TF1934MC / ProLite TF2234MC)
■ User Manual (this document)

SPECIAL NOTES

Mount-Brackets, L-Brackets and screws are necessary to install an open frame monitor.

CAUTION

The Mount-Brackets and L-Brackets are designed to be mounted to specific wall types and hardware, in accordance with the installation instructions supplied with the Mounting Kit.
■ Using Mount-Brackets, L-Brackets or screws other than those specified in the installation instructions may damage the monitor.

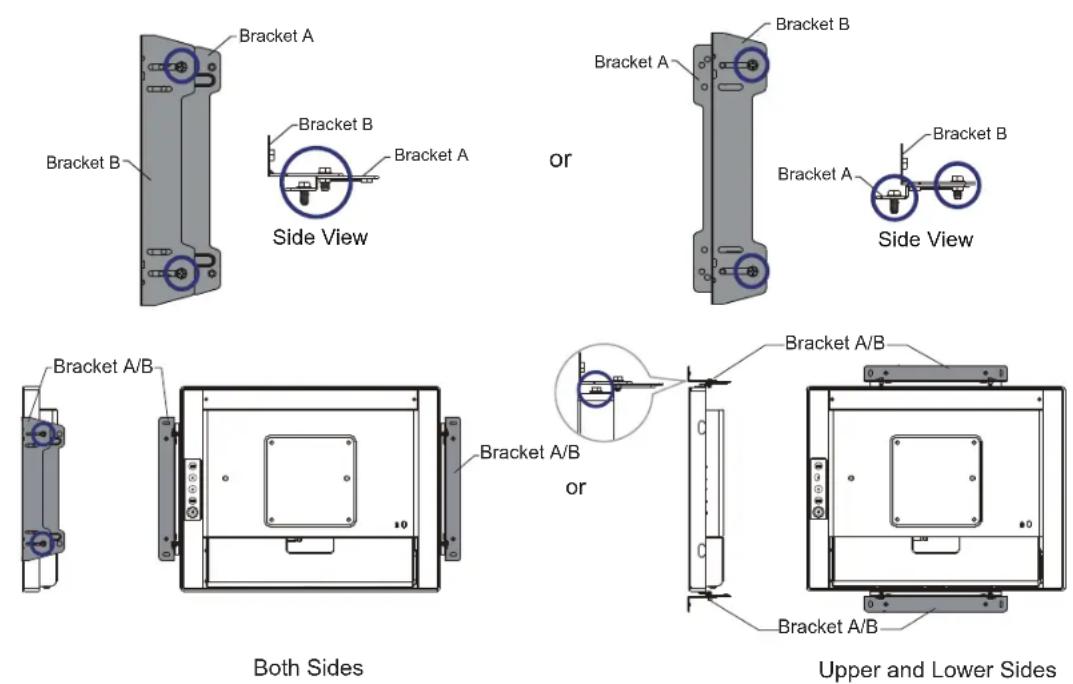

1. Depending on the monitor orientation (portrait or landscape) you choose, mount the Brackets A to the left and right hand sides or the upper and lower sides of the monitor and tighten them with screws supplied (2 pairs of 2 pcs).

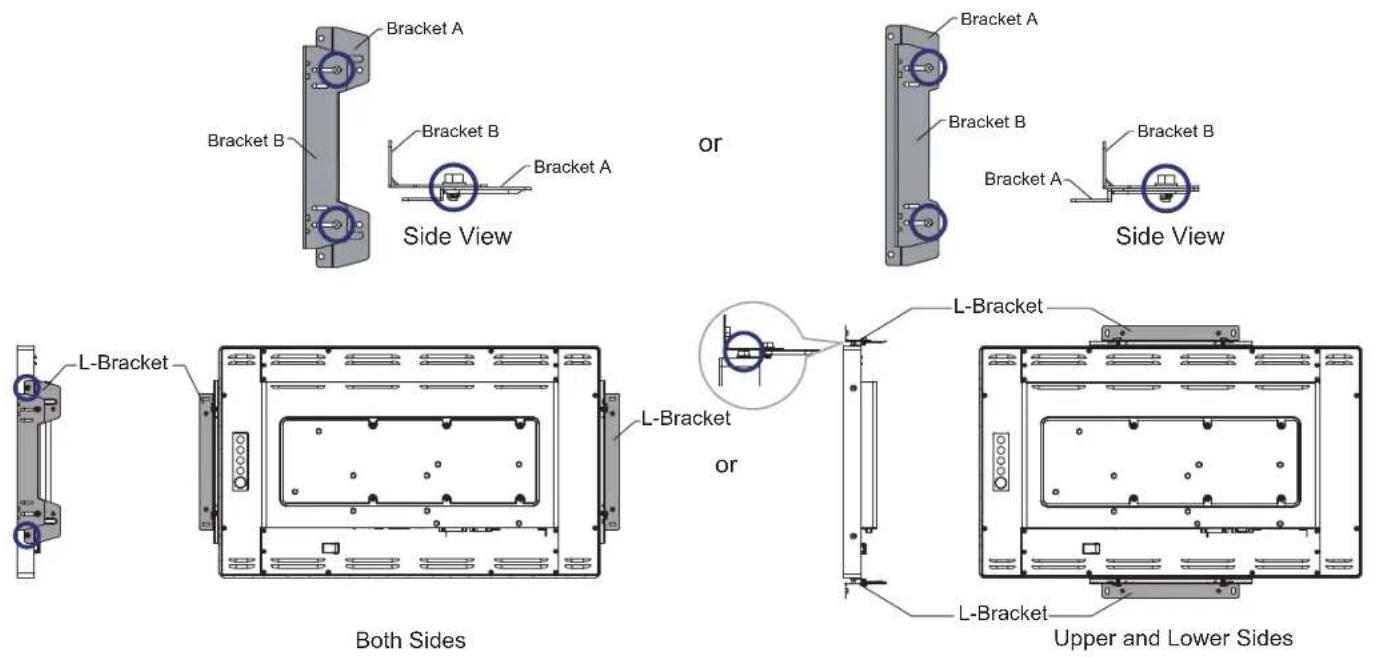

2. As shown in Figure below, tighten Bracket B to A using the screws supplied (2 pairs of 2 pcs).

■ ProLite TF1534MC, ProLite TF1634MC, ProLite TF1734MC, ProLite TF1934MC

■ ProLite TF2234MC

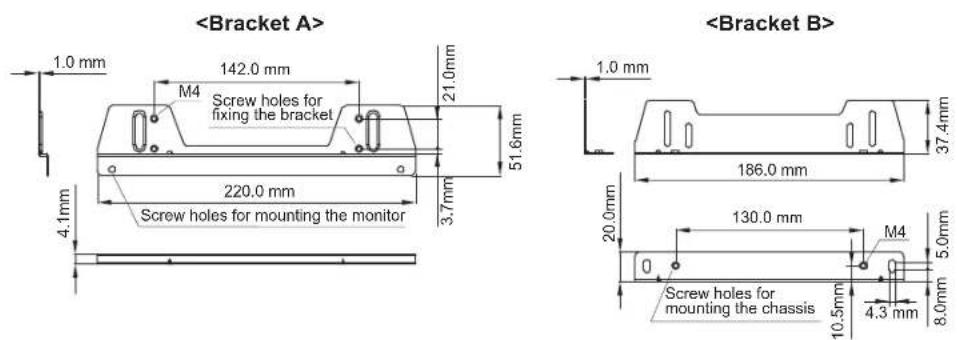

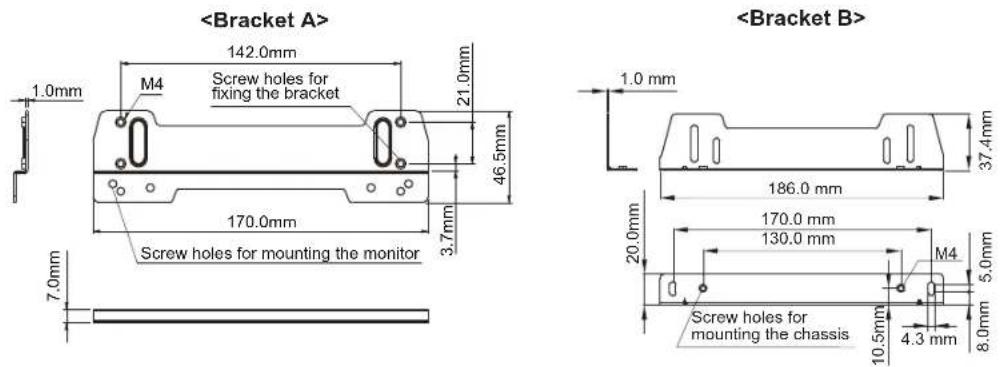

● Bracket dimensions

■ ProLite TF1534MC, ProLite TF1634MC, ProLite TF1734MC, ProLite TF1934MC

■ ProLite TF2234MC

NOTE

■ You will need a screwdriver to mount the Bracket A/B.
■ Brackets A/B and screws are necessary to install an open frame monitor. For details regarding open frame monitor temperature and humidity operating conditions, see the User Manual on IIYAMA website. http://www.iiyama.com.
■ ProLite TF1534MC, ProLite TF1634MC:

The position of the L-bracket can be either 1.3 mm or 40.7 mm from the front of the monitor depending on which screw holes you choose for mounting it.

■ ProLite TF1734MC, ProLite TF1934MC, ProLite TF2234MC:

The position of the L-bracket can be either 2.9 mm or 44.9 mm from the front of the monitor depending on which screw holes you choose for mounting it.
