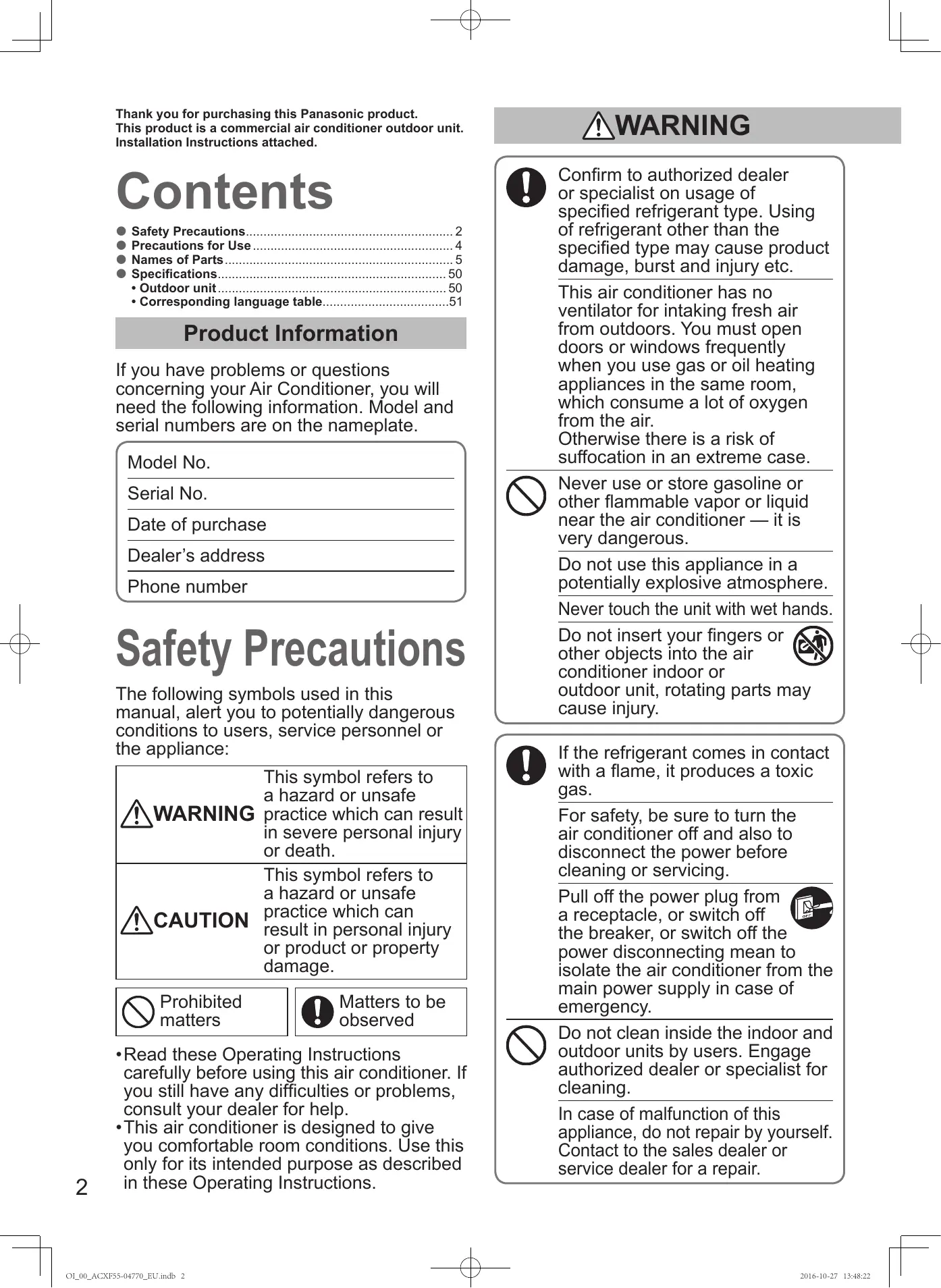

Operating Instructions Air Conditioner

Before operating the unit, read these operating instructions thoroughly and keep them for future reference.

Single Split (Single-phase)

Type PE2 U-36PE2E5A U-50PE2E5A U-60PE2E5A

● Connectable indoor unit lineup

This booklet is the operating instructions for outdoor unit. Regarding the indoor unit, see the operating instructions supplied with the indoor unit. INDOOR UNIT 4-Way Cassette 4-Way Cassette 60 × 60 Wall-Mounted Ceiling Low Silhouette Ducted Ducted

Panasonic Corporation

1006 Kadoma, Kadoma City, Osaka, Japan

F SPAÑOL Thank you for purchasing this Panasonic product.

This product is a commercial air conditioner outdoor unit. Installation Instructions attached.

If you have problems or questions concerning your Air Conditioner, you will need the following information. Model and serial numbers are on the nameplate. Model No. Serial No. Date of purchase Dealer’s address Phone number

The following symbols used in this manual, alert you to potentially dangerous conditions to users, service personnel or the appliance:

This symbol refers to a hazard or unsafe

WARNING practice which can result in severe personal injury or death. This symbol refers to a hazard or unsafe which can CAUTION practice result in personal injury or product or property damage. Prohibited matters

Matters to be observed

• Read these Operating Instructions carefully before using this air conditioner. If you still have any difficulties or problems, consult your dealer for help.

• This air conditioner is designed to give you comfortable room conditions. Use this only for its intended purpose as described in these Operating Instructions.

WARNING Confirm to authorized dealer or specialist on usage of specified refrigerant type. Using of refrigerant other than the specified type may cause product damage, burst and injury etc.

This air conditioner has no ventilator for intaking fresh air from outdoors. You must open doors or windows frequently when you use gas or oil heating appliances in the same room, which consume a lot of oxygen from the air. Otherwise there is a risk of suffocation in an extreme case. Never use or store gasoline or other flammable vapor or liquid near the air conditioner — it is very dangerous. Do not use this appliance in a potentially explosive atmosphere. Never touch the unit with wet hands. Do not insert your fingers or other objects into the air conditioner indoor or outdoor unit, rotating parts may cause injury. If the refrigerant comes in contact with a flame, it produces a toxic gas. For safety, be sure to turn the air conditioner off and also to disconnect the power before cleaning or servicing. Pull off the power plug from a receptacle, or switch off the breaker, or switch off the power disconnecting mean to isolate the air conditioner from the main power supply in case of emergency. Do not clean inside the indoor and outdoor units by users. Engage authorized dealer or specialist for cleaning. In case of malfunction of this appliance, do not repair by yourself. Contact to the sales dealer or service dealer for a repair.

CAUTION Provide a power outlet to be used exclusively for each unit, and a power supply disconnect, Earth

Leakage Circuit Breaker (ELCB) or Residual Current Device (RCD) for overcurrent protection should be provided in the exclusive line. Provide a power outlet exclusively for each unit, and full disconnection means having a contact separation in all poles must be incorporated in the fixed wiring in accordance with the wiring rules. To prevent possible hazards from insulation failure, the unit must be grounded. Do not use modified cord, joint cord, extension cord or unspecified cord to prevent overheating and fire. Stop using the product when any abnormality/failure occurs and disconnect the power plug or turn off the power switch and breaker. (Risk of smoke/fire/electric shock) Examples of abnormality/failure: • The ELCB trips frequently. • The product sometimes does not start when turned on. • The power is sometimes disconnected when the cord is moved. • Burnt odor or abnormal noise is detected during operation. • The body is deformed or abnormally hot. • Water leaks from the indoor unit. • Power cord or plug becomes abnormally hot. • Fan speed cannot be controlled. • The unit stops running immediately even if it is switched on for operation. • The fan does not stop even if the operation is stopped. Contact immediately your local dealer for maintenance/repair. Do not sit or step on the unit. You may fall down accidentally.

This appliance is intended to be used by expert or trained users in shops, in light industry and on farms, or for commercial use by lay persons.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning E use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Keep the fire alarm and the air outlet at least 1.5m away from the unit. Do not cool or heat the room too much if babies or invalids are present. Do not turn the air conditioner on and off from the power mains switch. Use the ON/OFF operation button. Do not stick anything into the air outlet of the outdoor unit. This is dangerous because the fan is rotating at high speed. Do not touch the air inlet or the sharp aluminum fins of the outdoor unit. You may get injured. Do not stick any object into the FAN CASE. You may be injured and the unit may be damaged.

• The compressor may occasionally stop during thunderstorms. This is not a mechanical failure. The unit automatically recovers after a few minutes. • The English text is the original instructions. Other languages are translations of the original instructions.

Important Information Regarding

The Refrigerant Used This product contains fluorinated greenhouse gases. Do not vent gases into the atmosphere. Refrigerant type: R410A GWP(1) value: 2088 (1) GWP = global warming potential Periodical inspections for refrigerant leaks may be required depending on European or local legislation. Please contact your local dealer for more information.

This air conditioner must be installed properly by qualified zz installation technicians in accordance with the Installation

Instructions provided with the unit. Before installation, check that the voltage of the electric supzz ply in your home or office is the same as the voltage shown on the nameplate.

Use this air conditioner under the following temperature range.

WARNING Avoid the following locations for installation.

Locations where smoke or combustible gas exists. zz Also locations of extremely high temperature such as a greenhouse. Locations where excessively high heat-generating obzz jects are placed.

Outdoor temperature range:

*DBT: Dry bulb temperature

*WBT: Wet bulb temperature *1 When connecting U-60PEY2E5, U-71PEY2E5 Information for Users on Collection and Disposal of Old Equipment and Used Batteries These symbols on the products, packaging, and/ or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC. By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Avoid installing the outdoor unit where salty sea water can zz splash directly onto it or in sulphurous air near a spa. (To protect the air conditioner from heavy corrosion)

All wiring must conform to the local electrical codes. zz (Consult your dealer or a qualified electrician for details.) Each unit must be properly grounded with a ground (or zz earth) wire or through the supply wiring. Wiring must be done by a qualified electrician. zz

Operation Preparation

Turn the power mains on 5 hours before the start of operation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Leave the power mains ON for continuous use. zz

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

NOTE Pull off the power plug from a receptacle, or switch off the breaker, or switch off the power disconnecting mean to isolate the air conditioner from the main power supply when not in use for a long time.

Note for the battery symbol (bottom two symbol examples):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

OUTDOOR UNIT Single Split (Type PE2, PEY2) Air intake

Wireless Remote Controller

Timer Remote Controller

For all indoor units

A High-spec Wired Remote Controller

Model No. CZ-RTC5A For all indoor units

For all indoor units

Read the operating instructions included with the Remote Controller.

Refer to the Operating Instructions attached to the optional Remote Controller.

 Adjusting Airflow Direction

Refer to the Operating Instructions attached to the indoor unit.

Refer to the Operating Instructions attached to the indoor unit.

Refer to the Operating Instructions attached to the indoor unit.

Model No. CZ-RTC5A Specifications

Outdoor unit Single Split Outdoor Unit Model Name

U-36PE2E5A U-50PE2E5A Power source

U-60PE2E5A U-60PEY2E5

220 / 230 / 240 V ～ 50 Hz kW

Sound pressure level

Unit dimensions (H×W×D)

Cooling : Indoor intake air temp. 27°C DB / 19°C WB. Outdoor intake air temp. 35°C DB. Heating : Indoor intake air temp. 20°C DB. Outdoor intake air temp. 7°C DB / 6°C WB.

Corresponding language table

Low Silhouette Ducted

A cassetta a 4 vie 60 × 60

4-weg cassette 60 × 60

Low Silhouette Ducted

Low Silhouette Ducted

Low Silhouette Ducted

Corresponding language table English

Sound Pressure Level

Sound Pressure Level

Sound Pressure Level

Sound Pressure Level

Cooling : Indoor intake air temp. 27°C DB / 19°C WB. Outdoor intake air temp. 35°C DB. Heating : Indoor intake air temp. 20°C DB. Outdoor intake air temp. 7°C DB / 6°C WB.

Declaration of Conformity with the requirements of Technical Regulation on the Restriction of the use of certain Hazardous Substances in Electrical and Electronic Equipment

(adopted by Order №1057 of Cabinet of Ministers of Ukraine) The Product is in conformity with the requirements of Technical Regulation on the Restriction of the use of certain Hazardous Substances in electrical and electronic equipment (TR on RoHS). The content of hazardous substance with the exemption of the applications listed in the Annex №2 of TR on RoHS: 1. 2. 3. 4. 5. 6.

Website: http://www.panasonic.com

© Panasonic Corporation 2016 Printed in Japan

Authorised representative in EU Panasonic Testing Centre

Panasonic Marketing Europe GmbH Winsbergring 15, 22525 Hamburg, Germany
