USER MANUAL U25GE3E5 PANASONIC

INSTRUCTION MANUAL 2WAY Multi Series 3WAY Multi Series

FR Thank you very much for purchasing our gas heat pump air conditioner.

● Ensure you read the “Safety Precautions” before use (page 5-9).

CONTENTS PT Characteristics and requests 2

Periodical inspection 3 Safety precautions Precautions before use 5 Precautions during use . 6 Relocation/repair 9 Things you should know 10 Markings for directive 2014/68/EU (PED) .11

IT Model No.: outdoor unit

U-16GE3E5 U-20GE3E5 U-16GF3E5 U-20GF3E5

00_Instrallation_all.indb

Panasonic Corporation

1006 Kadoma, Kadoma City, Osaka, Japan

ES Use an equipment properly and save energy

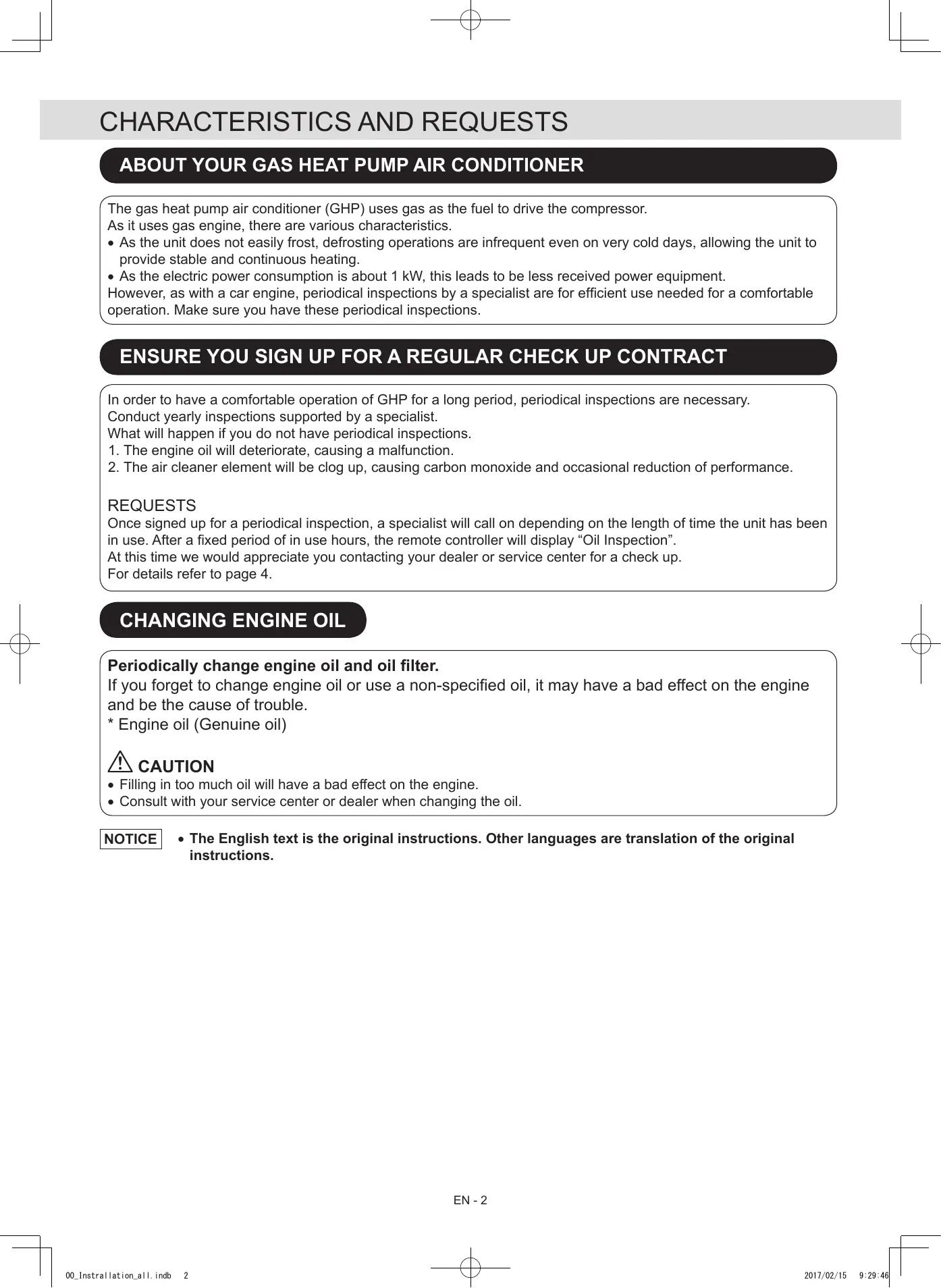

CHARACTERISTICS AND REQUESTS ABOUT YOUR GAS HEAT PUMP AIR CONDITIONER The gas heat pump air conditioner (GHP) uses gas as the fuel to drive the compressor.

As it uses gas engine, there are various characteristics. • As the unit does not easily frost, defrosting operations are infrequent even on very cold days, allowing the unit to provide stable and continuous heating. • As the electric power consumption is about 1 kW, this leads to be less received power equipment. However, as with a car engine, periodical inspections by a specialist are for efficient use needed for a comfortable operation. Make sure you have these periodical inspections.

ENSURE YOU SIGN UP FOR A REGULAR CHECK UP CONTRACT In order to have a comfortable operation of GHP for a long period, periodical inspections are necessary.

Conduct yearly inspections supported by a specialist. What will happen if you do not have periodical inspections. 1. The engine oil will deteriorate, causing a malfunction. 2. The air cleaner element will be clog up, causing carbon monoxide and occasional reduction of performance.

REQUESTS Once signed up for a periodical inspection, a specialist will call on depending on the length of time the unit has been in use. After a fixed period of in use hours, the remote controller will display “Oil Inspection”.

At this time we would appreciate you contacting your dealer or service center for a check up. For details refer to page 4.

CHANGING ENGINE OIL Periodically change engine oil and oil filter.

If you forget to change engine oil or use a non-specified oil, it may have a bad effect on the engine and be the cause of trouble. * Engine oil (Genuine oil)

• Filling in too much oil will have a bad effect on the engine.

• Consult with your service center or dealer when changing the oil. NOTICE

•• The English text is the original instructions. Other languages are translation of the original instructions.

00_Instrallation_all.indb

PERIODICAL INSPECTION In order to have a comfortable operation of GHP for a long period, periodical inspections are necessary. When you purchase your GHP, sign up for Panasonic’s periodical inspections contract system.

When you sign up for a periodical inspection, specialist will call on you. For more details about the inspection contract, ask your dealer or consult with one of our service centers.

• Check the installation work • Inspect the electricity wiring • Inspect the equipment itself • Check the engine system • Check safety protection devices • Operation data collection • Gas leakage check

Contact your installer for repairs if something is found to be amiss during the test operation.

00_Instrallation_all.indb

The guarantee period is ONE year after the date of a successful test operation and the product delivery.

However, the engine itself and periodical replaced parts are guaranteed for ONE year after a successful test operation and the product delivery or 2000 hours in operation whichever comes earlier.

 PERIODICAL INSPECTIONS AFTER YOUR GUARANTEE EXPIRES The number of inspections depends on the operating hours for a period of one year.

The table below shows a case of 2000 hours of use in one year. If you have signed up for a periodical inspection, a GHP specialist will call on you and carry out the services mentioned below, exchange parts and make necessary adjustment.

PERIODICAL INSPECTIONS ITEMS Inspection timing

Leave the timing of the visit upto a specialist.

• Checking the level of the coolant fluid -replenish when necessary: every 10,000 hours or every five years.

• Checking the drain filter antalkali -replenish when necessary: every 10,000 hours or every five years. • Inspecting and adjusting various parts: Depending on the contents of periodical inspection. Check the engine system Check safety protection devices Engine oil inspection and replenishment when necessary Operation data collection Gas leakage check

Replacement Interval

• Engine oil • Oil filter

10,000 hours or every

• Air cleaner element

• Compressor belt • Ignition plug • Oil absorption mat • Drain filter packing

Note: Changing engine oil is only for engine proper and sub-oil pan. Replenish the oil into oil tank, located at the upper portion.

Periodical adjustment

• Engine valve clearance adjustment is done every 10,000 hours or every five years.

There is a fee for periodical inspections.

Note: Parts change is calculated on the basis of 2000 hours per year over a 10 year period. If replacement parts other than those listed above should be required an additional fee other than the periodical inspection contract fee will be charged. Note: Should dust or dirt collect on the fin of heat exchanger of either the indoor unit or outdoor unit this will result in loss of efficiency. After consulting with your dealer or service center remove the dirt and dust and wash the heat exchanger.

00_Instrallation_all.indb

SAFETY PRECAUTIONS Before operating the unit, be sure to read the SAFETY PRECAUTIONS.

Listed below are two types of precautions, one is a WARNING and the other is a Be sure to obey these instructions for safety sake.

• The expressions have the following meanings.

WARNING This symbol refers to a hazard or unsafe practice which can result in severe personal injury or death.

CAUTION This symbol refers to a hazard or unsafe practice which can result in personal injury or product or property damage.

• The meaning of the symbols

“WARNING” or “CAUTION”.

Refers to something that is

Refers to advices that should be followed.

• Keep this manual in an easy to reach place so the operator can easily refer to it.

If the operator should change, be sure to hand over this manual for him to read.

PRECAUTIONS BEFORE USE WARNING Do NOT install the equipment yourself.

Ask your dealer or a specialist to install the equipment. If you improperly install it by yourself, it might lead to an electrical shock, fire and water leakage and so on. Confirm that the exhaust drain from the outdoor unit and the drain water from the indoor unit is not commonly connected. If these are the common pipes, then exhaust gas could leak into the room and be the cause of poisoning. Confirm the drains are separate. In the rare possibility of a leak of refrigerant. If the equipment is installed in a small room, steps must be taken to ensure the rare possibility that leakage of the refrigerant does not exceed a certain limit. Before installation, consult with your dealer about this certain limit. In an emergency when the refrigerant leaks, it may cause an accident due to lack of oxygen in the air.

Confirm the kind of gas you use.

If you use the wrong kind of gas, it might lead to incomplete combustion and be the cause of gas poisoning. Confirm the gas kind. Confirm that each unit has an exclusive electric circuit. If you use other electrical equipment(s) on the same circuit, then you may blow a fuse or cause secondary damage to equipment. Confirm the electric circuit. Be sure to buy Panasonic specified equipment. If you buy separate equipment such as an air cleaner or a humidifier (in case of fitting inside the unit), be sure to buy only Panasonic specified products. And ask a specialist dealer to install it. If you improperly install the equipment by yourself, it may lead to an electric shock, fire or water leakage and so forth. Buy Panasonic specified equipment.

Check with a dealer or professional service provider that the specified refrigerant is used.

Using a refrigerant other than specified may result in equipment failure, burst or injury. EN - 5

00_Instrallation_all.indb

SAFETY PRECAUTIONS CAUTION Be sure to install the outdoor unit where Check the condition of grounding work. there is no volatile or inflammable

Do not connect the ground wire material. to any gas pipes, water pipes, Ascertain there is no lightening rods or telephone occurrence, influx or collection ground wires. If the ground of inflammable or volatile gases wire is faulty, it may result in an in the area surrounding the electrical shock. place you install your outdoor Water pipe Some parts are made of plastic and unit. If you do not do this, it may are no good for earthing. cause a fire. er!

Gas pipe wire There is a danger of ignition and explosion. The telephone earth, a lightning rod When struck by lightning, there is a great danger of a massive power surge.

Do not use this appliance in a potentially explosive atmosphere.

Check you have an earth leakage circuit Check that you have a rated power breaker in place. supply and check the capacity of the

An earth leakage circuit breaker circuit breaker. is required by law. Failure to It could lead to damage to the install one may result in electric equipment or cause a fire. shock or fire. Confirm the power supply and breaker capacity. Only use a fuse of the correct capacity. Be sure to install the drain pipe of indoor Using wire and the like instead unit with same gradient to drain out of the correct fuse could lead to properly. an electric shock and fire. A water leakage could cause damage to your furniture and other property.

Precautions during use

WARNING Make sure that the exhaust gases from the outdoor unit do not seep inside. If exhaust gases get inside the room, it could cause gas poisoning.

Do not operate the equipment with wet hands.

It could cause an electric shock or damage the equipment.

Do not put your hand or foreign objects in the outlet or inlet of both indoor and outdoor units.

A high speed fan is rotating inside and could cause injury.

Do not block the intake, discharge or the drain of the outdoor unit.

It may lead to incomplete combustion and cause a fire or gas poisoning. EN - 6

00_Instrallation_all.indb

SAFETY PRECAUTIONS WARNING What to do if the refrigerant leaks.

If the refrigerant leaks, then turn off the air conditioner and ventilate the room. Then notify your dealer or service center. If the leak exceeds a certain limit, it could cause a lack of oxygen in the air.

If you detect a strange smell (a burning smell, a gas smell), or a abnormal sound or unusual vibrations, then turn off your air conditioner and the electric supply.

If you continue to use the equipment under abnormal circumstances, it could lead to an electric shock, fire or cause a machine breakdown. Contact your dealer or service center.

EN Do not expose yourself directly to the

What to do if the outdoor unit leaks fuel gas. warm or cold air for a long period of time. If the outdoor unit leaks fuel gas, It could damage your health. then turn off the air conditioner, close the main gas valve and contact your local gas company or service company or dealer for repairs. It could cause a fire.

CAUTION Do NOT open the panel.

Do NOT remove the fan guard. Inside the units are revolving The fan revolves at high speed parts, high temperature parts and could cause injury. and high voltage parts and if you touch them it could result in injury or an electric shock. Do NOT touch the exhaust outlet. It is very hot and could cause a burn.

Do NOT spray the units with an inflammable spray.

Do NOT place or use combustible sprays near or on the units. It could lead to ignition.

DO NOT place combustion apparatus in Ventilate the room every so often when the direct line of the air out of indoor unit. you use inflammable material with the air conditioner on.

It could cause incomplete combustion of Combustion Insufficient ventilation could apparatus. cause a lack of oxygen in the air.

00_Instrallation_all.indb

SAFETY PRECAUTIONS CAUTION Do NOT use the unit for a particular

Do NOT place animals or plants in the cooling applications such as food direct path of the air. supplies, animals and plants, precision It might badly affect to animals machinery or objects of art: things that or plants. need a special preservation requirement. It could cause a deterioration in the quality of food stuffs and so forth. Do NOT place containers that hold water on top of the indoor unit. Do NOT place flower vases or similar things that hold water on top of the indoor unit. It could cause damage to the electrical insulation of the indoor unit and electric shock.

REQUESTS Do NOT operate the remote Obey the following regarding the power source control with a pointed installed nearby the unit: object.

• Do NOT operate the equipment with the at hand power It could damage source. the remote Your air conditioner is a Multi-type air conditioner. control. If you turn off one of the power sources installed near Make sure to use an air by the unit, all the units with the same power source will filter in the indoor unit. become inoperable. Dust and dirt could get into the unit and cause a • Turn on the power Switch at least 5 hours before operating the air conditioner. breakdown. In order to protect the compressor, the crank case heater Do NOT use the air is provided. conditioner with the doors Be sure to carry out the following. or windows left open. It could cause frosting around the discharge portion.

At inspection times or when you want to use

ON during the seasons you use the equipment.

OFF during the seasons you do not use the equipment.

Do NOT block the inlet the air or the outlet of both the conditioner turns indoor and outdoor unit. switch switch power source the switch ON ON OFF It could result in a at least 5 hours loss both of cooling beforehand. and heating. It

• During maintenance, turn the power switch OFF. could also lead to damage to the • During seasons of use do NOT turn the power switch equipment. OFF. EN - 8

00_Instrallation_all.indb

SAFETY PRECAUTIONS WARNING Pull off the power plug from a receptacle, or switch off the breaker, or switch off the power disconnecting mean to isolate the air conditioner from the main power supply in case of emergency.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

EN CAUTION Relocation/repair

WARNING For relocation, consult with the dealer. To relocate an indoor or outdoor unit, expertise is required, thus ensure you consult with your dealer or the service company. Flaws in installation may result in exhaust gas flowing into buildings leading to poisoning, water leakage, electrification or fire.

Do not remodel or renovate.

Never remodel or renovate. Also, for repairs, consult with your dealer or the service company. Incorrectly repair may result in water leaks, electrification or fire.

When you are finished using the product

When you finishing using the product, ensure there is no risk of it dropping or falling. For removal, consult with your dealer or the service company.

This product contains fluorinated greenhouse gases. Do not vent gases into the atmosphere.

Refrigerant type: R410A GWP(1) value: 2088 (1) GWP = global warming potential Periodical inspections for refrigerant leaks may be required depending on European or local legislation. Please contact your local dealer for more information.

00_Instrallation_all.indb

THINGS YOU SHOULD KNOW

• All about special use.

• In case of a malfunction

If, during operation, a malfunction should occur due to lightning, radio waves, power source noise etc., then turn off the power source switch. To re-start the operation, turn on the power switch and follow the start operations again.

CAUTION This air conditioner is for use in dwellings space only.

Do not use for any other purposes. Do not use the equipment where there are things which require special preservation such as food stuffs, animals, precision instruments and works of art.

• A gas engine is built in and a periodical check up is necessary. (Changing the engine oil, etc.)

Sound Pressure Level: 58 dB(A) U-16GE3E5 58 dB(A) U-20GE3E5 62 dB(A) U-25GE3E5 63 dB(A) U-30GE3E5

• In case of a power failure.

If a power failure occurs during operation, the unit will stop and remain stopped. To restart the operation after power is supplied, follow the start operations again.

 About the ‘Oil Check’ display on the remote controller

The oil check mark blinks to remote control when the operating hour of the gas engine becomes prescribed time. (Right picture) Contact sales companies or the service agency and do the periodic inspection when ‘Oil check mark’ is displayed. It causes the breakdown of outdoor unit if it leaves it as it is.

 Operating conditions

In order to use the air conditioner correctly, operate under the following conditions.

If you operate the equipment at temperature for a long period of time, the protective components will engage and the equipment will become inoperable.

≥ Approx. -10°C, ≤ 43°C Indoor Temperature

≥ Approx. 18°C, ≤ 32°C Outdoor Temperature

≥ Approx. -20°C, ≤ 21°C Indoor Temperature

≤ Approx. 26°C Room Humidity

≤ Approx. 80% In the rainy season or when the air humidity is high, using the air conditioner for a long time may result in frost on the surface of the equipment and fog may be discharged from the air discharge.

00_Instrallation_all.indb

MARKINGS FOR DIRECTIVE 2014/68/EU (PED)

 RATING NAMEPLATE FIGURE Tabulation of Various date

■ Y ea r of M a nufa cturing

OU TD OOR U SE ON LY U T ILIZ Z A R E SOLO A LL' E STE R N O

■ H ea ting C a pa city

C a pa cita in R is ca lda m ento

Ⅱ 2H 3P 2H -20m ba r 3P-37m ba r

■ PM S P IN C O D E I m p o s t a to

PM S C o d i c e N IP Warning

-Read the technical instructions before installing the appliance. -Read the user instructions before using the appliance. ATTENZIONE -LEGGERE LE ISTRUZIONI TECNICHE PRIMA DI INSTALLARE L' APPARECCHIATURA
