USER MANUAL HURES36 Hurtle

Exterior view of a modern electric scooter with visible branding and front panel, set against a dotted wall background (no readable text or symbols)

HURTLE™

EXPEDITION

HURES36

◇ ★■★ ◆□★★★★★◆★★▼★★★□□▼□

Upgraded Pneumatic Tire Foldable Commuter, Suitable for Adult

USER GUIDE

For your driving Safety, please read this user manual carefully before using and ensure to be able to ride the scooter under correct guidance. Learning all the safety warning and tips listed in this manual that will be helpful for you to better control the scooter.

TABLE OF CONTENTS

Riding Safety 3

Packing List 5

Diagram 6

Assembling Your Foldable Electric Scooter 7

First Ride 8

Charging 9

Learning to Ride 10

Warnings 11

Folding and Carrying 15

Cleaning and Storage 16

YOUR FOLDABLE ELECTRIC SCOOTER IS A RECREATIONAL PRODUCT WITH MOBILE APP, ALLOWING YOU TO CONNECT WITH OTHER RIDERS. ENJOY YOUR RIDE AND CONNECT WITH RIDERS WORLDWIDE!

Riding Safety

1. The HURES36 Foldable Electric Scooter is a recreational product. Before mastering riding skills, you need to practice. Seller is not responsible for any injuries or damage caused by a rider's inexperience or failure to follow the instructions in this document.

2. Please understand that you can reduce the risk by following all the instructions and warnings in this manual, but you cannot eliminate all the risks. Remember that whenever you ride the HURES36 Foldable Electric Scooter you risk injury from loss of control, collisions, and falls. When entering into public spaces always comply with the local laws and regulations. As with other vehicles, faster speeds require longer braking distance. Sudden braking on low traction surfaces could lead to wheel slip, or falls. Be cautious and always keep a safe distance between you and other people or vehicles when riding. Be alert and slow down when entering unfamiliar areas.

3. Always wear a helmet when riding. Use an approved bicycle or skateboard helmet that fits properly with the chin strap in place, and provides protection for the back of your head.

4. Do not attempt your first ride in any area where you might encounter children, pedestrians, pets, vehicles, bicycles, or other obstacles and potential hazards.

5. Respect pedestrians by always yielding the right of way. Pass on the left whenever possible. When approaching a pedestrian from the front, stay to the right and slow down. Avoid startling pedestrians. When approaching from behind, announce yourself and slow down to walking speed when passing. Please obey local traffic laws and regulations if situation is different.

6. In places without laws comply with the safety guidelines outlined in this manual. Seller is not responsible for any property damage, personal injury/death, accidents, or legal disputes caused by violations of the safety instructions.

7. Do not allow anyone to ride your HURES36 Foldable Electric Scooter on his/her own unless they have carefully read this manual and followed the New Rider Tutorial in the App. The safety of new riders is your responsibility. Assist new riders until they are comfortable with the basic operation of the Electric Scooter. Make sure each new rider wears a helmet and other protective gear.

8. Before each ride check for loose fasteners and damaged components. If the HURES36 Foldable Electric Scooter makes abnormal sounds or signals an alarm, immediately stop riding.

Diagnose your HURES36 Foldable Electric Scooter via the App and call your dealer/distributor for service.

1. Be alert! Scan both far ahead and in front of your HURES36 Foldable Electric Scooter — your eyes are your best tool for safely avoiding obstacles and low traction surfaces (including, but not limited to, wet ground, loose sand, loose gravel, and ice).

2. To reduce risk of injury, you must read and follow all "CAUTION" and "WARNING" notices in this document.

Do not ride at an unsafe speed. Under no circumstance should you ride on roads with motor vehicles.

The manufacturer recommends riders be 14+ years old. Always follow these safety instructions:

A. People who should not ride the Electric Scooter include:

i. Anyone under the influence of alcohol or drugs.

ii. Anyone who suffers from disease that puts them at risk if they engage in strenuous physical activity.

iii. Anyone who has problems with balance or with motor skills that would interfere with their ability to maintain balance.

iv. Anyone whose weight is outside the stated limits (see Specifications).

v. Pregnant women.

B. Riders under the age of 18 years old should ride under adult supervision.

C. Comply with local laws and regulations when riding this product. Do not ride where prohibited by local laws.

D. To ride safely, you must be able to clearly see what is in front of you and you must be clearly visible to others.

E. Do not ride in the snow, in the rain, or on roads which are wet, muddy, icy, or that are slippery for any reason.

Do not ride over obstacles (sand, loose gravel, or sticks). Doing so could result in a loss of balance or traction and could cause a fall.

1. Do not attempt to charge your HURES36 Foldable Electric Scooter if, the charger, or the power outlet is wet.

2. As with any electronic device, use a surge protector when charging to help protect your HURES36 Foldable Electric Scooter from damage due to power surges and voltage spikes. Only use the supplied charger. Do not use a charger from any other different product models.

3. Use only approved parts and accessories. Do not modify your HURES36 Foldable Electric Scooter. Modifications to your Foldable Electric Scooter could interfere with the operation of the HURES36 Foldable Electric Scooter, could result in serious injury and/or damage, and could void the Limited Warranty.

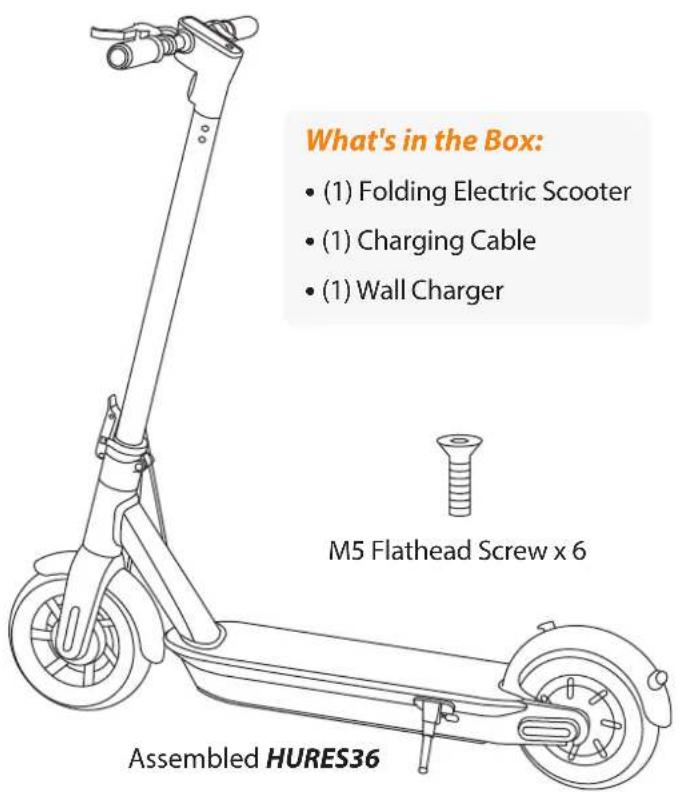

Packing List

When unpacking your HURES36 Foldable Electric Scooter, please verify that all items are included in the package.

If you are missing any components, please contact your dealer/distributor or nearest service center. After verifying that all components are present and in good condition, you can assemble your new HURES36.

Please retain the box and packaging materials in case you need to ship your Foldable Electric Scooter in the future.

Remember to power off your Electric Scooter and unplug the power cord before assembling, mounting accessories, or cleaning the mainframe.

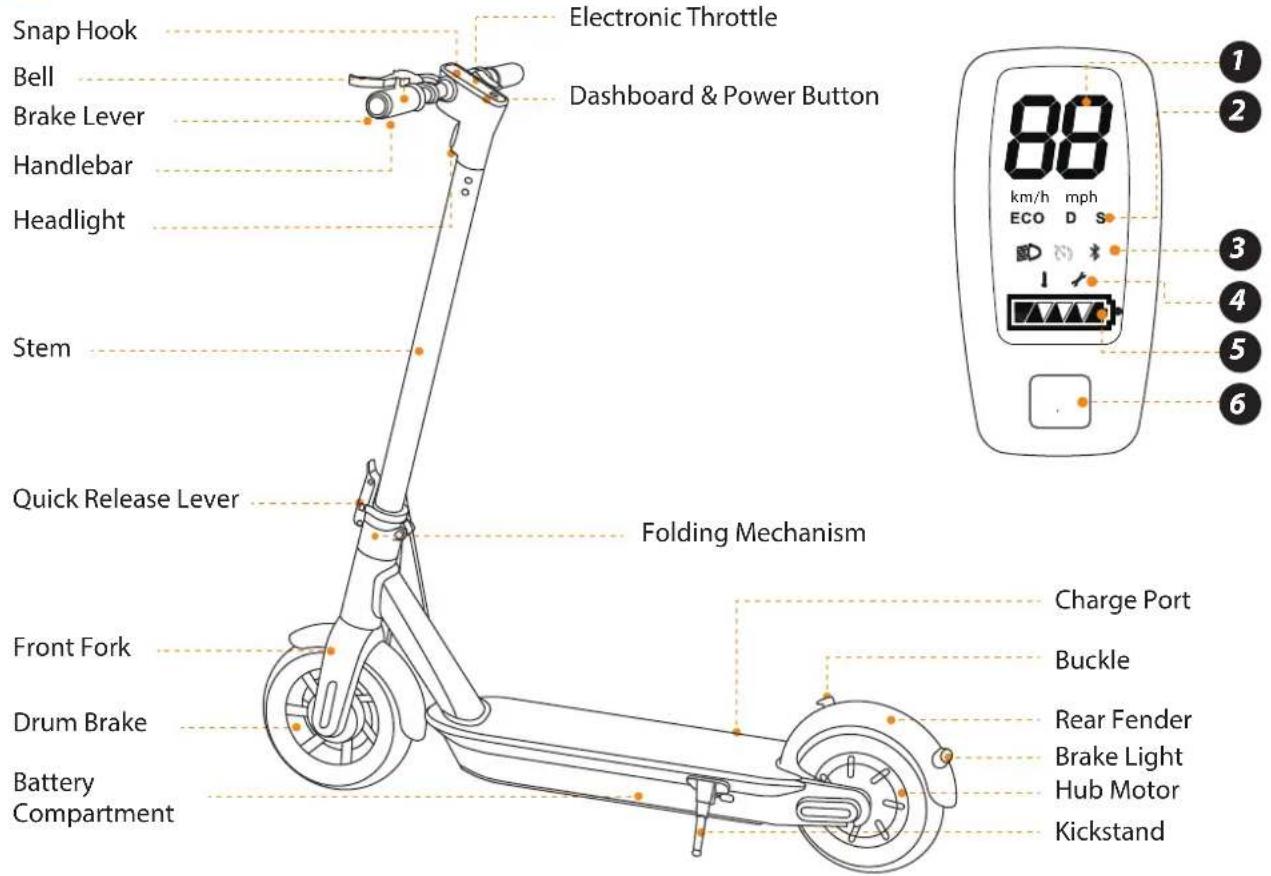

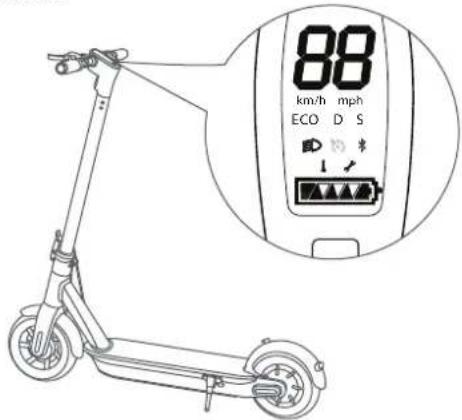

Diagram

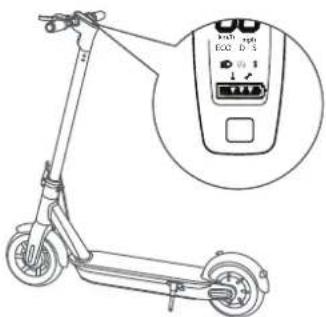

1. Speedometer: Display the current speed of the HURES36 Foldable Electric Scooter, as well as to display error codes.
2. Modes: Three modes available. "ECO" for Energy saving mode (smooth acceleration, suitable for beginners), "D" for Standard mode and "S" for Sport mode (powerful, only recommended for skilled riders).
3. Pedestrian mode: Makes pushing the Electric Scooter easier.
4. Wireless BT: The icon indicates that the Electric Scooter has been successfully connected to the mobile device.
5. Error: The wrench icon indicates that the Electric Scooter has detected an error.
6. Battery Level: The battery power is indicated by 5 bars, each representing approximately 20% of a full battery.
7. Power Button: Press the button to turn the Electric Scooter on; and press and hold the button for 3 seconds to turn the Electric Scooter off. When the Electric Scooter is on, press the button to turn the headlight on/off, and double press to switch between modes.

Assembling Your Foldable Electric Scooter

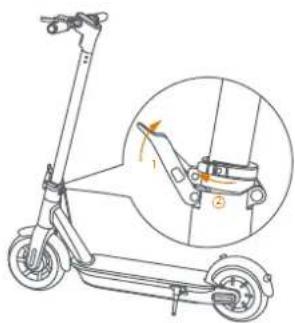

Line drawing of a scooter with an inset showing the lever mechanism (no text or symbols)

1. Unfold the handlebar stem and fasten it. Then unfold the kickstand to support the Foldable Electric Scooter.

1. Firmly connect the wires inside the handle and the stem. Slide the handle onto the stem. Be aware of the correct orientation.

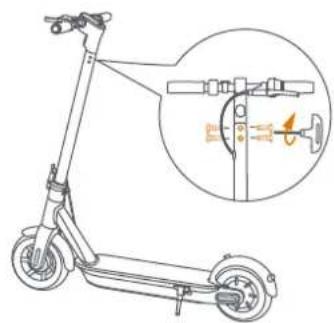

1. Install six screws (two on each side) with the included hex wrench.

2. Verify that your Foldable Electric Scooter can be powered on and off.

First Ride

KCQ Scooter APP Android/ios

There are safety risks when learning to ride the Electric Scooter. You must read the Riding Safety via the App before your first ride.

For your safety, your new Electric Scooter is not activated and will beep occasionally after Power ON. Until activated, the Electric Scooter

maintains very low riding speed, and cannot be ridden with full function. Install the App on your mobile device (with Wireless BT 4.0 or above), connect to the Electric Scooter with BT, and follow the App instructions to activate your Electric Scooter and enjoy the full performance. Scan the QR code to download the App.

1. Install the App and register/login.

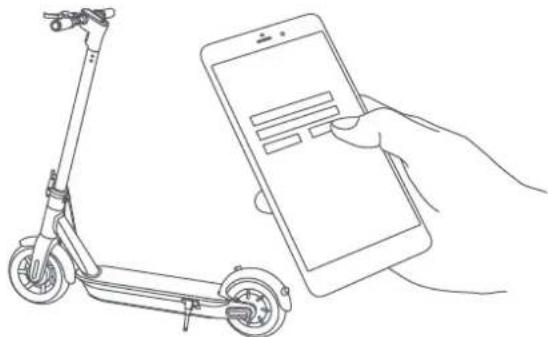

Line drawing of a hand holding a smartphone next to an electric scooter (no text or symbols)

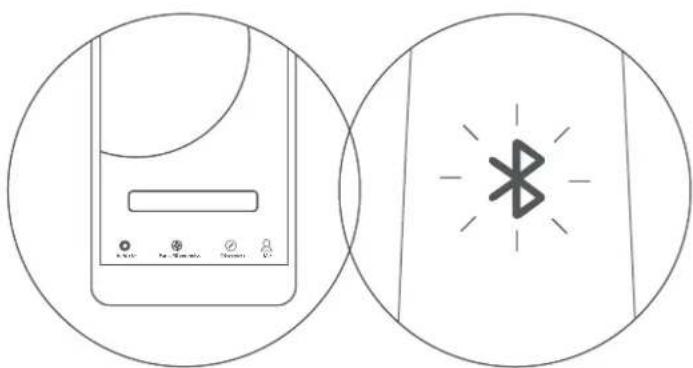

1. Power ON the Electric Scooter. A blinking Wireless BT icon indicates the Electric Scooter is waiting for a connection.

1. Click "Vehicle →" Scan for Vehicle" to connect to your Electric Scooter. The Electric Scooter will beep when the connection is successful. The BT icon will stop blinking and remain illuminated.

1. Follow the App instructions to active the Electric Scooter and learn how to ride safely.

You can now start to use your Electric Scooter, check the status with App, and interact with other users. Have fun!

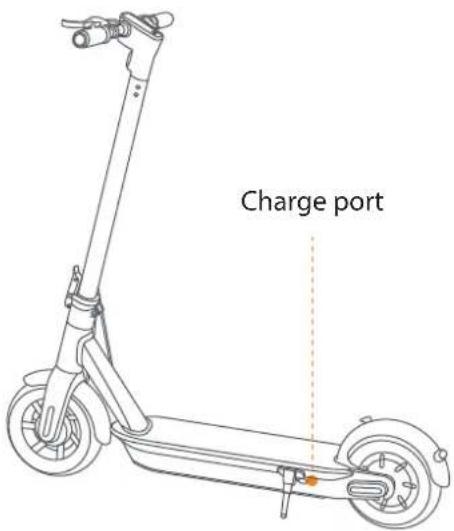

Charging

WARNING

• Do not charge if the charge port or power cord is wet.
• Do not charge or use your battery if it is damaged or see trace of water.
• Close the charge port cover when not charging.

Learning to Ride

Simple line drawing of a person wearing a cap and two knee joint patches (no text or symbols)

Wear an approved helmet and other protective gear to minimize any possible injury.

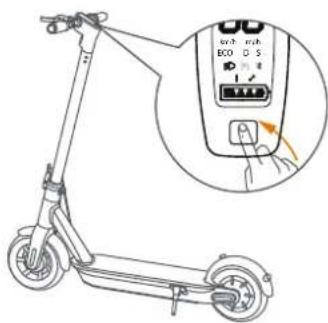

1. Power on the Electric Scooter and check the power level indicator. Charge the Electric Scooter if the battery level is low.

Line drawing of a person riding an electric scooter (no text or symbols)

1. Stand on the footrest with one foot and push off with another foot to start gliding.

Illustration of a person using a scooter with a hand holding a tool, accompanied by an inset showing the hand inserting a plug into a box (no text or symbols present)

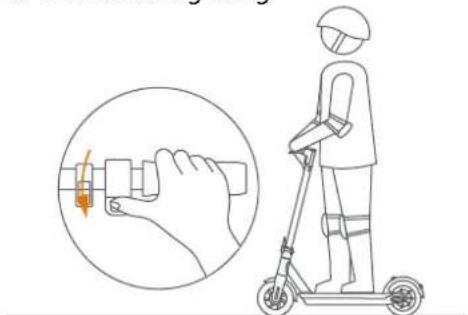

1. Put your other foot on the footrest to keep both feet stable. Press the throttle on the right hand to speed up when you are balanced.

Note: For your safety, the motor will not engage until the Electric Scooter reaches 1.86 mph (3 km/h).

Illustration of a person using an electric scooter with motion arrows, showing the side profile and body positioning (no text or symbols)

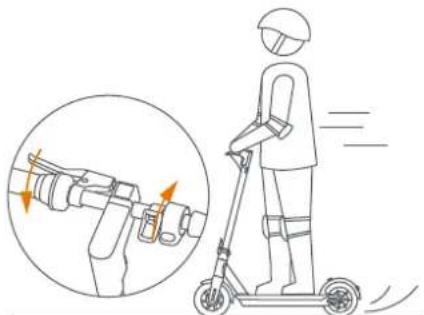

1. Slow down by releasing the throttle; and brake by squeezing the brake lever.

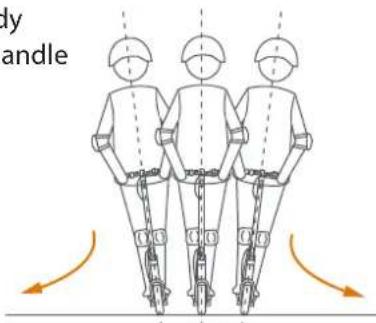

2. To turn, shift your body weight and turn the handle slightly.

WARNING

When hard braking, you risk serious injury due to loss of traction and falls. Maintain a moderate speed and look out for potential hazards.

WARNINGS

Failure to follow these instructions could lead to serious injury.

Line drawing of a person standing in the rain wearing a helmet and holding a walking stick, with raindrops falling below (no text or symbols)

DO NOT ride the Electric Scooter in the rain. DO NOT get wet.

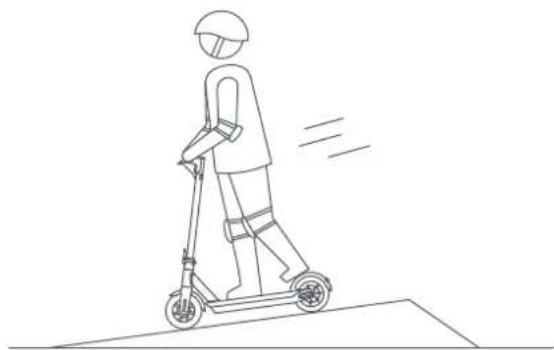

Line drawing of a person riding a scooter (no text or symbols)

DO NOT ride over speed bumps, thresholds, or other mps at HIGH SPEED.

Line drawing of a person riding a scooter from the side of a door, with a person standing beside it (no text or symbols)

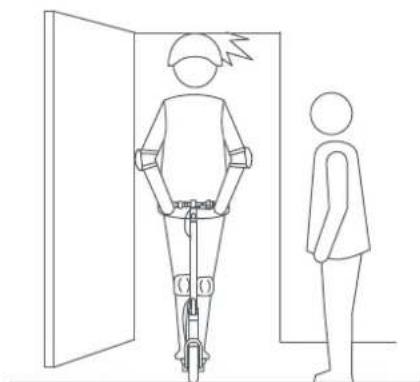

⚠ Watch your head when passing through doorways.

Line drawing of a person riding a scooter with motion lines indicating speed (no text or symbols)

DO NOT keep your feet on the rear fender.

Line drawing of a person using a scooter with a hand icon, alongside a circular diagram showing the same hand (no text or symbols)

⚠ DO NOT press the throttle when walking with the Electric Scooter.

Line drawing of a person wearing a helmet and safety harness, standing with a lightning bolt symbol (no text or labels)

Avoid contacting obstacles with the tire/wheel.

Line drawing of a person riding a bicycle with motion lines indicating speed (no text or symbols)

DO NOT carry heavy objects on the handlebar.

Line drawing of a person riding a bicycle on a road with a car nearby (no text or symbols)

DO NOT ride on public roads, motorways, or highways.

Line drawing of a person riding a scooter with a helmet and seatbelt (no text or symbols)

⚠ DO NOT ride the Electric Scooter with only one foot.

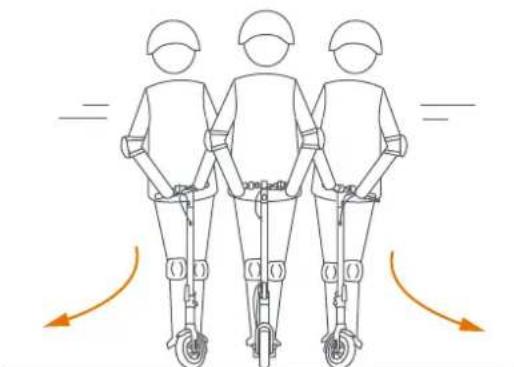

Three identical line drawings of a person riding bicycles, each with a seatbelt and directional arrows indicating motion (no text or symbols)

DO NOT rotate the handle violently while driving at high speed.

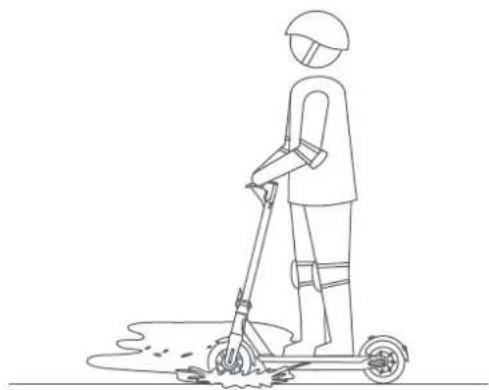

Line drawing of a person using a scooter with motion lines indicating speed (no text or symbols)

⚠ DO NOT ride through puddles or other bodies of water.

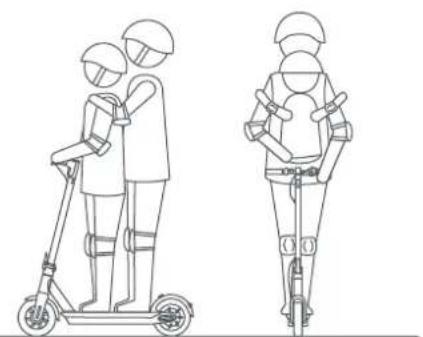

Line drawing of two people using a scooter, one standing and one seated, both wearing helmets (no text or symbols)

The Electric Scooter is for one rider only. Do not carry any passengers. Do not carry a child. Do not ride when pregnant.

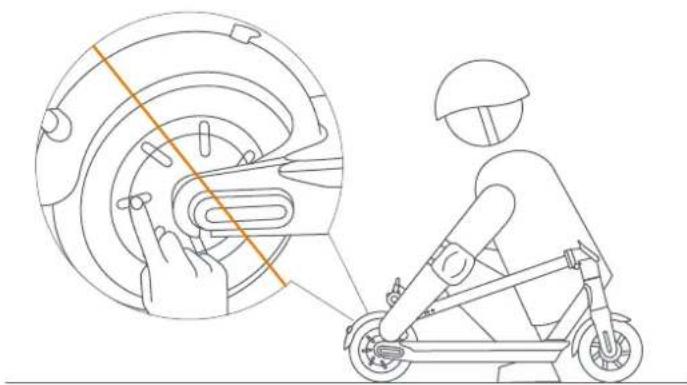

Line drawing of a person riding an electric scooter with a hand pointing to the wheel (no text or symbols)

DO NOT touch the hub motor after riding because it can get hot.

Line drawing of a person riding an electric scooter with a helmet, no text or symbols present

DO NOT take your hands off the handlebar while riding. Do not ride with one hand only.

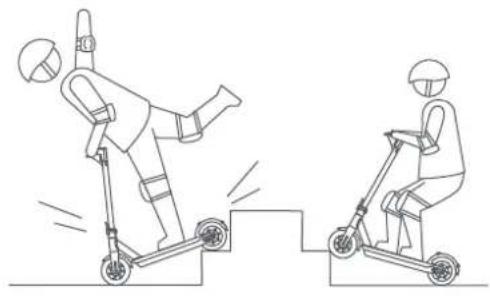

Line drawing of two people performing a high kick exercise on scooters, one standing and one seated (no text or symbols)

⚠ DO NOT ride up and down stairs or jump over obstacles.

Line drawing of a person riding a scooter with a handheld device, no text or symbols present

⚠ DO NOT use mobile phone or wear earphones when operating the Electric Scooter.

WARNING

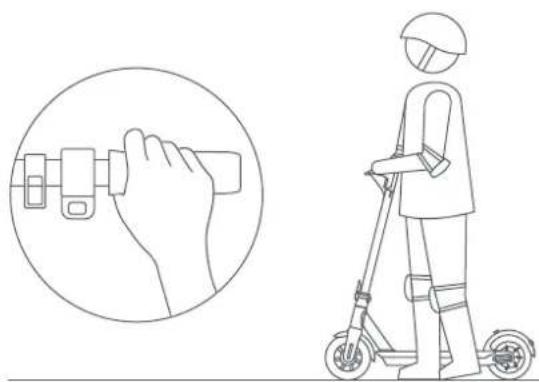

Always keep both hands on the handlebar or you risk serious injury due to loss of balance and falls.

Folding and Carrying

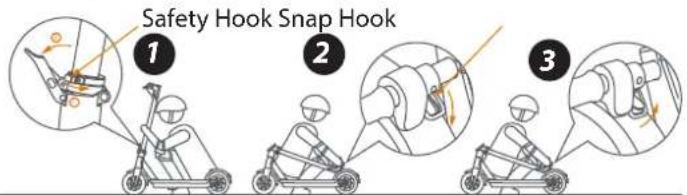

Folding

1. Turn off your Electric Scooter. Turn the safety hook counterclockwise and open the quick release lever.
2. Align the snap hook and the buckle and hook them.
3. Disengage the snap hook from the buckle. Fold the handlebar stem up, close the quick release lever and turn the safety hook clockwise.

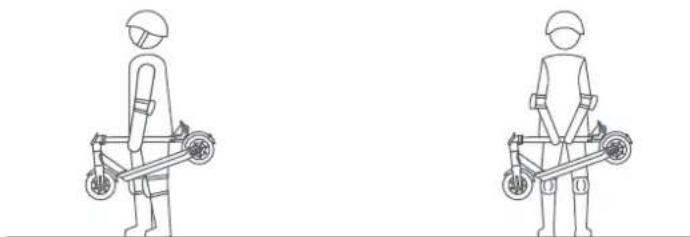

Carrying

When your Electric Scooter is folded up, lift it by the stem to carry.

Two identical line drawings of a person wearing helmets and holding a mobility device, standing side by side (no text or symbols)

Cleaning and Storage

Use a soft, wet cloth to wipe the mainframe clean. Dirt hard to remove can be scrubbed with a toothbrush and toothpaste, then cleaned with a soft, wet cloth.

NOTE:

Do not wash your Electric Scooter with alcohol, gasoline, acetone, or other corrosive/volatile solvents.

These substances may damage the appearance and internal structure of your HURES36 Foldable Electric

Scooter. Do not wash your Electric Scooter with a power washer or hose.

WARNING

Make sure the Electric Scooter is powered OFF, the power cord is unplugged, and the rubber cap on the charge port is tightly sealed before cleaning; otherwise you may damage the electronic components.

Store your Electric Scooter in a cool, dry place. Do not store it outdoors for extended periods of time. Exposure to sunlight and temperature extremes (both hot and cold) will accelerate the aging process of the plastic components and may reduce battery life.

Tire Pressure: Inflate tires to 32–37 psi. Inflate both tires equally.

Battery Pack Maintenance

Do not store or charge the battery at temperatures outside the stated limits (see Specifications).

Do not puncture the battery. Refer to your local laws and regulations regarding battery recycling and/or disposal. A well maintained battery can perform well even after many miles of riding. Charge the battery after each ride and avoid draining the battery completely. When used at room temperature (70°F/22°C) the battery range and performance is at its best; whereas using it at temperatures below 32°F (0°C) can decrease range and performance.

Typically, at -4^ (-20°C) range can be half that of the same battery at 70^ (22°C). Battery range will recover when temperature rises. More details are available in the App.

NOTE:

Typically, a fully charged battery should retain power for 120-180 days. A low-power battery should retain power for 30-60 days. Remember to charge the battery after each use. Completely draining the battery may cause permanent damage to the battery. Electronics inside the battery record the charge-discharge condition of the battery; damage caused by over-charging or under-charging will not be covered by the Limited Warranty.

WARNING

Do not attempt to disassemble the battery.

Do not touch battery contacts.

Do not dismantle or puncture the casing.

Keep the battery contacts away from metal objects to prevent short circuit.

Risk of fire and electric shock.

No user serviceable parts.

Do not charge or use your battery if it is damaged or see trace of water.

WARNING

Do not ride when the ambient temperature is outside the machine operation temperature (see Specifications) because low/high temperature will limit the maximum power/torque. Doing so could cause personal injury or property damage due to slips or falls.

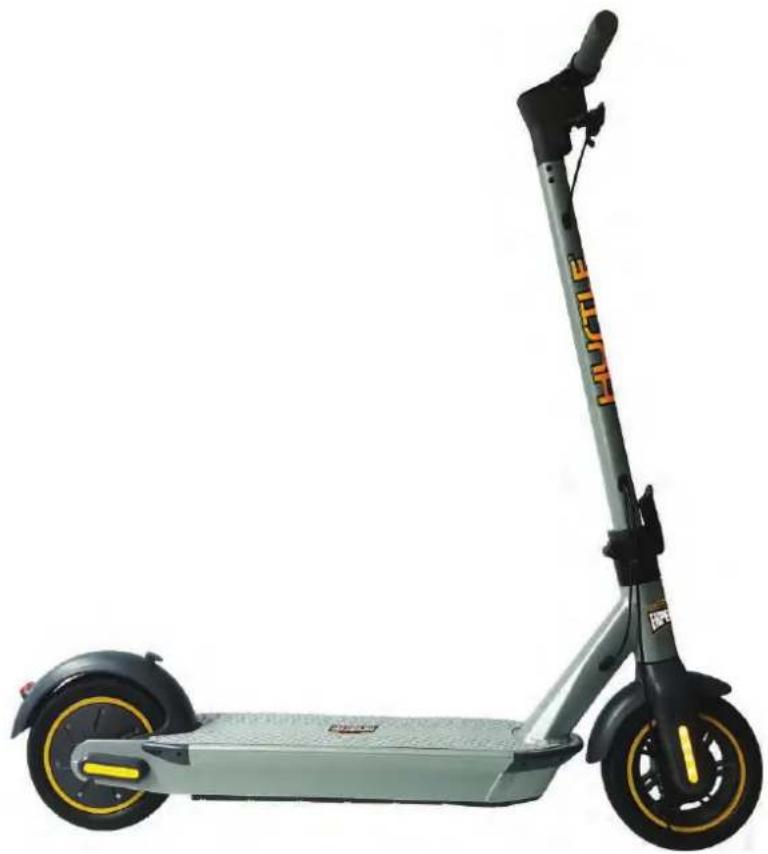

Exterior view of a modern electric scooter with black body and yellow wheels (no visible text or symbols)

HURTLE™

Questions? Issues?

We are here to help!

Phone: [phone]

Email: [e-mail]
