YT-1001 - Toaster Kunft - Free user manual and instructions

Brand	Kunft
Model	YT-1001
Product Type	Toaster
Dimensions (H x W x D)	Approx. 7.5 x 10 x 11.5 inches
Weight	Approx. 2.5 lbs
Power Supply	120 V ~ 60 Hz, 800 W
Number of Slots	2
Browning Control	7-level rotary knob
Functions	Cancel, Reheat, Defrost
Auto Pop-Up	Yes
Removable Crumb Tray	Yes, easy to clean
Self-Centering Racks	Yes
High-Lift Lever	Yes
Auto Shut-Off	Yes, in case of malfunction
Cool-Touch Exterior	Yes
Non-Slip Feet	Yes
Cord Length	Approx. 3.3 ft
Material	Stainless steel and plastic
Color	Black/Silver
Repairability	Spare parts available via Kunft support
Warranty	1 year limited

Frequently Asked Questions - YT-1001 Kunft

How do I adjust the browning level on my Kunft YT-1001 toaster?

Turn the browning control knob to your desired level (1=lightest, 7=darkest). Start with a medium setting (3-4) and adjust based on your preference.

Can I toast frozen bread or bagels?

Yes, press the Defrost button after lowering the bread. The toaster will adjust the toasting time to properly thaw and toast frozen items.

How do I clean the crumb tray?

Slide out the removable crumb tray located at the bottom of the toaster. Empty crumbs and wash with warm soapy water. Dry completely before reinserting.

The toaster lever won't stay down. What should I do?

Ensure the toaster is plugged in and the power is on. If it still doesn't lock, check for crumbs blocking the mechanism. Clean the crumb tray and slots. If the problem persists, contact Kunft support.

Can I use the toaster to reheat toast?

Yes, press the Reheat button after lowering the toast. It will warm the toast without further browning.

What does the Cancel button do?

Press Cancel to immediately stop the toasting cycle and pop up the toast.

Is the exterior of the toaster cool to the touch during use?

Yes, the Kunft YT-1001 features a cool-touch exterior. However, avoid touching the slots' interior or the top surface immediately after use as they may become hot.

How do I prevent the toaster from tipping over?

Place the toaster on a flat, stable surface. The non-slip feet help keep it secure. Ensure the cord is not dangling over the counter edge.

What should I do if the toaster smokes or smells?

Unplug the toaster immediately. Excessive smoke may indicate food debris or residue. Allow it to cool, then clean the crumb tray and interior with a soft brush. Do not submerge in water. If the issue persists, contact Kunft.

Where can I find replacement parts like the crumb tray?

Replacement parts can be ordered through Kunft's official support website or by contacting their customer service. Have your model number (YT-1001) ready.

USER MANUAL YT-1001 Kunft

MANUAL DE INSTRUÇÕES

White KUNFT toaster with black handle and control buttons (no visible text or symbols on body)

toaster

YT-1001

Dear client,

We thank you for purchasing this product.

This appliance was submitted to several laboratorial tests, which certify its quality. To simplify the use of this appliance, this instruction manual has been provided. The instructions must ensure a quick and safe use.

Please read carefully the instructions and safety measures described in this manual.

We wish our clients great satisfaction in using their new appliance.

INDEX

1. SAFETY INSTRUCTIONS ....4

1.1. ENERGY SUPPLY ....5
1.2. POWER CORD AND OTHER CABLES .....5
1.3. MOISTURE AND WATER ......6
1.4. CLEANING 6
1.5. GENERAL PRECAUTIONS ......6

1. USE AND OPERATION 8

2.1. Description of the Appliance ....8
2.2. Before First Use ....8
2.3. Toasting 8
2.4. Reheating 9
2.5. Defrost....9

1. AFTERMARKET 9

2. ENVIRONMENT CONSERVATION 10

1. SAFETY INSTRUCTIONS

	ATTENTION
	Risk of Electric ShockDo Not Open

Attention: to avoid the risk of electric shock, do not remove the cover. The interior does not contain any parts that may be repaired by the user. Ask for assistance to qualified personnel.

Important Warnings

Before using your appliance, read carefully this instruction manual and keep it in a safe place, as you may need it for future consultations.

Before you start your appliance, and to ensure a correct use, do not use it if:

• It has fallen on the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation;

To avoid hazards and deterioration of your appliance by an incorrect use, it is advisable to read the instructions carefully and attentively.

Your appliance must not be used to other ends than the ones foreseen in the instructions manual. Your safety is only guaranteed in a household use and not for commercial use. The incorrect use will not be covered and automatically cancels the right to warranty.

Assistance

Be sure that, in case of malfunction, you take your appliance to a qualified technician for assistance.

This appliance can be used by children from 8 years old and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and maintenance shall not be made by children without supervision.

These instructions are also available on www.suporteworten.pt

1.1. Energy Supply

Check if the voltage of the electric power is compatible with the one mentioned on the appliance (this appliance must be connected to a power supply of 230V\~50Hz). If not, please contact your seller or the Customer Service.

1.2. Power Cord and Other Cables

Unplug your appliance whenever you are not using it.

Do not roll nor pull the cable to unplug the appliance. Keep the power cord away from hot surfaces.

toaster YT-1001

KUNFT®

Never use this appliance if it has a damaged cord or plug, nor if it is not working correctly.

If the power cord is damaged, do not use your appliance, take it to an authorized technical assistance to be replaced.

1.3. Moisture and Water

Do not use your appliance in moist environments. Do not let your appliance subject to get wet in any way, since it may be dangerous. TO AVOID FIRE OR ELECTRIC HAZARD DO NOT EXPOSE THE APPLIANCE TO WATER NOR MOISTURE. Do not put your appliance under water (for example, to wash it).

1.4. Cleaning

Unplug the appliance before you clean it. Later, clean it with a soft and dry cloth. Do not use cleaning products.

1.5. General Precautions

• The slices of bread in the toaster might burn inside it. For this reason, do not use the toaster near easily flammable materials.
• Warning! Danger of burning! This appliance gets hot during operation and can cause a burn.
• Do not put your fingers or any object like forks and knives inside the toaster.

In case any slice of bread gets stuck inside the toaster, unplug the toaster first and then remove the bread slice.

• To avoid overheating, you must allow the appliance to cool down for about 10 minutes after toasting 6 slices of bread.
• The toaster must be placed horizontally on a flat and stable surface.
• Put the appliance in a location where there is enough air ventilation.
• Do not place the toaster on or near hot surfaces like electric hotplates and stoves.
• Do not cover the toaster during its use, a fire may occur.
• To avoid damages to the cable, roll it without effort around the appliance's bottom.
• The packaging material must not be left at children's reach.
• Do not immerse the toaster into any liquid
• Do not use outdoors. This appliance is for household use only

2. USE AND OPERATION

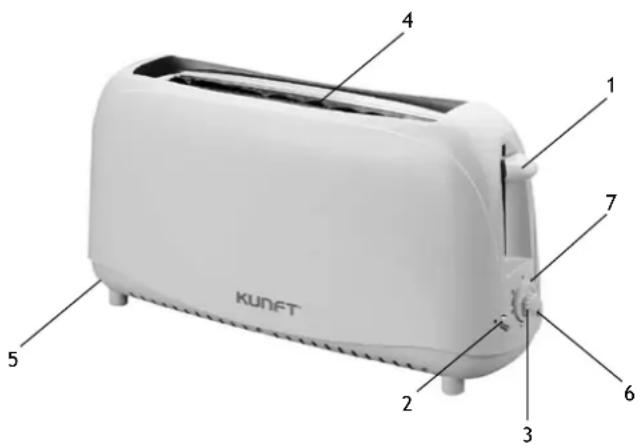

2.1. Description of the Appliance

1. Bread carriage lever (Start Control)
2. Cancel button
3. Toasting setting knob
4. Bread insert slot
5. Crumb tray
6. Defrost button
7. Reheat button

2.2. Before First Use

• Before first use remove all packaging from toaster. Check inside the toaster slots for packaging material and remove it.
• Make sure the crumb tray is in place and that the bread carriage lever is on the Up position.
• Place the toaster on a flat and stable countertop surface, away from the edges and at least 3 inches away from a wall or rear of the counter.

2.3. Toasting

• Plug the cord on the outlet.
• Insert a slice of bread.

• Turn the electronic browning control to the desired position. The higher the number (1-7), the darker the toast colour.

• Press the bread carriage lever down until it locks into position.

• When the toasting cycle is completed, the toast is automatically ejected up.
• To end the toasting cycle before it is completed, simply press the cancel button.

2.4. Reheating

• The reheat button is designed to toast the bread.
• Insert slices of bread into the bread slots.
• Press the bread carriage lever down until it locks into position.
• Press the reheat button.
• When the cycle is completed, the toast is automatically ejected up.
• If you wish to end the toasting before it is finished, simply press the cancel button.

2.5. Defrost

• The defrost button is designed to firstly defrost and then toast the bread, which slightly extends the toasting cycle.
• Insert slices of bread into the bread slots.

• Turn the electronic browning control to the desired position:

• Setting 1-2: for refrigerated breads and thinner frozen items such as frozen pancakes.

• Setting 3-4: for pastries, frozen waffles, thin French toasts and refrigerated bagels.

• Setting 5-7: for thicker frozen items such as bagels, hand cut bread and thick French toasts.

• Press the bread carriage lever down until it locks into position.

• When the cycle is completed, the toast is automatically ejected up.
• To end the cycle before it is completed, simply press the cancel button.

3. AFTERMARKET

KUNFT has designed this appliance in order to guarantee the maximum reliability. However, if a problem occurs, by following the procedures suggested in this section you may be able to determine its cause.

Do not open the appliance - there is a risk of electric shock.

If you are not able to solve the problem, please contact your seller or manufacturer.

All users must be familiarized with this section. Knowing what could go wrong can help you avoid the occurrence of problems.

WARNING: any attempt of fixing the appliance without contacting the manufacturer will nullify the warranty.

toaster YT-1001

KUNFT®

Problem Cause Solution
The toaster does not heat up	There is no current.	Check if there is current on the outlet you are using.
The power goes out when the toaster is connected	Not enough electric power.Short-circuit.	Try another outlet to see if the same situation occurs.This appliance has a power of 750W, so you must use an electric panel with a power of 10A or more.

In case the problem persists, take your appliance to an aftermarket section of any Worten, Modelo or Continente store in order to solve the problem.

Worten Equipamentos para o Lar ensures for a period of 2 years, counting from the date of purchase of this appliance, a warranty against any found manufacturing defect. The warranty supposes a correct use and maintenance of the appliance, namely according to the instructions expressed in this manual. In case otherwise identified, the malfunctions will not be under the warranty.

The repairing of electrical appliances must only be made by qualified technicians, as otherwise there may occur future complications on the appliances.

To avoid unnecessary risks, in case there are any malfunctions on the wires or on another type of components, repairing must be made on the specialized locations of technical assistance, as appropriate tools are needed.

4. ENVIRONMENT CONSERVATION

Aiming to protect the environment, we try to reduce to a maximum the volume of the packages which are confined to three easy separation materials: cardboard, paper and plastic.

The appliance is made of recyclable material, once disassembled by a specialized company. Follow the local legislation concerning recycling of all materials.

Imported, produced and distributed by:
