| Product Type | Audio/Video Converter |
| Brand | ATEN |
| Model | VC080 |

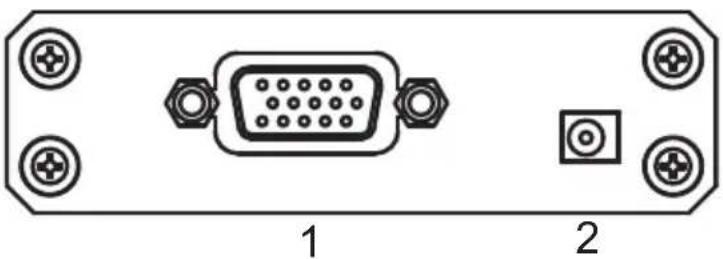

| Input Interface | VGA (D-Sub 15-pin) + 3.5mm Audio Jack |
| Output Interface | HDMI Type A (19-pin) + 3.5mm Audio Jack (pass-through) |
| Max Resolution | 1920 x 1200 (WUXGA) @ 60Hz |
| Audio Support | Analog stereo via 3.5mm input; embedded digital audio on HDMI |
| Power Supply | USB powered (5V DC, 500mA) or optional DC adapter |
| Dimensions (W x D x H) | 70mm x 50mm x 20mm (2.76" x 1.97" x 0.79") |
| Weight | 50g (1.76 oz) |
| Housing Material | Metal enclosure with plastic end caps |
| LED Indicators | Power (green) and Signal (orange) |
| Supported Video Modes | VGA, SVGA, XGA, SXGA, UXGA, WUXGA; interlaced and progressive |
| Plug and Play | Yes, no driver required |
| Compliance | CE, FCC, RoHS |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 20% to 80% RH (non-condensing) |
| Package Contents | VC080 unit, USB power cable, user manual |
| Warranty | 2 years limited |
Frequently Asked Questions - VC080 ATEN
What is the ATEN VC080 used for?
The ATEN VC080 converts analog VGA video and audio signals to digital HDMI output, allowing you to connect older computers or laptops to modern HDMI displays.
Does the VC080 require external power?
Yes, it requires power via the included USB cable (5V, 500mA). You can plug it into a USB port on your computer or a USB power adapter.
What resolutions does the VC080 support?
It supports VGA, SVGA, XGA, SXGA, UXGA, and WUXGA up to 1920x1200 @ 60Hz. Lower resolutions are automatically upscaled.
How do I connect audio with the VC080?
Connect the 3.5mm audio cable from your source device to the VC080's audio input. The audio is then embedded into the HDMI signal and output through the HDMI connection.
Is the VC080 compatible with Mac computers?
Yes, it works with any device that has a VGA output, including Macs (using a Mini DisplayPort to VGA adapter if needed) and supports standard VGA resolutions.
Can I use the VC080 with a DVD player or gaming console?
Yes, as long as the source has a VGA output and supports standard VGA resolutions. Note that most modern consoles do not have VGA outputs.
Does the VC080 support HDCP?
No, the VC080 does not support HDCP. It is designed for non-protected VGA sources. Protected content (e.g., Blu-ray) may not display.
Will the VC080 work with a projector?
Yes, it works with any HDMI projector. The output resolution can be set via the source device to match the projector's native resolution.
What is the maximum cable length for VGA input?
For best performance, use a VGA cable under 10 meters (33 feet). Longer cables may cause signal degradation.
How do I troubleshoot no signal on the display?
Check that the VGA cable is securely connected, the source device is outputting a supported resolution, and the VC080 is powered (LED should be green). Try rebooting the source.
