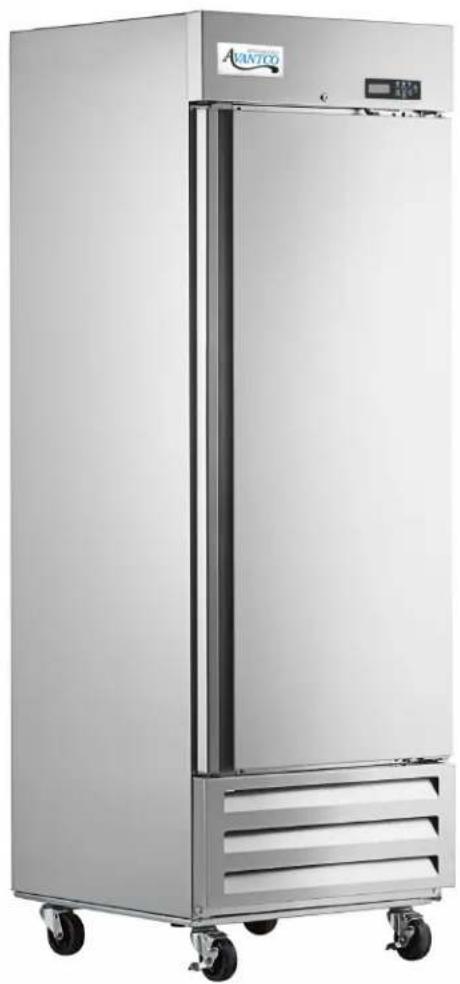

Product Type	Commercial Reach-In Refrigerator
Model	AP-49R (also 447AP49R)
Brand	Avantco
Refrigerant Type	R290 (Flammable)
Temperature Range	32°F to 38°F (factory set)
Temperature Control	Digital controller with SET and arrow keys
Eco Mode	Automatic after 2 hours of no door openings; manual activation available
Defrost System	Automatic off-cycle defrost (refrigerator); manual defrost via down arrow button
Door Hinge	Field convertible from right to left (single door models)
Installation Clearance	6 inches on sides and back for ventilation
Leveling	Shims provided for uneven floors; casters included
Electrical Requirements	115V/60Hz, dedicated grounded outlet, 15A circuit (typical; refer to nameplate)
Condenser Coil Cleaning	Recommended monthly with commercial coil cleaner
Interior Cleaning	Use warm water and mild soap; avoid abrasives
Door Gasket Maintenance	Remove and soak in warm soapy water weekly; ensure proper seal
Product Loading Clearance	Minimum 4 inches from fan at top
Warranty	Warranty void if compressor damage due to improper transport (unit not upright for 24 hours) or high ambient temps
Safety Warning	Flammable refrigerant; repair only by qualified personnel; do not puncture tubing
Dimensions (Approx.)	49"W x 30"D x 78"H (typical for similar models; verify)
Weight (Approx.)	250 lbs (typical; verify)
Casters Included	Yes, with tool for installation
Automatic Defrost Interval	Preset intervals; not user adjustable

Frequently Asked Questions - AP-49R Avantco

How do I adjust the temperature on my Avantco AP-49R refrigerator?

Press and hold the SET button for 1 second. The display will flash the current minimum temperature. Use the arrow buttons to adjust to your desired minimum temperature, then press SET again to save. Remember the cabinet temperature will fluctuate up to +6°F above the set minimum.

What is Eco Mode and how does it work?

Eco Mode reduces energy consumption by raising the temperature set point slightly when the unit is not in use. It activates automatically after 2 hours of no door openings and runs for 4 hours or until the door opens. You can also manually enable it by pressing the ECO button on the controller.

How do I run a manual defrost cycle?

For refrigerators, press and hold the down arrow (defrost button) for approximately 3 seconds. Repeat to stop the cycle. For freezers, hold for 5 seconds.

How often should I clean the condenser coil?

Clean the condenser coil at least once per month using a commercial condenser coil cleaner. A dirty coil can cause unit malfunction and void the warranty.

Can I change the door swing from right to left?

Yes, the single door models (AP-23R, AP-49R) are field convertible. Follow the detailed instructions in the manual using a Phillips head screwdriver and 10mm wrench. The process involves swapping hinges and hardware.

What should I do if the compressor is not running?

Check if the fuse is blown or circuit breaker tripped, ensure the power cord is plugged in, verify the thermostat is set low enough, and wait for any defrost cycle to finish.

Why is condensation collecting on the cabinet or floor?

This is likely due to a door gasket not sealing properly. Clean, repair, or replace the gasket as necessary. Also ensure the door is fully closed.

How do I level the unit on uneven floors?

Use the provided shims between the caster and frame rail. Insert the shim with the slot contacting the caster stem. If using multiple shims, place them in opposite directions to prevent dislodging.

What type of refrigerant does this unit use?

This unit uses R290 (propane), which is flammable. All safety precautions must be followed. Only trained service personnel should repair the unit.

What clearance is needed for proper ventilation?

Maintain 6 inches of clearance on both sides and the back of the unit at all times for proper airflow and efficient operation.

USER MANUAL AP-49R Avantco

Commercial Refrigerators And Freezers

Refrigerator models: 447AP23R, 447AP49R

Freezer models: 447AP23F, 447AP49F

10/2021

Please read the manual thoroughly prior to equipment set-up, operation, and maintenance.

Warning

DANGER – RISK OF FIRE OR EXPLOSION. FLAMMABLE REFRIGERANT USED. TO BE REPAIRED ONLY BY TRAINED SERVICE PERSONNEL. DO NOT PUNCTURE REFRIGERANT TUBING.

PELIGRO - RIESGO DE INCENDIO O EXPLOSION. REFRIGERANTE INFLAMABLE UTILIZADO. PARA SER REPARADO SOLAMENTE POR PERSONAL DE SERVICIO CALIFICADO. NO PINCHAR LA TUBERÍA REFRIGERANTE.

DANGER – RISQUE DE FEU OU D'EXPLOSION. LE FRIGORIGÈNE EST INFLAMMABLE. CONFIER LES RÉPARATIONS À UN TECHNICIEN SPÉCIALISÉ. NE PAS PERFORER LA TUBULURE CONTENANT LE FRIGORIGENE.

CAUTION – RISK OF FIRE OR EXPLOSION. FLAMMABLE REFRIGERANT USED. CONSULT REPAIR MANUAL/OWNER'S GUIDE BEFORE ATTEMPTING TO SERVICE THIS PRODUCT. ALL SAFETY PRECAUTIONS MUST BE FOLLOWED.

Please read this manual thoroughly prior to equipment set-up, operation, and maintenance.

Important!!! Please Read Before Installation

• If the shelf has a raised lip, the lip needs to be installed facing up towards the rear of the cabinet to promote proper air flow. Failure to install the shelves properly is considered user-error and is not covered by warranty.
• If the unit has recently been transported on its side, please let the unit stand upright for a minimum of 24 hours before plugging it in.
• Make sure the unit has reached the desired temperature before loading the unit with products.
• Make sure all accessories are installed (shelves, shelf clips, etc...) before plugging in the unit.
• Do not attempt to remove or repair any component of the unit. Consult an authorized service technician for servicing / repair.
• Do not hang on doors or stand inside the unit.
• Please read through this manual in its entirety.

Cabinet Location Guides

• Install the unit on a strong and leveled surface.
- If the surface is uneven, the unit may be noisy.
- The unit may malfunction if the surface is uneven.
• Install the unit in an indoor, well ventilated area.
- For best performance, maintain 6" of clearance on both sides and the back of the unit at all times.
- Outdoor use may cause decreased efficiency and damage to the unit.
- Avoid direct sunlight.

- Avoid installation in a high humidity and / or dusty area.

- High humidity can cause the unit to rust and may decrease efficiency.

- Dust collected on the condenser coil may cause unit to malfunction.

- Malfunction due to high ambient temperatures, humidity, or improperly maintained condenser coil will void the warranty.

- Select a location away from heat and moisture-generating equipment.

- High ambient temperatures may cause the compressor to malfunction.

- Malfunction due to high ambient temperatures and humidity will void the warranty.

User Manual

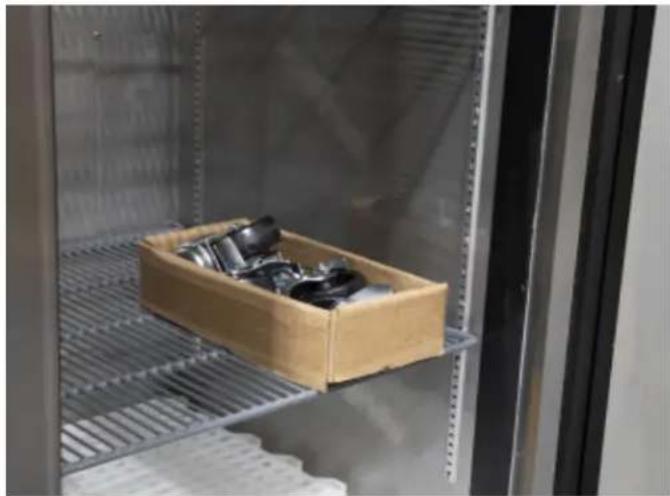

Installation of Casters:

• Cut the four straps which attach the unit to the pallet.
• Adjust the unit on the pallet until the pre-drilled holes are exposed.
• Using wedges or team-lift, lift the unit high enough that there is enough clearance to affix the caster.

CAUTION! NEVER LAY UNIT ON ITS BACK! UNIT SHOULD ONLY BE PLUGGED IN WHEN IT HAS RESTED IN THE CORRECT UPRIGHT POSITION FOR AT LEAST 24 HOURS. Failure to meet this requirement will void warranty coverage if compressor damage ensues.

• For leveling if dealing with a sloped or uneven floor, shims are provided. Insert any necessary shims between the caster and the frame rail. Make sure the slot of the shim is in contact with the treaded stem of the caster. If using more than one shim, it is necessary to place them in opposite directions. If multiple shims are placed side by side in the same direction, they may dislodge.
• Turn the bearing race clockwise to tighten and secure the caster. Use provided tool to secure all casters properly.

Field Convertible Doors

The Avantco AP-23R and AP-23F models ship with a right-hinged door design. These single door models have the ability to be switched to a left hinged door design. Please follow instructions below:

Tools Needed:

• Phillips Head Screwdriver
- 10mm Wrench

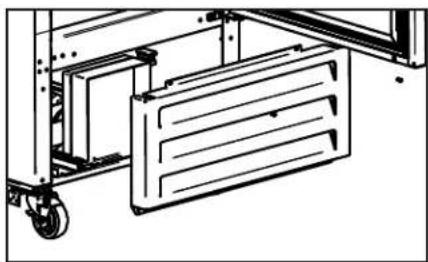

1. Use the phillips head screwdriver to remove the front panel screws, followed by the front panel.

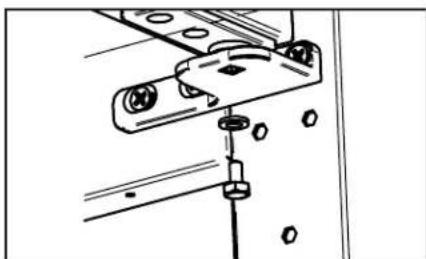

1. Use the wrench to remove the bottom hinge hex screw, then loosen the hinge screws and carefully remove the door.

1. Use the screwdriver to remove the bottom and top hinges.

1. Use the wrench to remove the bolt of the top hinge, then install the bolt in to the bottom hinge.

1. Install the bottom right hinge in the top left side of the equipment. Then, install the top right hinge in the bottom left side of the equipment.

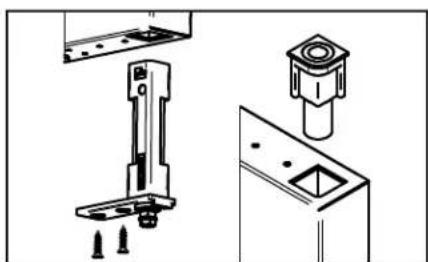

1. Remove the bottom cartridge and bolt housing from the door, install the cartridge at the top of the door and the bolt housing in the bottom.

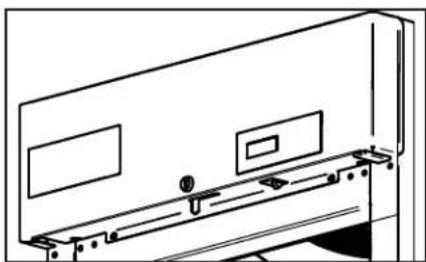

1. Remove the top head screws, then move the hinge cap to the right side. Reinstall the top head screws.

1. Install the hinges on the left side, but do not tighten the screws. Then, install the door and cartridge screw. Tighten all screws.

1. Reinstall the front panel with the hinge cap on the right side.

User Manual

Electrical

• Please ensure that the required voltage is being supplied at all times.
• The unit should be plugged into a grounded and properly-sized electrical outlet with appropriate over-current protection. Please refer to the electrical requirements on the unit's nameplate.
• The unit should have its own dedicated outlet.
• Do not use extension cords.
• Ensure the unit is not resting on or against the electrical cord.
• If the unit is not in use for a long period of time, please unplug the unit from the outlet.
• To avoid shock and fire hazards, do not plug in or unplug the unit with wet hands.
• After unplugging the unit, wait at least 10 minutes before plugging it back in. Failure to do so could cause damage to the compressor.

Adjusting the Temperature

Your new refrigerator or freezer is already factory-set to run at optimum temperatures for food safety and should require no adjustments.

Refrigerators are set to cycle between

a minimum temperature of 32° F and a maximum temperature of 38° F.

Freezers are set to cycle between

a minimum temperature of -8°F and a maximum temperature of 0°F .

Adjusting the temperature changes the minimum temperature your unit will run at. Your unit will not run constantly at this setting. To change it, follow these instructions:

Digital Control Units

• Hold "SET" for 1 sec. The display will flash the current minimum temperature.
• Use the arrow buttons to adjust the minimum temperature you want it to run at.
• Press "SET" again to save your settings

Always remember to calculate the differential if you change the minimum temperature setting. The cabinet temperature will fluctuate up to +6°F for refrigerators and +8°F for freezers over your set minimum temperature as the compressor runs and shuts off. Setting the temperature too high will result in unsafe maximum temperatures and possible health code violations.

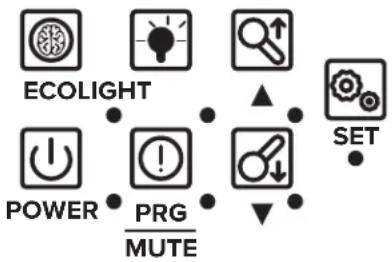

Control Panel

ECO Mode

Your new APlus Reach in Refrigerator or Freezer is equipped with Eco Mode which will cut down on energy costs and support longevity of your unit. When the unit automatically detects a time of no use, it will switch into a power saving mode: Eco Mode. After two hours of no door openings, your unit will automatically select a more efficient food-safe temperature to maintain for four hours. The compressor will work less during the downtime of your kitchen. You can also enable Eco Mode manually at any time you choose via the electronic controller. Eco Mode will stop when the door opens or when it is toggled off on the controller.

Instructions:

Automatic Mode:

• Your unit's setting is to automatically detect times to implement eco mode.
• When your unit detects no door openings for two consecutive hours, the temperature set point will be slightly higher, allowing the compressor to run less
• Eco Mode will run for four consecutive hours or until the door is opened for more than 6 seconds, when it will toggle off

To enable Eco Mode manually:

• Press the "ECO" Button on the controller.
• The screen will display "ECO"
• The temperature will be set to a slightly higher maintenance temperature, allowing the compressor to run less
• If you wish to end Eco Mode, press the "ECO" button again
• Alternatively, Eco Mode will automatically end when the unit's door is opened for more than 6 seconds or after four hours of being in Eco Mode

Running a Manual Defrost Cycle

This unit is pre-programmed to run automatic defrost cycles at preset intervals. However, if you would like to run a manual defrost cycle at any time, please follow the steps below:

Refrigerators: Press the defrost button (down arrow) for approximately 3 seconds.

Repeat to stop the defrost cycle.

User Manual

Freezers: Press the defrost button (down arrow) for approximately 5 seconds.

Repeat to stop the defrost cycle.

Defrost System

Refrigerator coils are kept below the freezing point (32 degrees Fahrenheit). During compressor down-time, the evaporator fan continues to circulate air through the evaporator coil. This air circulation raises the coil temperature above the freezing point, melting any accumulated frost. Run-off water is drained into the evaporator pan and evaporated. Freezer coils are defrosted electrically. Automatic defrost timers automatically initiate at pre-set intervals and for a pre-determined duration.

Operation/Maintenance

NOTE: We strongly recommend that any servicing be performed by an authorized service technician.

Loading Product

• Do not block the air duct / fan at the top of the unit. Maintain a minimum of 4" of clearance between products and the fan at all times.
• Ensure all shelves are sitting level and properly secured before loading products.
• Do not store flammable and explosive gas or liquids inside the unit.

Cleaning the Condensor Coil

• For efficient operation, keep the condenser surface free of dust, dirt, and lint.
• We recommend cleaning the condenser coil at least once per month.
• Clean the condenser with a commercial condenser coil cleaner, available from any kitchen equipment retailer.

Cleaning the Fan Blades and Motor

• If necessary, clean the fan blades and motor with a soft cloth.
• If it is necessary to wash the fan blades, cover the fan motor to prevent moisture damage.

Cleaning the Interior of Unit

• When cleaning the cabinet interior, use a solvent of warm water and mild soap.
• Do not use steel wool, caustic soap, abrasive cleaners, or bleach that may damage the interior finish.
• Wash door gaskets on a regular basis, preferably weekly. Simply remove the door gasket from the frame of the door, soak it in warm water and soap for thirty (30) minutes, then dry with soft cloth and replace.
• Check door gaskets for proper seal after they are replaced.
• Periodically remove the shelves and shelf brackets from the unit, and clean them with a mild soap and warm water.

Trouble Shooting

Compressor is Not Running

Fuse blown or circuit breaker tripped. Replace fuse or reset circuit breaker.
Power cord unplugged. Plug in power cord
Thermostat set too high. Set thermostat to lower temperature.
Cabinet in defrost cycle. Wait for defrost cycle to finish.

Cabinet Temperature is too Warm

Thermostat is set too high. Set thermostat to lower temperature.
Airflow is blocked. Re-arrange products to allow for proper air flow.	Make sure there is at least four inches of clearance from the fan.
Low refrigerant levels. Contact a service technician to check refrigerant levels.
Door is slightly ajar. Make sure door is completely closed.

Interior Light is Not Working

Poor switch connection. Turn off light switch and turn it back on.
Bulb is not connected. Make sure the bulb is correctly inserted in the socket.
Bulb has burned out.	Replace the bulb.

Condensation is Collecting on the Cabinet and/or Floor

Gasket is not sealing properly. Clean, repair, or replace the gasket as necessary.
