Product Type	Deep fryer
Brand	Paragon
Model	ParaFryer 9050
Dimensions (W x D x H)	30 cm x 25 cm x 35 cm
Weight	3.5 kg
Power Consumption	1500 W
Voltage	220-240 V, 50/60 Hz
Oil Capacity	2.5 L
Food Capacity	1.5 kg
Temperature Range	130°C - 190°C
Heat Source	Electric heating element
Control Type	Adjustable thermostat
Power Indicator	Yes
Ready Indicator	Yes
Non-Stick Coating	Yes
Cool-Touch Handles	Yes
Viewing Window	Yes
Magnetic Breakaway Cord	Yes
Auto Shut-Off	Yes
Overheat Protection	Yes
Oil Drain Valve	Yes
Dishwasher-Safe Parts	Yes (basket and tank)
Non-Slip Feet	Yes
BPA-Free Materials	Yes
Warranty	2 years

Frequently Asked Questions - ParaFryer 9050 Paragon

What is the oil capacity of the Paragon ParaFryer 9050?

The oil capacity is 2.5 liters, suitable for family-sized batches.

What type of oil can I use in the ParaFryer 9050?

You can use any standard frying oil, such as vegetable, canola, or peanut oil. Avoid olive oil for high-temperature frying.

How do I clean the deep fryer?

Unplug and let it cool. Remove the basket and tank; both are dishwasher safe. Wipe the exterior with a damp cloth. Never immerse the base in water.

What is the temperature range of the ParaFryer 9050?

The adjustable thermostat allows temperatures from 130°C to 190°C, perfect for different foods like french fries, chicken, or onion rings.

Does the ParaFryer 9050 have an automatic shut-off?

Yes, it features an auto shut-off function to prevent overheating and ensure safety.

Can I fry large amounts of food at once?

The food capacity is up to 1.5 kg. For best results, avoid overfilling the basket to maintain oil temperature.

Is the handle cool to the touch?

Yes, the handles are designed with cool-touch technology for safe handling during and after frying.

How often should I change the oil?

Change the oil after 8-10 uses or when it becomes dark or smells rancid. Straining oil after each use can prolong its life.

What safety features does the ParaFryer 9050 have?

It includes a magnetic breakaway cord, overheat protection, auto shut-off, and non-slip feet for stability.

Can I use the ParaFryer 9050 to cook frozen foods?

Yes, but shake off excess ice and lower food slowly to avoid oil splatter. Adjust cooking time as needed.

USER MANUAL ParaFryer 9050 Paragon

Exterior view of a stainless steel rectangular industrial container with control panel and side arm (no visible text or symbols)

Model Numbers

MIGHTYCORN DOG FRYER 3000 9050 (240V)

ELECTRIC FRYER

www.ManufacturedFun.com

Paragon International, Inc • 731 W. 18 ^th Street • P.O. Box 560 • Nevada, IA 50201 USA

Phone [phone] • Toll-free [phone] • Fax [phone] • Email: [e-mail]

SAFETY PRECAUTIONS

Paragon values your continued safety above all else. Please follow these guidelines when using your equipment to prevent injury and maximize product performance:

Warning symbol image showing a lightning bolt inside a triangle with a downward arrow

Machine must be properly grounded to prevent electrical shock. Do NOT immerse this equipment in water. Doing so may damage equipment and prevent it from working properly.

Always unplug equipment before cleaning or serving to prevent electrical shock.

Simple black-and-white icon of a stylized human head wearing sunglasses, enclosed in a circle (no text or symbols)

Always wear safety glasses when servicing equipment.

Warning symbol with exclamation mark inside a triangle

No direct contact to equipment by the general public should be allowed when used in food service locations. Only trained personnel should operate this equipment.

Carefully read any through this manual before beginning operation of the equipment.

Warning symbol with exclamation mark inside a triangle

Never make alteration to this equipment. Any alterations made by anyone other than certified Paragon personnel will void warranty and may also create unsafe working conditions.

Warning symbol with exclamation mark inside triangle

This machine is NOT to be operated by anyone under the age of 18.

INTRODUCTION

P A RAGON IS P R O U D TO BE YO UR

PARTNER FOR MANUFACTURED FUN.

Our goal is to provide you with the best solutions to attract customers, expand your business, and improve your profits. That's why this product has been specially-crafted to meet precise specifications for performance, efficiency, and output.

Your Paragon Fryer features:

• Stainless steel construction
- Adjustable thermostat and digital temperature display with a high limit shutdown
- Made in the USA

Specifications:

• Overall size with cover: 18" wide x 23" deep x 11.5" high
  • Weight: 26.05lbs with top cover (no oil)
  • Cooking oil capacity: 37lbs
• Power Requirements: 208 to 240 Volts, 50/60 Hz single phase (3000 watts at 240 volt, 12.5 amps)
  • Power Plug Type: NEMA style 6-15P, with a 5 ft style SJOOW, 14/3 power cord
• Temperature: Thermostat controlled up to 400^ F. A high limit control to 450^ F with a digital temperature readout

- Tank Volume: 1105 cu. Inch

- 37.5 Lbs – 4.5 gallons to Maximum Level

- 33.38 Lbs – 4 gallons to Minimum Level

Should you have any questions about your equipment, or would like to know more about our other innovative concession equipment and supplies, please contact us at 1-800-433-0333 or visit us on the web at: Manufacturedfun.com

Thank you for your purchase and enjoy!

ELECTRICAL REQUIREMENTS

This product requires a properly-grounded 208 to 240VAC, 50/60 Hz single phase supply with a 20 amp circuit.

We recommend that your fryer be plugged directly into a dedicated outlet. Extension cords may create a safety hazard and reduce its performance.

Be sure outlet accepts three (3) prong grounded plug, NEMA style 6-20R receptacle.

IMPORTANT FIRE SAFETY NOTICE

The building code in most cities in North America requires that any fryer with more than a 7 pound oil capacity be operated under a vent hood with “Automatic Fire Extinguisher System”. If you operate this fryer outdoors in a trailer or portable concession stand, you may not fall under the building code requirements.

Your Paragon fryer has one thermostat which works with a heat adjustment dial and controls the working temperature of the oil. This machine also has a high limit shut-down controller with a digital temperature display that operates in the event that the thermostat should fail.

It is necessary that you keep an oil-type fire extinguisher readily available in the event both thermostats fail, resulting in fire.

UNPACKING

Paragon carefully inspects each product during assembly and after completion to adhere to strict quality guidelines, and packs it securely to ensure safe delivery to each of our customers. Be sure to carefully remove all packing material and adhesive before any operation. Please examine your product to guarantee all equipment has arrived, complete and in good condition.

If you believe that any damage may have occurred during shipment or parts may be missing, please contact Paragon immediately for replacement.

Operating Cautions:

• Hot oil is dangerous-contact with skin can result in severe burns
• Place your fryer on a table or base strong enough to support it and keep it from being knocked off its base.
• Keep your floors clean so no one slips and contacts the fryer.

- Oil is flammable! Keep open flames away from oil and vapors.

- Keep areas and filters clean above fryer. Lint or dust soaked in oil can ignite easily.

• Install an automatic fire extinguisher over the fryer and exhaust duct.

- Consult your local fire protection agency for you area requirements. Check regularly to insure safe and proper function.

- If your fryer starts to smoke or boil abnormally, cut off power supply and determine the reason before attempting to use it again.

- Be sure the power source is installed properly and in accordance with your local and national codes.

- See that all your personnel understand the hazards of hot oil. Instruct them on the proper action if something does not seem to be acting properly.

- Instruct your personnel on what to do if there is a grease fire. Do NOT use water on a grease fire! Use only fire extinguishers of the approved type and never direct the extinguisher so as to blow the grease out of the oil tank.

- Use appropriate frying shortening.

- Remember hot oil is dangerous!

Don'ts for deep fat fryers

• Don't fry above 375F.
• Don't overload the frying tank.
• Don't shake breaded items over fryer
• Don't salt items over fryer
• Don't introduce excessive amounts of water to fryer
• Don't fry food in broken-down frying shortening.

Installation

• Place the fryer on a suitable bench or table. Allow sufficient side space when using the reversible top cover as a side tray. Position the fryer back enough from the bench top to prevent the drain valve to not extend over the edge.
• Check your local regulation codes. (Some localities may require an exhaust hood and/or an approved fire extinguisher.
• Mount the control panel assembly on to the tank. WARNING: Do not lift the fryer by the control panel.
• Secure the control panel by tightening the two thumb knobs located on the back side.
• Plug the power cord into power outlet.

• Do a start-up test to verify the unit is working:

• Turn on the control panel's power switch

- Momentarily depress the Reset (RST Button) to start the controller on start-up

1. The digital temperature read out should indicate a temperature
2. Turn the temperature knob up to 200F

Warning: Turn temperature knob back to "Off" after a couple of seconds

• Turn the power switch off
  • The heating element should be hot

• Test is completed, the fryer is now ready for use

WARNING: Do not operate without any cooking oil.

Operation

1. Be sure the "drain valve" is closed
2. Add approximately 37 lbs of cooking oil. Do not fill above the "MAX" line.
3. The fryer is now ready for use.

WARNING: Some products may require oil temperatures up to 375^ F. Use only trained personal.

Cleaning

• A fine mesh skimmer may be used to remove crust that forms during cooking periods or during the routine clean-up
• To drain the cooking oil, use the drain valve. An extension on the valve may be used to direct the oil flow. To use the last remaining oil, block the back edge up slightly and also a baster may be use.

WARNING: Do not drain until the oil is cooled down

- With routine cleaning a fine grade steel wool may be used to remove the baked on oil residue in the tank

Cabinet

Labeled diagram of a stainless steel battery with numbered components and internal components

Close-up of a green electrical plug and its corresponding white socket (no text or symbols visible)

No.	Part No.	Description
1	79601	Fryer Base Assembly
2	70121	Ball Valve
3	78650	Fryer Cover
4	12182	Power Cord 240V (Note: 15 Amp Plug and 6-15 Socket)

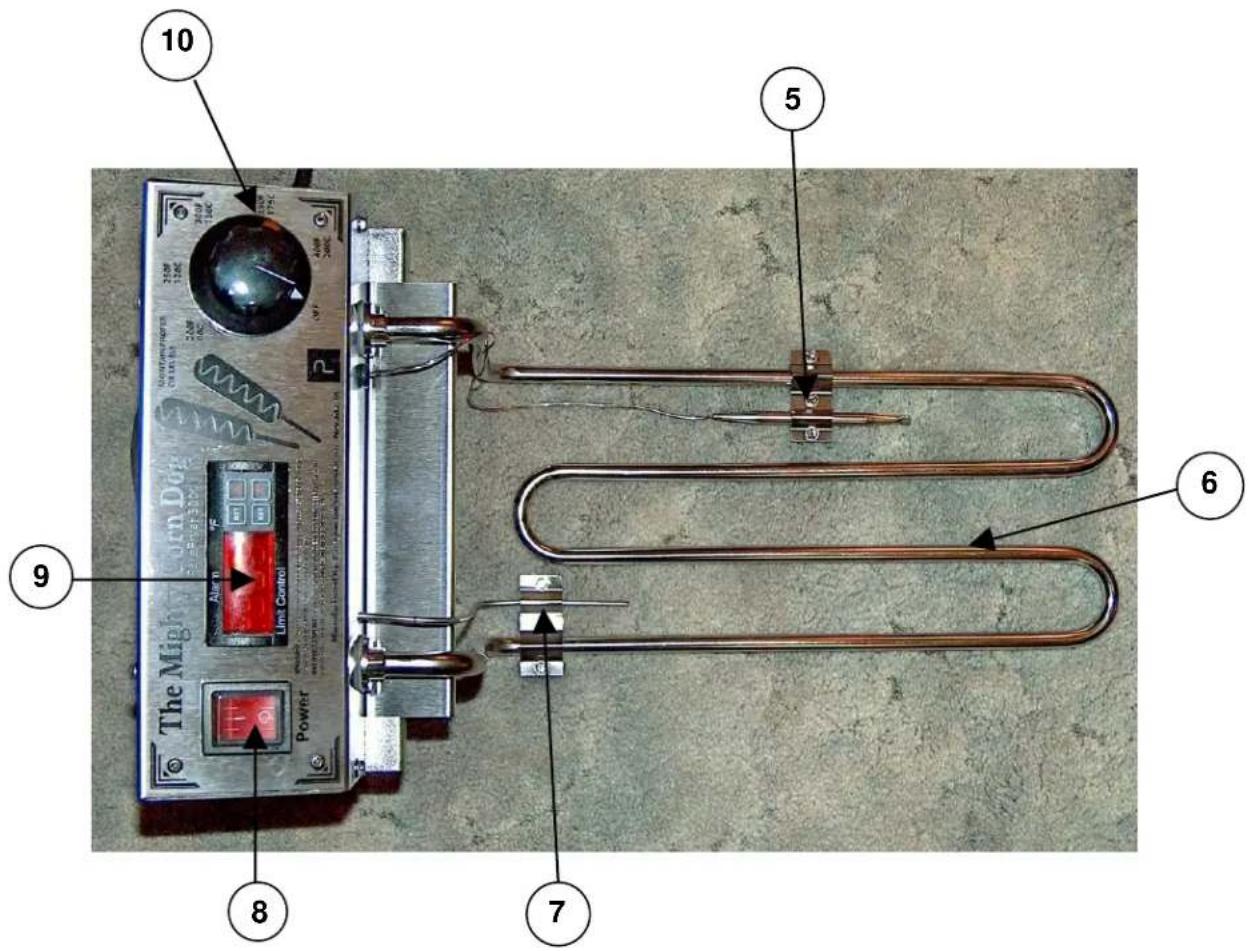

Controls

The Mfg Power Line Control Alum 200V 200V 200V 200V 200V 200V 200V 200V 200V 200V 200V 200V 200V 200V 200V 200V 200V 200V 200V 200V 200A 200A 200A 200A 200A 200A 200A 200A 200A 200A 200A 200A 200A 200A 200A 200A 200A 200A 200A 200A 200B 200B 200B 200B 200B 200B 200B 200B 200B 200B 200B 200B 200B 200B 200B 200B 200B 200B 200B 200B 200C 200C 200C 200C 200C 200C 200C 200C 200C 200C 200C 200C 200C 200C 200C 200C 200C 200C 200C 200C 200A 200A 200A 200A 200A 200A 200A 200A 200A 200A 200A 200A 200A 200A 200A 200A 201A 211A 191A 181A 171A 161A 151A 141A 131A 121A 111A 101A

No.	Part No.	Description
5	78280	Thermostat Bulb
6	78101	Element
7	78005	Thermo Limit Probe
8	12408	Master Switch
9	78001	Digital Temperature Limit
10	HDS_0036	Thermostat Knob

Electrical Guide 5 ELEMENT 6 THERMOCOUPLE (HT-2) (R-1) (W-1) RED WHT 4 DIGITAL CONTROL (R-1) (W-1) R-1) BLK WHT POWER SWITCH BLK 3 THERMOSTAT (HT-1) GRN GROUND COMPONENT (X-X) WIRE ID ① ②

Internal wiring diagram of an electronic device with labeled components including power supply, circuit breakers, and terminal blocks.

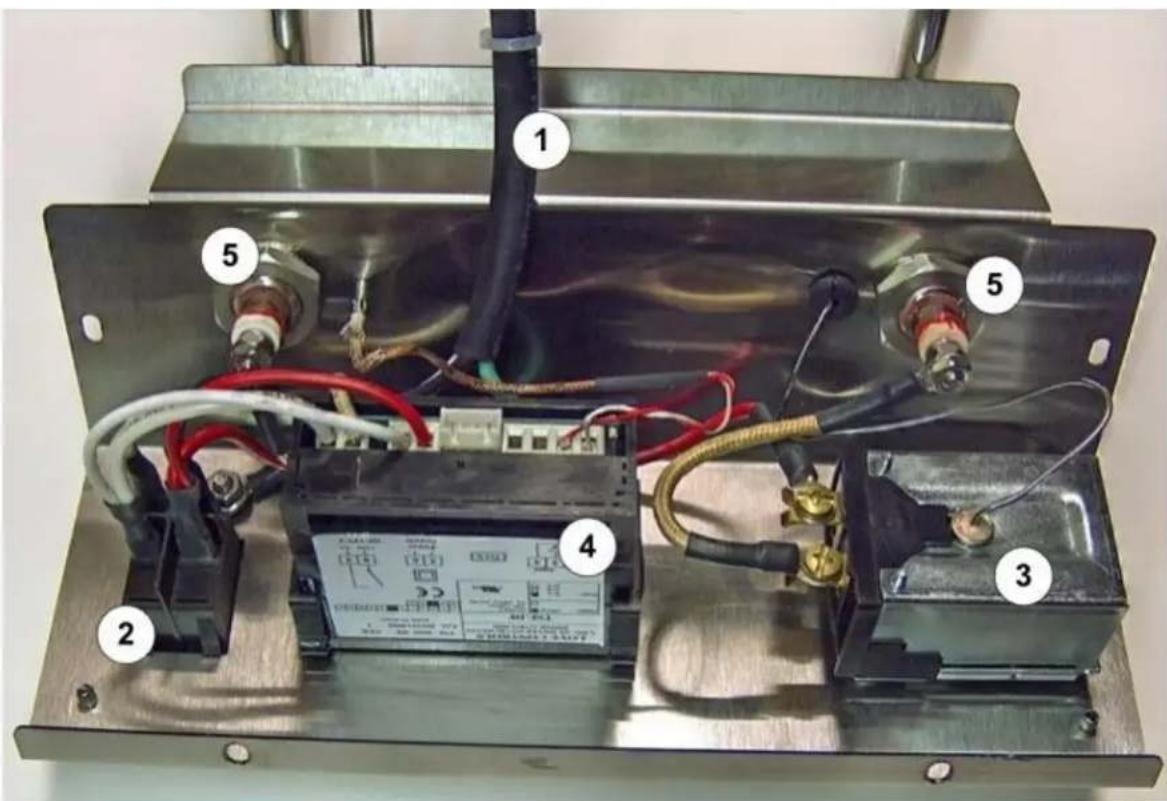

Item Number	Part No.	Description
1	12182	Power Cord – 208 to 240V, NEMA 6-15 Plug
2	12408	Master Switch
3	78280	Thermostat
4	78001	Digital Temperature Limit
5	78101	Element
