USER MANUAL PMD15 HAYWARD

HAYWARD® CLIMMIONS, NORTH CAROLINA [e-mail] TYPE: PMD15 MAX 120 PSI 90 PSI 275" IBS DA 90° ISO CH14 CCW NAMUR H = 20 CAUTION OUT LONDON PROTECTION BEFORE DTPSCHUMBER, INC., POWER 730 INTECHNOLOGY INTECHNOLOGY

PMD Series Double Acting Pneumatic Actuators

FOR BALL VALVES UP TO 2" FOR BUTTERFLY VALVES UP TO 3"

KEY FEATURES

• Double Acting Air-to-Open and Close
• Corrosion-Resistant Thermoplastic Housing
• Permanently Lubricated Rack and Pinion
- Manual Override
- Two-Piston Rack and Pinion Design
- Namur-Style Top-Works Mounting
- Namur-Style Solenoid Mounting
- Position Indicator
- Lightweight
• ISO5211 Mounting Base

OPTIONS

• Solenoid Valves with Optional Voltages
• Declutchable Manual Override
• Auxiliary Limit Switch
• Cycle Speed Control
• Positioner

TECHNICAL INFORMATIONTECHNICAL INFORMATION

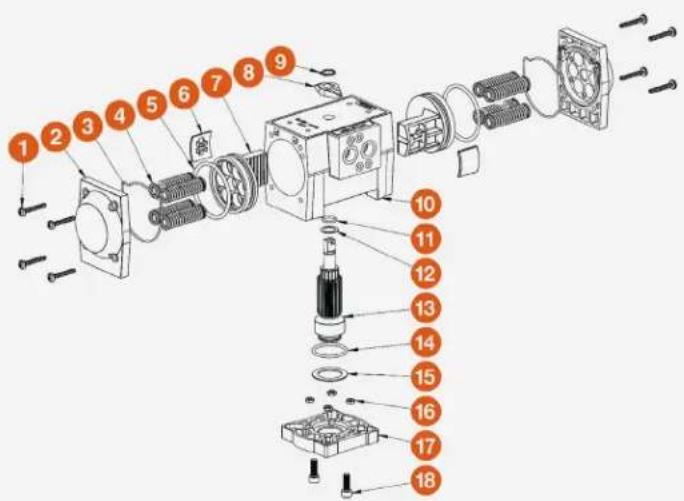

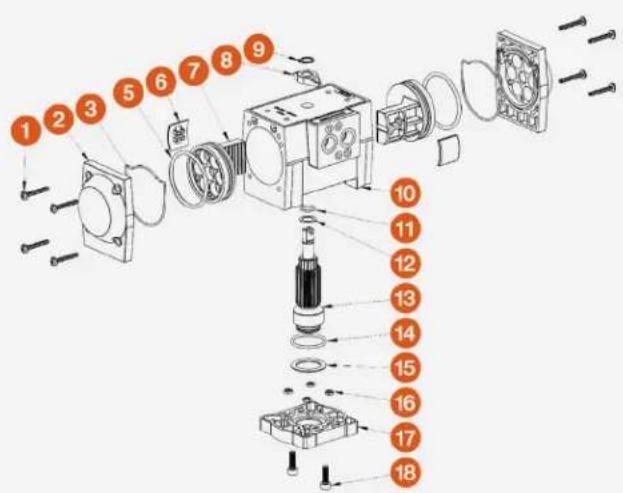

EXPLODED VIEW

Exploded view diagram of a mechanical device with numbered parts for identification

SPECIFICATIONS

HOUSING	Polyamide
OUTPUT SHAFT	Carbon Steel, Nickel Plated
MINIMUM AIR PRESSURE	80 PSI
MAXIMUM AIR PRESSURE	120 PSI
SEALS	Nitrile
CYCLE TIME	Half Second, Typical
AIR PORT CONNECTIONS	1/4" NPT

PMD Series

Double Acting Pneumatic Actuators

FOR BALL VALVES UP TO 2"

FOR BUTTERFLY VALVES UP TO 3"

TECHNICAL INFORMATION, CONTINUED

DIMENSIONS

MODEL	øAin / mm	Bin / mm	Cin / mm	Lin / mm	Pin / mm	Rin / mm
PMD15	.551 / 14ISO F05	1/4-20 x .512UNC-ISO F05	ø1.969 / 50ISO F05	6.299 / 160	4.370 / 111	3.386 / 86

Dimensions are subject to change without notice — consult factory for installation information

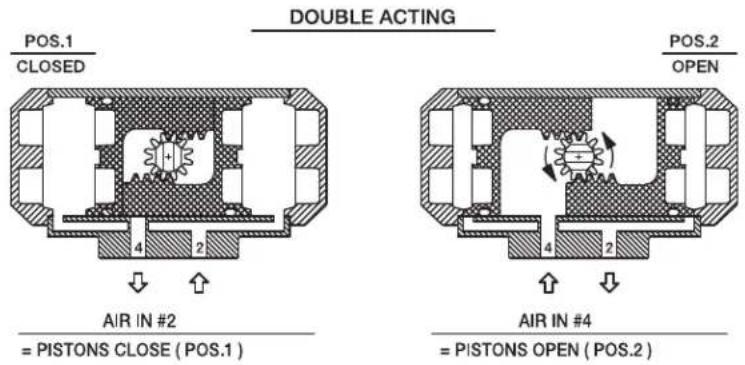

ACTUATOR OPERATING SYSTEMS

ACTUATOR SPECIFICATIONS

MODEL PMD15
Torque Output (in-lbs) @ 80 PSI 275
Enclosure Material Polyamide
Output Shaft Carbon Steel, Nickel Plated
Air Port Connections 1/4" NPT
Air Consumption (cu. in.) 22.0
Air Transfer Internal
Stroke Time (seconds) .5
Cycle Time	1/2 Second
Minimum Air Pressure 80 PSI
Maximum Air Pressure	120 PSI
Operation	Rack and Pinion
Weight (lbs / kg)	2.624 / 1.2

VALVE SELECTION CHART

SIZE*in / DN	TB / TBH / CV / CVH SERIESBALL VALVES	TW/LA SERIESBALL VALVES	BYV SERIESBUTTERFLY VALVES
1/2 - 2/15 - 50	PMD15	PMD15	N/A
2 - 3	-	-	PMD15

* Actuator selection based on clean water @ 70°F

TOP L (PMD) (NAMUR) 1.181 R (WA) #10-32x.315 (4) (NAMUR) (NAMUR)

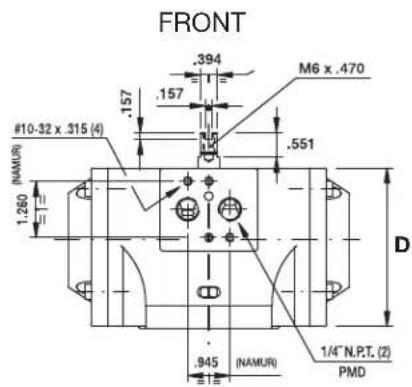

FRONT .394 .157 .157 .551 M6 x .470 #10-32 x .315 (4) .260 (NAMUR) .945 (NAMUR) ±1 ±1 1/4" N.P.T. (2) PMD D

SIDE .472 .787 .039 P

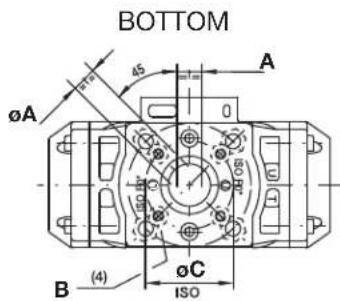

BOTTOM øA 45 A 0 B (4) ISO øC

Hayward is a registered trademark

of Hayward Industries, Inc

© 2020 Harvard Industries, Inc.

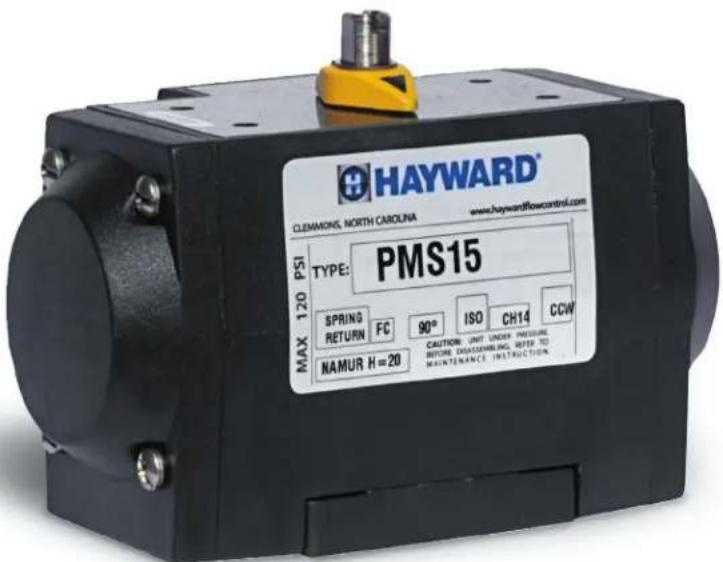

HAYWARD® CLEMONS, NORTH CAROLINA www.haywardflowcontrol.com TYPE: PMS15 SPRING RETURN FC 90° ISO CH14 CCW CAUTION UNI UNDER PRESSURE NAMUR H=20 BEFORE DISASTERMINING.REFER TO MAINTENANCE INSTRUCTION

PMS Series Spring Return Pneumatic Actuators

FOR BALL VALVES UP TO 2"

KEY FEATURES

• Air to Spring Fail-Safe Operation
• Corrosion-Resistant Thermoplastic Housing
• Permanently Lubricated Rack and Pinion
- Manual Override
- Two-Piston Rack and Pinion Design
- Namur-Style Top-Works Mounting
- Namur-Style Solenoid Mounting
- Position Indicator
- Lightweight
• ISO5211 Mounting Base

OPTIONS

• Solenoid Valves with Optional Voltages
• Declutchable Manual Override
• Auxiliary Limit Switch
• Cycle Speed Control
• Positioner

TECHNICAL INFORMATION

EXPLODED VIEW

Exploded view diagram of a mechanical assembly with numbered parts for identification

SPECIFICATIONS

HOUSING	Polyamide
OUTPUT SHAFT	Carbon Steel, Nickel Plated
MINIMUM AIR PRESSURE	80 PSI
MAXIMUM AIR PRESSURE	120 PSI
SEALS	Nitrile
CYCLE TIME	Half Second, Typical
AIR PORT CONNECTIONS	1/4" NPT

PMS Series

Spring Return Pneumatic Actuators

FOR BALL VALVES UP TO 2"

TECHNICAL INFORMATION, CONTINUED

DIMENSIONS

MODEL	øAin / mm	Bin / mm	Cin / mm	Lin / mm	Pin / mm	Rin / mm
PMS15	.551 / 14ISO F05	1/4-20 x .512UNC-ISO F05	ø1.969 / 50ISO F05	6.299 / 160	4.370 / 111	3.386 / 86

Dimensions are subject to change without notice – consult factory for installation information. Standard is spring CW (Fail Closed). Add "FO" suffix to model number for spring CCW (Fail Open).

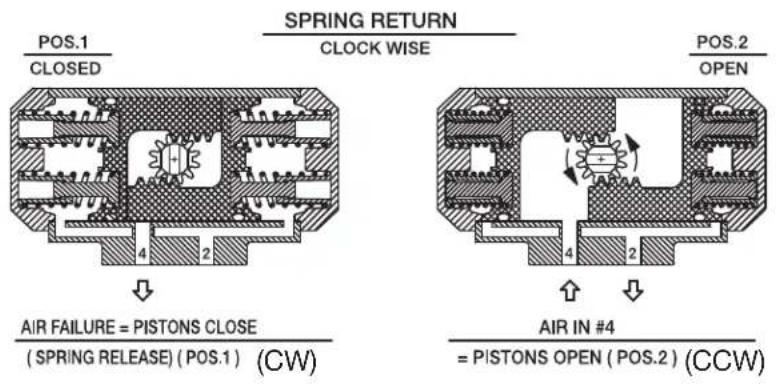

ACTUATOR OPERATING SYSTEMS

ACTUATOR SPECIFICATIONS

MODEL PMS15

Torque Output (in-lbs) @ 80 PSI 168 / 125

Spring Stroke (Start/End) 150 / 107

Enclosure Material Polyamide

Output Shaft Carbon Steel, Nickel Plated

Air Port Connections 1/4" NPT

Air Consumption (cu. in.) 10.8

Air Transfer Internal

Stroke Time (seconds) .5

Cycle Time 1/2 Second

Minimum Air Pressure 80 PSI

Maximum Air Pressure 120 PSI

Operation Rack and Pinion

Weight (lbs / kg)

3.1/1.4

VALVE SELECTION CHART

SIZE*in/DN	TB / TBH / CV / CVH SERIESBALL VALVES	TW/LA SERIES BALL VALVES
1/2 - 2/15 - 50	PMS15	PMS15

* Actuator selection based on clean water @ 70°F

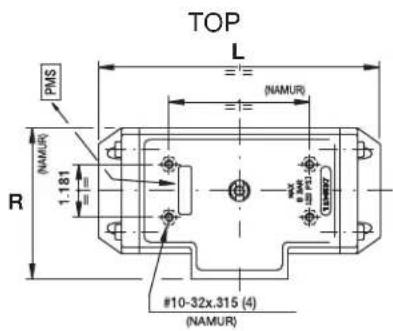

TOP L (PMS) (NAMUR) 1.181 R (NAMUR) (NAMUR) #10-32x.315 (4) (NAMUR)

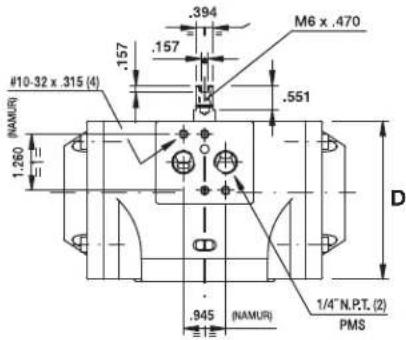

FRONT

.394 .157 .157 .551 M6 x .470 #10-32 x .315 (4) (NAMUR) 1.260 .D .945 (NAMUR) 1/4" N.P.T. (2) PMS

SIDE

.472 .787 P .039

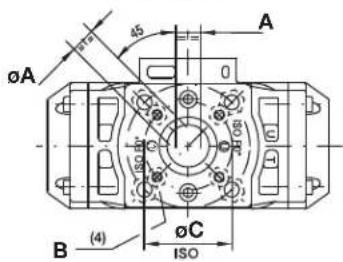

BOTTOM

øA 45 A B (4) ISO øC
