HE-BX655 - Bike Hiper - Free user manual and instructions

Product Type	Electric Bike
Model	HE-BX655
Brand	Hiper
Frame Material	Aluminum Alloy
Motor Type	Rear Hub Motor
Motor Power	250W
Battery Type	Lithium-ion
Battery Capacity	36V 10Ah (360Wh)
Charging Time	6 hours
Range	40-80 km
Max Speed	25 km/h (assisted)
Drivetrain	7-Speed Shimano
Brakes	Disc Brakes (Mechanical)
Tires	26 x 1.95 inches
Suspension	Front Fork
Display	LCD Multi-Function
Lighting	LED Front & Rear
Fenders	Yes
Rack	Rear Carrier
Weight (with battery)	22 kg
Max Load	120 kg
Dimensions (L x W x H)	1650 x 580 x 1050 mm
Water Resistance	IPX4

Frequently Asked Questions - HE-BX655 Hiper

How long does the battery take to charge?

The HE-BX655 battery typically takes about 6 hours to fully charge. Use the included charger and avoid leaving it plugged in for extended periods.

What is the maximum range on a single charge?

Depending on rider weight, terrain, and assist level, the range is between 40 and 80 km. For best range, use lower assist levels and maintain tire pressure.

Is the bike suitable for hills?

Yes, the 250W motor provides assistance on moderate hills. For steep inclines, you may need to pedal actively. The 7-speed drivetrain helps.

Can I ride without the battery?

Yes, the Hiper HE-BX655 can be used as a regular bicycle without power. The motor has internal resistance, so it may be slightly heavier to pedal.

How do I adjust the brakes?

Disc brakes can be adjusted by turning the barrel adjuster on the brake lever. If pads are worn, replace them. Refer to the manual for detailed steps.

What type of maintenance does the bike require?

Regularly check tire pressure, brake pads, chain lubrication, and bolt tightness. Keep the battery charged between 20% and 80% for longevity.

Is the battery removable?

Yes, the battery is removable and can be charged separately. It is located on the downtube and can be unlocked with the key provided.

What is the warranty period?

Hiper offers a 2-year warranty on the frame and motor, and 1 year on the battery and electronics. Keep your receipt for claims.

How do I assemble the bike?

Partially assembled in the box. Attach the front wheel, handlebars, pedals, seat, and accessories. Tighten all bolts securely and check before first ride.

What is the maximum rider weight?

The maximum total load (rider plus cargo) is 120 kg. Do not exceed this to avoid damage to the frame or components.

USER MANUAL HE-BX655 Hiper

[Revision 2.2 Feb 2021]

Модели: HE-BL140, HE-BF200, HE-BF202, HE-BF204, HE-BF206, HE-B51, HE-B53, HE-B62, HE-B67, HE-B85, HE-BX635, HE-BX655

Артикулы: Engine HE-BL140 White, Engine HE-BF200 Metallic, Engine HE-BF200 Brown Metallic, Engine HE-BF202 Black, Engine HE-BF204 Blue Metallic, Engine HE-BF204 Space Gray, Engine HE-BF206 Space Gray, Engine HE-B51 Graphite, Engine HE-B51 Midnight Blue, Engine HE-B51 Blue Silver, Engine HE-B53 Graphite, Engine HE-B53 Midnight Blue, Engine B62 Graphite, Engine B62 Brown Metallic, Engine B62 White Silver, Engine B67 Graphite, Engine B67 Brown Metallic, Engine B67 White Silver, Engine B85 Midnight Blue, Engine BX635 Space Gray, Engine BX655 Graphite

Close-up of a hand adjusting a bicycle's seat, with an arrow pointing to the handle and a labeled circle (A) pointing to the seat.

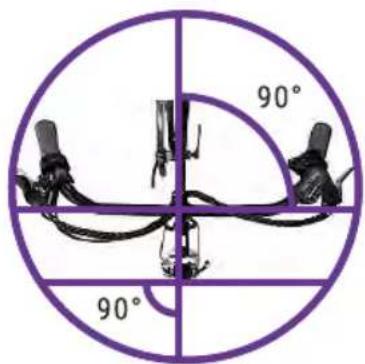

Diagram of a mechanical linkage system with 90-degree angular markings (no text or symbols on components)

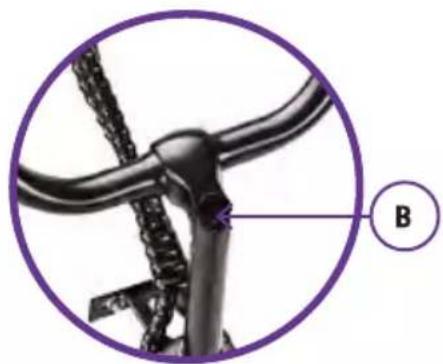

Close-up of a bicycle wheel and chain, labeled with letter B (no text or symbols on the diagram itself)

СБОРКА РУЛЯ МОДЕЛЕЙ BL140, BF200, BF202, BF204, BF206

Close-up of bicycle wheel assembly with labeled components (A and C), no visible text or symbols beyond labels

Педали

Close-up of a mechanical assembly with a hand operating a tool, labeled 'K' (no text or symbols on the diagram itself)

Close-up of a mechanical component with a labeled section (L) and internal structure, no readable text or symbols present.

Эксплуатация

Close-up of a black handheld electric shaver with a display and control buttons, enclosed in a purple circular border (no visible text or symbols)

Close-up of a dark blue car's side panel with a transparent plastic clip and a 'BB' label (no other text or symbols visible)

Close-up of a mechanical component with a metallic fitting and threaded shaft, labeled 'BB' in the corner (no other text or symbols visible)

Close-up of a mechanical component with threaded spring and housing, labeled 'A' (no text or symbols beyond label)

Close-up of a mechanical assembly with labeled parts A and B, showing internal components without any readable text or symbols.

Close-up of a bicycle brake system with visible suspension components and wheel rim (no text or symbols)

Close-up of a mechanical assembly with visible components and a green accent (no text or symbols)

Close-up of a mechanical component with labeled section A, showing internal structure and curved surfaces (no text or symbols beyond label)
