XED62 - Pregnant Cerwin-Vega - Free user manual and instructions

Product Type	Car Speaker (Coaxial)
Brand	Cerwin-Vega
Model	XED62
Speaker Size	6.5 inches
Type	2-Way Coaxial
Woofer Cone Material	Polypropylene
Tweeter Type	1-inch Silk Dome
Power Handling (RMS)	75 Watts
Power Handling (Peak)	225 Watts
Sensitivity	91 dB
Frequency Response	50 Hz - 20 kHz
Impedance	4 Ohms
Mounting Depth	2.5 inches
Mounting Cutout Diameter	5.5 inches
Weight (per speaker)	1.5 lbs
Recommended Amplifier Power	50-150 Watts RMS
Crossover	Built-in
Magnet Material	Ferrite
Voice Coil Diameter	1 inch
Grille Included	Yes
Warranty	1 Year
Installation Location	Front or Rear Doors
Compliance	CE, RoHS

Frequently Asked Questions - XED62 Cerwin-Vega

What is the power handling of the Cerwin-Vega XED62?

The Cerwin-Vega XED62 handles 75 Watts RMS and 225 Watts peak. It pairs well with amplifiers delivering 50-150 Watts RMS per channel.

What size is the XED62 speaker?

The XED62 is a 6.5-inch coaxial speaker. It requires a mounting cutout diameter of approximately 5.5 inches and has a mounting depth of 2.5 inches.

What is the impedance? Can I use it with a 2-ohm stable amp?

The impedance is 4 Ohms. This is compatible with most car amplifiers. Running them on a 2-ohm stable amp is fine, but wiring two speakers in parallel would result in a 2-ohm load.

Does it come with grilles and mounting hardware?

Yes, the Cerwin-Vega XED62 typically includes grilles and all necessary mounting hardware for installation.

What is the mounting depth? Will it fit in my car?

The mounting depth is 2.5 inches. This is a standard depth for 6.5-inch speakers and fits most factory locations. Check your vehicle's clearance to ensure proper fitment.

What type of tweeter does it use?

It uses a 1-inch silk dome tweeter for smooth high frequencies. The tweeter is coaxially mounted and may be slightly angled for improved soundstage.

Is it compatible with factory radios?

Yes, the XED62 is compatible with factory radios as long as the radio provides at least 15 Watts RMS per channel. However, for best performance, use an external amplifier.

How do I install these speakers?

Installation involves removing the old speaker, wiring the XED62 using the included harness (or splicing), and securing it with the supplied screws. Ensure proper polarity and avoid over-tightening. Refer to your vehicle's manual for panel removal.

What is the sensitivity? Do I need a powerful amp?

Sensitivity is 91 dB, which is average. You can run them on a head unit, but a dedicated amplifier (50-150W RMS) will maximize their potential.

What is the frequency response?

The frequency response is 50 Hz - 20 kHz. This covers most audible range, but for deeper bass, consider adding a subwoofer.

USER MANUAL XED62 Cerwin-Vega

Thank you for purchasing a Cerwin Vega Mobile product and we hope to provide you with countless hours of listening enjoyment.

Please take a brief moment to register your new product. By registering your new product, you will receive benefits such as:

• Important product notifications that may pertain to your purchase.
• Confirmation and record of ownership in case of loss or theft.
• Knowledgeable customer service and technical assistance pertaining to your product.

Register your new product by completely filling out this Product and Warranty Registration card or register online at www.cerwinvegamobile.com.

Registration is voluntary and failure to register will not diminish your limited warranty rights.

Limited Warranty (U.S.A.)

Cerwin Vega Mobile warrants all of our amplifiers and speakers to be free of defects in materials and workmanship for a period of one (1) year.

This warranty is non-transferable and applies only to the original purchaser from an authorized Cerwin Vega Mobile dealer. If service is required and necessary under this warranty due to manufacturing defect or malfunction, then Cerwin Vega Mobile will repair and/or replace defective product with either new or remanufactured like product at no charge at our discretion.

Damage to product caused by the following will not be covered under this warranty: abuse, accident, misuse, neglect, modifications, repairing attempts, seller/installer misrepresentation.

This warranty does not cover any incidental, consequential, or cosmetic damage due to accidents or normal wear and tear, nor does it cover the cost of removing or reinstallation of the product.

Warranty is void if the product's serial number has been removed, defaced, and/or tampered with.

Warranty Procedure:

We recommend that you contact your Cerwin Vega Mobile authorized dealer where your original purchase was made to initiate all warranty claims. Our authorized dealers can guide you through the warranty procedure to ensure that your claim will be processed in a timely manner. All warranty returns must be accompanied with a proof of purchase (a copy of the original sales receipt) and be shipped freight prepaid to our facility with an RA (Return Authorization) number clearly marked on the outside of the package. Direct returns from consumers or non-authorized dealers will be refused if shipped without a valid RA number authorized by Cerwin Vega Mobile beforehand.

INTERNATIONAL

Products purchased outside of the U.S.A. are covered only by that country's distributor and not by Cerwin Vega Mobile U.S.A.

Please Ship All Warranty Claims With Pre-Authorized RA Number To:

CV&DA Holdings, Inc.

ATTN: Customer Service Department

1225 E. 7th St.

Los Angeles, CA 90021 USA

Please Contact Customer Service for Further Warranty Information:

U.S.A.

Tel: [phone] / Fax: [phone]

Introduction

Cerwin Vega Mobile Speakers

Congratulations for purchasing Cerwin Vega Mobile speakers for your car audio system. You have chosen Cerwin Vega Mobile because you deserve the best!

Cerwin Vega Mobile speakers are designed and engineered to reproduce great sound quality for many years of listening enjoyment in your vehicle! We highly recommend that your new speakers be installed by an authorized Cerwin Vega Mobile dealer. Your authorized dealer can professionally assemble/disassemble the interior of your vehicle and set the proper speaker placement for ideal sound quality.

If you decide to install the speakers by yourself, please thoroughly read through this manual before getting started. This manual will help familiarize yourself with these speakers and guide you through the installation process and procedures.

Please contact your local authorized Cerwin Vega Mobile dealer if you have any questions regarding the instructions in this manual. If you require additional assistance, please contact the Cerwin Vega Mobile Technical Support Department during business hours at 213-261-4161.

Features/Specs

HED 62 - Co-Axial

350 Watts MAX

Curvilinear Poly Cone

Butyl Rubber Surround

Balanced Metal Dome .75" CV Tweeter

Black Coat Stamped Steel Basket

Signature Cerwin-Vega Sound!

Grills and Hardware

HED 693 - 3 Way

300 Watts MAX

Curvilinear Poly Cone

Butyl Rubber Surround

Balanced Metal Dome 2.5" MidRange

Balanced Piezo Metal Dome .75" CV Tweeter

Black Coat Stamped Steel Basket

Signature Cerwin-Vega Sound!

Grills and Hardware

HED6SOC - Component

300 Watts MAX

Curvilinear Poly Cone Midrange

Butyl Rubber Surround

Black Coat Stamped Steel Basket

Balanced Metal Dome 0.5" CV Tweeter

High Grade External Crossover Network

Signature Carwin Vega Sound!

Grills and Hardware

Installation

NOTE: DIMENSIONS ARE IN INCHES AND MILLIMETERS

HED693

HED62

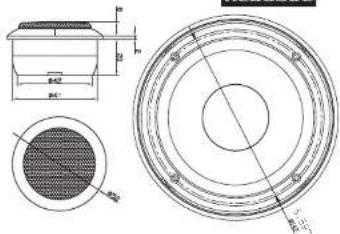

Technical drawing of a circular mechanical component with concentric rings and central hub (no text or symbols)

XED6SOC
