IPORT CONNECT PRO Case Install Manu-
Thank you for purchasing the all new IPORT CONNECT Platform. We hope you enjoy this revolutionary new system and if at any time you need more assistance please contact IPORT Tech Support via Online chart or through our help desk.
- IPORT Team
Whats in box:
1 - IPORT CONNECT Case
1 - IPORT Security tool - 1.5mm hex key
1 - Info Card
Product Info Page - www.iportproducts.com/cpcase
Glossary of Terms:
- Case - The fully assembled CONNECT PRO Case.
- Case Top - The short removable portion of the chase including the locking portion of the Case.
- IPORT Security Tool - The orange handled 1.5mm hex tool used for locking and unlocking IPORT Products.

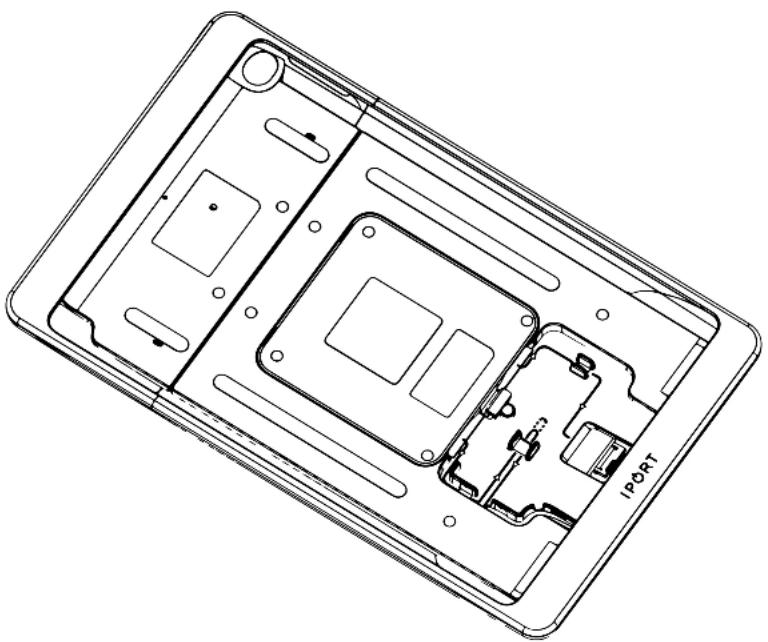

- Station Interface Module - The main electronics portion of the new IPORT CONNECT Platform consisting of the round electronic components.
- Dock Interface Module - The secondary linear electronics found on the IPORT CONNECT Case.

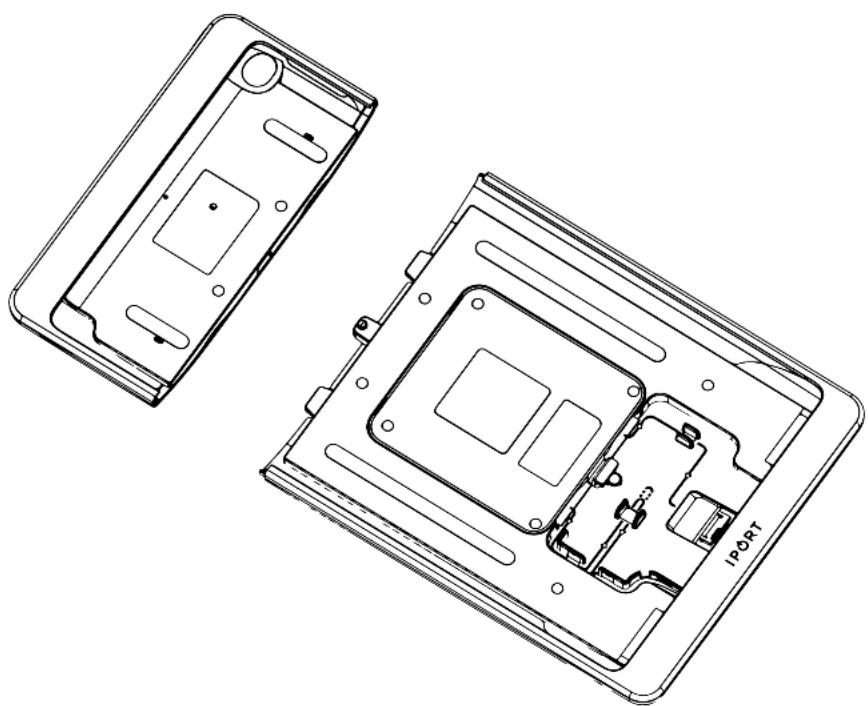

- Remove Case from the box and place on a table.


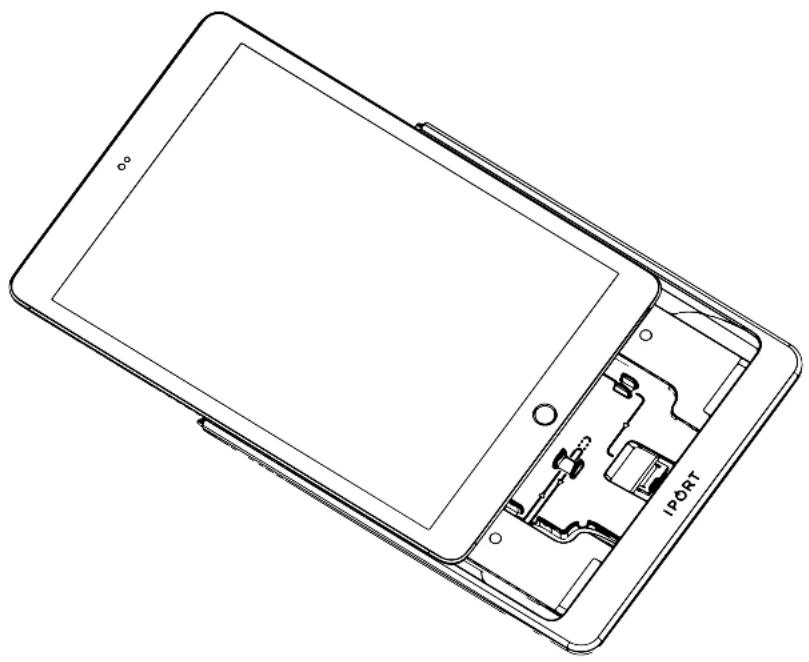

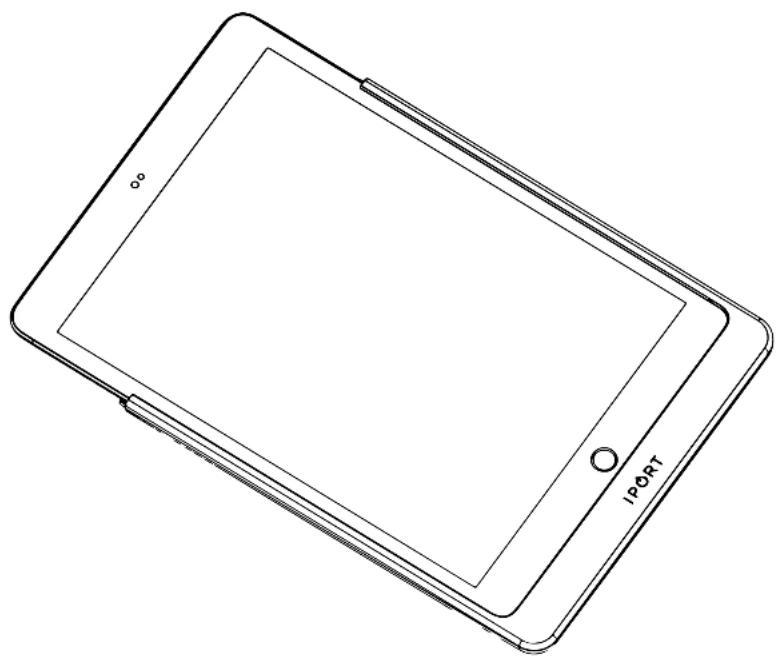

Technical line drawing of a smartphone internal casing showing internal components and mounting holes (no text or symbols)3. Slide iPad into the Case making sure the lighting cable is snugly inserted into the iPad.


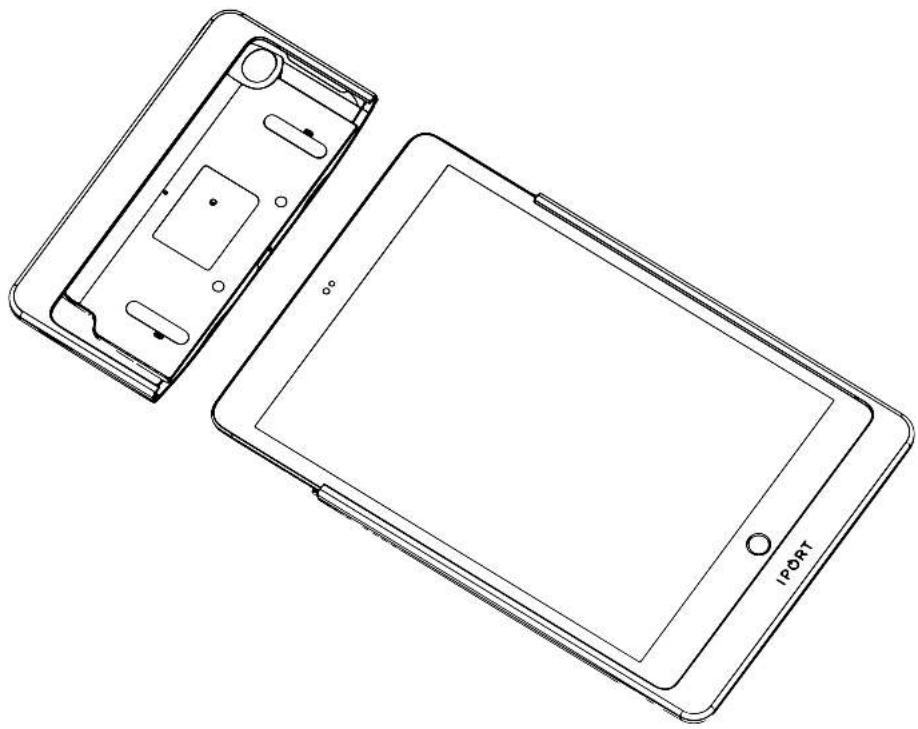

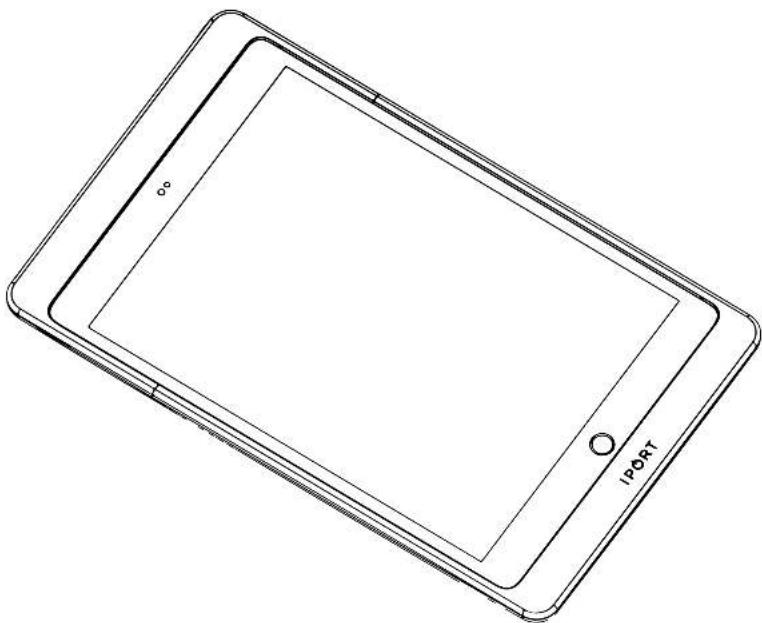

Line drawing of a tablet device with no visible text or symbols on the screen or body4. Reinstall the Case top onto the lower half if the Case and iPad.


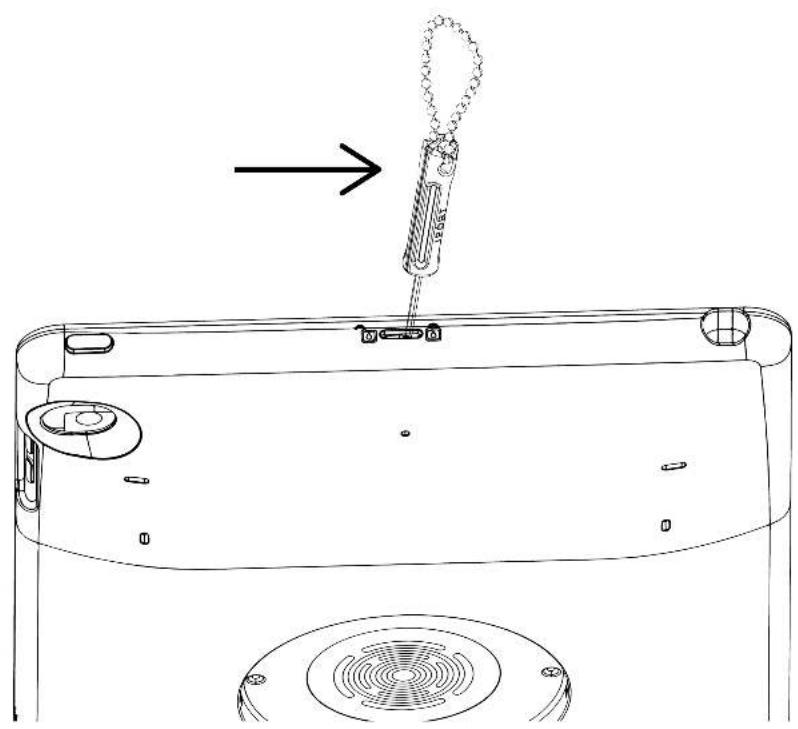

Line drawing of a tablet device with no text or symbols on the screen or body- Use the provided IPORT tool, insert the tool into the top of the case and slide the tool towards the lock position icon.
- For added security rotate the IPORT tool clockwise to tighten the setscrew in place holding the lock secure.


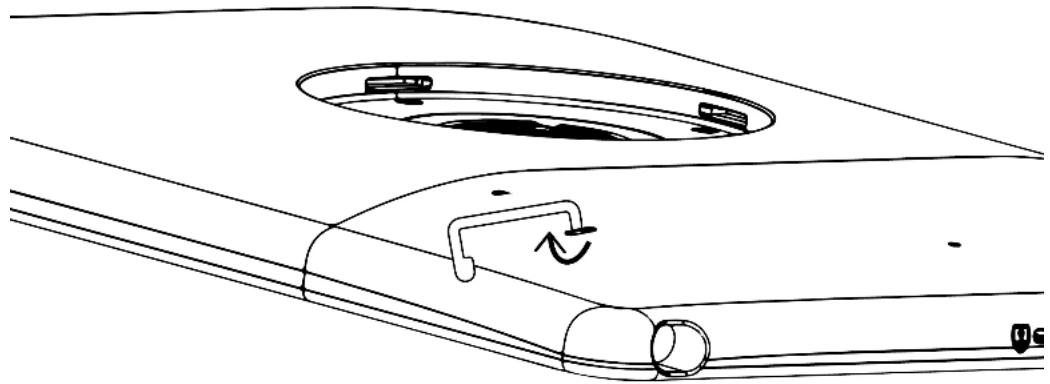

1. Insert the metal strap loops with the flat end pointing towards the left or right side of the case.


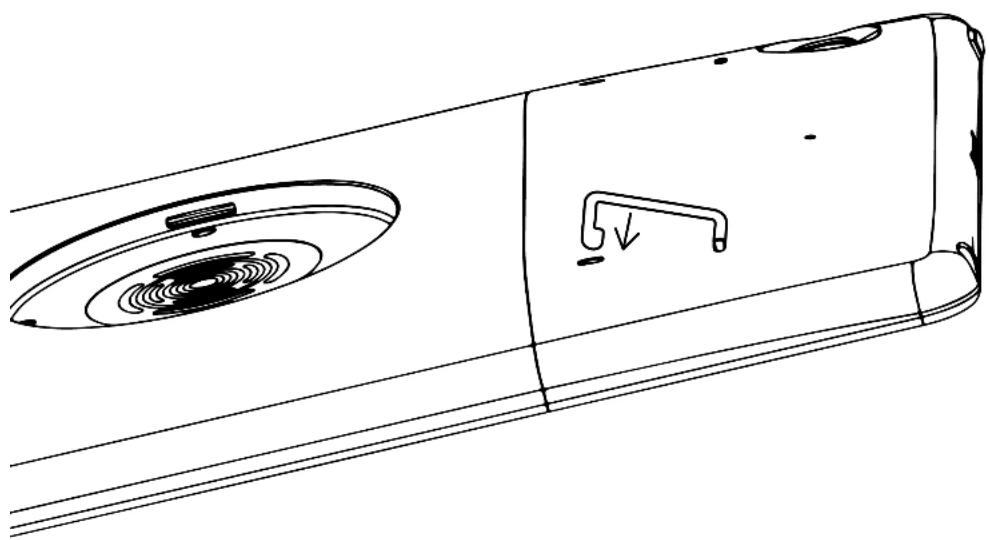

- Rotate the strap clip towards the bottom of the Case and insert into the hole until the strap clip snaps into place.


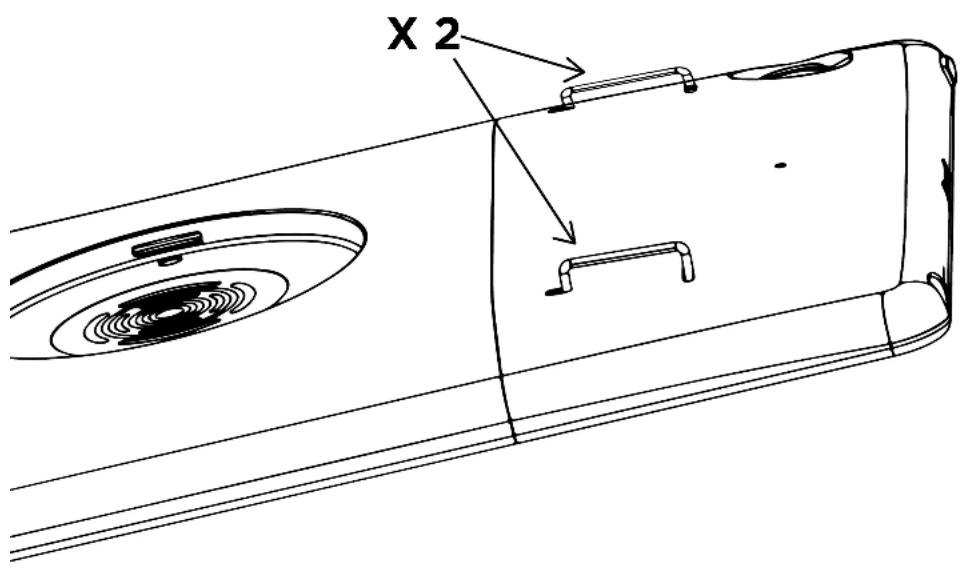

Line drawing of a device casing with internal components and a downward arrow indicating a feature (no text or symbols)3. Repeat for the second clip.
NOTE Case Top and Bottom MUST be locked together to properly secure the iPad and CONNECT PRO Case together.
Hand Strap Removal
-
Unlock the CONNECT PRO Case Top from the Case Bottom. See step 5 of installing the Case.
-

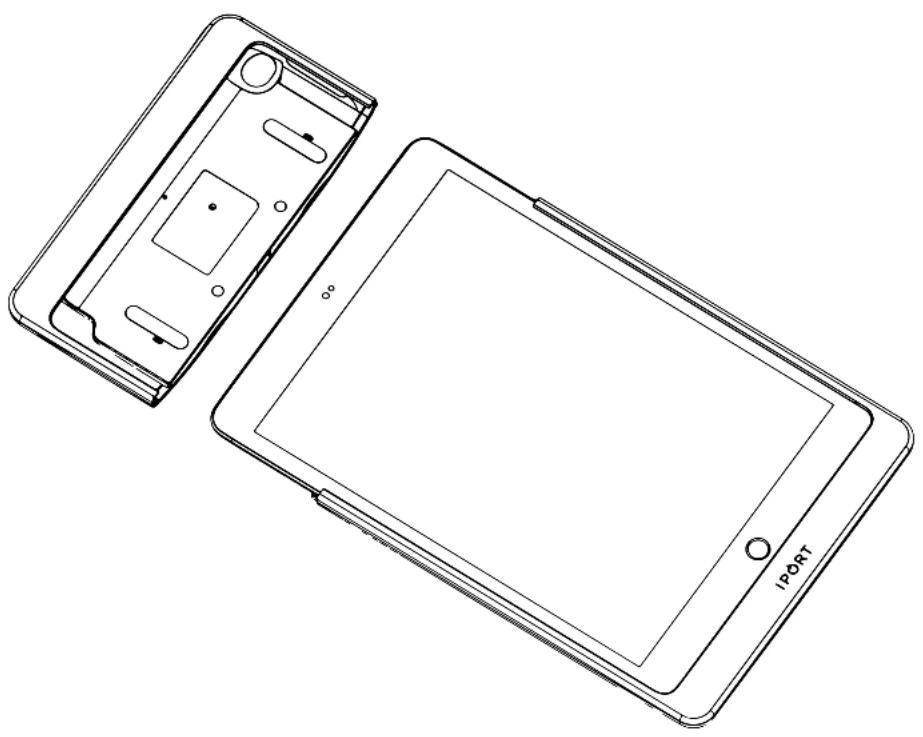

Remove the Case Top from the Case Bottom.

